Product type	Super tweeter
Brand	Sony
Model	SS-TW100ED
Dimensions (super tweeter)	110 × 70 × 140 mm (W × H × D)
Weight (super tweeter)	0.7 kg
Weight (network box)	0.85 kg
Nominal impedance	8 ohms
Frequency response	5,000 Hz – 100,000 Hz
Maximum input power	100 W (at 5 kHz, -12 dB/oct with network)
Sensitivity	86 dB/W/m
Selectable crossover frequencies	20 kHz, 30 kHz, 40 kHz (-12 dB/oct)
Adjustable angle	±15° laterally
Housing material	Spherical aluminum
Diaphragm material	Graphite-carbon dome
Supplied accessories	Network box (1)
Recommended cleaning	Soft cloth slightly dampened with mild detergent
Precautions for use	Use with the network box, observe polarity, do not exceed maximum power, do not remove the grille

Frequently Asked Questions - SSTW100ED SONY

How to connect the SS-TW100ED super tweeter to an amplifier?

Connect the input terminal of the super tweeter to the SUPER TWEETER terminal of the supplied network box, then the INPUT terminal of the network box to the amplifier output terminal. Ensure the amplifier is turned off when connecting and observe the polarity (+/-).

Which crossover frequency should I choose?

The crossover frequency is selected by connecting the wires to the INPUT terminals of the network box. Choose 20 kHz, 30 kHz, or 40 kHz depending on the characteristics of your main speakers. For classic tweeters, 20 kHz is often suitable.

How to adjust the angle of the super tweeter?

The super tweeter can be tilted laterally by ±15° from its normal position (0°). Loosen the adjustment screw slightly, orient it towards the listening position, then tighten.

Can I use the super tweeter without the network box?

No, the network box is essential to protect the speaker from low frequencies and to select the crossover. Using it prevents damage to the super tweeter.

What is the impedance of the super tweeter?

The nominal impedance is 8 ohms. The amplifier must therefore support an 8 ohm load to work correctly.

How to clean the super tweeter?

Clean the cabinet with a soft cloth slightly dampened with water or a neutral detergent solution. Never use abrasive pads, scouring powder, alcohol, or benzene.

Can the super tweeter be placed on any surface?

Place it on a flat and stable surface, preferably on top of the main speaker. Avoid inclined surfaces, humid, dusty, or sun-exposed places.

Which speaker cables do you recommend?

Use high-quality cables with the largest possible diameter, but of just the necessary length. Keep them away from power cords to avoid interference.

What to do if the sound is weak in the bass?

Check that the polarity of the connections is correct (+ to +, - to -). A polarity reversal weakens the bass. Also ensure the terminal screws are tightened.

Can I remove the grille of the super tweeter?

No, the grille is extremely fragile and cannot be removed. Attempting to remove it may damage the speaker.

USER MANUAL SSTW100ED SONY

Super Tweeter System

Installation Manual GB
Manuel d'installation FR
Installationsanleitung DE
Manual de instalación ES
Installatiehandleiding NL
Installationsanvisningar
Manuale di installmente IT
Manual de Instalação PT
Installationsvejledning DK
Käytöohjeet FI

SS-TW100ED

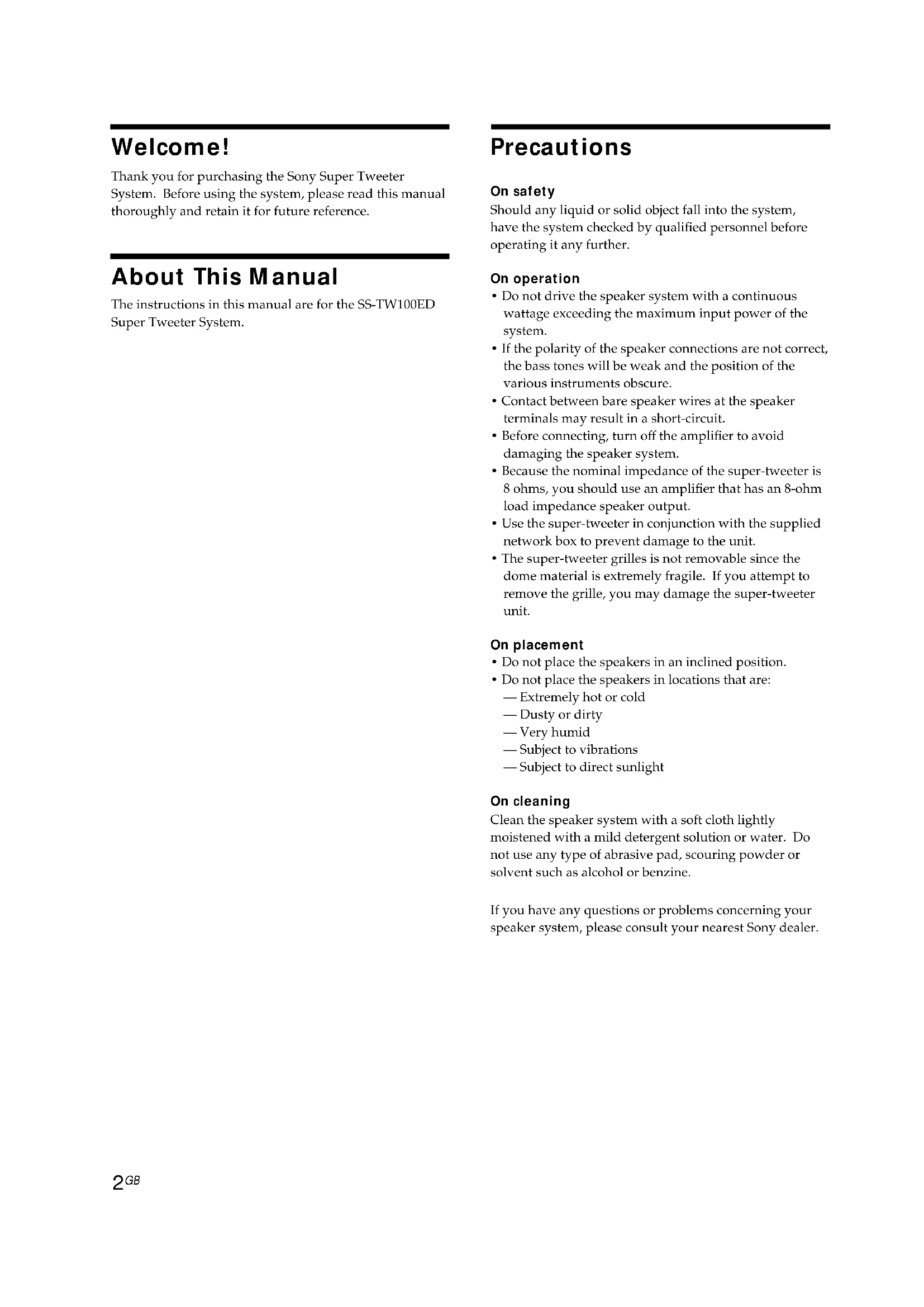

Welcome!

Thank you for purchasing the Sony Super Tweeter System. Before using the system, please read this manual thoroughly and retain it for future reference.

About This Manual

The instructions in this manual are for the SS-TW100ED Super Tweeter System.

Precautions

On safety

Should any liquid or solid object fall into the system, have the system checked by qualified personnel before operating it any further.

On operation

• Do not drive the speaker system with a continuous wattage exceeding the maximum input power of the system.
• If the polarity of the speaker connections are not correct, the bass tones will be weak and the position of the various instruments obscure.
• Contact between bare speaker wires at the speaker terminals may result in a short-circuit.
• Before connecting, turn off the amplifier to avoid damaging the speaker system.
• Because the nominal impedance of the super-tweeter is 8 ohms, you should use an amplifier that has an 8-ohm load impedance speaker output.
• Use the super-tweeter in conjunction with the supplied network box to prevent damage to the unit.
• The super-tweeter grilles is not removable since the dome material is extremely fragile. If you attempt to remove the grille, you may damage the super-tweeter unit.

On placement

• Do not place the speakers in an inclined position.
• Do not place the speakers in locations that are:

Extremely hot or cold
Dusty or dirty
— Very humid
Subject to vibrations
Subject to direct sunlight

On cleaning

Clean the speaker system with a soft cloth lightly moistened with a mild detergent solution or water. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your speaker system, please consult your nearest Sony dealer.

SS-TW100ED Features

A super-tweeter for ultra-high frequency reproduction

The SS-TW100ED is a super-tweeter with the capability to reproduce extremely high frequencies of up to 100kHz making it suitable for next-generation sound systems.

Adjustable speaker angle for optimum effect

Because of the high directivity of frequencies greater than 20kHz , the super-tweeter can be laterally adjusted by up to ± 15 degrees.

Structually designed for ultra-high frequency reproduction

• A spherical aluminum housing for minimal sound diffraction
• A carbon-graphite composite hard-dome diaphragm for lightness and high rigidity

High-quality network box as standard accessory

The supplied network box allows you to make terminal selections without the signal degradation that normally occurs when selecting cut-off frequencies with a conventional switch.

To obtain the best possible sound quality

Positioning the super-tweeter

• Place the super-tweeter on the top of your speaker cabinet. The top of your speaker cabinet should be completely level.
  To ensure the proper time alignment of your speaker systems, position the super-tweeter unit so that it lies on the same line as the tweeter units in the speaker system that you are using.

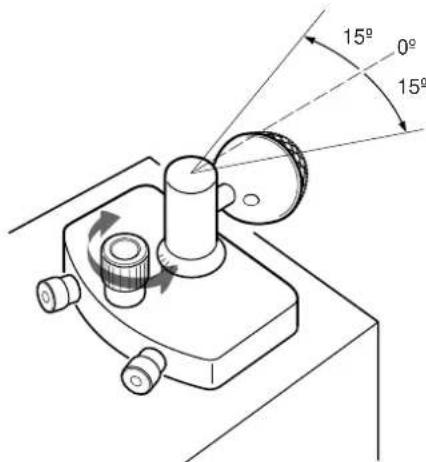

Adjusting the orientation

Since high frequencies above 20kHz have extreme directivity, the super-tweeter is designed to be laterally adjustable by up to ± 15 degrees (though it is normally set at 0 degree), allowing you to direct it exactly towards the listening position.

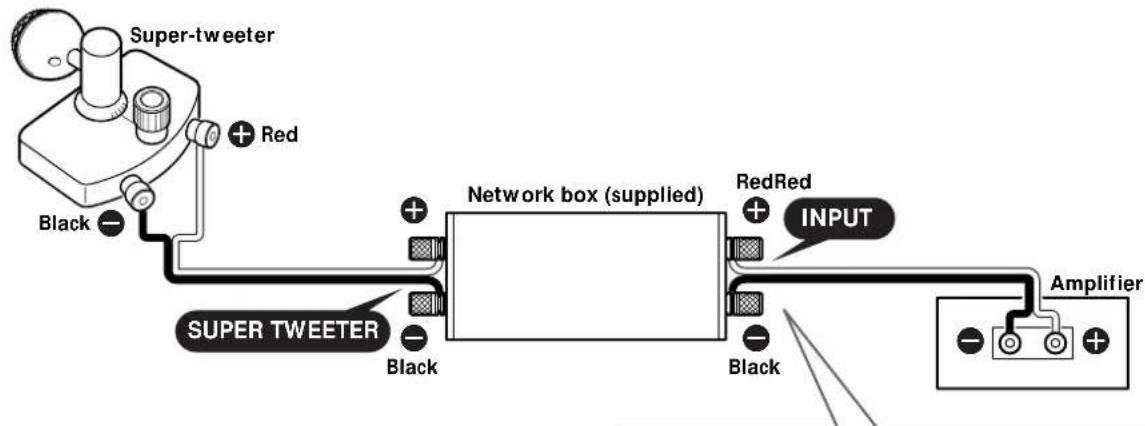

Connecting to an amplifier

Connect the input terminal on the super-tweeter to the SUPER TWEETER terminal on the supplied network box, and connect the INPUT terminal on the network box to the output terminal on the amplifier.

Speaker cords (not supplied)

The sound quality of the speaker system is largely determined by the quality of the speaker cords.

Since the sound quality of the SS-TW100ED is especially sensitive to even slight differences in speaker cords, you should choose high-quality speaker cords that suit your personal taste.

The speaker cords should be as large in diameter as possible and only as long as is necessary.

You should also keep the speaker cords away from all AC power cords.

Notes on connections

• The super-tweeter should be used in conjunction with the supplied network box to prevent damage the unit.
• The right and left speakers should be matched and connected with the (R) (right) and (L) (left) output terminals on the amplifier.
• The (+) and (-) input terminals on the speaker should be matched and connected to the (+) and (-) output terminals on the amplifier.
• Be sure the screws on the speaker terminals tight since loose screws will cause degradation in the sound quality, and perhaps noise as well.
• Make sure the cords are firmly connected to the terminals on the speaker, the network box, and the amplifier.
• Do not bend cords at acute angles (i.e., an angle of 90 degrees or less).
• Be careful not to connect a (+) terminal to a (-) terminal as this may result in a short-circuit.

Selecting the cut-off frequency

Select the cut-off frequency according to the specifications of the speaker system that you are using. With the super tweeter, you change the cut-off frequency by changing the INPUT terminal connection on the network box.

A:20kHz B:30kHz C:40kHz

Specifications

Impedance 8 ohms

Frequency response 5,000Hz - 100,000Hz

Maximum input power 100 watts (5,000Hz, - 12dB/ oct (when the network is used))

Sensitivity 86 dB/W/m

Crossover frequencies 20kHz 30kHz 40kHz (-12dB / oct)

Dimensions (w / h / d)

Super-tweeter: Approx. 110· 70· 140mm

Network box: Approx. 70 · 70 · 210 ~mm

Mass

Super-tweeter: Approx. 0.7kg

Network box: Approx. 0.85kg

Supplied accessories Network box (1)

Design and specifications are subject to change without notice.

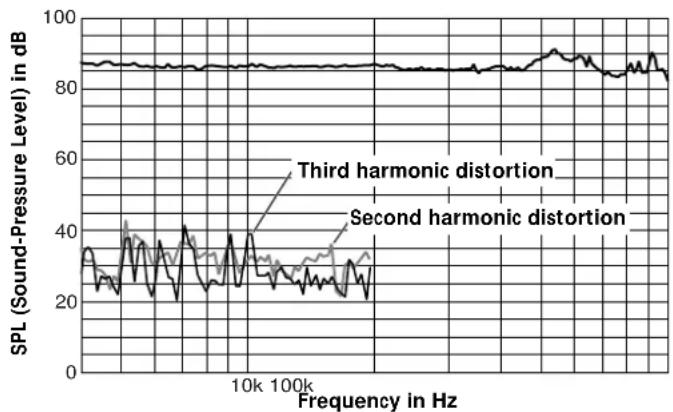

Frequency response/Harmonic distortion factor

Transmission frequency characteristics

Bienvenue!

A:20kHz B:30kHz C:40kHz

Specifications

Impedance 8 ohms

A:20kHz B:30kHz C:40kHz

Technische Daten

Impedanz 8 Ohm

A:20kHz B:30kHz C:40kHz

Especificaiones

Impedancia 8 ohmios

A:20kHz B:30kHz C:40kHz

Especificações

Impedência 8 ohms

A:20kHz B:30kHz C:40kHz

Specificationer

Impedans 8 ohm

Frekvensgang 5.000 Hz - 100.000 Hz

Max. indgangseffekt 100 watt (5.000 Hz, -12 dB/ oct (när kredslob B anvendcs))

Folsomhed 86 dB/W/m

Afskæringsfrekvenser 20 kHz, 30 kHz, 40 kHz (-12 dB/occt)

Mäl (b/h/d)

Super-diskanthojttiler: Ca. 110 · 70 · 140 mm

Frekvensvaelgerboks: Ca. 70·70·210 mm

Vægt

Super-diskanthojtalter: Ca. 0,7 kg

Frekvensvaelgerboks: Ca. 0,85 kg

A:20kHz B:30kHz C:40kHz

Tekniset tiedot

Impedanssi 8 ohmia

Tajuusvaste 5.000Hz - 100.000Hz
