HTM72 S2 - Speaker BOWERS & WILKINS - Free user manual and instructions

Product Type	Center channel speaker for home theater system
Brand	Bowers & Wilkins
Model	HTM72 S2
Dimensions (W x H x D)	490 mm x 160 mm x 285 mm
Weight	8.5 kg
Power	Passive (requires external amplifier)
Nominal impedance	8 ohms
Power handling	120 W (recommended 30-120 W)
Frequency response	48 Hz – 28 kHz
Key features	High-definition sound reproduction, bi-wiring/bi-amping, bass adjustment with foam plugs
Driver technology	130mm Continuum midrange/woofer, 25mm carbon dome tweeter
Connections	2 pairs of terminals (bi-wiring possible)
Recommended placement	At center, behind or above/below screen, at ear height
Care and cleaning	Dusting, cleaning with mild soap and water, do not touch speakers
Safety	Keep distances from magnetic fields (≥50 cm from CRT), turn off before connecting
Spare parts and repairability	Contact an authorized dealer for any repairs
General information	Compliant with RoHS, REACH, WEEE directives; allow a break-in period

Frequently Asked Questions - HTM72 S2 BOWERS & WILKINS

How to position the HTM72 S2 speaker for optimal sound?

Place it just behind or above/below the screen, aligned with the front edge of the screen, at ear height if possible. Use wall mounts or a rigid shelf. Avoid installing it too close to walls to prevent excessive bass.

How to connect the speaker to the amplifier?

Ensure all devices are off. For standard connection, leave the links between terminals and connect a single pair of cables to the amplifier (+ to red, - to black). Observe polarity.

Can I use bi-wiring or bi-amping with this speaker?

Yes, the speaker is compatible. Remove the links between the two pairs of terminals and connect each pair independently to the amplifier. This improves resolution of fine details.

What to do if the bass level is too high?

You can insert the supplied foam plugs into the decompression ports. Use only the outer part for moderate reduction, or both for stronger reduction. Also adjust the speaker position.

How to clean the HTM72 S2 speaker?

Dust the cabinet with a soft cloth. For stains, use a damp cloth with mild soap and water. Never use abrasive or ammonia-containing products. Avoid touching the speakers.

Is there a break-in period for the speaker?

Yes, after storage at low temperature, allow about a weekend for thermal stabilization, then 15 hours of normal use for the mechanical suspensions to reach optimal performance.

Can the speaker's magnetic fields damage other devices?

Yes, speakers generate magnetic fields. Keep the speaker at least 50 cm away from sensitive devices like CRT TVs, tapes, or magnetic cards. LCD, OLED, and plasma screens are not affected.

What to do if the real wood finish changes color?

Expose the surfaces evenly to sunlight or carefully use a UV lamp. Keep the speaker away from heat sources to prevent cracking.

Does the box contain all necessary accessories?

Yes, for the HTM72 S2, the box contains 1 foam plug and 4 self-adhesive rubber feet. Ensure everything is present before installation.

Is this speaker compliant with environmental standards?

Yes, it is compliant with RoHS, REACH, and WEEE directives. For recycling, consult your local waste disposal authority.

USER MANUAL HTM72 S2 BOWERS & WILKINS

Welcome and thank you for choosing Bowers & Wilkins. Our founder, John Bowers, believed that imaginative design, innovative engineering and advanced technology were keys that could unlock the enjoyment of audio in the home. His belief is one that we continue to share and inspires every product we design.

This is a high performance product that rewards thoughtful installation, so we suggest that you take some time to read this manual before you begin. Continue on page 5

德L Bowers & Wilkins's hllr J John Bowers n

OdiO的喜贝歌用上习加有中责

通部自，

默神了。

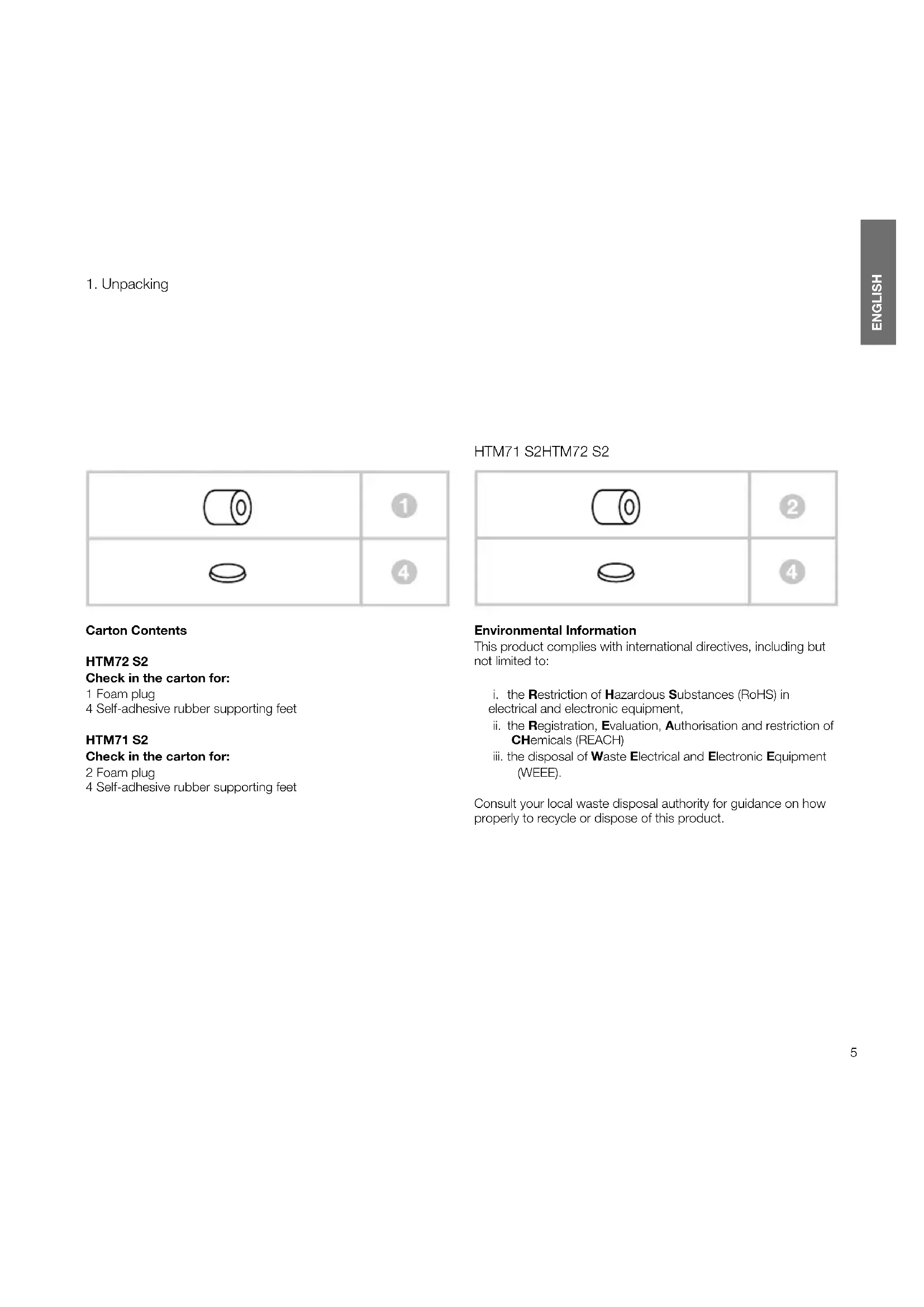

Check in the carton for:

1 Foam plug
4 Self-adhesive rubber supporting feet

HTM71 S2

Check in the carton for:

2 Foam plug
4 Self-adhesive rubber supporting feet

HTM71 S2HTM72 S2

Environmental Information

This product complies with international directives, including but not limited to:

i. the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment,
ii. the Registration, Evaluation, Authorisation and restriction of CHemicals (REACH)
iii. the disposal of Waste Electrical and Electronic Equipment (WEEE).

Consult your local waste disposal authority for guidance on how properly to recycle or dispose of this product.

1. Positioning

Speaker Installation

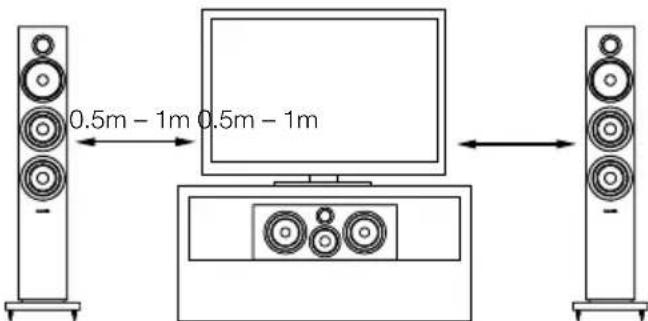

If using a projector with an acoustically transparent screen, place the speaker behind the centre of the screen. Otherwise position it directly above or below the screen, whichever is closest to ear level. Align the front of the speaker approximately level with the screen. The speaker is best used mounted on a rigid shelf or wall bracket or on a rigid floor stand. If the speaker is to be placed either on a shelf or in a rack shared with other AV equipment fix the 4 self-adhesive pads to the base of the speaker. They provide a degree of vibration isolation.

Stray magnetic fields

The speaker drive units create stray magnetic fields that extend beyond the boundaries of the cabinet. We recommend you keep magnetically sensitive articles (CRT television and computer screens, computer discs, audio and video tapes, swipe cards and the like) at least 0.5m from the speaker. LCD, OLED and plasma screens are not affected by magnetic fields.

3. Connections

HTM72 S2

All connections should be made with the audio equipment switched off.

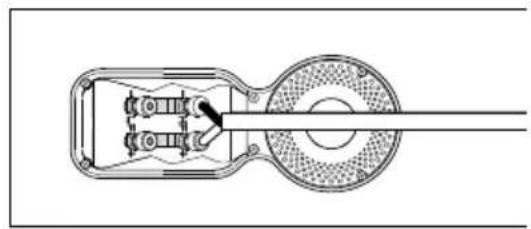

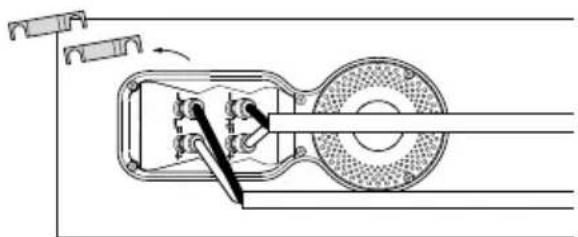

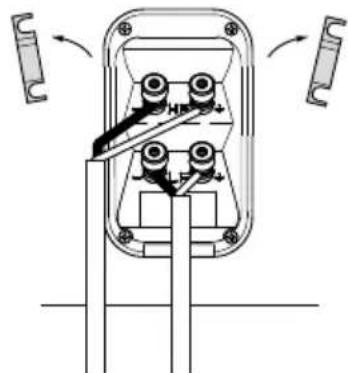

There are 2 linked pairs of terminals on the back of the speaker. For conventional connection (above left), the terminal links should remain in place (as delivered) and just one pair of terminals connected to the amplifier. For bi-wire connections or bi-amplification (above right), the terminal links should be removed and each pair of terminals connected to the amplifier or amplifiers independently. Bi-wiring can improve the resolution of low-level detail.

HTM71 S2

Ensure that the positive terminals on the speaker (marked + and coloured red) are connected to the positive output terminal on the amplifier and the negative terminals on the speaker (marked - and coloured black) are connected to the negative output terminal on the amplifier. Incorrect connection can result in poor imaging and loss of bass.

Ask your dealer for advice when selecting speaker cable.

4. Fine Tuning

Before fine tuning, make sure that all the connections in the installation are correct and secure.

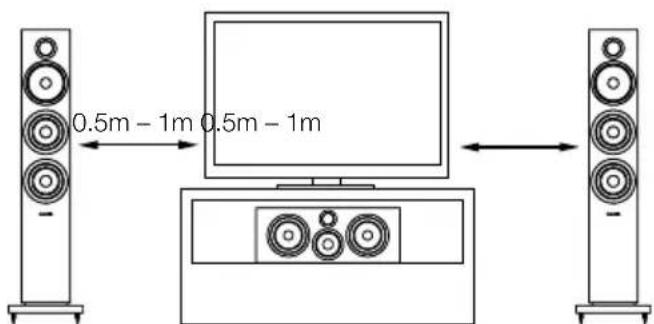

Moving the speakers further from the walls will generally reduce the volume of bass. Space behind the speakers will also help to create an aural impression of depth. Conversely, moving the speakers closer to the walls will increase the volume of bass. If you want to reduce the volume of bass without moving the speakers further from the wall, fit the foam plugs or, for less severe bass reduction, the foam rings in the port tubes (above).

If the bass seems uneven with frequency this will most probably be a consequence of the acoustic properties of your listening room. Even small changes in the position of the speakers or listening position can have a significant effect on sonic performance, especially at low frequencies. Try moving your listening position or locating your speakers along a different wall if possible.

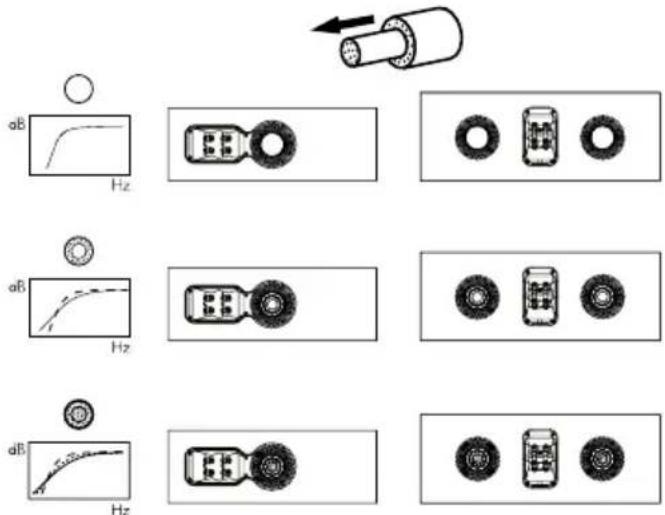

If no alternatives exist, you can adjust your loudspeakers' low-frequency performance using the supplied foam bungs. The bungs are a two-piece part, allowing for a degree of fine-tuning using either the outer, larger-diameter piece in isolation or the two parts together. Using solely the outer, larger-diameter foam bung will deliver less bass attenuation than the complete bung assembly.

1. Running In 6. Aftercare

The performance of the speaker will change subtly during the initial listening period. If the speaker has been stored in a cold environment, the damping compounds and suspension materials of the drive units will take some time to recover their correct mechanical properties. The drive unit suspensions will also loosen up during the first hours of use. The time taken for the speaker to achieve its intended performance will vary depending on previous storage conditions and how it is used. As a guide, allow up to a week for the temperature effects to stabilise and 15 hours of average use for the mechanical parts to attain their intended design characteristics.

The cabinet surfaces will usually only require dusting. If you wish to use an aerosol or other cleaner, apply the cleaner onto the cloth, not directly onto the product and test a small area first, as some cleaning products may damage some of the surfaces. Avoid products that are abrasive, or contain acid, alkali or antibacterial agents. Marks on the paint surface may be removed with a dilute perfume-free soap solution. Remove any remaining streak marks by spraying with a proprietary glass cleaner and lightly wiping dry with a microfibre cloth. Do not use cleaning agents on the drive units and avoid touching them as damage may result.

Real wood veneers are treated with an ultra-violet resistant lacquer to minimise changes in colour over time. Nevertheless, like all natural materials, a degree of colour change is to be expected. Colour differences may be rectified by exposing all the veneer surfaces equally and evenly to sunlight until the colour is uniform. This process can take a long time, but may be accelerated by careful use of an ultra-violet lamp. Keep the speakers away from direct sources of heat such as radiators and warm air vents in order to minimise the possibility of the wood veneer cracking.

1. Déballage

1

4

2

4

Auto to npoiov nnpoi tic dieovic oyniec, otic onoiec ouykataalEyovtai, xupic neptopouoc:

i. η δηγία Restriction of Hazardous Substances (RoHS - Περιομός στη χρήσι επικίνδυμων οὐμώ) στα είδη ηλεκτρικόου και ηλεκτρονικόμοι
ii. n obnyia Registration, Evaluation, Authorisation and restriction of CHEmicals (REACH - Kataxwipn, aioygon, aodobotn kai tepiopoiow xmuiv npovv)
iii. n odnyia oxetuká μe tvn antoppuWaste Electrical and Electronic Equipment (WEEE - Antoβλnta nλektpikou ka nλektpovikou EoiTou).

藻藻青藻藥藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻藻

1. 世界第一封

△Ⅲ列皆对

SππK DπIyB UyNqEeHcπeRbNtJfF#TgF#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T#F#T #

3. 用笔

HTM72 S2

回德司机的前用到国大期

SπFJKJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJ

HTM71 S2

Worthing West Sussex

BN11 2BH England

T+44（0）+803.221800

F+44（0）t903.22t80t

[e-mail]

www.bowers-wilkins.com

B&W Group (UK Sales)

T+44(0)1903.221500

Eukka [e-mail]

B&W Group North America

T=193780042870

E [e-mail]

B&W Group Asia Ltd

T-852347293000

[e-mail]

Copyright © B&W Group Ltd. E&OE

Printed in China
