USER MANUAL POWEG5011 PowerPlus

7. Protection surcharge

6.4 Additional safety instructions for units with bagging attachments ..................... 8

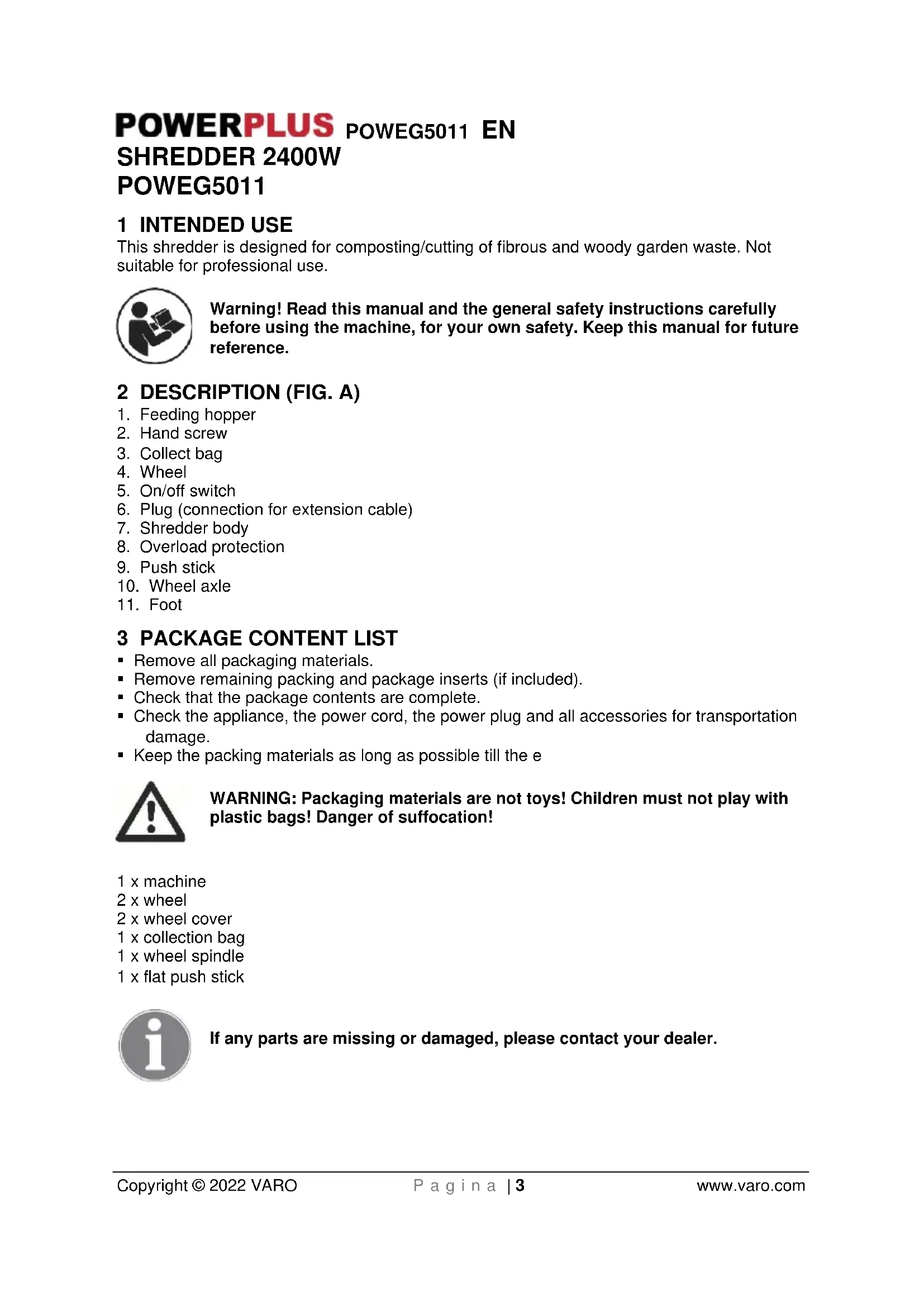

Copyright © 2022 VARO P a g i n a | 3 www.varo.com SHREDDER 2400W POWEG5011 1 INTENDED USE This shredder is designed for composting/cutting of fibrous and woody garden waste. Not suitable for professional use. Warning! Read this manual and the general safety instructions carefully before using the machine, for your own safety. Keep this manual for future reference. 2 DESCRIPTION (FIG. A)

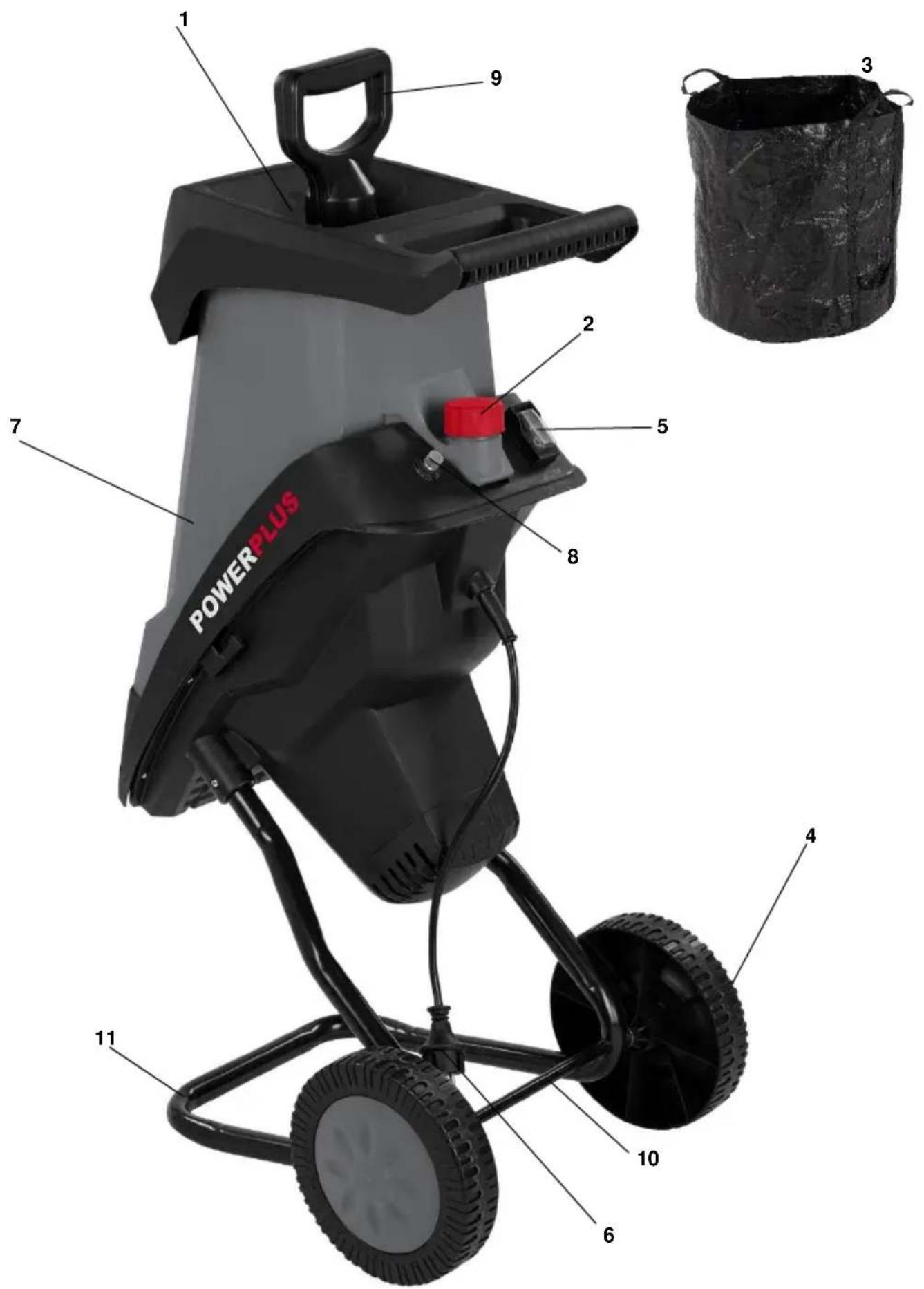

6. Plug (connection for extension cable)

• Remove all packaging materials.

• Remove remaining packing and package inserts (if included).

• Check that the package contents are complete.

• Check the appliance, the power cord, the power plug and all accessories for transportation damage.

• Keep the packing materials as long as possible till the e

WARNING: Packaging materials are not toys! Children must not play with

plastic bags! Danger of suffocation! 1 x machine 2 x wheel 2 x wheel cover 1 x collection bag 1 x wheel spindle 1 x flat push stick If any parts are missing or damaged, please contact your dealer.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 4 www.varo.com 4 SYMBOL

Warning! Flying objects.

In accordance with essential requirements of the European directive(s).

Class II - The machine is double insulated; Earthing wire is therefore not necessary.

Read manual before use.

Always switch off the shredder, disconnect the plug and wait until the cutting disc stops before carrying out maintenance or cleaning work.

Keep hands and feet out of openings while machine is running.

Wear ear protection.

Keep bystanders away.

Keep hands and feet away from sharp parts.

Never operate the machine in the rain or in damp or wet conditions. Moisture is an electrical shock hazard.

5 GENERAL POWER TOOL SAFETY WARNINGS

Read all safety warnings and instructions. Failure to heed warnings and follow instructions may result in electric shock, fire and/or serious injury. Keep safety warnings and instructions for future reference. The term "power tool" in the safety warnings refers to your mains- operated (corded) power tool or battery- operated (cordless) power tool.

• Keep working area clean and well lit. Untidy and dark areas can lead to accidents.

• Do not operate power tools in potentially explosive surroundings, for example, in the presence of inflammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

• Keep children and bystanders at a distance when operating a power tool. Distractions can cause you to lose control of it.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 5 www.varo.com

5.2 Electrical safety

• Always check that the power supply corresponds to the voltage on the rating plate.

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. Unmodified plugs and matching outlets will reduce the risk of an electric shock.

• Avoid body contact with earthed surfaces such as pipes, radiators, kitchen ranges and refrigerators. There is an increased risk of an electric shock if your body is earthed.

• Do not expose power tools to rain or wet conditions. If water gets inside a power tool, it will increase the risk of an electric shock.

• Do not damage the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of an electric shock.

• When operating a power tool outdoors, use an extension cable suitable for outdoor use. Using a cord suitable for outdoor use reduces the risk of an electric shock.

• If operating a power tool in a damp location is unavoidable, use a power supply protected by a residual current device (RCD). Using an RCD reduces the risk of an electric shock.

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of inattention when operating a power tool may result in serious personal injury.

• Use safety equipment. Always wear eye protection. Using safety equipment such as a dust mask, non-skid safety shoes, a hard hat, or hearing protection whenever it is needed will reduce the risk of personal injury.

• Avoid accidental starts. Ensure the switch is in the off position before inserting the plug. Carrying power tools with your finger on the switch or plugging in power tools when the switch is in the on position makes accidents more likely.

• Remove any adjusting keys or spanners before turning on the power tool. A spanner or key left attached to a rotating part of the power tool may result in personal injury.

• Do not reach out too far. Keep your feet firmly on the ground at all times. This will enable you retain control over the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from the power tool. Loose clothes, jewellery or long hair can become entangled in the moving parts.

• If there are devices for connecting dust extraction and collection facilities, please ensure that they are attached and used correctly. Using such devices can reduce dust-related hazards.

5.4 Power tool use and care

• Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.

• Do not use the power tool if the switch cannot turn it on and off. A power tool with a broken switch is dangerous and must be repaired.

• Disconnect the plug from the power source before making adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

• Store power tools, when not in use, out of the reach of children and do not allow people who are not familiar with the power tool or these instructions to operate it. Power tools are potentially dangerous in the hands of untrained users.

• Maintain power tools. Check for misalignment or jammed moving parts, breakages or any other feature that might affect the operation of the power tool. If it is damaged, the power tool must be repaired. Many accidents are caused by using poorly maintained power tools.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 6 www.varo.com

• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

• Use the power tool, accessories and cutting tools, etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work which needs to be done. Using a power tool in ways for which it was not intended can lead to potentially hazardous situations.

• Your power tool should be serviced by a qualified specialist using only standard spare parts. This will ensure that it meets the required safety standards.

6 ADDITIONAL SAFETY RULES FOR SHREDDERS

• Wear protective gloves, protective glasses and hearing protectors. Avoid loose clothing.

• Always stand steadily and in balance. Do not stretch towards the machine.

• During use, the machine should be level and on a firm surface.

• Ensure that all screws and nuts are properly tightened before use.

• Only use the machine in dry conditions and never use outdoors when it is raining.

• Never use the machine with damaged safety devices or without protection.

• Keep hands, other parts of our body and clothing away from the feeding hopper and the discharge chute.

• Keep your face and the rest of your body away from the feeding hopper.

• Do not leave the machine unsupervised, switch off the motor and disconnect the plug.

• Hard objects such as stones, bottle, cans or pieces of metal must not be fed into the inlet chute. This can cause damage to the machine.

• If the machine becomes blocked, stop the motor and disconnect the plug. Pull out any objects and check for damage.

• If the fuse blows or if the overload protection is triggered, this is a sign that the machine is overloaded and/or that too many appliances are connected to the same extension cable. Check the cause and remedy. Do not install a more powerful fuse.

• Do not tug on the extension cable. Do not hold the cable taut. This can cause damage in the plugs or in the cables insulation. Such damage is invisible but can be dangerous.

• Always keep the extension cable away from the machine. Disconnect the plug from the electric socket and check the cable regularly for signs of damage or aging. Do not use the machine with a damaged extension cable.

• If the cable is damaged, it must be replaced by an authorized service centre in order to avoid a hazard.

• Never move the machine by pulling the cable. The machine must not be moved with the motor running.

• The shredder must be assembled correctly before use. Warning! This appliance must be earthed! Warning! Use only three core extension cables with the earth wire connected.

• Only use extension cables that are approved for outdoor use and check that they are in good condition before use.

• Before inserting the plug in the mains socket, make sure that the socket ratings are correct and correspond to those indicated on the rating label on the shredder.

• Always switch off the shredder before disconnecting any plug and socket connector or extension cables.

• Keep children and pets away. All onlookers should be kept a safe distance away from the shredder when it is in use.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 7 www.varo.com

• Do not allow children or any person who has not read this instruction leaflet or who is not familiar with the shredder to operate it.

• The operator is responsible for third parties while working with the shredder.

• Only use the shredder for its intended purposes. Caution! There are rotating blades on this machine. Caution! Blades do not stop immediately after switching off.

• Always switch off the shredder, disconnect the plug and wait until the cutting disc stops before carrying out maintenance or cleaning work.

• It is forbidden to move or modify any of the electrical and mechanical safety devices.

• Use only in daylight or good artificial light.

• Do not put your hands into the feed funnel or ejection slot.

• If the shredder should start to vibrate abnormally, switch off the motor and check for the cause immediately. Vibration is generally a warning of trouble.

• Ensure blades are secure before shredding. Do not operate the shredder if any of the blades are not properly mounted.

• The shredder should be checked carefully before use. You should only work with a shredder that is in good condition. If you notice any defect on the machine that may cause danger to the operator, do not operate the shredder until defects are rectified.

• Replace worn or damaged parts for safety. Use only original spare parts. Parts not produced by manufacturer may cause poor fit and possible injury.

• Use the shredder only in places where it is protected from water and never use it outdoors in rainy weather.

• Store in a dry secure place out of reach of children,

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not allow children to operate this equipment.

• Do not operate this equipment in the vicinity of bystanders.

• Wear ear protection and safety glasses at all times while operating.

• Avoid wearing clothing that is loose fitting or that has hanging cords and ties.

• Only operate the machine the machine in open space (e.g. not close to a wall or other fixed objects) and on a firm, level surface.

• Do not operate the machine on a paved or gravel surface, where ejected material could cause injury.

• Before starting the machine, check that all screws, nuts, bolts, and other fasteners are properly secured and that guards and screens are in place. Replace damaged and unreadable labels.

• Before starting the machine, look into the feeding chamber to make certain, that it is empty.

• Keep your face and body away from the feed intake opening.

• Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 8 www.varo.com

• Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine, when feeding material into it.

• Always stand clear of the discharge zone when operating this machine.

• When feeding material into the machine be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included.

• If the cutting mechanism strikes any foreign objects or if the machine should start making any unusual noise or vibration, shut off the power source and allow the machine to stop, disconnect the spark plug wire from the spark plug ( electric unit disconnect from supply) and take the following steps:

1. Inspect for damage.

2. Check for and tighten any loose parts.

3. Have any damaged parts replaced or repaired with parts having equivalent specifications.

• Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result kickback of material through the feed intake opening.

• If the machine becomes clogged, shut of the power source and disconnect the spark plug wire from the spark plug (electric unit disconnect from supply) before clearing debris. Keep the power source clear of debris and other accumulations to prevent damage to the power source or possible fire. Remember that operating the starting mechanism on engine powered machines will still cause the cutting means to move.

• Keep all guards and deflectors in place and in good working condition.

• Do not tamper with the power source governor settings; the governor controls the safe maximum operating speed and protects the power source and all moving parts from damage caused by over speed. Seek authorized service if a problem exists.

• Do not transport this machine while the power source is running.

• Shut off the power source and disconnect the spark plug lead (electric unit disconnect from supply) whenever you leave the work area.

• Do not tilt the machine while the power source is running

6.3 Maintenance and storage

• When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the spark plug wire from the spark plug (electric unit disconnect from supply), make sure that all moving parts have come to a complete stop and, where a key is fitted remove. Allow the machine to cool before making any inspections, adjustments, etc.

• Store the machine where fuel vapour will not reach an open flame or spark. For extended storage periods, run the unit dry of fuel. Allow the machine to cool before storing.

• When servicing the cutting means be aware that, even though the power source will not start due to the interlock feature of the guard, the cutting means can still be moved by a manual starting mechanism.

6.4 Additional safety instructions for units with bagging attachments

Shut-off the power unit before attaching or removing the bag 7 ASSEMBLY INSTRUCTIONS Warning! You may need assistance when lifting the machine out of the box and assembling. Open the package and remove the machine from package; Pull out the collect bag and take out the main part of the machine and all accessories.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 9 www.varo.com

7.1 Assembly of the shredder

• Turn the shredder upside down.

• Insert the wheel axle (10) through the pre-drilled holes in the foot (Fig. 1).

• Select the support A and B which are identified by the letter stamped on the actual support.

• Insert the foot (11) into the body.

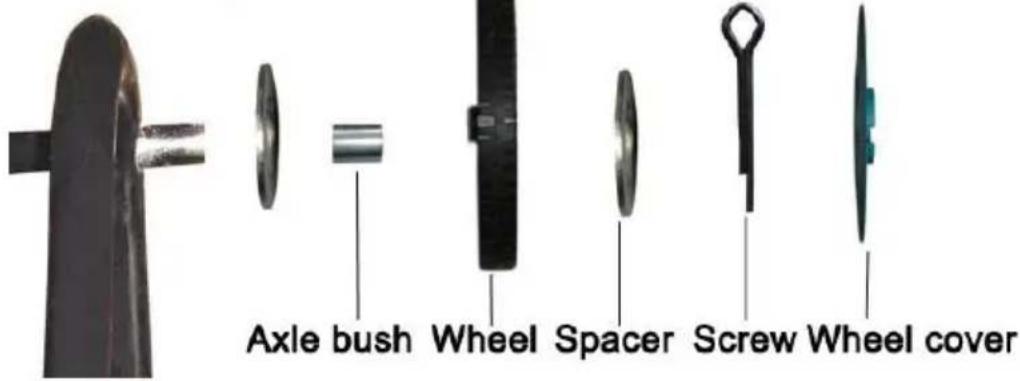

• Mount the wheel in the same order illustrated in fig 2 ensure the nut is not too tight.

• Tighten the hand screw (2). The hand screw has a safety switch please ensure the knob is tightened or the motor will not activate. NOTE: It is dangerous to use the machine without the hopper (1). 8 OPERATION

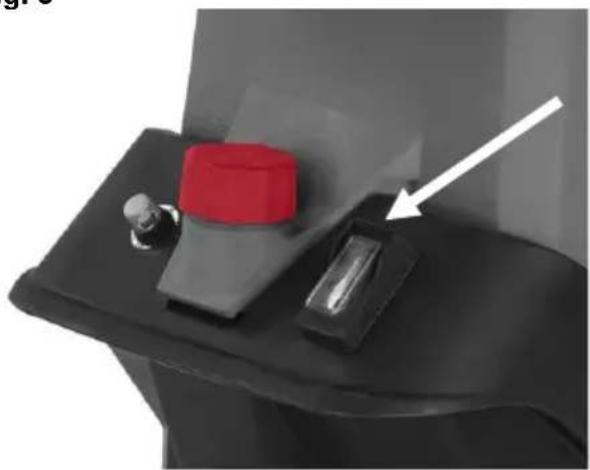

8.1 On/off switch (Fig. 3)

• Press the on/off switch to start and/or stop the machine. Note: the machine is equipped with a safety switch to prevent it from being switched on again accidentally after a power failure.

8.2 Overload protection (Fig. 4)

Overload (e.g. blocking up of the cutting blades) leads to a standstill of the machine after a few seconds. To protect the motor from being damaged, the overload switch (8) will cut the mains automatically. Wait at least 1 minute before restarting by first pressing the reset button and then the on/off switch. In the event of blocking of the cutting blade, turn the rotational direction switch to the right position before switching the shredder on again If the motor does not restart, do the following:

• Remove the plug from the mains socket.

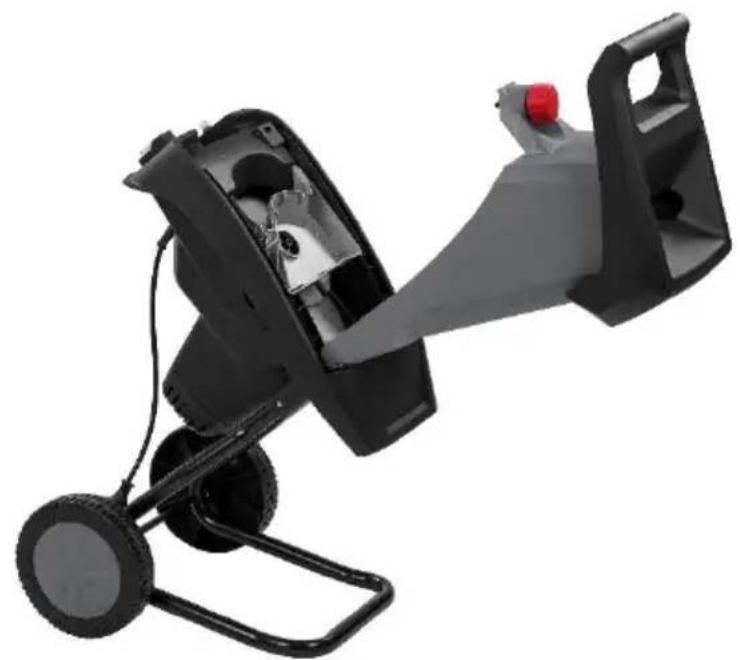

• Loosen the hand screw (2) and open the top part upwards.

• Clean carefully the cutting and discharge parts and remove any objects that could obstruct the blades.

• Put the top part back and tighten the hand screw firmly.

• Press the reset button before pressing the On/Off switch. Attention! Always wear safety gloves when executing the steps mentioned above!

The shredder is equipped with the safety switch at the lock between the top and bottom parts. If the top part does not fit perfectly and sit fast on the bottom part, the SAFETY SWITCH is activated and the motor will not work. If this happens:

• Remove the plug from the mains socket.

• Remove the top part, as described in the previous paragraph.

• Clean carefully the cutting and discharge parts and remove any objects that could obstruct the blades.

• Put them together again and tighten the hand screw firmly.

In certain circumstances, e.g. storage after use, you can take the machine apart by performing the assembly steps in reverse order, as described earlier.

8.5 Instructions for use

• Place the material to be shredded in the opening on the right side. It will then be automatically drawn into the machine by the cutter as it turns counter clockwise.

• Do not stuff the opening completely full to avoid jamming the machine.

• Alternate feeding branches and small litter that is a bit wet and decomposed. This will also help to avoid jamming the cutter.

• Squashy kitchen rubbish must be composted, never put it through the shredder!

• Branches with leaves must always be entirely through the shredder and out of the way before feeding new material into the machine. Make sure the shredded material is able to fall unobstructed into the bag without blocking the outlet.

• The ventilation opening must not be blocked by the shredded material.

• Continuous shredding of thick wood or branches can cause the machine to jam.

• Soft material like leaves or sprigs can easily block the inlet: use a stick to poke it in.

• Always check litter for nails and stones before shredding as they can seriously damage the shredder.

• Watch for vibrations, vibration indicates worn or damaged blades.

• Replace blades if necessary.

8.5.1 How do I collect the shredded material?

• Shut-off the power unit before attaching or removing the bag.

• You can use either the collection bag supplied or place the shredder on a tarpaulin sheet to catch the shredded material.

• When using the collection bag, you need to fit the collection bag hooks onto the sides of the discharge chute.

Warning: The ventilation slots on the machine body must never be covered

Before commencing cleaning and maintenance procedures, make sure the garden shredder is switched off and disconnected from the mains supply. Always wear sturdy leather gloves when cleaning the cutter blades.

• To ensure the best performance from the garden shredder, it must be kept clean.

• Always clean the garden shredder immediately after use.

• Do not allow material to become dry and hard on any of the garden shredder surfaces. This will directly affect the shredding performance.

• Make sure that the inlet chute and the discharge chute are kept clean and clear of all waste material.

• Make sure that all nuts, bolts and screws are tight and secure.

• Always have any damaged or worn parts repaired, or replaced by qualified personnel.

• Do not use detergents or solvents as these could cause irreparable damage to your machine. Chemicals can destroy the plastic parts.

• Oil the drum every 4th or 5th (use BIO-degradable oil to protect environment).

11.1 Replacement of the cutters (Fig. 5 & Fig. 6)

If the cutters must be replaced, do it always in pairs. Open the shredder, block the cutter disc with a screwdriver. Using the supplied hex wrench, screw out the socket head screws. Assemble the new cutters in reverse order. CAUTION! Do not over tighten the plate adjustment screw and cut excessive aluminium off of the plate, as this will reduce the life of your shredder. Have your garden shredder inspected and maintained by qualified service personnel. Do not attempt to repair the machine unless you are qualified to do so. WARNING! Never use a high-pressure washer or running water when cleaning the shredder! Brush away dirt and plant residues which may be caught in the spiral cutter. Wipe clean the outside of the shredder with a cloth which has been moistened with a mild detergent and water. 12 STORAGE To protect the shredder from corrosion when storing for a longer period, treat the cutting blade with environmentally-friendly oil.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 12 www.varo.com 13 TROUBLE SHOOTING PROBLEM CAUSE ACTION The motor does not run Safety lock. Tighten the hand screw firmly. Power failure. Check the power supply cable, the plug and the house fuse. The material to be chopped is not drawn in The material is jammed in the feeding funnel. Switch the shredder OFF. Pull the material from the feed funnel. Switch the shredder back ON and re- feed thick branches such that the blade does not immediately engage the pre-cut notches again. Shredding material is too soft. Insert wood or shred dried branches. The cutting blade is blocked. Loosen the hand screw, open the shredder and remove the material that causes the blockage. 14 WARRANTY

• This product is warranted as provided by law for a 24 -month period effective from the date of purchase by the first user.

• This warranty covers all material or production flaws excluding : batteries, chargers, defective parts subject to normal wear & tear such as bearings, brushes, cables, and plugs, or accessories such as drills, drill bits, saw blades, etc. ; damage or defects resulting from maltreatment, accidents or alterations; nor the cost of transportation.

• Damage and/or defects resulting from inappropriate use also do not fall under the warranty provisions.

• We also disclaim all liability for any bodily injury resulting from inappropriate use of the tool.

• Repairs may only be carried out by an authorised customer service centre for Powerplus tools.

• You can always obtain more information at the number 00 32 3 292 92 90.

• Any transportation costs shall always be borne by the customer, unless agreed otherwise in writing.

• At the same time, no claim can be made on the warranty if the damage of the device is the result of negligent maintenance or overload.

• Definitely excluded from the warranty is damage resulting from fluid permeation, excessive dust penetration, intentional damage (on purpose or by gross carelessness), inappropriate usage (use for purposes for which the device is not suitable), incompetent usage (e.g. not following the instructions given in the manual), inexpert assembly, lightning strike, erroneous net voltage. This list is not exhaustive.

• Acceptance of claims under warranty can never lead to the prolongation of the warranty period nor commencement of a new warranty period in case of a device replacement. ▪ Devices or parts which are replaced under the warranty therefore remain the property of Varo NV.

• We reserve the right to reject a claim whenever the purchase cannot be verified or when it is clear that the product has not been properly maintained. (Clean ventilation slots, carbon brushes serviced regularly, etc.).

• Your purchase receipt must be kept as proof of date of purchase.

• Your appliance must be returned undismantled to your dealer in an acceptably clean state, (in its original blow-moulded case if applicable to the unit), accompanied by proof of purchase.POWEG5011 EN Copyright © 2022 VARO P a g i n a | 13 www.varo.com 15 ENVIRONMENT Should your appliance need replacement after extended use, do not dispose of it with the household refuse, but in an environmentally safe way. Waste produced by electrical machine items should not be handled like normal household rubbish. Please recycle where recycle facilities exist. Check with your Local Authority or retailer for recycling advice.

16 DECLARATION OF CONFORMITY

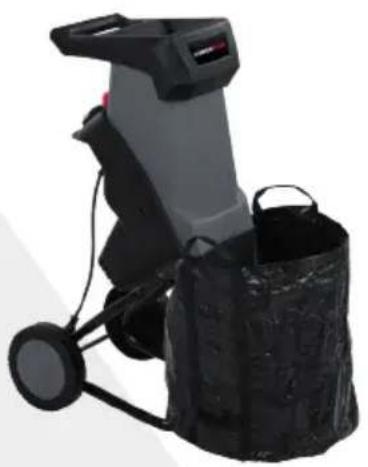

VARO – Vic. Van Rompuy N.V. - Joseph Van Instraat 9 - BE2500 Lier - BELGIUM, declares that, Product: Shredder Trade mark: PowerPlus Model: POWEG5011 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. European Directives (including, if applicable, their amendments up to the date of signature):; 2011/65/EU 2006/42/EC 2014/30/EU 2000/14/EC Annex V LwA Measured 108dB(A) Guaranteed 110dB(A) European harmonized standards (including, if applicable, their amendments up to the date of signature) EN60335-1 : 2012 EN50434 : 2014

Keeper of the Technical Documentation: Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V. The undersigned acts on behalf of the company CEO,

5. Interruptor On/off
