UB 33 - Heated blanket/cushion BEURER - Free user manual and instructions

USER MANUAL UB 33 BEURER

WARNING: Warning of risks of injury or health hazards

CAUTION: Safety information about possible damage to appliance/accessories NOTE: Important information Read the instructions Do not insert pins Do not use folded or rucked Not to be used by very young chil- dren (0 - 3years) Manufacturer The device has double protective insulation and therefore complies with protection class 2. Please dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment).

Marking to identify the packaging material. A = Material code, B = Material number: 1-7 = Plastics, 20-22 = Paper and cardboard Separate the product and packaging elements and dispose of them in accordance with local regulations. This product satisfies the requirements of the applicable European and national direc- tives. United Kingdom Conformity Assessed Mark ENGLISH Contents

1. Items included in the package .........................11

8. What if there are problems? ...........................16

Read these instructions for use carefully. Observe the warnings and safety notes. Keep these instructions for use for future reference. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well.11 The products demonstrably meet the requirements of the technical Regulations of the EAEU. Manufacturer code for production data The textiles used for this device meet the stringent human ecological requirements of Oeko Tex Standard 100, as verified by Hohenstein Research Institute. Wash at a maximum tempera- ture of 30°C, Very gentle wash Do not iron Do not bleach Do not dry-clean Do not dry in a tumble dryer

1. Items included in the package

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Service address. 1 Heated underblanket 1 Control 1 Operating instructions

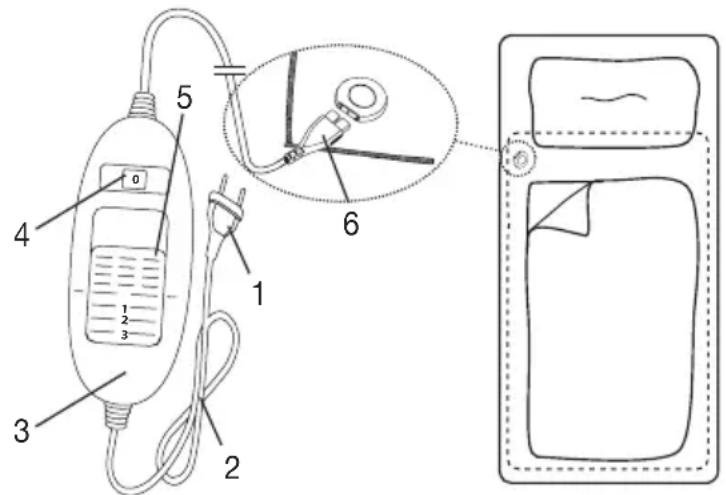

4. Illuminated temperature settings

5. Slider for ON/OFF and temperature settings

Retain for future use WARNING

• Non-observance of the following notes may result in personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information is not only intended to protect your health and the health of others, it should also protect the product. For this reason, pay attention to these safety notes and include these instructions when handing over the product to others.

• This heated underblanket must not be used by persons who are not sensitive to heat or by other vulnerable persons who may not be able to react to overheating (e.g. diabetics, people with skin alterations due to illness or scarred tissue in the application area, after taking pain relief medication or alcohol).

• This heated underblanket must not be used by very young children (0-3 years old) as they are unable to respond to overheating.

• This heated underblanket can be used by children older than 3 and younger than 8 years of age provided they are supervised. For this, the control must always be set to the minimum temperature.

• This heated underblanket may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the heated underblanket safely, and are fully aware of the consequent risks of use.

• Children must not play with the heated underblanket.

• Cleaning and user maintenance must not be performed by children unless supervised.

• This heated underblanket is not designed for use in hospitals.

• This heated underblanket is only intended for domestic/private use, not for commercial use.

• Do not use folded or rucked.

• Before using it on an adjustable bed, check that the heated underblan- ket and the cables are not, for example, trapped in a hinge or bunched up.

• This heated underblanket may only be used in conjunction with the control specified on the label.

• This heated underblanket must only be connected to the mains voltage that is specified on the label.

• If the heated underblanket is being used over several hours, we rec

ommend that you set the lowest temperature setting on the control to avoid the body overheating and thereby any potential burns to the skin or heat stroke.

• The electrical and magnetic fields emitted by this heated underblanket may interfere with the function of a pacemaker. However, they are still well below the limits: electrical field strength: max. 5000V/m, magnetic field strength: max. 80A/m, magnetic flux density: max. 0.1 millitesla. Please therefore consult your doctor and the manufacturer of your pacemaker before using this heated underblanket.13

• Do not pull, twist or make sharp bends in the cables.

• If the cable and control of the heated underblanket are not positioned properly, there may be a risk of becoming entangled in, being strangled by, tripping over, or stepping on the cable and control. The user must ensure that excess lengths of cable, and cables in general, are safely routed.

• Please check this heated underblanket frequently for signs of wear and tear or damage. If any such signs are evident, if the heated under- blanket has been used incorrectly or if it no longer heats up, it must be checked by the manufacturer before being switched on again.

• Under no circumstances should you open or repair the heated under

blanket (including the accessories) yourself because faultless function- ality can no longer be guaranteed thereafter. Failure to observe this will invalidate the warranty.

• If the mains connection cable of this heated underblanket is damaged, it must be disposed of. If it cannot be removed, the heated underblan- ket must be disposed of.

• Do not expose control and cables to direct sunlight.

• When this heated underblanket is switched on: – Do not place any sharp objects on it – Do not place any heat sources, such as hot water bottles, heat pads or similar, on it

• The electronic components in the control warm up when the heated underblanket is in use. For this reason, the control must never be cov

ered or placed on the heated underblanket when it is in use.

• Allow the heated underblanket to cool down before storing it away. Otherwise the heated underblanket may get damaged.

• To avoid severe creasing in the heated underblanket, do not place any objects on top of it while it is being stored. Otherwise material damage may occur.

• It is essential to observe the information relating to the following chap- ters: Operation, Cleaning and maintenance, Storage.

• If you should have any questions about using our devices, please contact our Customer Services department.

CAUTION This heated underblanket is designed for warming beds, only.14

This heated underblanket is equipped with a SAFETY SYSTEM. This sensor technology prevents the entire surface of the heated underblanket from overheating by automatically switching off the heated underblanket in the event of a fault. If the safety system has switched off the heated underblanket, the temperature setting is not illuminated any more even when the heated underblanket is switched on.

Please note that the heated underblanket is not operable any more due to safety reasons in this case and has to be sent to the service address indicated.

Do not connect the defective heated underblanket with another control of the same type. This would trigger a permanent switch-off via the control safety system.

• Spread out the heated underblanket flat onto your mattress starting at the foot end.

To operate the heated underblanket connect the control to the heated underblanket by plugging in the connector.

Then plug in the supply plug into the mains outlet.

• Then put on your bedsheet in the usual manner so that the heated underblanket is between your mattress and the bedsheet CAUTION

ake sure that the heated underblanket is spread out entirely flat and that it will not rumple up or crease when in use. NOTE:

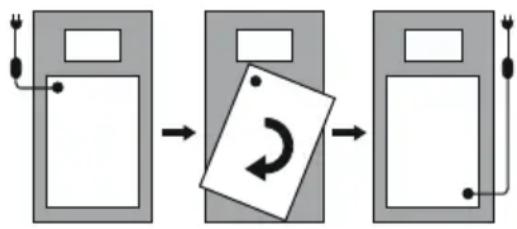

f the plug-in connector at shoulder level bothers you, you can rotate the electric underblanket by 180° so that the plug-in connector lies at the foot of the bed (see illustra

tion). So that the switch is within comfortable reach of your hand, Beurer offers a switch with a longer connection cable (Item no. 108.584). This is available directly from Beurer Customer Services.

To switch on the electric underblanket, set the slider for ON/OFF and temperature settings to setting 1, 2 or 3. The temperature settings are illuminated when switched on.

4.4 Setting the temperature

The quickest way to heat up the heated underblanket is to select the highest temperature setting of the control, first.

We strongly recommend switching on the heated underblanket approx. 30 minutes before going to bed and covering it with the quilt to prevent the warmth from escaping.15 WARNING If the heated underblanket is being used over several hours, we recommend that you set the lowest temperature setting on the control to avoid the body overheating and thereby any potential burns to the skin or heat stroke.

To switch off the electric underblanket, set the slider for ON/OFF and temperature settings to the OFF (0) position. The temperature settings are then no longer illuminated. NOTE:

f the electric underblanket is not used for several days, set the slider for ON/OFF and temperature settings to the OFF (0) position and remove the mains plug from the socket.

5. Cleaning and maintenance

lways remove the supply plug from the mains outlet and remove the control from the heated under- blanket by disconnecting it at the connector. Otherwise there is a risk of an electric shock. CAUTION The control must never come into contact with water or other liquids, as this may cause damage.

To clean the control, use a dry, lint-free cloth. Do not use cleaning agents containing solvent or scouring agents.

To remove stains from the heated underblanket use a damp cloth and, if necessary, a mild cleaning agent. CAUTION

ote that the heated underblanket must not be dry-cleaned, wrung out, machine dried or ironed. Otherwise the heated underblanket may be damaged.

• The heated underblanket is machine washable.

• Set the washing machine to a particularly gentle, 30 °C cycle (woolens programme). Use a mild detergent with dosage according to the manufacturer’s instructions. CAUTION

ote that the heated underblanket will suffer from too frequent washing.

or its entire life, therefore, the heated underblanket should be washed not more than 5 times in a washing machine.

• While the heated underblanket is still damp after washing, shape it to its original form and size and place it flat over a clothes drying rack to dry. CAUTION

• Do not attach the heated underblanket to washing lines with washing pegs or the like. Otherwise the heated underblanket may be damaged.

• Only reconnect the control to the heated underblanket after the connector and the heated under

blanket are completely dry. Otherwise the heated underblanket may be damaged. WARNING Under no circumstances switch on the heated underblanket to dry it. Otherwise there is a risk of an electric shock.16

When not in use we recommend to store the heated underblanket in its original packaging. For this purpose, disconnect the control from the electric underblanket by unplugging the plug-in coupling.

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the de

vice in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

8. What if there are problems?

Problem Cause Remedy The temperature settings are not illuminated while - the switch is fully connected to the heated under

blanket. - the supply plug is connected to the mains outlet with correct function. - the setting is 1, 2 or 3. The Safety System switched off the heated underblanket irrever

derblanket together with the switch to the service.

For technical data, see the rating plate label on the electric underblanket.
