USER MANUAL DBS 6034 CB BOMANN

= Vapore in continuo

= Disinserimento del vapore in continuo

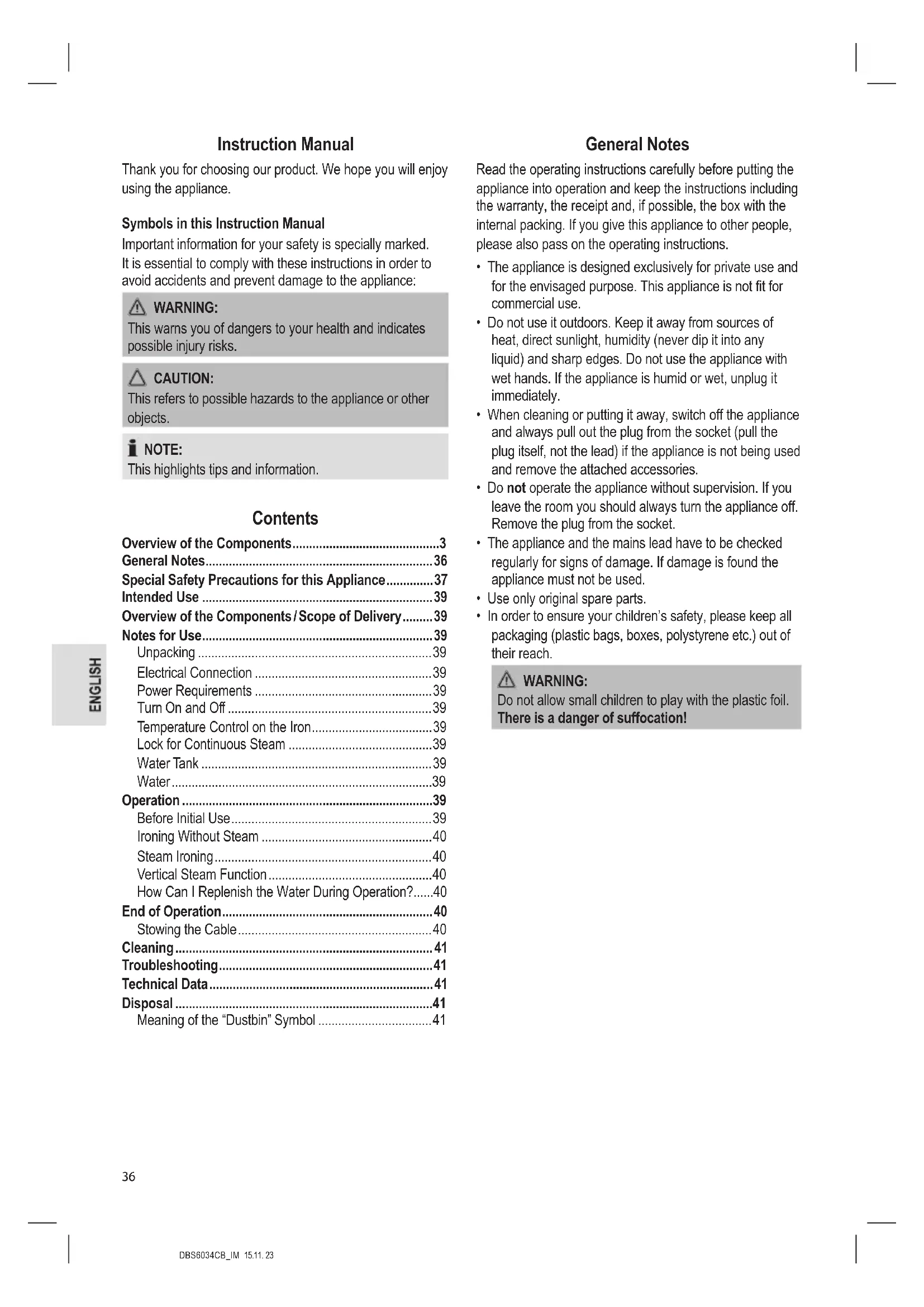

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

Contents

Overview of the Components. 3

General Notes 36

Special Safety Precautions for this Appliance. 37

Intended Use 39

Overview of the Components/ Scope of Delivery. 39

Notes for Use 39

Unpacking 39

Electrical Connection 39

Power Requirements 39

Turn On and Off 39

Temperature Control on the Iron 39

Lock for Continuous Steam 39

Water Tank 39

Water 39

Operation 39

Before Initial Use 39

Ironing Without Steam 40

Steam Ironing 40

Vertical Steam Function 40

How Can I Replenish the Water During Operation?.....40

End of Operation 40

Stowing the Cable 40

Cleaning 41

Troubleshooting 41

Technical Data. 41

Disposal 41

Meaning of the "Dustbin" Symbol 41

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING: Hot surface!

Danger of burns!

The temperature of accessible surfaces can be very hot during and after operation.

WARNING:

• The sole plate of the iron quickly becomes hot and needs time to cool down. Do not touch it!
• When not in use the iron should be stored in the storage space! Do not place it vertically onto any other surface. There is the risk that the iron will slip.
• Choose a secure surface for the stand! The surface must be level and stable. Check the surface again for stability.
• The iron must be used and rested on a stable, heat-resistant surface.
• Before filling the water tank remove the mains lead.
• The iron must not be left unsupervised while it is connected to the mains.
• Do not use the iron if it was dropped, has visible damages or leaks.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING:

• While the iron is switched on and while it cools down, the iron and its connection cable must be outside the reach of children younger than 8 years.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be performed by children.

CAUTION: Limescale build-up on the appliance!

• Use only distilled water!
  If you do not comply with this important note, it may result in a defective appliance.
• An appliance that is defective due to build-up of limescale shall not be covered by the free warranty.

CAUTION:

This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on "Cleaning".

• The tank should only be filled up to the maximum mark. Do not overfill! Maximum water capacity: 1.2 litres.
• Do not bend the connecting hose!

Intended Use

This appliance is intended for ironing of clothing and textiles.

It is intended for use in households.

Any other use shall be considered as not intended use and can lead to material damage or even personal injury.

Overview of the Components / Scope of Delivery

1 Lock for continuous steam
2 Steam jet button
3 Temperature control
4 Connecting tube
5 "Temperature" control lamp
6 Base
7 Iron rest
8 Intake hose
9 Water tank
10 Water tank recess
11 Transport lock

Notes for Use

Unpacking

• Remove any protective foils and stickers from the sole plate.
• Remove the cable from the cable compartment.

Electrical Connection

Make sure that the iron voltage (see name plate) and the line voltage match.

Power Requirements

The station has a total maximum wattage of 2400 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
• Do not use any multiple sockets, as this appliance is too powerful.

Turn On and Off

Turn on: Ensure that the temperature control is in the MIN position. Connect the mains plug to a properly installed safety socket. The appliance is immediately switched to operating mode.

Turn off: Ensure that the temperature control is in the MIN position. Disconnect the mains plug from the socket.

Temperature Control on the Iron

The symbols on the control correspond to the following settings:

(synthetics, silk) low temperature

O drayon, wool) medium temperature

( ) cotton, linen) high temperature

• Turn woollen clothes inside out to avoid shiny spots on the fabric due to steam ironing. In addition, lay a thin cotton cloth onto the fabric.
• Select a low temperature setting for fabrics with additional surface treatment and iron them inside out.

NOTE:

The iron heats up faster than it cools down. Start ironing with the lowest temperature setting.

Lock for Continuous Steam

The lock allows you to generate continuous steam.

W = Continuous steam
= Continuous steam off

Water Tank

• The water tank has a recessed grip so that it can be removed.
• When sliding the tank back into the base, it must audibly click into place.
• The MAX mark is placed on the water tank. Do not fill the tank above this mark. The tank volume is 1.2 litres.

Water

CAUTION: Limescale build-up on the appliance!

• Use only distilled water!
  If you do not comply with this important note, it may result in a defective appliance.

• An appliance that is defective due to build-up of limescale shall not be covered by the free warranty.

• Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir.

• This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the soleplate.

Operation

Before Initial Use

• Clean the ironing base with a slightly damp cloth.
• In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Ironing Without Steam

OTE:

Sort out the garments according to their ironing temperatures.

1. Place the iron on the rest.
2. Only connect the appliance to a properly installed safety socket.
3. Adjust the temperature on the temperature control. If you have sensitive items to iron, please begin with the lowest temperature.

NOTE:

The control lamp on the iron indicates the heating process. As soon as this goes out, the operating temperature is reached. You can now begin ironing.

Steam Ironing

WARNING:

The iron expels a large quantity of hot steam. Danger of burns!

CAUTION:

When using the steam iron please ensure that the water tank is always filled to the required level.

CAUTION: Initial use:

Please proceed as follows:

1. Remove the water tank.
2. Open the lid of the water tank.
3. Fill the water tank with distilled water. Fill the water tank to the maximal marking only. Do not overfill!
4. Close the lid of the water tank.
5. Push the tank back into the base. It must audiably snap.
6. Connect the base station to a socket with earthing contact.
7. Set the required temperature in the range 0 < O_2 to 100 The control lamp on the iron lights up.
8. Wait until the sole plate has heated up. If the temperature has been reached, the control lamp goes out.
9. Now press the steam jet button for at least 15 seconds or until the steam comes out of the sole plate. Alternatively, you may set the lock onto the icon to generate continuous steam. This time is needed for the steam to reach the iron. A slightly louder noise of the pump is normal with this.

CAUTION:

A high temperature is needed to iron with steam. Set the temperature control at least to the oosymbol. Otherwise, the pump shuts off and steam ironing is no longer possible.

Vertical Steam Function

This can be used to produce a jet of steam in a vertical direction. This function can be used to remove creases from hanging clothes or from curtains.

WARNING:

Never point the steam jet at other people. Danger of burns!

Hang the washing on a hanger. Guide the iron closely over the material as specified by the material.

How Can I Replenish the Water During Operation?

Refill with water before the tank is completely empty. A loud noise of the pump during operation indicates that the water level is too low.

1. Place the iron on the rest.
2. Set the temperature control to MIN.
3. Remove the mains plug from the socket.
4. Remove the water tank.
5. Open the lid of the water tank.
6. Fill the water tank only with distilled water. Fill the water tank to the maximal marking only. Do not overfill!
7. Close the lid of the water tank.
8. Push the tank back into the base. It must audiably snap.
9. You can now continue ironing.

End of Operation

1. Always set the temperature control to MIN after use. Remove the mains plug from the socket.
2. Allow the appliance to cool. Secure the appliance via the transport lock before carrying or removing it.

Stowing the Cable

Stow the cable back into the cable compartment.

Cleaning

WARNING:

Always remove the mains lead before cleaning!
- Wait until the appliance has cooled down completely!
- Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• Clean the casing with a slightly damp cloth.

• Clean the sole plate and the rest with a slightly damp cloth.

• Any residual water can remain in the water tank, but should be poured out if it has been in the tank for a prolonged period.

Troubleshooting

Problem Possible Cause Remedy
Appliance does not work. Faulty mains socket. Try another socket.
The appliance suddenly stops working during operation.	Is the electric circuit overloaded? Check the hock use fuse.
No steam is generated. The water tank has not been installed correctly.	Firmly push the water tank into the base. It must audibly snap.
The temperature is set too low. Select a tempera ture between °Cand °C
Loud noises during steam operation.	The tank is empty.	Check the tank. Fill tank with water.
	Initial start-up or after long periods of disuse.	These noises of the pump are normal.

Technical Data

Model: DBS 6034 CB

Power supply: 220-240V~, 50-60Hz

Power consumption: 2200-2400 W

Protection class: I

Maximum filling quantity of the water tank: 1.2 litres

Net weight: approx. 2.3kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and is manufactured according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obslugi

Cnmbonbl npmeHemble B daHHOM pyKOBOCTBe noJIb3OBaTeIa

BaxhIbe pekomehdaun nOObecneueHnBaWei 6e3- onachoctn o6o3haueHbIOOCo6eHHOMy.Oba3aTeNbHO cNeuTte 3TNM pekomehdaunm,UTo6blpeDToBpaNTb HechacThb cnUaynnnoNOMky N3dennr:

PENEYIPPEXDEHNE:

PpeDynpexKaet o6 onaChocTn dIra 3IopOBbI N BO3MOK-HOM PNCKe IOnyueHn TpaBMbl.

BHIMAHNE:

Yka3bIbaeHa BO3MOxHyO ONaCHOCTb IIN3JeINN INpynx OKpyKaIOxN INpeDMETOB.

ПИМЕЧАнЯ:

Jaet COBtI INHOpMaIIO.

CoapedkaHne

O63op deraen npnbopa. 3

O6aHaHΦopMa. 55

Oc6bIe yka3aHnna no texHnke

6e3onachoctn dnn daHHoro ycTpoCTBa... 56

Ha3naueHne 58

063op deTaneep np6opa / KomnneKt noCTaBKn 58

PpmeuHnno nncnoB3oBaHnna 58

PacnaKOBka 58

PoiKluoyene K 3JIeKTPocetn. 58

Tpe6obAHnK nctOHTNk npTaHn.. 58

BkHoueHne H BbIKHoueHn. 58

PeryIaTOp TempeaytpbHa yIore. 58

3aueJka dna HnpepbIBHO npapa..58

Bodno6aok 59

Boda 59

3Kcnnyatauia 59

PepedepBbIMNCIOJIb3OBAHHeM 59

Tnaxhenie 6e3 npa. 59

TnaxKeHne c napom 59

CIMBOJbHapeyIaTope COOTBeTcByOT CNeDyUOuM HAcTpoiKaM:

O (CnHTeTnKa, WENK) HN3Ka TEmpepaTypa

C（BvCKo3a，WepcTb）cpeHra TemnepaTpa

BbICOKa TemnepaTpa

• UepTbHbIe TKAHN BbIBOpaUNBaIte Hau3HaHKy, YTO6bI 136exaTb IIOBJIeHn IIOCHJUnxCra IYTeH Bpe3yIbTaTe rnaKeHHc CnapOM. KpOME TOrO, NOd ToHKe XIOIHTaTO6ymaxHbIe TKAHN NODKJaDbIABaIte ObUHyIO TKAHb.
  -ДяТКанeнсдОЛНHTeNBHOrOTdENKOBbIbIpaIte HN3kyTeMnpepatypu INaIbTe INC N3HaHN.

ПОНМЕЧАНО:

YTHaHrpeBaETc6bICTpee, YEMOCtBIAeT. HauHaHTe TnaxKeHne npu yCTaHOBKe cAMoH N3KoT TemNepaTybl.

3auejka dnn HnpepbHoro npap

3auejka no3BOJrT HnpepbIBHO reHepuPoBaT nap.

HenpepbIBHbI np
= HenpepbBHyn nap BbIKIouen

Bodno6aok

• BoJHOn 6aOKe IMeET yrIy6JIeHHbI 3axBaT dIra BO3-MoKHOCTN CHRTNA.
• Pn yctaHOBKe EMKoCTn IJRA BObI B OCHOBaHne DOJIxKHe pa3daTbcrae quNOK qNKcaTopa.
  OTMeTka MAX haxoNTcHa 6aUKe Inra BODbl. He 3aIINBaIte BOyB EMKOCTb BblJe 3TOm METKn. O6bem 6aUKa coCTabIeT 1,2 nITpa.

Boda

BHIMAHHE:BO3MOxHOo6pa3OBaHHeHa npn-6ope n3BecTKOBORo HaneTa!

-Приимен� Te TOnbKOДиCTnIINpOBaHHyO BODy! HecobIIOJeHne 3TOro BaXHoRo 3aMeaHaHn MOxET npBecTu K NOIOMKe np6opa.
- Pnp6op, NOBpeKJdeHbI B pe3yIbTaTe o6pa3OBAHnI 13BeCTKOBOrO HaleTa, He nonaJaet noi 6ecPNaTHoe rapaHTnHOe 0cCnyKuBaHne.
He 3anoHnIe BoaHOn BaOoB OoO n3 BaTapeu OTOpHEnH,BooO n3 cyuNk nIra BeJIb a BDOo, copeKaauei doabKn (Haepmep, KpaxMaI, npFome-pnIO, yMraHTeNb n dpyrHe XUMKaTbI).
3TO MOKET NOBpeNTb yTHOr B pe3yIbTaTe O6pa3OBaHnOcAkoB B napoBoi KaMepe. 3TN ocAkn MOrY 3arp3-HaTb TkaHb PNI nonaDaHn N3 OTBepCTN B nOdoWe.

3Kcnnyatauia

Ipeep nepBbIM nCNOJb3OBaHHeM

• PpOtpnTe OCHOBaHHe yTIOrA CnERKa BnJaxHO NTKaHbIo.
  Дя удалень BCEX OCTaTKOB nepeid nepbBIM nCNoIb-3OBAHnEM nporlaDbTe yTHorom HeckoIbKO pa3 CTapyUQHCTyIO TKAHb.

ΓλακεΗΝε 6e3 napa

ПРИМЕЧАНО:

PaccopTnpyIte npdMeIbI OeKdbI corJaCHO TeMpepa-Typam DnI rJaxKeHn.

1. NocTabbTe yTHoH naNODCTaBky.
2. BkIyauaTe npn6op TOnbKO B npabunbHO yCTaHOBHeHHyIO po3ETky.
3. 3aaiTe TemnepaTyPc nomoUpo peryIaTopa TemnepeTypbl.Ecnncb DeNkathBle Bcui Dnra IraKeHna, HauHnTe C cAmO Hn3KoTemnpaTypbl.

ПИМЕЧАнЯ:

HdkaTOp Ha yTIORe yKa3bIaBaeT Ha npOceC HarpeBa. Pocne doCTNKeHnry yTfORom 3aDaHHo TEmnepaTypli HdkaTOp rachET. MoXHO NaHHaTb INaKy.

TnaxKeHne cnapom

PENEYIPPEXDEHNE:

YTHBbInyckaet 60bnoe KOINueCTBO ropraero npa. Onachoctb oxorob!

BHIMAHINE:

Ipeep nCnObn3oBaanem yTOra c napom y6eHntecb, YTO B BOJAHOM 6aueKe npncyTCTByet BOa B Heo6xOdMOM KOJIHcETBe.

BHIMAHHE: IepBoe nCnoB3OBAHHe:

BbIIOHInTe cneDyUoHee:

1. CHINMITE BOJDHOI 6aOH
2. OtkpoTe KpbIshky 6aka DnBa BoDbI.
3. HanonHte pe3epByap nCTnIIpOBaHHoBdoJ 3aONHbEMKocTb BOOToIbKO Do OTMeTKM MAX (MaKcIMyM). He nepenOnHraTe 6aQoK!
4. 3akpoTe KpbIkiKy 6aka DnA BoDbI.
5. NocTaBbTe pe3epByap o6paTHo Ha ochOBaHne. DOnJxHc 6bItb CblIeH 3ByK 3aenJIeHnI.
6. BkIIOUHTe 6a3OByIO CTaHcNIO B po3ETky C 3a3eMJIIO- LIMK OKTAKTOM.
7. 3aainTe TEmnepatpy B Dnana3oHe oT OOdo Ha yIore 3aropaeTc nHdkaTop.
8. Ndoxnte, noka noooba ythora He harpeetc. Nocne doctnkeHna 3aHaHHoTempeatypb HndkaTop raCHET.
9. Tenepb haxmnte n ydepknaBaiTe haxaToN KhoNky noa npa He Mehee 15 ckyHn nn Noka n3 nooWbbl ythra He noJet nap. N6o MoKHO yCTaHOBTb 3aueIky Ha 3HaOH DKrReHepnpOBaHn HnpePbIBHoro npa. 3TO Bpem HeO6xOIMO, YTObl nap doWeI Do yTHora. Pn 3TOM HEMHOro NOBbIeHHbI Wym HACoca ABJIeTcHOPMaJIbHBiM.

BHIMAHINE:

Ira IaKeHnC npom Heo6XoIMMa BbICOKa TEm- nepatypa.YcTaHOBIne perynTOp Temnepatypbl KaM MHNMyHa OTMeTKy O.NHaue HAcoc BbIKIOHTcN CTaHET HeBO3MOKHBIM OTnpNBAHne.

HnKOrda He HanpaBnIe cTpyIO npa Ha IIOeI. OnacHOCTb OXOROB.

IobecbTe BbICTnpaHoe 6eIbe Ha nIpeuNK.IpOBOdnte yTOROM pAOM B COOTBeTCTBm C INHCTpyKcIyMn DJIaHHO Maepna.

KakdoHbBovyBoBpeMa pa60tbl?

BoBpMa DOnBaIte BOy, noka 6aOH He onyCTe.

CnIbHbI Wym Hacoca BO BpeMpa60TbI Noka3bIbaeT,TO ypoBeHb BoDbl Man.

1. NocTaBbTe yTHOr Ha noDCTaBky.
2. YcTaHOBnTE peRyJIrTop TeMnepaTpybI B NOJoxHeNEMIN.
3. BbIbTe ceTeByu BNlky n3 po3eTkn
4. CHIMMITE BOYHON 6aOHK.
5. Řткpoite кршky baka ДЯ Вды.
6. HanonHnTe pe3epByap nCTnIuPobHoBn BOoJ 3aONHbE MKOcTb BOO ToIbKO Do OTMeKm MAX (MaKcMym). He nepenHnIte 6aQok!

7. 3akpoTe KpbIshky 6aka Ira BoDbI.

8. NocTaBbTe pe3epByap o6paTHo Ha ochOBaHne. DOnJKeH 6bItb CJIbIiWeH 3ByK 3aUeIeHnI.

9. Tenepb MoXHO npoDOnKnTb rnaKeHne.

Koneu pa6oTbI

1. Nocne nCnoNb3OBAHnB Bcerda yCTaHaBnBaIte peryIaTOp TemnepaTpbl B noIOxKeHne MIN. BbIHbTe ceTeByIO BnIKy n3 pO3ETKn.
   2.Даite np6bopy oc7bIb!пepeн警察ин ChTnem 3akpenite np6bop 3auejko TpaHcnpTnpOBKn.

YklaKa shHpya

YIOXHTe CeTeBOI SHHyOp 6bpaTHo B OTcEKN Iy XpaHeHn.

UncTka

ПЕДУПЕЖДЕНЕ:

Bcerda otknjuayte ceteboi kaebI nepeid uicTKoI!
-Дождntecьполно octываня пибopa.
- HN B KOem cnyae He norgykaite npnbop B BOdy dIy qIcTK. ΘTO MOKET npNBecTN K NopaxeHnO 3JIeKTpUyeCKIM TOKOM IJIY BO3rOpAHIO.

BHIMAHNE:

He nCnoJIb3yIte npOBoIOnHyU 1eTky nIIN a6pa3nB-HbIe cpeIcTba.
He nCnoB3yIe KNCIOTHbIe IIN a6pa3NBbIe YnCTa-

• PtoptnTe Kopnyc cIeKa BnaJHNoT KtaHbI.
• PpOtpnTe nOoUBy yTHora nNoCTaBky cIeRka BlaJxHoi TKAHbIO.
  OCTaTKI BObI MOxHO OCTaBtB B ODAHOM 6aUKe, HO ee CJIeNyET BblNTb, ECNI OHa HaxOДnIacB B 6aUKe IINITeIbHoe Bpem.

YcTpaHHe HEnCnpaBHOCTe

1.0,0.5,0.2,0.0,0.0,0.0,0.0,0.0

= 2

a j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j 13j

= 1,0

Joljoljoljoljol

y

$$ j _ {i} = \widehat {m} $$

$$ j a _ {i} a _ {i} j l _ {i} l _ {i} \dot {a} _ {i} \dot {l} _ {i} = \mathrm {命} $$

04

aillj jiyj ggeo aedolbl jg

Goo elow uJ jueu jj Jyuyu ydually jjdoa gog solei.

.0

u u 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1.1j 1,2 jjall dew gll .doall

cU61

S OBC = S COD + S BOC - S BOC

1b0a 1o o

jollll cal lss jocg ydd aagb1 abgab61 oig pjjy103!.
