USER MANUAL DB 781 CB BOMANN

Thank you for choosing our product. We hope you enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

i NOTE:

This highlights tips and information.

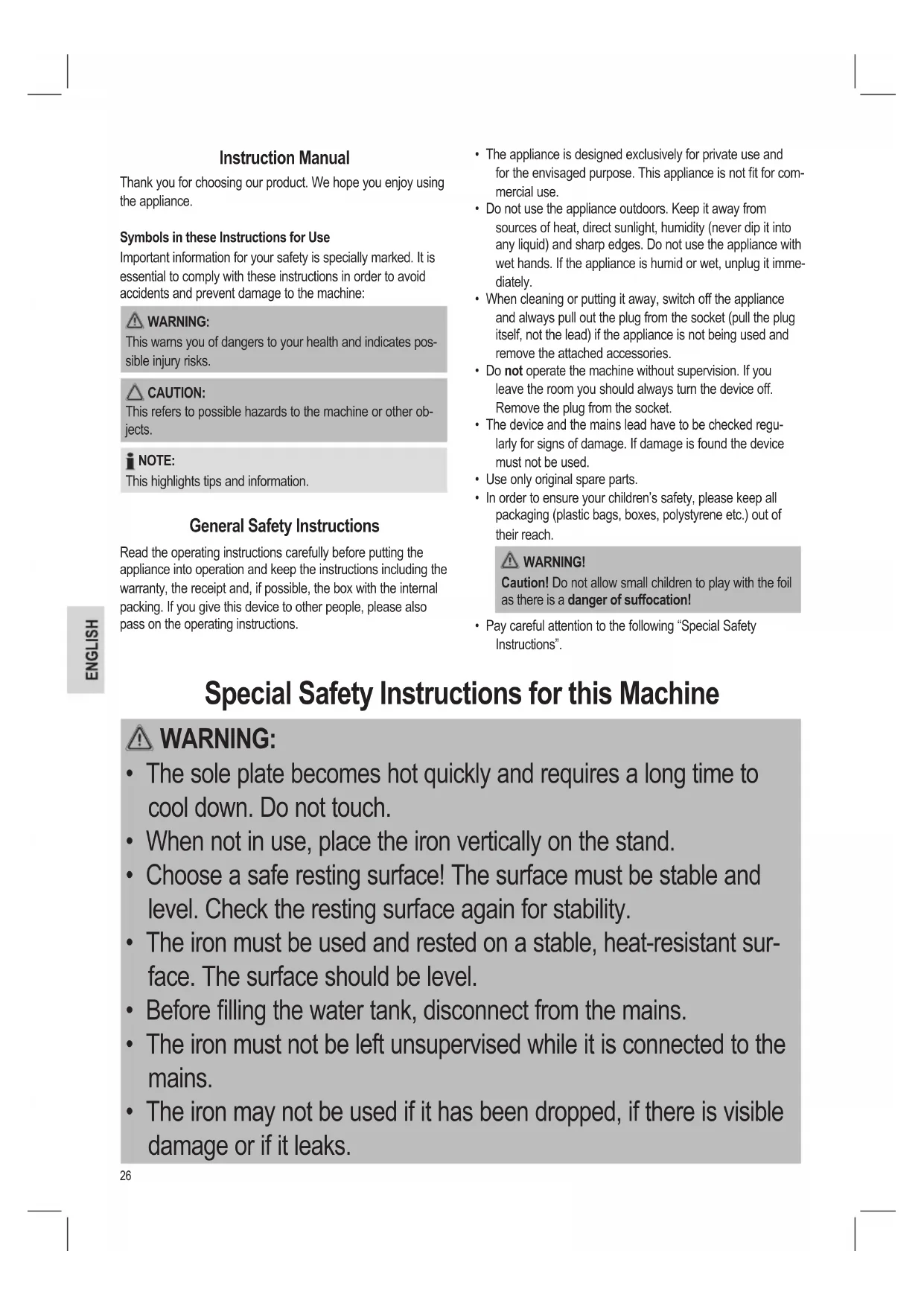

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use the appliance outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

WARNING:

• The sole plate becomes hot quickly and requires a long time to cool down. Do not touch.
• When not in use, place the iron vertically on the stand.
• Choose a safe resting surface! The surface must be stable and level. Check the resting surface again for stability.
• The iron must be used and rested on a stable, heat-resistant surface. The surface should be level.
• Before filling the water tank, disconnect from the mains.
• The iron must not be left unsupervised while it is connected to the mains.
• The iron may not be used if it has been dropped, if there is visible damage or if it leaks.

WARNING:

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• When turning on or cooling down, the iron and its cord must be out of reach of children who are younger than 8 years.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• The tank should only be filled up to the maximum mark. Do not overfill! Maximum water filling quantity: approx. 250 ml.
• Please use only distilled water.

Intended Use

This device is used for ironing clothes and textiles. It is intended for household use.

Any other use is regarded as not intended and may even result in damage to property or personal injury.

Overview of the Components

1 Flexible line cord entry
2 Stand
3 Control lamp
4 Transparent water container
5 Temperature control markings
6 Ceramic soleplate
7 Continuously adjustable temperature regulator
8 SELF-CLEAN button
9 Steam control markings
10 Spray nozzle

11 Filler opening for the water tank
12 Steam volume regulator
13 Steam jet button
14 Spray button
15 Handle
16 Measuring cup (not shown)

Instructions

Unpacking

• Remove any protective foils and stickers from the soleplate.
• Please unwind the lead completely.

Electrical connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed socket with earthing contact.

Connected Wattage

The maximum power consumption of the appliance is 2200 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION:OVERLOAD!

• If you use extension leads, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this device is too powerful.

Temperature Control on the Iron (7)

The symbols on the control correspond to the following settings:

MIN off

Nylon, rayon low temperature
Wool, silk medium temperature
Cotton, linen high temperature

MAX maximum temperature

Water Tank (4)

1. Place the iron with the sole plate in an upright position on a heat resistant surface.
2. Fill the water reservoir at the refill opening (11). Use the supplied measuring cup (16).
3. The tank volume is ca. 250ml . Fill the water tank to the MAX marking only.
4. Close the lid of the tank.

Water

Please use only distilled water.

Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir.

This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the soleplate.

Operation

Before Initial Use

• Clean the ironing base with a slightly damp cloth.
• In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Ironing without steam

NOTE:

1. Sort out the garments according to their ironing temperatures.
2. Always set the temperature control to "MIN" before connecting the appliance to a power point, or before disconnecting it. Please follow the temperature control markings (5).

NOTE:

1. Set the steam control (12) to the "—" position, following the steam control markings (9).

2. Place the iron on its stand.

3. Only connect the machine to a properly installed safety socket.
4. Set the temperature on the temperature control (7). If you have sensitive items to iron, please begin with the lowest temperature.

NOTE:

The control lamp (3) on the iron shows that it is heating up. As soon as the control lamp goes off the operating temperature has been reached. Now you can start ironing.

1. Always turn the temperature control to "MIN" after use and remove the mains plug (The control lamp goes off).

Steam Ironing

WARNING:

The steam is hot. Danger of scalding!

iNOTE:

• For this a high temperature is needed. Turn the temperature control (7) at least to the symbol.

• If the temperature is too low water may leak from the soleplate.

• Use the steam control (12) to adjust the amount of steam. Follow the markings on the steam volume regulator (9).

• Steam escapes as soon as the iron is in a horizontal position.
• Extra steam can be added with the steam jet function.
• Press the steam jet button (13) intermittently.

Spray Function (V)

In order to moisten a section of a garment to be ironed, press the spray button (14) intermittently.

Vertical Steam function

This can be used to produce a jet of steam in a vertical direction.

WARNING:

Never direct the steam jet at people. Risk of burning!

1. Hang your laundry on a clothes hanger and move the iron to approximately 3-5 cm away.
2. Set the temperature control (7) to "MAX" position.
3. Press the steam jet button (13) intermittently.

NOTE:

If the amount of steam emitted is too little, wait until the appliance heats up again.

Refilling the water tank

1. Always disconnect the mains plug before refilling water.
2. Set the steam control to the “-” position.
3. Place the iron with the sole plate in an upright position on a heat resistant surface.
4. Open the lid of the refill inlet and carefully pour in the water.
5. Do not exceed the maximum line as marked on the water reservoir.
6. Close the lid of the tank.

Self-Cleaning

1. Half fill the water tank with water.
2. Heat the machine up to its maximum temperature. After the control lamp goes off remove the machine from the mains supply.
3. Now hold the iron horizontally over a sink. Press and hold the SELF-CLEAN button (8). Now rock the device backwards and forwards until the tank is empty.
4. Place the machine back on its stand and heat it up again. To clean the base now iron over a clean cotton cloth.

When you have finished

• Always turn the temperature control to "MIN" after use and remove the mains plug (The control lamp goes off).
• Empty the water tank in order to prevent the contents of the tank leaking.
• Allow the device to cool down before you put it away.

Cleaning

WARNING:

Always remove the mains lead before cleaning!
- Wait until the machine has cooled down completely!
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• Clean the casing with a slightly damp cloth.

• Clean the sole plate and the rest with a slightly damp cloth.

Technical Data

Model: DB 781 CB
Power supply: 220 -240 V, 50/60 Hz
Power consumption: 1850 - 2200 W
Protection class:
Net weight: approx. 0.85 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
