USER MANUAL J613 JAGUAR

-Brief specifications. 18
- Description of the display and control buttons. 19
- Setting the time / date. 20-23
-Operation of the chronograph. 24-29

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

Brief specifications

Description of the display and control buttons

Time/Date

• Hour hand
• Minute hand
• Small second hand (position 3h)
• Date (position 6h)

Chronograph

• Hour counter up to 12 hours (position 9h)
• Minute counter up to 30 minutes (position 9h)
• Centre stop-second

General

• Battery type: 395 (diameter 9.5mm× 2.6mm / SR927 SW)
  Accuracy: +20 / -10 seconds per month

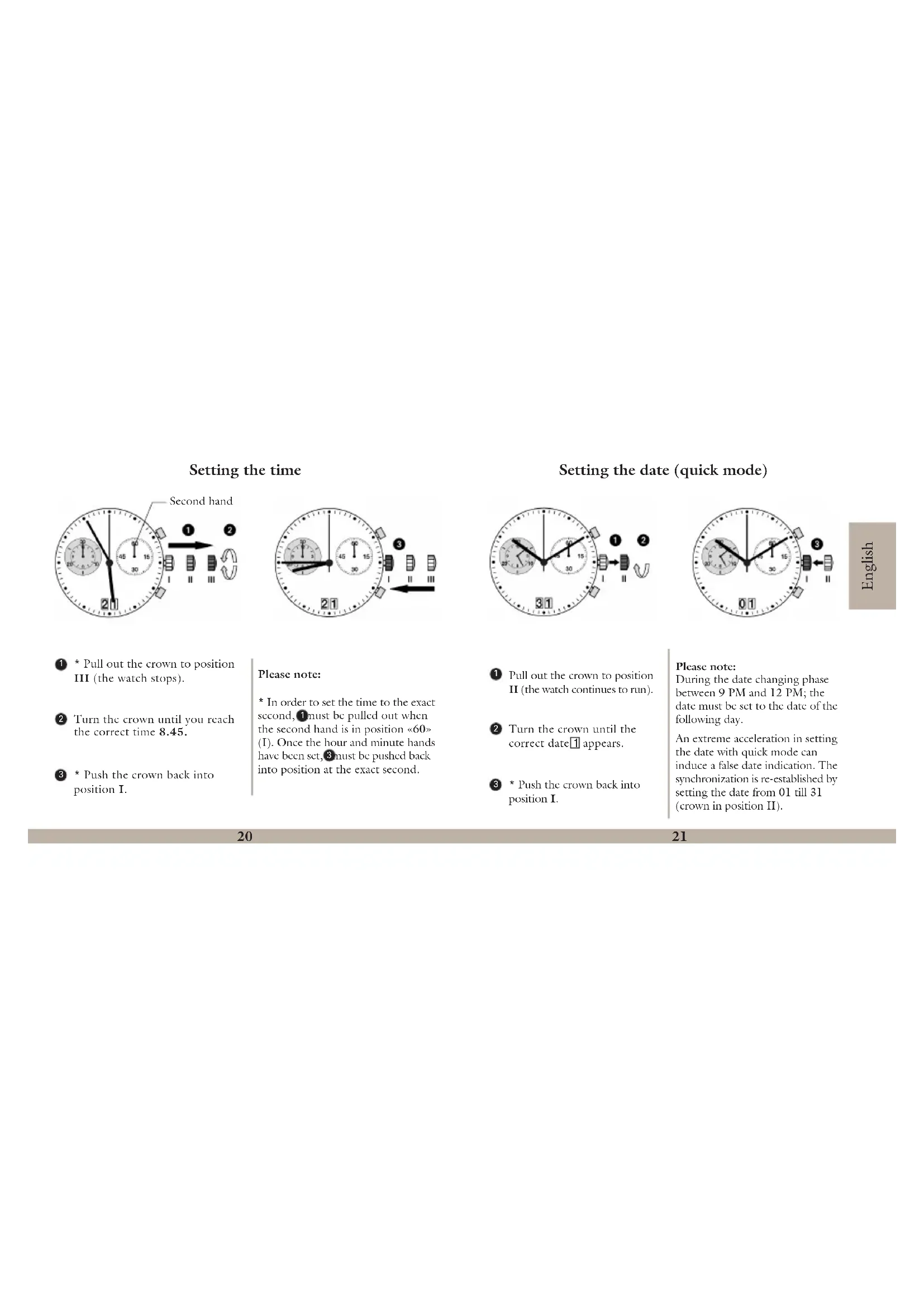

Setting the time

Setting the date (quick mode)

* Pull out the crown to position III (the watch stops).
Turn the crown until you reach the correct time 8.45.
*Push the crown back into position I.

Please note:

• In order to set the time to the exact second, 1 must be pulled out when the second hand is in position «60» (1). Once the hour and minute hands have been set, 3 must be pushed back into position at the exact second.

Pull out the crown to position II (the watch continues to run).
Turn the crown until the correct date appears.
*Push the crown back into position I.

Please note:

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

An extreme acceleration in setting the date with quick mode can induce a false date indication. The synchronization is re-established by setting the date from 01 till 31 (crown in position II).

Setting the date/time

Example:

-Date/time on the watch: [17]/1.25 AM
Present date/time: 4/8.30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears

↓

↓

* Pull out the crown to position III (the watch stops).
Turn the crown until the correct date appears.
5 **Continue to turn the crown until the correct time 8.30 PM appears.

Push the crown back into position I.

Please note:

To set your watch to the exact second, please refer to the chapter entitled «set-ting the time».
* Please observe the AM/PM clock rhythm.

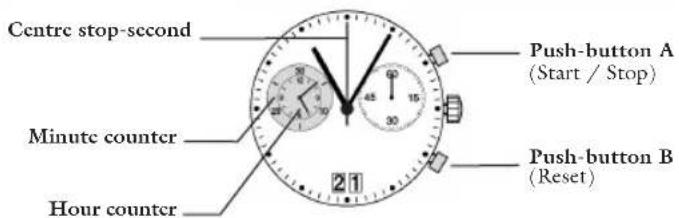

Chronograph:

The chronograph's hour counter measures times up to 12 hours.
The minute counter measures 30 minutes per rotation.
The center stop-second measures 60 seconds per rotation.

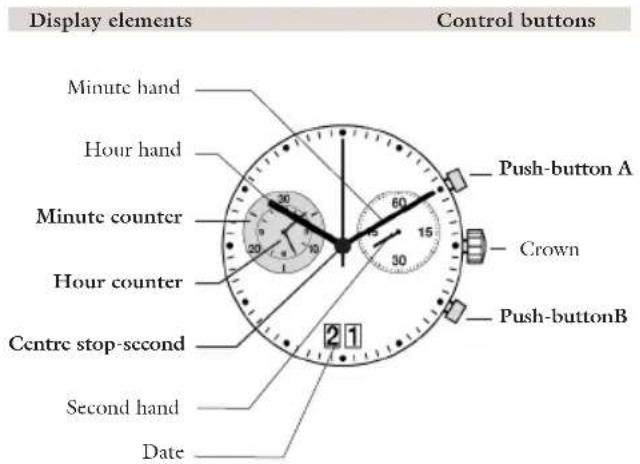

Display elements
Control buttons

Please note:

Before using the chronograph functions, please ensure that: the crown is in position I (= normal position).

the 3 chronograph hands are precisely at zero position following activation of push-button B. Should this not be the case, the positions of the hands must be adjusted (see the chapter entitled «adjusting the chronograph hands to zero position»).

Chronograph: Basic function

(Start/Stop/Reset)

Hour counter

Example:

1 Start:

Press push-button A.

Stop: to stop the timing, press pushbutton A once more and read the 3 chronograph counters: 4h / 20min / 38sec

Zero position

(The 3 chronograph hands will be reset to their zero positions).

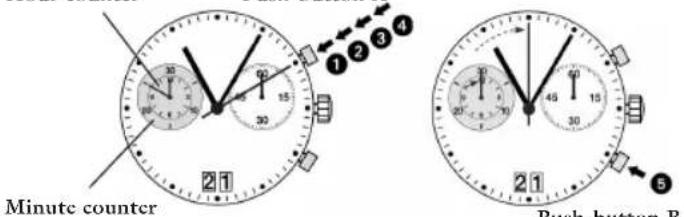

Chronograph: Accumulated timing

Hour counter

Example:

1 Start: (start timing)

2 Stop:

(c.g. 15 min 5 sec following)

3 Rstart:

(timing is resumed)

4 Stop:

(e.g. 10 min 5 sec following 3)

= 25 10sec

(The accumulated measured time is shown)

5 Resct: The three chronograph hands are returned to their zero positions.

Please note:

• Following 4, the accumulation of the timing can be continued by pressing push-button A

(Restart/Stop, Restart/Stop,...)

Chronograph: Intermediate or interval timing

Minute counter

Example:

Start: (start timing)

Display interval: e.g. 10 minutes 10 seconds (timing continues in the background)
Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).

4 Stop: (Final time is displayed)
Reset:

The 3 chronograph displays are returned to their zero position

Please note:

• Following 3 further intervals or inter-mediates can be displayed by pressing push-button B (display interval / make up measured time, ...)

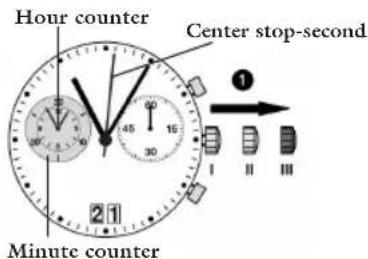

Adjusting the chronograph hands to zero position

Example:

One or several chronograph hands are not in their correct zero positions and have to be adjusted (e.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).

2 Keep push Buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ corrective mode is activated).

小

Adjusting the centre stop second Single step: A 1 x short Continuous: A long

↓

Adjusting the next hand B

Adjusting the minute counter hand the hour counter hand (mechanical coupled) Single step: A 1 x short Continuous : A long

3

Returning the crown to position I

Termination of the chronograph hands adjustment (can be carried out at any time).
