Product type	Quartz wristwatch
Brand	Jaguar
Model	J862 Executive
Movement	Quartz
Main functions	Time display, date, chronograph (start/stop/reset, totalizer, split time)
Chronograph counters	Seconds counter at center, minutes counter at 9 o'clock, hours counter at 6 o'clock
Time setting	Crown in position III (pulled out), turn to set
Quick date correction	Crown in position II, turn
Power supply	Button cell battery (type not specified)
Estimated battery life	Approximately 2-3 years depending on usage
Care and cleaning	Clean with a soft, dry cloth. Avoid any contact with water, chemicals, and severe shocks.
Usage precautions	Do not operate the pushers underwater. Avoid magnetic fields.
Recycling	Selective collection of batteries and electronic components at end of life
Safety	Keep out of reach of children. Do not expose to extreme temperatures.
Spare parts and repairability	Battery replaceable by a watchmaker. Chronograph hands adjustable at zero position.
Documentation	User manual available in multilingual PDF

Frequently Asked Questions - J862 Executive JAGUAR

How to set the time on my Jaguar J862 Executive watch?

Pull the crown to position III (the seconds hand stops). Turn the crown until the desired time is displayed. Push the crown back to position I. For precise setting to the second, pull the crown when the seconds hand is at 60.

How to use the chronograph in start/stop mode?

Press pusher A to start timing. Press A again to stop it. Read the counters: hours (6 o'clock), minutes (9 o'clock), seconds (center). Press B to reset the hands to zero.

How to do timing with totalization?

Press A to start. Press A to stop (first lap). Press A to restart. Press A to stop definitively. The total time is displayed. Press B to reset to zero.

How to measure a split time?

Press A to start. Press B to display the split time (chrono continues in background). Press B to catch up to real time. Press A to stop the final chrono. Press B to reset to zero.

How to adjust the chronograph hands if they are not at zero?

Pull the crown to position III. Simultaneously press A and B for 2 seconds: the seconds hand rotates 360°. Use A to adjust the seconds hand step by step or continuously, then press B to switch to the hour hand, adjust with A, then B for the minute hand. Push the crown back to position I.

How to quickly set the date?

Pull the crown to position II (the watch continues running). Turn the crown until the desired date is displayed. Push the crown back to position I. Avoid setting the date between 9 PM and midnight to avoid damaging the calendar.

What to do if my watch stops?

Check if the battery is drained. Replace the battery with a new one of the same type (consult a watchmaker). After battery replacement, follow the date and time setting procedure described in the manual.

How to clean my Jaguar J862 Executive watch?

Use a soft, dry cloth to wipe the case and bracelet. Avoid water, solvents, and abrasive products. If the bracelet is leather, avoid contact with water.

Is my watch water-resistant?

The manual does not mention water resistance. It is not recommended to expose it to water. Avoid wearing it in the shower, pool, or while diving.

How to set the date and time after a battery change?

Example: if the watch shows 17/01 2:25 and the actual is 4/20:30. Pull the crown to position II, turn to display the day before the date (3). Pull to position III, turn to display the current date (4). Continue turning to display the current time (20:30). Push back to position I.

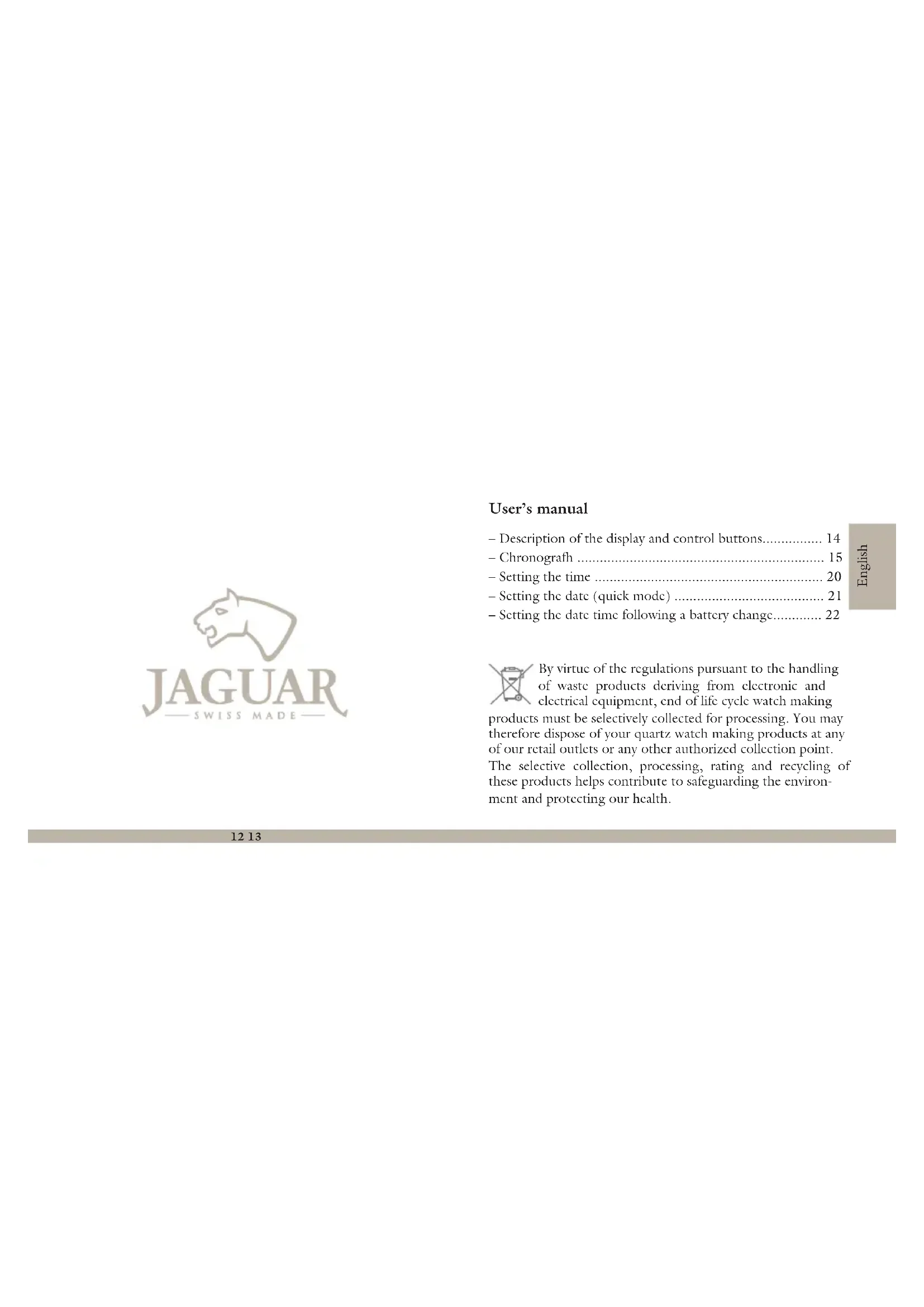

USER MANUAL J862 Executive JAGUAR

• Description of the display and control buttons. 14
  -Chronograph 15
  -Setting the time 20
  -Setting the date (quick mode) 21
• Setting the date time following a battery change. 22

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of life cycle watch making

products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point.

The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

Description of the dislay and control buttons

Chronograph: Basic function

START/STOP/RESET

Example:

① Start: Press push button A.
Stop: to stop the timing, press pushbutton A once more and read the three chronograph hand: 1h / 20min / 10scc
③ Zero positioning:

Press push-button B. (The three chiorograph hands will be reset to their zero positions).

Chronograph: Accumulated timing

Minute counter

Hour counter Hour counter

Example: Example:

① Start: (start timing)
② Stop: (c.g. 15 min 5 sec following ①)
Restart: (timing is resumed)
*Stop:c.g.13 min 5 scc following 28 min 10 sec (the accumulated measured time is shown).

⑤ Reset:

The three chronograph hands are returned to their zero positions

PushbuttonB

Please note:

Following*4, the accumulation of the timing can be continued by pressing push button A (Rstart/Stop, Rstart/ Stop,...)

Chronograph Intermediate or interval timing

Start: (start timing)
Display interval: c.g. 10 minutes, 10 seconds (timing continues in the background).
Making up the measured time: (the 3 chronograph hands are quickly advanced to the ongoing measured time).
Stop: (Final time is displayed)
④ Reset:

The 3 chronograph hands are returned to their zero position.

Please note:

Following 6 further intervals or intermediates can be displayed by pressing push-button B (display interval/make up measured time,...)

Adjusting the chronograph hands to zero position

Minute counter Center stop-second

Example:

One or several chronograph hand are not in their correct zero positions and have to be adjusted (c.g. following a battery change).

Pull out the crown to position III (all 3 chronograph hands are in their correct or incorrect zero position).
2 Keep push Buttons A and B depressed simultaneously for at least 2 seconds (the centre stop-second rotates by 360^ corrective mode is activated)

Adjusting the centre stop second: Single step A1 x short Continuous

Adjusting the next hand

Adjusting the hour counter hand (position 6h)

Single step A1 x short

Continuous long

Adjusting the next hand B

Adjusting the minute counter hand (position 9h)

Single step 1x short

Continuous Long

Returning the crown to position 1 Termination of the chronograph hands adjustment (can be carried out at any time)

Setting the time

Setting the date (quick mode)

① Pull out the crown to position III * (the watch stops).
② Turn the crown until you reach the correct time 8:45.
Push the crown back into position I.*

Pull out the crown to position II (the watch continues to run).
Turn the crown until the correct date 1 appears.
Push the crown back into position I.

Please note: Please note:

In order to set the time to the exact * second, ① must be pullet out when the second hand is in position "60" (I). Once the hour and minute hands have been set, ③ must be pushed back into position I at the exact second.

During the date changing phase between 9 PM and 12 PM; the date must be set to the date of the following day.

Setting the date/time

Following a battery change

Example:

Date/time on the watch:17/1:25 AM Present date/time:4/8:30PM

Pull out the crown to position II (the watch continues to run).
Turn the crown until yesterday's date appears 3.

Pull out the crown to position
III (the watch stops).
Turn the crown until the correct date appears.
5 Continue to turn the crown * until the correct time 8:30 PM appears.
Push the crown back into position I.

Please note:

To set your watch to the exact * second please refer to the chapter entitled "setting the time".
* Please observe the AM/PM clock * rhythm.
