Product type Wall sander
Brand Stanley
Model SFMEE500
Supply voltage 220 - 240 V AC
Frequency 50 / 60 Hz
Power input 750 W
No-load speed 600 - 1700 min⁻¹
Sanding pad diameter 215 mm
Weight 3.75 kg
Sound pressure level (LpA) 89 dB(A)
Sound power level (LWA) 100.5 dB(A)
Vibrations (ah) 2.7 m/s²
Vibration uncertainty (K) 1.5 m/s²
Double insulation Yes
LED lighting 10 W around the pad
Electronic speed control Yes, by dial
Dust extraction system With vacuum cleaner connection (Ø 35/47 mm)
Foldable axis extension Yes, up to 1.8 m
Sanding pad Round, Velcro system
Use Sanding walls and ceilings
Safety Double insulation, safety brake, articulation lock
Maintenance Regularly clean the ventilation slots
Warranty 12 months

Frequently Asked Questions - SFMEE500 STANLEY

How to assemble the foldable axis extension?
Fully unfold the upper and lower axis. Press and hold the articulation lock button to the right, then push down the button to lock the axis in place. To fold, release the locking system.
How to replace the sanding pad?
Unplug the tool. Insert the hex key (size 5) into the bolt under the pad. Turn counterclockwise to unscrew, then install the new pad by tightening the bolt.
How to attach a sanding disc?
Place the disc in the center of the Velcro pad and press firmly. Ensure the disc holes align with the pad holes for dust extraction.
How to adjust the sanding speed?
Turn the electronic speed control dial on the motor block. The speed can be adjusted from 600 to 1700 min⁻¹ depending on the surface.
How to connect a vacuum cleaner?
Loosen the ring on the extraction outlet, insert the suction tube, then tighten the ring. Use the appropriate adapter (Ø 47 mm or 35 mm) to connect the vacuum hose.
What are the essential safety instructions?
Always wear safety glasses, a dust mask, and hearing protection. Keep the work area clean and keep children away. Do not modify the plug and do not use the tool in wet environments.
How to maintain the sander?
Regularly clean the ventilation slots to prevent dust buildup. Check the condition of the pad and discs. Store the tool in a dry place out of reach of children.
What to do if the pad does not run true?
Check that the sanding disc is properly centered. If the problem persists, inspect the pad for wear or damage and replace it if necessary.
Is it possible to use the tool without a vacuum cleaner?
Yes, but it is strongly recommended to use an extraction system to reduce dust. If working without a vacuum cleaner, wear a suitable dust mask.
What is the warranty for this device?
Stanley offers a 12-month warranty from the date of purchase. It is valid in the European Union and the Free Trade area. Keep your proof of purchase.

User questions about SFMEE500 STANLEY

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Sander in PDF format for free! Find your manual SFMEE500 - STANLEY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SFMEE500 by STANLEY.

USER MANUAL SFMEE500 STANLEY

natural_image Technical line drawing of a mechanical robotic arm with articulated joints and base plate (no text or symbols)

Technical diagram of a mechanical device with numbered parts and exploded views, including a tool, base, and component labels.

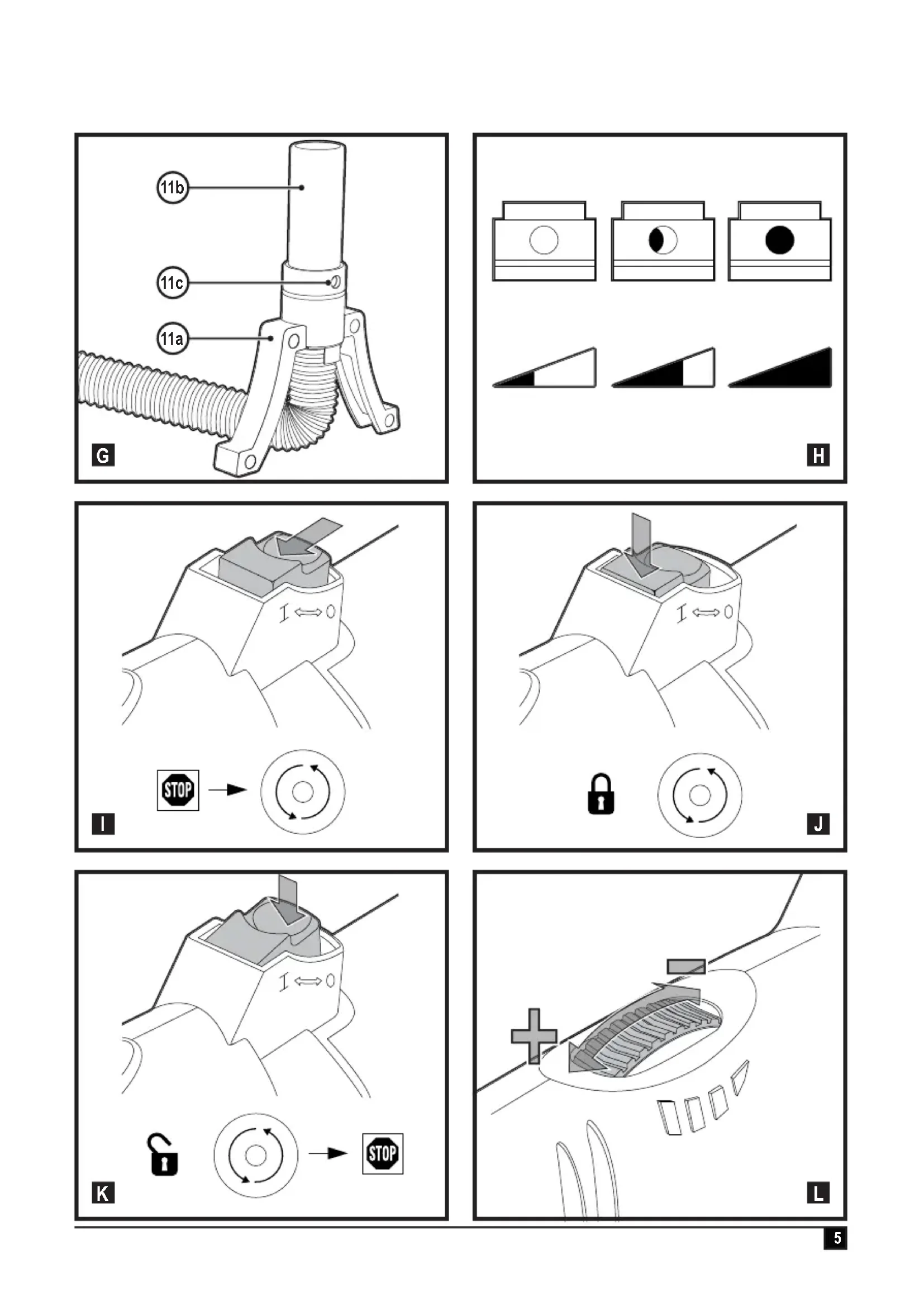

5

STANLEY SFMEE500 - 2

natural_image Technical diagram of a mechanical clamp or bracket assembly with directional arrows indicating motion (no text or symbols)

STANLEY SFMEE500 - 3

natural_image Technical line drawing of a mechanical clamp or bracket assembly with directional arrow indicating motion (no text or symbols)

STANLEY SFMEE500 - 4

natural_image Technical line drawing of a mechanical component with no visible text or symbols

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating motion or sequence.

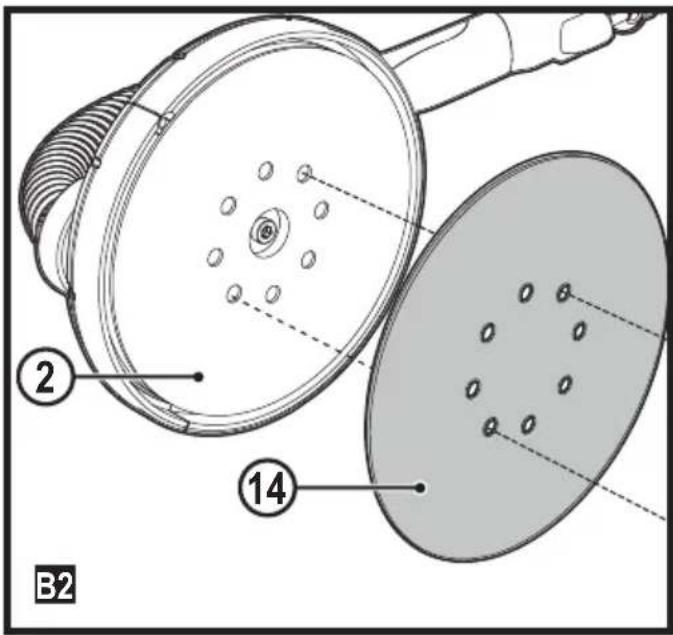

B2 ② ⑭ 14

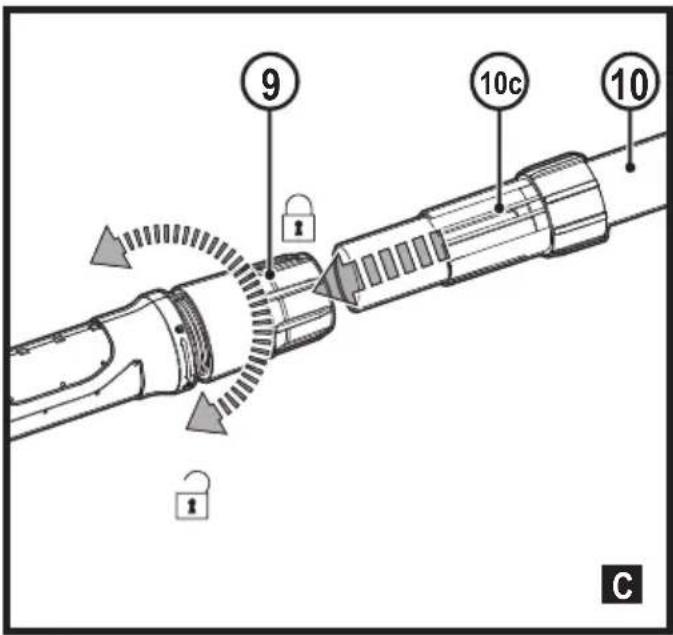

9 10c 10 C

9 10b 11 11 D

STANLEY SFMEE500 - 9

natural_image Illustration of a person in protective gear using a handheld industrial machine with hoses and a dome-shaped top (no text or symbols)

STANLEY SFMEE500 - 10

natural_image Illustration of a person in protective suit using a handheld spray gun to clean or spray the interior (no text or symbols)

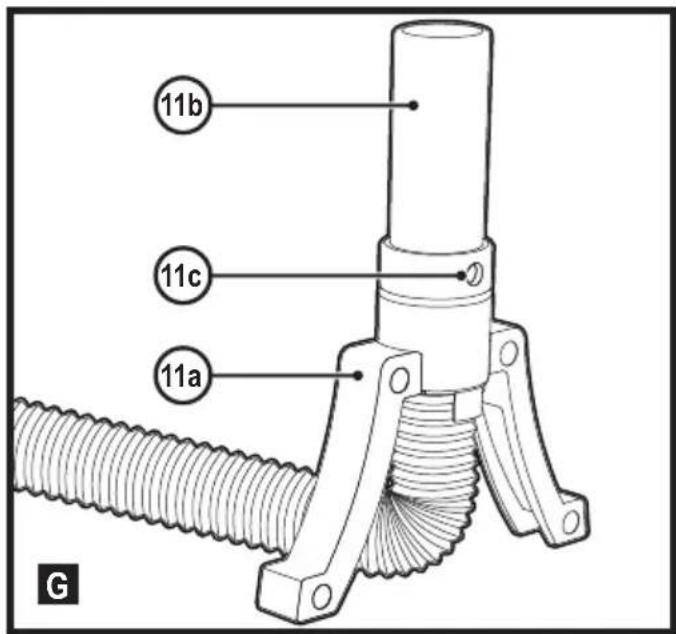

11b 11c 11a G

STANLEY SFMEE500 - 12

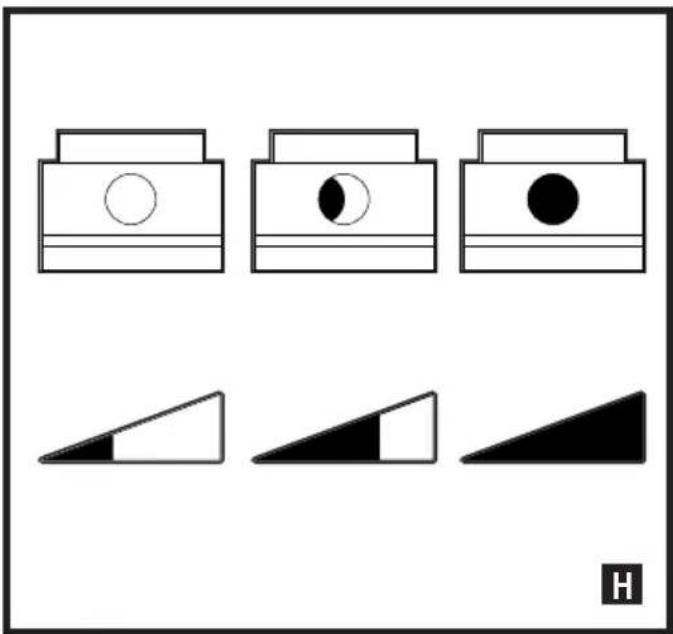

natural_image Diagram showing three rectangular blocks with circular and black circles, plus three triangular shapes below (no text or symbols)

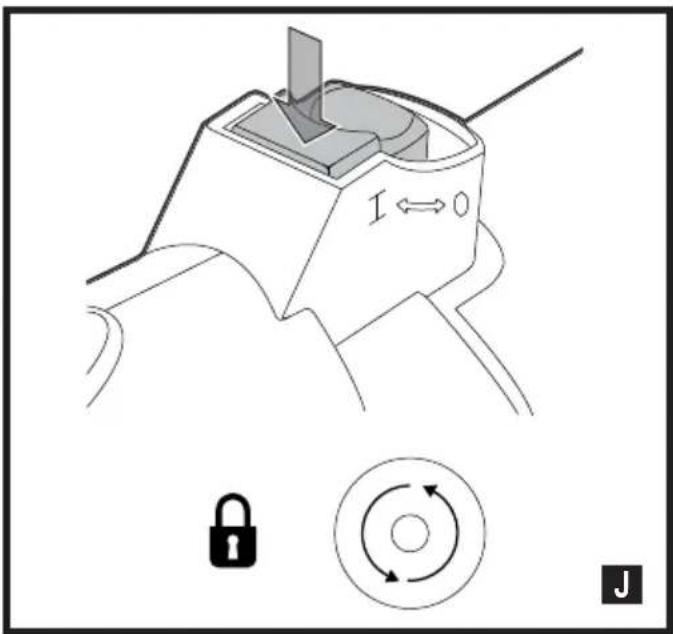

1 STOP

I ← 0

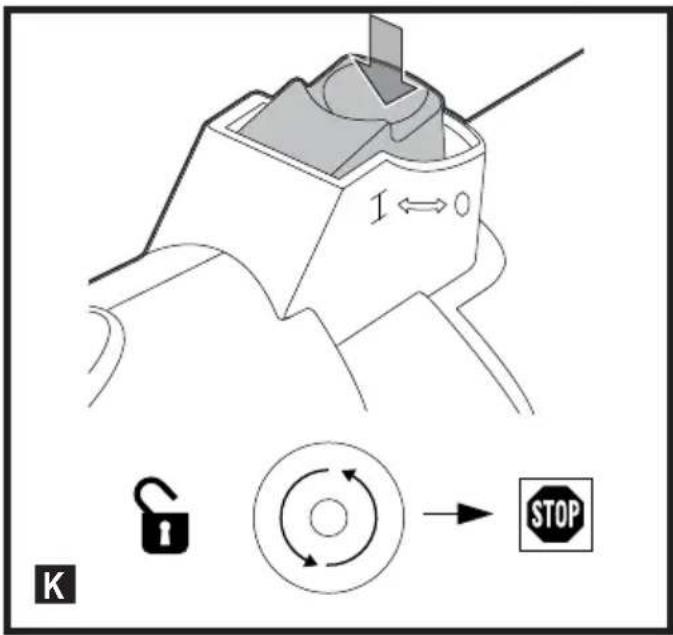

1 ⇌ 0 K STOP

STANLEY SFMEE500 - 16

natural_image Diagram of a vehicle's rearview structure with directional arrows and components (no text or labels)

Intended use

Your STANLEY FAT MAX SFMEE500 wall sander has been designed for sanding walsl and ceilings. This appliance is intended for professional and private, non professional users.

Safety instructions

General power tool safety warnings

STANLEY SFMEE500 - General power tool safety warnings - 1

Warning! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury..

Save all warnings and instructions for future reference.

The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

  1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

  1. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

  1. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

  1. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application.

The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.

Power tools are dangerous in the hands of untrained users.

e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

6. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

Additional power tool safety warnings

STANLEY SFMEE500 - Additional power tool safety warnings - 1

Warning! Additional safety warnings for wall sanders.

- This power tool is intended to function as a sander. Read all safety warnings, instructions, illustrations and specifications provided with this power tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

◆ Operations such as grinding, wire brushing, polishing or cutting-off are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.

- Do not use accessories which are not specifically designed and recommended by the tool manufacturer.

Just because the accessory can be attached to your power tool, it does not assure safe operation.

- The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart.

- The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.

Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.

Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If the power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no load speed for one minute. Damaged accessories will normally break apart during this test time.

- Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

- Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of the workpiece or of a broken accessory may fly away and cause injury beyond the immediate area of operation.

- Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

ENGLISH

(Original instructions)

  • Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
  • Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
    Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body.
  • Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.
  • Do not operate the power tool near flammable materials. Sparks could ignite these materials.
    Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.

Further safety instructions

Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory's rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel's movement at the point of pinching. Abrasive wheels may also break under these conditions.

Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below.

  • Maintain a firm grip on the power tool and position your body and arm to allow you to resist kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions are taken.
  • Never place your hand near the rotating accessory. Accessory may kickback over your hand.
  • Do not position your body in the area where power tool will move if kickback occurs.

Kickback will propel the tool in direction opposite to the wheel's movement at the point of snagging.

Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control.
Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control.

Additional safety instructions for sanding operations

Safety Warnings Specific for Sanding Operations:

Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback.

Safety of others

  • This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
    ◆ Children should be supervised to ensure that they do not play with the appliance.

Residual risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

◆ Injuries caused by touching any rotating/moving parts.
◆ Injuries caused when changing any parts, blades or accessories.
◆ Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
◆ Impairment of hearing.
◆ Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)

Vibration

The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.

Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.

When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.

Labels on tool

The following pictograms along with the date code are shown on the tool:

STANLEY SFMEE500 - Labels on tool - 1

Warning! To reduce the risk of injury, the user must read the instruction manual.

STANLEY SFMEE500 - Labels on tool - 2

Wear ear protectors with impact drills. Exposure to noise can cause hearing loss.

STANLEY SFMEE500 - Labels on tool - 3

Wear safety glasses or goggles.

STANLEY SFMEE500 - Labels on tool - 4

Wear a dust mask.

Electrical safety

STANLEY SFMEE500 - Electrical safety - 1

This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised STANLEY FAT MAX Service Centre in order to avoid a hazard.

Features

This appliance includes some or all of the following features.

  1. Round sanding head
  2. Round sanding pad (hook & loop system)
  3. Motor housing
  4. Folding lock
  5. Main handle

  6. Shaft

  7. On/ Off switch

  8. Electronic speed control wheel
  9. Dust extraction outlet (with locking sleeve)

  10. Extensionshaft

10a.Rearhandle

10b. Dust extraction outlet (with locking sleeve)

10c.Sleeve

  1. Vacuumhose

11a.Supportadaptor

11b. Connector (pre-assembled) (38mm)
11c. Suction power adjustment ring
11d. Vacuum adaptor (pre-assembled) (47mm)
12. Vacuum adaptor (pre-assembled) (35mm)
13. Hex wrench
14. Round sanding disc

Use

Warning! Let the tool work at its own pace.

Do not overload.

  • Before using the tool for the first time, it is recommended to receive practical information.
    ◆ Always check that the supply voltage is the same as the voltage indicated on the nameplate of the tool.
    Use suitable detectors to find hidden utility lines or call the local utility company for assistance(contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock).
  • Do not work materials containing asbestos (asbestos is considered carcinogenic).
  • Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable.
  • Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable.
    ◆ Follow the dust-related national requirements for the materials you want to work with.
    ◆ Do not clamp the tool in a vice.
    ◆ Use completely unrolled and safe extension cords with a capacity of 16 Amps.

After use

- After switching off the tool, never stop the rotation of the accessory by a lateral force applied against it.

Assembly and adjustment

Warning! To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. Before reconnecting the tool, depress and release the trigger switch to ensure that the tool is off. An accidental start-up can cause injury.

Assemble foldable shaft (Fig. A1, A2, A3)

◆ Fully unfold the upper shaft and lower shaft (Fig. A1).
◆ Push the folding lock (4) to the right position and keep the tip adjacent to the handle (Fig. A2).
◆ Press down the folding lock (4) to lock the shaft (Fig. A3).
◆ Release the folding lock to fold the shaft.

Replace sanding pad (Fig. B1)

  • Insert the hex wrench (13) (size 5) into the hexagonal screw bolt on the sanding block.
  • Hold the sanding pad firmly, and then turn the wrench counter clockwise to dismount the pad.
    ◆ Install new sanding pad by tightening the bolt.

Attaching and changing sanding disc (Fig. B2)

Place the sanding disc (14) in the center of the sanding pad (2) and press on. The holes in the sanding disc must be in alignment with the extraction holes in the sanding pad.
- For round sanding pad only: conduct a test run to check that the sanding disc is clamped in the centre.

The LED light

◆ 10W LED lights surrounding the pad lighten the cupped and raised spots on the wall or ceiling, enable you to work efficiently and deliver a better sanding result as shown in figures E and F.

Extension shaft (optional) (Fig. C)

◆ Use the extension shaft (10) according to the intended operation for higher work surface.
- Loosen the sleeve on the dust extraction outlet (9) of the shaft. Do not remove the sleeve from the outlet.
- Align the rear handle (10a) with the main handle (5) and insert the sleeve (10c) on the extension shaft (10) into the outlet (9) with a twist motion all the way to the top.
- Adjust the length of the extension shaft (10) if necessary. Pay attention to the marking “max 1.8m” on the extension shaft. Tighten the sleeve (9) after assembling/adjusting the extension shaft.

Dust suction (Fig. D)

- Loosen the sleeve on the dust extraction outlet (9) or (10b) by turning it in the direction of the unlocking symbol on the tool handle.

◆ Insert vacuum hose (11) into the end of the tool handle as illustrated.
◆ Tighten locking knob for length adjustment (9) by turning it in the direction of the locking symbol on the tool handle.
- Connect the vacuum hose with the ∅ 47 mm adapter (11d) or with the ∅35mm adapter (12) directly to an industrial vacuum cleaner (remove vacuum cleaner hose first).
- You can also connect vacuum hose with one adapter to an industrial Vacuum cleaner without removing the vacuum cleaner hose.

Support adaptor/airflow control (Fig. G, H)

◆ Support adaptor (11a) protects the hose from damage when putting the tool aside during work breaks (Fig. G).
- Control the airflow by sliding suction power adjustment ring (11c) over the airvent in tool connector (11b).
- The vacuuming power is at its lowest level when the air vent is fully visible (Fig. H).

Switching the machine on and off (Fig. I, J, K)

◆ Turn the wall sander on/off using the switch (7).

Electronic speed control

  • Adjust the speed by turning the speed wheel (8), user can choose different speed for different sanding surface.
  • Keep the machine running at the same speed as selected. Do not overload by excessive pressure.

Sanding operations

- Once the machine and vacuum cleaner are set up and all safety measures and equipment are in place, begin by turning on the vacuum cleaner and then the machine. (If you are using a vacuum cleaner with integrated switching, then simply turn the machine on.)

Round sanding head

  • Begin sanding and carefully contact the work surface as lightly as possible-just enough to keep the sanding head flat against the surface.
  • The best technique is to use overlapping sweeps and keep the head in constant motion with appropriate lasting time. Never keep sanding too long in any one place or there will be swirl marks.
    ◆ Take the machine from the work surface before turning off.

Warning! Ensure that the sanding disc you are using is suited to the task, Overly coarse grit paper may remove material too quickly to control. While overly fine grit paper may not sand the surface quickly.

Warning! Take care to avoid sharp projections and nails, etc.

This will wipe out the sandpaper and probably damage the sponge pad as well.

Maintenance

Your STANLEY FAT MAX tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Protecting the environment

STANLEY SFMEE500 - Protecting the environment - 1

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Technical data

SFMEE500
Voltage VAC220 - 240
Frequency Hz50 / 60
Power input W750
Rated speed min-1600 - 1700
Round sanding padmm 215
Spindle thread size M6
Weight kg3.75

Level of sound pressure according to EN60745:

Sound pressure ( L_pA ) 89 dB(A), uncertainty (K) 3 dB(A)

Sound power ( L_WA ) 100,5 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN60745:

(a_h)2.7m / s^2 , uncertainty (K) 1.5m / s^2

EC declaration of conformity

MACHINERY DIRECTIVE

STANLEY SFMEE500 - EC declaration of conformity - 1

SFMEE500 - Wall sander

Stanley Fat Max declares that these products described under

2006/42/EC, EN 60745-1:2009 + A11:2010;

EN 60745-2-3:2011 + A2:2013 + A11:2014 + A12:2014 +

A13:2015

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual.

For more information, please contact Stanley Fat Max at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Stanley Fat Max.

STANLEY SFMEE500 - EC declaration of conformity - 2

A.P. Smith

Technical Director

Stanley Fat Max Europe, Egide Walschaertsstraat14-18,

2800 Mechelen, Belgium

12/07/2019

Guarantee

Stanley Fat Max is confident of the quality of its products and offers consumers a 12 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

To claim on the guarantee, the claim must be in accordance with Stanley Fat Max Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Stanley Fat Max 1 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Stanley Fat Max office at the address indicated in this manual.

Please visit our website www.stanley.eu/3 to register your new Stanley Fat Max product and receive updates on new products and special offers.

Middle East & Africa

P.O.Box - 17164

Jebel Ali (South Zone), Dubai,

UAE

Stanley Fat Max Tel. +971 4 8127400

Fax +971 4 8127036

www.stanleyworks.ae

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : STANLEY

Model : SFMEE500

Category : Sander
