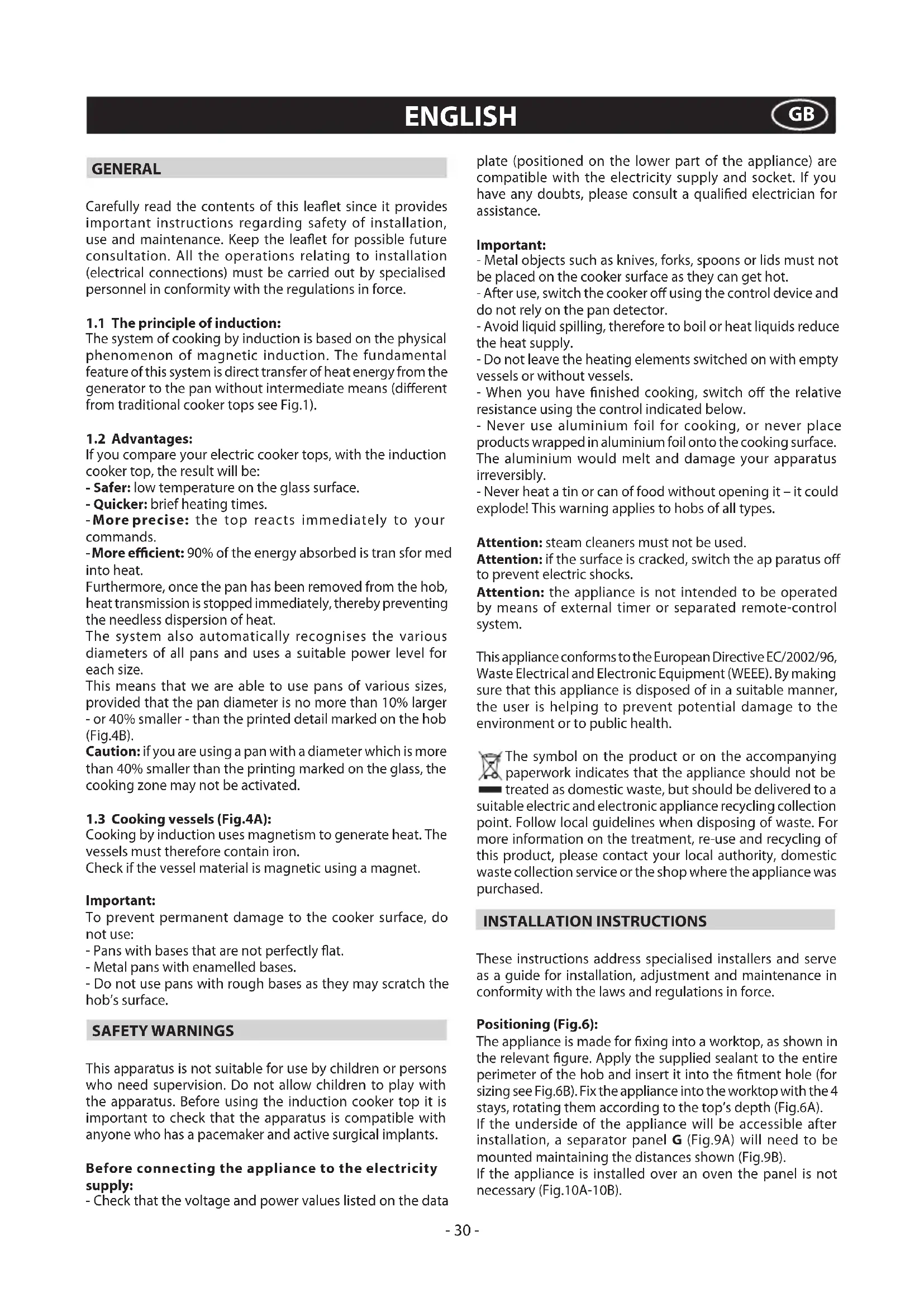

actuelle à l'aide du menu Service. E/H Valeur xe du capteur. - Le système doit se refroidir. - 29 -ENGLISH GENERAL Carefully read the contents of this leaet since it provides important instructions regarding safety of installation, use and maintenance. Keep the leaet for possible future consultation. All the operations relating to installation (electrical connections) must be carried out by specialised personnel in conformity with the regulations in force. 1.1Theprincipleofinduction: The system of cooking by induction is based on the physical phenomenon of magnetic induction. The fundamental feature of this system is direct transfer of heat energy from the generator to the pan without intermediate means (dierent from traditional cooker tops see Fig.1). 1.2Advantages: If you compare your electric cooker tops, with the induction cooker top, the result will be: -Safer: low temperature on the glass surface. -Quicker: brief heating times. - More precise: the top reacts immediately to your commands. - More ecient: 90% of the energy absorbed is tran sfor med into heat. Furthermore, once the pan has been removed from the hob, heat transmission is stopped immediately, thereby preventing the needless dispersion of heat. The system also automatically recognises the various diameters of all pans and uses a suitable power level for each size. This means that we are able to use pans of various sizes, provided that the pan diameter is no more than 10% larger - or 40% smaller - than the printed detail marked on the hob (Fig.4B). Caution: if you are using a pan with a diameter which is more than 40% smaller than the printing marked on the glass, the cooking zone may not be activated. 1.3Cookingvessels(Fig.4A): Cooking by induction uses magnetism to generate heat. The vessels must therefore contain iron. Check if the vessel material is magnetic using a magnet. Important: To prevent permanent damage to the cooker surface, do not use: - Pans with bases that are not perfectly at. - Metal pans with enamelled bases. - Do not use pans with rough bases as they may scratch the hob’s surface. SAFETY WARNINGS This apparatus is not suitable for use by children or persons who need supervision. Do not allow children to play with the apparatus. Before using the induction cooker top it is important to check that the apparatus is compatible with anyone who has a pacemaker and active surgical implants. Beforeconnectingtheappliancetotheelectricity supply: - Check that the voltage and power values listed on the data plate (positioned on the lower part of the appliance) are compatible with the electricity supply and socket. If you have any doubts, please consult a qualied electrician for assistance. Important: - Metal objects such as knives, forks, spoons or lids must not be placed on the cooker surface as they can get hot. - After use, switch the cooker o using the control device and do not rely on the pan detector. - Avoid liquid spilling, therefore to boil or heat liquids reduce the heat supply. - Do not leave the heating elements switched on with empty vessels or without vessels. - When you have nished cooking, switch o the relative resistance using the control indicated below. - Never use aluminium foil for cooking, or never place products wrapped in aluminium foil onto the cooking surface. The aluminium would melt and damage your apparatus irreversibly. - Never heat a tin or can of food without opening it – it could explode! This warning applies to hobs of all types. Attention: steam cleaners must not be used. Attention: if the surface is cracked, switch the ap paratus o to prevent electric shocks. Attention: the appliance is not intended to be operated by means of external timer or separated remote-control system. This appliance conforms to the European Directive EC/2002/96, Waste Electrical and Electronic Equipment (WEEE). By making sure that this appliance is disposed of in a suitable manner, the user is helping to prevent potential damage to the environment or to public health. The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point. Follow local guidelines when disposing of waste. For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the shop where the appliance was purchased. INSTALLATION INSTRUCTIONS These instructions address specialised installers and serve as a guide for installation, adjustment and maintenance in conformity with the laws and regulations in force. Positioning (Fig.6): The appliance is made for xing into a worktop, as shown in the relevant gure. Apply the supplied sealant to the entire perimeter of the hob and insert it into the tment hole (for sizing see Fig.6B). Fix the appliance into the worktop with the 4 stays, rotating them according to the top’s depth (Fig.6A). If the underside of the appliance will be accessible after installation, a separator panel G (Fig.9A) will need to be mounted maintaining the distances shown (Fig.9B). If the appliance is installed over an oven the panel is not necessary (Fig.10A-10B).

- 30 -Important: if there is an oven under the induction hob it is advisable for it to have a cooling fan. Do not use the induction hob while PYROLITIC cleaning is in process.

Warning: to allow the circulation of as much fresh air as

necessary, there must be at least 40 mm between the induction hob module and any appliance installed under it (Fig.10B). In any event, adequate aeration must be provided. To allow fresh air circulation there must be openings in the kitchen furniture (Fig.9A-10A) of the sizes indicated in Fig.9B-10B. Electrical connections (Fig.2B - Fig.3B): Before making the electrical connections, check that: - the ground cable is 2 cm longer than the other cables; - the system ratings meet the ratings indicated on the identication plate xed on the lower part of the worktop; - the system is tted with ecient earthing compliant to the laws and regulations in force. Earthing is obligatory by law. If the appliance is not tted with a cable, use type: “H05V2V2-F” for a power level of up to 6400 Watts. The cross-section of the cable should be at least 2.5 mm², or 4 mm² for greater power levels. The cable should never reach a temperature which is 50°C above the temperature of the room in which it is installed. The appliance is designed for permanent connection to the electricity supply and should therefore be tted with an omnipolar switch which has a minimum opening of 3 mm between contacts. The switch should be suitable for the charge indicated on the appliance data plate and must conform to all current legislation (the yellow/green earth wire must not be interrupted by the switch). The omnipolar switch must be easy to reach once the installation process has been completed.

• Use(Fig.2): A = ON/OFF key B=Cookingzone display C=Cookingzoneselection key D = “-” key / Timer “-” key E = “+” key / Timer “+” key F = Timer Display I = Decimal point indicator

• Use(Fig.3): A = ON/OFF key B=Cookingzone display B1=CookingzoneR2 display - Timer display B2=CookingzoneR3 display - Timer display C=Cookingzoneselection key D = “-” key / Timer “-” key E = “+” key / Timer “+” key I = Decimal point indicator

• Use(Fig.4): A = ON/OFF key M1=CookingzoneR1 display M2=CookingzoneR2 display - Timer display M3=CookingzoneR3 display N = Timer Display C=Cookingzoneselection key D = “-” key / Timer “-” key E = “+” key / Timer “+” key I = Decimal point indicator - To activate the hob, press the “ON/OFF” key. Some zeros with flashing decimal points will appear for about 20 seconds on all the displays. If no operation is carried out within this time, the hob will turn off. - A cookingzonemaybeswitchedon by selecting one of the “C” keys. - The display will view the corresponding numbers; the grading of the concerned zone will be intense while the others will be weaker. - Use “+” or “-” buttons to regulate the power level. - By selecting the “-” key the power level goes directly to 9. - If after about 10 seconds no operation is carried out, display shade goes back to the initial one. The hob will continue its normal cooking. - If the power level is set at zero, the cooking zone will shut off. - To turnoffthecookingzone, select the corresponding “C” key and switch the cooking level to 0. - The display will view the corresponding numbers; the grading of the concerned zone will be intense while the others will be weaker. - All operations will be combined with a “BEEP” acoustic signal. - When a cooking zone “C” is brought to the OFF position and the glass top temperature is greater than approximately 50°, the display of the interested zone will signal a fixed “H”.

To prevent damage being inicted on the electronic circuits, the hob is fitted with an overheating safety system.In situations where the appliance is used at high power levels for a prolonged period of time, the hob may switcho one or more of the activated zones temporarily, until the temperatures return to the set levels.On the display corresponding to the cooking zone which has been temporarily switched o, the power level will be shown in alternation with a E/2.This will stop ashing once the cooking zone has beenreactivated.

• Keyfunction: To keep children or persons needing supervision from using the hob surface, all of the functions can be blocked in the following way:

1- Switch to hob on (if it is off) by selecting the “ON/OFF”

key. The cooking zones must be off.

2- Press the “-” key and the R2 (Fig.2), R4 (Fig.3) or R3 (Fig.4)

key simultaneously according to the model you own.

3- Press only the cooking zone R2 (Fig.2), R4 (Fig.3) or R3

(Fig.4) key once again according to the model you own. The “L” letter indicating that the function is active will appear on the display. Should one or more zones still be hot, the letter “H” and “L” will alternate on the relative displays. - To deactivatethekeyfunction, switch the hob off (if it is on) by selecting the “ON/OFF” key. - Once it is off, switch the hob back on. - Press the “-” key and the R2 (Fig.2), R4 (Fig.3) or R3 (Fig.4) key simultaneously according to the model you own. - Press the“-” key a second time. - Zeros will appear on all the displays for a few seconds. - If the cooker top is switched off with the KEY function active, when subsequently activated the top will be in the same situation, meaning with the KEY function active. - If the hob is switched on and theLockfunction is enabled, button ON/OFF will still work.

• Magneticsensor: - The hob is equipped with a pan sensor; when the pan is - 31 -removed or badly positioned, the symbol will appear. If, on the other hand, the surface of the glass is still hot, the symbol will appear alternating with the .

• O.S.D.(OverowSafetyDevice): The hob is equipped with a safety system which moves all hotplates to the OFF position and activates the safety lock when liquids or items are detected on the control panel. These symbols will ash on the display:

They can be deactivated by removing the item or the liquid. The hob will switch o automatically.

• Timer: Note: the Timer can be activated on all the cooking zones simultaneously. This function allows to establish the time (from 1 to 99 minutes) or automatic switch-o of the cooking zone selected. Activation:

1- Select the cooking zone “C”.

2- Set the cookinglevel.

3- Press the “+” and “-” keys simultaneously. The decimal

point “•” will start to ash. The time on the timer will appear on the relative displays.

4- Adjust the time within about 10 seconds by using the

“+” and “-” keys. By pressing the “-” key directly the time will be set at 30 minutes. 3/4burnerversion: - If the decimal point “•” appears on the displays, it means that timer is active. - During cooking the time set previously with the timer is not displayed. - In order to view the time remaining on the Timer of a cooking zone, select that cooking zone and then press the “+” and “-” keys simultaneously. On the “B1” and “B2” displays (4 burner version) and on the “M2” and “N” displays (3 burner version) the remaining time will appear. - When time is up an acoustic signal beeps and the timer displays ash. Any key can be selected to stop the acoustic signal. If you leave the acoustic signal it will deactivate after about 2 minutes. 2burnerversion: - If the decimal point “•” appears on the displays, it means that timer is active. - When the decimal point ashes it indicates the zone with the least time on the timer and therefore the rst zone will switch o. The timer display will show the remaining time of the next zone which will switch o. - In order to view the time remaining on the Timer of a cooking zone, select that cooking zone and then press the “+” and “-” keys simultaneously. Afterwards the remaining time will appear on the timer “F” display. - When time is up an acoustic signal beeps and the timer displays ash. Any key can be selected to stop the acoustic signal. If you leave the acoustic signal it will deactivate after about 2 minutes. To deactivatethetimerfunctionbeforethesettime, select the cooking zone and then press the “+” and “-” keys simultaneously. By selecting the “-” key a second time the time goes to 0. After that the cooking zone will continue its standard function.

• MinuteMinder(Countdown): This function can be used both with cooking zones activated/ deactivated and with the timer inserted. - The Minute Minder allows to set an established countdown that goes from 1 to 99 minutes. On expiry of the time, the hob emits an acoustic signal without changing the active functions. Activation:

1- The function is activated with the hob on.

2- Press the “+” and “-” keys simultaneously.

3- Adjust the time within about 10 seconds by using the

“+” and “-” keys. By pressing the “-” key directly the time will be set at 30 minutes. 3/4burnerversion: - If no zone is activated or if the hob is deactivated by selecting the ON/OFF key, the decimal point on the R2 and R3 displays begins to flash. - If the hob is turned on with the Minute Minder function active, zeros will appear on all the displays. By pressing the “+” and “-” keys simultaneously, the remaining time will appear. - In order to view the remaining time of the Minute Minder press the“+” and “-” keys simultaneously. On the “B1” and “B2” displays (4 burner version) and on the “M2” and “N” displays (3 burner version) the remaining time will appear. - When time is up an acoustic signal beeps and the timer displays ash. Any key can be selected to stop the acoustic signal. If you leave the acoustic signal it will deactivate after about 2 minutes. 2burnerversion: - If the “F” displays of the timer or the hob are deactivated, by selecting the ON/OFF key the remaining time of the Minute Minder will appear - If the Minute Minder and the Timer are active, the “F” display will signal the time left. If it is the Timer function, the decimal point of the concerned zone will flash. - When time is up an acoustic signal beeps and the timer displays ash. Any key can be selected to stop the acoustic signal. If you leave the acoustic signal it will deactivate after about 2 minutes. To deactivatetheMinuteMinderfunctionbeforetheset time, press the “+” and “-” keys simultaneously. By selecting the “-” key a second time the time goes to zero. After that the cooking zone will continue its standard function. It is possible to use the Minute Minder and the Timer simultaneously.

• Booster(Fig.2-3-4): Depending on the appliance model, it may be tted with a Booster system which can be used to speed up cooking times through the application of a power level which is greater than the nominal value, within a dened period of time. The cooking zones supplied with this function are indicated in Fig.2-3-4 by the letter (Z).

1- To activate it, switch on the concerned cooking zone

bringing the power level to 9.

2- By selecting the “+” key on the display the letter “P” will

appear. - The Booster can be activated simultaneously on all the enabled zones. - The Booster function will be active for about 5 minutes, after which cooking will continue at level 9. - In order to stop this function, select the concerned cooking zone and the “-” key until you reach the desired level. - All operations will be combined with a “BEEP” acoustic signal. - The Booster might not turn on if the cooking zone (indicated by the letter (Z)) was activated previously with high - 32 -temperature levels.

• Integratedpowercontrol(Fig.5): Each phase (this is divided into two zones in a vertical line: F1 e F2) is capable of using a maximum power of 3,700W. If this is exceeded for example by activating the Booster, the software automatically lowers power of the previously selected zone until it reaches the allowed power level. The display of the zone with limited power will begin to ash for about 3 seconds. During this time it is possible to modify the power level.

• Maintenance(Fig.8): Remove any residues of food and drops of grease from the cooking surface using the special scraper supplied on request. Clean the heated area as thoroughly as possible using SIDOL, STAHLFIX or similar products and a cloth/paper, then rinse with water and dry with a clean cloth. Using the special scraper (optional) immediately remove any fragments of aluminium and plastic material that have unintentionally melted on the heated cooking area or residues of sugar or food with a high sugar content. In this way, any damage to the cooktop surface is prevented. Under no circumstances use abrasive sponges or irritating chemical detergents such as oven sprays or stain removers.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY

FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS. - 33 -•Errorcodes: Error code: Description: Possible causes: Errorrecovery: C The cooking zone can be congured if a static “C” is shown. It’s not an error, the user is in the service menu. A suitably pan must be placed on the relevant cooking zone. C/- The cooking zone will be congured if a blinking “C” is shown. After a successful conguration the relevant display shows “-”. When the “-” is not displayed please check the possible causes of the E/5. The user is in the service menu, it’s not an error. Wait for the sysmbol “-” or abort the conguration activities by pressing the selectkey and the “C” does not blink anymore. E A blinking “E” on each cooking zone indicates, that all congs will be deleted. The user is in the service menu, it’s not an error. Manual conguration. E/2 Temperature limits are excessed. Electronik temperature to high. System must cool down. E/3 Unsuitable pot. Pot creates on the modul an improper operating point which can destroy devices, e.g IGBT‘.

1. The error is automaticly cancelled

after 8s and the cooking zone can be used again. In case of further upcoming errors the pot have to be changed. E/4 Uncongured induction modul. Induction modul is not congured.

1. Delete the hob conguration and

activate the manual conguration.

2. Start the UI service menu to

congure the induction modul. E/5 No communication between UI and induction modul. No power supply of induction modul. Contact the technical Service. E/6 Main power disturbance. 1. Failure in main power frequency detection.

Contact the technical Service. E/8 Fan failure. Fan or control electronic is defect. Contact the technical Service. E/9 Defect T sensor on inductor. Sensor signal out of valid range; sensor or electronic is defect. Contact the technical Service. E/A Hardware defect of induction modul. Defect hardware device detected by the self check of the modul. Contact the technical Service. E/C Conguration failure. 2 cooking zones are dedicated to the same element of the UI.
