USER MANUAL 943354 Kitchen Crew

Single induction hob

Instruction manual for KITCHEN CREW single induction hob

Art. No.: 943354 (DE), 943429 (UK)

Copyright ©

Springlane GmbH

If you have questions regarding the usage of the device, please contact our customer service.

Telephone number Germany: [phone]

(free of charge within Germany)

Telephone number Austria: [phone]

(free of charge within Austria)

Telephone number Switzerland: [phone]

(free of charge within Switzerland)

E-mail: [e-mail]

Declaration of conformity 19

Bedienungsanleitung

Technische Daten 20

Weight: approx. 2.4kg

Size of ring: 016-26 cm

Temperature: 60 - 240^

Cable length: 1.5m

Features: Ease of operation ensured with touch function, 10 power and 10 temperature levels, timer, child safety lock and automatic switch-off function, automatic detection of suitable and unsuitable cookware, automatic voltage adjustment and child safety lock

Changes and errors in features, technology, colours, and design are reserved.

EXPLANATION OF SYMBOLS

WARNING! RISK OF ELECTRIC SHOCK

This product may only be opened for necessary service work by an authorised technician.

This symbol indicates a potential burns risk. Always make sure to be particularly careful here.

This symbol indicates magnetic fields. They are a potential hazard to persons with metal parts or implants and may damage appliances and data carriers. If you have an electronic implant, please consult your specialist to find out whether your implant is susceptible to magnetic interference.

Intended use

The single induction hob is suitable for heating food and liquids in induction-compatible cookware. The hob heats foodstuff in a quick and energy-efficient manner with electromagnetic heat.

Please read this manual before using the device for the first time and keep the manual.

General safety

1. After unpacking the appliance, check that it is in perfect condition and has not sustained any damage that could impair its functional safety. Should you notice any defects or if the appliance has fallen on the floor, do not attempt to use it, but call our customer service.
2. Improper repairs can lead to hazards for the user and the warranty may be deemed void. If individual parts are damaged, they must be replaced by the manufacturer, an authorized specialist company, or a similarly qualified person.
3. Store the appliance out of the reach of children.
4. Children under the age of 8 should stay away from the device

or be under constant supervision.

1. Children over the age of 8 and persons with reduced physical, sensory, or mental abilities, or a lack of experience and/or knowledge of the appliance, should only use it in its intended normal operating position, under supervision, or after they have been instructed in its safe use and understand the dangers involved. Children over the age of 8 should not connect, clean, or service the appliance. This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
2. Position the appliance on a free and level surface.
3. The appliance is only intended for use in the household or other

similar uses such as

• in kitchenettes in shops, offices, or other workplaces,
  onfarms

• for use by guests in accommodation establishments (hotels, motels) private guest houses, or holiday homes.

• Never heat food in sealed containers such as tins, coffee pots or other pressurized containers. Risk of explosion!

• To ensure full functionality of the appliance and to avoid injury,

never heat empty cookware.

1. Do not cover the appliance and do not place items weighing more than 8kg on it. Too much weight can cause damage.
2. Do not move the appliance while cooking utensils are on it.
3. Avoid direct contact with sharp objects that could damage the hob. Should the surface be damaged, switch the unit off immediately and have the glass ceramic stove top repaired by an authorized technician.

Electrical safety information

WARNING! RISK OF ELECTRIC SHOCK

This product may only be opened for necessary service work by an authorised technician.

WARNING! Induction works through magnetic fields. They are a potential hazard to persons with metal parts or implants and may damage appliances and data carriers. If you have an electronic implant, please consult your specialist to find out whether your implant is susceptible to magnetic interference.

1. Connect the appliance only to alternating current as indicated on the type plate. Connect the mains plug only to an earthed socket.
2. Uncoil the power cable completely before use.
3. Disconnect the mains plug as

soon as you have finished using the appliance. Do not pull the power cable itself, as it could cause damage.

1. Switch off the machine before plugging in or unplugging it.
2. The appliance must not be

operated with an external timer or a separate remote control system.

1. Always disconnect the mains plug after use, before cleaning, or in the event of possible malfunctions during operation.
2. Do not submerge the appliance in water or any other liquid. Protect the power cable, plug and mains adaptor from moisture.
3. The appliance is not dishwasher-safe.
4. Never place or use the appliance and power cable on or near a hot surface.
5. The cable must not hang over the edge of the work surface.
6. Do not use the appliance outdoors.
7. Ensure that the appliance's ventilation slots are not blocked at any time.
8. Never insert body parts or metallic objects into ventilation slots, there is a risk of injury.
9. Do not leave paper between the cookware and the hob. It could catch fire.

10. Do not leave the hob and cookware unsupervised when in use. If supervision is not possible for a short time, ensure that there is always enough liquid/content in the cookware.

11. Never use the device near gas stoves. Metal parts could unintentionally become heated by the magnetic field.

12. Except for cookware, do not heat any other metallic parts on the hob and only use cookware suitable for induction.
13. Do not use the hob as a storage area for paper, fabric in the form of cleaning rags, metallic objects such as knives, forks, cans and aluminium foil, as well as other unsuitable items and highly flammable materials.
14. The hob is not suitable for indirect heating. Use suitable cookware exclusively on the hob without additional aids.
15. Keep the device away from heat sources. Do not place the device on hot surfaces or near open flames.
16. The device should be set up a good distance away from objects that are sensitive to electromagnetic fields (such as radios, televisions etc.).
17. Caution: hot parts! Wait for the device to have cooled down before touching it with your hands. The surface becomes hot during use and may still hold residual heat from the cookware

when the appliance has been turned off.

1. Only use the appliance on heat-resistant surfaces.

2. Allow the appliance to cool completely before attaching or removing accessories and before cleaning them.

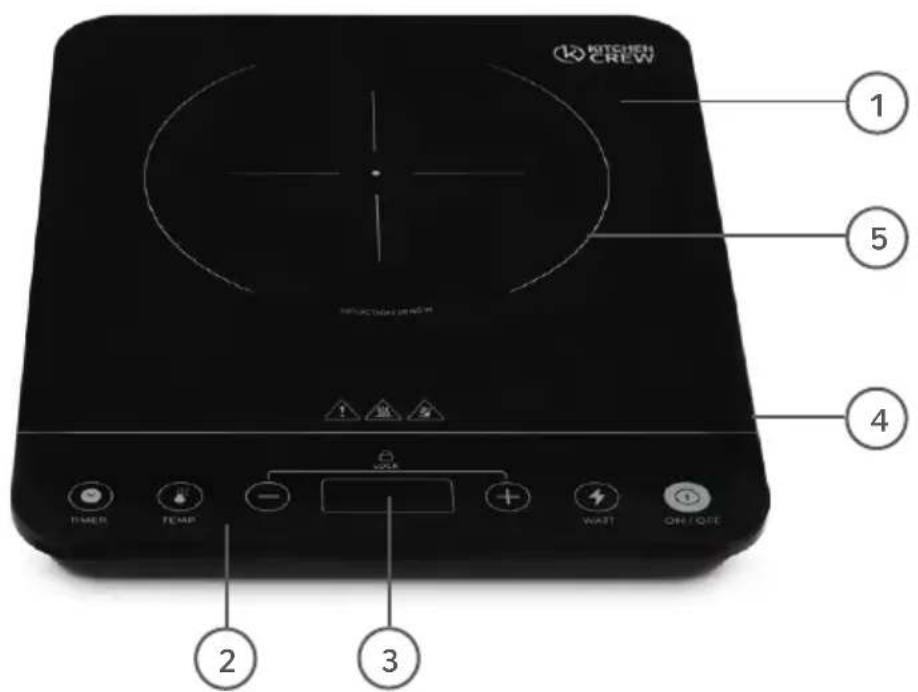

Product description

1. Ceramic plate
2. Control bar
3. LED display
4. Fans (exhaust)
5. Ring

1. Timer button
2. Temperature button

3. -Button

4. Display window

5. ^ + ^ -Button
6. Output button
7. On/off button

Before first use

1. Remove all parts related to packaging and transport safety. Make sure that these parts are also kept away from children - they pose a risk of suffocation!
2. Before initial operation and after prolonged periods of non-use, the appliance should be cleaned. When doing so, please make sure to note our instructions on cleaning and care.
3. Place the appliance on a level and dry surface.

Suitable cookware

WARNING!

• Only use cookware that is mentioned in this instruction manual: flat bottom pots/pans with 16-26 cm base diameter — must be made of steel, cast iron or enamelled iron.
• Unsuitable cookware is that which has a rounded edge or a diameter

smaller than 16 cm, and is made of the following materials: glass, ceramic, copper, porcelain, stainless steel, aluminium or plastic.

• An "E0" error message will appear on the display if unsuitable cookware is used on the hob.
• After first use, white stains may appear on the bottom of the cookware used. To remove these stains, heat some vinegar to 60 - 80^ C in the affected cookware and remove the stains with a washing-up brush.
• Thin pan bases are better suited to cooking with induction than sandwich bases, as the thin bases are better suited to the short reaction times that come with instant temperature adjustment.
• Only use cookware with flat bottoms, so that they can stand up straight on the plate. The diameter of any pans used should NOT exceed 26~cm .

Using a single induction hob

General instructions for use

• Insert the main plug into the wall socket.
• Place the cookware in the middle of the respective ring.
• Press the on/off button to turn the appliance on. "OFF" appears on the display.
• Adjust the appliance according to your cooking requirements.
  After use, press the on/off button to place the appliance on standby.
• Immediately disconnect the mains plug from the wall outlet.
• Allow the appliance to cool completely.
• The buttons on the control panel are touch-sensitive. This means

that there is no need to press them down firmly. Use your fingertips, not your fingernails, to type.

Always keep the buttons clean and dry. Do not cover them with objects such as cloths, potholders or other cooking utensils. Even a thin film of water can impair the function of the buttons.
- Always keep ventilation openings unobstructed.
- Only use cookware that contains food or liquid and always place it

in the middle of the hob.

• For your safety, the single hob will turn off after 2 hours of inactive use, meaning no buttons are pushed to change the temperature, the output or the time.
• The single hob is equipped with overheating protection. If the

cookware becomes too hot, the appliance switches off automatically and the error message "E5" or "E6" appears on the display. Wait a few minutes and let the hob cool down if the appliance gets too hot.

The appliance is then free to be used again without any problem.

Do not touch the hot surfaces during and after use. The hob heats up intensely and reaches high temperatures – it poses a burn risk.

Setting the output

The hob can be set from 200 W up to 2.000 W.

• Press the output button. The watt indicator will light up. The "1200" message will appear on the display when suitable cookware is placed on the hob.
• Touch the + / - buttons to increase or decrease the output.

Output levels in watts

200

400

600

800

1000

1200

1400

1600

1800

2000

Setting the temperature

The hob can be set from 60^ up to 240^ .

• Press the temperature button. The temperature indicator will light up. "240" will appear on the display if you have placed suitable cookware on the hob.
• Touch the + / - buttons to increase or decrease the temperature.

Temperature levels in °C

60 80

100 100

120 140

160 180

200 200

220 240

Setting the timer

• First set the output or temperature.
• Press the timer button to activate the timer mode. The timer symbol will light up, as will the numbers on the display.
• Touch the + / - buttons to increase or decrease the amount of time being set. Press and hold the button to increase or decrease the time in 10-minute increments. You can set the timer for 1 to 180 minutes.
• After setting the time, press the timer button again up to and the countdown will start.
• Once the set time has elapsed, the appliance will stop heating and switch itself off.
• Automatic shutdown: If the appliance is running continuously without a set timer, it will automatically switch itself off 2 hours after being switched on. In timer mode, automatic shutdown is overridden.
  The LED display will show the default value "OFF"

Locking the appliance

The appliance can be locked to prevent it being operated unintentionally.

• Press the + and - buttons simultaneously to lock the appliance. The locking indicator will light up.
• In this mode, only the on/off button can be used to turn off the appliance. All other functions are locked.

To cancel the function:

• Press and hold the + and - buttons simultaneously for 3 seconds. The locking indicator will stop being lit up.

Cleaning and maintenance

Warning! Before performing cleaning or maintenance, turn off the appliance, disconnect the mains plug from the wall socket and wait until the appliance has completely cooled down.

• Do not immerse the appliance in water or other liquids.
• Never use scouring agents or solvents.
• Clean the ventilation openings with either a soft dry brush or a small vacuum cleaner. If the appliance has not been used for a long time, the openings may be dirty and blocked by dust and grime.
• Clean the exterior of the appliance with a soft damp cloth. Use a small amount of neutral detergent if necessary. Dry the appliance thoroughly with a dry clean cloth.
• When the appliance is not being used for a prolonged period of time, remove the power cord and store the appliance somewhere where it will be protected from dust and environmental influences.
• Do not attempt to repair the appliance yourself. If it does not work properly, replace it with a new one.

Troubleshooting

If the appliance is not working properly, please follow these steps:

1. Check that you have followed the operating instructions precisely and correctly.
2. Check whether the table below offers a feasible solution.
3. Check that all fuses are intact.

Error code Problem Solution
E0	There is no cookware on the hob, or the cookware is not suitable for use with the induction hob.	Use suitable cookware when using the hob (see section titled "Suitable cookware").
E2	The temperature sensor under the hob is defective, or there has been a short circuit.	Disconnect the appliance from the power supply and contact our customer service department.
E3	The appliance is being used with a mains voltage that is too high (>270 V).	Check and make sure the appliance is plugged into a properly installed 220-240V, 50-60Hz power outlet.
E4	The appliance is being supplied with too little mains voltage (<145 V).	Check and make sure the appliance is plugged into a properly installed 220-240V, 50-60Hz power outlet.
E5 or E6	The appliance has overheated.	Disconnect the appliance from the power supply and remove the plug from the power outlet. Wait until the appliance has cooled down. Now the hob should be working properly again. If the problem persists, contact customer service and enter the error code that is being displayed.
	The display and symbols light up properly after the appliance is switched on, but the ring does not heat up.	Check that you are using suitable cookware with induction-compatible material, and that the appliance is in default mode.
	After plugging in the mains plug and using the on/off button to turn the appliance on, the display and symbols are not lighting up.	Check that the power cord is properly plugged into the wall outlet. Also make sure that the button, the cable connection, the power supply and the fuse are not damaged.
	The flow of heat stops during cooking.	Check whether the oil is burning due to use of excessively high temperatures when frying or deep-frying foods and also check if the ambient temperature is too high. Determine whether the ventilation openings are blocked or dirty. If the appliance has been running for more than 2 hours since being turned on, its overheat protection may have been activated. Disconnect the hob from the power supply, then reconnect the power supply and restart the appliance.

Customer service

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer-service:

Telephone number: [phone]

Our products have been manufactured with high quality standards and are designed for long durability. Regular maintenance and care help to prolong durability. Should the device be defect and cannot be repaired, it must be disposed of separately from the normal household waste.

The device must be disposed via your municipal collection center for electrical and electronic devices. By the appropriate disposal and recycling, you are making an important contribution to the protection of our environment.

This device applies with the WEEE regulation 2002/96/EG on the Return and Recycling of Electrical and Electronic Appliances.
