USER MANUAL 943353 Kitchen Crew

Double induction hob

Instruction manual for KITCHEN CREW double induction hob

Art. No.: 943353 (DE)

Copyright ©

Springlane GmbH

If you have questions regarding the usage of the device, please contact our customer service.

Telephone number Germany: [phone]

(free of charge within Germany)

Telephone number Austria: [phone]

(free of charge within Austria)

Telephone number Switzerland: [phone]

(free of charge within Switzerland)

E-mail: [e-mail]

Instruction manual

Technical data 6

Safety information 7

Product description 10

Before first use 12

Using a double induction hob 12

Cleaning and maintenance 15

Troubleshooting 15

Customer service 17

Disposal/Recycling 17

Declaration of conformity 18

Bedienungsanleitung

Technische Daten 20

Type of appliance: Portable hob

Number of rings: 2

Heating method: Induction

Size of rings: 26 cm

Total output: 3,500 W, 220-240 V 50/60 Hz

Output left/right hob: 200-2,000 W, 200-1,500 W

Dimensions (W/D/H): 60 × 36 × 4.5 cm

Weight: approx. 5kg

Temperature range: 60 - 240^

Timer: 0-180 minutes

Feature: Ease of use ensured by touch function, 10 outputs and 10 temperature levels, timer, child safety feature and auto switch-off function

Changes and errors in features, technology, colours, and design are excepted.

EXPLANATION OF SYMBOLS

This symbol warns of electrical hazards that could damage the appliance or result in personal injury.

This symbol indicates a potential burns risk. Always make sure to be particularly careful here.

Intended use

The double induction hob is suitable for heating food and liquids in induction-compatible cookware. The hob heats foodstuff in a quick and energy-efficient manner using electromagnetic heat.

Suitable cookwareWARNING!

Only use cookware that is mentioned in this instruction manual: flat bottom pots/pans with 16-26 cm base diameter – must be made of steel, stainless steel, cast iron or enamelled iron. The pans should lie flat on the hob and the bottom of the pan should not be deformed or bent.

Thinner pan bases are better suited to induction than thick sandwich bases. Using thinner pan bases highlights the positive qualities of cooking with induction: short warm-up phase, fast and controllable frying.

Unsuitable cookware is that which has a rounded bottom edge or a diameter smaller than 16 cm and is made of the following materials: glass, ceramic, copper or aluminium.

Please read these instructions carefully before use and retain them for future reference.

• Springlane GmbH is not liable for consequential damage, property damage or personal injury resulting from non-observance of the safety instructions and improper handling of the appliance.

• This unit can be used by children aged 8 or older and by persons with reduced physical, sensory or mental capabilities or lacking in experience and knowledge, provided they are supervised or have been instructed in the safe

use of the appliance and understand hazards involved. Children must not play with the appliance. Cleaning and user maintenance is not to be carried out by children without supervision.

• The appliance must not be used by persons (including children) with limited physical, sensory or mental abilities and/or insufficient experience and knowledge, unless they are under constant supervision. Do not leave the appliance in operation without supervision.
• Keep the appliance and power cord out of reach of children.
• Do not use the appliance for anything other than its intended purpose and for the purpose described in this instruction manual.
• Make sure that the voltage of the outlet is compatible with the voltage of the appliance.
• Do not continue to use the appliance if any part of it is damaged or defective.
• Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. In this event, please contact our customer service department to prevent taking any dangerous risks.
  The appliance is only suitable for

indoor use, do not use it outdoors.

• The appliance is suitable for private use only. It is not to be used for commercial purposes.
• Never use the appliance near bathtub, showers, basins or other containers which may hold water.
• Never immerse the appliance in water or other liquids. If it does happen to become immersed in liquids, do not remove the appliance with your hands. Disconnect the mains plug from the outlet immediately. If the appliance has been immersed in water or other liquids, it can no longer be used.
• Never unplug the power cord from the outlet with wet hands.
• Keep the appliance away from heat sources. Do not lay the appliance on hot surfaces or near naked flames.
• Beware of hot surfaces! Wait until the appliance has cooled down before touching it with your hands. The surface becomes hot during use and hot cookware may cause the appliance to retain an increased level of residual heat even after being switched off.
• Do not cover the appliance.
• The appliance must only be placed on surfaces that are heat-resistant and level/straight. There must be at least 10 cm of free space

around the appliance, and air circulation must not be impaired.

• The appliance should be placed at sufficient distances from objects sensitive to electromagnetic fields (e.g. radios, televisions, etc.).
• Do not move the appliance while there is any cookware placed on it.
• Pots and pans must not be overheated or heated while empty. No paper should be placed between

the cookware and the hob. It could catch fire.

• Do not use the cooking plate as a tray for metal objects such as knives, forks, cans or aluminium foil.
• If the surface becomes damaged, switch off the appliance immediately and have the glass ceramic plate repaired by an authorised technician.

Electrical safety

WARNING! RISK OF ELECTRIC SHOCK

This product may only be opened for necessary service work by an authorised technician.

• If problems occur, immediately disconnect the appliance from both the electrical supply and other appliances.
• Do not use the appliance if the power cord or plug is damaged or defective. If the mains plug and/or the power cord is damaged or defective, then the power cord and/or the mains plug must be replaced, either by the manufacturer or an authorised service partner.
• Always make sure that the mains voltage matches the voltage on the nameplate of the appliance before use.
• Connect the appliance to an earthed wall outlet. If necessary, use an earthed extension cable with a suitable conductor cross-section.
• Do not use a wall outlet that has several appliances already connected to it. Wall outlets into which the mains plug does not fit must also not be used.
• Always make sure to completely unwind the power cord and extension cord.
• For additional protection, we recommend installing a residual current circuit breaker (ELCB - earth leakage circuit breaker) in the circuit. This

residual current circuit breaker must have a rated residual current not exceeding 30mA . Ask your installer for advice if necessary.

• The appliance is not designed to be operated with an external timer or a separate remote control system.
• Do not move the appliance by pulling on the power cord. Make sure that the power cord is placed in such a way that it cannot get tangled. Ensure that the power cord does not hang over the edge of a worktop and that no one can get caught on it or trip over it.

Product description

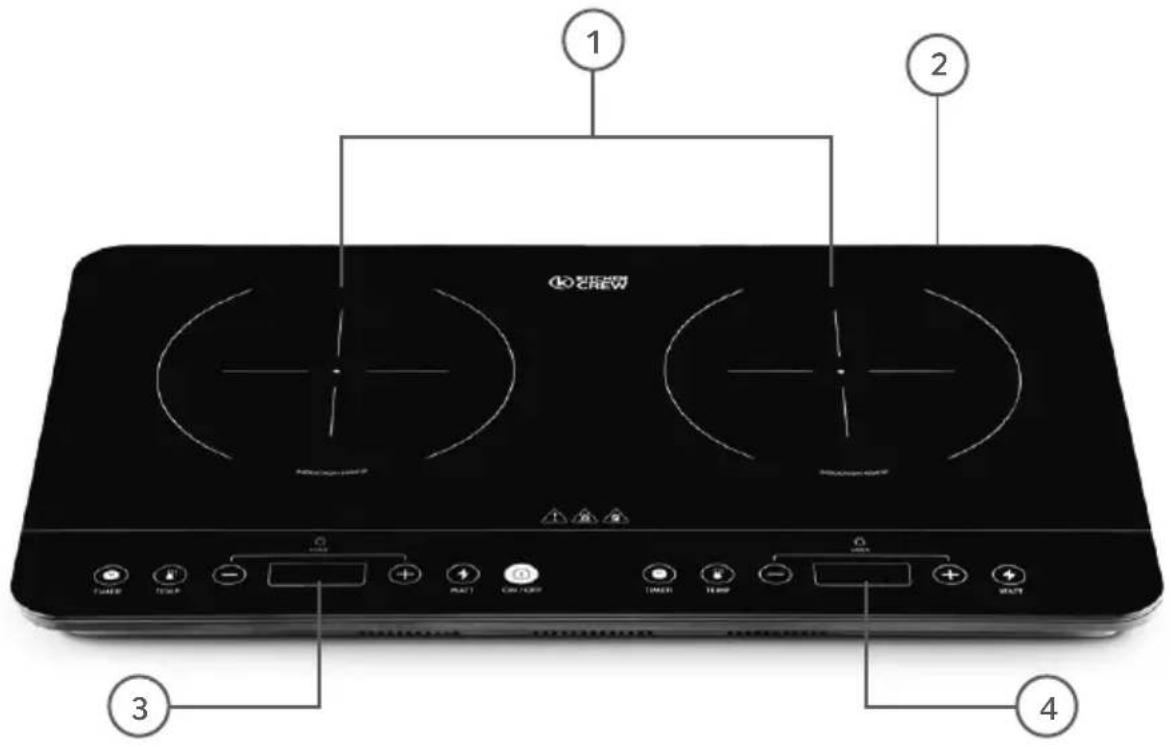

Hob

1. Hob
2. Fans (exhaust)
3. Left control panel with control buttons
4. Right control panel with control buttons

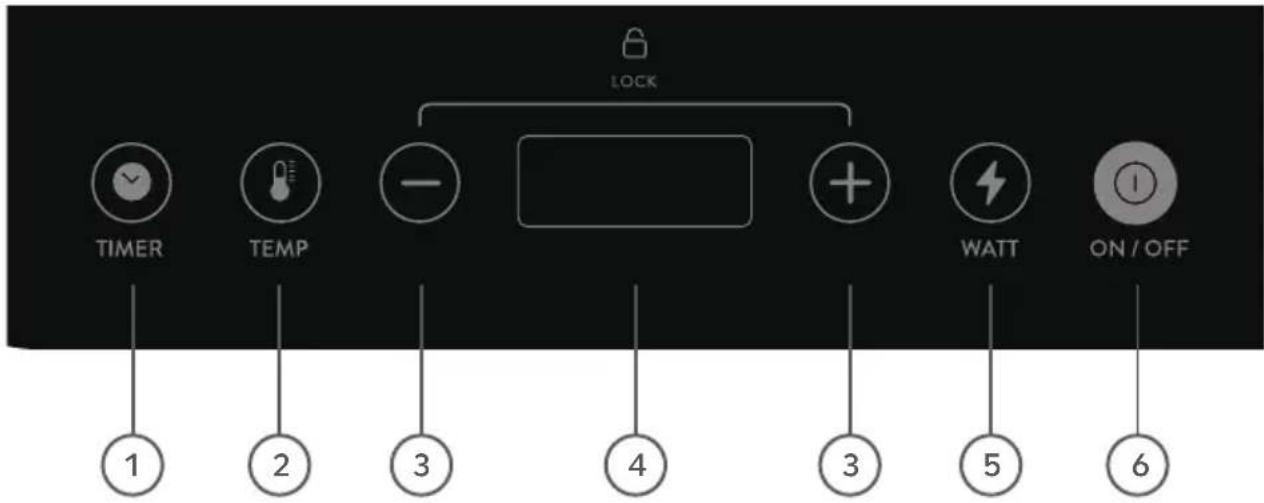

Left control panel

1. Timer button
2. Temperature button
3. +/- buttons / locking function
4. Display
5. Output button
6. On/off button

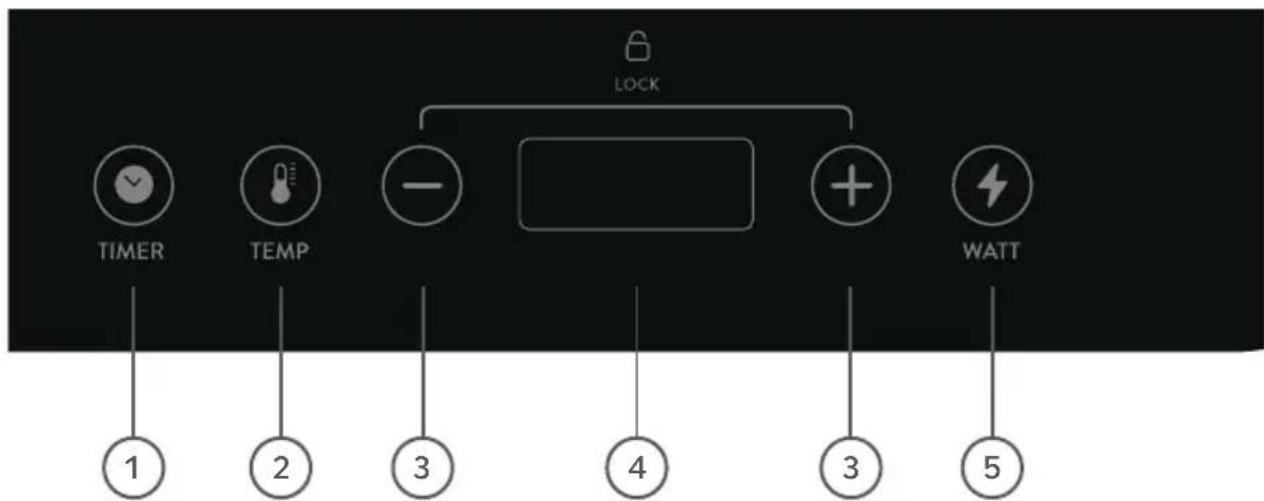

Right control panel

1. Timer button
2. Temperature button
3. + / - button / locking function
4. Display

5. Output button

6. Remove all parts related to packaging and transport safety. Make sure that these parts are also kept away from children - they are a suffocation risk!

7. Before initial operation and after prolonged periods of non-use, the hob should be cleaned with a damp cloth. When doing so, please always make sure to consult our instructions on cleaning and maintenance.

Using a double induction hob

General instructions for use

• Insert the mains plug into the wall socket.
• Place the cookware in the middle of the respective ring.
• Press the on/off button to turn the appliance on. "OFF" will appear on the left-hand display.
• Adjust the appliance according to your cooking requirements.
  After use, press the on/off button to place the appliance on standby.
• Immediately disconnect the mains plug from the wall outlet.
• Allow the appliance to cool completely.
• The buttons on the control panel are touch-sensitive. This means that there is no need to press them down firmly. Use your fingertips, not your fingernails, to type.

• Always keep the buttons clean and dry. Do not cover them with objects such as cloths, potholders or other cooking utensils. Even a thin film of water can impair the function of the buttons.
• Always keep ventilation openings unobstructed.
• Only use cookware that contains food or liquid and always place it in the middle of the hob.

• For your safety, the double hob will turn off after 2 hours of inactive use, meaning no buttons are pushed to change the temperature, the output or the time.

• The double hob is equipped with overheating protection. If the cookware becomes too hot, the appliance switches off automatically and the message "E6"

appears on the display. Wait a few minutes and let the hob cool down if the appliance gets too hot. The appliance is then free to be used again without problem.

Do not touch the hot surfaces during and after use. The hob heats up intensely and reaches high temperatures – it poses a burn risk.

Setting the output

The left hob can be set from 200 W to 2,000 W, the right hob can be set from 200 W to 1,500 W.

• Press the output button. The watt indicator will light up. "1200" will appear on the display to the left. "1000" will appear on the display to the right if you have placed suitable cookware on the hob.
• Touch the + / - buttons to increase or decrease the output.

Output levels in watts (left hob)

200

400

600

800

1000

1200

1400

1600

2000

Setting the temperature

The hobs can be set from 60^ to 240^ .

• Press the temperature button. The temperature indicator will light up. "240" will appear on the display when suitable cookware is placed on the hob.
• Touch the + / - buttons to increase or decrease the temperature.

Temperature levels in °C

60 80

100

20 140

160 180

200 220

220 240

Setting the timer

• Press the timer button. The timer indicator will light up. "0:00" will appear on the display.
• Touch the +/- buttons to increase or decrease the time set by the timer. Press and hold the button to increase or decrease the time in 10-minute increments.
• Press the timer button to confirm.
• When the countdown is over, an acoustic signal sounds and the appliance switches to standby mode.

To cancel the function:

• Press the on/off button to put the appliance into standby mode. The timer display will go out.
• Press and hold the timer button to resume operation at the set output or temperature setting. The timer display will go out.

Locking the appliance

The appliance can be locked to prevent it being operated unintentionally.
- Press and hold + and - keys simultaneously to lock the output button, the temperature button and the timer button. An acoustic signal will sound.
To cancel the function:
- Press the + and - buttons simultaneously to unlock the appliance. The locking indicator will stop being lit up. An acoustic signal will sound.

Cleaning and maintenance

• Before performing cleaning or maintenance, turn off the appliance, disconnect the mains plug from the wall socket and wait until the appliance has completely cooled down.
• Never use scouring agents or solvents.
• Do not immerse the appliance in water or other liquids.
• Do not attempt to repair the appliance yourself. If it does not work properly, replace it with a new one.
• Clean the exterior of the appliance with a soft damp cloth. Use a small amount of neutral detergent if necessary. Dry the appliance thoroughly with a dry clean cloth.
• Dry-clean the ventilation opening with a soft brush.

Troubleshooting

If the appliance is not working properly, please follow these steps:

1. Check that you have followed the operating instructions precisely and correctly.
2. Check whether the table below offers a feasible solution.
3. Check that all fuses are intact.

Error code Problem Solution
	After plugging in the mains plug and using the on/off button to turn the appliance on, the display and symbols are not lighting up.	Make sure that the buttons, cable connection, power supply and fuse are not damaged and that the power cord is properly plugged into the wall outlet.
	The flow of heat stops during cooking.	The appliance's overheat protection may have been activated. Disconnect the hob from the power supply, then reconnect the power supply and restart the appliance. The appliance must not be continuously operated for more than 2 hours. The vent ilation openings must not be blocked or dirty. Make sure that the ambient temperature is not too high.
E0	There is no cookware on the hob or the cookware is not suitable for use with the induction hob.	Place suitable cookware on the hob.
E2	The temperature sensor under the hob is defective or there has been a short circuit.	Remove the plug from the outlet and contact customer service.
E3	The hob is receiving too much voltage.	Make sure the hob is plugged into a 220-240 V, 50-60 Hz outlet.
E4	The hob is not receiving enough voltage.	Make sure the hob is plugged into a 220-240 V, 50-60 Hz outlet.
E5, E6 The hob has overheated.	Remove the plug from the outlet and let the hob cool down. If the problem persists, please contact customer service.

Customer service

In principle, our products have a legal warranty duty of 2 years. Further claims can only be processed in conjunction with a proof of purchase. Wearing parts exclude any warranty claims, when usual abrasion has occurred. The durability is determined by the respective handling and use of the products and is thus variable.

For questions concerning handling and functionality of our products, please contact our customer-service:

Telephone number: [phone]

Our products have been manufactured with high quality standards and are designed for long durability. Regular maintenance and care help to prolong durability. Should the device be defect and cannot be repaired, it must be disposed of separately from the normal household waste.

The device must be disposed via your municipal collection center for electrical and electronic devices. By the appropriate disposal and recycling, you are making an important contribution to the protection of our environment.

This device applies with the WEEE regulation 2002/96/EG on the Return and Recycling of Electrical and Electronic Appliances.

This device is in conformity with the:

Guideline for Electromagnetic Compatibility (2014/30/EU)
Low Voltage Directive (2014/35/EU)
RoHS Directive (2011/65/EU RoHS)

The energy consumption of a domestic electric hob (EC electric hob) is measured in Wh per kg of water heated in a normalized measurement (Wh/kg) considering all cookware pieces under standardized test conditions and rounded to the first decimal place. Standard EN 60350-2:2013 was used as reference for the measurement and calculation.

m = 311 ;
