RM 750 - Hand blender ECG - Free user manual and instructions

USER MANUAL RM 750 ECG

A. Setting speed
B. Low speed button I
C. TURBO button (faster speed)
D. Appliance body
E. Replacing attachment button
F. Detachable attachment
G. Chopping container lid
H. Stainless steel blades
I. Bowl for chopping 500ml
J. Beater holder
K. Beater
L. 600 ml mixing bowl

HR/BIH

A. Podesavanje brzine
B. Tipka za nižu brzinu I
C. Tipka Turbo (veça brzina)
D. Tijelo uredaja
E. Tipka za promjenu nastavaka
F. Odvojivi nastavak
G. Poklopac posude za sjeckanje
H. Nož za sjeckanje izraden od nehrdajuceg celika
I. Posuda za sjeckanje: 500 ml
J. Držač metlica
K. Metlica
L. Posuda za miksanje 600 ml

SI

A. Nastavitev hitrosti
B. Tipka za nizjo hitrost I
C. TURBO tipka (za visjo hitrost)
D. Trup aparata
E. Tipka za menjavo nastavkov
F. Odstranljivo rezilo
G. Pokrov posode za sekanje
H. Nerjavec sekalni noz
I. Posoda za sekanje 500ml
J. Držalo metlice

K. Metlica

L. Posoda za meşanje 600 ml

SR/MNE

A. Podesavanje brzine
B. Taster za nižu brzinu I
C. Taster Turbo (veça brzina)
D. Telo uredaja
E. Taster za zamenu nastavaka
F. Nastavak koji se moze skinuti
G. Poklopac posude za seckanje
H. Seçivo od inoksa
I. Posuda za sekanje 500ml
J. Držač za metlice
K. Metlica
L. Posuda za mucenje 600 ml

FR

Do not immerse in water! - Neponárat do vody!

Do not press switch by hand! - Nestláčajte spínač rukou!

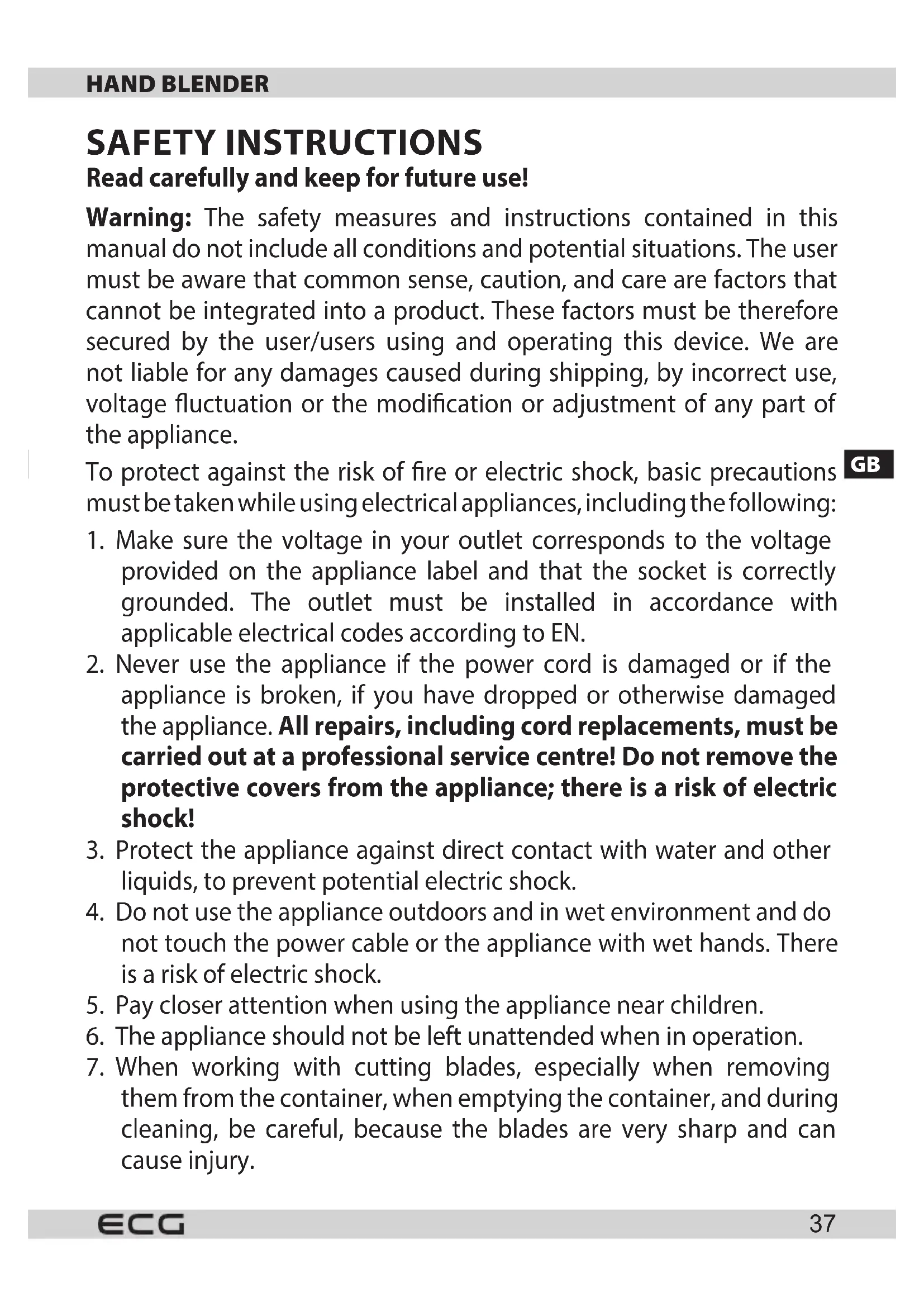

Read carefully and keep for future use!

Warning: The safety measures and instructions contained in this manual do not include all conditions and potential situations. The user must be aware that common sense, caution, and care are factors that cannot be integrated into a product. These factors must be therefore secured by the user/users using and operating this device. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.
2. Never use the appliance if the power cord is damaged or if the appliance is broken, if you have dropped or otherwise damaged the appliance. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the appliance against direct contact with water and other liquids, to prevent potential electric shock.
4. Do not use the appliance outdoors and in wet environment and do not touch the power cable or the appliance with wet hands. There is a risk of electric shock.
5. Pay closer attention when using the appliance near children.
6. The appliance should not be left unattended when in operation.
7. When working with cutting blades, especially when removing them from the container, when emptying the container, and during cleaning, be careful, because the blades are very sharp and can cause injury.

GB

1. Do not use the device for any other purpose than the stated one. Use for processing food only. Do not use it to stir hot foods and liquids! Always add liquid to the blended ingredients.
2. Do not leave the appliance with the power cable plugged in unattended. Prior to maintenance, installation, assembly and disassembly of parts or cleaning, unplug the power cord from the power outlet. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.
3. Do not use the appliance close to a source of heat, e.g. oven. Protect it against direct sunlight.
4. Never cover the appliance during operation and do not use it close to flammable materials, e. g. curtains, etc.
5. Do not insert large pieces of food into the appliance. Never put in materials like paper, metal, cardboard, plastics, etc.
6. Never switch on the appliance when the container is empty and do not remove the container until the blades come to a stop. Before starting the device, set the bowl in its proper position, attach the blade to the motor and then plug the cord into the outlet. This reduces the risk of injury.
7. Do not touch the moving parts.
8. Hair, fingers or parts of clothing shall be kept far enough from the moving parts of the appliance. Do not place any tools or hands into the bowl while blending, risk of injury or damaging the appliance. Spatula may be used only when the appliance is off.
9. Avoid contact with moving parts. Do not touch the beaters during operation with hand, clothing, cloth or other utensils, you will reduce the risk of injury and/or damage to the appliance.
10. Always use the appliance on an even and stable surface.
11. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.

12. Use accessories only advised by the manufacturer, otherwise you risk losing the warranty.

13. Prior to replacing accessories and accessible parts, or before approaching the moving parts during operation, switch off the device and disconnect it from the power supply.

14. Always unplug from outlet immediately after use.
15. Use this appliance only in accordance with the instructions in this manual. Incorrect use may result in injury. This appliance is designed for domestic use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
16. This appliance should not be used by children. Keep the appliance and its power supply out of reach of children. The appliance can be used by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children must not play with the appliance.

Do not immerse in water! Do not press switch by hand!

DANGER for children Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

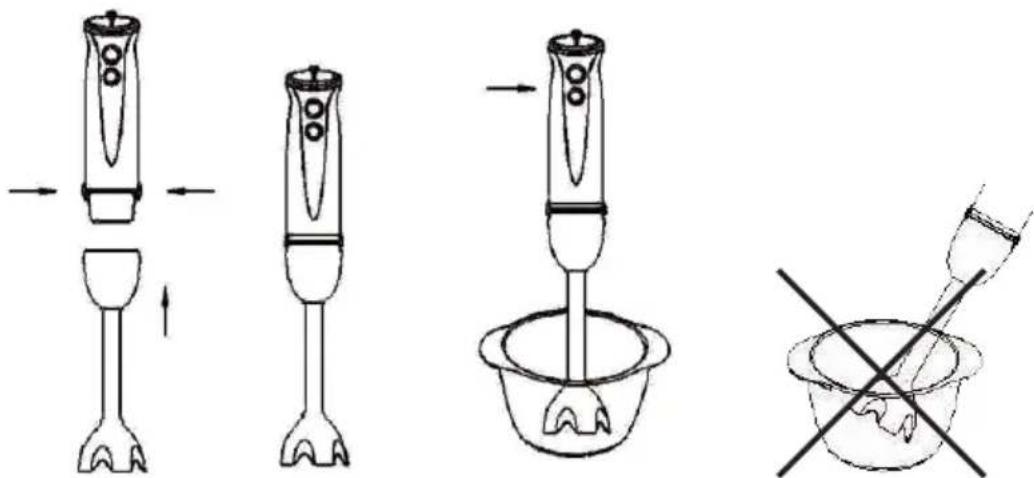

INSTRUCTIONS FOR USE - BLENDER

The immersion blender is intended for preparing gravies, icings, soups, mayonnaises, children's dishes, cocktails and milkshakes.

Before using the blender for the first time, fill the bowl half way with water, immerse the blade of the blender to the bottom of the bowl and blend for several seconds. Rinse the entire attachment and bowl well afterwards.

1. Insert the ingredients into the mixing bowl or another higher kitchen container. Do not use the blender to crush ice, cut nuts or other hard food.
2. Place the removable attachment on the motor until it "falls" into place.
3. Uncoil the entire cord and plug into the outlet.
4. Insert the appliance into the mixing bowl containing food and press the desired speed button on the upper part of the appliance body. Rotate the ring at the top of the appliance body to select speed. Blend in circular motions from the bottom.
5. Release the button to stop the blender. Unplug the power cord from the outlet after you have finished blending.

Note: The maximum continuous operation time of the appliance is 60 seconds when processing soft foods and liquids and a maximum of 10 seconds for hard or solid foods processing, see the table below. The minimum rest period between each switch-on is 1 minute. Do not switch on the appliance more than three times in a row. Otherwise the appliance will overheat and become damaged.

INSTRUCTIONS FOR USE - CHOPPER

The chopper is designed to cut food such as meat, cheese, onions, herbs, garlic, carrots, nuts and almonds, plums, etc.

Do not chop very hard food, such as ice cubes, nutmeg, coffee beans or grains.

Attention: The chopping blade is very sharp! Always hold it by the top plastic part.

1. Place the chopping blade on the shaft inside the chopping bowl. Always place the chopping bowl safely on an anti-skid surface.
2. Insert the food into the bowl and apply the lid.

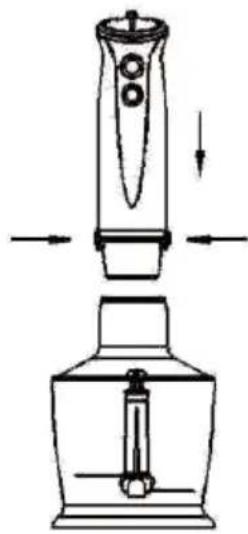

3. Place the appliance body on to the lid of the chopping bowl, until it clicks.
4. During the chopping process, hold the appliance body with one hand and the chopping bowl with the other.
5. After you are finished, unplug the appliance from the outlet and press the button for replacing the attachments to disconnect the appliance body from the bowl.
6. Then remove the lid of the bowl.
7. Remove the chopping blade carefully and take out the chopped food.

Recommended processing (500ml)

Food Maximum amount Operating duration (seconds)
meat 250 g 10
herbs 50 g 10

Food Maximum amount Operating		duration (seconds)
nuts, almonds 150 g 10
cheese 100 g 10
bread 80 g 10
onions 200 g 10
biscuits 150 g 10
soft fruits 200 g 10
Rising dough	flour 250 g		10
	water 165 g
	cream 2.5 g
	yeast 1.0 g
	sugar	1.5 g

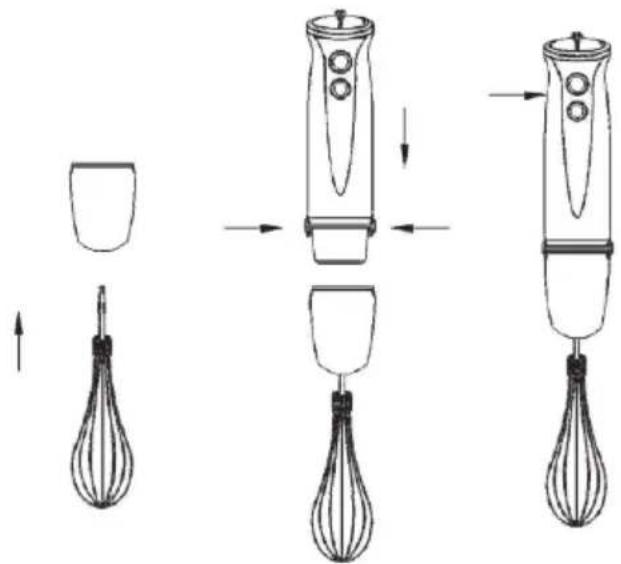

INSTRUCTIONS FOR USE - BEATER

GB

Use the beater only for making whipped creams, egg whites, baked goods and mixed desserts.

1. Insert the beater into the beater holder and insert this holder into the appliance body, until it clicks.
2. Insert the beater into the bowl before pressing the button to switch the appliance on.
3. After you are finished, unplug the appliance from the outlet and press the button for replacing the attachments to disconnect the beater holder. Then remove the spatula from the holder.

CLEANING

Disconnect the appliance from the electrical output prior to performing any maintenance. Cleaning shall always be performed on a cooled appliance! Do not use steel wool, abrasive agents or solvents.

1. Wipe the top of the blending attachment, chopping bowl lid and beater holder with a damp towel. Do not place into water because the lubricant could be washed away from the bearings.
2. Wipe the appliance body with a damp cloth. Never clean it under running water, do not rinse or immerse the body into water! Attach the attachment back on the appliance body.
3. Wash the mixing bowl, chopping bowl, bottom part of the blending attachment, beater and blade in warm soap water. We do not recommend washing the dishes in a dishwasher.

Always make sure the immersion blender is completely cooled, clean and dry before putting it away.

Quick rinsing

Between individual blending tasks, hold the immersion blender in a glass, half filled with water and leave the blender running for a few seconds.

Attention

The plastic parts of the appliance may become coloured after processing colored foods.

TECHNICAL DATA

Nominal voltage: 220 - 240V 50 / 60Hz

Nominal input power: 750 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.

08/05

SIGURNOSNE UPUTE

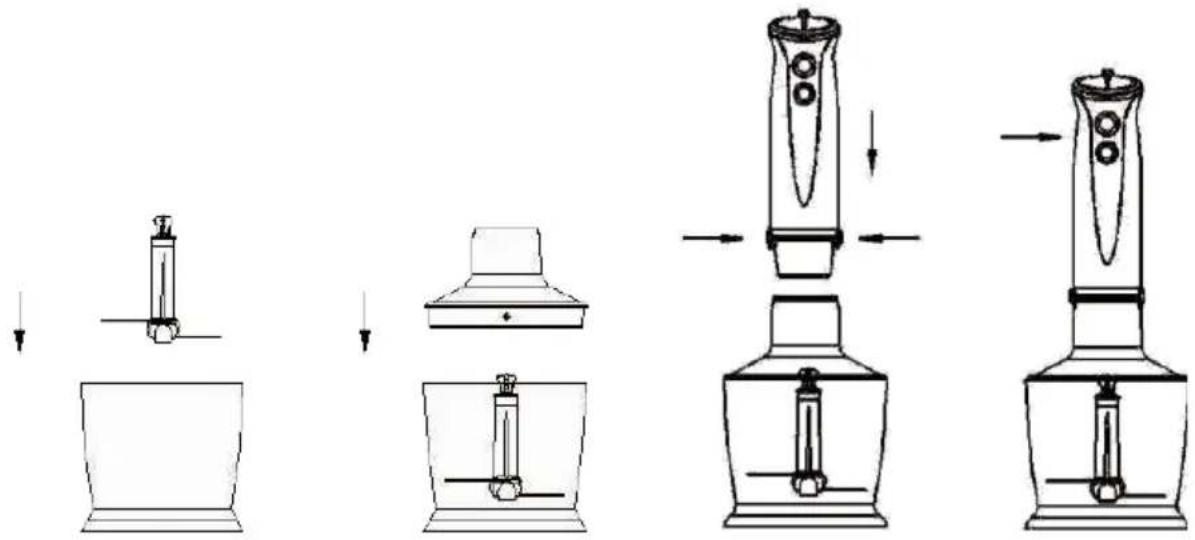

UPUTE ZA UPORABU - NOZ

Nož je namijenjen za sjeckanje namirnica kao što su meso, sir, luk, začinsko bilje, Češnjak, mrkva, orasi, bademi, marelice, šljive i silicno.

Ureajem nemojte sjeckati tvrde namirnice kao sto su led, muskatni orasci, zrna kava i zitarice.

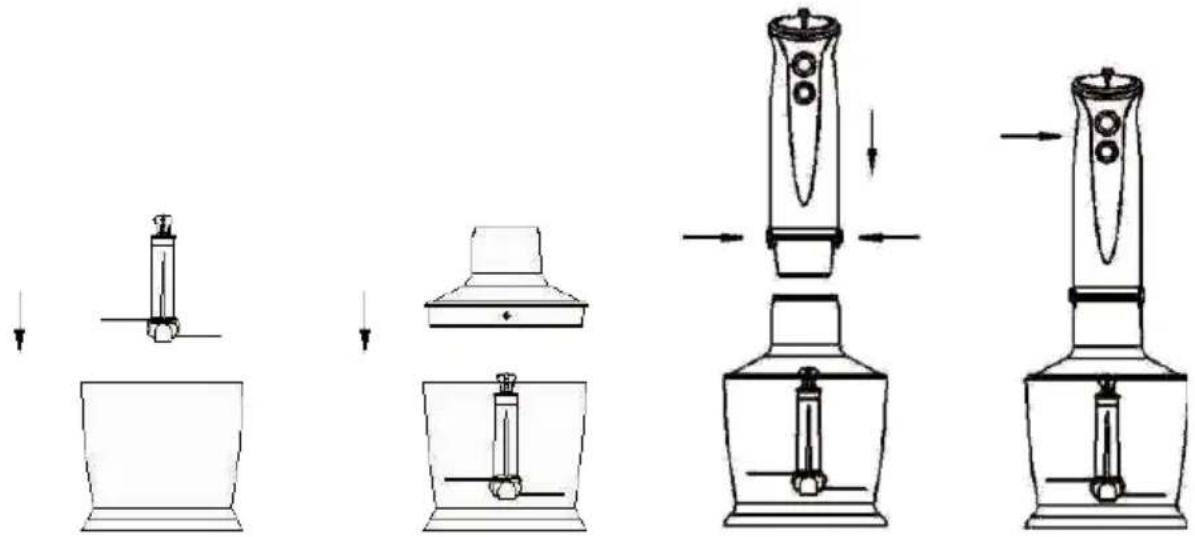

UPUTSTVO ZA UPOTREBU - NOŽ
