Product type	Built-in gas hob
Brand	Franke
Model	FCH 604 3G TC
Number of burners	4 (1 triple crown, 1 rapid, 1 semi-rapid, 1 auxiliary)
Cut-out dimensions (W x D)	550 x 480 mm
Overall dimensions (W x D)	590 x 510 mm
Recommended worktop thickness	40 mm
Net / gross weight	6.1 kg / 11.5 kg
Power supply	220-240 V ~ 50/60 Hz, 0.6 W
Compatible gas types	Natural gas G20 (20 mbar) and LPG G30/G31 (28-30/37 mbar) - category II 2H3+
Total nominal flow rate G20	0.791 m³/h
Total nominal flow rate G30	604 g/h
Total installed nominal power	8.3 kW
Safety device	Safety thermocouple that cuts off gas if the flame goes out
Ignition	Integrated ignition by rotary knobs (piezo electric)
Surface material	Stainless steel
Grates	Enamelled cast iron grates
Care and cleaning	Clean with soapy water, do not use abrasive products or dishwasher for the burners
Appliance class	Class 3 (built-in)
Electrical connection type	Cable 3 × 0.75 mm² H05RR-F with free terminals
Warranty	Manufacturer's warranty (see Franke customer service)

Frequently Asked Questions - FCH 604 3G TC FRANKE

How to light a burner on the Franke FCH 604 3G TC hob?

Press the corresponding rotary knob and turn it to the ignition position (maximum power). Keep the knob pressed for 3 to 4 seconds to let the thermocouple heat up, then release. If the flame does not light, wait 1 minute before trying again.

What to do if the flame of a burner accidentally goes out?

Immediately turn off the burner control and do not attempt to relight for at least 1 minute. The safety device (thermocouple) automatically cuts off the gas after about 30 seconds.

How to clean the burners and grates?

Clean the grates, caps and flame diffusers with warm soapy water. Do not put them in the dishwasher. Make sure the gas outlet areas are perfectly clean. Dry thoroughly after cleaning.

Can I use cast iron or earthenware pots?

Yes, but do not use them for more than 20 minutes on a burner. For long cooking, set the burner to minimum to avoid overheating.

How to convert the hob for another gas type?

This operation must be carried out by a qualified technician. Replace the injectors according to the technical characteristics table and adjust the minimum flame using the adjustment screw provided. Stick the corresponding sticker on the rating plate.

What is the minimum distance to be observed above the hob?

The minimum distance between the edge of the appliance and the upper cabinets is 700 mm. If a hood is installed, follow its specific instructions.

What to do if the burner does not light or stay lit?

Check that the gas and electricity supply is on, that the gas valve is open, that the LPG cylinder is not empty, that the burner openings are not blocked, that the parts are correctly positioned, and that there is no draft. If the problem persists, contact after-sales service.

Can the appliance be used by children or persons with reduced mobility?

Yes, provided they are supervised or trained in safe use. Children under 8 years old must be kept away unless constantly supervised. Do not let children play with the appliance.

How to dispose of the appliance at the end of its life?

Do not throw the appliance with household waste. Take it to a collection point for electrical and electronic waste (in accordance with Directive 2012/19/EU). Packaging must be recycled.

What types of pots are recommended for better efficiency?

Use pots suitable for the burner size: diameter 160-260 mm for the triple crown burner, 140-220 mm for the rapid burner, 140-200 mm for the semi-rapid burner and 60-140 mm for the auxiliary burner. The flame must not extend beyond the bottom of the pot.

USER MANUAL FCH 604 3G TC FRANKE

EN Installation and user manual Gas Hob

About this manual 3		Cleaning the appliance 13
Safety Information 4		Maintenance and repair 14
Technical data 7		Disposal	15
Installation	8	Packaging	15
Installation procedure 9		Disconnection	15
Intended use 11		Customer service 15
Cleaning and care 13

ABOUT THIS MANUAL

This user manual applies to several models of the device. Thus it may be possible that some of the described features and functions are not available on your specific model.

The explanatory images and figures, described in the various sections, are available at the end of the manual.

• Carefully read the user manual before using the device.
• Keep the user manual. Use the device described in this user manual only according to the intended use.

Franke reserves the right to make modifications to the product without prior notice.

All information correct at time of issuance.

Symbol Meaning

Warning symbol. Warning against risks of injury.

Actions in safety and warning notes to avoid injury or damage. Action step. Specifies an action to be done.

SAFETY INFORMATION

In this manual and on your appliance we have provided many important safety messages. Always read and obey all safety messages. Franke reserves the right to make modifications to the product without prior notice. All information correct at time of issuance.

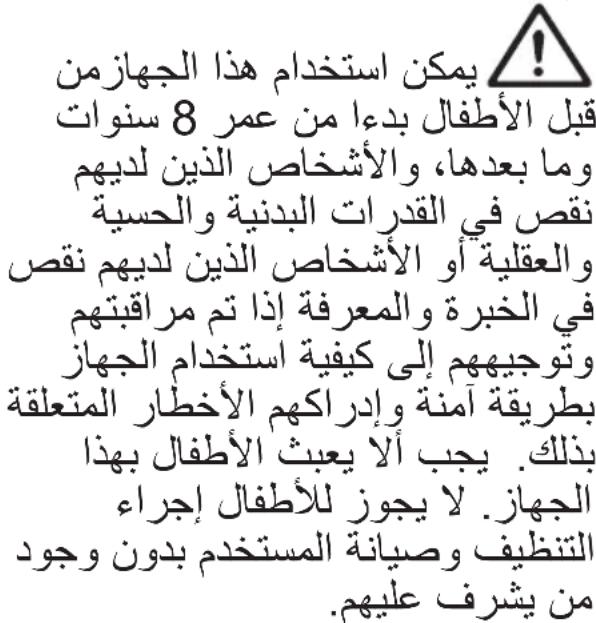

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

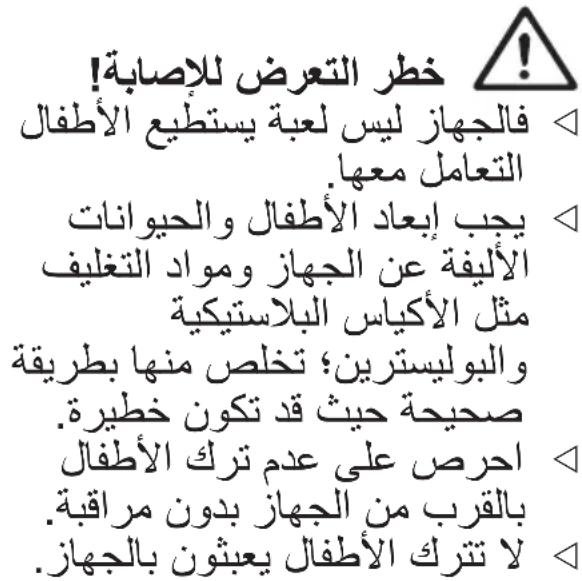

Risk of injury!

This device is not a toy. Keep children and pets away from the device and the packaging material, e.g., plastic film and polystyrene; it can be dangerous. Dispose of it in a proper way.

Do not leave children near the device unattended. Do not let children play with the device.

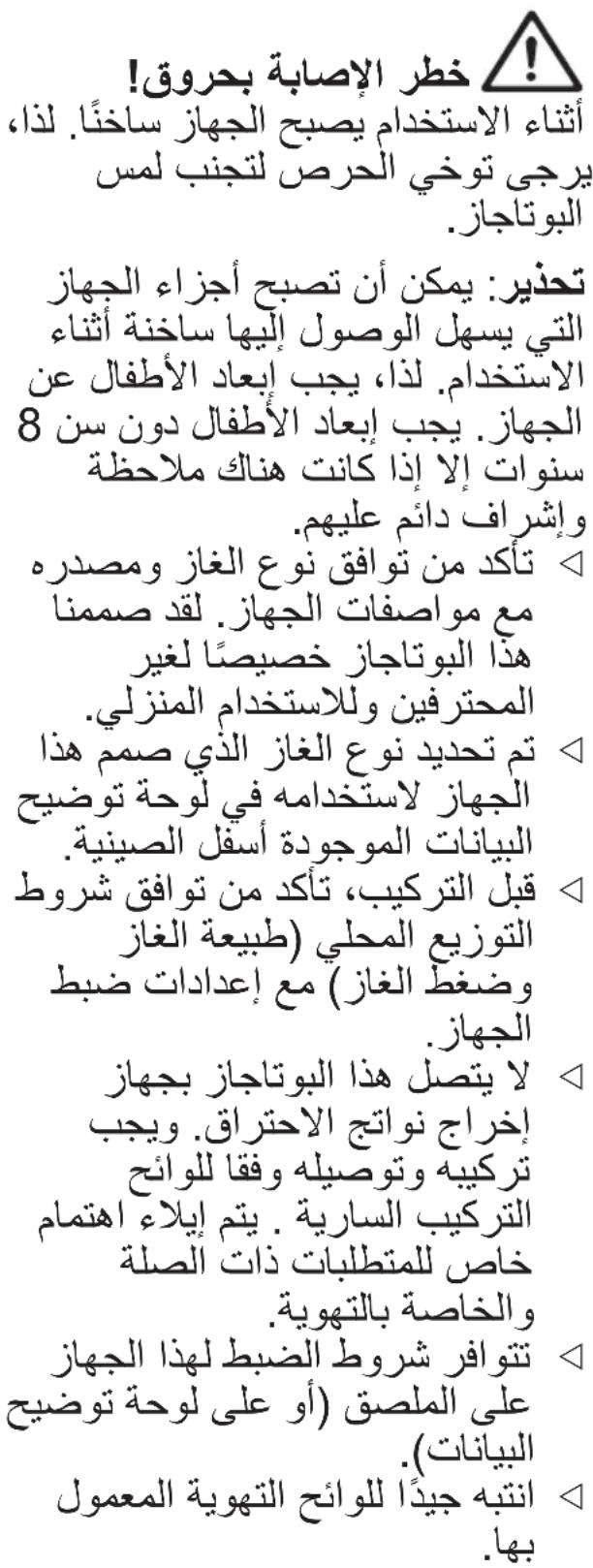

Risk of burns!

During use the appliance becomes hot. Care should be taken to avoid touching the hob.

WARNING: Accessible parts may become hot during use. Young children should be kept away. Children less than 8 years of age shall be kept away unless continuously supervised.

Ensure the gas type and supply are compatible with appliance specifications. The hob was developed exclusively for nonprofessional, domestic use in the household only. The type of gas for which the appliance is arranged is specified on the data plate on the bottom of the tray. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible. This appliance is not connected to a combustion products evacuation device.

It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

The adjustment conditions for this appliance are stated on the label (or data plate). Pay particular attention to the applicable regulations on ventilation. After use, switch off the hob by its controls. Make sure the burners are cold before closing the lid, if the appliance has one.

Risk of electric shock due to entering liquid!

The device contains electrical components.

Make sure that no liquid enters the interior of the device. Do not use pressurized steam to clean the device. In the event of the burner flames accidentally extinguished, turn off the burner control and do not attempt to reignite the burner for at least 1 minute. The device shall not be operated for more than 15 seconds if after 15 seconds the burner has not lit, stop operating the device and

open the compartment door and/or wait at least 1 minute before attempting a further ignition of the burner.

Ensure that the device is installed in a way that allows to disconnect it from the power supply, with a contact opening distance (3 mm) that ensures complete disconnection in category III overvoltage conditions. Ensure that the appliance is connected to an earthing system in compliance with the current regulations.

CAUTION: The use

of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.

Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Do not operate the appliance with an external time switch or a separate remote control system.

CAUTION: The cooking

process has to be supervised. A short term cooking process has to be supervised continuously.

Do not use steam cleaners or direct jets of water. Never use scouring pads, steel wool, muriatic acid or other products which could scratch or mark the surface. Never use sharp objects, as they could damage the seals between the trim and worktop. Ensure the gas outlet zones are perfectly clean. These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.

Risk of fire!

Do not store items on the cooking surfaces.

WARNING: Unattended aromatic cooking on a hob at or oil can be dangerous may result in fire. Hot oils readily.

TECHNICAL DATA

FHTL/FCH 604 3G TC

FHTL/FCH 604 4G

FHTL/FCH 7554GTC

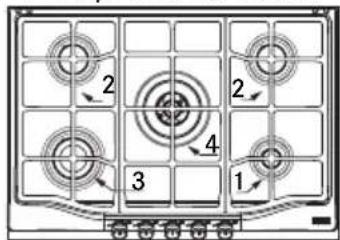

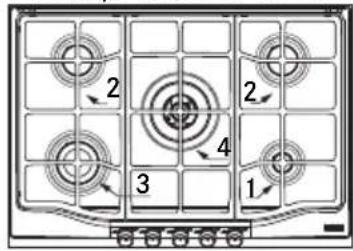

Position	Burner	Rated Capacity - G20	Injectors G20 20 mbar	Rated Capacity - G30	Rated Capacity - G31	Injectors G30/G31 28-30/37 mbar	Rated Power (kW)	Reduced Power (kW)
4	TC	0.362	141	277	277	98	3.8	2.10
3	R	0.286	125	218	218	85	3	1.10
2	SR	0.167	97	127	127	66	1.75	0.70
1	AUX	0.095	78	73	73	50	1	0.55
Pressure (mbar)	min	17		20	25
	nom	20		28-30	37
	max	25		35	45
Type of Gas		G20 natural gas		LPG G30 Butane G31 Propane			Cat. II 2H3+

MOD.	nr AUX	nr SR nr R nr TC	N bur-ners	Heat source	Total Rated Capacity G20 (m3/h)	Total Rated Capacity G30 (g/h)	Air Necessary for combustion (m3/h)	Total installed Gas Rated Power (kW)	Weight (net-gross) (kg)	Power supply voltage/ frequency	Power/ current
FCH 604 3G TC	1	2	1	4	GAS	0.791	604	16.6	8.3	6.1-11.5	220-240 V~50-60 Hz	0.6 W
FCH 755 4G TC	1	2	1	1	5	GAS	1.077	822	22.6	11.3	7.8-14.7	220-240 V~50-60 Hz	0.6 W
FHTL 604 3G TC	1	2		1	4	GAS	0.791	604	16.6	8.3	6.1-11.5	220-240 V~50-60 Hz	0.6 W
FHTL/FCH 604 4G	1	2	1		4	GAS	0.715	545	15	7.5	6.1-11.5	220-240 V~50-60 Hz	0.6 W
FHTL 755 4G TC	1	2	1	1	5	GAS	1.077	822	22.6	11.3	7.8-14.7	220-240 V~50-60 Hz	0.6 W
				TC=Triple Crown		SR=Semi-Rapid		R=Rapid	AUX=Auxiliary

INSTALLATION

Installation and electrical/gas connection must only be carried out by specialized and licensed personnel.

The manufacturer declines any liability for injury to persons or damage to things due to failure noncompliance with these provisions. The gas connection must comply with the regulations in force in the country at the time of installation.

Ensure that the device is connected directly to the mains socket. Ensure that no adapters, no multi-sockets and no extension cables are used to connect the device.

Cabinet requirements

This handbook refers to a class 3 built-in gas hob and type Y for electric part.

The gas pipe must not come into contact with the sides of any oven under the hob.

For fitted units, the components (plastic materials and veneered wood) must be assembled with heat-resistant adhesives (min.

100°C): Unsuitable materials and adhesives can result in warping and detachment.

The ventilation of rooms must be in compliance with local regulations.

The kitchen element must allow sufficient room for the electrical connections of the appliance.

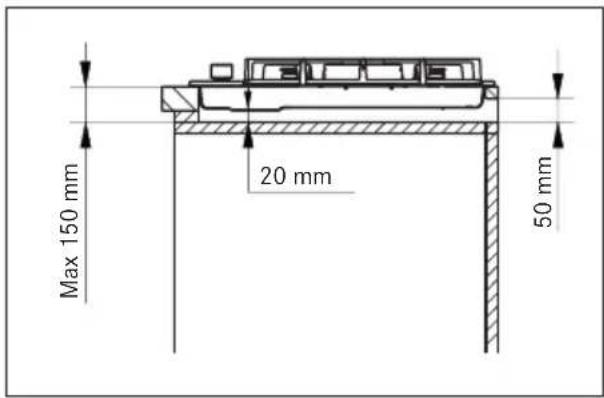

IMPORTANT: These devices are "Y" type with respect to the degree of protection against the dangers of fire. The minimum distance from the edge of the appliance is 150 mm for the side wall, 50 mm for the rear, and 700 mm for any cabinets above it. The appliance is recommended to be built into 40 mm thick worktops. In case the dimensions are different, eventual modifications have to be managed by the technician.

Note: if a hood is installed above the hob, for the distance to be respected refer to the assembly instructions of the hood.

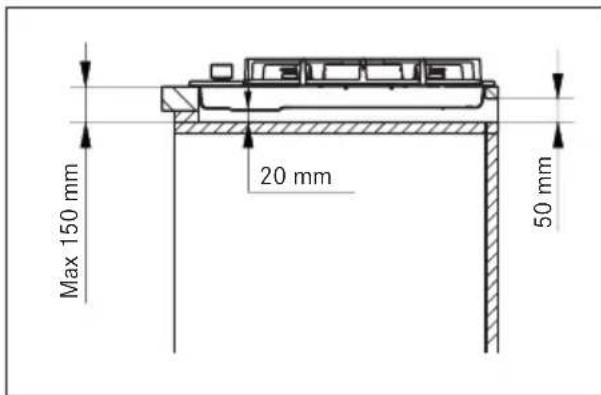

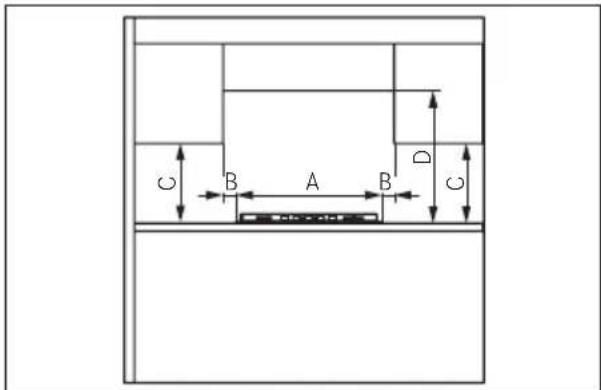

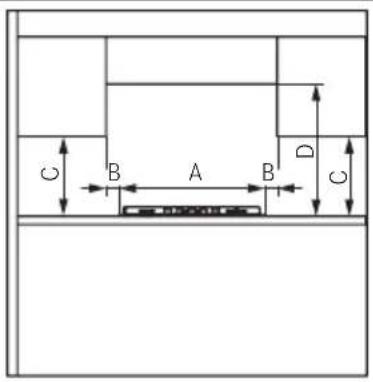

MINIMUM DIMENSIONS (MM)

A=590/750 B=50

C=400 D=700

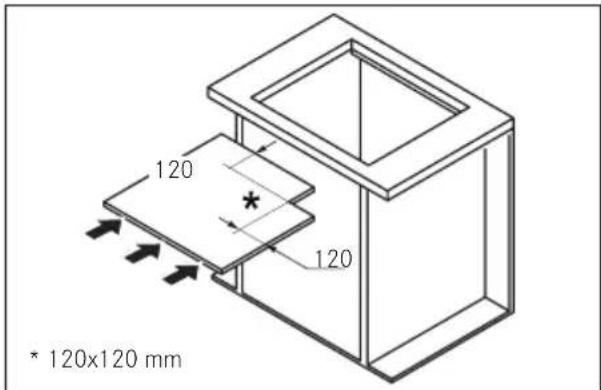

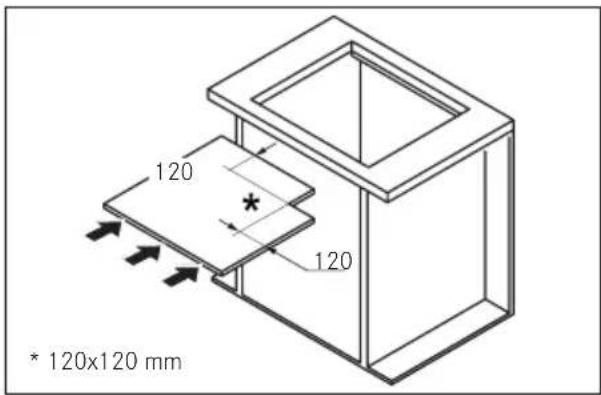

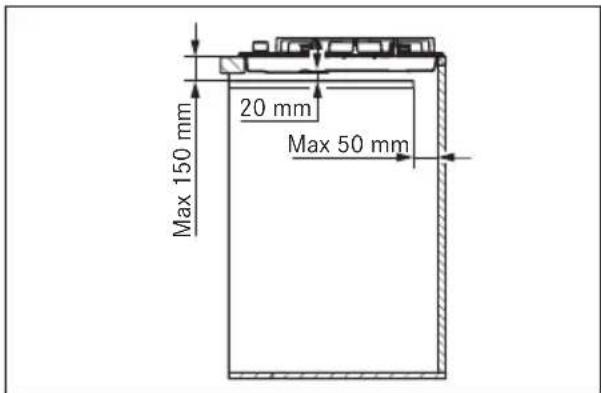

If the appliance is not installed above an oven: arrange a separator baffle.

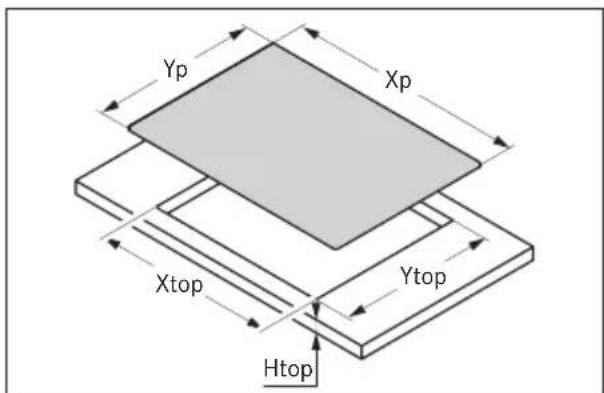

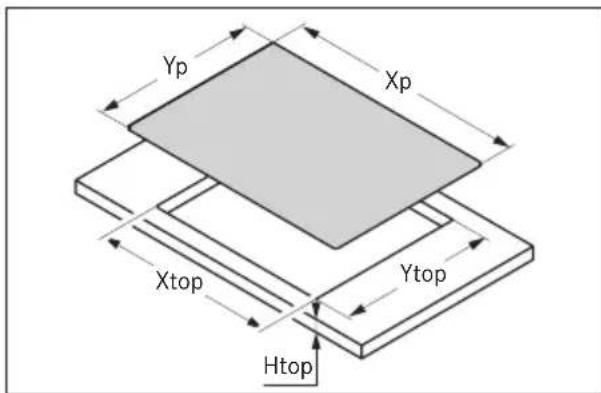

Installation procedure

The appliance is fixed to the unit by means of the brackets and accessories provided.

Make sure that there is free access to the fixing elements in front and in the rear after the installation of the appliance. Prepare the hole in the worktop according to the dimensions indicated. Be sure to comply with the dimensions indicated.

Model xp	mm	yp mm	xtop mm	ytop mm	htop mm
FCH 604 3G TC	590	510	550	480	40
FCH 755 4G TC	750	510	550	480	40
FHTL 604 3G TC	590	510	550	480	40
FHTL/FCH 6044G	590	510	550	480	40
FHTL 755 4G TC	750	510	550	480	40

Apply the sealing strip around the hole and position the hob. Fix the appliance with the screws and brackets. Remove any excess sealing strip.

Connection to gas supply

Connect the appliance to the gas supply in compliance with the current regulations, only after making sure it is arranged for the type of gas to be used. Otherwise, carry out the operations described in the paragraph "Replacing injectors". For liquid gas use pressure regulators complying with the current regulations.

Connection to the gas supply can be made in two ways:

A. Connect the gas hob using a 12 mm diameter rigid copper pipe (3). To ensure a good seal, use the elastomer gasket supplied as an accessory (1). B. Connect the hob using a continuous-surface flexible steel tube (2). Also in this case, to ensure a good seal use the gasket supplied as an accessory (1). The maximum length of the hose is 2 linear metres.

IMPORTANT: if a stainless steel hose is used, it must be installed so as not to touch any mobile part of the furniture. It must pass through an area where there are no obstructions and where it is possible to inspect it on all its length.

After connection to the gas supply light up the burners and turn the knobs from max position to minimum position to check flame stability. After carrying out the connection use soapy water to check for any leaks.

For United Kingdom, Northern Ireland and Republic of Ireland.

Electrical connection

The FRANKE cooking hob comes with a 3-core power cable with free terminals.

Ensure the following:

• The characteristics of your household electrical power supply (voltage, maximum output and current) are compatible with those of your FRANKE hob.
• The plug and the socket can be easily reached and are positioned so that no live part is accessible when inserting or removing the plug.
• A 3 × 0.75 mm² H05RR-F type cable for completely gas hobs is used when replacing the power cable.
• The terminals of two appliances are not connected to the same plug. The polarities of the free terminals (Blue = Neutral = (1) / Yellow and Green = Earth = (2) / Brown = Live = 3) are respected.

Adjustment to different types of gas

WARNING: This operation must be performed by a qualified technician.

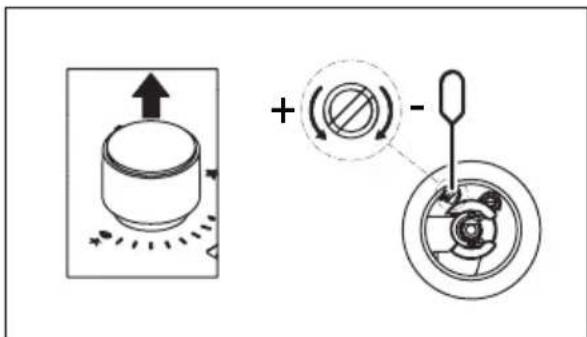

Minimum flame adjustment

Remove the knob. Adjust the minimum flame by turning the adjustment screw clockwise to decrease the flame and anticlockwise to increase it. The screwdriver for adjustment is supplied with the accessories.

Replacing injectors

Not supplied injectors must be requested to the customer service.

IMPORTANT: All the appliances are factory-set for natural gas (G20). If a different type of gas is to be used, change the injectors as follows:

• Remove the grids, burner caps and flame-spreaders;
• Unscrew the injectors and replace them with those provided and suitable for the gas supply, making sure the marking matches that given in the table;
• Refit the flame-spreaders, burner caps and grids.

These burners do not require air adjustment.

Accessing the hob

To access the tray containing the functional parts, proceed as follows:

• Remove the grids, burner caps and flame-spreaders;
• Remove the knobs, sliding them off their pins;
• Remove the screws that fix the burners to the hob;
• Lift the hob.

IMPORTANT: When converting the appliance to a different type of gas, place the corresponding sticker (supplied as an accessory) in the special space on the data plate. For operation with LPG (G30 or G31), the minimum flame adjustment screw must be fully screwed down. These appliances are supplied in cat. II 2H3+.

INTENDED USE

CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Do not pull the appliance or the power cable to unplug it. Close the general gas supply cock when the hob is not in use.

Risk of burns!

Do not touch the pot grids during use. Do not touch the appliance with wet parts of the body.

Lighting the burners

The hob is lit with the control knobs. To light the burners, proceed as follows:

• Press and turn the required knob to the lighting and max delivery position.
• Keep the knob pressed down for 3-4 seconds to allow the sparks to ignite the gas coming out the burner and to allow the thermocouple to heat up.
• Then release the knob and, turning it anticlockwise, adjust the flame as required. If the flame does not stay lit, repeat the operation from step 1.

Knob icon

Function

Off

Minimum flame

Lighting and maximum flame

Cooking zone

The hob is an item for daily use: signs of usage such as scratches or visible material abrasion from pots or cookware are normal. Intensive use leads to more distinctive signs of usage. In such cases, the appliance continues to function perfectly and a complaint is not justified. Safety is always guaranteed.

Do not use the appliance as a support top. To avoid damaging the appliance: In the case of thermal failure, switch the solid plate off and allow it to cool down completely. Do not put any dishes on it. Do not cool with cold water under any circumstances. Do not climb onto the appliance. The appliance is manufactured in compliance with the relevant effective safety standard and safety requirements of the Gas Directive.

Automatic Safety Valve

These hobs have a safety device that automatically closes the gas flow if the flame accidentally goes out due to draughts, pot spilling, or a temporary interruption of the gas supply. This device is activated approx. 30 seconds after the flame goes out.

Burner use

For lower gas consumption and better efficiency, use pots of widths suitable for the burners, making sure the flame does not go beyond the edges (comply with the following table):

Burner Pan bottom min-max (recommended)

Triple crown 160-260 mm

Rapid 140-220 mm

Semi-rapid 140-200 mm

Auxiliary 60-140 mm

The use of larger pots than those specified can cause excessive overheating of the knobs and top and, in case of prolonged use, yellowing of the cover (if in stainless steel). FRANKE declines any liability for damage due to such use (Fig. 1).

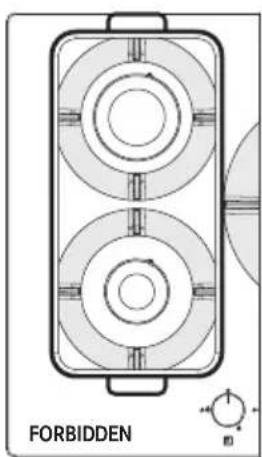

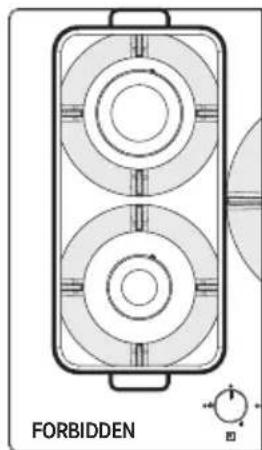

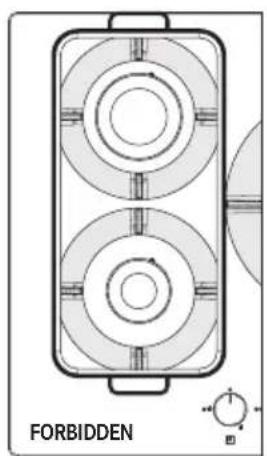

Do not put the same pan on two burners (Fig. 1). Do not use two burners working at the same time with a single container, like a saucepan or a fish pan (Fig. 1). Improper use of the grids can damage the hob: do not position the grids upside down or slide them across the hob. In case of use of cast iron griddles, ollar stones, terracotta pots and pans, use them for no more than 20 minutes and, in case of prolonged cooking, adjust the burner to the minimum. Heat diffusers such as metal mesh, or any other types are not recommended.

CAUTION: The use of particular pans or pots may cause a light temporary deformation of the steel cooking surface. This is normal and does not affect the operation of the appliance.

Fig. 1

CLEANING AND CARE

Risk of burns!

Do not clean the appliance and its accessories until they are cold. Do not use flammable liquids near the appliance.

Before performing any cleaning and care: Turn the appliance off.

Foods that accidentally fall or settle on the surface, on the functional or aesthetic elements of the hob must not be eaten.

Cleaning the appliance

Clean the hob after every use in order to prevent food residues from burning on. To clean food residues, use a soft cloth or sponge with water. We recommend using protective cleaning agents. - Immediately remove any foods with high sugar content that spill onto the hob. To prevent limescale stains from forming, always thoroughly dry the appliance after going over it with a damp cloth. Clean the grids, burner caps and flame-spreaders with hot soapy water, making sure to carefully dry them. Do not clean in a dishwasher. Make sure the gas outlet zones are perfectly clean. The natural colour of the pot grids in the pot placing section may alter over time due to the heat.

MAINTENANCE AND REPAIR

Before any maintenance operations disconnect the appliance from the mains power supply. In case of any operation problems, contact the Franke Technical Service Centre.

Make sure that maintenance on electrical components is carried out only by the manufacturer or the customer service. Use original spare parts only. Make sure that damaged cables are changed only by the manufacturer or the customer service.

When contacting the customer service, please provide the following information:

- type of fault - appliance model (Art. / Cod.) - serial number (S.N.)

This information is given on the data plate on the booklet or under the hob.

If the hob doesn't operate correctly, before calling the Franke Technical Service Centre, refer to the Troubleshooting Guide to determine the problem:

TROUBLESHOOTING GUIDE
Type of failure Check if:
A	1 The gas or electrical supplies are not shut off
The burner fails to ignite, does not stay lit or the flame is not steady	2 The gas supply tap is not open
	3 The refillable gas cylinder (liquid gas) is not empty
	4 The burner openings are not clogged
	5 The plug end is not dirty
	6 All the burner parts have not been positioned correctly
	7 There are no draughts near the hob
	8 When lighting the burner, the knob has not been pressed for enough time to activate the protection device (see page 11 „Intended use“)
	9 The burner openings are not clogged near the thermocouple
	10 The minimum gas setting is not correct
B	11 The bottom of the container is not perfectly flat
The containers (pots, pans, kettles) are not stable	12 The container is not centered on the burner
	13 The grids have not been exchanged or positioned incorrectly

If after the above checks the fault still occurs, get in touch with the nearest Franke Technical Service Centre.

DISPOSAL

Packaging

All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

• Disconnect the appliance from the mains. With a fixed appliance, this must be carried out by a qualified electrician.

Disposal

The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.

Dispose of the device, which is to be discarded, via a specialised waste collection point for electronic and electrical devices.

In accordance with the Directive 2012/19/EU, regarding the reduction of the hazardous substances used in electrical and electronic appliances, and waste disposal.

Proper separate waste collection of the scrapped appliance for subsequent recycling, treatment and environmentally-friendly disposal helps prevent a potentially negative impact on the environment and health and facilitates recycling of the materials used in appliance construction.

CUSTOMER SERVICE

Refer to the contact address for your country on the back page or on our website: www.franke.com

TABLE OF CONTENTS

Adjust to different types of gas

The appliance contains electrolytic components.

MAINTENANCE AND REPAIR

Do not use the appliance or its components until they have cooled down. Do not use flammable liquids near the appliance.

Before cleaning and maintenance, follow these steps: Turn off the appliance.

It is forbidden to use food products that have accidentally fallen or spilled on the functional or aesthetic components of the hob surface.

Cleaning the hob

To prevent food residues from burning on, clean the hob surface after each use. For cleaning food residues, use a soft cloth or sponge moistened with water. The manufacturer recommends using cleaning agents with protective properties. If food with high sugar content has spilled on the hob surface, remove it immediately. After cleaning the appliance with a damp cloth, be sure to wipe it dry. This will prevent limescale buildup. Wash the burner caps, flame spreaders, and burner rings in soapy water and rinse them well. Do not put these parts in the dishwasher. Ensure the gas outlet area is kept clean. The natural color of the burner parts located in the pan support area may change over time due to heating.

TECHNICAL SERVICE AND REPAIR

Before any technical service work, disconnect the appliance from the electrical supply.

If problems occur during operation of the device, contact the Franke technical service center.

Electrical component servicing may only be carried out by the manufacturer's representatives or the customer service center. Use only original spare parts. Replacement of damaged cables may only be carried out by the manufacturer's representatives or the customer service center.

When contacting the customer service center, provide the following information:

• Type of malfunction;
• Device model (Art. / Cod.)
• Serial number (S.N.).

This information is indicated on the rating plate, which can be found in the manual on the underside of the cooking surface.

If the cooking surface does not work correctly, before contacting the Franke service center, try to find the cause of the problem with the help of the troubleshooting guide:

TROUBLESHOOTING

Malfunction Action

A

The hob does not ignite or the flame is uneven

1 Check the power supply 2 The gas tap is not open 3 Check the presence of (liquefied) gas in the cylinder to be filled 4 Make sure that the hob openings are not clogged 5 Clean the injector nozzle from dirt 6 All parts of the hob were oriented correctly 7 Eliminate drafts present near the cooking surface 8 When igniting, the knob was not pressed for a time sufficient to activate the safety device (see page 155 device designation) 9 Make sure that the hob openings, located near the thermocouple, are not clogged 10 The minimum gas flow setting is incorrect 11 The pan is not perfectly flat 12 The pan is not placed in the center of the hob 13 Check the correct positioning of the grids

If it is not possible to restore the correct operation of the device, contact the nearest Franke service center.

DISPOSAL

All packaging materials (cardboard, plastic film (PE) and polystyrene [EPS]) are labelled accordingly. Where possible, they should be sent for recycling and disposed of in an environmentally friendly manner.

Disconnection

Disconnect the appliance from the power supply. If the appliance is fixed, the operation must be performed by a qualified electrician.

Disposal

This symbol on the product or its packaging indicates that the appliance must not be disposed of with ordinary household waste.

Take the device to a specialized collection point for waste electrical and electronic equipment.

In accordance with Directive 2012/19/EC on the reduction of hazardous substances used in electrical and electronic equipment and the disposal of waste.

Proper ecological disposal of the appliance in accordance with the rules of separate waste collection and subsequent recycling helps prevent possible negative consequences for the environment and human health, and also facilitates the reuse of appliance materials.

CUSTOMER SERVICE CENTER

See contacts and address for your country on the back of the plan or on our website: www.franke.com

CONTENTS

User manual 160

Safety instructions 161

Technical data 164

Installation 165

Installation procedure 166

Use as intended 168

Cleaning and care 170

Troubleshooting 170

Maintenance and repair 171

Disposal 172

Packaging 172

Warranty 172

Service center 172

USER MANUAL

This user manual is suitable for several models. Some descriptions and functions may not be available for your specific model.

The instructions described in this manual can be found in the table of contents.

Before using the device, please read the user manual carefully. Keep the user manual. Use the device as described in this manual, including for its intended purpose.

The Franke company reserves the right to make changes to its products without prior notice. All data are current at the time of publication.

Symbol of danger. Danger of injury.

Safety measures and protective devices that help avoid injury.

Do not use the device without supervision. Do not allow children to use the device.

Danger of injury!

During operation, the device heats up. Be careful and do not touch hot surfaces.

WARNING:

Accessible parts may become hot during use. Keep children away from the device. Children under 8 years old are forbidden to use the device without constant supervision.

Make sure that the gas used and its characteristics correspond to the device specifications. The device is designed exclusively for non-professionals, for household use. The gas for the device is indicated on the technical data plate in its lower part.

Before installation, make sure that the installation conditions (gas type and gas pressure) for the household appliance are met. This device is not intended for connection to combustion product exhaust; it must be installed and used in accordance with installation rules. Particular attention should be paid to ventilation requirements. The installation conditions for this device are indicated on the label (or on the data plate). Pay special attention to the ventilation norms in the room when using the device. After use, always turn off the device using the appropriate control elements. Before lowering the lid (if present), make sure it is sufficiently cooled.

Risk of electric shock due to contact with live parts.

Do not touch electrical components.

Make sure that no foreign objects get inside the device. It is forbidden to clean the device with a steam cleaner. In case of visible damage to the power cord, unplug the device and do not attempt to repair it yourself. Do not use the device for more than 15 seconds; if the burner does not ignite after 15 seconds, stop the device operation and open the door and/or wait 1 minute before the next ignition attempt.

Make sure the device is installed so that it can be disconnected from the power supply, with a contact opening distance (3 mm) that guarantees complete disconnection under overvoltage category II conditions. Be sure to provide reliable grounding of the device in accordance with established norms.

SURFACE:

The gas hob surface can heat up during cooking, water, and products may ignite if used improperly.

Make sure the room is well ventilated, especially during use of the appliance: keep the openings for natural ventilation open or install a mechanical ventilation device (mechanical hood). Do not use the appliance with a timer or a separate remote control system.

WARNING:

Always monitor the cooking process. Even if cooking does not take much time, continuously monitor the process.

Do not use the appliance with wet hands or wet utensils. Never use abrasive sponges, steel wool, salt acid, or other agents that may

scratch the surface or leave residues on it.

Never use sharp objects near the appliance, as they may damage the enamel or its coating and stainless steel. Keep the area around the gas outlet clean. These instructions are valid unless otherwise indicated on the appliance. If the symbol is not indicated on the appliance, it is necessary to consult the technical instructions and make the necessary modifications to the appliance according to the operating conditions in a given country.

Risk of fire

Fire hazard!

Do not store any items on the hot surfaces.

WARNING

Cooking on the hot surface of the stove with fat or oil without supervision or in automatic mode is dangerous. This can lead to a fire! The oil ignites almost immediately!

FHTL/FCH 604 3G TC

FHTL/FCH 604 4G

FHTL/FCH 7554GTC

Положения	Конфорсka	НомINALБА СМИСТБ ДД G20	Инж ecтори G20, 20 мбap (100/МM)	НомINALБА СМИСТБ ДД G30	НомINALБА СМИСТБ ДД G31	Инж ecтори G30/G31, 28- 30/37 мбap	НомINALБА notychnictb (KВt)	Положения notychnictb (KВt)
4	ПК	0,362	141	277	277	98	3,8	2,10
3	E	0,286	125	218	218	85	3	1,10
2	SR	0,167	97	127	127	66	1,75	0,70
1	ДОП	0,095	78	73	73	50	1	0,55
	Mн.	17		20	25
ТиSC (мбар)	HOM	20		28-30	37
	Мakc.	25		35	45
Тип raу	Приpondи rαa G20			СПГ Бутан G30 Проган G31			kat. II 2H3+

TC = Notriha KopoHa SR = HanibwBnKa R = WbNka AUX = DonomixHa

INSTALLATION

Installation of electrical/gas appliances must be carried out by a licensed specialist.

The manufacturer disclaims any liability for injuries or damage resulting from improper use. The appliance must comply with national regulations in force at the time of installation.

The appliance must be connected directly to the electrical outlet. It is forbidden to connect the device through adapters, extension cords, or splitters.

Built-in appliance

This appliance is intended for use with built-in gas burners of class 3, and must be connected to electrical installations of type Y.

The pipe must not protrude beyond any wall or partition above the burner surface.

For assembling furniture components that contain plastic and wood veneer, use heat-resistant materials (min. 100°C):

Room ventilation must comply with local regulations.

The furniture element must have sufficient space for connecting the electrical connections of the appliance.

IMPORTANT! The specified device belongs to class Y for fire safety. The minimum distance from the appliance to the side walls is 150 mm, to the rear wall 50 mm, and to any other walls 700 mm. The appliance is recommended to be installed in walls with a thickness of 40 mm. If the dimensions of the existing furniture elements differ from those specified, the technical service must make appropriate changes to their construction.

Note: The appliance is installed with an exhaust hood. Please read the installation instructions for the hood.

MINIMUM DIMENSIONS (MM)

A=590/750 B=50

C=400D=700

If the device is not installed on the gas pipeline, install a separating partition.

Installation procedure

Attach the device to the furniture elements using the included brackets.

Make sure there is free access to the cover elements from the front and rear after installing the device. Make a hole in the wall according to the specified dimensions. In this case, follow the specified dimensions.

Моденьхр	MM	yp MM	x Верх MM	y Верх MM	h Bepx MM
FCH 604 3G TC	590	510	550	480	40
FCH 755 4G TC	750	510	550	480	40
FHTL 604 3G TC	590	510	550	480	40
FHTL/FCH 604 4G	590	510	550	480	40
FHTL 755 4G TC	750	510	550	480	40

Apply the wall-mounting strip around the hole for the device and install the valve surface in the hole. Close the device with the help of the mounting screws. Remove the protruding parts of the wall-mounting strip.

Connection to the gas supply source

Connect the device to the gas supply source in accordance with the regulatory standards, having previously made sure that the device corresponds to the type of gas used. In this case, perform the operations described in the section "Replacing the injector". When using liquefied gas, use a pressure regulator that meets the regulatory standards.

Connection to the gas supply source can be done in the following ways:

A. Connect the gas valve surface using a flexible hose with a diameter of 12 mm (3). To ensure reliable sealing, use a rubber gasket (included in the accessories kit) (1). B. Connect the valve surface using a flexible steel pipe with a continuous surface (2). To ensure reliable sealing, also use a rubber gasket (included in the accessories kit (1)). The maximum length of the hose should be 2 linear meters.

IMPORTANT: If a hose is used, it must be installed so that it does not come into contact with moving parts of the furniture. It must pass through a zone where there are no sharp edges and where it is possible to check it along its entire length.

Disconnect from the gas supply, close the shut-off valve, and return the handles to the minimum position to check the stability of the connection. Use a soap solution to check for leaks.

Access to the valve surface

To install or remove the device, perform the following steps:

Remove the grates, the burner caps, and the burners, having removed the pins, on the control knobs;

• Turn the screws that secure the brackets to the steam surface;
• Lift the steam surface.

WARNING: When moving the device to another mode, apply the appropriate label (provided as an accessory) to the special place on the data plate. When using the propane-butane mixture (G30 or G31), fully tighten the regulator screw for the minimum level. The device is described in clause 2.3+.

USE FOR INTENDED PURPOSE

CAUTION: This device is intended

for household use only. It must not be used for other purposes, for example, for heating rooms.

Do not pull the device by the cord, and also do not pull the cord when disconnecting the plug from the socket. Turn off the gas tap when not using the grill.

Fire hazard!

Do not touch the hot surfaces during operation of the device. Do not touch the device with wet parts of the body.

Ignition of the burners

The steam surface is ignited by the knobs and regulators. To ignite the burners, do the following:

Press and turn the required knob to the ignition position and maximum power. Hold the knob for 3-4 seconds so that sparks ignite the gas coming from the burner, and the thermocouple heats up. After releasing the knob, turn it counterclockwise

to the desired power. If the flame goes out, repeat the operation from point 1.

Function

Operation

Minimum power

Layout and maximum power

Boiling zone

The variable surface of the device is intended for intensive use. Accordingly, traces of use on the surface of each dish (for example, scratches from washing material) are a normal phenomenon. With intensive use, traces will be noticeable. In this case, the device will operate safely, so there is no cause for concern. We guarantee the safety of our products.

Do not place objects on the surface of the device. To turn off the device: in case of operation through a temperature regime, turn off the burner and remove the pan from it to cool it. Do not place any dishes on it. Under no circumstances use cold water for cooling. Do not touch the device. The device is manufactured in accordance with the relevant safety and safety standards for electrical appliances.

Automatic shut-off device

These variable surfaces have a safety device that automatically cuts off the gas flow if the flame goes out, for example, due to splashing from the pan or a temporary interruption of the gas supply. The device is activated approximately 30 seconds after the flame goes out.

Using the burners

To extend the service life of the gas and increase the efficiency of the device, use dishes of a diameter that matches the size of the burners. It is necessary to ensure that the flame does not extend beyond the edge of the dish (see the following table):

Конфоркадишие посуд, м. - Мakc. 0 (pekomehdobaho)
ПOTRIHA	160-260 MM
Корona
Експrec 140-220 MM
Нanziевский 140-200 MM
Довоміжна 60-140 MM

When using larger dishes, their bottom, the burners, and the surface of the device may heat up significantly. As described above, during prolonged use, the surface of the device may become discolored (in the case of stainless steel). The company Franke does not bear any responsibility for damage to the device caused by the described use (Fig. 1).

Do not place one pan on the burners (Fig. 1). Do not use two burners for one pan, for example, for a pan or a deep frying pan (Fig. 1). Improper use of the device may damage the variable surface: do not place grills on the burners and do not drag them over the variable surface. When using frying pans, pans, or other dishes, use them for no more than 20 minutes, and in case of prolonged cooking, reduce the minimum power on the burner. It is not recommended to use dishes with a rough bottom, such as cast iron pans or any other.

SURFACE: Using dishes with a rough bottom may cause permanent deformation of the steel variable surface. This is a normal phenomenon and it does not affect the operation of the device.

(Man. 1)

He6e3neka onikib!

He nctitb npnaad ta noro akcecyapn, NOKN BOHN He OXOLOHyTb. He kopructytecra 3aMnCTmPiHaMa6iJa npna.

IpeepuueHHm iDOrnqom CnID BHKOHyBaTn Taki dii:

BumKHiTb npnla.i.

3a6oponeHO BxNBaTN iKy, kA BNpaKOBO Bnana qH nOTpanHa Ha NOBepXHIO, Ha 4yHKcioHaJIbHi a6o eCTeTnHi KOMNoHeHTN BapInbHOI NOBepXHi.

OuHcHn npHaNy

A6n nonepaHTn npniKaHHa 3aIIuKIB iKi, uNCTiB BapInbHy nobepxHIO pICJI KOKHO BIKOPNCtAHH. Дя видаления зашиков рождгв 3ВариьhoI NOBepxHi BnKOpNCTOByIte M'ky3BOJoxKeHy B ODi cepBETky a60 ry6Ky.Мп pekomeHdyeMo KOpNCTyBaTncMmHm3acO6aMn i3 3axnCHmN BlaactuBOCTMn. RaKIO Ha BapnilbHy NOBepxHIO NOTpanHa Ika 3 BnCOKM BMICTOM UyKpy, HeaHOBuJaIITb II. Писячшиени пиладу BONOTOU TkaHINHO O6OB'RA3KOBO npotnpaTe NOrO hacyxo. Ze 3anO6iratime yTBOpEHIO Hakiny. YnctiB peiITKN, KObnakn KOHOpok i po3cikayi nolym'raepuO MnilbHO BOIOIOI 6epeXKHO cyuTb ix. He MnTe OncaHI detani B NocydomnHi MaunHi. Cnikkyte 3a NOBHO uNCTOTOBO bOblacti BVxOdy ra3y. PnpoDnH KOnip pewiTOK dIy nocdy, po3TaOBAHnx B oIacti po3MiueHH nocdy,MOKe 3 uacOM 3MHIOBaTncy hepe3 HarpibaHH.

OBCLIYTOBYAHNRA TAPEMOH

Ipeep BnKoHaHHm 6ydb-kaX Oepaui3 dOgna, Bi'edHaHte npuaad BiMepexi XNBLeHH.

Pn BHHKHeHHI npo6Jem npotraom ekCnyataui npncTpoIO 3BepHITbcrdo ceHTpy texhiuHoro o6cnyroByBaHHa Franke.

O6cnyroByBaHHeJeKtpnHnx KOMnoHeHTiB CIId IOBiprT NlWe npedCTaBHnKa M Bnpo6nka a60 cepBicHO rHTpy. BnkOpncToByte NlWe opurHaJIbHi 3anachI yactuHn. 3amHn noKoJKeHi Ka6eni Do3BoneHO BHKIOUHO npedCTabHnKa m Bnpo6Hnka a6o cepBicHO ueHTpy.

3BepTaOuHcB Do cepBicHOeHTpy, 06OB'3KOBO HaadaiTe TaKy IHOpMaIIO:

• TIN HecnpaBHOCTI -MoDJIb npnlaNy (Art. / Cod.)
• cepiHnH omep (S.N.)

The nameplate contains the data, barcode or the surface of the device.

The surface of the device is correct, before calling the technical service center of the company Franke, please read the instructions for troubleshooting and repair to identify the problem:

INSTRUCTIONS FOR TROUBLESHOOTING AND REPAIR

Tин-heсправноcti Перевір'te настун've:
A Конфорka He розалноctьс, He п探测ж've ropirn a6o почу'm' He e CTiKIM	1 He nepekrta noza ra3y abo enektprkn
	2 He bIDkpHTo Kpah noaui ra3y
	3 Заразвнй ra3obn 6aNoH (ckpallnoHOro ra3y) He c nopoxhim
	4 OТВОРи палнika He 3a6nii
	5 Заг lyшka He e 6bpydnoio
	6 Bci detani KoNфOPKN po3miuichi He nprabvlnbHo
	7 Порун 3 рукopo He mae npotrayiB
	8 Пи залюванHi KOHΦOPKn ryUka HATnCKaIacr IpoTЯrOM He doCTaTHBOrO acy, uOb akTbByBatn 3axnchn npictriP (DnBtbcr CtoPIHKy 168 "KornstvybaHHa 3a npinHaueHHaM")
	9 OТВОри KoNфOPKn He zacmivcH i npuy 3 tepmonapoIO
	10 HenrabVnlhe HanaTuBaHHa MinImalbHoI noaui ra3y
B БмhoeTi (kactpyl, Сковорідк, чayнік) e HectiKIMn	11 Дно поу'd He c ideaIbHo pibHm
	12 Пocyd He bIDcentroBoHa Ho KaonФopuzi
	13 PeшітNi He nomiHHi Mlczamn i po3MiuJyToBc r npablvHbHo

If the malfunction still occurs after the checks, contact the nearest technical service center of the company Franke.

DISPOSAL

Packaging

All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked with the appropriate symbol. Where possible, they should be taken for recycling and disposed of in an environmentally safe manner.

Disconnection

Disconnect the device before cleaning it. The device is locked, the specified operation must be performed by a qualified electrician.

Disposal

The symbol of the crossed-out wheeled bin indicates that the device must not be disposed of together with household waste.

Then take the device to a special collection point for old electrical appliances.

Directive 2012/19/EC applies to the reduction of the amount of waste electrical and electronic equipment and to the disposal of waste.

The recycling of old appliances for secondary processing, treatment, and ecological disposal helps to prevent potential negative impact on the environment and human health, and also promotes the recycling of materials used in the production of appliances.

SERVICE CENTER

The contact address of the service center in your country is indicated on the last page of the manual, as well as on our website www.franke.com.

INDEX

(4) ω → 0 (5) ω → -∞

260 160

220 140

200 140

140 60

1

0

Therefore, cos α = 1 - tan α

-0.5 ~ 0. (0,1)

• jiao jiān jiào

()

FANKE

aal aal

aill j 1 sll lssie 4

Jjll J0i H05RR-F

Therefore, cos α = BP/PC = sqrt(3/5)

A

-(x, y) = 0

(1)=

(3) = 1/2 * 1/2 = 1/2 * 1/2

A U X = gas R = gas S R = gas T C = gas

!g

1

1 1 1 1 1 1 1 1
