USER MANUAL Ovation E160WW Chauvet

* Lens tubes sold separately

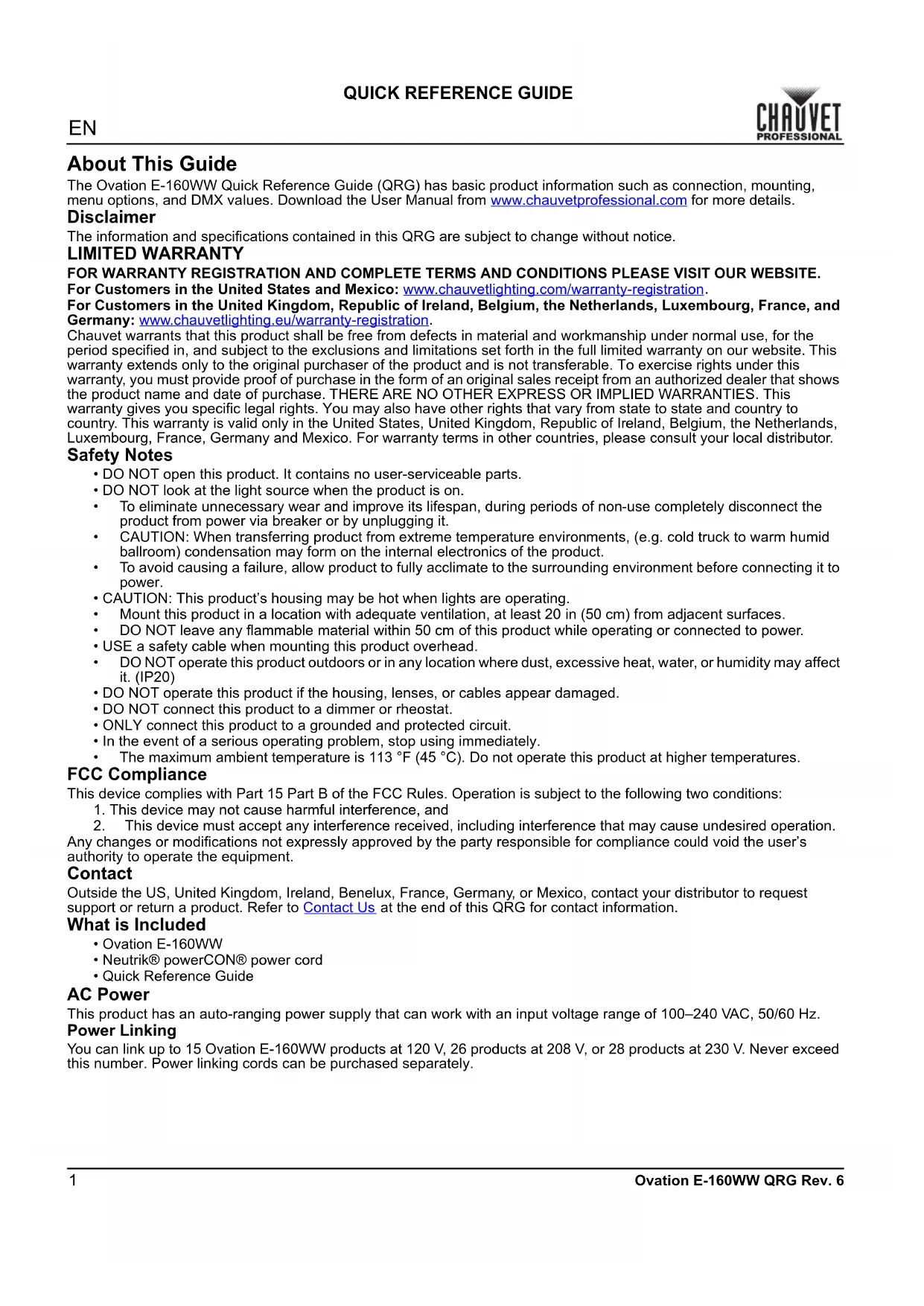

About This Guide

The Ovation E-160WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTY. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
  To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product.
• To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  DO NOT leave any flammable material within 50~cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
  DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
  DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• In the event of a serious operating problem, stop using immediately.
  The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the US, United Kingdom, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

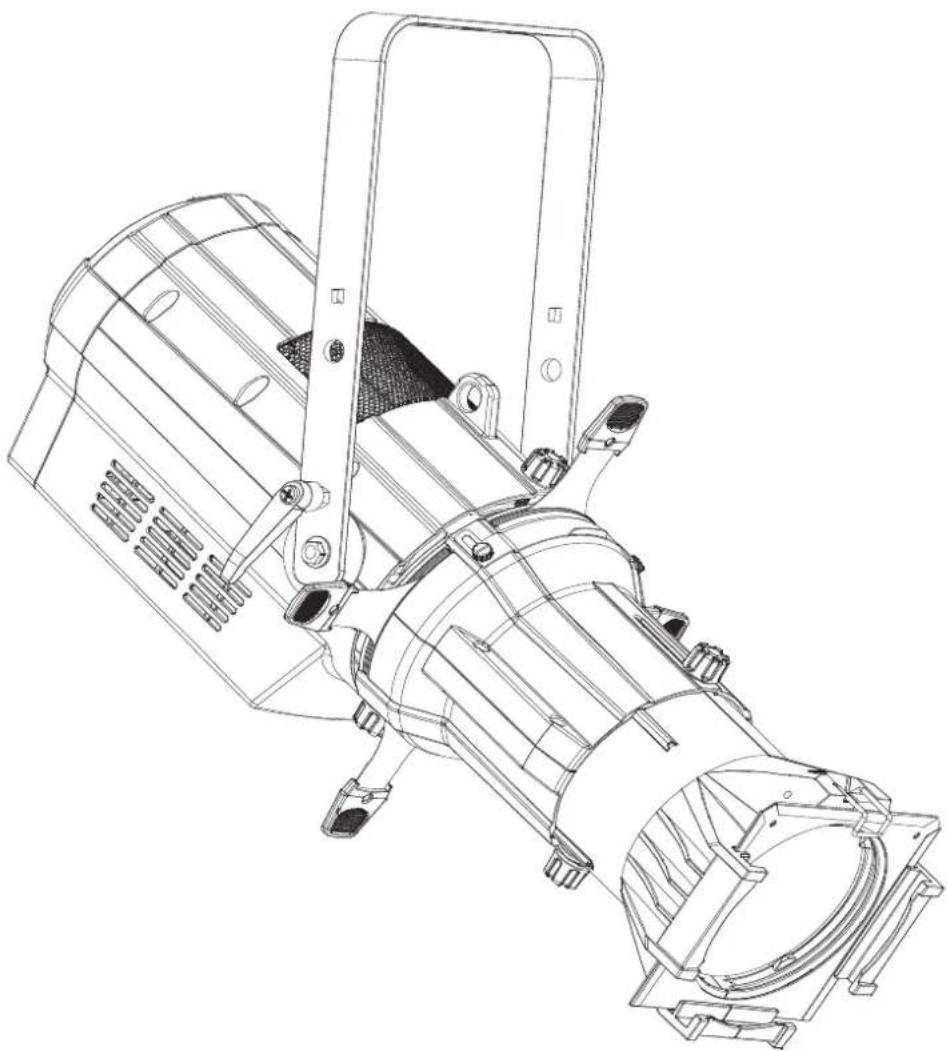

Ovation E-160WW
- Neutrik® powerCON® power cord
- Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100-240 VAC, 50 / 60Hz

Power Linking

You can link up to 15 Ovation E-160WW products at 120 V, 26 products at 208 V, or 28 products at 230 V. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing The Fuse

1. Disconnect this product from power
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation E-160WW will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation E-160WW uses a 3- or 5-pin DMX data connection for its 2 DMX personalities. See the User Manual for information about connecting and configuring the product for DMX operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation E-160WW supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

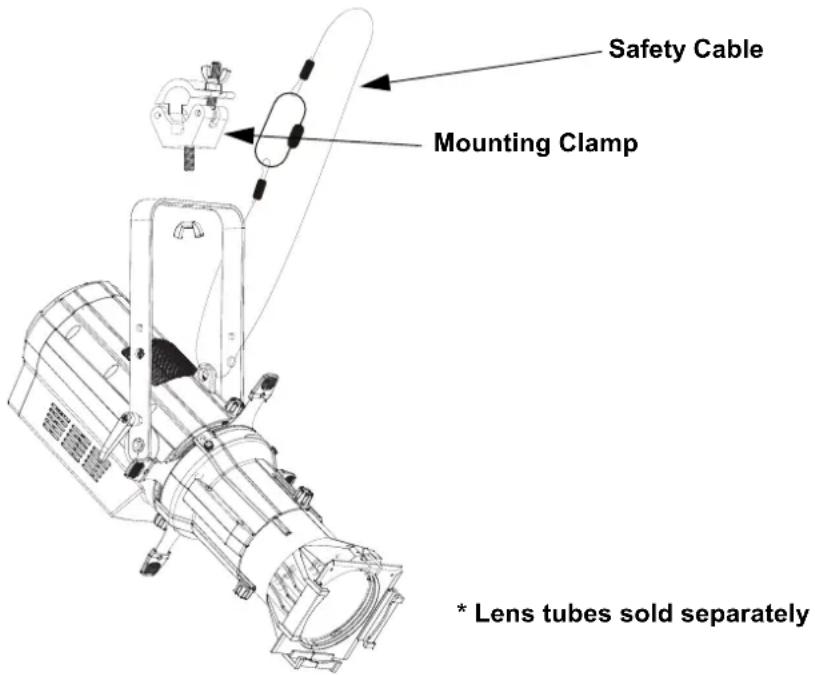

Product Mounting Diagram

Lens Tubes

The following lens tubes are available for purchase:

19^ 26^ 36^ and 50^ w/Gel frame (6.25 in/159 mm accessories)
14^ 15^ - 30^ and 25^ - 50^ Zoom Gel frame (7.5 in/191 mm accessories)

• Lens tubes sold separately

Control Panel Description

Button Function
<MENU> Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
DMX Address 001-512			Selects DMX address (highest channel restricted to personality chosen).
DMX Channel	1 Ch 1-channel: dimmer
	2 Ch 2-channel: 16-bit		dimmer
	3 Ch 3-channel: 16-bit		dimmer, strobe
	6 Ch		6-channel: 16-bit dimmer, strobe, auto programs, auto speed, dimmer mode
Static	Dimmer	0-255	Sets the intensity of the light output
	Strobe Sets	the strobe rate
Auto Show	Auto 1	1-100 Selects automatic programs and speed
	Auto 2
	Auto 3
	Auto 4
Master/Slave Mode	Master Master mode
	Slave DMX slave mode
Dimmer Curve	Linear		Sets the dimmer curve
	Square
	I Square
	SCurve
Dimmer Mode	Off		Linear dimming
	Dimmer 1-3		Dimming curves: Dimmer 1 (fast) to Dimmer 3 (slow)
LED Frequency	600Hz		PWM frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto Sets the fan to auto mode
	On		Sets the fan to always on
	Off		Sets the fan to always off
	Silent		Sets the fan to silent
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
	2Min		Turns off display backlight after 2 minutes of inactivity
	Always On		Display backlight always on
Information	Fixture Hours	----H	Shows total product hours
	Version	V__	Shows installed software version
	UID	___________	Shows product ID

DMX Value

6 Ch

Channel Function Value Percent/Setting
1 Dimmer 000		\Leftrightarrow 255 0-100%
2 Fine Dimmer 000		\Leftrightarrow 255 0-100%
3 Strobe		000\Leftrightarrow 010 No function011\Leftrightarrow 255 \strobe, slow to fast
4 Auto Program		000 010 No function011 070 Auto 1071 130 Auto 2131 190 Auto 3191 255 Auto 4
5 Auto Speed 000		255 \low to fast
6 Dimmer Speed		000\Leftrightarrow 051 Preset dimmer speed from display menu052\Leftrightarrow 101 Dimmer speed mode off102\Leftrightarrow 152 Dimmer speed mode 1 (fastest)153\Leftrightarrow 203 Dimmer speed mode 2204\Leftrightarrow 255 Dimmer speed mode 3 (slowest)

3 Ch

Channel Function Value Percent/Setting
1 Dimmer 000	\Leftrightarrow 255 0-100%
2 Fine Dimmer 000	\Leftrightarrow 255 0-100%
3 Strobe	000\Leftrightarrow 010 No function011\Leftrightarrow 255 \$strobe, slow to fast

2 Ch

Channel Function Value Percent/Setting
1 Dimmer 000	\Leftrightarrow 255 0–100%
2 Fine Dimmer 000	\Leftrightarrow 255 0–100%

1 Ch

Channel Function Value Percent/Setting
1 Dimmer 000	\( \Leftrightarrow {255} \) 0-100%
