USER MANUAL iZi Modular A RF X1 iSize BESAFE

USER MANUAL Rear & forward facing Rear taging: 61 JDS om Forward facing: 86 JDS om Max. weight: 18 kg Age approx., 6 m - 4 yrs. UN regulation on R329-5-Size

BeSafe®
Scandinavian Safety

1 14 19 24 29 36 42 48 54 60 66 72 76 84 89 95 101 107 113 118 124 130 136 142 148 153 158 163 167 171 177 189

Technical diagram illustrating car seat assembly and safety control system with labeled parts and icons

click! > 25 cm

click! 7 8 9

Diagram illustrating car seat safety instructions with labeled steps and safety symbols

<2 yes >2 yes

Thank you for choosing BeSafe IZI Modular A (RF)

It is important that you read this user manual. BEFORE installing your seat, incorrect installation can could endanger your chair.

! Vital Information

• The child seat MUST NOT be installed in a front passenger

spot WITH AN ACTIVATED AIRBAS.

• 12. Red-Lat car only be installed on the 21 Modular

Size case

• 12. Nuclear is approved reinfating for children with a cure

Height from 10-65 cm, with maximum weight up to 18 kg and

forwardising of children who was

4.17. Kard, 25 x women's offering for children with a school

- 12. Poulard, 41. Seps 0453 Rechining, 19 channels and 2.52x16 yield from A1 to 105 cm with a max yield up to 18 km

• Incoherence. Do not use forward isien before the child is user 15

months [hat applicable in 21 Mucilae RF versus]

- BeSale recommends to use the seat for as long as possible in the

“在”的“定位”

• The harness scraps must always be locked when the child is in

(1) 5H4

• The harness swaps must be tightened without slack and

of lossed

• This seal comers be, detectors: always ensure that the harness is right by accessing the shoulder bolts inside the shoulder pads.

and pulling the encounter holes inroads.

• The shoulder pads certain magnets.

electrical equipment such as pacemakers.

• Protect any part of the child's body, which is exposed to the sun.

- Always dress your child in a thin layer of clothes to avoid direct

contact between harness hats and skin. And only clothes since

this prevents being able to win the bolts fully.

• We recommend that this bear is used only to

upright, usually not younger than 6 months.

• Romania the set A new class on when the trip is new 7 years. • Remove the extra ride towards the this is even 2 years.

• Remove the CEA size supports when the time is over 50 seconds when this does not be between these 40

CHINA CONSTRUCTION

- When the child weighs over 10 kg or the shoulder weight exceeds

above the highest post on of the shoulder straps, the child must change to a seat, substitute for children with a weight above 18 kg. Replace the seat it has been in a collision where the speed was 10 km/h and above or will there is a suspicion line, the seat can be damaged to whatever reason. Although it may look undamped, if you were to save another accident, the seat easy no. be able to protect your cold to the goal, which it was decided.

- Prevent the seat from becoming trapped or weighed down by

luggage seats and/or slimming faces

- Make sure you can't

and your child C me

- U2 NOT attempt to dramatic, remedy or sed and part to the seal.

Merrant will be said if non- original parts of a

- Never leave your time otherwise there are

• Make all a list of the 5 at child in case of emergency.

• Make sure images of other objects are properly secured. Here, red

Iugares may cause severe injuries to children and adults in case.

063058012

- Never use the seat without the cover. The cover is a safety feature

and may only be replaced by an original basin cover.

• Do not use any aggressive clearing products: these may harm the

construction material of the seal.

- When washing the seat cover, make sure to follow the wash label on the inside of the box.

the middle of the cover

• Desire advice that child best should not be bought 5% sale

表10-45号

1.23.15 is user menu, for late use with 1-8 best

- Do not use the seal for large draft years due to being a quality of the material may chosen.

quality of the materials may be able to

• Do not use a home. It has no been designed to no use and can be grown on a vehicle.

5.0% LEV 2017 1998.

• "Mine" 0-e child seats is introduced to the car check at, 0-e areas where the guild coat might touch the spine. "I've performed using a

the C and S is a ring, ced in the middle. We check them being of the 50's proterium cross in these places in panic rats, macks to

disinopathy on a thin portion of the vehicles, especially in an airway

with rather or wansen-infer-ure

- If induct, in-sat either the car seat manufacturer or the resiler.

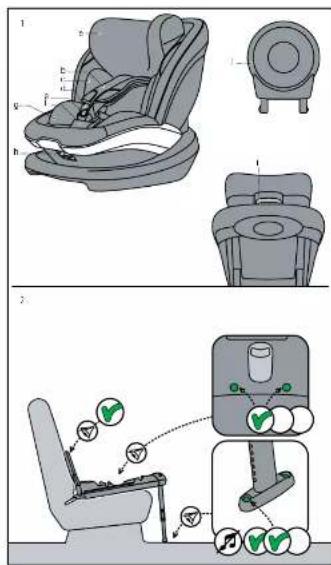

Preparing to install

• Adjustable head rest	1a
• Shoulder pads (2x)	1b
• Side support	1c
• Shoulder straps (2x)	1d
• Harness buckle	1e
• Crotch bar	1f
• Seat cushion	1g
• Reclining handle	1h
• Release handle head rest	1i
• Front brace	1j

Installation of the seat on the i-Size base

1. Check if the ISOfix and floor support indicators on the base are green. (2)
2. Make sure that the front brace is installed on the base. The operation of the front brace is described in the user manual for the base. (2)
3. Make sure that the seat is always in the release position when you want to install the seat on the base or take the seat off the base. The two yellow arrows on the seat and the base must be aligned. (3) Use the reclining handle to adjust the recline position, see step 6.

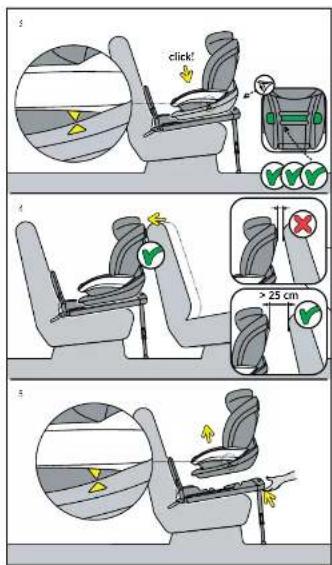

4. Position the seat in the correct position on the base until it clicks with the base and the indicator at the front shows green. (3)
5. When the seat is positioned rearfacing on the back seat of the vehicle, you should, if possible, push the front seat of the vehicle backwards, so that it is in contact with the child seat (4). If it is not possible to obtain contact with the child seat, push the back rest of the front seat of the vehicle forward as far as possible.

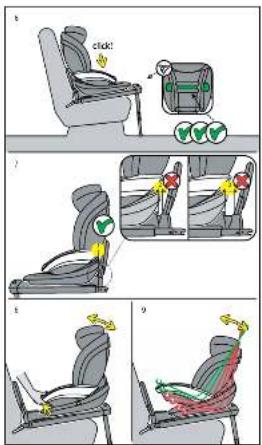

6. The seat can be taken off and turned around by pulling the seat release handle at the front of the base (5,6). Make sure that the two yellow arrows on seat and seatbase are aligned; this is the only position where you can take off the seat.
7. The seat should only be turned around to forward facing when the child is minimum 88 cm and 15 months. BeSafe recommends to use the seat rearfacing for as long as possible.
8. When the seat is positioned forward facing, the front brace has to be in position 1. (7)

9. The seat cannot be turned around in the BeSafe iZi Modular A RF. This seat is only to be used rearfacing.

10. The seat can be reclined by pulling the reclining handle at the front side of the seat. (8)

11. In a rearfacing position the seat should only be used in the 2 most reclined positions. (9)

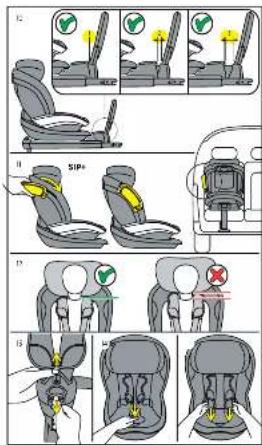

12. The leg room of the seat, in rearfacing position, can be made larger by pulling the front brace box out from the base. The front brace box has 3 positions. To adjust the front brace position, the seat has to be taken off and the base should be released from the ISOfix. (10)
13. The seat is delivered with removable SIP+ (side impact protection +). This extra side impact protection should be used on the doorside of the vehicle. To connect your SIP+ version, follow the instruction drawings on the SIP+ included with your seat. The seat already offers high level integrated side impact protection. This extra side impact protection improves the protection in the side impact still further. (Not on all models) (11)
14. Do not use the SIP+ on the seat when the space between seat and door of the vehicle is too small, which might lead to a situation where the seat is not positioned correctly on the vehicle seat.

Removal of the seat of the i-Size base

- The seat can be taken off by pulling the seat release handle at the front of the base. Make sure that the two yellow arrows on seatbase and seatbase are aligned; this is the only position where you can take off the seat.

Positioning of the child

1. Check that the shoulder strap slots are level with your child's shoulders. (12)
2. Open the harness buckle. (13)
3. Fold the crotch bar forwards into the "open position". In this position, the belts can be pulled out. (14)
4. Pull the shoulder straps away from the seat while the crotch bar is in the "open position". Make sure to pull on the belt straps only and not on the shoulder pads. (15)

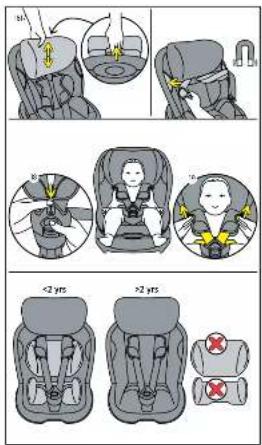

5. The height of the shoulder straps and the head rest can be adjusted by pulling the release handle upwards at the back of the head rest and pulling the head rest up or down. (16)

6. Position the shoulder straps over the marking at the sides of the seat to use the magnets to keep the harness open while you position the child. (17)

7. When the child is positioned in the seat, place the shoulder belts over the child's shoulder and collect the two buckle parts together. Then put the crotch bar upright into the "closed position". In this position, the belts cannot be pulled out anymore. Click the buckle parts into the belt buckle. (18)

8. Make sure that the child is leaning backwards against the backrest, while tightening the harness.
9. Tighten the belt parts over the hips by pulling the belts upwards through the buckle. Then access the shoulder belts inside the shoulder pad and pull them upwards to continue tightening. (19)
10. Repeat pulling the belts upwards inside the shoulder pads until it's not possible anymore to make a fold in the belts.

Removing and refitting the cover

• Do take care when you remove the cover, as refitting the cover is done in reverse.
• The cover of the head rest can be taken off separately by disconnecting the beads at the back and pulling off the fabric towards the front.

! Warning: potential misuse

• The child seat MUST NOT be installed in a front passenger seat WITH AN ACTIVATED AIRBAG.
• The floor support must always be used. Make sure that the floor support is fully pushed down.
• When used in combination with iZi Modular the front brace must be fitted on the base.
• Make sure the indicators are green before you drive.

Guarantee

• Should this product prove faulty within 24 months of purchase due to materials or manufacturing fault, except covers and harness straps, please return it to the original place of purchase.
• The guarantee is only valid when you use your seat appropriately and with care. Please contact your retailer, they will decide if the seat will be returned to the manufacturer for repair. Replacement or return cannot be claimed. The guarantee is not extended through repair.
• The guarantee expires: when there is no receipt, when defects are caused by incorrect and improper use, when defects are caused by abuse, misuse or negligence.
