USER MANUAL Aurora Sub 30A HECO

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

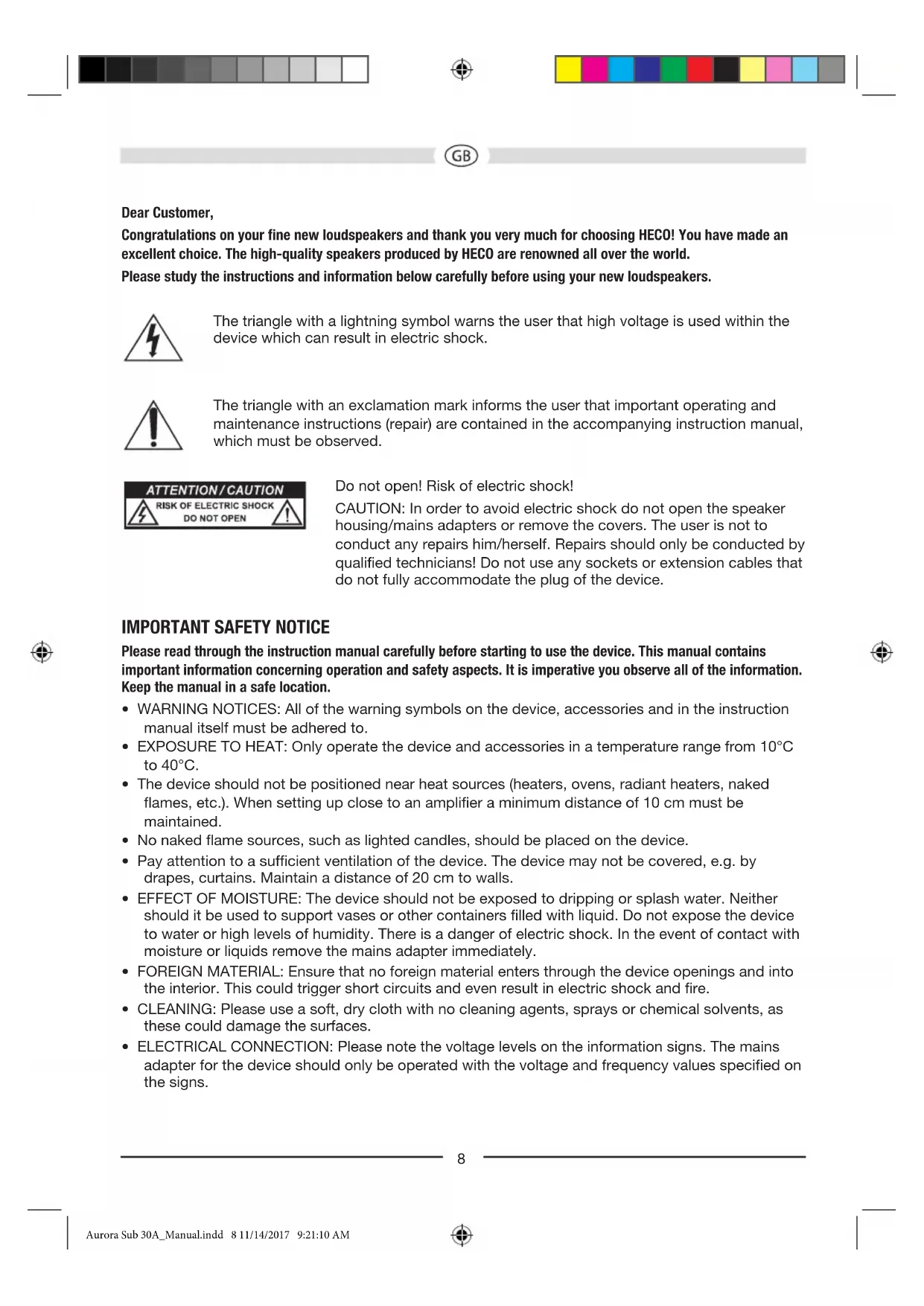

Congratulations on your fine new loudspeakers and thank you very much for choosing HECO! You have made an excellent choice. The high-quality speakers produced by HECO are renowned all over the world.

Please study the instructions and information below carefully before using your new loudspeakers.

The triangle with a lightning symbol warns the user that high voltage is used within the device which can result in electric shock.

The triangle with an exclamation mark informs the user that important operating and maintenance instructions (repair) are contained in the accompanying instruction manual, which must be observed.

Do not open! Risk of electric shock!

CAUTION: In order to avoid electric shock do not open the speaker housing/mains adapters or remove the covers. The user is not to conduct any repairs him/herself. Repairs should only be conducted by qualified technicians! Do not use any sockets or extension cables that do not fully accommodate the plug of the device.

IMPORTANT SAFETY NOTICE

Please read through the instruction manual carefully before starting to use the device. This manual contains important information concerning operation and safety aspects. It is imperative you observe all of the information. Keep the manual in a safe location.

• WARNING NOTICE: All of the warning symbols on the device, accessories and in the instruction manual itself must be adhered to.
• EXPOSURE TO HEAT: Only operate the device and accessories in a temperature range from 10^ to 40^ .
• The device should not be positioned near heat sources (heaters, ovens, radiant heaters, naked flames, etc.). When setting up close to an amplifier a minimum distance of 10cm must be maintained.
• No naked flame sources, such as lighted candles, should be placed on the device.
• Pay attention to a sufficient ventilation of the device. The device may not be covered, e.g. by drapes, curtains. Maintain a distance of 20~cm to walls.
• EFFECT OF MOISTURE: The device should not be exposed to dripping or splash water. Neither should it be used to support vases or other containers filled with liquid. Do not expose the device to water or high levels of humidity. There is a danger of electric shock. In the event of contact with moisture or liquids remove the mains adapter immediately.
• FOREIGN MATERIAL: Ensure that no foreign material enters through the device openings and into the interior. This could trigger short circuits and even result in electric shock and fire.
• CLEANING: Please use a soft, dry cloth with no cleaning agents, sprays or chemical solvents, as these could damage the surfaces.
• ELECTRICAL CONNECTION: Please note the voltage levels on the information signs. The mains adapter for the device should only be operated with the voltage and frequency values specified on the signs.

GB

• LIGHTNING PROTECTION/PREVENTIVE MEASURES: If the device is not going to be used for a prolonged period (e.g. when on holiday), it should be disconnected from the mains by removing the plug. The device should also be disconnected from the mains in the event of a thunderstorm. Doing this will prevent damage caused by lightning and overvoltage.
• MAINS CABLE: The mains cable must always be suitable for operation and it should only ever be laid out in a manner that prevents it from being trodden on. It should not be pinched by objects either, as this can damage the cable. When using plugs and power strips it must be ensured that the cable is not kinked at the point where it emerges from the socket. Do not connect or remove the mains cable with damp hands.
• The mains plug is used as the disconnecting device. Disconnecting devices shall remain readily operable.
• OVERLOAD: Sockets, power strips and extension cables should not be overloaded. If an overload occurs, there is a risk of electric shock and fire.
• SETTING UP: Please read the installation instructions.
• The device should only be positioned or mounted on a solid surface and not on moving base frames, otherwise there is a risk of injury.
• Only use attachments/accessories specified by the manufacturer.

DAMAGE THAT MUST BE RECTIFIED BY A SPECIALIST:

If any of the following damage occurs, disconnect the device from the mains immediately and contact a specialist to conduct the repair work:

• The device should not continue to be operated if there is visible damage to the mains cable. A damaged cable should not be repaired, but must be replaced.
• Damage to the mains socket at the device.
• If moisture or water has entered the device or foreign objects have fallen into the device.
• If the device has fallen and the housing is damaged.
• If the device does not work properly, even though all of the information in the instruction manual has been observed.

Only those subsequent alterations approved by the manufacturer may be conducted.

Only original spare parts should be used for repair.

After conducting any repairs the safety of device should be checked to ensure it is functioning correctly and safely.

Repairs must always be conducted by qualified specialists, as you might otherwise be exposed to dangerous high voltage levels or other hazards.

THE HECO AURORA SUB 30A ACTIVE SUBWOOFER

This subwoofer has been adapted to provide the best visual and acoustic match to the HECO AURORA range of loudspeakers. However, it goes without saying that it may be combined with other loudspeakers.

When connecting your loudspeaker, please make sure that everything has been switched off. Furthermore, make sure that all loudspeaker cables are connected to the proper poles, i.e. the positive pole for the output is connected to the positive pole for the input and the negative pole with the negative pole. Please also refer to your receiver's/amplifier's and loudspeakers' instructions.

GB

POSITIONING

The frequency range reproduced by the subwoofer cannot be pinpointed by the human ear. That's why positioning generally doesn't present any problems. However, it is preferable to place the speaker close to the front loudspeaker in front of the listening position. You should also make sure that the distance from the sides to items and walls is at least 30 centimetres and at least 20 centimetres from the rear as otherwise bass reproduction may be impaired.

THE SUBWOOFER'S OPERATING ELEMENTS (FIG. 1)

Mains connection (1)

The subwoofer is equipped with an integrated amplifier and needs to be connected to a mains outlet by means of the supplied mains cable.

Mains switch (2), power LED (3), power switch (4)

	Mains switch ON Mains switch OFF
Power switch ON Subwoofer is in permanent operation, the power LED is green.Favourable setting for the reproduction of programmes with long quiet passages (this prevents the subwoofer from switching off unintentionally).		Subwoofer switched off, Power LED off.This is the setting for when subwoofer isn't used over long periods.
Power switch AUTO	Subwoofer initially in standby mode, the power LED is red.The subwoofer switches on automatically when it receives a signal from the receiver, the power LED turns green.It automatically switches to standby after receiving no signals for some minutes, the LED turns red.Recommended setting.

Line inputs (5)

For connecting to level outputs on a receiver/amplifier (stereo mode), see Fig. 2. For connecting to an AV receiver with low-level subwoofer output, see Fig. 3.

Level control (6)

This control is used to set the bass volume according to your preferences. Proceed as follows:

1. Set the bass control of your amplifier into its centre (linear) position.
2. Important: Set the level control to its left stop (lowest volume).
3. Now, play back some music and set the volume control of the amplifier to the desired level.
4. Set the subwoofer level control to the desired bass level.

Warning: when connecting to an AV receiver's subwoofer output, the subwoofer level should be set to 0 dB in the receiver's set-up.

GB

Cross-over frequency control (7)

Used to set the upper limit of the subwoofer operating range. The cross-over frequency should be set to approximately 100 to 150Hz when the system is used in combination with shelf loudspeakers and to 50 to 100Hz with stand loudspeakers.

Phase switch (8)

In normal use the phase switch should be set to 0^ . However, in rare cases it may be advantageous to set the phase to 180^ (e.g. if the subwoofer is far away from the front satellites or in the event of unfavourable acoustics in the room). Generally speaking: the setting where the lower base tone area has a fuller sound is the correct one.

Fuse (9)

Only use a fuse with the parameters indicated next to the fuse holder on the rear of the amplifier.

MAINTENANCE

Please use a soft, dry cloth with no cleaning agents, sprays or chemical solvents, as these could damage the surfaces.

SPECIFICATIONS

Configuration: Powered bass reflex subwoofer, "frontfire" principle

Fitted with 30~cm long-stroke driver

Output power RMS/Max.: 125 / 250 watts

Frequency range: 22 - 150 Hz

Cross-over frequency: 50 - 150Hz ,adjustable

Dimensions (WxHxD): 350 x 465 x 445 mm

Accessories: mains cable

Subject to technical change.

Très cher client,

LE SUBWOOFER ACTIF HECO AURORA SUB 30A

COMPOSITION DU SUBWOOFER (FIG. 1)

Uitrusting 30 cm long-stroke driver

AKTIV SUBWOOFER HECO AURORA SUB 30A

Matt (BxHxD): 350 x 465 x 445 mm

Tillbehör: Nätkabel

VI FÖRBEHÄLLER OSS RÄTTEN TILL TEKNISKA ANDRINGAR.

RUS

YbaxaemblnokynateIb,

pa3peuHTe cHauana no6laorodapntb Bac 3a To, yTo Bbl peunn npno6pctn npoaykT mapKn HECO. Mbl cepdeuH no3dpabnem Bac c 3TNm yMHbIM peueHnem! Bbl ctaH co6cTBeHHNKOM BblcOKOKaueCTBeH-HORO n3denn, nonb3yUooerocn LyuweMnpOBoB penytaunei.

PpeKdye ncyTb B 3Knnyatauho BaH HoBbI rpoMKoROBOpTeNb, Mbl npocm Bac BHMaTeNbHO npOecTb Haun HnHexcneDyUOnne yKa3aHn.

TpeyrolbHnK C CmB0JOM MOHn INpeDynpexJaet NOIb3OBaTeJI O TOM, YTO BHyTpN yCTpoiCTBa NcNoJIb3yeTcR BaICOKOE HAnpJxHHe, KOTOpoe MoKET Bbl3bIBaTb ONaCHbIe ydapbl 3JeKTPnueckIM TOKOM.

TpeyrolbHnK C BOCKnUaTeNbHbIM 3HaKOM o6paUaet BHNMaHne NOIb3OBaTeJIHa To, yTO B npInlaraemom PykoBODCTBe no 3KcnNyaTaUIN CoedePkaTcBAxHbIe yKa3aHnI NO 3KcnNyaTaUIN I TexHnueckOMy O6CnyXnBaHnIO (peMOHTy), KOToPbIE DOnkHbI O6ra3aTeNbHO Co6JIoDaTbcR.

He otKpbIbTa! OnaCHocT b3neKtpnueckoro ydapa!
BHIMAHHE: He otKpbIbTa KOpNc rPOMKOrOBOpnteJe/cTeBbIe 6Iokn H He cHIMATb KpbIshKn, YTo6bl N36ExKaTb ydapa TOKOM.
IOnb3OBAteJIIO 3aIpeUeHO nPoBOuNTb KaOoi-JIN6o peMOHT. PeMOHT DOJKeH BbINOHNrTcTOJIbKO KBaIINpUPOBaHHbIM TEXHNUeCKM CNeuaJIACCTOM! He IcNoIb3OBAt TbTeNCeJIbHbIe po3ETKn INIy udInHInTeJI, KOToPbIE He npINHMaOT NOINOCtBu IO TEKepe yCTpoIcTBa.

BAXHOE YKA3AHNE NO BE3ONACHOCTN

PykoBoOCTBO NO 3KcnIyatauIN COdePjNT BaxHbE yka3aHnnopeXmMy pa60Tb IN 6e3oNaChocTN. O6raTeJIbHO Co6JIIOaTb BCE yka3aHnN. XpaHntb PykoBoOCTBO NO 3KcnIyatauIN B HAdexKHOM MeCTe.

I PEPyPENTEBHBIE YKA3AHN: CneyET npHMaTb BO BHMaHne BCE npdypeinteBhie 6o3HaueHn Ha yctpoiCTBe, npHaJnxHOCTx n B PykoBoDCTBE no 3KcNvatau.
BIIHHE TEMNEPATyPbI: 3KcNpyaTpye yCTpOietBO C npHaJNeXHOCTaMn B Dnana3oHe TEMepaTPOOT 10^ do 40^
- YcTpoIcTBo He DoJxHO yCTaHaBnBaTbCra B6Jn3n NCTOCHNKOB TEnna (HarpeBaTeN, neu, 3JIeKTPOKAMHbI, OTKpbIToe PnAmr).Pru MOHTaxe B6Jn3n ycINNTeNe HEnb3y yMeHbWaTb MHHMaJIbHOe pacCTOAHne 10 cm
HeOnyckaTe KOHTaKaTa yCTpoiCTBa COTKpbITbIM NpameHem, HApnPmep, CO CBeayAM.
- 06paTte BnMaHHe Ha DoCTaTOHy BO BeHTNJrIyHO yCTpoNCTBa. HeJIb3r HApPbIBaTb yCTpoNCTBO, HAnpIMep, UToPAm, RaDINHAM. YCTaHaBJIbABTaHB Ha DOCTaTOHOM paCCTOHN (npM.20 cm)OT CTeH.
BIIHHE BIAKHOCTN: YcTPOINCTBO He DOJIHX NOIBepraTbCBAO3DeIcTBIO BOJHBIX KaneIb IIN 6pbI3r. TaKke erO HeJIb3a IcNOb3OBaTb B KaueCTBe IOCTABKN IIN BA3 IIN DpynX 3aONHeHHix XIKoCTbO CocyDob. He NOBepraTe yCTPOINCTBO BO3DeIcTBIO BOIbI INI BO3dyxa C BbICOKO BNAxHOCtBu. CyueCTByET ONaCHOCTb NopaxKeHnRA TOKOM. B cnyae KOHTAKTa C Bnaor INI JXIKoCTbO HEmdJIeHHO OTCOeHNHTb YCTPOINCTBO OT CeTI NITAHNIA.

RUS

IOCTOPOHHNE INPEDMETbI: CneNyET obaaATb BnHMaHHe Ha To, Yo6bI Yepe3 OTBepTn yctpoiCTBa He nonaDAn BHyTpB NOCTOPOHHe npeDMTeB. OHN MOrYT cTaTB npuHOB BO3HNKHOBEHNA KOPOTKIN 3aMbKaHIn, NopaxeHn TOKOM IIN NOXapa.
- UNCTKA: Cnejyet npmehrbc xyu no mrgkyo TkaHB n He nCnoJb3ObaTb uctaune cpeidtba, cnpen nn Xmnueckne pactBopnten, Hnue NOBepxHOCTb MOKET NOLYHTb NOBpeXDeHn.
- NOДСОЕДИЕНЕ ПИТАнЯ: Спeдуeт co6идаьnapametpbi Hanpяжен, yka3aHHbIe Ha 3abOДСКИX Ta6nUcKax.БLOK NITaHЯ YcTpoICTBa MOKHO 3KcNJIyATnpOBaTB TOnbKO C Yka3aHHbIMn Ha 3abOДСКИX Ta6nUcKax NapamETpaMn HApRjEHNu YachOTbl.
3AUHTA OT MOJHIN/MEPbI IPEDOCTOPOXHOCTN: Ecnn npnbop dnttehoe Bpemn (hanp.,BOTnycke) He nCnoJIb3yETcR, cJeDyET OTCOEHNITb CETeBOI WTeKep OT cETNIHTAHNA. Pnp6Op cNeDyET TAKKe OTcoEHNrTb OT cETNIHTAHNA BO Bpemr rpo3bl. Tem cambIM npedOTbpaaTaECRA NOBpeKDeHne OT ydapa MOJHne N IOBbUeHHORO HANPRKeHn.
- CETEBOI KABEJIb: CeTeBOI Ka6eJIb DoJxKeH 6bITb BCERda rOTOB K3KcNpyaTcuINu yKnadlbATbcr TOnbKO TaKIM Oba3OM, YTO6bl HnKTo He MoR Ha Hero HacTynITb. TaKke HeJIb3aXkImaTb Ka6eJIb PpeDMeTaMn, KOtOpBle MOrY NOBpeDntb erO. Pn npimHeHH nTEncBbIX BnIOK n YdINHNteBbIX WTeNCBbIX po3eTOK cneyet Obpaatb BnHMaHne Ha To, YTO6bl Ka6eJIb He 6bl NaIOMnEh B MecTe BbIXoA n3 WTeNCBbHO pO3eTKn. He DToParNBaTbcr DO CeTeBOr Ka6eJIa N He NODKIIouaTb erO BNaXhbIMn pykAmn.
Cetebon 17eTceJIb nCIOJIb3yETcKa KOTKIIIOUaIooee yCTPOINCTBO, IN Hemy DOJXeH 6blb oecneueh CBOOHNIODCTyn B IIOOe Bpemr.
- PEPERPY3KA: WTeNceJIbHbIe po3ETK, yDJIINHTeJIbHbIe WTeNceJIbHbIe po3ETK n yDJIINHTeJIbHbIe He DoJIxHbI pa6oTaTb C ppeBbIWeHnem Harpy3Kn. Ppi neperpy3Ke cyuEcTByeT onaCHOCTb NopaxHeHr TOKOM I NOXapa.
- YCTAHOBKA: O6paTne BHMaHHe Ha INHCTpyKcHIO NO MOHTaXY.
- YCTPOICTBO DOJIIXHO yCTaHaBJIbAtebCra INIM MOHTnpoBaTbc TOnbKO yCTOINBOM OCHOBAHIN HENODBHXbIX IOCTaBkax. TaK KAK HAe CVUECTBVET ONACHOCTb TpABMaTn3Ma.
- IcnoIb3yIte TOnIbKO BxOJaIeB KOMnJIeKT NocTaBKn IInu yKa3aHHbIe IpOu3BOJITeJIeM OPINHahbHBe PnHaADJIeXHOCTN.

IOBPEXDEHNA, KOTOPbIE DOJXHBI YCTPAHrTBc CNEUJAINCTOM:

Pn cneIyUOxN IOBpeKdEHNrX, np6op Heo6xoDmO HemeJHNO OTcoeINHTb OT CETn IITAHN n nepeDaTb CneuAInCTy Ha npOBedeHne peMOHTa:

• Ecnn Ha ceteBOM Ka6ene 6dyT 6hApXeHbI NOpeXdEHHa, EKcNpyaTHPOBaT yCTpoiCTBO 6onbwe HeIb3r. NopexDeHHbI Ka6eIb peMOHTPOBaT HeIb3r, eO HYxHO 3aMeHHTb.
• NobpekdeHnpa3bema nHTaHnHa yctpoictbe.
• Ecnn BHytpb yCtpoiCTBa nonana Bnara nnnoctopoHHne npedMeTbI.
• Ecnn yctpoictBO onpOKnHyocb n npn 3TOM nobpeDnC KOpnyc.
  EcnycTPONCBO HnnpabNbHO yHKUOHNpyeT, XOTa CO6JIHODeHb BCE yKa3AHNA PyKOBoDCTBa no 3KcNnyatau.

IOnyctHMO npednpHHMaTb TOnbKO Te DOnoJIHnTeJbHbIe N3MeHeHn, KOToPbIe pa3peUeHbI n3rTOBHTeJIem.

3NEMEHTbI YNPABJIeHnCAEByΦEPA (PNCYHOK 1)

IopKnHoueHne K 3JneKtpocetn (1)

Tak kak pehy ndet o ca6bypepe co BCtpoeHHbIM ycHnTeJem, ero Heo6xoDmO NOdknOHTb K JInHnn 3JeKTPocETN c nOMouBIO npINOnKeHHoro CnNoBOrO Ka6eJra.

BbIKHouatEnb cetn (2), CBeToOnoD 3NeKtpoNTaHn (3), BbIKHouatEnb 3NeKtpoNTaHn (4)

KoHpyaun:akTnBbncabbypebpassreflex,frontfire'-pnuHun

Komnlektaa 30 cm rpmKorOBopntb-ycnnteBkoJe6aHn

BbIXoHaMoUHocTb RMS/MaKc.: 125/250 BaTT

APKTEPASUHECO AURORA SUB 30A AURORA SUB 30A

Congratulations! You have made a wise selection in becoming the owner of a HECO HiFi equipment. Due to high quality HECO HiFi products have earned an excellent reputation through the western world. And this high quality standard enables a 5-years warranty for HECO HiFi speakers and a 2-years warranty for HECO HiFi-electronic components.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your HECO HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.

2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequential damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.

3. Unauthorized tampering with the equipment will invalidate this guarantee.

4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that the component is packed in original factory packing in good condition the quality control card has been filled out and enclosed with the component your enclose your receipt as proof of purchase.

5. Exclued from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us.

Consequential damages to other equipments. Reimbursement of cools, without our prior consent, when repairing damages by third parties.

F

Toutes nos félicitations!

No warranty without receipt!

HECO®

Lise-Meitner-Str. 9 • D-50259 Pulheim • Germany

Tel. [phone] / 807 - 0 • Fax [phone] / 807 - 399

Internet: http://www.heco-audio.de

Manual_v1.0
