Product Type	Headlamp
Brand	Ansmann
Model	HD500R
Light Source	10 W LED
Light Output	550 lm (100 %), 275 lm (50 %), 110 lm (20 %)
Battery Life	3.5 h (100 %), 7 h (50 %), 19 h (20 %)
Power Supply	Li-ion 18650 battery 3.7 V / 2600 mAh / 9.62 Wh
Charging Time	Approx. 3.5 h
Input Voltage	5 V DC, max. 1000 mA
Light Modes	100%, 50%, 20%, strobe
Focus	Yes
Protection Rating	IP64
Protection Class	III
Housing Material	Aluminium
Dimensions (H x W x D)	37 x 85 x 50 mm
Weight	107 g
Operating Temperature	-10 °C to 50 °C
Storage Temperature	-10 °C to 50 °C
USB Cable Length	60 cm
Replaceable Battery	Yes (18650 type)
Risk Group	2
Warranty	3 years

Frequently Asked Questions - HD500R ANSMANN

How to turn the headlamp on and off?

Press the button to turn on the headlamp. To turn off, press and hold the button for about 2 seconds. Successive presses change the light levels: 1 press = 100%, 2 presses = 50%, 3 presses = 20%. Double-click activates strobe mode.

How to charge the battery?

Insert the battery into the compartment, place the magnetic contact of the charging cable on the charging contact, then connect the USB cable to a power source. The red LED indicates charging, and the green LED indicates a full charge.

What is the battery life of the headlamp?

Battery life varies by mode: 3.5 h at 100% (550 lm), 7 h at 50% (275 lm), and 19 h at 20% (110 lm).

Can I replace the battery?

Yes, the battery is a Li-ion 18650 removable. Open the battery compartment and replace it with a battery of the same type. Ensure correct polarity.

Is the headlamp waterproof?

Yes, it has an IP64 protection rating, which means it is protected against water splashes and dust. However, do not immerse it in water.

How to maintain the headlamp?

Clean it with a slightly damp cloth, then dry it. Do not use abrasive cleaners and do not immerse it in water. Ensure no liquid enters the housing.

Can I look directly into the light beam?

No, never look directly into the light source and do not shine it into people's eyes. Blue light can damage the retina. In case of exposure, close your eyes and turn your head away.

Can the headlamp be used outdoors in rainy weather?

Yes, thanks to the IP64 rating, it is resistant to water splashes. However, avoid prolonged exposure to rain and do not use it underwater.

What to do if the headlamp does not turn on?

First check that the battery is properly inserted and charged. If the battery is discharged, recharge it. Ensure the charging contacts are clean. If the problem persists, contact customer service.

How to dispose of the headlamp at the end of its life?

Do not dispose of the headlamp with household waste. Take it to a recycling center or electronic waste collection point. The battery must be removed and recycled separately in accordance with local regulations.

USER MANUAL HD500R ANSMANN

Simple line drawing of a camera lens assembly (no text or symbols)

1600-0325

Technical diagram of a device with numbered components, likely a medical or industrial device with labeled parts 1 through 9.

Warning symbol with sun, cross, and triangle symbols indicating hazard or incorrect use

Safety instructions 10

Signs and symbols 10

Observe safety instructions! 10

First use 12

Charging 12

LED Charge level indicator 12

Cleaning/Maintenance 12

Technical data for lamp 13

Environmental information | Disposal 14

Liability disclaimer 14

Guarantee information 14

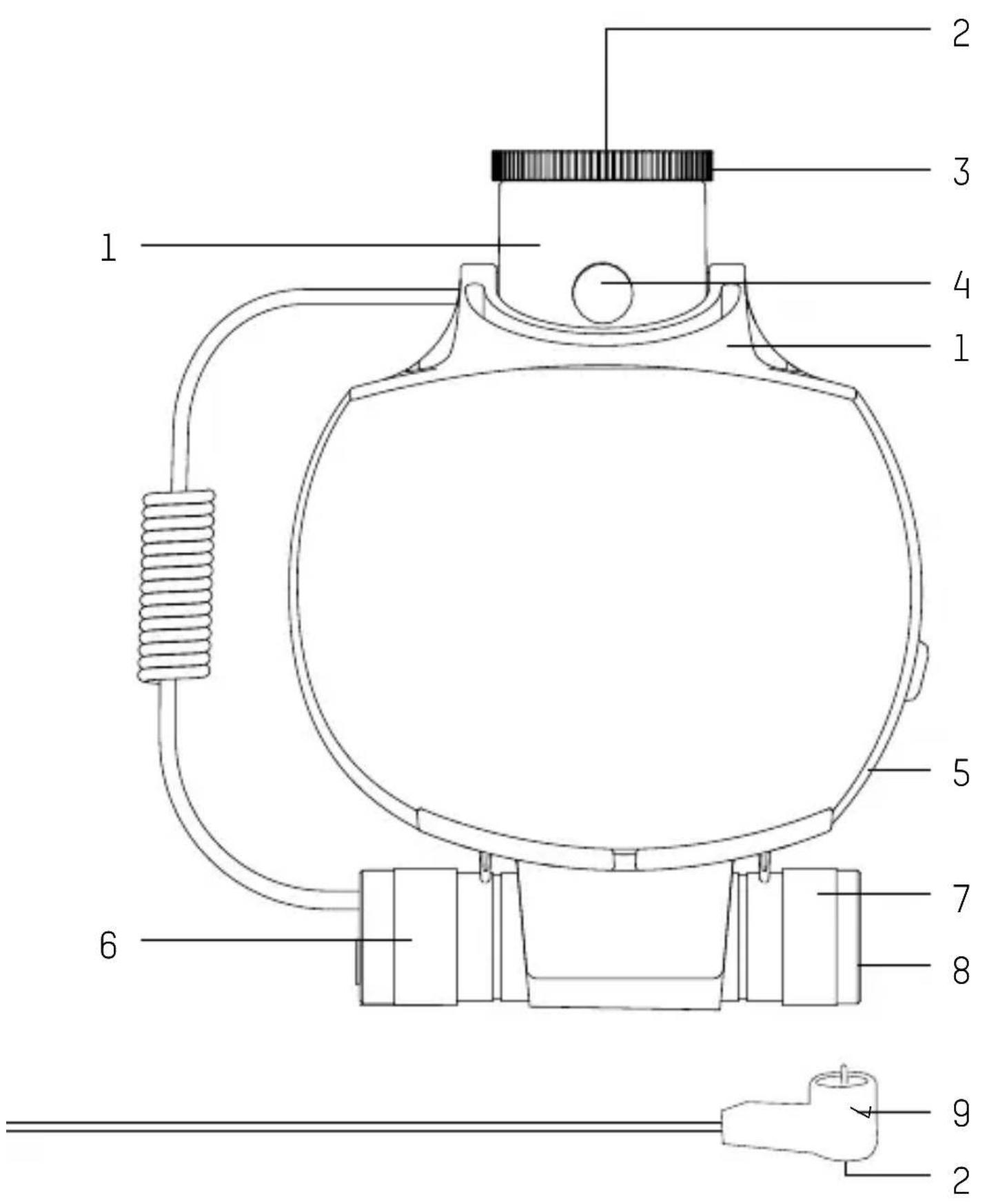

PRODUCT DESCRIPTION

1. Holder with adjustable tilt angle
2. Main light
3. Focussing
4. On/off button
5. Head band incl. rechargeable battery housing mount
6. Rechargeable battery housing
7. Screw-on housing cover
8. Charge contacts
9. Charge cable
10. LED charge display

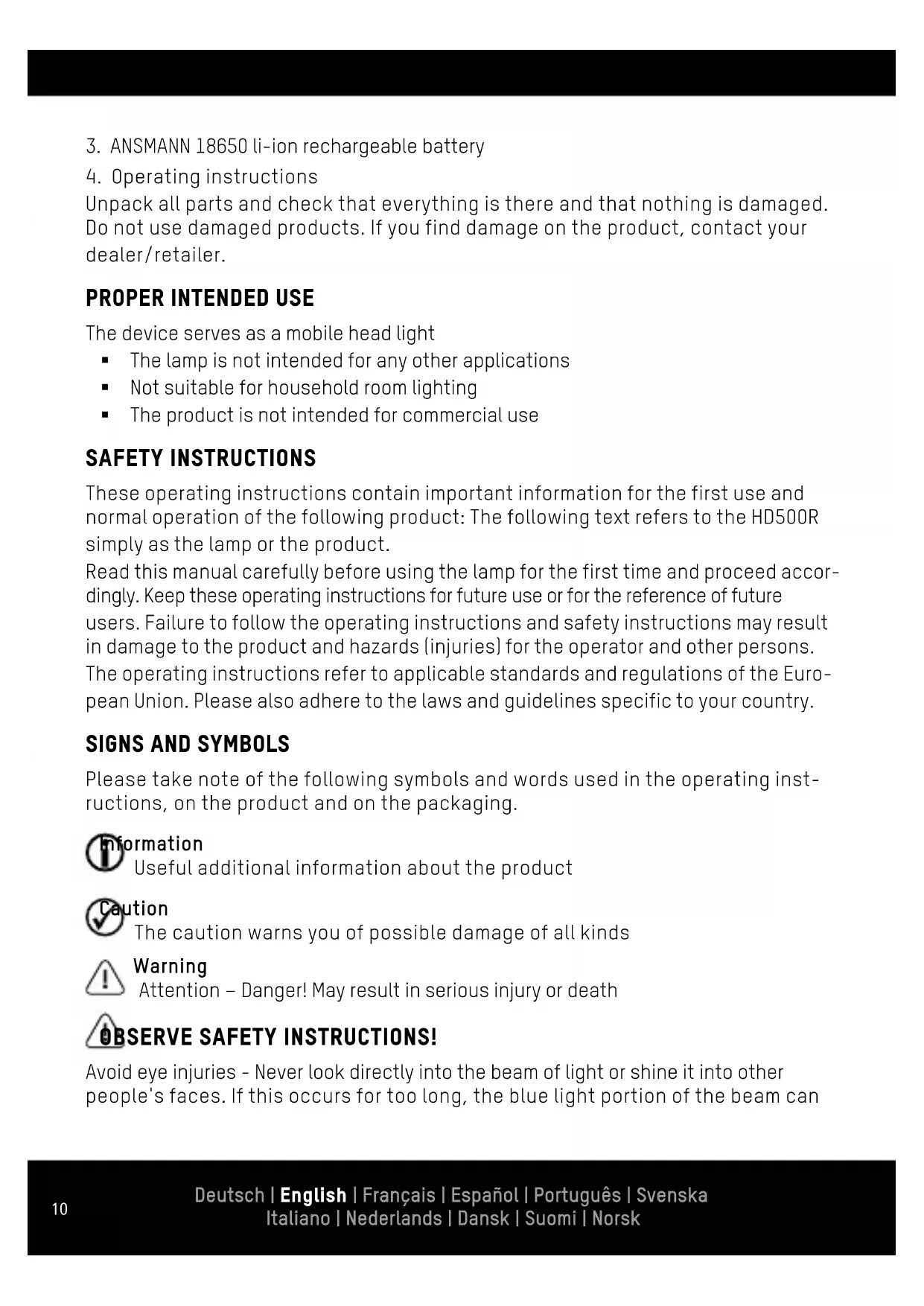

DELIVERY INCLUDES

1. Lamp

2. USB charge cable

3. ANSMANN 18650 li-ion rechargeable battery

4. Operating instructions

Unpack all parts and check that everything is there and that nothing is damaged. Do not use damaged products. If you find damage on the product, contact your dealer/retailer.

PROPER INTENDED USE

The device serves as a mobile head light

■ The lamp is not intended for any other applications
■ Not suitable for household room lighting
■ The product is not intended for commercial use

SAFETY INSTRUCTIONS

These operating instructions contain important information for the first use and normal operation of the following product: The following text refers to the HD500R simply as the lamp or the product.

Read this manual carefully before using the lamp for the first time and proceed accordingly. Keep these operating instructions for future use or for the reference of future users. Failure to follow the operating instructions and safety instructions may result in damage to the product and hazards (injuries) for the operator and other persons.

The operating instructions refer to applicable standards and regulations of the European Union. Please also adhere to the laws and guidelines specific to your country.

SIGNS AND SYMBOLS

Please take note of the following symbols and words used in the operating instructions, on the product and on the packaging.

formation

Useful additional information about the product

ution

The caution warns you of possible damage of all kinds

Warning

Attention – Danger! May result in serious injury or death

SERVE SAFETY INSTRUCTIONS!

Avoid eye injuries - Never look directly into the beam of light or shine it into other people's faces. If this occurs for too long, the blue light portion of the beam can

RISK GROUP 2

NOTE: Hazardous optical radiation may be omitted by this product. When operating, do not look into the lamp for an extended period of time. Can be hazardous to the eyes.

Warning symbol with sun, cross, and triangle symbols indicating hazard or caution

cause retinal damage. If the light beam shines into the eyes, close the eyes and turn the head away from the light beam. This lamp exceeds the conditions for risk-free use. The risk when using it depends on how the user handles the lamp.

Risc group Hazard Distance (HD) (2)
20m – 3,59m
13,59m – 35,90m
Free group >35,90m

^[1] This value indicates the factor by which the risk group limit value to the next lowest group has been exceeded. The limit value is 1.
^[2] Distance from eyes to the lamp at which the respective risk group is applicable.

• Do not open or modify the product! Repair work shall only be carried out by the manufacturer or by a service technician appointed by the manufacturer or by a similarly qualified person.
• Keep the product and the packaging away from children. This product is not a toy. Children should be supervised in order to ensure that they do not play with the product.
• This product is not to be used by persons (including children) who have restricted physical, sensory or mental capabilities or who do not have adequate experience and knowledge in handling this product. Such persons must be instructed beforehand by a supervisory person who is responsible for their safety or must be supervised during the use of the product!

• The LED light source cannot be replaced. When the LED comes to the end of its service life, the complete lamp must be replaced

• All illuminated objects must be at least 10cm away from the light!
  ■ The lamp may only be used in accordance with the intended use.
  ■ This product is not a toy to be played with.

• Keep out of the reach of children!

- Failure to observe the safety instructions can result in dangerous injuries to persons or damage to the device!

■ Always keep the product dry

ATTENTION

• The product contains a replaceable li-ion rechargeable battery. Do not throw the product into a fire!
• The product may only be charged in closed, dry and spacious rooms, away from combustible materials and liquids. Disregard can result in burns and fires.
  ■ Never open, crush or heat a rechargeable battery or set it on fire.
• Do not use the product in potentially explosive areas or in the rain and do not expose it to excessive heat.
  ■ Do not use the product if it appears to be damaged

RST USE

The light is switched on with the button. When switched on, the following lighting levels are available:

Press lx: LED 100%

Press 2x: LED 50%

Press 3x: LED 20%

The light also has a strobe mode, which can be switched on by double-clicking the button. The light can be switched off with a long press (ca. 2 sec.) of the button.

ARGING

Please charge the lamp fully before first use. Likewise, when storing over an extended period of time, charge beforehand and charge at least 2x per year during storage in order to prevent the rechargeable battery deep-discharging.

To charge the lamp, insert the rechargeable battery into the housing. Place the magnetic contact of the charge cable onto the charge contacts of the rechargeable battery housing. Connect the USB charge cable supplied to a USB port. The charge time may vary depending on the energy source (different capacities).

CHARGE LEVEL INDICATOR

The lamp has an LED charge level indicator.

If the rechargeable battery is charging, the indicator LED illuminates red. If the rechargeable battery is fully charged, the indicator LED illuminates green.

CLEANING/MAINTENANCE

■ Clean only with a slightly damp cloth, then rub dry.
■ Never submerge the product in water or other liquids.

■ Do not allow fluids to enter the housing.
■ Do not use hard brushes or sharp objects for cleaning.

proper usage of the lamp may result in it being damaged

• Do not throw or drop
  ■ Use only in original condition
  ■ Do not use while still in packaging
  ■ Turn off after use

TECHNICAL DATA FOR LAMP

Illuminant: 10W LED

Input voltage: 5V DC

Input current: Max. 1000mA

Rechargeable battery: 18650 li-ion rechargeable battery 3.7V | 2600mAh | 9.62Wh

Charge time: Approx. 3.5h

Lighting power: 100% 550lm | 50% 275lm | 20% 110lm

Battery life: 100% 3.5h | 50% 7h | 20% 19h

Light range: 100% 160m | 50% 115m | 20% 75m

Housing material: Aluminium

Risk group: 2

Protection class: III

Protection class: IP64

Storage temperature: -10 to 50 °C

Operating temperature: -10 to 50 °C

Weight of light: 107g

Length of USB cable: 60cm

Dimensions of light (H x W x D): 37 x 85 x 50mm

ss 3 equipment

Conforms to the European directive

Do not look into the lamp

ste Electrical and Electronic Equipment (WEEE Directive)

Read the operating instructions carefully before use!

ENVIRONMENTAL INFORMATION | DISPOSAL

The product should not be discarded in the normal household waste under any circumstances. Dispose of the product via an authorised disposal centre or your municipal waste disposal facility. Observe the current applicable regulations. Contact your waste disposal facility in the event of any doubt. Dispose of all packaging materials via an environmentally friendly disposal facility. Used batteries and rechargeable batteries are special waste and must be disposed of in accordance with national regulations and not with the normal household waste.

ABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. We accept no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

ARANTEE INFORMATION

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this.

Subject to technical changes. We assume no liability for printing errors.

MA-1600-0325/V1/04-2019

F TRADUCTION DU MODE D'EMPLOI ORIGINAL

SOMMAIRE PAGE

Warning symbol with crosshair and warning triangle, indicating no liability or error

Groupe de risque Distance de danger / Hazard Distance (HD)(2)
20m – 3,59m
13,59m – 35,90m
Groupe libre >35,90m

Portée: 100% 160m | 50% 115m | 20% 75m

Warning symbol with geometric symbols including sun, triangle, and lightning bolt inside a triangle

Warning symbol with geometric symbols including sun, triangle, and lightning bolt inside a triangle

Grupo de risco Hazard Distance (HD) [2]
20m – 3,59m
13,59m – 35,90m
Grupo livre >35,90m

INDICAÇÕES RELATIVAS À GARANTIA

Warning symbol with geometric symbols including a sun, cross, and triangle

Riskgrupp Fara avstånd / Hazard Distance (HD) (2)
20m – 3,59m
13,59m – 35,90m
Fri Grupp >35,90m

Warning sign with sun and cross symbol indicating hazard or absence

Warning symbol with sun and crossbones indicating hazard or incorrect use

Warning symbol with sun, cross, and warning triangle symbols

Risikogruppe Hazard Afstand (HD) [2]
20m – 3,59m
13,59m – 35,90m
Gratis gruppe >35,90m

Lysevarighed 100% 3,5h | 50% 7h | 20% 19h

Lysvidde 100% 160m | 50% 115m | 20% 75m

Husets materiale Aluminium

Risikogruppe 2

Warning symbol with geometric symbols including sun, triangle, and lightning bolt inside a triangle

Warning symbol with geometric symbols including sun, cross, and triangle

Risikogruppe fare avstand (HD) [2]
20m – 3,59m
13,59m – 35,90m
Gratis gruppe >35,90m

RENGJ∅RING | VEDLIKEHOLD
