USER MANUAL ORC 133BL OK

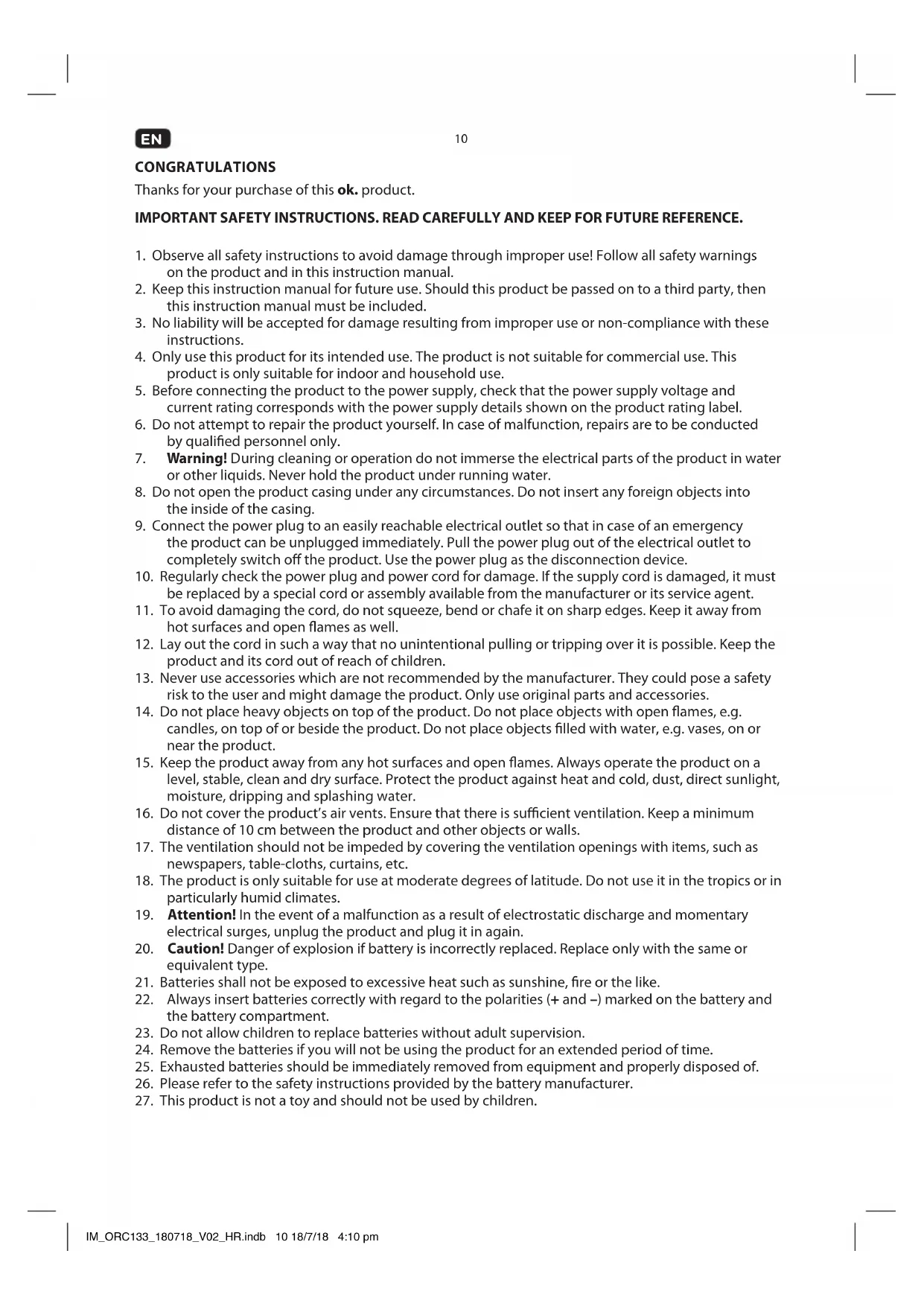

CONGRATULATIONS Thanks for your purchase of this ok. product. IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Observe all safety instructions to avoid damage through improper use! Follow all safety warnings

on the product and in this instruction manual.

2. Keep this instruction manual for future use. Should this product be passed on to a third party, then

this instruction manual must be included.

3. No liability will be accepted for damage resulting from improper use or non-compliance with these

4. Only use this product for its intended use. The product is not suitable for commercial use. This

product is only suitable for indoor and household use.

5. Before connecting the product to the power supply, check that the power supply voltage and

current rating corresponds with the power supply details shown on the product rating label.

6. Do not attempt to repair the product yourself. In case of malfunction, repairs are to be conducted

by qualied personnel only.

7. Warning! During cleaning or operation do not immerse the electrical parts of the product in water

or other liquids. Never hold the product under running water.

8. Do not open the product casing under any circumstances. Do not insert any foreign objects into

the inside of the casing.

9. Connect the power plug to an easily reachable electrical outlet so that in case of an emergency

the product can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch o the product. Use the power plug as the disconnection device.

10. Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must

be replaced by a special cord or assembly available from the manufacturer or its service agent.

11. To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from

hot surfaces and open ames as well.

12. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible. Keep the

product and its cord out of reach of children.

13. Never use accessories which are not recommended by the manufacturer. They could pose a safety

risk to the user and might damage the product. Only use original parts and accessories.

14. Do not place heavy objects on top of the product. Do not place objects with open ames, e.g.

candles, on top of or beside the product. Do not place objects lled with water, e.g. vases, on or near the product.

15. Keep the product away from any hot surfaces and open ames. Always operate the product on a

level, stable, clean and dry surface. Protect the product against heat and cold, dust, direct sunlight, moisture, dripping and splashing water.

16. Do not cover the product’s air vents. Ensure that there is sucient ventilation. Keep a minimum

distance of 10 cm between the product and other objects or walls.

17. The ventilation should not be impeded by covering the ventilation openings with items, such as

newspapers, table-cloths, curtains, etc.

18. The product is only suitable for use at moderate degrees of latitude. Do not use it in the tropics or in

particularly humid climates.

19. Attention! In the event of a malfunction as a result of electrostatic discharge and momentary

electrical surges, unplug the product and plug it in again.

20. Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or

21. Batteries shall not be exposed to excessive heat such as sunshine, re or the like.

22. Always insert batteries correctly with regard to the polarities (+ and –) marked on the battery and

the battery compartment.

23. Do not allow children to replace batteries without adult supervision.

24. Remove the batteries if you will not be using the product for an extended period of time.

25. Exhausted batteries should be immediately removed from equipment and properly disposed of.

26. Please refer to the safety instructions provided by the battery manufacturer.

27. This product is not a toy and should not be used by children.

28. The information on the compact disc is read by a laser through an optical lens (do not touch). If

you take the product from a cold to a warm room, moisture may condense on the lens, and the playback may be hampered. In this case leave the product for one hour at room temperature before use. Take the disc out of the product. Should the problem persist, have the product checked by qualied personnel. CLASS I LASER PRODUCT This label on the product informs the user that this is a class 1 laser product containing a laser component. Do not touch the lens inside the disc compartment. CAUTION! Use of controls or adjustments of procedures other than those specied herein may result in hazardous radiation exposure. DANGER! Invisible laser radiation when open and safety interlock failed or defeated. Avoid direct exposure to the beam. Do not touch the lens. CAUTION

AVIS: RISQUE DE CHOC éLECTRIQUE-NE PAS OUVRIR The lightning ash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” inside the enclosure of this product, which may be of sucient magnitude to constitute a risk of electric shock to persons and animals. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying this product. INTENDED USE This product is only intended for audio entertainment. This product is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the product or injury. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer’s specied purpose.

BEFORE FIRST TIME USE

• Remove all packaging materials.

• Check for completeness and transport damage. In case of damages or incomplete delivery please contact your dealer.

• Clean the product ( Cleaning and care).

• Important! Before rst use, remove the protective sheet from the disc compartment. IM_ORC133_180718_V02_HR.indb 11 18/7/18 4:10 pm12

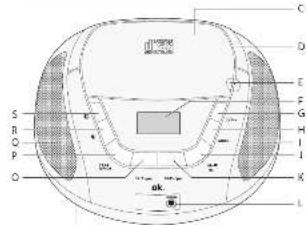

COMPONENTS Fold out front and rear page for product illustrations. A. Telescopic antenna B. AC-socket C. CD-compartment lid D. Handle E. CD-compartment opener F. Display

• Do not use this product with AC supply and battery operation simultaneously.

• Remove all of the batteries when operating this product via power supply.

• Disconnect the product before insert batteries.

Connect the power cable to the AC socket.

Connect the power plug to a suitable electrical outlet. Note: Alternative you can use the product with batteries. Battery operated Attention!

• Do not use this product with AC supply and battery operation simultaneously.

• Unplug the product before inserting batteries.

Remove the battery compartment cover.

Insert 6 batteries (Type C / R14, 1.5 V , not included) in the battery compartment. Match the polarities + and –, as indicated on the batteries.

Close the battery compartment cover. IM_ORC133_180718_V02_HR.indb 12 18/7/18 4:10 pm13

Switching on and o Press the button to turn on the radio. To turn o the radio press and hold the buttton approx. 3 seconds.

Mode selection Press the button to select a mode in following order FM > AUX > CD.

Volume control The volume can be easily controlled by pressing the buttons or . The volume will be shown on display for a moment. RADIO MODE

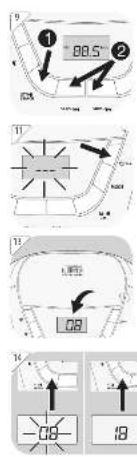

1. Select radio mode. Press SEARCH button to search the whole frequency band.

2. For ne tuning, press the SKIP-/+ button shortly to change the frequency in steps of

Memory preset 30 radio stations can be preset to program list.

1. Select radio mode. Set a station by tuning according to chapter Tuning.

2. Press the MODE button to start the presetting process. Display will show "P01" ashing,

3. Press the SKIP -/+ button to select the desired preset station number.

4. Press the MODE button again to saved the actual station to the desired preset station

5. Once all stations are preset, press M+/M- button to select your desired stations.

Notes: For better FM reception: Fully extend the antenna. CD MODE

Press button to turn on the product. Press until --- appears on the display.

Open the CD compartment door and insert a CD with the label facing up.

Close the CD compartment door. Note: If no CD is inserted, the display shows "no"

1. Start or pause playback: Press . In pause mode, track number will ash on the display.

2. Stop playback: Press STOP. In stop mode, total number of tracks will appear on the display.

3. Skip to next track: Press . Press and hold to fast forward.

4. Skip to previous track: Press . Press and hold to fast reverse.

5. During playback, press MODE repeatedly to switch the playback modes as follows:

Press Display Result 1x REP Repeat one track. REP ashing in display 2x REP ALL Repeat all tracks 3x RAND Play a track randomly. 4x - Normal playback. Notes:

• This product reads CD and CD-R/-RW discs. Other discs are not supported.

• When playing CD-R/RW discs the playback quality might be inuenced by the quality of the burned disc. When burning CD-R/RW disks with audio les we recommend using the slowest burning speed. PROGRAM PLAYBACK Notes:

• Up to 20 CD tracks can be programmed for a playback in any desired order.

• Programmed playback can only be made from one single source.

1. Stop playback: Press STOP.

2. Enter program settings: Press MODE. PROG and P01 will ash on the display.

3. Select desired track: Press or .

4. Store selected track into the program memory: Press MODE again. P02 will now ashing on

5. Repeat step 3 and 4 to program additional tracks.

6. After programming all the desired tracks, press to start program playback. PROG appears

8. Cancel program playback: Press 2x STOP. PROG disappears from the display.

Warning! Observe the relevant safety information for use with other devices when connecting an external device.

Press button to turn on the product. Press until "AUX" appears on the display.

Connect auxiliary device to the AUX-IN socket using 3.5 mm jack audio cable (not included). If an auxiliary device is connected, all playback functions of this device need to be used. COMPATIBLE CDs

• Only use CD compact discs with digital audio signals.

• The making of unauthorized copies of copyright-protected material, including computer programs, les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal oence under your national law. This equipment should not be used for such purposes. TROUBLESHOOTING If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your retailer. Problem Possible causes Solution Product does not function • Interrupted power supply

• Due to electrostatic discharge

• Check the power supply

• Unplug and plug it in again after a while Poor Audio quality • CD is scratched • Insert a new CD NO appears on display • CD not correctly inserted • Re-insert the CD No radio reception • Poor radio reception • Place the product to another place and adjust the antenna again IM_ORC133_180718_V02_HR.indb 15 18/7/18 4:10 pm16

• WARNING! Before cleaning, always switch o the product and disconnect the plug from power.

• Never immerse the product in water or other liquids.

• Clean the product with a soft, slightly damp cloth. Make sure that no moisture is entering the product during cleaning.

• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your product.

• Dry the product thoroughly after cleaning.

• Store the product in a cool, dry location, away from children and pets. CD MAINTENANCE

• Small amount of dust or scratches will usually not have an impact on the quality of a disc. The discs should, however, be treated with care.

• Protect your compact discs from dust and scratches.

• Store your compact discs in their covers when not in use.

• To maintain the original quality of sound, you should occasionally wipe your compact discs with a soft cloth, from the centre to the edge (not with circular movements). Never use gasoline or other solvents for cleaning.

• Only hold a compact disc by its edges! SPECIFICATIONS Rated voltage: 100 - 240 V~, 50 / 60 Hz Rated power: 10 W Battery: 9 V , 6 x 1.5 V (type C / R14) (not supplied) Radio frequency band: 87.5 - 108 MHz (FM)

DECLARATION OF CONFORMITY

Hereby, [Imtron GmbH] declares that the radio equipment type [ORC 130-B / ORC 133-W / ORC 133-R / ORC 133-BL / ORC 133-PK / ORC 133-GR] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://de.ok-online.com/nc/de/suche.html DISPOSAL The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product. IM_ORC133_180718_V02_HR.indb 16 18/7/18 4:10 pm17
