OSR 110 - Radio OK - Free user manual and instructions

Product Type	Shower Radio
Model	OSR 110
Brand	OK
Radio Tuning Range	87.5 - 108 MHz
Radio Tuning Grid	0.1 MHz
Power Source	2 x 1.5 V batteries, type LR03/AAA (not included)
Dimensions (approx.)	80 x 80 x 40 mm
Weight (without batteries)	Approx. 150 g
Operating Temperature	Max. 35 °C
Controls	ON/OFF, Volume +/-, Tuning +/-, Hanging rope
Cleaning Instructions	Soft damp cloth with mild detergent; do not use solvents or abrasives
Intended Use	Household audio entertainment via FM radio
Safety Features	Battery polarity protection, ventilation openings, no heat sources
Included Accessories	Hanging rope, user manual
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - OSR 110 OK

How do I turn on the radio?

Press the ON/OFF button to switch the radio on or off.

What batteries does the OSR 110 require?

It requires 2 x 1.5 V LR03/AAA batteries (not included). Observe correct polarity.

How do I search for radio stations?

Press the TU+ or TU- button to search for stations. To reset, turn the radio off.

Can I use this radio in the shower?

Yes, it is a shower radio, but keep it away from direct water spray. Do not immerse in water.

How do I clean the radio?

Use a soft damp cloth with mild detergent. Avoid solvents, abrasive materials, or running water.

What should I do if the radio doesn't turn on?

Check if batteries are inserted correctly and are not depleted. Replace with new batteries if needed.

Why is there no sound?

Ensure the volume is turned up. Batteries may be low – replace them.

How can I improve radio reception?

Move the radio to a different location, away from metal objects or electronic interference.

Are there any safety precautions for battery use?

Do not mix old and new batteries. Remove batteries if not using for a long time. Keep away from children. Do not recharge non-rechargeable batteries.

Can I hang the radio?

Yes, use the hanging rope provided to hang the radio on suitable areas like a shower hook.

USER MANUAL OSR 110 OK

IM_OSR110_100314_V01

www.ok-online.com

ok. OSR 110

xxx // Shower Radio // xxx // xxx

1. OPHIGUCHSOMENIER (OPHIGUCHSOMENIER)
   ФИ ОДНИТЕЯ КУЧЕНЕ
2. LITERIANTIL: NASHION POLITARY
   EN USER AMOUNT OF HANDS & CO OTHERS BY:
   15 MANDALECELOSOMATO 20 20 PENDODUCTIVO HONESOATEN 6
3. NOICE DREAMS & INVESTMENTS: 17
   HU HASZALATUTNUTATO 23, SULLANIN 13, VUZU 23
   17 MANUALEUTENTE>

M CS410 160214 301 H1890 114376 1206194

MCS410 16234 Y01 H1895 214376 1236PM

HERZLICHEN GLÜCKWUNSCH!

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1.

Danger! Excessive sound pressure from earphones and headphones can cause hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to a moderate volume.

1. This product is only intended for audio entertainment. Do not use the product for any other purpose than described in this manual in order to avoid any hazardous situation. Improper use is dangerous and will void any warranty claim.
2. For household use only. Do not use outdoors.
3. Danger of suffocation! Keep all packaging material away from children.
4. Only use under normal room temperature and humidity conditions.
5. The product is only suitable for use at moderate degrees of latitude. Do not use in the tropics or in particularly humid climates.
6. Do not move the product from cold into warm places and vice versa. Condensation can cause damage to the product and electrical parts.
7. Do not use attachments or accessories other than recommended by the manufacturer or sold with this product. Install in accordance with this user manual.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.
9. Do not shift or move the product when powered on.
10. Do not touch, push or rub the surface of the product with any sharp or hard objects.
11. Care should be taken so that no objects or liquids enter the enclosure through openings.
12. No naked flame sources, such as lighted candles, should be placed on the product.

EN

1. Refer all servicing to authorised service agent. Do not attempt to repair the product yourself. Servicing is required when the product has been damaged in any way, such as the supply cord or plug are damaged, liquid has been spilled, objects have fallen into the product, the enclosure is damaged, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
2. The product may not function properly or not react to the operation of any control due to electrostatic discharge. Switch off and disconnect the product; reconnect/switch on after a few seconds.
3. Caution! There is danger of explosion from improper replacement of the batteries. Replace batteries only with the same or equivalent type of battery.
4. Always change the entire battery pack. Do not mix old and new batteries, or batteries with different charge state.
5. Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-) negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.
6. Remove used batteries. Remove the batteries if you know that the product will not be used for a longer period of time. Otherwise, the batteries could leak and cause damage.
7. Non-rechargeable batteries must not be recharged.
8. The connections must not be short-circuited.
9. Remove the batteries from the product before disposal.
10. Never expose batteries to excessive heat (e.g. bright sun, fire), and never throw them into fire. The batteries could explode.
11. Keep batteries out of reach of small children. If batteries have been swallowed, seek immediate medical attention.

12. If the batteries leak, remove them with a cloth and dispose of them accordingly. Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the affected area with lots of water and soap.

13. When installing the device, leave sufficient space for ventilation. Do not install in bookcases, built-in cabinets or the like.

14. Do not impede ventilation by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. Do not insert any objects.

EN

INTENDED USE

This product is intended for audio playback via FM-Radio. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use. Do not use the product if damage is seen.

Imtron GmbH accepts no liability whatever for any injuries or damages caused to careless, improper or incorrect use of the product or use of the product for purposes not recommended by the manufacturer.

COMPONENTS

A. Tuning down TU-
B. Tuning up TU+
C. ON/OFF switch
D. Volume down VOL-
E. Volume up VOL+
F. Hanging rope
G. Battery compartment lock
H. Battery compartment with lid

BEFORE FIRST TIME USE

Remove the product and accessories carefully from the original packaging. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

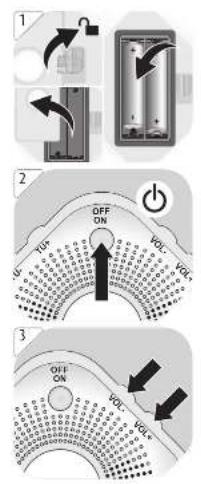

INSTALLATION AND POWER SUPPLY Installation

1 • Open the battery compartment.
- Insert 2 x 1.5 V battery (type LR03/AAA, not included). Make sure the polarity is correct as indicated.
- Close the battery compartment.

OPERATION

Switching on and off

2 Press the ON/OFF button to turn on/off the radio.

Volume control

3 The volume can be easily controlled by pressing the buttons VOL+ or VOL-.

RADIO

Tuning

4 Pressing TU- or TU+ to search a broadcast station. Note: To reset the set channel, turn off the radio

HANGING LOOP

5 Hang the radio on suitable areas.

CLEANING AND CARE

• Warning! Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the product with a soft, damp cloth and a mild cleaning agent. Finish by wiping it with a dry cloth. Do not use alcohol, acetone, benzene, scouring cleansers etc. to clean the product. Do not use hard brushes or metal objects.

EN

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not function	• Batteries empty •	Insert new batteries
No Sound • Volume	is very low • Adjust	the volume
No radio reception •	Poor radio reception	• Place the product to another place

TECHNICAL DATA

Batteries operation : 2 x 1.5 V

(Type LR03/AAA)

Tuning-range : 87.5 - 108 MHz

Tuning grid : 0.1 MHz

Operating temperature : max. 35 °C

Dimension : XX x XX x XX mm

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product.
