USER MANUAL OWR 240WBT OK

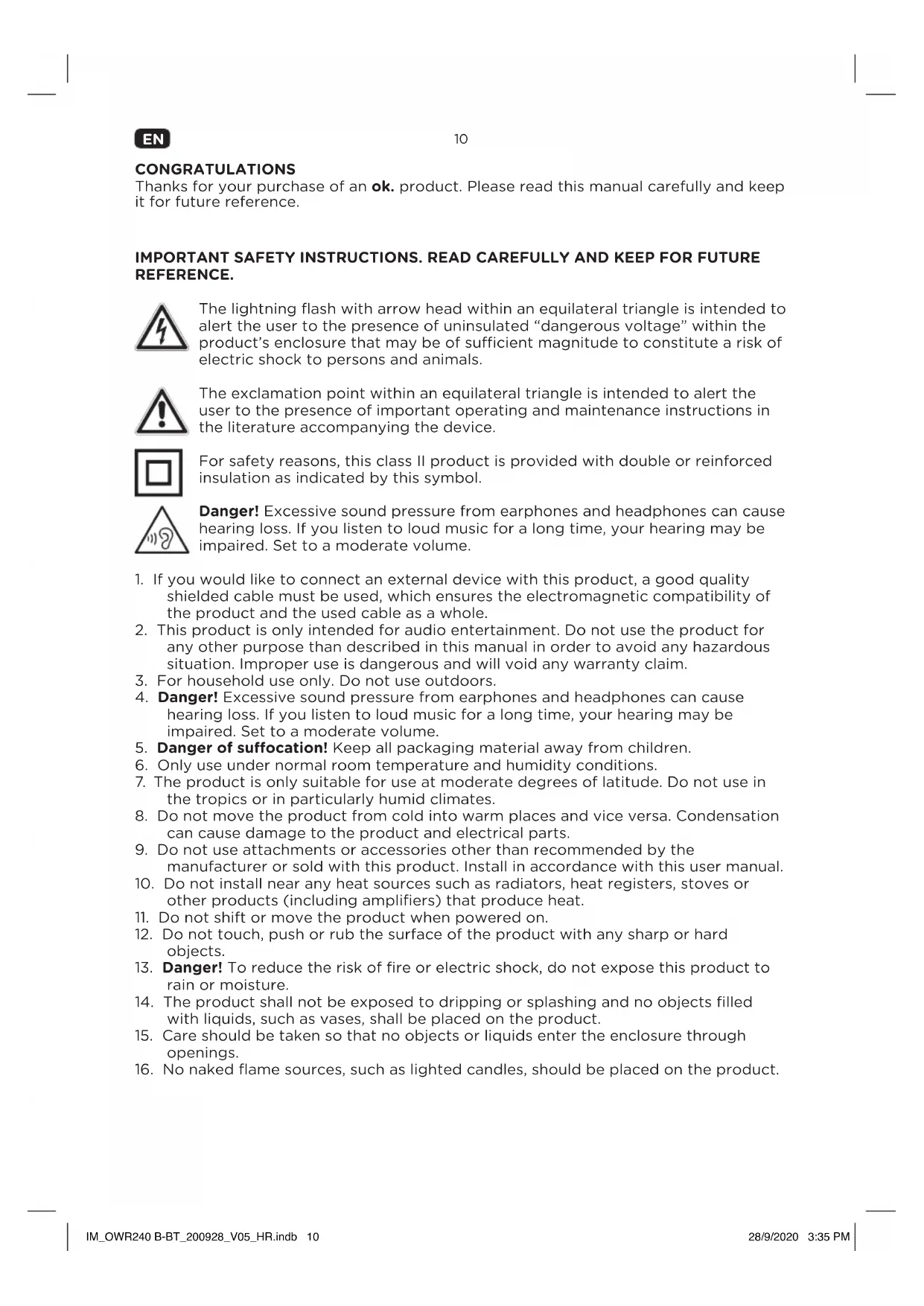

CONGRATULATIONS Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons and animals. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the device. For safety reasons, this class II product is provided with double or reinforced insulation as indicated by this symbol. Danger! Excessive sound pressure from earphones and headphones can cause hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to a moderate volume.

1. If you would like to connect an external device with this product, a good quality

shielded cable must be used, which ensures the electromagnetic compatibility of the product and the used cable as a whole.

2. This product is only intended for audio entertainment. Do not use the product for

any other purpose than described in this manual in order to avoid any hazardous situation. Improper use is dangerous and will void any warranty claim.

3. For household use only. Do not use outdoors.

4. Danger! Excessive sound pressure from earphones and headphones can cause

hearing loss. If you listen to loud music for a long time, your hearing may be impaired. Set to a moderate volume.

5. Danger of suocation! Keep all packaging material away from children.

6. Only use under normal room temperature and humidity conditions.

7. The product is only suitable for use at moderate degrees of latitude. Do not use in

the tropics or in particularly humid climates.

8. Do not move the product from cold into warm places and vice versa. Condensation

can cause damage to the product and electrical parts.

9. Do not use attachments or accessories other than recommended by the

manufacturer or sold with this product. Install in accordance with this user manual.

10. Do not install near any heat sources such as radiators, heat registers, stoves or

other products (including amplifiers) that produce heat.

11. Do not shift or move the product when powered on.

12. Do not touch, push or rub the surface of the product with any sharp or hard

13. Danger! To reduce the risk of fire or electric shock, do not expose this product to

14. The product shall not be exposed to dripping or splashing and no objects filled

with liquids, such as vases, shall be placed on the product.

15. Care should be taken so that no objects or liquids enter the enclosure through

16. No naked flame sources, such as lighted candles, should be placed on the product.

17. Refer all servicing to authorised service agent. Do not attempt to repair the

product yourself. Servicing is required when the product has been damaged in any way, such as the supply cord or plug are damaged, liquid has been spilled, objects have fallen into the product, the enclosure is damaged, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

18. Before connecting the product to a socket outlet, make sure the voltage indicated

on the product corresponds to your local mains.

19. If the supply cord is damaged, it must be replaced by the manufacturer or its

service agent or similarly qualified person in order to avoid hazard.

20. Regularly check if the supply cord, product or extension cable is defective. If found

defective, do not put the product into operation. Immediately pull the plug.

21. Place the supply cord and, if necessary, an appropriate extension cable in such

away that pulling or tripping over it is impossible. Do not allow the supply cord to hang down within easy reach.

22. Do not jam, bend or pull the supply cord over sharp edges.

23. The power plug is used as the disconnect device; the disconnect device shall

remain readily operable. To completely disconnect the power input, disconnect the mains plug.

24. The product may not function properly or not react to the operation of any control

due to electrostatic discharge. Switch o and disconnect the product; reconnect after a few seconds.

25. Protect the supply cord from being walked on or pinched particularly at the plug,

convenience receptacles and the point where it exits from the product.

26. Never pull the plug by the supply cord or with wet hands.

27. Disconnect the power plug in case of faults during use, during lightening storms,

before cleaning and when not using the product for a longer period of time.

28. Danger! Before cleaning, switch the product o and disconnect the power plug

29. When the product has reached the end of its service life, make it defective by

disconnecting the plug from the socket and cutting the cord in two.

30. Caution! There is danger of explosion from improper replacement of the batteries.

Replace batteries only with the same or equivalent type of battery.

31. Always change the entire battery pack. Do not mix old and new batteries, or

batteries with dierent charge state.

32. Make sure the batteries are correctly inserted. Observe the polarity (+) plus / (-)

negative on the battery and the housing. Improperly inserted batteries can lead to leakage or, in extreme cases, a fire or an explosion.

33. Remove used batteries. Remove the batteries if you know that the product will not

be used for a longer period of time. Otherwise, the batteries could leak and cause damage.

34. If the batteries leak, remove them with a cloth and dispose of them accordingly.

Prevent battery acid from coming into contact with skin and eyes. If you do get battery acid in your eyes, flush them thoroughly with lots of water and consult a physician immediately. If battery acid comes into contact with your skin, wash the aected area with lots of water and soap.

35. When installing the device, leave sucient space for ventilation. Do not install in

bookcases, built-in cabinets or the like.

36. Do not impede ventilation by covering the ventilation openings with items, such as

newspapers, table-cloths, curtains, etc. Do not insert any objects.

37. Non-rechargeable batteries must not be recharged.

38. The connections must not be short-circuited.

39. Remove the batteries from the product before disposal.

INTENDED USE This product is intended for audio playback via FM-Radio, audio in (AUX) or Bluetooth®. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specified purpose.

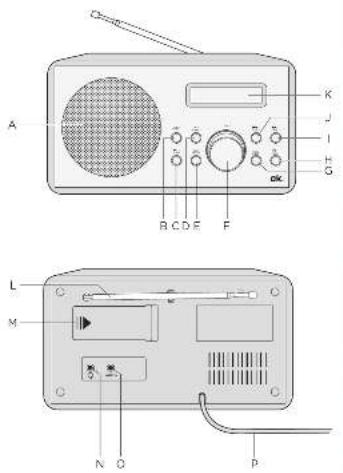

J. / SCAN– button K. Display L. Aerial M. Battery compartment with lid N. Headphone jack 3.5mm O. Audio input AUX IN P. Power cord and plug DELIVERY CONTENTS 1 x Radio 1 x User manual

BEFORE FIRST TIME USE

Remove the product and accessories from the original packaging carefully. For disposal of the original packaging, follow applicable legal requirements. If you have questions about correct disposal, contact your local authority. Check the package contents for completeness and damage. If the package content is incomplete or damages can be found, contact your place of purchase immediately. IM_OWR240 B-BT_200928_V05_HR.indb 12IM_OWR240 B-BT_200928_V05_HR.indb 12 28/9/2020 3:35 PM28/9/2020 3:35 PM13

For optimal reception, extend the antenna, move to fully extend and adjust it. POWER SUPPLY Operation by mains Connect plug to suitable mains socket. Back up battery Insert batteries to enable the clock to continue operating during a possible power failure. After the mains power remains, the correct time will appear on the display.

1. Open the battery compartment.

2. Insert 2 x 1.5 V battery type AAA (not included in delivery). Make sure the polarity is

correct as indicated.

3. Close the battery compartment.

Note: Radio and alarm will not function during back up operation. Switch on appliance

Press the / FUNC. button to turn the unit on. Adjusting the volume

The volume can be adjusted during playback with the volume control. Select operation mode

If the radio is switched on you can select the desired mode FM (FM radio) > bt (Bluetooth®) > AUX (AUH, audio in) by pressing FUNC. button. FM-Radio Selecting FM stations

Press FUNC. button to select FM radio. The radio plays the last station selected. Selecting FM station frequencies

1. Manual frequency selection

Push or buttons to change the frequency in 0.1 MHz steps. Keep the or buttons pushed to set a frequency quickly.

2. Automatic scan and storage

Press the SCAN button for at least 2 second to scan the entire frequency band and have received stations automatically saved one by one. Storing FM stations

You can store up to 30 pre-set FM stations.

1. Select the desired FM station.

2. Push PRESET button. Within 5 seconds chose the preset with PRE.– / PRE.+

buttons and push PRESET to save the station to the desired preset.

3. The pre-set number of the stored station is displayed.

4. Repeat steps 1 and 2 to store more FM stations.

Selecting a pre-set FM station

1. Switch on the radio and select the FM radio function with the FUNC. button.

2. Use the PRE.– / PRE.+ buttons to select a saved station.

AUX-IN Note: If you would like to connect an external device with this product, a good quality shielded cable must be used, which ensures the electromagnetic compatibility of the product and the used cable as a whole.

This radio allows you to listen to external audio devices.

1. Connect a cable (not included) to the AUX IN-jack (3.5 mm) at the back of the

3. Start playback from the device.

Attention! Before connecting an external playback device, carefully read the respective user guide and safety instructions as well as instructions concerning usage with other devices. BLUETOOTH® This mode allows you to use the radio as a speaker for an external device (e.g. mobile phone or MP3 player). The signal is transmitted wirelessly via Bluetooth®. Note: Before playback, you must pair the radio (in this case the Bluetooth® receiver) and the device (transmitter). Compatibility This product is compatible with Bluetooth® enabled mobile phones and music devices. It features Bluetooth® version 5.0. It also works with devices featuring other Bluetooth® versions that support e.g. Wireless stereo listening

• A2DP (Advanced Audio Distribution Profile) Wireless music control

• AVRCP (Audio/Video Remote Control Profile) Note:

• Keep the range of 8 meters when pairing.

• Before pairing a Bluetooth® AV source, refer to the AV source user guide regarding safety instructions and use with other devices. Pairing

1. Press the FUNC. button until bt appears on the display. The product is in

search for Bluetooth® devices. Pair your playback device with OWR 240-B-BT / OWR 240-W-BT. The devices are now connected and an acoustic signal will sound.

3. To end the Bluetooth® connection:

• Turn o the Bluetooth® function on the playback device and an acoustic signal will sound again.

• Change the Mode. Bluetooth®-Playback

1. Start the music playback on the audio device.

or button shortly to skip title forward or backward.

3. Adjust the volume with – VOL + dial.

GENERAL SETTINGS Set the time Follow the steps below. The time can only be set when the radio is switched o, i.e. set in standby mode:

1. Press the CLOCK button for 2 second and use the or buttons to set the

hourly system (24H / 12H).

2. Press the CLOCK button again and use the or buttons to set the hours.

3. Press the CLOCK button again and use the or buttons to set the minutes.

Press the CLOCK button a fourth time to finish the setting. Snooze function (SLEEP) The function is only available when the radio is switched on.

• Press the SLEEP button repeatedly until you have set the desired time, between 120- 5 minutes or OFF. The selected snooze time expires until the device finally switches

Activate and deactivate alarm To set the alarm time, switch the product o with the on / o button . Start the alarm time setting (ALARM 1 and ALARM 2): Hold down the ALARM 1 button for approx. 3 seconds. Display (flashing): number of hours

1. Press or to set the hour. Confirm with ALARM 1. The minute digits flash.

2. Press or to set the minutes. Confirm with ALARM 1. The alarm mode

3. Press or to select one of the following alarm modes: bU2 (alarm tone)>

(FM radio). Confirm with ALARM 1.

4. When selecting (FM radio) you now select the desired program memory

location P01 to P30. Confirm with ALARM 1. After you have made and confirmed the settings, the alarm symbol appears on the display.

5. Do the same for setting the 2nd alarm clock. Press the ALARM 2 button

instead of ALARM 1. Deactivate the alarm Press the ALARM 1 or ALARM 2 button repeatedly until the

1. Snooze function: Press SNOOZE button to suspend alarm sound for a few minutes.

The alarm will start again after 9 minutes.

/ FUNC. button to stop/cancel alarm. Automatic power o The radio will switch o after 10 minutes if it does not receive any FM or Bluetooth® signal and there is no playback by an external audio player (AUX IN). The display light will turn o and current time will be shown in display. IM_OWR240 B-BT_200928_V05_HR.indb 15IM_OWR240 B-BT_200928_V05_HR.indb 15 28/9/2020 3:35 PM28/9/2020 3:35 PM16

• Disconnect the product from the power supply before cleaning it. Clean the product with a soft, damp cloth and a mild cleaning agent. Finish by wiping it with a dry cloth. Do not use alcohol, acetone, benzene, scouring cleansers etc. to clean the product. Do not use hard brushes or metal objects.

• Warning! Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s). SPECIFICATION Rated Voltage : 230 V~, 50 Hz Protection class : II Operation power consumption : 4 W Standby power consumption : ≤1 W Battery operation : 2 x 1.5 V (Type LR03/AAA) Tuning range (Tuner FM) : 87.5 - 108 MHz Tuning grid (Tuner FM) : 0.1 MHz Bluetooth® Frequency range : 2402 MHz - 2480 MHz Max. RF power : -0.63 dBm Operation conditions : 0°C - 40°C Dimension : approx. 204 x 138 x 115 mm Weight : approx. 0.74 kg

DECLARATION OF CONFORMITY

Hereby, Imtron GmbH declares that the radio equipment type OWR 240-B-BT / OWR 240-W-BT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://de.ok-online.com/nc/de/suche.html DISPOSAL Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Please dispose of batteries in an environmentally friendly manner. Do not put batteries into the household waste. Please use the return and collection systems in your community or contact the dealer where you purchased the product. IM_OWR240 B-BT_200928_V05_HR.indb 16IM_OWR240 B-BT_200928_V05_HR.indb 16 28/9/2020 3:35 PM28/9/2020 3:35 PM17
