USER MANUAL Mi Portable Electric Air Compressor Xiaomi

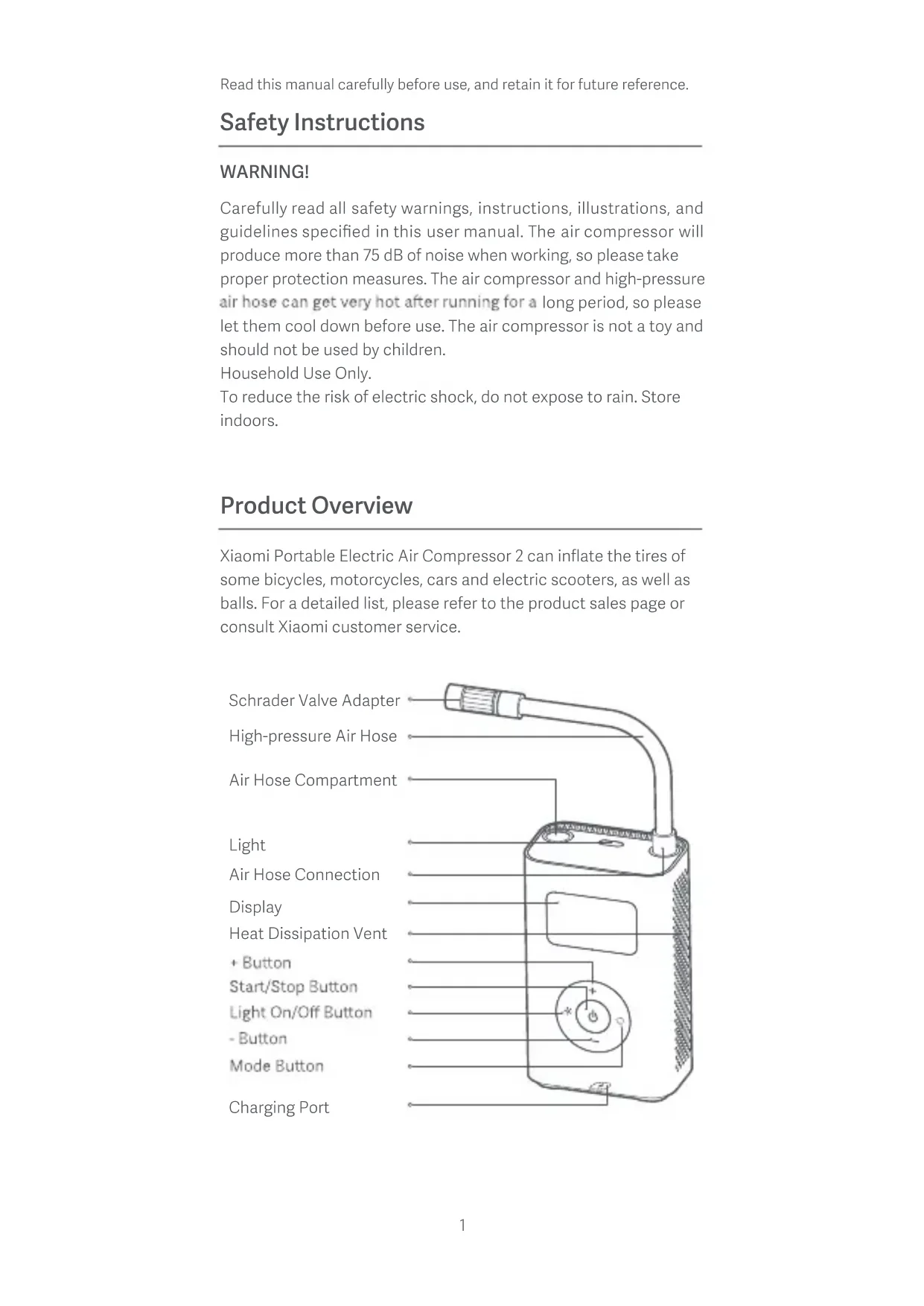

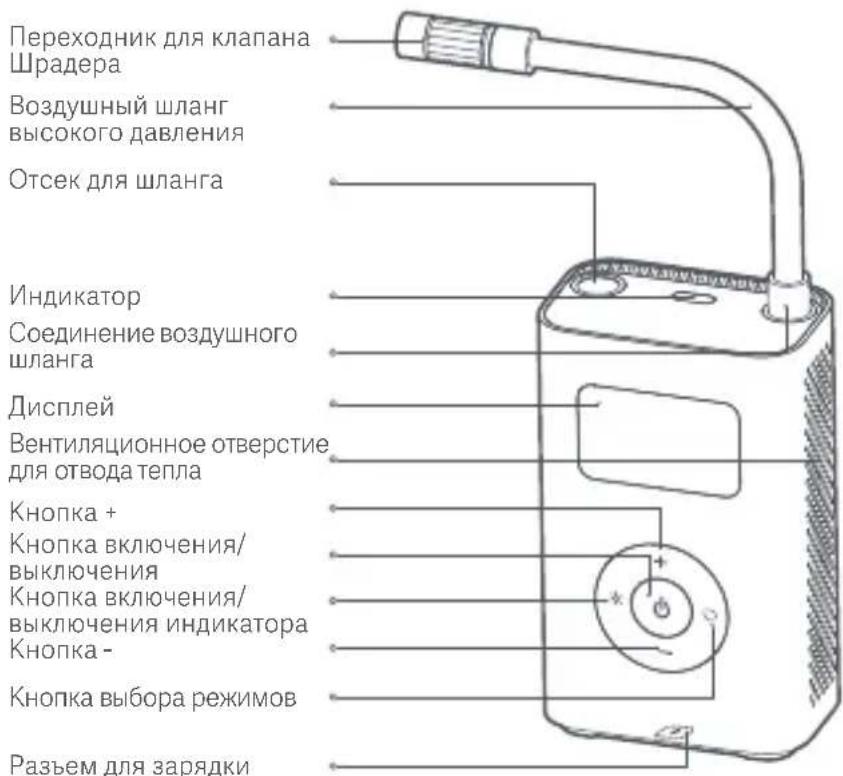

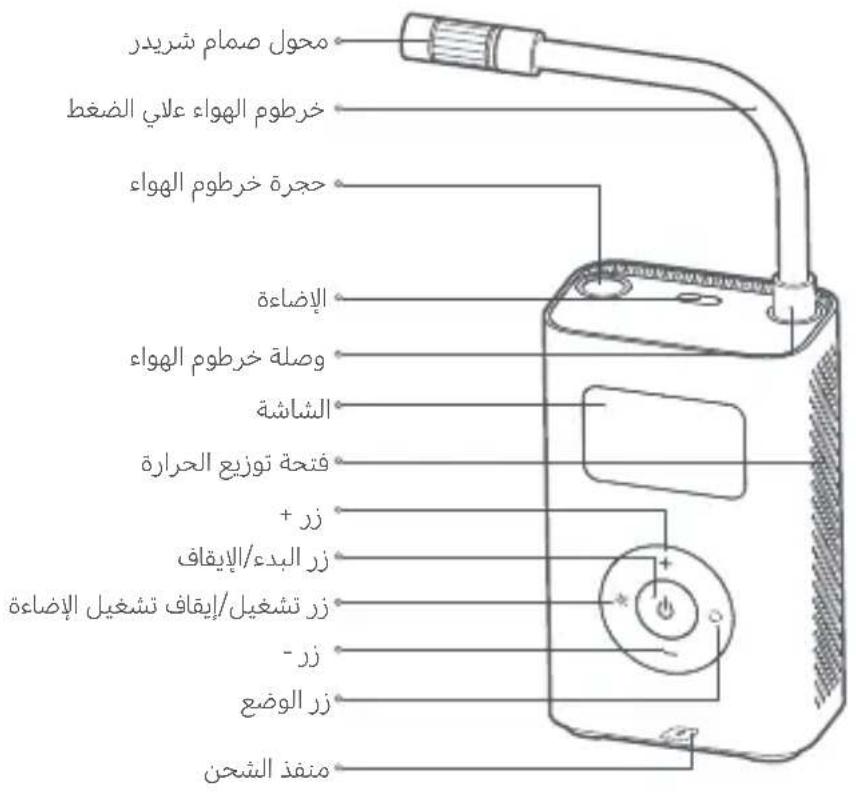

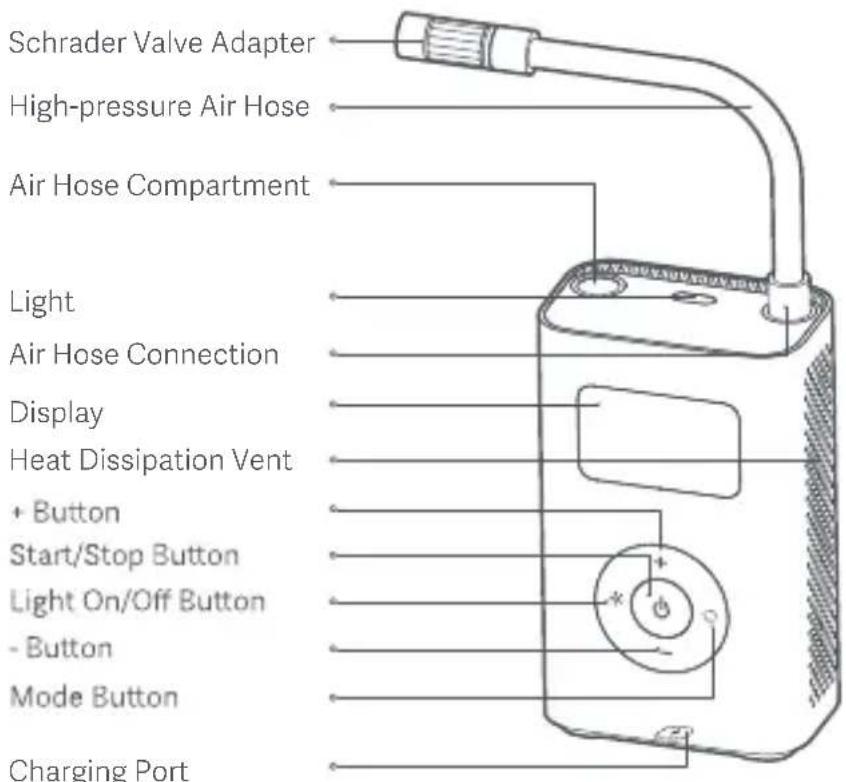

• 2261 Safety Instructions WARNING! Carefully read all safety warnings, instructions, illustrations, and guidelines specified in this user manual. The air compressor will produce more than 75 dB of noise when working, so please take proper protection measures. The air compressor and high-pressure long period, so please let them cool down before use. The air compressor is not a toy and should not be used by children. Household Use Only. To reduce the risk of electric shock, do not expose to rain. Store indoors. Product Overview Xiaomi Portable Electric Air Compressor 2 can inflate the tires of some bicycles, motorcycles, cars and electric scooters, as well as balls. For a detailed list, please refer to the product sales page or consult Xiaomi customer service. High-pressure Air Hose Light Schrader Valve Adapter Charging Port Heat Dissipation Vent Air Hose Connection Air Hose Compartment Display Read this manual carefully before use, and retain it for future reference.2 How to Use Charging Please fully charge the air compressor before first use. Connect the charging cable to a compatible 5V USB power adapter to charge the air compressor. Note: The storage pouch contains an inner bag used to store the Presta valve adapter, needle valve adapter and quick connect valve adapter. Charging status: Notes: The air compressor cannot be used while charging. A safe and compliant power adapter must be purchased separately. Needle Valve Adapter Storage Pouch Quick Connect Valve Aapter Presta Valve Adapter3 Connecting the high-pressure air hose and valve Schrader valve Turning on/off Turning on Remove the high-pressure air hose from its compartment, then the air compressor will automatically turn on. When the air compressor is turned on, if it is not used for 3 minutes, it will automatically turn off. If the air compressor automatically turns off while the high-pressure air hose is not in its compartment, press and hold the start/stop Turning off Insert the high-pressure air hose back into its compartment to turn the air compressor off. When the air compressor is on, press and hold the start/stop button to turn it off. To inflate: Connect the Schrader valve to the Schrader valve adapter on the high-pressure air hose to begin inflating. To deflate: Use an appropriate tool (for example, a 4 mm hex key) to press the needle valve adapter to release the air. To deflate: Unscrew the Presta valve's threaded cap and press the threaded cap down to release the air. Tires on mountain bikes, e-bikes, motorcycles, electric scooters, and cars use a Schrader valve. Valve Type Inflation Adapter Presta valve adapter To inflate: Connect the Presta valve adapter to the Schrader valve adapter on the high-pressure air hose. Unscrew the tire's Presta valve. Connect the Presta valve to the adapter to start inflating. To inflate road bikes and certain mountain bikes, the included Presta valve adapter is needed. Valve Type Inflation Adapter4 Detecting air pressure high-pressure air hose is connected to an item while the air compressor is turned on. Determining the correct air pressure To ensure safety and to prevent injuries and property damage from explosions due to over-inflation, please refer to the instructions or relevant directions accompanying the item to be inflated before inflating it, in order to determine the correct air pressure required. The recommended inflation pressure of tires for cars, bicycles, electric scooters and motorcycles is indicated on the tire's sidewall. The recommended inflation pressures for car tires are also indicated on the driver's side door jamb. For details of recommended inflation pressures concerning load weight, refer to your vehicle's instructions or manual. Tires Needle valve adapter To inflate: Screw the needle valve adapter onto the Schrader valve adapter, then insert the needle into the ball's valve to start inflating. To deflate: Insert the needle valve adapter into the ball's valve to release the air. To inflate balls like basketballs and footballs, the included needle valve adapter is needed. Valve Type Inflation Adapter Connect the quick connect valve adapter to the Schrader valve adapter on the high-pressure air hose. Connect the quick connect valve to the Schrader valve and press the handle down in the direction as shown in the image to lock it and start inflating.

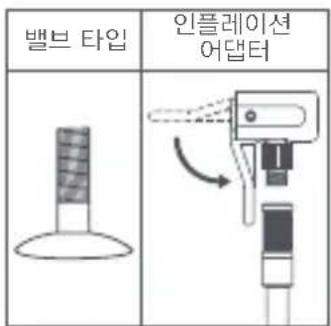

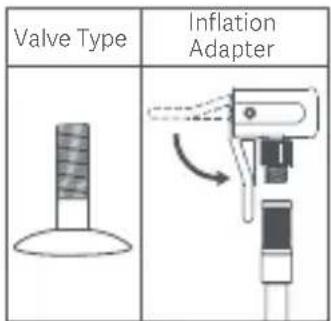

Quick connect valve adapter To inflate: To deflate: Connect the quick connect valve adapter to the Schrader valve and press the quick connect valve adapter down to release the air. Tires on mountain bikes, e-bikes, motorcycles, electric scooters, and cars use a Schrader valve. Valve Type Inflation Adapter

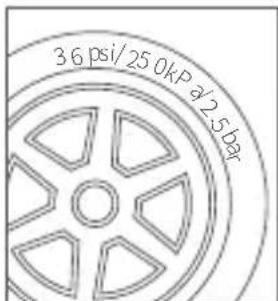

The recommended air pressure for footballs, basketballs, volleyballs, and other balls is indicated near the ball's air valve. Balls Air pressure reference table Note: The pressure range values are for reference only. Please refer to the instructions or manual of the item being inflated.

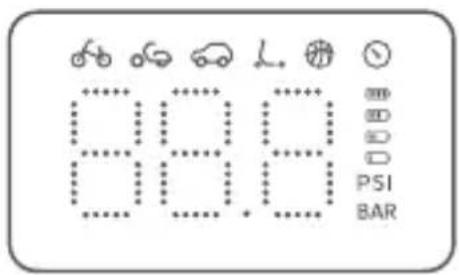

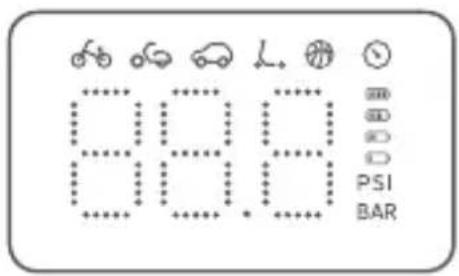

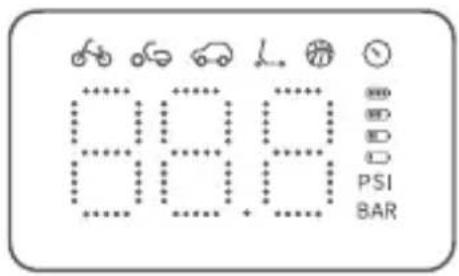

Category Bicycles Motorcycles Cars 12” , 14” and 16” bicycle tires 20” , 22” and 24” bicycle tires 26” , 27.5” and 29” mountain bike tires Xiaomi electric scooter tires 700c road bike clincher tires 700c road bike tubular tires Motorcycle or electric scooter tires 30–50 psi/2.0–3.4 bar 40–50 psi/2.7–3.4 bar 45–65 psi/3.1–4.5 bar 45–60 psi/3.1–4.1 bar 100–130 psi/6.9–9.0 bar 120–145 psi/8.3–10 bar 1.8–3.0 bar/26–43.5 psi 2.2–2.8 bar/32–40.6 psi Type Recommended Pressure Range Car tires Balls Basketball Football Volleyball Football 7–9 psi/0.48–0.62 bar 8–16 psi/0.55–1.1 bar 4–5 psi/0.28–0.34 bar 12–14 psi/0.83–0.97 bar6 Switching mode display. Select the preferred air pressure unit before inflating by bar. Adjusting the preset pressure Light The preset air pressure can be adjusted freely and the value and unit will be saved. Adjustable range: 3–150 psi/0.2–10.3 bar to increase or decrease the preset pressure value. Press value. The number will blink when a preset pressure is being adjusted, and stop blinking when real-time pressure is displayed. SOS light, and light off. Bicycle mode: 45 psi by default Adjustable range: 30–65 psi Electric scooter mode: 50 psi by default Adjustable range: 45–60 psi Motorcycle mode: 2.4 bar by default Adjustable range: 1.8–3.0 bar Car mode: 2.5 bar by default Adjustable range: 1.8–3.0 bar Ball mode: 8 psi by default Adjustable range: 4–16 psi7 Inflating Start inflating Disconnecting the air compressor are relatively high. Be careful to avoid burns when disconnecting the air compressor from the inflated items. Some air may leak out of the valve when disconnecting the air compressor. To avoid pressure loss, disconnect the air compressor from the valve as quickly as possible. Caution Items such as balloons, beach balls, and swim rings cannot have an air pressure requirement below the air compressor's minimum pressure range. Only inflate these items manually with caution. charge running without a load at an ambient temperature of 25°C. Using the air compressor under a heavy load or at lower ambient display will show the real-time pressure changes during inflation. Stop inflating When the air pressure reaches the preset pressure value, the air compressor will automatically stop inflating. The air compressor can also be manually stopped at any time while inflating by pressing theThe air compressor is not a toy and should not be used by children. It is recommended that the user be 16 years or older. Keep children at a safe distance when the air compressor is working. The air compressor has a built-in non-removable lithium-ion temperature environments, such as leaving it in a car in direct heat, impact, or water, there is a risk of fire, spontaneous combustion, and even explosion. The air compressor should not be stored at temperatures below -10°C or over 45°C. Exposure to extreme heat or cold will shorten pack. Leaving the air compressor unused for long periods may harm least once every three months. The air compressor uses a built-in DC motor which may produce electrical sparks when running and should never be used in flammable or explosive environments. If the air compressor makes an unusual noise or starts to overheat while running, turn it off immediately. Always make sure the correct air pressure unit is selected before Common unit conversions: 1 bar ≈ 14.5 psi, 1 bar = 100 kPa, 1 psi ≈ 6.89 kPa. Always monitor the air compressor during usage and never leave avoid over-inflating. Only use the air compressor in a clean, dry environment. Dirt and air compressor is not waterproof and do not clean it with water. If the air compressor doesn't seem to function properly, reinsert the air hose and then pull it out again to restart the air compressor. If it does not function properly, please contact the Use Xiaomi MDY-12-EQ charger or other chargers with equivalent specifications to charge with a compliant charging cable. Issues caused by failure to charge according to the above requirements are not covered by the warranty. When the air compressor runs for a long period, the connection between the air hose and the air compressor will get hot. Do not touch it to avoid burning yourself.

Cautions9 Work Area Safety Keep work area clean and well lit. accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Personal Safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. Electrical safety Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is grounded. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Warning: Read all safety warnings and instructions. Failure to

follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated General Power Tool Safety Warnings10 Power Tool Use And Care Do not force the power tool. Use the correct power tool for your application. safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and/or remove the any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. easier to control. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. Prevent unintentional starting. Ensure the switch is in the pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. power tool may result in personal injury. Do not overreach. Keep proper footing and balance at all times. situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.11 Recharge only with the charger specified by the manufacturer. A objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to or a fire. avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid behaviour resulting in fire, explosion or risk of injury. temperature. Exposure to fire or temperature above 130 °C may cause explosion. NOTE The temperature “130 °C “ can be replaced by the temperature “265 °F “. pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the fire. Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. should only be performed by the manufacturer or authorized service providers.12 protection, causing an explosion or fire. high temperature, such as in direct sunlight, fire, microwave oven, or oven. Otherwise, it may result in an explosion or leakage of flammable liquids or gases. result in an explosion. Otherwise, it may result in an explosion or leakage of flammable liquids or gases. placed anywhere inside the body, seek medical aid immediately. closed safely. Keep it away from children. them safely as per local laws and regulations.13 Troubleshooting Issues The air compressor does not turn on. The inflation speed is slow. indicator on the display does not light up while charging.

1. Check whether the air hose is removed from

its compartment. The air compressor can be turned on only when the air hose is removed from its compartment.

2. Fully charge the air compressor and turn it on.

2. Check whether the air hose is leaking.

3. Check whether both ends of the air hose are

4. Check whether the inflated item is leaking.

Solutions The air compressor turns on but does not inflate.

2. Check whether the current air pressure is

higher than the preset value. The preset pressure cannot be increased or decreased. Make sure the air compressor is set to the correct inflation mode. Manual mode allows you to adjust the preset value within a range of 3–150 psi. The air compressor inflates normally but the displayed pressure is zero. The pressure of low-pressure inflatables including balloons is too low to measure. the air compressor on again. The air compressor has already turned the air hose to a valve. Replace the charging cable and adapter with safe and compliant ones, and charge again. The air leaks out when connecting the air hose. Make sure the air hose is securely connected.Specifications Name: Xiaomi Portable Electric Air Compressor 2 Model: MJCQB06QW Item Dimensions: Approx. 123 × 75.5 × 45.8 mm (Air compressor only, excluding air hose) Net Weight: Approx. 490 g Inflation Pressure Range: 0.2–10.3 bar/3–150 psi Operating Temperature: -10°C to 45°C Charging Temperature: 5°C to 40°C Storage Temperature: -10°C to 45°C Air Hose Dimensions: Air hose length 200 mm (Including Schrader valve adapter, excluding the thread end) Valve Adapter Dimensions (Inside Diameter): Schrader Valve Adapter: ø6.9 mm Presta Valve Adapter: ø6 mm Quick Connect Valve Adapter: ø6.9 mm Rated Capacity: 2000 mAh (14.4 Wh) Operating Noise: Less than 80 dB at a distance of 1 m Input: 5 V 2 A Charging Port: Type-C Charging Time: Approx. 3 hours Sensor Accuracy: ±1 psi Declaration of the noise emission values according to EN 62841 (considered uncertainty 3 dB(A)) Sound pressure level: 76.8 dB(A) Sound power level: 87.8 dB(A) Declaration of the vibration emission according to EN 62841 (considered uncertainty 1.5 m/s²): 4.33 m/s²

Information: The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another; The declared vibration total value and the declared noise emission value may also be used in a preliminary assessment of exposure.

The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed; and It is necessary to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).Regulatory Compliance Information

Before commissioning the device read the operating manual and observe the safety instructions! The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner. Wear ear-muffs! Europe — EU declaration of conformity UK declaration of conformity We, Shanghai HOTO Technology Co., Ltd., hereby, declare that this equipment is in compliance with the applicable Directives and European Norms, and amendments. The full text of the EU declaration of conformity is available at the support/declaration.html We Shanghai HOTO Technology Co., Ltd., hereby, declares that this equipment is in compliance with the applicable Legislation. The full text of the UK declaration of conformity is available at the following internet address: Disposal and recycling information Notes for packaging All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.16 Manufactured for: Xiaomi Communications Co., Ltd. Manufactured by: Shanghai HOTO Technology Co., Ltd. (a Mi Ecosystem company) Address: Building 45, No. 50 Moganshan Road, Shanghai, China For further information, please go to www.mi.com User Manual Version: V1.0 Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This supplier’s declaration of conformity is hereby for We declare that the above mentioned device has been tested and found in compliance with CFR 47 Part 15 Regulation. Product: Xiaomi Portable Electric Air Compressor 2 Model Number(s): MJCQB06QW Brand/Trade: Xiaomi Federal Communications Commission Supplier’s Declaration of Conformity Representative of Responsible Party for SDoC Company: Shanghai HOTO Technology Co., Ltd. Address: Building 45, No.50 Moganshan Road, Shanghai, China Country: China Telephone No.: 400-021-8696 Responsible Party – U.S. Contact Information Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced ra dio/TV technician for help. Company: TEKMOVIL LLC Address: 601 BRICKELL KEY DR #723 Miami, FL 33131 Country: U.S.A. Telephone No.: +1(312)282-5246 Internet contact information: kim.peterson@tekmovil.comИнструкции по безопасности ПРЕДУПРЕЖДЕНИЕ! Внимательно ознакомьтесь со всеми предупреждениями, инструкциями, иллюстрациями и указаниями по технике безопасности, содержащимся в настоящем руководстве пользователя. Во время работы воздушный компрессор генерирует шум более 75 дБ, поэтому примите надлежащие меры защиты. Воздушный компрессор и воздушный шланг высокого давления могут сильно нагреваться в ходе длительной эксплуатации, поэтому дайте им остыть перед использованием. Воздушный компрессор не игрушка и не должен использоваться детьми. Только для домашнего использования. С целью снижения риска поражения электрическим током, не подвергайте изделие воздействию дождя. Храните его внутри
