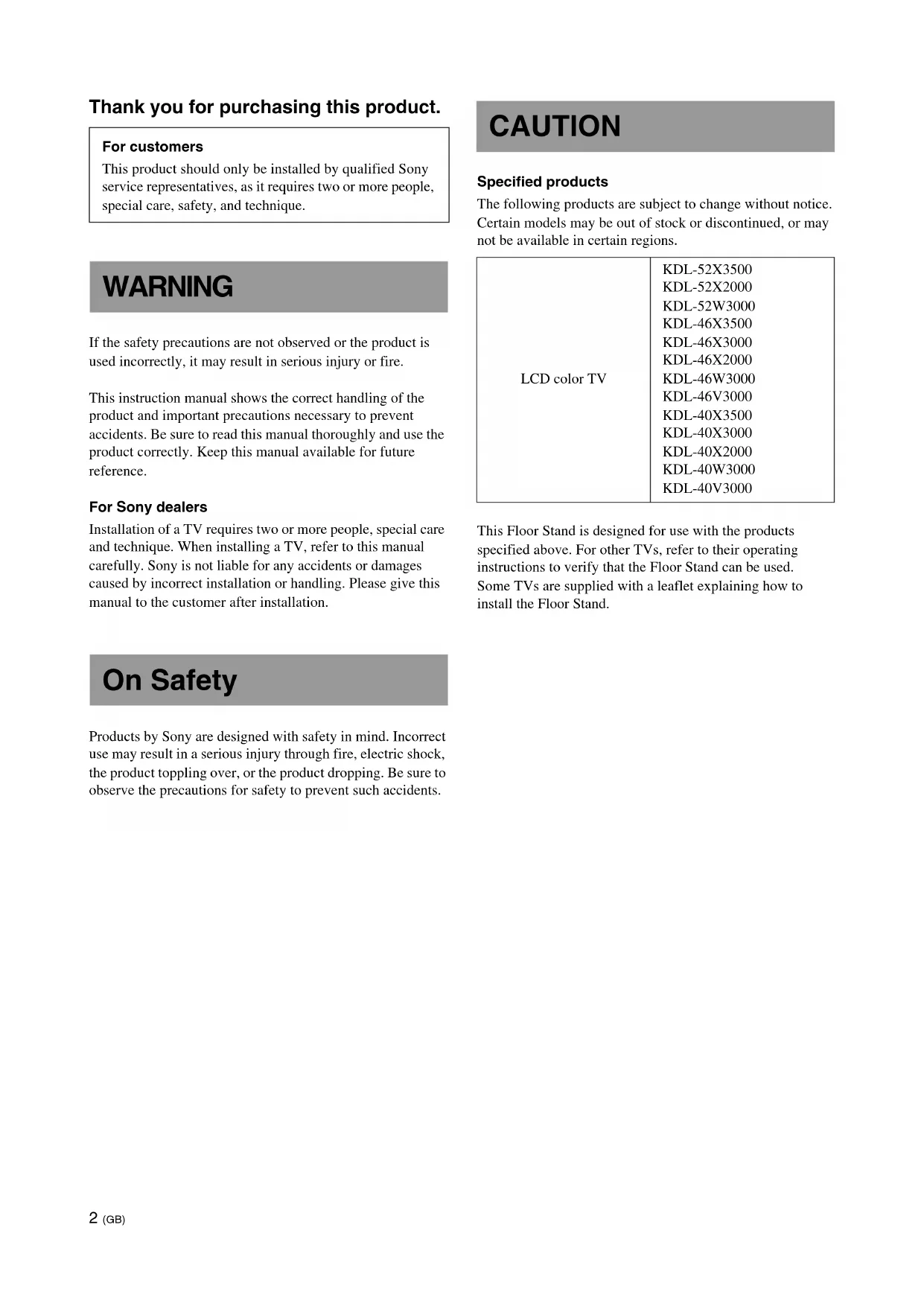

3-268-391-11 (1) OTF2 (GB) Thank you for purchasing this product. If the safety precautions are not observed or the product is used incorrectly, it may result in serious injury or fire. This instruction manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference. For Sony dealers Installation of a TV requires two or more people, special care and technique. When installing a TV, refer to this manual carefully. Sony is not liable for any accidents or damages caused by incorrect installation or handling. Please give this manual to the customer after installation. Products by Sony are designed with safety in mind. Incorrect use may result in a serious injury through fire, electric shock, the product toppling over, or the product dropping. Be sure to observe the precautions for safety to prevent such accidents. Specified products The following products are subject to change without notice. Certain models may be out of stock or discontinued, or may not be available in certain regions. This Floor Stand is designed for use with the products specified above. For other TVs, refer to their operating instructions to verify that the Floor Stand can be used. Some TVs are supplied with a leaflet explaining how to install the Floor Stand. For customers This product should only be installed by qualified Sony service representatives, as it requires two or more people, special care, safety, and technique. WARNING On Safety CAUTION LCD color TV KDL-52X3500 KDL-52X2000 KDL-52W3000 KDL-46X3500 KDL-46X3000 KDL-46X2000 KDL-46W3000 KDL-46V3000 KDL-40X3500 KDL-40X3000 KDL-40X2000 KDL-40W3000 KDL-40V30003 (GB) Products should only be installed by qualified Sony service representatives. The TV and the Floor Stand are very heavy; installation by non-qualified persons could result in serious injury. Be sure to take measures to prevent the Floor Stand from toppling over. If you fail to do so, the TV may topple over and cause injury. Anchor the TV to a wall, pillar, etc., to prevent toppling over. Be sure to install the Floor Stand on a solid and flat floor. Do not install the Floor Stand so that it leans in one direction. If you do so, the Floor Stand may topple over or the TV may fall. This may cause injury or damage. If you install the Floor Stand on a soft surface such as a mat or a carpet, lay a board over the designated location beforehand. Do not use a cracked Floor Stand. Do not lean on or hang from the TV. The Floor Stand may topple over, or the TV may fall and cause serious injury or death. Do not allow children to climb on the Floor Stand or crawl between the shelves. If children climb on the Floor Stand or get between the shelves, serious injury or death can result if the glass breaks or the Floor Stand and the TV topples over. Do not step on the Floor Stand. You may fall, or break the glass and cause injury. Do not cover the ventilation holes of the TV. If you cover the ventilation holes (with a cloth, etc.), heat may build up inside and cause fire. Do not allow the AC power cord or the connecting cable to be pinched.

• Do not allow the AC power cord or the connecting cable to be pinched when you install the TV on the Floor Stand. If the AC power cord or the connecting cable is damaged, this may result in fire or electric shock.

• Do not step on the AC power cord or the connecting cable when you carry the Floor Stand. The AC power cord or the connecting cable may be damaged, and this may result in fire or electric shock. Do not stumble over the AC power cord or the connecting cables. You may trip, or may cause the Floor Stand to topple over and cause injury. Do not move the Floor Stand with the TV attached or with connected equipment inside. If you move the Floor Stand with the TV attached, it may hurt your back, or the Floor Stand may topple over and cause serious injury. Also, any connected equipment within may fall and cause the glass shelf to break or other property damage. WARNING If the following precautions are not observed, serious injury or death can result through fire, electric shock, or the product toppling over. Do not use the Floor Stand if it has sustained any cracks. The glass may break and cause the TV to topple over, which could cause serious injury or damage. Cracked Floor Stand

English4 (GB) Do not install any equipment other than the specified product.

• This Floor Stand is designed for use with the specified product only. If you install equipment other than specified, it may fall or break, and cause injury.

• Do not place objects such as vases, pottery, etc., on the Floor Stand.

• Do not modify the Floor Stand.

• Do not place anything hot directly on the Floor Stand. The heat may cause discoloration or deformation of the Floor Stand.

• Do not place anything directly on the Floor Stand that may damage the glass. Be sure to secure the TV. Secure the TV to the Floor Stand using the supplied lock screws. If the TV is not installed securely, it may fall or the Floor Stand may topple over, and cause injury. Do not apply weight to the glass or subject it to any kind of impact. Do not apply weight to the Floor Stand with your hand when installing the TV. Do not hit the Floor Stand with hard objects, such as a screwdriver, etc. The glass may break and cause injury. When carrying the Floor Stand Trying to move the Floor Stand alone, or without following the proper procedures, may cause injury. To avoid this, be sure to follow the advice given below.

• Be sure that two or more persons carry the Floor Stand, and only after removing the TV, connected equipment and glass shelves.

• Do not drag the Floor Stand. The base parts of the Floor Stand may come off and damage the floor.

• Be careful not to allow your hands or feet to be pinched under the bottom plate.

• Do not grab the glass shelf when carrying the Floor Stand. Do not subject the glass to excessive shock. This Floor Stand is made of tempered glass, but care should be taken. If the glass breaks, glass fragments could cause injury, so observe the precautions below.

• Do not hit the glass or drop sharp-pointed objects on the glass. Avoid excessive shock.

• Do not scratch or poke the glass with sharp-pointed objects.

• Do not let hard objects such as a vacuum cleaner hit the edges of the glass. Note on carrying capacity Do not place any equipment which exceeds the maximum weight for each shelf as indicated in the illustration. Otherwise, the shelves may break. Notes on installation

• When assembling, lay the packing materials on the floor to avoid damage to the floor.

• Install the Floor Stand on a solid and flat floor. Do not allow the Floor Stand to be installed at an angle or incline. To avoid this, observe the following precautions. – Do not install the Floor Stand in a place subject to direct sunlight or near a heater. – Do not install the Floor Stand in a hot or humid place, or outdoors. Note on use To keep the Floor Stand clean, occasionally wipe it with a dry soft cloth. Stubborn stains may be removed by wiping with a cloth slightly dampened with mild soap. Be sure to dry the area afterwards with a dry soft cloth. Do not use chemicals, such as thinner or benzine, as they damage the finish of the Floor Stand. CAUTION If the following precautions are not observed, injury or property damage may occur. 20 kg (44 lb 2 oz)30 kg (66 lb 3 oz)5 (GB) Be sure that two or more persons do the installation work. Be sure that two or more persons install the TV on the Floor Stand. If one person does the installation work alone, this may result in an accident or injury. Be sure to keep children away during the installation. Be sure to assemble the Floor Stand securely following the instructions. If a screw is not tightened securely, or it has fallen out, it may cause the Floor Stand to topple over. This may cause damage or injury. Be careful not to injure your hands or fingers while assembling. Be careful not to pinch your fingers or hands when assembling the Floor Stand and installing the TV. Be sure to install the TV securely following the instructions. Tighten the screws securely. If the TV is not installed securely, it may fall and cause injury. Be sure to have a Phillips screwdriver that fits the screws indicated above prior to the assembly. To Sony dealers Be sure to thoroughly read the safety precautions described previously and pay special attention to safety during the installation, maintenance, checking, and repair of this product. Step 1: Checking the parts Name Quantity Frame

Hook screw (+PSW6 × 16)

Lock screw (S) 2 Lock screw (L) 26 (GB) Step 2: Assembling the Floor Stand If you allow the AC power cord to be pinched under or between pieces of equipment, this may result in a short circuit or an electric shock. If you stumble over the AC power cord or the connecting cable, the Floor Stand may topple over and cause injury. Decide on the installation location and lay the Floor Stand down before installing the TV. Since the TV is heavy, it is recommended that you decide on the installation location beforehand, and assemble the Floor Stand on site.

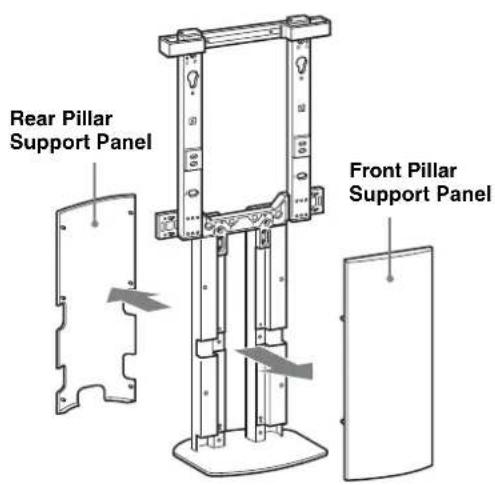

Detach the Front and Rear Pillar Support Panels from the Center Pillar. WARNING Front Pillar Support PanelRear Pillar Support Panel

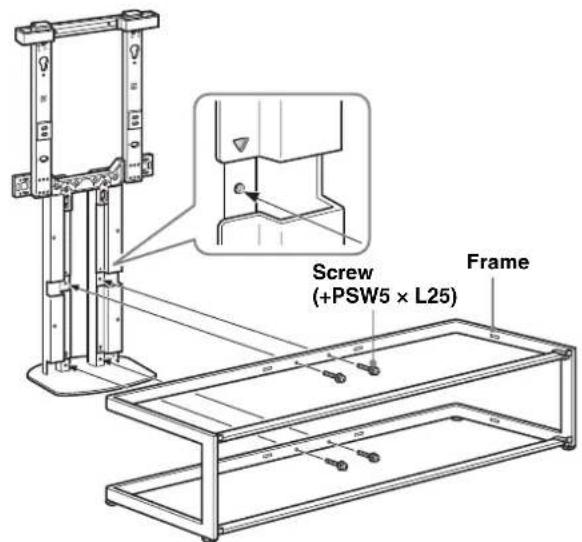

Attach the Center Pillar to the Frame. Match the screw holes of the Frame and the “F” marks of the Center Pillar and secure them with the four supplied screws (+PSW5 × L25).

• Be sure that two or more persons assemble the Floor Stand.

• Loosely attach the Center Pillar to the Frame with the four screws, then tighten all screws sufficiently.

• When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}.

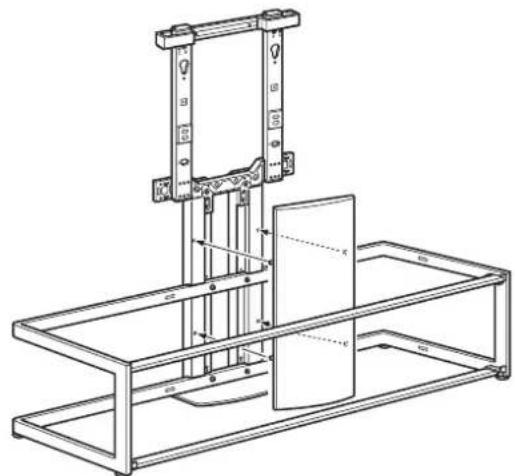

Attach the Front Pillar Support Panel. Before attaching the Front Pillar Support Panel, check that the four screws are firmly tightened. Screw(+PSW5 × L25)Frame Notes Note7 (GB) If you intend to install a TV that is not specified on page 2, be sure to refer to the leaflet supplied with your TV. For KDL-46X3500, KDL-46X3000, KDL-46W3000, KDL- 46V3000, KDL-40X3500, KDL-40X3000, KDL-40W3000, KDL-40V3000 users, the procedures for adjusting the position of the Support Frame are not necessary. Follow from

part 3 of this Step.

Step 3: Preparing for the installation of the TV

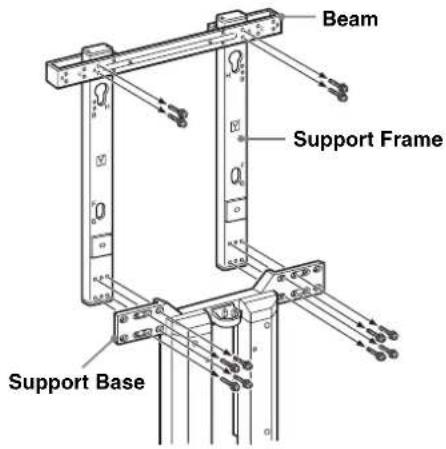

Detach the Beam and the Support Frame. Note Be careful not to drop the Beam and the Support Frame when detaching them.

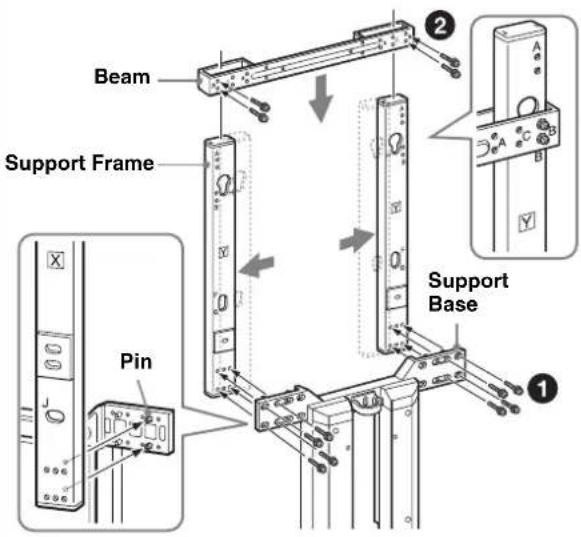

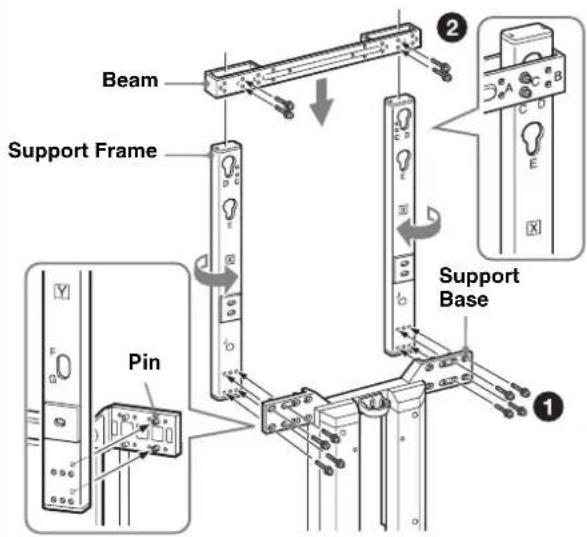

Adjust the position of the Support Frame.

For KDL-52X3500, KDL-52W3000 1 Attach the Support Frame to the Support Base matching the holes of the Support Frame to the pins of the Support Base, and secure the eight screws removed in part 1, as shown in the illustration. 2 Align hole “B” of the Beam and hole “B” of the Support Frame and secure with the four screws which were removed in part 1. Support Frame Beam Support Base

For KDL-52X2000, KDL-46X2000, KDL- 40X2000 1 Reverse the Support Frame to make the “Y” marking face front. Then attach the Support Frame to the Support Base matching the holes of the Support Frame to the pins of the Support Base, and secure the eight screws removed in part 1, as shown in the illustration. 2 Align hole “C” of the Beam and hole “C” of the Support Frame and secure with the four screws which were removed in part 1. Note When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}. Support Frame Beam Support Base Pin Support Frame Beam Support Base Pin (Continued)8 (GB) If you intend to install a TV that is not specified on page 2, be sure to refer to the leaflet supplied with your TV.

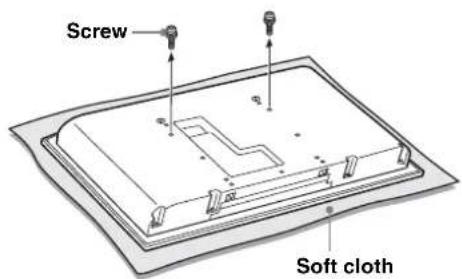

Detach the Table-Top Stand from the TV. If your TV is not attached to the Table-Top Stand, this procedure is not necessary. Before detaching the Table-Top Stand, disconnect all the cables from the TV. 1 Remove the four screws from the rear of the TV and detach the Table-Top Stand. 2 For KDL-46X2000, KDL-40X2000 only, remove the two screws on the rear of the TV.

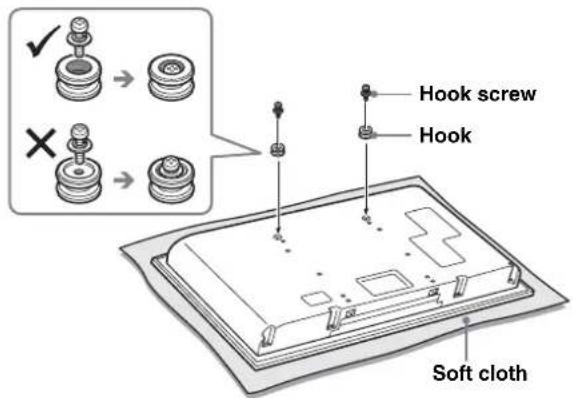

Attach the two hooks on the rear of the TV. Place the TV with its screen facing down on a stable cloth-covered work surface. Attach the supplied two hooks with the two supplied screws (+PSW6 × 16). For the following models, use the two supplied screws (+PSW5 × 16) instead:

KDL-52X2000, KDL-46X2000, KDL-40X2000

ScrewSoft clothHook screw Hook Soft cloth Step 4: Installing the TV

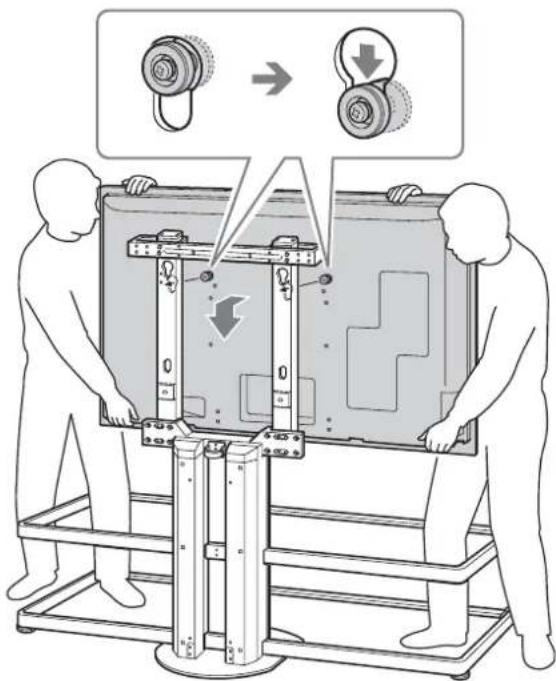

Attach the TV to the Floor Stand. Referring to the hook and screw locations diagram/ table on page 12, insert the two hooks on the rear of the TV into the top portion of the holes of the Center Pillar. Be careful not to topple the Floor Stand when attaching the TV to the Floor Stand. Note9 (GB)

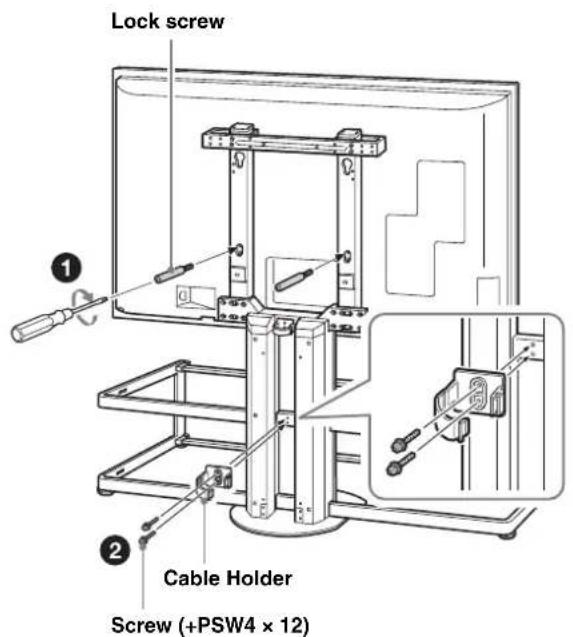

Secure the TV and the Floor Stand, and attach the cable holder. 1 Referring to the hook and screw locations diagram/ table on page 12, determine the screw holes and secure the two supplied lock screws (L) to the holes. For the following models, use the two supplied lock screws (S):

KDL-52X2000, KDL-46X2000, KDL-40X2000

2 Attach the cable holder to the rear of the Center Pillar with the two supplied screws (+PSW4 × 12).

• If the two lock screws are not used to secure the TV, it may fall and cause injury.

• When using an electric screwdriver, set the torque setting to approximately 1.5 N·m {15 kgf·cm}. Lock screwScrew (+PSW4 × 12)Cable Holder Notes Step 5: Attaching the Glass Shelves

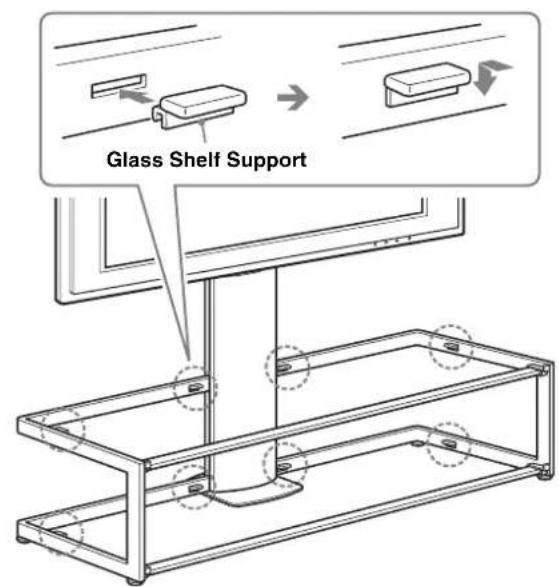

Attach the eight Glass Shelf Supports to the Frame. Insert the Glass Shelf Supports into the holes of the Frame, checking that they are parallel and level. Glass Shelf Support Note (Continued)10 (GB)

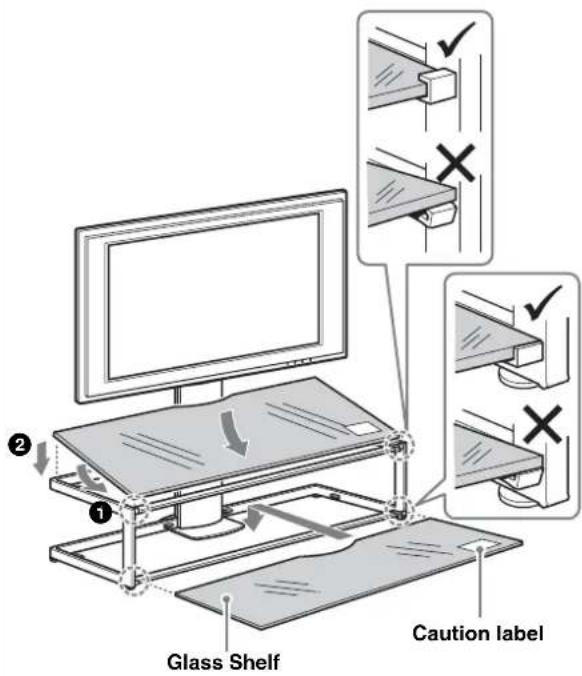

Install the lower Glass Shelf first, and then install the upper Glass Shelf.

• Be careful not to pinch your fingers between the Frame and Glass Shelves when installing the Glass Shelves.

• Insert the Glass Shelves after installing the TV on the Floor Stand, otherwise, you may hit the glass with the TV during installation and product damage or personal injury may result.

• Attach the Glass Shelves to the Floor Stand with the “caution” label at front right, as shown in the illustration. Glass ShelfCaution label

Notes Step 6: Connecting the cables

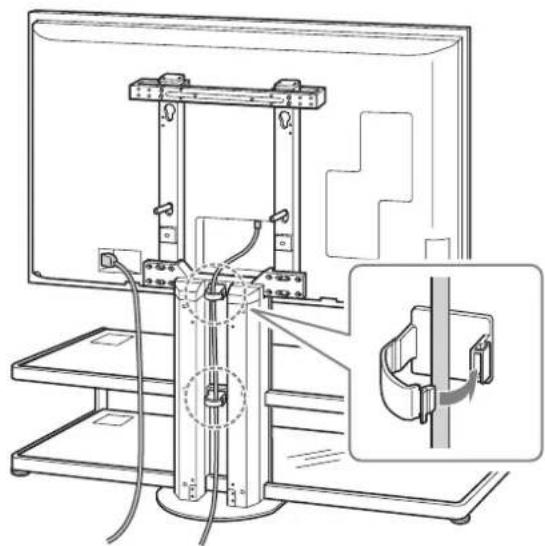

Connect the AC power cord and other cables to the TV. Connect the cables and run them through the cable holders, and down the rear of the Center Pillar.

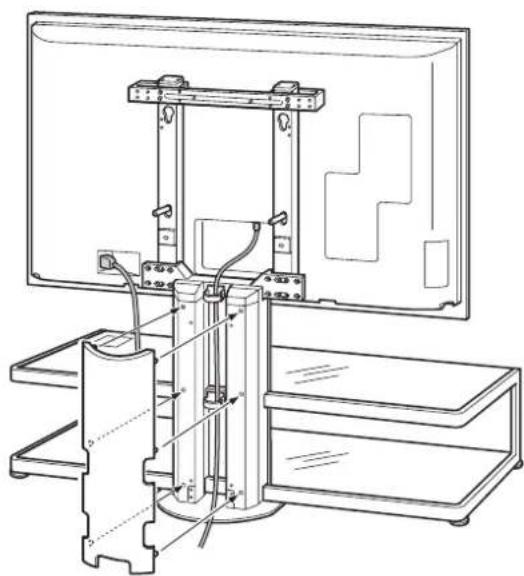

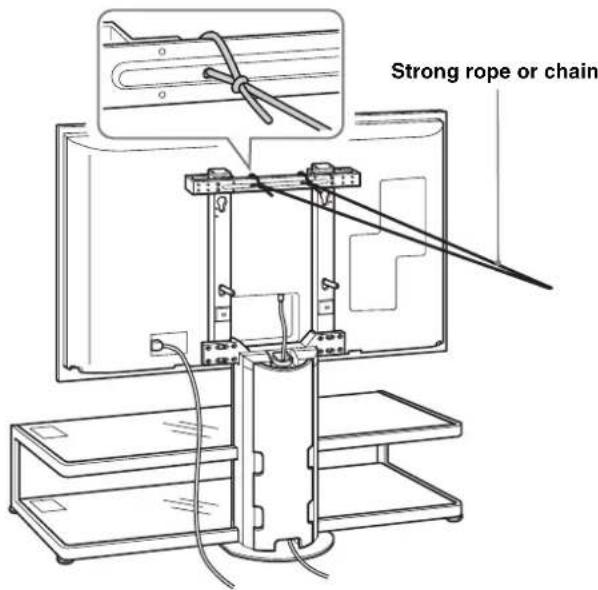

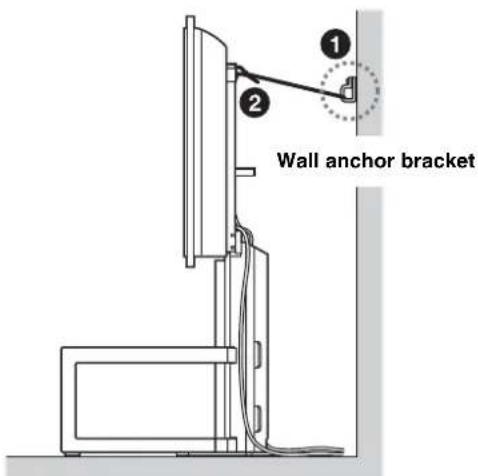

Attach the Rear Pillar Support Panel.11 (GB) Design and specifications are subject to change without notice. Step 7: Safety measures to prevent toppling over Be sure to take measures to prevent the Floor Stand from toppling over and causing possible injury and damage. Prepare a strong, commercially-available rope or chain and wall anchor bracket for this purpose. 1 Secure the wall anchor bracket to a solid wall. 2 Pass the rope or chain through both holes of the Beam and then tighten the other end of the rope or chain to the wall anchor bracket. WARNING Wall anchor bracket Strong rope or chain Specifications Do not place any equipment on the Glass Shelves which exceeds its maximum weight, as it may break and cause injury. Dimensions: mm (inches) A 1,393 (54 7/8) B 1,425 (56 1/8) C 616 (24 3/8) D 419 (16 1/2) E 462 (18 1/4) F 220 (8 3/4) G 1,451 (57 1/4) H 1,094 (43 1/8) I 297 (11 3/4) Weight: 48 kg (105 lb 14 oz)

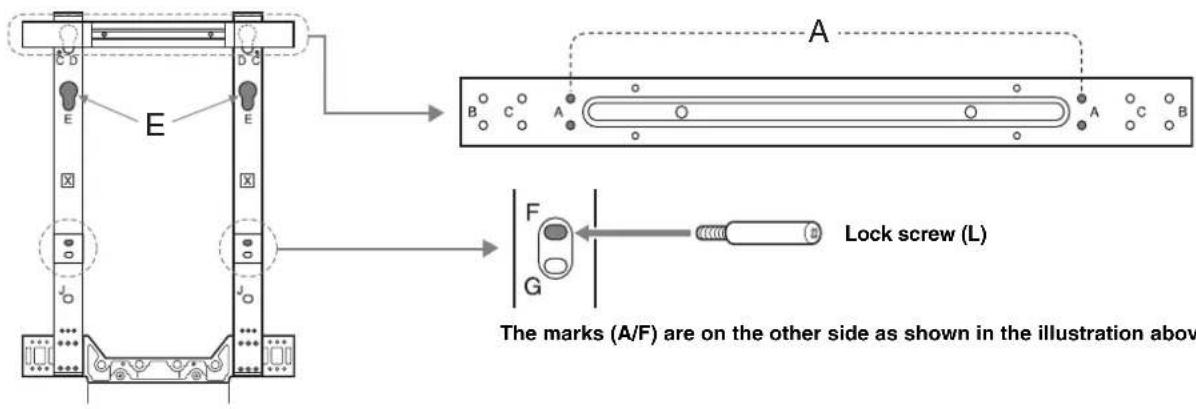

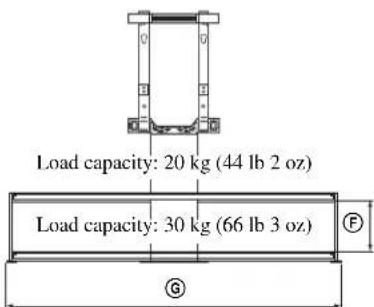

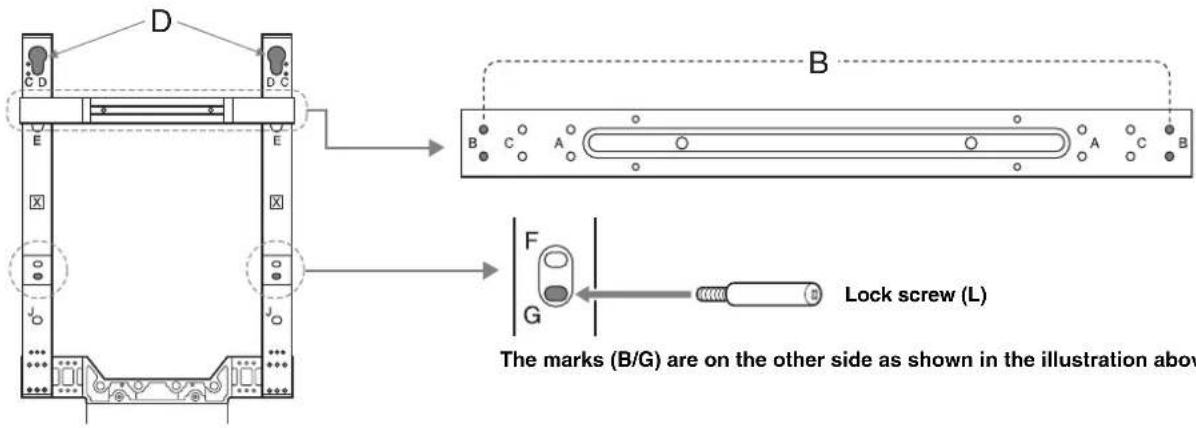

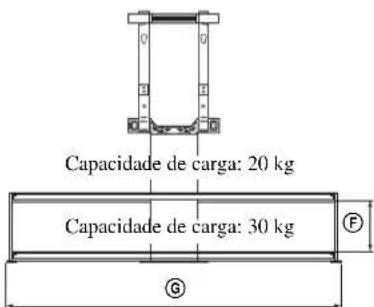

Load capacity: 30 kg (66 lb 3 oz) Load capacity: 20 kg (44 lb 2 oz) Note on carrying capacity12 (GB) Hook and screw locations diagram/table Model name Hook position Lock screw position Beam/Support Frame position

The marks (A/F) are on the other side as shown in the illustration above. Lock screw (L)

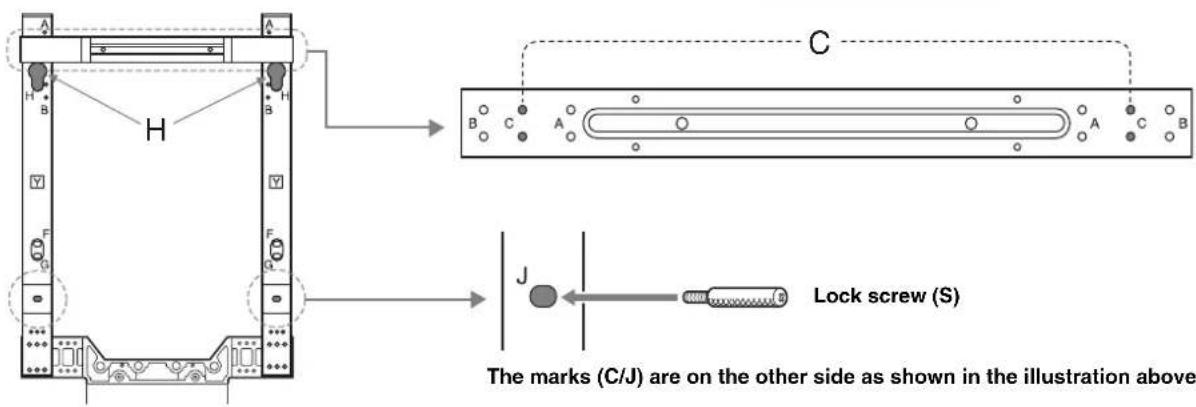

The marks (B/G) are on the other side as shown in the illustration above. Lock screw (L)
