USER MANUAL Power Tower PT60 TUNTURI

Download Free Tunturi Training App

Attention, Achtung, Attention, Attentie, Attenzione, Atencion, Giv akt, Huomio

• Please read this user manual carefully prior to using this product.
• Lesen Sie sich vor dem Gebrauch des Produkts diese Bedienungsanleitung sorgfältig durch.
• Veuillez dire attentivement leprésent manuel de l'utilisateur avant d'utiliser ce produit.
• Lees deze gebruikershandleiding zorgvuldig voordat u dit product gaat gebruiken.
• Leggere attendamente quello manuale dell'utente prima di utilizzato il prodotto.
• Antes de utiliser este producto, lea atentamente estemanual de usuario.
• Läs den här användarhandboken noggrant före användning av den härprodukten.
  -Lue tama kayttoohje huolellisesti ennen tamntuotteen kayttoa.

A

B

1	2	3	4	5
6	7	10	11	12
13	14	15	16	17
18	19	20	21	22
23	24	25	26	27
28	41	42

C

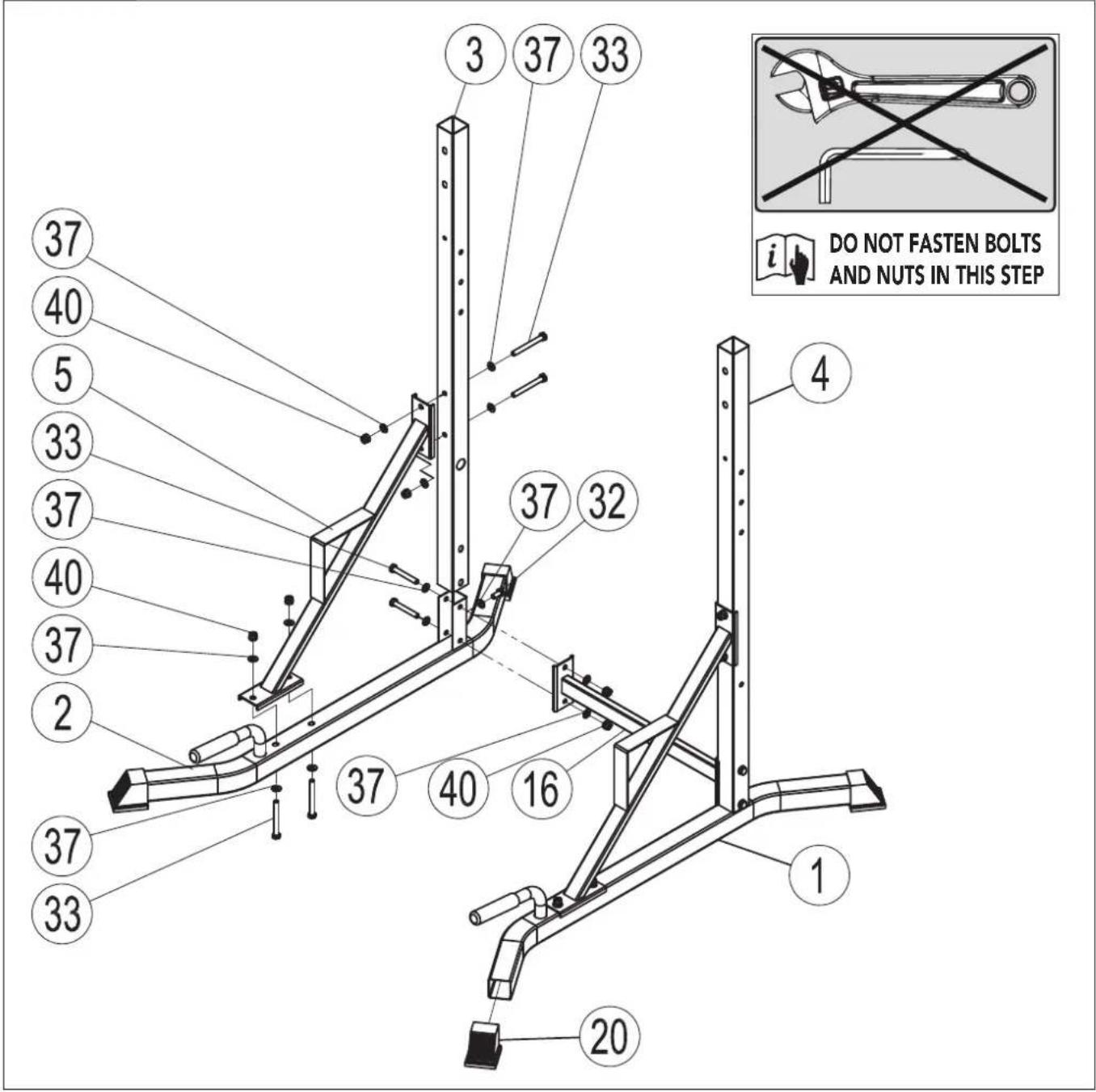

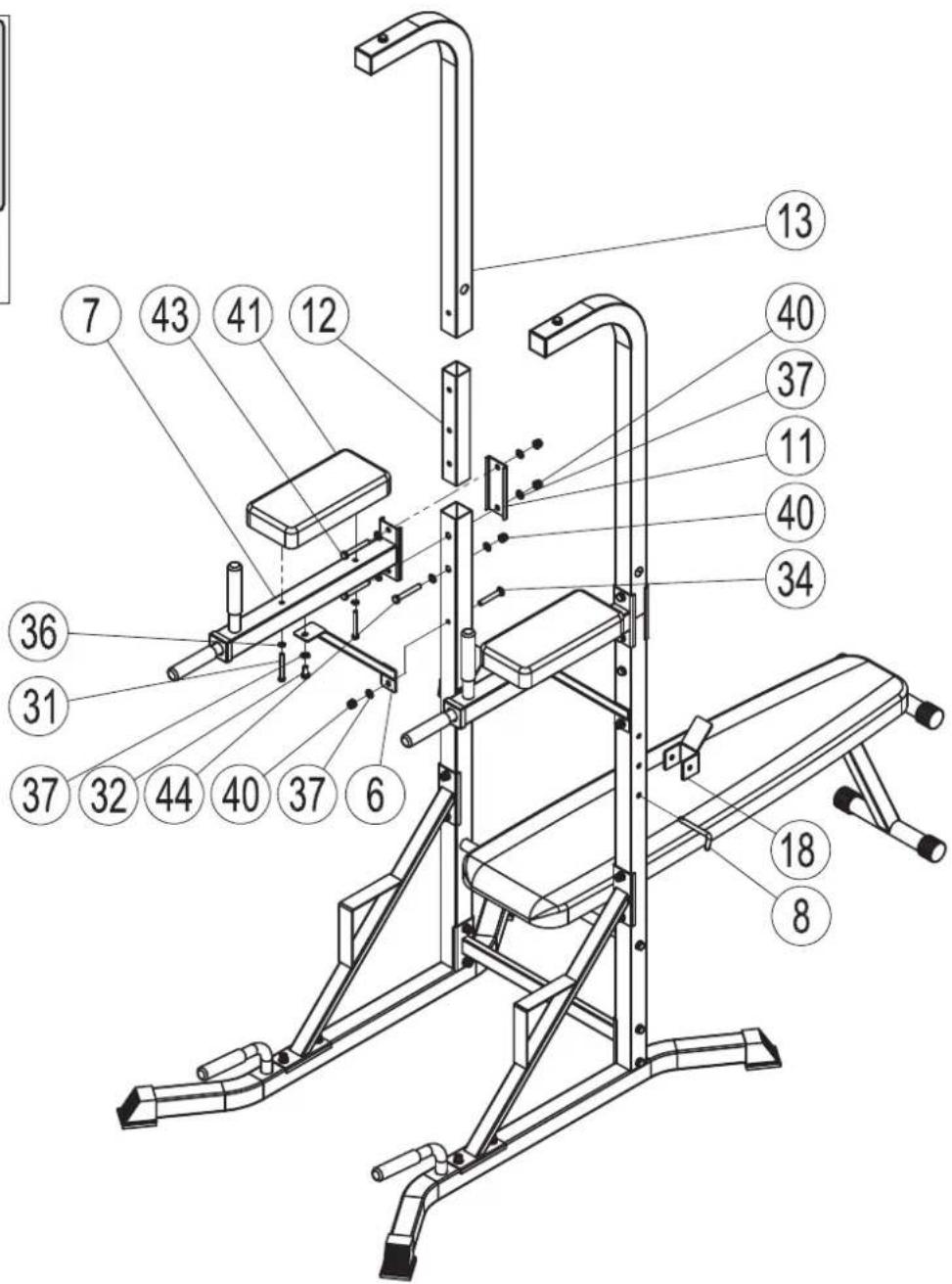

D-1

DO NOT FASTEN BOLTS AND NUTS IN THIS STEP

DO NOT FASTEN BOLTS AND NUTS IN THIS STEP

6#		Qty:2
7#		Qty:2
8#	∅10	Qty:2
11#		Qty:2
12#		Qty:2
13#		Qty:2
18#		Qty:2
41#		Qty:2

31#		M8*70	Qty:4
32#		M10*16	Qty:2
34#		M10*65	Qty:2
36#		8	Qty:4
37#		10	Qty:16
40#		M10	Qty:8
43#		M10*70	Qty:4
44#		M10*65	Qty:2

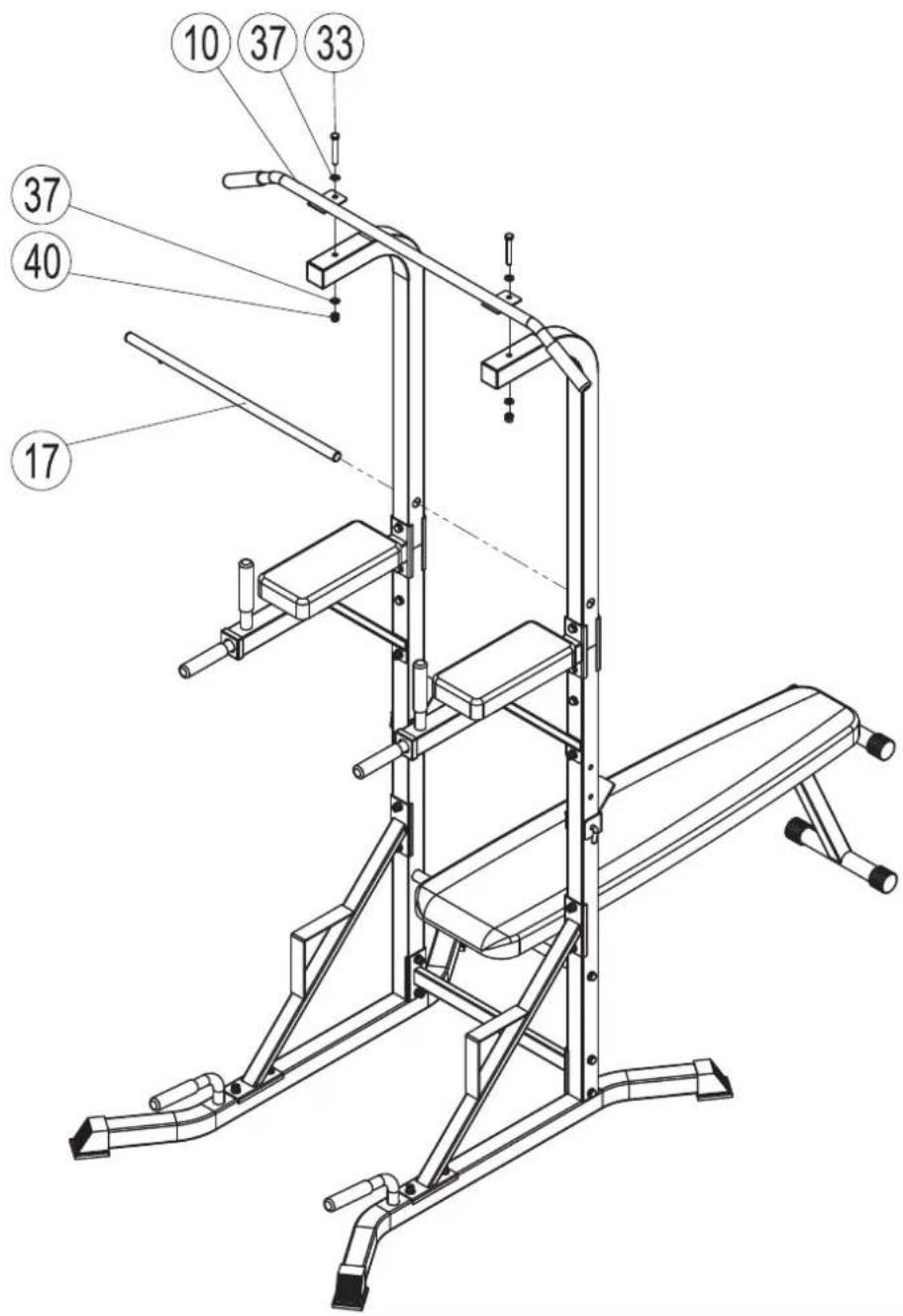

D-4

DO FASTEN ALL BOLTS AND NUTS IN THIS STEP AND BOLTS AND NUTS OF FORMER STEPS

10#		Qty:1
17#		Qty:1

33#		M10*67	Qty:2
37#		10	Qty:4
40#		M10	Qty:2

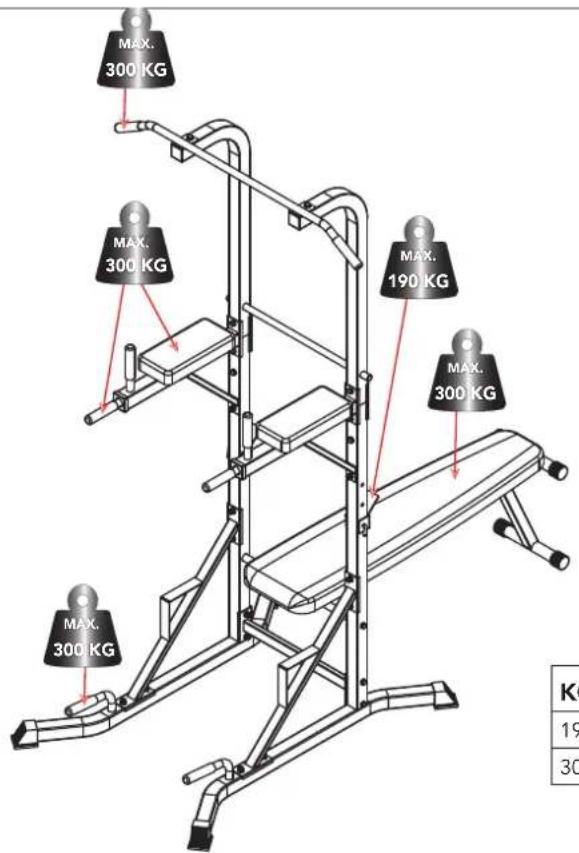

W-1

KG Lbs
190 420
300 660

W-1

Index

Welcome. 11

Important safety notice. 11

Important assembly information 11

Before you start. 11

Description illustration A. 12

Description illustration B. 12

Description illustration C. 12

Description illustration D. 12

Fasten Nuts and Bolts 12

Free area (Fig. D-0) 12

Additional information 12

Exercise guidelines 12

Building Muscle and Gaining Weight 12

Muscle Strength and Endurance 12

Training Intensity 13

Beginning a Strength Building Program 13

Cleaning and maintenance. 13

Defects and malfunctions. 13

Warranty. 13

Limited warranty. 13

Weight capacity and dimension. 14

Disclaimer 14

Welcome

Welcome to the world of Tunturi!

Thank you for purchasing this piece of Tunturi equipment.

Tunturi offers a wide range of home fitness equipment, including crosstrainers, treadmills, exercise bikes, rowers, strength benches and multi stations. The Tunturi equipment is suitable for the entire family, no matter what fitness level. For more information, please visit our website www.tunturi.com

Important Safety Instructions

This manual is an essential part of your training equipment please read all instructions in this manual before you start using this equipment. The following precautions must always be followed:

Important safety notice

This exercise equipment is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your equipment. In particular, note the following safety precautions:

• Keep children and pets away from the equipment at all times. DO NOT leave children unattended in the same room with the equipment.
• Only one person at a time should use the equipment.
• If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

Position the equipment on a clear, levelled surface. DO NOT use the equipment near water or outdoors.

• Keep hands away from all moving parts.
• Always wear appropriate workout clothing when exercising. DO NOT wear robes or other clothing that could become caught in the equipment. Running or aerobic shoes are also required when using the equipment.

Use the equipment only for its intended use as described in this manual. DO NOT use attachments not recommended by the manufacturer.

• Do not place any sharp object around the equipment.
• Disabled person should not use the equipment.
• Before using the equipment to exercise, always do stretching exercises to properly warm up.
• Never operate the equipment if the equipment is not functioning properly.
• A spotter is recommended during exercise.
• This equipment is designed and intended for home and consumer use only, not for commercial use.

Warning:

Before beginning any exercise program, consult your physician. This is especially important for individuals over the age of 35 or persons with pre-existing health problems.

Read all instructions before using any fitness equipment.

Tunturi New fitness bv. assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Save these instructions!

Important assembly information

Before you start

We recommend to use two adjustable wrenches to assemble your product. If you have metric sized wrenches in correct size this is fine too.

NOTE

• Suitable (adjustable) wrenches are "NOT" provided with the product, neither included in the assembly kit.
  It is strongly recommended that this equipment is assembled by two or more people to avoid possible injury.

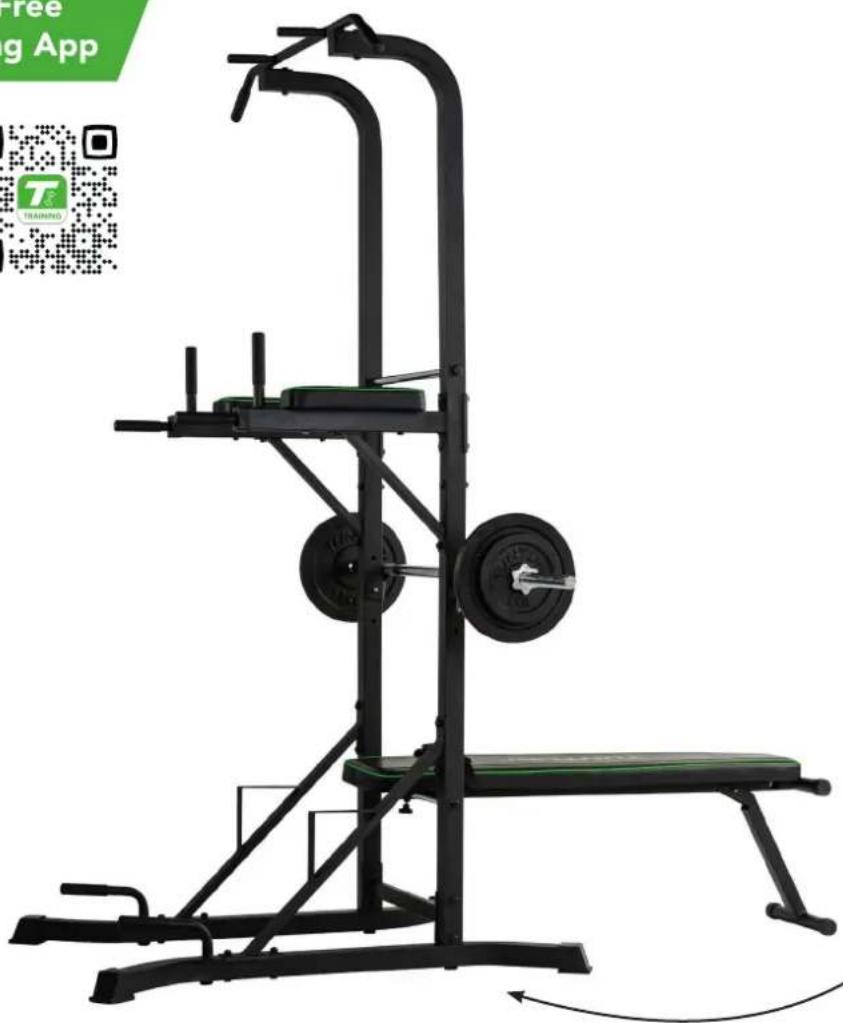

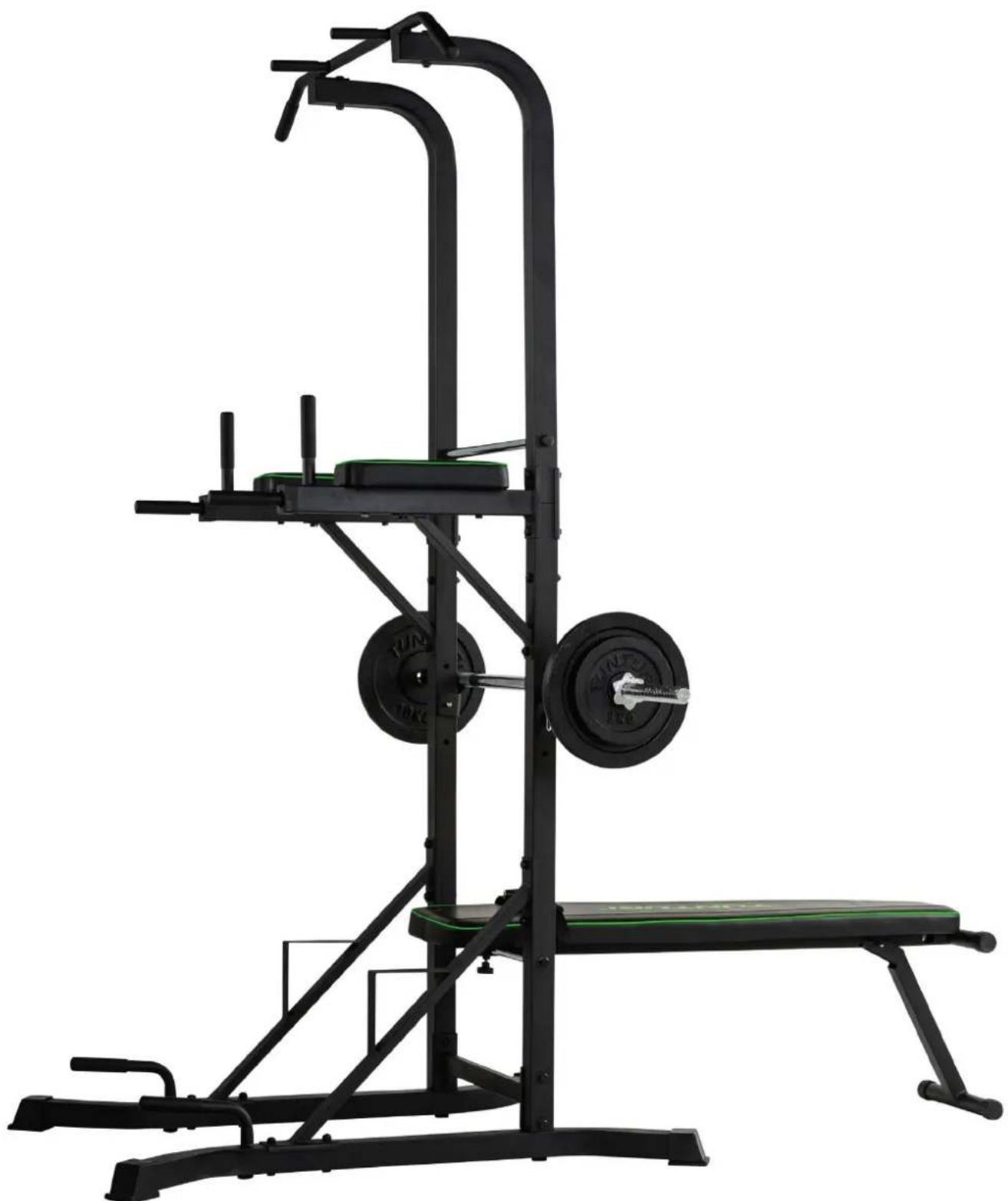

Description illustration A

The illustration shows what the trainer will looks like after the assembly is completed.

You can use this as a reference during your assembly, but do follow the assembly steps always in the correct sequence as showed in the illustrations.

Description illustration B

The illustration shows what components and parts you should find when un-boxing your product.

NOTE

• Small parts can be hidden/ packed in hollow spaces in the Styrofoam product protection
  If a part is missing, contact your dealer.

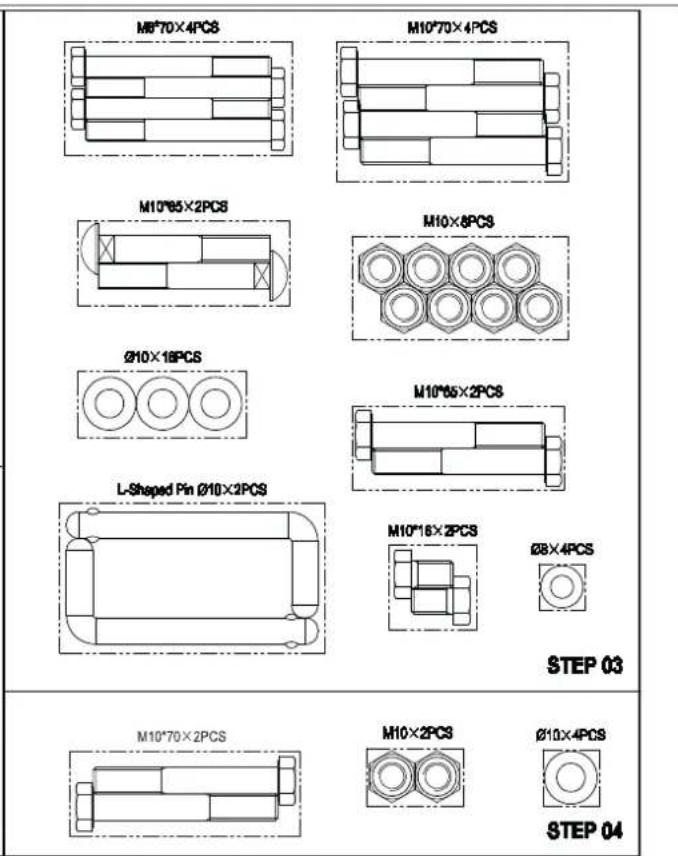

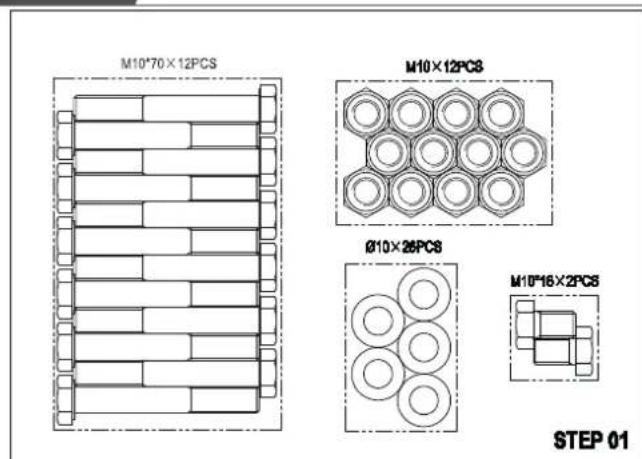

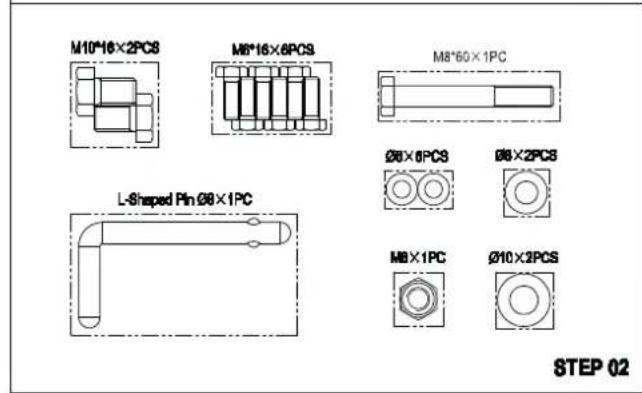

Description illustration C

The illustration shows the hardware kit that comes with your product. The hardware kit contains bolts, washers, screws, nuts etc. and the required tools to properly fit your trainer.

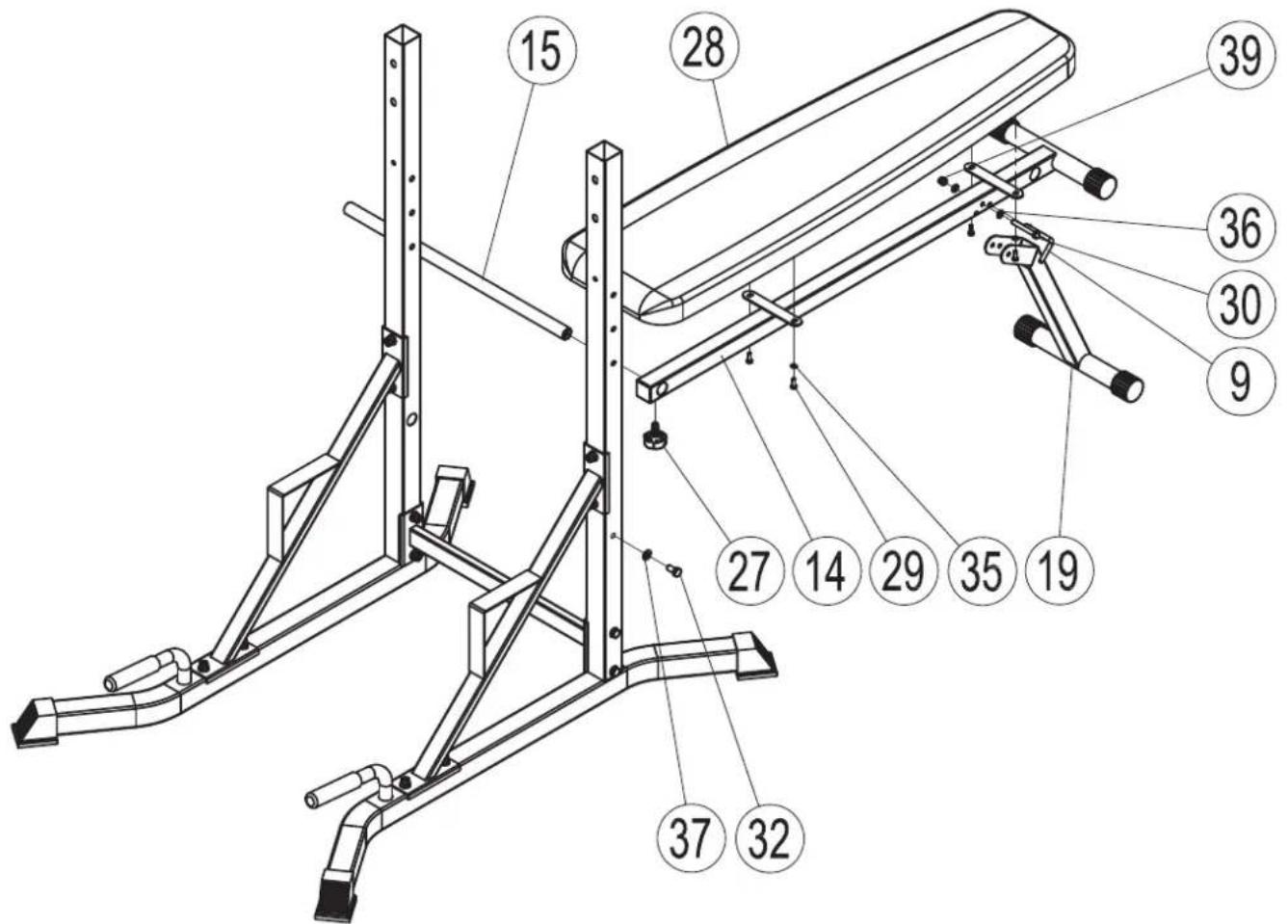

Description illustration D

The illustrations show you in the correct following order how to assembly your trainer best.

NOTE

• Part numbers shown in the assembly steps are commencing with the spare part drawing that can be found in the online full version user manual.

WARNING

• Assemble the equipment in the given order.
• Carry and move the equipment with at least two persons.

CAUTION

• Place the equipment on a firm, level surface.
• Place the equipment on a protective base to prevent damage to the floor surface.
  Refer to the illustrations for the correct assembly of the equipment.

Fasten Nuts and Bolts

Securely tighten all Nuts and Bolts after all components have been assembled in current and previous steps.

NOTE

• Do not over tighten any component with pivoting function.
• Make sure all pivoting components are able to move freely.

Do not tighten all Nuts and Bolts in this step.

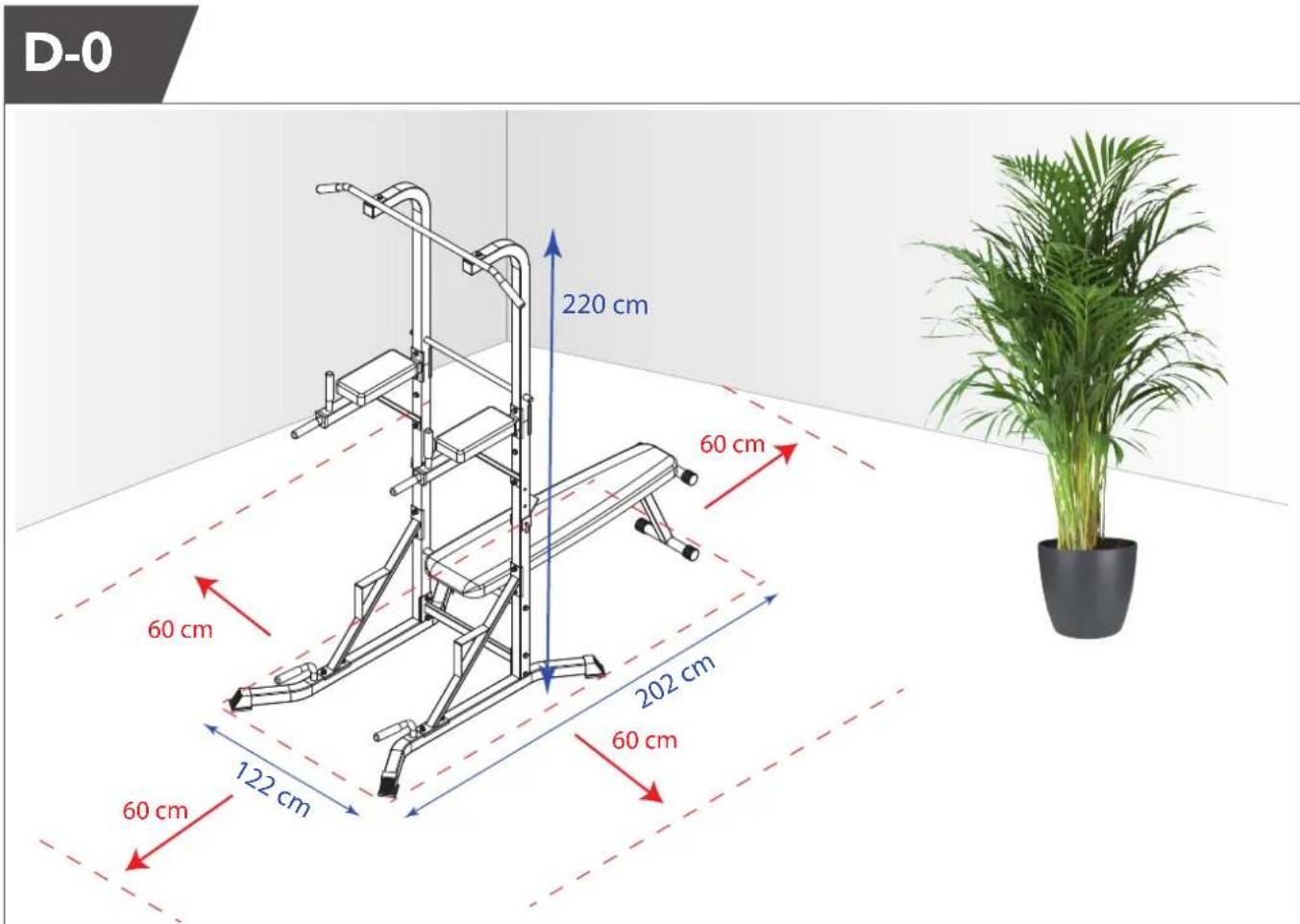

Free area (Fig. D-0)

Adequate space is a prerequisite for use.

The free area should be no less than 0.6m greater than the *training area in the directions from which the equipment is accessed.

The free area must also include the area for emergency dismount.

Where equipment is positioned adjacent to each other, the value of the free area may be shared.

*Training area is the maximum length/width/ height of the trainer, including moving parts, been measured to its maximum length/ width/ height during use.

IMPORTANT

Because your trainer will/ can set in the first using hours, we recommend you do a quick check on the hardware you have fitted during your assembly.

We suggest tightening all bolts and nuts once again after the first few workout sessions (approximate 10 hours).

Just to assure the bolts and nuts are still tightened well for your trainer's best performance.

NOTE

We recommend checking the hardware regularly, at least once every 3 months.

Additional information

Packaging disposal

Government guidelines ask that we reduce the amount of waste material disposed of in land fill sites. We therefore ask that you dispose of all packaging waste responsibly at public recycling centres.

End of life disposal

We at Tunturi hope you enjoy many years of enjoyable use from your fitness trainer. However, a Time will come when your fitness trainer will come to the end of its useful life. Under 'European WEEE Legislation you are responsible for the appropriate disposal of your fitness trainer to a recognised public collection facility.

Exercise guidelines

Building Muscle and Gaining Weight

Unlike aerobic exercise, which emphasizes endurance training, anaerobic exercise focuses on strength training. A gradual weight gain can occur while building the size and strength of muscles. While developing muscle mass, your body adapts to the stress placed upon it. You can modify your diet to include foods such as meat, fish and vegetables.

These foods help muscles recover and replenish important nutrients after a strenuous workout.

Muscle Strength and Endurance

To achieve the greatest benefit from exercise, it is important to develop an exercise program that allows you to work all of the major muscle groups equally.

To increase muscles strength; follow this principle:

Increasing resistance and maintaining the number of repetitions of an exercise results in increased muscle strength.

To tone your body, follow the principle: Decreasing resistance plus increasing the number of repetitions of an exercise results in increased body tone.

Once you feel comfortable with an exercise, you can change the resistance, the number of repetitions, or the speed at which you do the exercise. It is not necessary to change all three variables. For example, let's say that you are training at 10kg and performing the exercise 10 times in 3 minutes. When this becomes too easy, you may decide to move up lifting 12kg for the same number of repetitions in the same amount of time. Lifting more weights fewer times most often develops muscle strength. To gain both muscle strength and endurance, it is recommended that you perform each exercise 15 to 20 reps per set.

Training Intensity

How hard you begin to train depends on your overall level of fitness. The soreness you experienced can be lessened by decreasing the load you place on your muscles and by performing fewer sets.

To avoid injury, you should gradually work into an exercise program and set the load to your individual fitness level. The load should increase as your fitness level increases.

Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a long time, it may be time to change your program. Eventually, your muscle system will become accustomed to the stress and strain placed on it

Beginning a Strength Building Program

Warming Up

To begin strength training, it is important to stretch and perform light exercise for 5 to 10 minutes. This helps prepare the body for more strenuous exercise by increasing circulation, raising your body temperature and developing more oxygen to your muscles.

Exercise

Each workout to keep in mind that muscle soreness that lasts for a long period in not desirable and may mean that injury has occurred.

Cool Down

At the end of each workout, perform slow stretching exercises for 5 to 10 minutes. Ease into each stretch only going as far as you can. This stage allows your muscles wind down after training.

To provide a total workout program it is also recommended that 2 to 3 days of aerobic exercise is performed in addition to the strength training.

Drinking Water

For the body to function properly, it must be properly hydrated. If you are exercising, you should increase your fluid intake. The reason for this is that the water you take in will leave your system through the sweating mechanism that cools your body during exercise. The water you lose through exercise must be replaced so that the muscles can recover properly.

Rest Day

Although you may not feel like doing it, taking a rest day at least once a week is important because it gives you body a chance to heal it self. Continuously working your muscle will result in over training which will not benefit in the long run.

Cleaning and maintenance

• Lubricate moving parts with WD-40 or light oil periodically.
• Inspect and tighten all parts before using the equipment.
• The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. DO NOT use solvents.
• Examine the equipment regularly for signs of damages or wear.
• Replace any defective components immediately and/or keep the equipment out of use until repair.
• Failure to examine regularly may affect the safety level of the equipment.

Defects and malfunctions

Despite continuous quality control, defects and malfunctions caused by individual parts can occur in the equipment. In most cases, it will be sufficient to replace the defective part.

• If the equipment does not function properly, immediately contact the dealer.
• Provide the model number and the serial number of the equipment to the dealer. State the nature of the problem, conditions of use and purchase date.

Further contact information or user manuals in other languages can be found on our website.

Warranty

Tunturi purchaser's warranty

Warranty terms

The consumer is entitled to the applicable legal rights stated in the national legislation concerning the commerce of consumer goods. This warranty does not restrict these rights. The Purchaser's Warranty is only valid if the item is used in an environment approved by Tunturi New Fitness BV, and is maintained as instructed for that particular equipment. The product-specific approved environment and maintenance instructions are stated in the "user manual" of the product. The "user manual" can be downloaded from our website. http://manuals.tunturi.com

Limited warranty

Tunturi New Fitness warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the frame and one year on all other parts and components from the date of purchase. This warranty extends only to the original purchaser. Tunturi New Fitness's obligation under this Warranty is limited to replacing damaged or faulty parts at Tunturi New Fitness's option.

All returns must be pre-authorised by Tunturi New Fitness. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage, purchasers own repairs or for products used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorised by Tunturi New Fitness.

Tunturi New Fitness is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.

Your statutory rights are not affected.

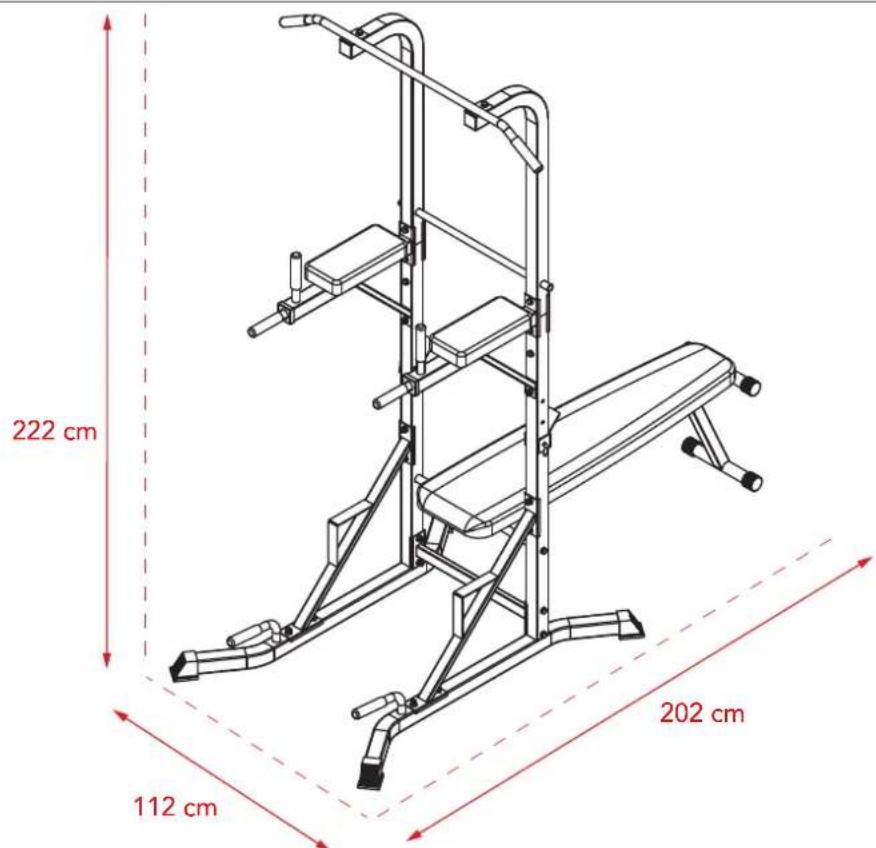

Weight capacity and dimension

(Fig. W#1)

Maximum load weight: 300kg

Assembled Dimension: 112 × 202 × 220 cm .

Disclaimer

© 2020 Tunturi New Fitness BV

All rights reserved.

• The product and the manual are subject to change.
• Specifications can be changed without further notice.
• Check our website for the latest user manual version.
