USER MANUAL HOVEN 300 HOC3E3158IN HOOVER

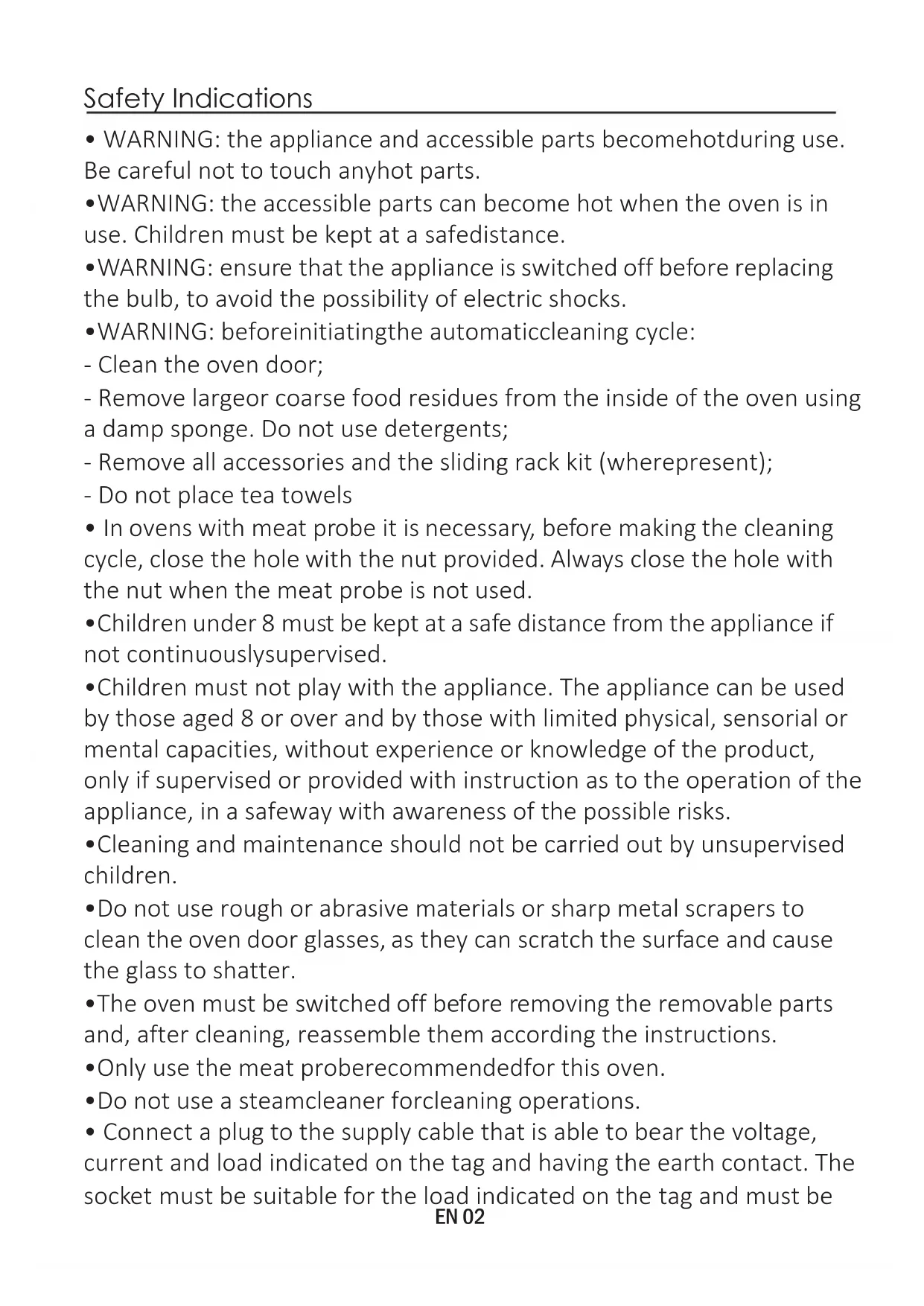

• WARNING: the appliance and accessible parts becomehotduring use. Be careful not to touch anyhot parts.

• WARNING: the accessible parts can become hot when the oven is in use. Children must be kept at a safedistance.

• WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.

• WARNING: beforeinitiatingthe automaticcleaning cycle: - Clean the oven door; - Remove largeor coarse food residues from the inside of the oven using a damp sponge. Do not use detergents; - Remove all accessories and the sliding rack kit (wherepresent); - Do not place tea towels

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• Children under 8 must be kept at a safe distance from the appliance if not continuouslysupervised.

• Children must not play with the appliance. The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safeway with awareness of the possible risks.

• Cleaning and maintenance should not be carried out by unsupervised children.

• Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.

• The oven must be switched off before removing the removable parts and, after cleaning, reassemble them according the instructions.

• Only use the meat proberecommendedfor this oven.

• Do not use a steamcleaner forcleaning operations.

• Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be EN 02having the earth contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• If the power cable is damaged, it must be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department.

• The type of power cable mustbe H05V2V2-F.

• Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

• Any excess of spilledmaterial should be removed before cleaning.

• During the pyrolytic cleaning process, surfaces can heat up more than usual, childrenmust therefore be kept at a safedistance.

• The appliance must not be installed behind a decorative door in order toavoid overheating.

• When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity

• WARNING: Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

1.1 Safety indications

1.2 Electrical safety

1.6 Declaration of compliance

4.1 General notes on cleaning

• Removal of the oven window

• Removal and cleaning of the glass door

• Changing the bulb Oven Cleaning and Maintenance

141. General Instructions

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructionscontained in this document are not observed. NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you havepurchased.

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper,incorrector unreasonableusage. The use of anyelectrical appliance implies the observanceof some fundamental rules: - do not pull on the power cable to disconnect the plug from the socket; - do not touch the appliance with wet or damp hands or feet; - in generalthe use of adaptors,multiple sockets and extension cables is not recommended; - in case of malfunction and/or poor operation,switchoff the appliance and do not tamperwith it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufactureraccepts no responsibility for anydamage caused by the failureto observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven. CONNECTION The oven is supplied with a power cable that should only be connected to an electrical supply with 220- 240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connectedto the electrical supply, it is important to check: - power voltage indicated on the gauge; - the setting of the disconnector. The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply. WARNING Before connecting the oven to the powersupply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defectivecontinuity. EN 051.3 Recommendations Aftereach use of the oven, a minimum of cleaning will help keep the oven perfectlyclean. Do not line the oven walls with aluminium foilor single-use protectionavailable from stores.Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistanttoveryhightemperatures.

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsiblefor such harm or injury. The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Makethe openings specified on lastpage accordingtothetype of fitting. NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules: - the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalenttype and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the ovencontinuestogenerate. Keep the seals clean and in order, to avoidany heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reducedtariff time slot.

1.6 Declaration of compliance

The parts of this appliance that may come into contact with foodstuffscomply with the provisionsof EEC Directive89/109. By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmentalrequirements which are applicablein legislation forthis product. EN 062. Product Description

(lateral wire grid if included)

Collects the residuesthatdripduringthecookingof foodson the grills. Metal grill

Holds baking trays and plates. EN 07

PRELIMINARYCLEANING Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness. EN 08

6. LCD display adjustment controls

WARNING : the first operation to carry out after the

oven has been installed or following the interruption of power supply (this is recognizable the display pulsating and showing ) is setting12:00 the correct time. This is achievedas follows.

• Pushthe centralbutton.

• Set time with "-" "+" buttons.

• Releaseall buttons. ATTENTION: The oven will only operateprovidingthe clock is set.EN 09 FUNCTION HOW TO DEACTIVATE WHAT IT DOES WHY IT IS NEEDEDHOW TO USE KEY LOCK MINUTE MINDER COOKING TIME END OF COOKING

• Child Lock function is activated by touching Set (+) for a minimum of 5 seconds. From this moment on all other function are locked and the display will flash STOP and preset time intermittently.

• Child Lock function is deactivated by touching touchpad Set (+)again for a minimum of 5 seconds. From this moment on all functions are selectable again.

to set the required time

• Release all the buttons

• When the set time as elapsed an audible alarm is activated (this alarm will stop on its own, however it can be stoppedimmediately by pressing the button) SELECT.

• Sounds an alarm at the end of the set time.

• During the process, the display shows the remaining time.

• Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operatingtheoven)

• Push the central button 2 times

• Press the buttons "-" or "+"to set the lenght of cookingrequired

• Setthecooking function with the oven function selector

• It allows to preset the cooking time required for the recipe chosen.

• Push any button to stop the signal. Push the central button to return to the clock function.

• When the time is elapsed the oven will switch off automatically. Should you wish to stop cooking earlier either turn the function selector to 0, or set time to 0:00 (SELECTand "-" "+" buttons)

• Atthetimeset,the oven will switch off. To switch off manually, turn the oven function selectortoposition O.

• Enables you to set the end of cooking time

• Push the central button 3 times •Press the buttons "-" "+" to set the time at which you wish the oven to switchoff

• Set the cooking function with the oven function selector.

• This function is typically used with “cooking time” function. For example if the dish has to be cooked for 45 minutes and needs to be ready by 12:30, simply select the required function, set the cooking time to 45 minutes and the end of cooking time to12:30.

• At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring.

• Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continue until the pre- set end-of-cooking-time, when the oven will switch itself off automatically. WARNING. If the END of cooking is selected without setting the length of cooking time, the oven will start cooking immediately and it will stop at the END of cooking time set.T °C default

T °C range 40 ÷ 40 50 ÷ 240 50 ÷ 230 150 ÷ 220 50 ÷ 240 L1 ÷ L5 Function Dial Function (Depends on the oven model) LAMP: Turns on the oven light. GRILL: use the grill with the door closed. The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed forgrills, kebabs and gratin dishes. White meats should be put at a distancefromthe grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: Grill: 2140 W Barbecue: 3340 W FAN ASSISTED GRILL : use the turbo-grill with the door closed. The top heating element is used with the fan circulating the air inside the oven. Preheating is necessary for red meats but not for white meats. Ideal for cooking thick food items, whole pieces such as roast pork, poultry, etc. Place the food to be grilled directly on the shelf centrally, at the middle level. Slide the drip tray under the shelf to collect the juices. Make sure that the food is not too close to the grill. Turn the foodover halfway through cooking. FAN COOKING: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed. Allow about ten minutes extrawhencookingfoods at the same time. DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the proteincontent of the foodbeingchangedor altered. *Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

FAN + LOWER ELEMENT: The bottom heating element is used with the fan circulatingthe air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté. It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food. Place the shelf in thebottomposition. EN 10 220 50 ÷ 280 CONVENTIONAL COOKING: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing redmeats,roastbeef, leg of lamb, game, bread, foilwrappedfood (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position.

PIZZA: With this function hot air circulated in the oven to ensure perfect result fordishessuch as pizzaor cake. 220 50 ÷ 230EN 11

4. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycleoftheappliancecanbeextended throughregular cleaning. Wait for the ovento coolbefore carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents(ammonia). GLASS PARTS It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water. OVENWINDOW SEAL If dirty, the seal can be cleaned with a slightly damp sponge. ACCESSORIES Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents. DRIP PAN After using the grill, remove the pan from the oven. Pour the hot fatinto a containerand washthe pan in hot water, usingaspongeandwashing-up liquid. If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasheroruseacommercial oven detergent. Never put a dirtypanbackinto the oven.4.3 Maintenance

REMOVAL OF THE OVENWINDOW

1. Open the front window.

2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them

4.2 Hydro Easy Clean Function

The HYDRO EASY CLEAN procedure uses steam to help remove remaining fat and food particles from the oven.

1. Pour 300 ml of water into the HYDRO EASY CLEAN container at the bottom of the oven.

2. Set the oven function to Static ( ) or Bottom ( )heater

3. Set the temperature to the HYDRO EASY CLEAN icon

4. Allow the program to operate for 30 minutes.

5. After 30 minutes switch off the program and allow the oven to cool down.

6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Warning Make sure that the appliance is cool before you touch it. Care must be taken with all hot surfaces as there is a risk of burns. Use distilled or drinkable water. 300 ml MENU MENULOW-E

1. Open the ovendoor.

2.3.4. Lock the hinges, remove the screws and remove the upper metalcoverbypullingitupwards.

5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the secondandthird glass (if present)).

7. Attheendofcleaningorsubstitution,reassemble the parts in reverse order.

On all glass, the indication "Low-E" must be legible and positioned on the left side of the door, close to the left-hand lateralhinge.Inthisway,the printed label of the firstglass will be inside the door.

EN 13CHANGING THE BULB

1. Disconnecttheovenfrom the mains supply.

2. Undo the glass cover, unscrewthebulbandreplace it with a new bulb of the same type.

3. Once the defective bulb is replaced,replace the glass cover.

PROBLEM POSSIBLE CAUSE SOLUTION

The oven does not heat up The clock is not set Set the clock A cooking function and temperature has not been set Ensure that the necessary settings are correct The oven does not heat up EN 14 Steam and condensation on the user interface panel Clean with a microfiber cloth the user interface panel to remove the condensation layer No reaction of the touch user interface• ATTENZIONE: l'apparecchio e le parti accessibili diventano calde durantel'uso. Prestare attenzione a non toccare leparti calde.

DEMONTÁŽ OKNA TROUBY

The manufacturer will not be responsiblefor anyinaccuracy resultingfrom printingortranscript errorscontained in thisbrochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relatingtosafetyorfunction.
