USER MANUAL 3707FC MAKITA

ENGLISH (Original instructions)

	Explanation of general view
1 B a s e	13 Straight guide	25 Center hole
2 L e v e r	14 Screws	26 Nail
3 S c a l e	15 Base protector	27 Adjusting screw
4 Adjusting roller	16 Screwdriver	28 Clamp screw (B)
5 Switch lever	17 Straight bit	29 Trimmer guide
6 Loosen	18 Templet	30 Bit
7 Tighten	19 Distance (X)	31 Guide roller
8 H o l d	20 Templet guide 10	32 Limit mark
9 Workpiece	21 Bolt	33 Brush holder cap
10 Bit revolving direction	22 Guide plate
11 View from the top of the tool	23 Wing nut
12 Feed direction	24 Clamp screw (A)

SPECIFICATIONS

Model 3707/3707F 3707FC

Collet chuck capacity	6 mm or 1/4"	6 mm or 1/4"
No load speed (min-1)	35,000 26,000
Overall length	204 mm	204 mm
Net weight	1.2 kg	1.3 kg
Safety class	回/II	回/II

• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
  Weight according to EPTA-Procedure 01/2003

ENE010-1

Intended use

The tool is intended for flush trimming and profiling of wood, plastic and similar materials.

ENF002-2

Power supply

The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They are double-insulated and can, therefore, also be used from sockets without earth wire.

GEA010-1

General Power Tool SafetyWarnings

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

GEB019-4

TRIMMER SAFETY WARNINGS

1. Hold power tool by insulated gripping surfaces, because the cutter may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and shock the operator.
2. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.
3. Wear hearing protection during extended period of operation.
4. Handle the bits very carefully.
5. Check the bit carefully for cracks or damage before operation. Replace cracked or damaged bit immediately.
6. Avoid cutting nails. Inspect for and remove all nails from the workpiece before operation.
7. Hold the tool firmly.
8. Keep hands away from rotating parts.
9. Make sure the bit is not contacting the workpiece before the switch is turned on.
10. Before using the tool on an actual workpiece, let it run for a while. Watch for vibration or wobbling that could indicate improperly installed bit.
11. Be careful of the bit rotating direction and the feed direction.
12. Do not leave the tool running. Operate the tool only when hand-held.
13. Always switch off and wait for the bit to come to a complete stop before removing the tool from workpiece.
14. Do not touch the bit immediately after operation; it may be extremely hot and could burn your skin.
15. Do not smear the tool base carelessly with thinner, gasoline, oil or the like. They may cause cracks in the tool base.

16. Use bits of the correct shank diameter suitable for the speed of the tool.

17. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

18. Always use the correct dust mask/respirator for the material and application you are working with.

SAVE THESE INSTRUCTIONS.

WARNING:

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool.

Adjusting bit protrusion (Fig. 1)

To adjust the bit protrusion, loosen the lever and move the tool base up or down as desired by turning the adjusting roller. After adjusting, tighten the lever firmly to secure the tool base.

Switch action (Fig. 2)

CAUTION:

• Before plugging in the tool, always be sure that the tool is switched off.

To start the tool, move the switch lever to the I (ON) position. To stop the tool, move the switch lever to the O (OFF) position.

Electronic function

For model 3707FC only

The tool equipped with electronic function are easy to operate because of the following features.

Constant speed control

Electronic speed control for obtaining constant speed. Possible to get fine finish, because the rotating speed is kept constant even under load condition.

Soft start

Soft-start feature minimizes start-up shock, and makes the tool start smoothly.

Lighting up the lamps

For model 3707F/3707FC only

CAUTION:

• Do not look in the light or see the source of light directly.

To turn on the lamp, start the tool. Then, the lamp lights up the top of the bit. To turn it off, stop the tool.

NOTE:

• Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and unplugged before carrying out any work on the tool.

Installing or removing trimmer bit (Fig. 3)

CAUTION:

• Do not tighten the collet nut without inserting a bit, or the collet cone will break.
• Use only the wrenches provided with the tool.

Insert the bit all the way into the collet cone and tighten the collet nut securely with the two wrenches.

To remove the bit, follow the installation procedure in reverse.

OPERATION

CAUTION:

• Always be sure that the tool is switched off and unplugged before removing or installing the trimmer base.
• Adjust the lever tightening strength of the trimmer base using its nut to obtain a suitable tightening strength for your tool. After adjusting, make sure the trimmer base is secured to the tool. Dislocation of the trimmer base may cause personal injuries.

Set the tool base on the workpiece to be cut without the bit making any contact. Then turn the tool on and wait until the bit attains full speed. Move the tool forward over the workpiece surface, keeping the tool base flush and advancing smoothly until the cutting is complete.

When doing edge cutting, the workpiece surface should be on the left side of the bit in the feed direction. (Fig. 4)

NOTE:

• Moving the tool forward too fast may cause a poor quality of cut, or damage to the bit or motor. Moving the tool forward too slowly may burn and mar the cut. The proper feed rate will depend on the bit size, the kind of workpiece and depth of cut. Before beginning the cut on the actual workpiece, it is advisable to make a sample cut on a piece of scrap lumber. This will show exactly how the cut will look as well as enable you to check dimensions.
• When using the trimmer shoe, the straight guide or the trimmer guide, be sure to keep it on the right side in the feed direction. This will help to keep it flush with the side of the workpiece. (Fig. 5)

CAUTION:

• Since excessive cutting may cause overload of the motor or difficulty in controlling the tool, the depth of cut should not be more than 3mm at a pass when cutting grooves. When you wish to cut grooves more than 3mm deep, make several passes with progressively deeper bit settings.

Templet guide

The templat guide provides a sleeve through which the bit passes, allowing use of the trimmer with templat patterns. (Fig. 6)

Loosen the screws and remove the base protector. Place the templet guide on the base and replace the base protector. Then secure the base protector by tightening the screws. (Fig. 7)

Secure the templet to the workpiece. Place the tool on the templet and move the tool with the templet guide sliding along the side of the templet. (Fig. 8)

NOTE:

• The workpiece will be cut a slightly different size from the templet. Allow for the distance (X) between the router bit and the outside of the templet guide. The distance (X) can be calculated by using the following equation:

Distance (X) = (outside diameter of the templet guide - router bit diameter) / 2

Straight guide (optional accessory)

The straight guide is effectively used for straight cuts when chamfering or grooving. (Fig. 9)

Attach the guide plate to the straight guide with the bolt, the wave washer, the flat washer and the wing nut. (Fig. 10)

Attach the straight guide with the clamp screw (A). Loosen the wing nut on the straight guide and adjust the distance between the bit and the straight guide. At the desired distance, tighten the wing nut securely. (Fig. 11)

When cutting, move the tool with the straight guide flush with the side of the workpiece.

If the distance (A) between the side of the workpiece and the cutting position is too wide for the straight guide, or if the side of the workpiece is not straight, the straight guide cannot be used. In this case, firmly clamp a straight board to the workpiece and use it as a guide against the trimmer base. Feed the tool in the direction of the arrow. (Fig. 12)

Circular work

Circular work may be accomplished if you assemble the straight guide and guide plate as shown in Fig. 13 or 14. Min. and max. radius of circles to be cut (distance between the center of circle and the center of bit) are as follows:

Min.: 70 mm

Max.: 221 mm

Fig. 13 for cutting circles between 70~mm and 121~mm in radius.

Fig. 14 for cutting circles between 121mm and 221mm in radius.

NOTE:

• Circles between 172mm and 186mm in radius cannot be cut using this guide.

Align the center hole in the straight guide with the center of the circle to be cut. Drive a nail less than 6mm in diameter into the center hole to secure the straight guide. Pivot the tool around the nail in clockwise direction. (Fig. 15)

Trimmer guide

Trimming, curved cuts in veneers for furniture and the like can be done easily with the trimmer guide. The guide roller rides the curve and assures a fine cut. (Fig. 16) Install the trimmer guide on the tool base with the clamp screw (A). Loosen the clamp screw (B) and adjust the distance between the bit and the trimmer guide by turning the adjusting screw (1 mm per turn). At the desired distance, tighten the clamp screw (B) to secure the trimmer guide in place. (Fig. 17)

When cutting, move the tool with the guide roller riding the side of the workpiece. (Fig. 18)

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and unplugged before attempting to perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.

Replacing carbon brushes

Remove and check the carbon brushes regularly. Replace when they wear down to the limit mark. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time. Use only identical carbon brushes. (Fig. 19)

Use a screwdriver to remove the brush holder caps. Take out the worn carbon brushes, insert the new ones and secure the brush holder caps. (Fig. 20)

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized Service Centers, always using Makita replacement parts.

OPTIONAL ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Straight & groove forming bits
• Edge forming bits
• Laminate trimming bits
• Straight guide assembly
• Trimmer guide assembly
• Trimmer base assembly (For chamfering with straight bit)
• Trimmer shoe
• Templet guide
  Collet cone 6 mm
  Collet cone 6.35mm (1 / 4^ )
  Wrench 10
  Wrench 17

NOTE:

• Some items in the list may be included in the tool package as standard accessories. They may differ from country to country.

ENG905-1

Noise

The typical A-weighted noise level determined according to EN60745:

Model 3707, 3707F

Sound pressure level (L_pA) .. 80~dB A

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

Model 3707FC

Sound pressure level (L_pA) : 76 dB (A)

Uncertainty (K): 3 dB (A)

The noise level under working may exceed 80 dB (A).

Wear ear protection

ENG900-1

Vibration

The vibration total value (tri-axial vector sum) determined according to EN60745:

Work mode: rotation without load

Vibration emission (a_h) .. 2.5m / s^2 or less

Uncertainty (K): 1.5m / s^2

ENG901-1

• The declared vibration emission value has been measured in accordance with the standard test method and may be used for comparing one tool with another.
• The declared vibration emission value may also be used in a preliminary assessment of exposure.

WARNING:

• The vibration emission during actual use of the power tool can differ from the declared emission value depending on the ways in which the tool is used.
• Be sure to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ENH101-15

For European countries only

EC Declaration of Conformity

We Makita Corporation as the responsible manufacturer declare that the following Makita machine(s):

Designation of Machine:

Trimmer

Model No./ Type: 3707, 3707F, 3707FC

are of series production and

Conforms to the following European Directives: 2006/42/EC

And are manufactured in accordance with the following standards or standardised documents:

EN60745

The technical documentation is kept by our authorized representative in Europe who is:

Makita International Europe Ltd.

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Descriptif

ACCESSIONS EN OPTION

ATTENTION :

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Angleterre

30.1.2009

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Übersicht

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

Tomoyasu Kato

Direktor

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

Tomoyasu Kato

Amministratore

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

OPTIONELE ACCESSOIRES

LET OP:

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Inglaterra

30.1.2009

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Explicaçao geral

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, Inglaterra

30.1.2009

Tomoyasu Kato

Director

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Kun for model 3707FC

Kun for model 3707F/3707FC

FORSIGTIG:

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

Tomoyasu Kato

Direktør

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

SVENSKA (Ursprunglig bruksanvisning)

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

Tomoyasu Kato

Direktör

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

	Forklaring til generell oversikt
1 Fresfot	13 Rettlinjet fører	25 Senterhull
2 Hendel	14 Skruer	26 Spiker
3 Skala	15 Føtbeskyttelse	27 Justeringskrue
4 Justeringsvalse	16 Skrutrekker	28 Festeskrue (B)
5 Brøy t e r	17 Rettlinjet bits	29 Trimmeføring
6 L ø s n e	18 Skabelon	30 Fres
7 F e s t e	19 Avstand (X)	31 Rullefot
8 Hold	20 Malfører 10	32 Grensemerke
9 Arbeidstykke	21 Bolt	33 Børsteholder-hette
10 Rotasjonsretning	22 Glideplaten
11 Sett ovenfra	23 Vingemutter
12 Freseretning	24 Festeskrue (A)

TEKNISKE DATA

Modell 3707/3707F 3707FC

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

Tomoyasu Kato

Direktor

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

Yleisselostus

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England

30.1.2009

3-11-8, Sumiyoshi-cho,

Anjo, Aichi, 446-8502, JAPAN

EAAHNIKA (ApXiko oOyivic)

Michigan Drive, Tongwell,

Milton Keynes, Bucks MK15 8JD, England (Ayyia)

30.1.2009

Tomoyasu Kato

△ieuθuvtns

Makita Corporation

3-11-8, Sumiyoshi-cho,

Anjo,Aichi,446-8502,JAPAN

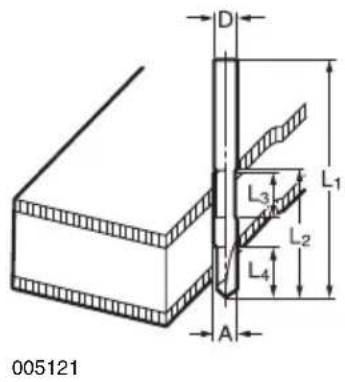

Trimmer bits/Fraises d'affleurage/Schneidfraser/Frese rifilatori/Diverse bits voor de frees/Fresas de rebordeadoras/Fresas para recortes/Frasevarktoj/Frasverktyg/Trimmerbits/Tasausterat/Aixmuεç ξακρισματος

	D	A	L1	L2	L3
6	6	6	60	18	28
6E	1/4"
8	6	8	5	0
8E	1/4"
6	6	6	5	0
6E	1/4"

Drill point double flush trimming bit

Ball bearing flush trimming bit

Ball bearing corner rounding bit

Ball bearing cham-fering bit

Ball bearing beading bit

Ball bearing cove beading bit

Ball bearing roman ogee bit
