Product type	Portable active speaker with VHF mic and Bluetooth
Brand	Ibiza Sound
Model	HYBRID10VHFBT
Dimensions (W x H x D)	490 x 315 x 292 mm
Weight	7.5 kg
Power supply	13 V DC 1 A via mains adapter (220-240 V AC) or built-in rechargeable battery 4000 mAh
Power RMS / max.	200 W / 400 W
Woofer (bass speaker)	10 inches (25 cm)
Tweeter	1 inch (25 mm)
Impedance	4 ohms
Sensitivity	88 dB ± 2 dB
Frequency response	80 Hz - 20 kHz
Connectivity	Bluetooth, USB, SD, microphone inputs (XLR/6.35 mm jack), RCA line input, line output
Functions	MP3/WMA player, remote control, bass/treble adjustments, VOX (mic priority), echo, wireless VHF mic
Included accessories	1 VHF microphone, remote control, mains adapter, trolley and wheels
Intended use	Portable sound reinforcement for events, conferences, entertainment
Operating temperature	+5 °C to +35 °C
Maintenance and cleaning	Disconnect the device before cleaning; use a dry cloth; do not use liquid or abrasive products
Safety	Do not expose to water, flames, extreme temperatures; do not open the casing; keep out of reach of children
Spare parts and repairability	Contact the dealer or an approved specialist for any repairs; do not open yourself
General information	Professional product; use reserved for certain EU countries (FR, BE, PT, DE, NL, LU, GR, ES, RO)
Warranty	Warranty not applicable in case of misuse or non-compliance with instructions

Frequently Asked Questions - HYBRID10VHFBT IBIZA SOUND

How to recharge the battery of the HYBRID10VHFBT speaker?

Connect the mains adapter to the speaker and a wall outlet. The CHARGE indicator lights up. Let it charge for 10 hours for the first charge. Afterwards, charging is automatic. If you do not use the speaker for more than 6 months, recharge it every 6 months.

How to connect my phone via Bluetooth?

Press the MODE button until BLUETOOTH is displayed. Enable Bluetooth on your phone and search for devices. Select HYBRID10VHFBT from the list. Connection is immediate.

How to use the wireless VHF microphone?

Turn on the VHF mic by setting the switch to ON. The speaker automatically switches to the VHF mic. Adjust the volume with the dedicated button on the control panel (mark 6). You can adjust the echo with the ECHO button.

What to do if the sound is distorted or saturated?

Check the master volume (MASTER) and microphone volumes. Reduce the bass (BASS) and treble (TREBLE) settings if necessary. Ensure the audio source is not saturated. If the problem persists, turn off the speaker and check connections.

How to activate the VOX function?

Set the VOX switch to ON. The music will automatically attenuate when you speak into the mic and return to normal volume when you stop speaking. To deactivate, set the switch to OFF.

Can I use the speaker while charging?

Yes, the speaker can operate while connected to mains. The battery recharges automatically at the same time.

How to clean the speaker?

Disconnect the speaker before any cleaning. Use a soft, dry cloth. Never use liquid products, aerosols, or abrasive cloths. Avoid water entering the interior.

What playback formats are supported on USB/SD?

The speaker plays audio files in MP3 and WMA formats from a USB drive or SD card. Insert the media, select the track with the ◀/▶ buttons, and press ▶ to play.

The remote control does not work, what to do?

The remote control only controls the MP3 player. Make sure you are in USB/SD/Bluetooth mode. Check the batteries (not included, type CR2025). Point the remote at the IR receiver of the speaker.

What to do if the speaker does not turn on?

Check that the main switch is set to ON. If using battery, ensure it is charged. Plug in the mains adapter and check the fuse (F6AL) at the back of the speaker. If the problem persists, contact a specialist.

USER MANUAL HYBRID10VHFBT IBIZA SOUND

Two black plastic athletic suit cases shown from front and side views (no text or symbols visible)

HYBRID8VHF-BT (15-6046) 8" / 20cm - 300W

HYBRID10VHF-BT (15-6047) 10" / 25cm - 400W

GB – Instruction Manual

Imported from China by

LOTRONIC SA

Avenue Zénobe Gramme 9

1480 Saintes

Belgium

Explanation of signs

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handing or operating the appliance.

The hand symbol refers to useful tips and additional information on using the appliance.

Important Safety instructions and danger warnings

• Please read the manual carefully and keep it for future reference.
• All safety instructions and warnings must be adhered to. They are part of the manual and must be kept with the manual.
• Any guarantee claims are rendered invalid if damage occurs due to non-observance of these operating instructions. We assume no liability for any consequent damage.
• We assume no liability for personal injury or damage to property caused by incorrect handling or nonobservance of the safety instructions. Any guarantee claims expire in such cases.
• Unauthorized conversions and/or modifications of the appliance are not permitted for safety and licensing reasons (CE).
• The appliance is approved for operation in dry, closed rooms only. Do not operate the device nearby water, such as in bathrooms or nearby swimming pools.

- The appliance may not be exposed to extreme temperatures ( < +5^ / > +35^ ) in operation.

- The appliance may not be subjected to strong vibrations or heavy mechanical strain.

- The appliance may not be exposed to excessive moisture (due to dripping or sprayed water, for example).

- Do not place any recipients filled with liquids, such as glasses or vases, on top of or directly next to the appliance. They could fall over, causing water to enter the appliance. Never pour out liquids above the appliance. Do not place any small objects, such as coins or paper clips, on the appliance since they could fall inside the appliance. You run a high risk of causing a fire or life-threatening electrocution! If any liquid or objects enter the appliance nevertheless, pull the mains plug out of the socket immediately and contact a specialist.

- Electrical appliances must be kept out of the reach of children. Be particularly careful if children are present. Children are not aware of the hazards involved in handing electrical appliances improperly. Children could attempt to poke objects into the appliance. There is a life-threatening danger of electrocution.

- Do not leave the appliance unattended while operating it.

- Never place the appliance on an unstable or movable surface. Persons could be injured or the appliance damaged by it falling down.

- Live components can be exposed by opening covers or removing components (unless this can be done without tools). Contact points can also be live. If the appliance has to be opened in order to calibrate, service, repair or replace components or assemblies, all of its poles must be disconnected from all sources of voltage first. If the appliance has to be kept open and under voltage during maintenance or repairs, this work may only be carried out by a specialist who is familiar with the risks involved and the relevant regulations.

- Never connect the appliance directly after transferring it from a cold to a warm room. The condensation water that forms could destroy the appliance or result in an electric shock. Allow the device to reach room temperature before connecting it. Wait until the condensation water has evaporated. This can take some hours.

- Do not place any naked flames such as those of burning candles on or next to the appliance.

- Do not place the appliance on soft surfaces such as carpets or beds. Do not cover the air vents of the appliance. Do not obstruct the air circulation with objects such as magazines, table cloths or curtains. This prevents the dissipation of heat from the appliance and can result in overheating.

- Only use the appliance in a moderate climate, not in tropical environments.

- If you are not sure about the correct connection or if questions arise which are not answered by the operating instructions, please do not hesitate to contact support or a specialist of your choice. Consult a specialist if you are in doubt the operating principle or the safety of the product.

Disconnection from the mains

Where the MAINS plug or an appliance couples is used as the disconnect device, the disconnect device shall remain readily accessible.

If a switch is used to disconnect the device, the switch and its function must be clearly identified and remain easily accessible.

Restrictions of Use

• As the product contains a transmission/reception system of VHF signals, it is exclusively meant for professional use. The user of the product is fully responsible for the use he makes of the product. The distributor cannot be held responsible for an eventual misuse by the user of the product.
• The symbol “!” that appears on the wireless transmitter, the packaging, the manual and on the product means that the product is allowed for use only in some countries of the European Community (FR – BE – PT – D – NL – LU – GR – SP – RO).

FEATURES

→ BLUETOOTH
→ Built-in amp
→ Built-in USB MP3 / WMA player
⇒ Built in VHF microphone receiver
→ Remote Control
⇒ Treble & Bass control
⇒ Mic VOL & ECHO controls
→ Master VOL control
⇒ MIC & LINE inputs
→ Built-in rechargeable battery
⇒ Rectractable trolley & wheels (only model HYBRID10VHF-BT)
→ Power source: 13Vdc, 1A via supplied mains adaptor

POWER SUPPLY: BATTERY & AC OPERATION

1. Built-in rechargeable battery and AC power. Prior to using this system for the first time, please insert the DC lead into the DC socket of the player and plug the other end on a suitable wall outlet. Make sure that the "CHARGE INDICATOR" is ON 10 hours continuously.
2. Please recharge once every 6 months if you don't use the system for a longer period of time.

NOTE: Please shut down the power switch after you have finished using the system.

1. Switch power source to ON.
2. Insert a USB stick or an SD card
3. Select USB via the MODE button
4. Select a title via the ▶ or ◀ buttons and press▶

1. Insert an RCA plug into the LINE IN socket.
2. Insert a wired microphone into MIC1 or MIC2 and.
3. Adjust the MIC VOL, ECHO, MASTER VOL.

TO USE VOX FUNCTION

Activate the VOX function by setting switch VCV to ON. When VOX function is enabled, the music level will decrease when somebody talks into one of the microphones. The music level becomes normal when the user stops talking into the microphone. If you want to disable this function, set this switch to off position

BLUETOOTH FUNCTION

1. Press the MODE button until Bluetooth is displayed.
2. Switch on your Bluetooth device and activate the Bluetooth connect function
3. Select BLUETOOTH in the list of found devices
4. You are ready to play your music

HOW TO USE THE VHF MIC

Switch on the VHF microphone via the switch on the mic body. The box will automatically select the wireless microphone. Set the volume via the control 6 on the control panel.

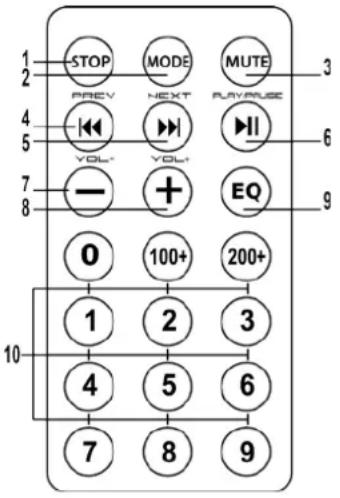

FUNCTIONS OF THE REMOTE CONTROL

1. Switch the MP3 player off
2. Mute the sound of the MP3 player
3. Skip to previous track
4. Skip to next track
5. Play/Pause MP3 player
6. Decrease volume of the player
7. Increase volume of the player
8. EQ function

9. Choosing music by numbers

10. Switch between USB / LINE INPUT / BLUETOOTH

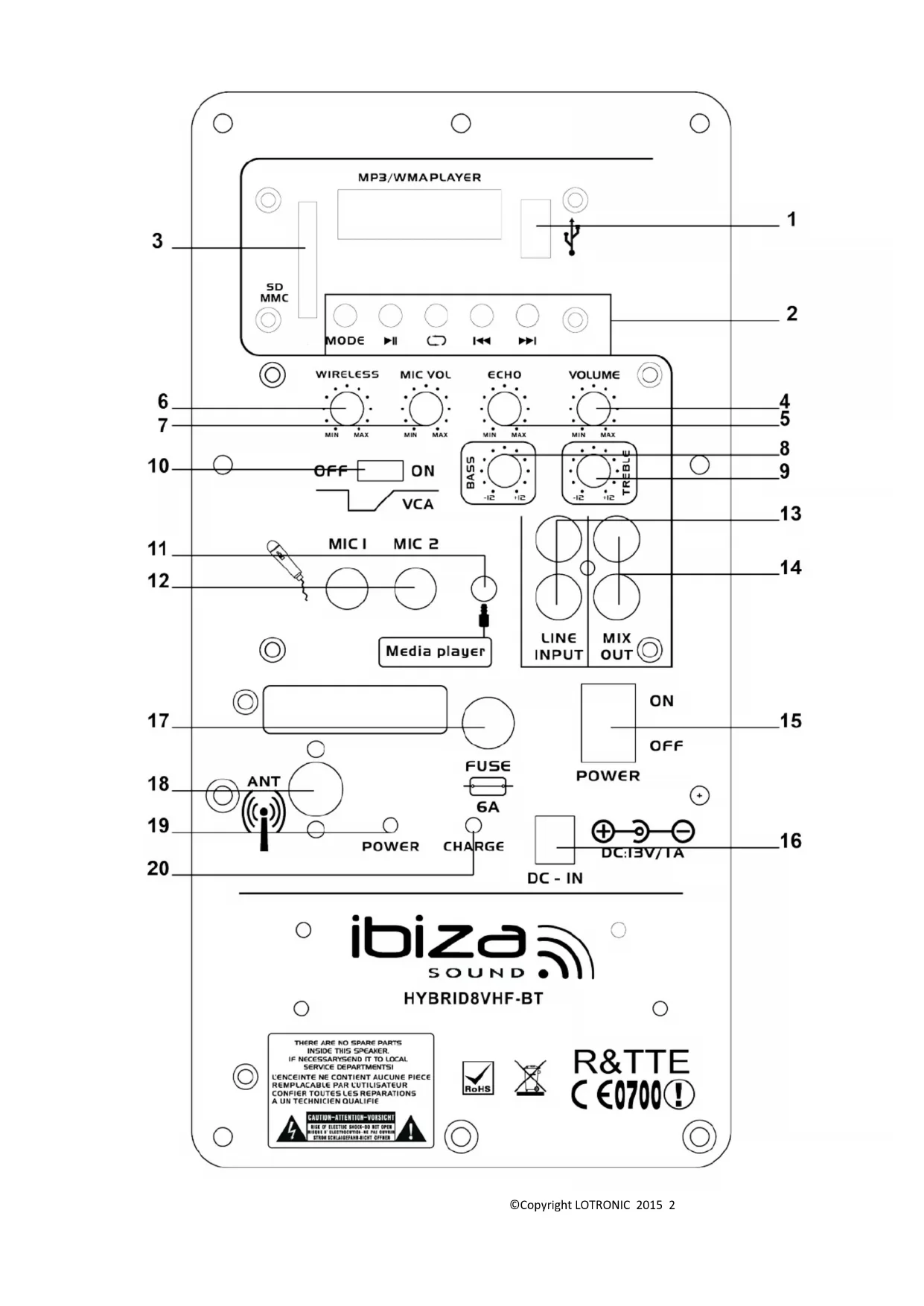

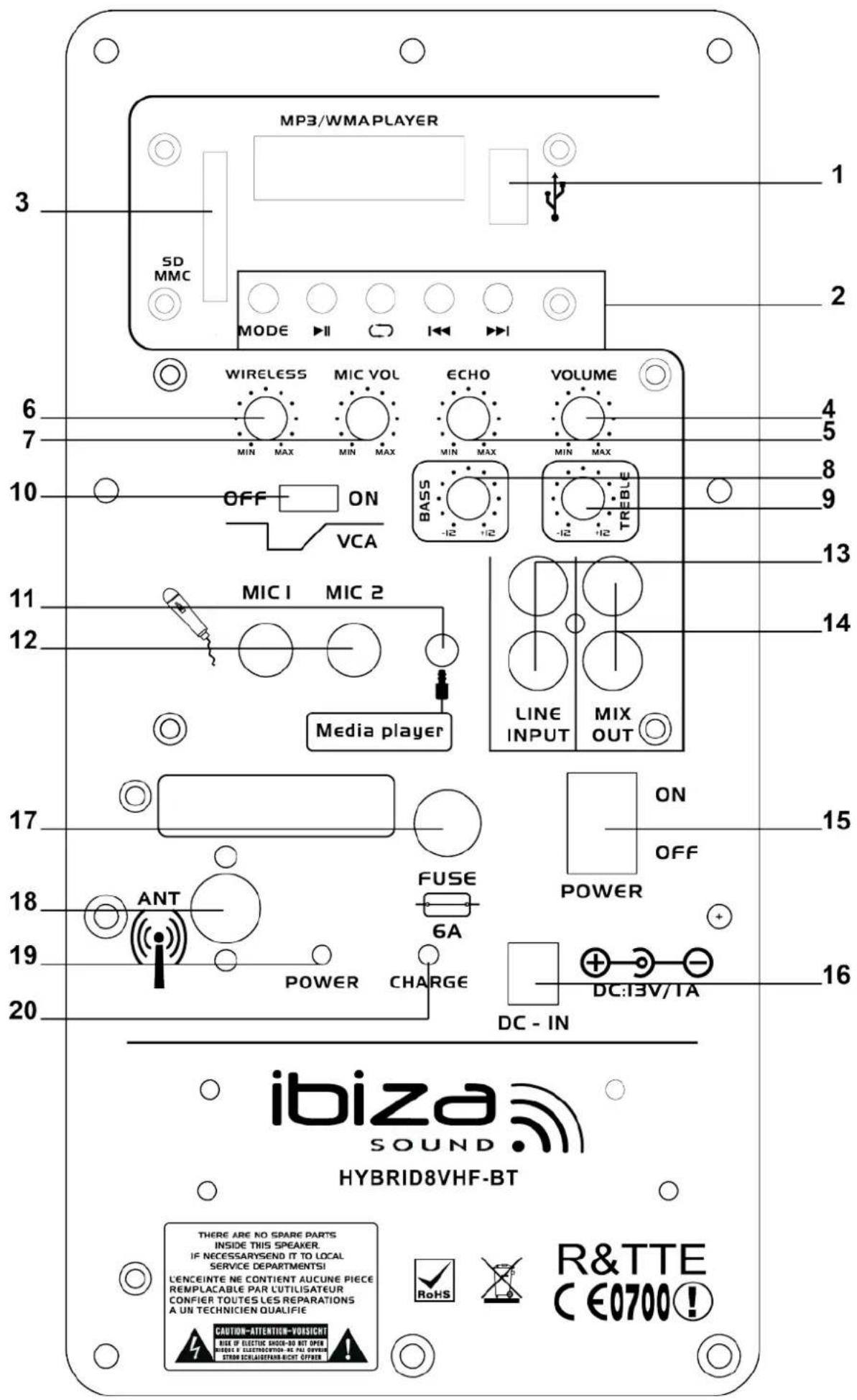

REAR PANEL

1. USB port
2. USB Player

MODE	Cycle through USB / LINE / BLUETOOTH
VOL- / ◀◀	Decrease volume /Backward
VOL + / ▶▶|	Increase volume / Forward
▶||	Play/Pause

1. SD card slot
2. VOLUME : Master volume control
3. ECHO : Echo volume control
4. Volume control for wireless mic
5. MIC VOLUME : Mic volume control
6. BASS : Bass volume control
7. TREBLE : Treble volume control
8. Switch to control the priority for Mic
9. MP3 input
10. MIC 1 / MIC 2 input
11. Left/ Right Line input
12. Left / Right Line output
13. Power switch: It allows to switch on / off the unit
14. DC 13V input
15. F6 fuse
16. Antenna for wireless mic
17. Power indicator
18. Charge indicator

Specifications

Model	HYBRID8VHF-BT	HYBRID10VHF-BT
RMS/max. power	150/300W	200/400W
Woofer	8"/20cm	10"/25cm
Tweeter	1"/25cm	1"/25mm
Woofer magnet	30oz	30oz
Voice coil	1.5"	1.5"
Sensitivity	88dB±2dB
Max. SPL	90dB
Impedance	4 Ohms
Freq. range	80-20,000Hz
Built-in battery	4000mAh
Power supply	13V / 1A via 220-240Vac / 50-60Hz mains adaptor
Dimensions	390 x 251 x 208mm	490 x 315 x 292mm
Weight	5.5kg	7,5kg

IMPORTANT NOTE: Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed.
