USER MANUAL MKX1855mmT2.9 FUJIFILM

MKX18-55mmT2.9 / MKX50-135mmT2.9

MKX18-55mmT2.9/MKX50-135mmT2.9

MKX18-55mmT2.9/MKX50-135mmT2.9

MKX18-55mmT2.9/MKX50-135mmT2.9

http://www.fujifilm.com/support/optical_devices/tv_cine/resources/

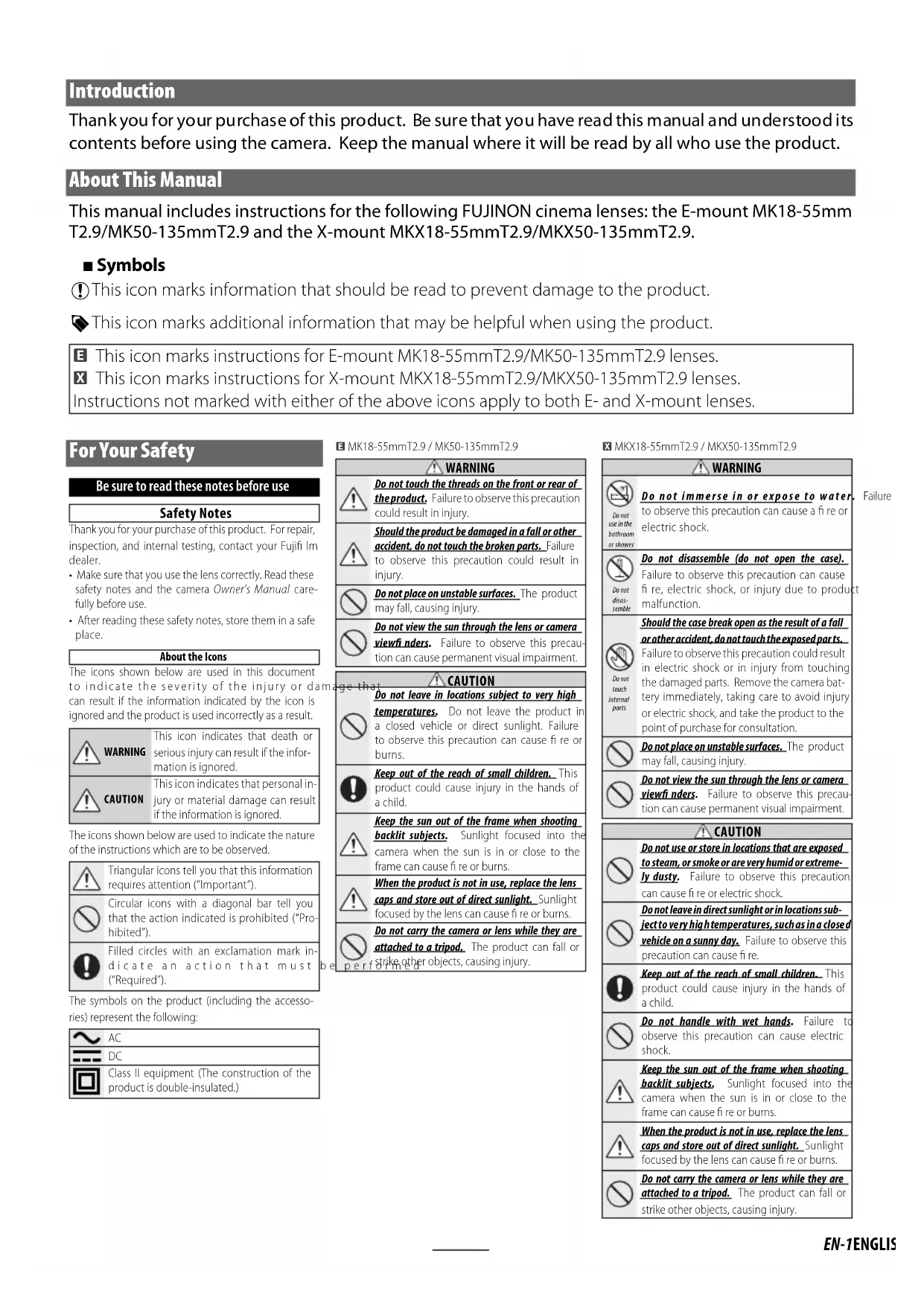

MKX18-55mmT2.9 / MKX50-135mmT2.9 をご購入のお客様は、製品に同梱の別紙、または次の Web サイトをご覧ください。 http://www.fujifilm.com/contact/EN-1ENGLISH For Your Safety Be sure to read these notes before use Safety Notes Thank you for your purchase of this product. For repair, inspection, and internal testing, contact your Fujifi lm dealer.• Make sure that you use the lens correctly. Read these safety notes and the camera Owner’s Manual care-fully before use.• After reading these safety notes, store them in a safe place.About the IconsThe icons shown below are used in this document to indicate the severity of the injury or damage that can result if the information indicated by the icon is ignored and the product is used incorrectly as a result.WARNINGThis icon indicates that death or serious injury can result if the infor-mation is ignored.CAUTIONThis icon indicates that personal in-jury or material damage can result if the information is ignored.The icons shown below are used to indicate the nature of the instructions which are to be observed.Triangular icons tell you that this information requires attention (“Important”).Circular icons with a diagonal bar tell you that the action indicated is prohibited (“Pro-hibited”).Filled circles with an exclamation mark in-dicate an action that must be performed (“Required”).The symbols on the product (including the accesso-ries) represent the following:

Class II equipment (The construction of the product is double-insulated.)E MK18-55mmT2.9 / MK50-135mmT2.9 WARNING WARNING Do not touch the threads on the front or rear of Do not touch the threads on the front or rear of the product. the product. Failure to observe this precaution could result in injury. Should the product be damaged in a fall or other Should the product be damaged in a fall or other accident, do not touch the broken parts. accident, do not touch the broken parts. Failure to observe this precaution could result in injury. Do not place on unstable surfaces. Do not place on unstable surfaces. The product may fall, causing injury. Do not view the sun through the lens or camera Do not view the sun through the lens or camera view nders. view nders. Failure to observe this precau-tion can cause permanent visual impairment. CAUTION CAUTION Do not leave in locations subject to very high Do not leave in locations subject to very high temperatures. temperatures. Do not leave the product in a closed vehicle or direct sunlight. Failure to observe this precaution can cause fi re or burns. Keep out of the reach of small children. Keep out of the reach of small children. This product could cause injury in the hands of a child. Keep the sun out of the frame when shooting Keep the sun out of the frame when shooting backlit subjects. backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fi re or burns. When the product is not in use, replace the lens When the product is not in use, replace the lens caps and store out of direct sunlight. caps and store out of direct sunlight. Sunlight focused by the lens can cause fi re or burns. Do not carry the camera or lens while they are Do not carry the camera or lens while they are attached to a tripod. attached to a tripod. The product can fall or strike other objects, causing injury.X MKX18-55mmT2.9 / MKX50-135mmT2.9 WARNING WARNING Do not use in the bathroom or shower Do not immerse in or expose to water. Do not immerse in or expose to water. Failure to observe this precaution can cause a fi re or electric shock.Do not disas-semble Do not disassemble (do not open the case). Do not disassemble (do not open the case). Failure to observe this precaution can cause fi re, electric shock, or injury due to product malfunction.Do not touch internal parts Should the case break open as the result of a fall Should the case break open as the result of a fall or other accident, do not touch the exposed parts. or other accident, do not touch the exposed par ts. Failure to observe this precaution could result in electric shock or in injury from touching the damaged parts. Remove the camera bat-tery immediately, taking care to avoid injury or electric shock, and take the product to the point of purchase for consultation. Do not place on unstable surfaces. Do not place on unstable surfaces. The product may fall, causing injury. Do not view the sun through the lens or camera Do not view the sun through the lens or camera view nders. view nders. Failure to observe this precau-tion can cause permanent visual impairment. CAUTION CAUTION Do not use or store in locations that are exposed Do not use or store in locations that are exposed to steam, or smoke or are very humid or extreme- to steam, or smoke or are very humid or extreme- ly dusty. ly dusty. Failure to observe this precaution can cause fi re or electric shock. Do not leave in direct sunlight or in locations sub- Do not leave in direct sunlight or in locations sub- ject to very high temperatures, such as in a closed ject to ve ry hig h temperatures, such as in a close d vehicle on a sunny day. vehicle on a sunny day. Failure to observe this precaution can cause fi re. Keep out of the reach of small children. Keep out of the reach of small children. This product could cause injury in the hands of a child. Do not handle with wet hands. Do not handle with wet hands. Failure to observe this precaution can cause electric shock. Keep the sun out of the frame when shooting Keep the sun out of the frame when shooting backlit subjects. backlit subjects. Sunlight focused into the camera when the sun is in or close to the frame can cause fi re or burns. When the product is not in use, replace the lens When the product is not in use, replace the lens caps and store out of direct sunlight. caps and store out of direct sunlight. Sunlight focused by the lens can cause fi re or burns. Do not carry the camera or lens while they are Do not carry the camera or lens while they are attached to a tripod. attached to a tripod. The product can fall or strike other objects, causing injury. Introduction Thank you for your purchase of this product. Be sure that you have read this manual and understood its contents before using the camera. Keep the manual where it will be read by all who use the product. About This Manual This manual includes instructions for the following FUJINON cinema lenses: the E-mount MK18-55mm T2.9/MK50-135mmT2.9 and the X-mount MKX18-55mmT2.9/MKX50-135mmT2.9. ■ Symbols

This icon marks information that should be read to prevent damage to the product.

This icon marks additional information that may be helpful when using the product. E This icon marks instructions for E-mount MK18-55mmT2.9/MK50-135mmT2.9 lenses. X This icon marks instructions for X-mount MKX18-55mmT2.9/MKX50-135mmT2.9 lenses. Instructions not marked with either of the above icons apply to both E- and X-mount lenses.EN-2 ENGLISH For Customers in the U. S. A. For Customers in the U. S. A. Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harm- ful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dif- ferent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV tech- nician for help.

• You are cautioned that any changes or modifi cations not expressly approved in this manual could void the user’s authority to operate the equipment. Notes on the Grant: To comply with Part 15 of the FCC Rules, this product must be used with a Fujifi lm- specifi ed ferrite-core A/V cable, USB cable, and DC supply cord. For Customers in Canada For Customers in Canada CAN ICES-3 (B)/NMB-3(B) CAUTION: This Class B digital apparatus complies with Canadian ICES-003.

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions.

• Keep these instructions.

• Follow all instructions.

• Do not use this apparatus near water (excluding wa- terproof products).

• Clean only with a dry cloth.

• Do not block any ventilation openings. Install in ac- cordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience recep- tacles, and the point where they exit from the ap- paratus.

• Only use attachments/accessories specifi ed by the manufacturer.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualifi ed service personal. Ser- vicing is required when the apparatus has been dam- aged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been ex- posed to rain or moisture, does not operate normally, or has been dropped. Disposal of Electrical and Electronic Equipment in Private Disposal of Electrical and Electronic Equipment in Private Households Households In the European Union, Norway, Iceland and Liechtenstein: This symbol on the prod- uct, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. Instead it should be taken to an ap- plicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences to the environment and human health, which could oth- erwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recy- cling this product, please contact your local city offi ce, your household waste disposal service or the shop where you purchased the product. In Countries Outside the European Union, Norway, Iceland and Liechtenstein: If you wish to discard this product, including the batteries or accumulators, please con- tact your local authorities and ask for the correct way of disposal. Australian RCMEN-3ENGLISH Product Care

• When using a lens hood, do not pick up or hold the camera using only the hood.

• Use a blower to remove dust and lint from the glass surfaces of the lens or lter. To remove smudges and ngerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion, taking care not to leave smears or touch the glass with your ngers.

• Never use organic solvents such as paint thinner or benzene to clean the lens.

• Attach the front and rear caps when the lens is not in use.

• Store the lens and lter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls.

• Keep the lens dry. Rusting can cause irreparable damage. Wipe o rain and water droplets.

• Leaving the lens near a heater or in other extremely hot locations could cause damage or warping.

• There may be a case that the glasses of the lens mist when the lens is carried from a cool place to a place of high temperature and high humidity. To avoid a mist on the glasses, before moving the lens, let the lens adjust to the ambient temperature of the place where the lens will be used.

• Keep the lens signal contacts clean (X lenses only).EN-4 ENGLISH Lens Features These lenses are for movies. E MK18-55mmT2.9/MK50-135mmT2.9 These fully manual lenses E-mounts have no electronic contacts. There is no exchange of data be- tween the camera and lens. X MKX18-55mmT2.9/MKX50-135mmT2.9 These fully manual lenses X-mounts are equipped with electronic contacts. Data can be exchanged between the camera and lens.

The lens may not perform as expected and some features may not be available with older versions of the camera rmware. Be sure to update the camera rmware to the latest version. Instructions on viewing the camera rmware version and updating camera rmware are available from the following website: http://www.fujifilm.com/support/digital_cameras/software/#firmware If you do not have access to a computer, support is available from the local distributor listed in the “FUJIFILM Worldwide Network” material provided with your camera. Supplied Accessories E MK18-55mmT2.9/MK50-135mmT2.9

• Front lens cap (Part No. BU00006892-1**)

• Rear lens cap (Part No. BB00038220-1**)

• Lens hood (MK18-55mm: Part No. BU00007497-1**/MK50-135mm: Part No. BU00007584-1**)

• Lens hood cap (Part No. 057B00742627*)

• Wrapping cloth (Part No. FZ00010454-1**)

• Zoom lever (Part No. 047B00160740*)

• Support foot ×1 (25.5mm/M3, for support rod attachment, Part No. BB00038388-1**)

• Extension foot ×2 (17.95mm, for support rod attachment, Part No. BB00035717-1**) X MKX18-55mmT2.9/MKX50-135mmT2.9

• Lens hood (MKX18-55mm: Part No. BU00007497-1**/MKX50-135mm: Part No. BU00007584-1**)

• Lens hood cap (Part No. 057B00742627*)

• Wrapping cloth (Part No. FZ00010454-1**)

• Zoom lever (Part No. 047B00160740*)

• Support foot ×1 (18 mm/M5, for support rod attachment, Part No. BB00041810-10*)

• Tripod collar foot (Part No. BF00019594-1**)

The part numbers in parentheses are required when ordering spares or replacements.EN-5ENGLISH Parts of the Lens E MK18-55mmT2.9/MK50-135mmT2.9 X MKX18-55mmT2.9/MKX50-135mmT2.9

Macro ring with macro switch

Lens signal contacts *

Tripod foot mounting position index *

Tripod collar foot *

Tripod foot mounting screw *

• X only.EN-6 ENGLISH Attaching Accessories E X Attaching the Zoom Lever The zoom lever attaches to the zoom lever socket. Screw the lever securely into the socket. E Attaching Support and Extension Feet The support foot is used when attaching the lens to a support rod (available separately from third-party suppliers). The support foot attaches to the support foot socket. Example

Support/extension foot

Use extension feet if the support foot is not long enough. X Attaching the Support Foot The support foot is used when attaching the lens to a support rod (available separately from third-party suppliers). The support foot attaches to the support foot socket. Example

Support foot X Attaching the Tripod Collar Foot Align the pin on the tripod collar foot with the tripod foot mounting position index on the lens and tighten the tripod foot mounting screws. When attaching the tripod collar foot to a tripod, use these marks as a guide to the location of the tripod attachment screws.EN-7ENGLISH Attaching the Lens to the Camera E Example X Example

Remove the body cap from the camera and the rear cap from the lens.

Place the lens on the mount, keeping the lens in- dex (E) or mounting mark (X) aligned with the mounting mark on the camera body.

Note that in some cases there may not be a mount- ing mark on the camera body (E only).

• When attaching lenses, ensure that dust or other foreign matter does not enter the camera.

• Be careful not to touch the camera’s internal parts.

• Rotate the lens until it clicks into place.

• Do not press the lens release button while attaching the lens.

Before using the lens for the rst time or after attaching it to a di erent camera, measure the ange-back distance (

• Loosen the hood lock knob by rotating it counter- clockwise.

• Slide the hood onto the lens until it contacts the raised ridge.

• Rotate the hood to align the lock knob with the hood mounting mark on the lens.

• Tighten the lock knob. ■ Removing the Hood
• Loosen the hood lock knob by rotating it counter- clockwise.

• Slide the hood straight forward o the lens. Hoods for di erent lenses have di erent shapes. Be sure to use the correct hood.

Use the lens hood cap with the lens hood.

Using the wrong hood may cause vignett- ing or other undesired results. E MK 18-55 mm X MK X 18-55 mm E MK 50-135 mm X MK X 50-135 mmEN-8 ENGLISH Lens Controls

Be sure to remove any water before use to prevent it entering the lens. E X Zoom Rotate the zoom ring to zoom out (

), increasing the area visible in the frame, or zoom in (

) on your sub- ject so that it lls a larger area of the frame. E X Aperture Rotate the aperture ring to stop aperture down (

raising the f-number and narrowing the aperture, or stop aperture up (

) to lower the f-number and widen the aperture.

E X Focus Rotate the focus ring to adjust focus. Rotate the ring to reduce (

) the focus distance.

Rotate the focus ring to the minimum focus dis- tance.

Slide the macro switch as shown and keep it in this position while rotating the macro ring as far as it will go in the direction shown.

Rotate the zoom ring to choose a focus position. Note: The lens can be used with the macro ring posi- tioned between the macro and normal positions, but in this case the minimum focus distance and the focus range will be also be between those of the macro and normal positions. Ending macro zoom: Rotate the macro ring in the direc- tion opposite to that shown until the macro switch clicks back into place.

XEN-9ENGLISH Adjusting the Flange Back Distance The ange back distance is the distance between the lens mounting ange and the focal plane. It can vary depending on the camera and even such factors as the ambient temperature. If the ange back distance is incorrect, the camera will not focus at the correct distance when you zoom in or out. To correct the ange back distance, follow the steps below. E X Preparation

Ready your subject. You can use a “Siemens star”, a pattern of black-and-white radiating spokes available at http://www.fujifilm.com/support/optical_devices/tv_cine/resources/ . If you are unable to access the Internet, you can use a high-contrast subject such as a black-and-white calendar.

Attach the lens to the camera and select maximum aperture.

Selecting maximum aperture reduces depth of eld, making it easier to adjust focus. You will need to focus as accurately as possible when adjusting the ange back distance. E X Performing the Adjustment

Loosen the F.f lock knob by rotating it counterclockwise.

Zoom all the way out.

Using the F.f lock knob, rotate the F.f ring to focus on the Siemens star. Find the position at which the black-and-white spokes are sharpest.

Zoom all the way in.

Zoom all the way out and see if the focus position is the same as it was in Step 3.

Repeat Steps 2-6 two or three times. The adjustment is complete when the optimal focus posi- tion is the same at all focal lengths. If it is not, further adjustment is required and you will need to return to Step 2.

Tighten the F.f lock knob securely when the adjustment is complete.

Pare-soleil (P FR-7)

X MKX18-55mmT2.9 / MKX50-135mmT2.9

MKX18-55mmT2.9/MKX50-135mmT2.9

MKX18-55mmT2.9/MKX50-135mmT2.9

http://www.fujifilm.com/support/optical_devices/tv_cine/resources/

/Minimum T-stop T2.9

/Aperture range T2.9 – T22,

/Image coverage 28.5 mm

/Flange back (in air)

0.85 m/2 ft 9 in 1.2 m/3 ft 11 in

/In macro mode 0.38m/1ft 2.9in 0.85m/2ft 9in

/Diagonal 76.7° – 29.1° 31.8° – 12.1°

/Rear element 27.0 mm 24.6 mm

/Manual (ring rotates up to 60°)

/Manual (ring rotates up to 90°)

/Manual (ring rotates up to 200°)

/External diameter at front of lens 85 mm

Gear pitch (aperture, zoom, and focus)

Q Improvements may result in unannounced changes to specifications and appearance. Q Owing to how this lens is constructed, the distance shown by the camera focus distance indicator (“distance indica- tor”) may in some cases differ from the actual focus distance. Use the “distance indicator” as a guide only.Caractéristiques/Technische Daten Type/Typ

MK18-55mmT2.9 MK18-55mmT2.9

MKX18-55mmT2.9 MKX18-55mmT2.9

MK18-55mmT2.9 MK18-55mmT2.9

MKX18-55mmT2.9 MKX18-55mmT2.9
