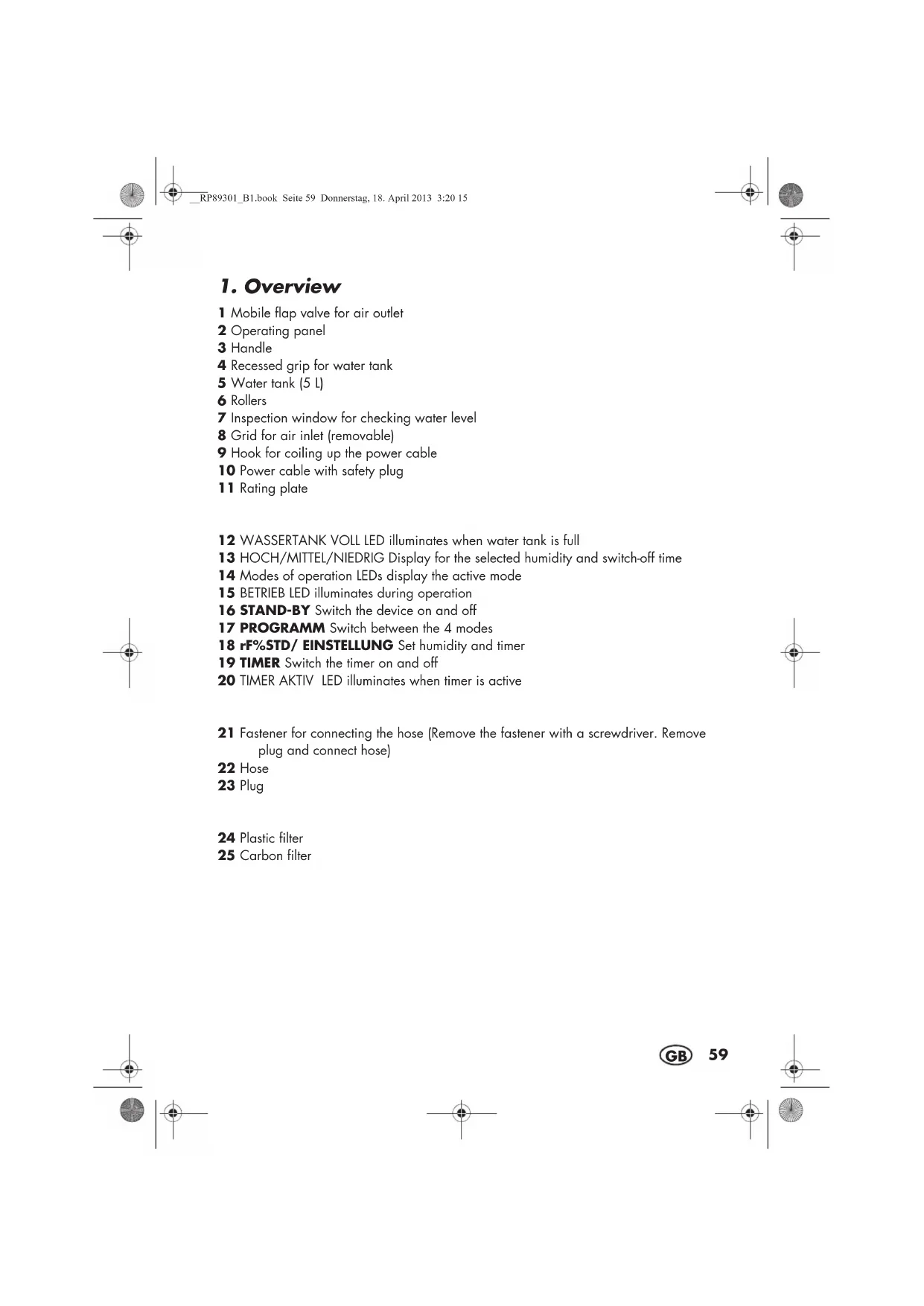

1 Mobile flap valve for air outlet 2 Operating panel 3 Handle 4 Recessed grip for water tank 5 Water tank (5 L) 6 Rollers 7 Inspection window for checking water level 8 Grid for air inlet (removable) 9 Hook for coiling up the power cable 10 Power cable with safety plug 11 Rating plate 12 WASSERTANK VOLL LED illuminates when water tank is full 13 HOCH/MITTEL/NIEDRIG Display for the selected humidity and switch-off time 14 Modes of operation LEDs display the active mode 15 BETRIEB LED illuminates during operation 16 STAND-BY Switch the device on and off 17 PROGRAMM Switch between the 4 modes 18 rF%STD/ EINSTELLUNG Set humidity and timer 19 TIMER Switch the timer on and off 20 TIMER AKTIV LED illuminates when timer is active 21 Fastener for connecting the hose (Remove the fastener with a screwdriver. Remove plug and connect hose) 22 Hose 23 Plug 24 Plastic filter 25 Carbon filter __RP89301_B1.book Seite 59 Donnerstag, 18. April 2013 3:20 1560

Thank you for your trust! Congratulations on your new dehumidifier. For a safe handling of the product and in or- der to get to know the entire scope of fea- tures:

• Thoroughly read these operat- ing instructions prior to initial commissioning.

• Above all, observe the safety in- structions!

• The device should only be used as described in these instruc- tions.

• Keep these instructions for refer- ence.

• If you pass the device on to someone else, please include these instructions. We hope you enjoy your new dehumidifier!

The dehumidifier is intended exclusively for dehumidifying residential, cellar and stor- age rooms with a temperature of between 5°C and 35°C. The device must only be used indoors. This device must not be used for commercial purposes. Foreseeable misuse DANGER! Risk of illness! G The water collected is not suitable for drinking or for watering plants. There is a risk of illness. DANGER! Risk of electric shock! Do not place the device in water / also do not place in pools or pud- dles of water. WARNING! Risk of material dam- age!

• Do not use the device in swimming pools, washrooms, or any similar rooms.

• The device is not intended for drying in- sulation material. If lagging or insulat- ing material has become damp after a water pipe has broken, always consult a specialist.

• Never expose the device to tempera- tures of 0°C or lower. Residual water in the piping could freeze and damage the system.

• Do not use the device in environments that are dusty or which contain chlorine. __RP89301_B1.book Seite 60 Donnerstag, 18. April 2013 3:20 1561

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: failure to ob- serve this warning may result in in- jury to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the de- vice. Instructions for safe operation

• This device is not designed to be used by people (including chil- dren) with limited physical, sensory or mental capabilities or peo- ple without adequate experience and/or understanding unless they are supervised by someone responsible for their safety or are in- structed by them on how to use the device.

• Children must be supervised to ensure that they do not play with the device.

• Do not install the device in a narrow space. Leave a minimum clearance of approx. 20 cm at the rear and sides, 10 cm at the front, and 30 cm at the top.

• The device must only be operated in rooms with a temperature of between 5°C to 35°C.

• Only use the device in rooms with a size of max. 20 m

• Only connect the mains plug to a properly installed and easily ac- cessible grounded wall socket whose voltage corresponds to the specifications on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

• The appliance shall be installed in accordance with national wiring regulations. DANGER for children

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation.

• Keep the device out of the reach of chil- dren. DANGER of explosion

• The device must never be operated in are- as with potentially aerosol-forming or ex- plosive atmosphere. DANGER! Risk of electric shock due to moisture

• This device must never be operated close to a bathtub, shower, filled hand basin or similar. __RP89301_B1.book Seite 61 Donnerstag, 18. April 2013 3:20 1562

• The device, the power cable and the mains plug must not be immersed in wa- ter or any other liquids.

• Protect the device from water drops and water spray.

• If liquid gets into the device (except in the water container), pull out the mains plug immediately. Have the device checked before reusing.

• Never touch the device with wet hands.

• If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device. DANGER! Risk of electric shock

• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wrap the power cable around the device.

• The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.

• When using the device, ensure that the power cable cannot be trapped or crushed.

• When removing the mains plug from the grounded power socket, always pull on the plug and never the cable.

• Pull the safety plug out of the grounded power socket, … … if there is a fault, … when you are not using the device, … before you clean the device, and … during thunderstorms.

• Do not use the device if there is visible damage to the device or the power ca- ble.

• To avoid any risk, do not make modifi- cations to the device. You also must not replace the power cable yourself. Re- pairs must be carried out by a specialist workshop or the Service Centre. WARNING! Risk of material damage

• Never place objects filled with liquid on top of the device, e.g. vases.

• Heavy objects must never be placed on the device.

• Protect the device from heat.

• The device must not be covered (e.g. with newspapers, cushions or blankets).

• Never insert objects into the ventilation slit.

• Open sources of ignition, e.g. burning candles, must never be placed on or im- mediately next to the device.

• Place the device somewhere that it will never be exposed to direct sunlight.

• Place the device on a solid, flat surface.

• Clean the air filter before it becomes heavily contaminated.

• When draining water through the hose, ensure that the hose does not become blocked, and that the open end of the hose is lower down than the device.

• Only operate the device with the water tank installed, or the hose attached. The hose end must be placed over a drain.

• Only use the original accessories.

• Do not use any astringent or abrasive cleaning agents.

• Only clean the device with a slightly damp cloth.

• Remove all transport packing material.

• Strip off the foil from the operating pan- el.

• Check to ensure that all parts are pre- sent and undamaged.

1. Place the device on a level, dry and

2. Let the device rest in its working posi-

tion for about 30 minutes, so that the coolant fluid can settle.

3. Make sure that the float at the left-hand

side of the water tank 5 can move freely.

4. Check that the water tank 5 is inserted

correctly. If it is installed incorrectly, or if the water tank has been removed, the LED 12 WASSERTANK VOLL will illu- minate.

5. Connect the mains plug 10 to a

grounded power socket.

6. Notes on operation

• If the relative humidity in residential rooms is continuously excessive, the cause should be found and rectified. (Continuous ventilation - i.e. for several years - is generally not reasonable.)

• The optimum ambient temperature for removing humidity from the air is 5°C to 35°C. Below 5°C, the use of a de- humidifier is not helpful, as there is only relatively little humidity in the air.

• During operation, the room temperature may rise by between 1°C and 4°C, depending on room size. This is normal. Automatic defrosting In order to prevent the device from freezing over while in continuous operation, it de- frosts itself automatically. To do this, the de- humidification process is interrupted, and the motor switches to its highest setting. The intervals at which this happens vary.

7.1 Switching on and off

• By pressing the button 16 STAND-BY, you can switch the device on and off. The corresponding LEDs illuminate or go out. - The device will start with the setting last selected. - If the device has failed due to a pow- er outage, has been disconnected from the mains power or stopped by the overheating protection system, it will start in the AUTOMATIK mode.

• If a timer has been set, the device will shut down after the time has run out (1- 12 hours).

• If a value has been set for relative hu- midity in the DAUERBETRIEB mode, the device will stop when the value has been reached, and re-start when the val- ue is exceeded again.

• The device switches off when the water tank is full or has been removed. Conditions Defrosting Temperature: over 20°C no defrosting Temperature: 12°C to 20°C after 40 minutes dehu- midification, 8 minutes defrosting Temperature: 5°C to 12°C after 25 minutes dehu- midification, 10 minutes defrosting Temperature: under 5°C operation not possible __RP89301_B1.book Seite 63 Donnerstag, 18. April 2013 3:20 1564

Air outlet flap valve Figure B: irrespective of which mode the device is being operated in, open the top flap valve 1. It clicks into place in four posi- tions. If the flap valve is not opened, the overheat- ing protection will switch the device off after a while for approx. 3 minutes.

The mode of operation LEDs 14 and the dis- play 13 show the selected functions and the humidity range. Mode of operation LEDs Display

7.3 Modes of operation

NOTE: the values selected for relative hu- midity (RH%) are recognised with an up- wards or downwards deviation of approx. 3%. This is necessary so that the device does not constantly switch on and off.

• The device has 4 different modes avail- able.

• By pressing the button 17 PRO- GRAMM, you can switch between the modes.

• The mode of operation LED 14 next to the active mode illuminates. LED illuminated Meaning WASSERTANK VOLL (TANK FULL) The water tank is full or has not been inserted. TIMER AKTIV (TIMER) A switch-off time is activated. LUFTREINIGUNG (AIR CLEAN) WÄSCHETROCK- NUNG (DRY CLOTHES) DAUERBETRIEB (CONTINUOUS) AUTOMATIK Selected mode BETRIEB (OPERATION) The device is switched on. Display Meaning This display can be seen continuously during oper- ation. It shows the humid- ity range in the room: NIEDRIG (LOW): under 65% MITTEL (MID): 65% to 75% HOCH (HIGH): over 75%

flash for 5 sec. Timer for all modes: These values (1 - 12 hours) will flash for 5 seconds when you use the arrow keys to select a switch-off time.

AUTOMATIK The setting for the target relative humidity (RH) is fixed at 55%. The compressor dehu- midifies until this value has been reached, and will then switch off. When the relative humidity rises again, the compressor switch- es on again. In this mode, the device operates in 3 differ- ent stages: - RH over 70%: the device dehumidifies at its highest setting. - RH between 55% and 70%: the device dehumidifies at its normal setting. - RH under 55%: no dehumidification, only the fan is running. NOTE: the relative humidity values of the automatic system are not identical to the val- ues HOCH/MITTEL/NIEDRIG on the dis- play13. Select this mode for continuous dehumidifi- cation to a pleasant relative humidity of 55%. DAUERBETRIEB (CONTINUOUS) In the DAUERBETRIEB mode, you can set the relative humidity in 5% increments to be- tween 30% and 80%. The device dehumidi- fies at a low level until the set value has been reached, and then deactivates itself. When the relative humidity rises again, the device switches on again. - 30 - 80%: setting for the desired relative humidity in the room. - CO: the device dehumidifies continu- ously. Select this mode for continuous dehumidifi- cation, or for dehumidification to a value that you have set. WÄSCHETROCKNUNG (DRY CLOTHES) You can use this mode in order to dry damp clothes or shoes faster. The device dehumid- ifies at its highest setting. Shift the flap valve1 of the air outlet in such a way that the jet of air is directed towards the items of clothing to be dried. LUFTREINIGUNG (AIR CLEAN) No dehumidification takes place with this mode. The room air is drawn in through the filter in front of the air inlet, and is cleaned there.

• The water tank 5 has a holding capaci- ty of 5 litres.

• The water level can be checked using the inspection window 7 in the front.

• The device can only be operated with the water tank in place.

• When the water tank 5 is full, the WAS- SERTANK VOLL LED 12 starts flashing. The device switches off after a few sec- onds. An alarm sounds for approx. 20seconds. The WASSERTANK VOLL LED12 flashes until the tank has been emptied.

1. Figure A: in order to empty the water

tank 5, pull it out slightly on the left and right-hand sides, and then carry it by the handle 3.

2. Pour the water out and place the tank

• The timer can be combined with all 4modes.

• There are 12 switch-off times that can be selected, from 1 to 12 hours.

• After the expiry of the time that has been set, the device is shut down and the timer function is terminated.

1. During operation, press the TIMER 19

to select a switch- off time of between 1 to 12hours. The selected time flashes in the display

for 5seconds and is then saved.

• If you want to end the timer earlier than the set time, press TIMER 19 twice or switch the device off by pressing STAND-BY 16.

In the case of very damp rooms, it is often more reasonable for the water not to be col- lected in the water tank, but to be dis- charged directly through a hose. WARNING! During hose drainage, the de- vice runs in continuous mode. This means that the water collected must be able to drain reliably, otherwise puddles will form on the floor.

1. Figure C: use a screwdriver to remove

the fastener 21 on the rear.

2. Remove the plug 23.

3. Figure C: place the hose 22 included

in the box over the opening.

4. Place the device in a position where

the end of the hose is over a drain. It is essential here that the open end of the hose is lower down than the drain out- let on the device (i.e. the hose must run at a downward angle).

5. Switch the device on as described

above and select a mode.

6. If you wish to drain into the water

tank5 again, switch the device off, re- move the hose 22, and replace the plug 23 firmly over the opening.

replacing the filter The performance of the device also depends on the cleanliness of the filter.

• The carbon filter 25 should be cleaned every 2 weeks and replaced every 6months. Clean the filter by brushing or vacuum suction.

• The normal plastic filter 24 should be washed every 2 weeks.

1. Switch the device off and pull out the

2. Figure D: reach into the upper open-

ing of the grid 8 and pull it off.

3. Rotate grid 8 and press, if necessary

with both thumbs, in the middle of the grid.

4. The plastic filter 24 and the carbon fil-

ter 25 come loose from the grid. Re- move them from the grid 8.

5. Rinse out both filters with lukewarm wa-

ter. (The carbon filter 25 should be re- placed after approx. 6 months.)

6. Allow both filters to dry completely.

7. Place the filters into the grid 8.

8. Place the grid onto the device.

NOTE: new carbon filters are available in almost all household goods shops. The pads just need to be cut to size. GB_RP89301_Luftbefeuchter.fm Seite 66 Freitag, 19. April 2013 9:13 0967

Clean the device prior to its first use! DANGER! Risk of electric shock!

• Pull the mains plug 10 out of the grounded power socket before you clean the device.

• The device, the power cable and the mains plug 10 must not be immersed in water or any other liquids. WARNING! Risk of material dam- age! Do not use any astringent or abrasive cleaning agents.

• Wipe the housing and the power ca- ble10 with a damp cloth if necessary.

• Remove the water tank 5, pour out the water, and dry the tank well inside and outside before re-inserting it into the de- vice.

11. Protection against

overheating The device has an overheating protection system.

• The overheating protection system will switch the device off automatically if there is a risk of overheating.

• It is then impossible to switch the device on again for 3 minutes.

• After approx. 3 minutes, the device starts automatically.

• Check whether external conditions could have triggered the overheating protection system, e.g. temperature above 35°C or a closed flap valve 1 over the air outlet.

DANGER for children! Keep the device out of the reach of children.

• Always store the device in an upright position.

• Select a location where neither high temperatures nor moisture can affect the device.

13. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any cir- cumstances. Fault Possible causes/Action No function.

• Has the device been connected to the power supply?

• Check the water level in the water tank 5.

• Check the position of the water tank.

The symbol showing a wheel- ie bin crossed through indi- cates that the product requires separate refuse collection in the European Union. This ap- plies to the product and all ac- cessories marked with this symbol. Products identified with this symbol may not be discarded with normal house- hold waste, but must be taken to a collection point for recycling electric and electronic ap- pliances. Recycling helps to reduce the con- sumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country.

specifications Subject to technical modification. The dehumid- ification does not seem to be working very well.

• Are the filters 24, 25 dirty?

• The temperature is low.

• Is the device operating in LUFTREINIGUNG mode? No dehumidifi- cation takes place with this program.

• Is a window open, or has steam been generat- ed in the room? Excessive noise.

• Is the device standing on a level, solid surface? Occasion- ally the device stops working.

• Defrosting mode is ac- tive. Damp cloth- ing is not drying, or is only drying very slowly.

• Is the air flow from the device directly pointed at the damp clothing?

• Is the room temperature too low? Fault Possible causes/Action Model: SLE 420 A1 Mains voltage : 220 - 240 V~ 50 Hz Protection class: I Input power: 320 W (27°C 60%) Power rating max.: 420 W (35°C 90%) Nominal current: 1,39 A (27°C 60%) Power consump- tion: max.1.82 A (35°C 90%) Dehumidification capacity: 20 L /day (30°C 80%) 11 L /day (27°C 60%) Air flow: 195 m
