| Product Type | Dehumidifier |
| Brand | SilverCrest |
| Model | SLE 320 D5 |
| Dimensions (W x D x H) | approx. 57.8 x 34.0 x 23.8 cm |
| Weight | approx. 13 kg |
| Power Supply | 220-240 V ~, 50 Hz |
| Power Consumption | 320 W (normal) / 420 W max |
| Water Tank Capacity | 6.5 L |
| Airflow | 195 m³/h |
| Dehumidification Capacity | 20 L/24h (30°C / 80% RH) |
| Recommended Area | up to 32 m² or 80 m³ |
| Refrigerant | R290 (propane) - 0.06 kg |
| Operating Temperature Range | 5°C to 32°C |
| Programs | Clothes Drying, Target Humidity, Ventilation, Auto Mode |
| Special Features | Auto defrost, timer 1-24h, auto shut-off when tank full |
| Display | Digital LED + color light indicator |
| Mobility | 4 transport casters |
| Safety | Overheat protection, tank safety switch |
| Cleaning | Washable air filter |
| Included Accessories | Drainage hose, EU garden hose adapter |
Frequently Asked Questions - SLE 320 D5 SILVERCREST
User questions about SLE 320 D5 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Dehumidifier in PDF format for free! Find your manual SLE 320 D5 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SLE 320 D5 by SILVERCREST.
USER MANUAL SLE 320 D5 SILVERCREST


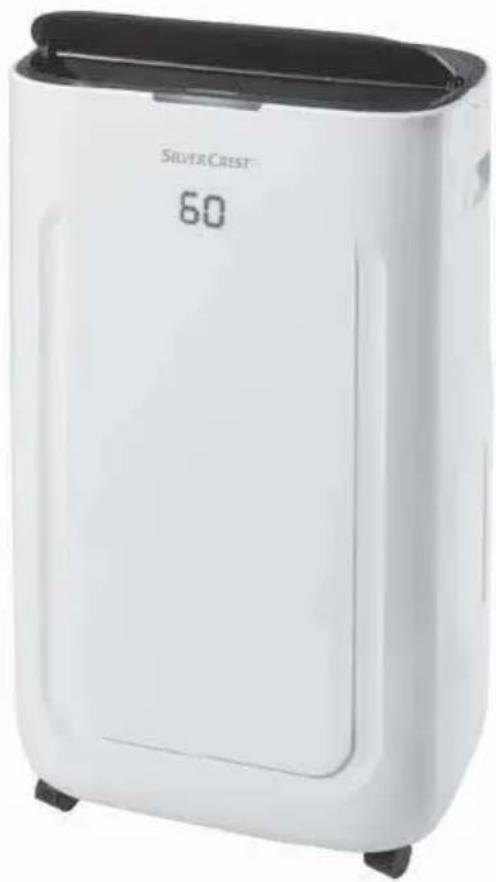

White silver Crest air purifier with digital display showing '60' and black lid (no text or symbols on device body)DEHUMIDIFIER / LUFTENTFEUCHTER / DÉSHUMIDIFICATEUR D'AIR SLE 320 D5
GB IE
DEHUMIDIFIER
Short manual
FR BE
DÉSHUMIDIFICATEUR D'AIR
Guide abrégé
CZ
ODVLHČOVAČ VZDUCHU
Stručný návod
SK
ODVLHČOVAČ VZDUCHU
Krátky návod
DK
LUFTAFFUGTER
Kvikvejledning
DE AT CH
LUFTENTFEUCHTER
Kurzanleitung
NL BE
LUCHTONTVOCHTIGER
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB/IE Short manual Page 1
Information about this short manual 2
Proper use 2
Warnings and warning symbols used 3
Safety....4
Risk of electrocution 4
Risk of electrocution due to moisture 4
Danger of explosion/fire 5
Risk of disease 6
Basic safety instructions 7
Operation 9
Package contents and transport inspection 9
Appliance description 10
Before initial use 1
Electrical connection 11
Guidelines for operation 11
Automatic defrosting 11
Handling and use 12
Switching the appliance on/off 12
Air outlet valve 12
Operating status displays 13
Selecting programmes 14
Timer function 15
Water tank 16
Hose drainage 17
Protection against overheating 18
Disposal 18
Disposal of the refrigerant 18
Disposal of the packaging 18
Appendix 19
Technical data 19
Notes on the EU Declaration of Conformity 19
Service 20
Importer 20

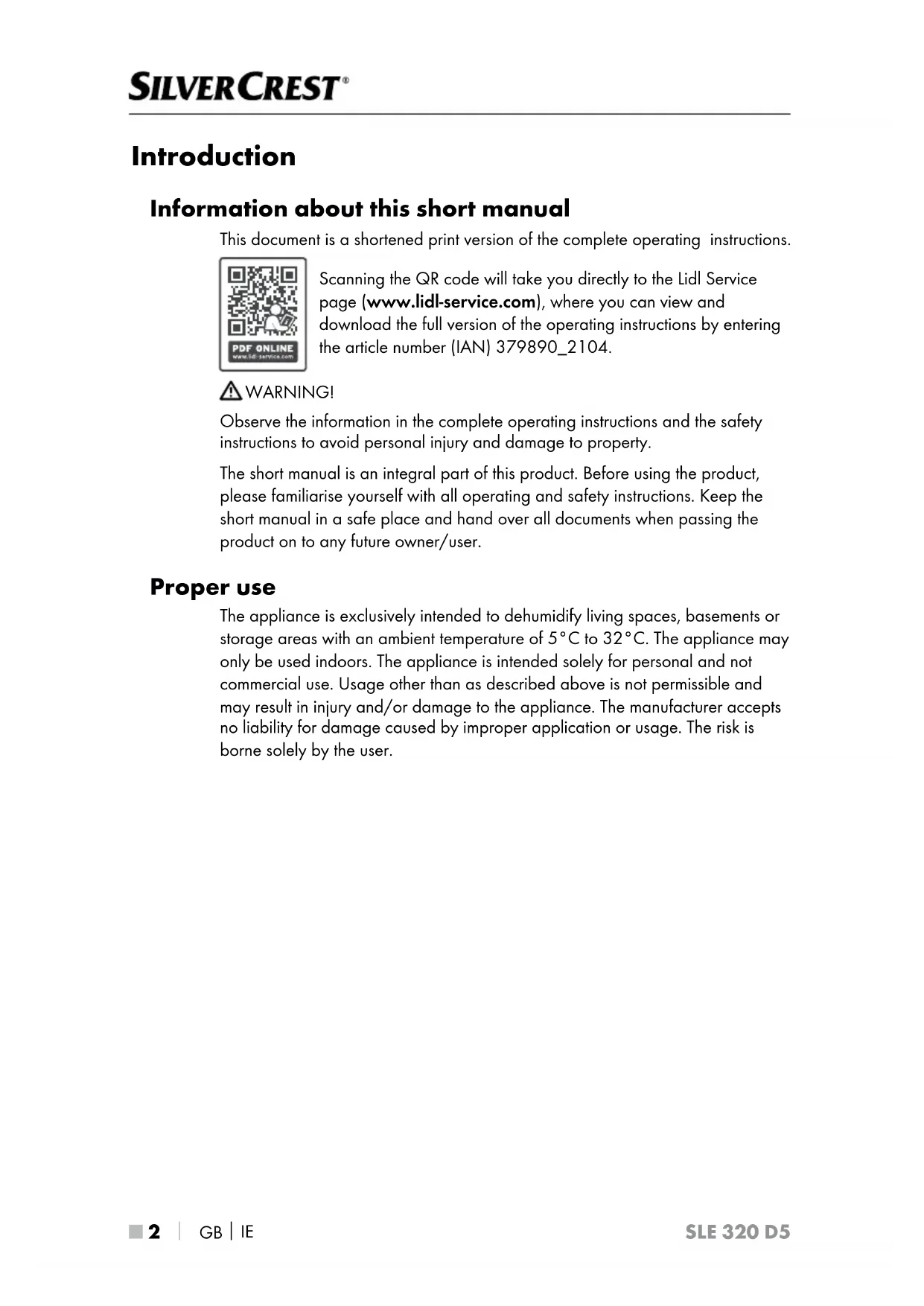

Introduction
Information about this short manual
This document is a shortened print version of the complete operating instructions.
Scanning the QR code will take you directly to the Lidl Service page (www.lidl-service.com), where you can view and download the full version of the operating instructions by entering the article number (IAN) 379890_2104.
WARNING!
Observe the information in the complete operating instructions and the safety instructions to avoid personal injury and damage to property.
The short manual is an integral part of this product. Before using the product, please familiarise yourself with all operating and safety instructions. Keep the short manual in a safe place and hand over all documents when passing the product on to any future owner/user.
Proper use
The appliance is exclusively intended to dehumidify living spaces, basements or storage areas with an ambient temperature of 5^ C to 32^ C. The appliance may only be used indoors. The appliance is intended solely for personal and not commercial use. Usage other than as described above is not permissible and may result in injury and/or damage to the appliance. The manufacturer accepts no liability for damage caused by improper application or usage. The risk is borne solely by the user.
Warnings and warning symbols used
The following warnings are used in this short manual:
DANGER
A warning notice at this hazard level indicates an imminently hazardous situation.
Failure to avoid this hazardous situation could result in serious injuries or even death.
▶ Follow the instructions on this warning label to avoid the risk of death or serious injury.
WARNING
A warning at this hazard level indicates a potentially hazardous situation.
Failure to avoid this hazardous situation could result in injury.
▶ Follow the instructions in this warning notice to prevent injuries.
CAUTION
A warning at this hazard level indicates a risk of property damage.
Failure to avoid this situation could result in property damage.
▶ Follow the instructions in this warning notice to prevent property damage.
NOTE
▶ A note provides additional information that will assist you in using the appliance.
The following warning symbols are used on the appliance:
| Symbol Meaning | |
 | Caution! Risk of fire! |
 | Observe operating instructions |
 | Instruction manual, operating instructions |
 | Service indicator, refer to the operating instructions |
Safety
This section contains important safety instructions for using the appliance. Improper use may result in personal injury and property damage.
Risk of electrocution
DANGER
Risk of fatal injury from electrocution!
Contact with live cables or components can result in a fatal injury!
Please observe the following safety guidelines to prevent electrical hazards.
▶ Do not use the appliance if the power cable or the plug is damaged.
There is a risk of electrocution if live connections are touched and the electrical and mechanical structure is changed.
Risk of electrocution due to moisture
DANGER
- Do not place the appliance in water, in water pooling areas or puddles.
▶ Never operate the appliance near a bath tub, a shower, a filled wash basin or similar structures.
▶ Do not immerse appliance, the cabling or the mains plug in water or other fluids.
▶ Protect the appliance from water droplets or spray.
In the event that liquid enters the appliance (apart from in the water tank), disconnect the mains plug immediately. Arrange to have the appliance checked before using it again.
▶ Do not handle the appliance with damp hands.
▶ If the appliance falls into water, disconnect the mains plug immediately. Do not attempt to remove the appliance before you have done so.
Danger of explosion/fire
DANGER
▶ Do not use the appliance in a potentially explosive environment containing combustible liquids, gases or dusts. Electrical appliances generate sparks that can ignite the dust or fumes.
The appliance contains extremely flammable gas under pressure that may explode if heated.
- Keep the appliance away from heat, hot surfaces, sparks, naked flames and other sources of ignition. Do not smoke.
RISK OF FIRE!
▶ Do not use any items other than those permitted by the manufacturer to speed up the defrosting process.
The appliance may only be stored in rooms without permanent sources of ignition (e.g. open flames, a switched-on gas appliance or an electric heater).
▶ Do not drill or burn.
▶ Remember that refrigerants are odourless.
Risk of disease
DANGER
The collected water is not suitable for drinking or watering plants. There are potential health hazards.
⚠ WARNING: MATERIAL DAMAGE
▶ Do not use the appliance in swimming pools, wash rooms or similar facilities.
The appliance is not suitable for drying lagging. If insulation or lagging materials are damp following a pipe burst, consult an expert.
▶ Never expose the appliance to temperatures of 0^ C or lower. Residual water in the lines could freeze and damage the system.
- Do not use the appliance in a dusty or chlorinated environment.
Basic safety instructions
To ensure safe operation of the appliance, follow the safety guidelines set out below:
- Check the appliance for visible external damage before use. Do not use an appliance that has been damaged or dropped.
■ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, its customer service department or a similarly qualified person.
■ Do not operate the appliance outdoors.
■ During operation, always keep windows and doors closed so that the appliance can work effectively.
■ Do not operate the appliance in the proximity of highly inflammable gases or materials, near naked flames or in areas prone to oil and water splashing.
■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless under supervision.
■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. It will also invalidate any warranty claims.
■ Do not expose the appliance to rain. Protect the appliance against moisture and the ingress of fluids and objects into the casing. Never immerse the appliance in water and do not place objects containing fluids (e.g. vases) on the appliance. The appliance could be irreparably damaged!
■ Do not place heavy objects on the appliance.
■ Do not cover the appliance (e.g. with newspapers, cushions or blankets).
■ Do not insert any objects into the ventilation slits.
■ Avoid direct sunlight.
■ Do not place any naked flames, e.g. burning candles, on or directly next to the appliance.
■ In the event of malfunctions, and in bad weather, disconnect the plug from the mains power socket.
■ Ensure that the air inlet and air outlet opening remain free of soiling during operation. Never cover the appliance!
■ Always place the appliance on a solid, flat surface so that it cannot tip over.
■ Do not permanently install the appliance. Position the appliance so that its side panels have a clearance of at least 20 cm from walls or other objects and ensure a clearance of at least 50 cm from the front, rear and top panels of the appliance in order to ensure good air circulation. Take care not to obstruct the air inlet and outlet opening.
■ The appliance may only be operated in rooms with an ambient temperature of 5^ C to 32^ C.
■ Use the appliance only in rooms up to 32 m².
■ The appliance must be installed, operated and stored in a room with a floor area greater than 4 m^2 .
■ If the appliance is operated in unventilated areas, these must be designed in such a way that the refrigerant cannot accumulate anywhere in the event of refrigerant leakage. Otherwise, a combustible mixture may be formed.
■ The appliance may only be stored in rooms without permanent sources of ignition (e.g. open flames, a switched-on gas appliance or an electric heater).
■ The appliance must be stored in a way that does not damage it.
■ Clean the air filter before it becomes heavily soiled.
■ While draining via a hose, ensure that it does not become blocked and that the open end of the hose is positioned at a lower level than the outlet aperture. The end of the hose must be positioned above a drain.
■ Operate the appliance only together with the water tank or with the hose installed.
■ Connect the safety plug only to a properly installed, easily accessible plug socket with protected contacts, the voltage of which corresponds to the specifications on the rating plate. The plug socket must remain easily accessible even after connection.
■ Before cleaning, always disconnect the mains plug from the mains power socket.
■ Always transport, operate and store the appliance upright! The water tank must be emptied before transport.
Operation
Package contents and transport inspection
The appliance is supplied with the following components as standard:
- Dehumidifier
- Hose
• EU garden hose adapter
• This short manual
NOTE
▶ Check the package for completeness and signs of visible damage.
▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).
◆ Remove all packaging materials and all carriage braces from the appliance.
◆ Remove the film from the control panel.
Appliance description
① Control panel
② LED indicator light
③ LED panel
4 Water tank
⑤ Transport casters (4x)
⑥ Flap for air outlet
⑦ Air inlet grille
8 Air filter
9 Outlet opening
⑩ Fill level indicator
11 Programme LEDs
⑫ MODE button
13 FAN SPEED button
14 TIMER button
15 Display
16 ▲ UP arrow
⑰ DOWN arrow
18 STAND-BY button
19 OPERATION LED
20 MAX TANK FULL LED
21 ✅√ HUMIDITY REACHED LED
22 HUMIDITY LED
23 TEMPERATURE LED
24 TIMER LED
25 FAN SPEED: LOW LED
26 FAN SPEED: HIGH LED
27 AUTO DE-ICING LED
28 Hose
29 EU garden hose adapter
Before initial use
◆ Place the appliance on a flat, dry and solid surface.
Allow the appliance to remain in the usage position for approx. 30 minutes so that the coolant can settle.
Check that the water tank 4 is correctly inserted.
◆ Insert the plug into a mains power socket. The Ⓧ OPERATION LED 19 flashes.
Electrical connection
CAUTION
▶ Before connecting the appliance, compare the specifications for the required input voltage on the rating plate with the intended voltage source for operation. This data must agree so that the appliance is not damaged.
The power cable must always be easily accessible, so that the appliance can be quickly removed from the mains in the event of an emergency.
▶ Check whether the power cable is undamaged and that it is not routed over hot surfaces and/or sharp edges, otherwise it will become damaged.
▶ Ensure that the power cable is not taut or kinked.
Guidelines for operation
If the air in your living spaces is constantly excessively humid, the cause should be identified and addressed. (Sustained - year-round - dehumidifying is generally not a good idea.)
The optimal ambient temperature for dehumidifying the air is 5^ C to 32^ C. Using a dehumidifier at temperatures below 5^ C is redundant, as there is little humidity in the air.
During operation, room temperature can increase by between 1^ C and 4^ C, depending on the size of the room. This is normal.
Automatic defrosting
To ensure that the appliance does not ice up during sustained operation, it defrosts automatically. The defrosting function is activated automatically and cannot be switched on manually. The appliance cannot be switched off during defrosting. During defrosting, the AUTO DE-ICING LED lights up. The lower the ambient temperature at which the appliance is operated, the earlier or more often the automatic defrosting is activated. Once the defrosting process is complete, the appliance resumes operation in the previous selected settings.
Handling and use
This section provides you with important information on handling and using the appliance.
Switching the appliance on/off
◆ Press the ⏻ STAND-BY button 18 to turn on the appliance.
You will hear a beep, and the Ⓧ OPERATION LED 19 lights up continuously.
◆ Press the ⏻ STAND-BY button 18 to turn off the appliance.
You will hear a beep, and the Ⓡ OPERATION LED 19 starts flashing.
NOTE
The appliance always starts up with the last-selected setting.
If the appliance shuts down due to a power failure, it will automatically restart with the last-selected setting when power is restored.
If a timer has been programmed, the appliance switches off permanently after the specified time has elapsed (1 - 24 hours).
If the relative humidity value has been set in the TARGET HUMIDITY program, the appliance switches off as soon as the value is reached. If the value is exceeded, the appliance switches back on again.

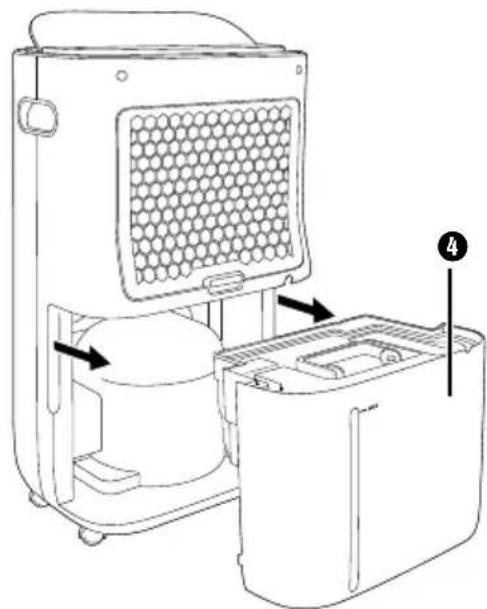

When the water tank 4 is full or removed, dehumidification stops. The fan continues to run for approx. 3 minutes and then switches off. If the water tank 4 has been removed or is not correctly inserted, the 📄 TANK FULL LED 20 lights up. If switched on, the appliance will also beep for approx. 20 seconds.
NOTE
The water tank ④ must be completely inserted into the appliance, otherwise the condensation water cannot be properly collected.
Air outlet valve
Operating status displays
The different operating states are shown on the control panel ① via LEDs and the display ⑮. In addition, the appliance has a numeric LED panel ③ as well as an LED indicator light ②. It uses different colours to indicate the relative humidity range in the room.
LED indicators
| LED lit Meaning | |
 TANK FULL 20 | The water tank 4 is full or not inserted. |
 TIMER 14 | A switch-off time has been activated. |
[KTTR] DRY CLOTHES TARGET HUMIDITY 11  FAN FUNCTION  AUTOMATIC | Shows the selected programme. |
 OPERATION 19 | The appliance is switched on. |
| [ZSH3] AUTO DEFROST 27 | Automatic defrosting is activated. |
Display indicator
| Display Meaning | |
 | During operation, the current relative humidity value is permanently displayed in %.Hold the UP arrow ▲16 for approx. 3 seconds to display the current ambient temperature in °C. After approx. 5 seconds the display automatically changes back to the humidity value. |
LED indicator light
| Colour Meaning | |
| Red Relative humidity | HIGH (>70%) |
| Green Relative humidity | MID (≥50 to ≤70%) |
| Yellow Relative humidity | LOW (<50%) |
NOTE
▶ Note that the values for the relative humidity have a tolerance of approx. ± 3 %, and switching on the appliance or dehumidification may be slightly delayed.
Selecting programmes
The appliance has 4 distinct programmes.
Press the MODE button 12 repeatedly to set the desired program. The programme LED 11 of the set programme lights up.
DRY CLOTHES
You can use this programme to dry damp laundry faster. Move the flap ⑥ on the air outlet so that the airflow is directed towards the garments to be dried. Changes regarding the desired air humidity and the fan level are not possible in this programme.
TARGET HUMIDITY
This programme offers you the option of setting the desired air humidity level that should be achieved yourself.
Press the ▲ UP arrow 16 or ▼ DOWN arrow 17 to set the desired humidity in 5% steps between 30% and 80%. The set value flashes on the display 15 for approx. 5 seconds and then the current relative humidity value is shown again.
As soon as the selected humidity is reached, the ⚙️√ HUMIDITY REACHED LED 21 lights up.
Additionally, you also have the option to select the setting CO if you want to make a setting below 30% relative humidity. This setting allows you to achieve a very low humidity as the dehumidification runs permanently.
To achieve maximum dehumidification, the fan speed must be set high. To do this, press the ⚙️ FAN SPEED button ⑬, until the LED ⚙️ ㉕ (high) lights up.
NOTE
The minimum humidity that can be achieved in 60 mode is dependent on many factors, such as the room size or the ambient temperature, etc. Therefore, it is not possible to define a generally applicable minimum value.
FAN FUNCTION
No dehumidification takes place in this programme. The room air is drawn in through the air inlet, passes through the filter 8 and is discharged back into the room via the air outlet.
Press the 🎨 FAN SPEED button ⑬ to select the desired fan level. The LEDs ⚙ ㉕ (ype) and ⚗ ㉖ (high) indicate which fan level is set.
AUTOMATIC Ⓐ
With this programme, the following functions are automatically activated or deactivated depending on the respective humidity in the room:
| Humidity Dehumid | fication Fan | |
| >70% On Fan speed: High | ||
| 55–70% On Fan speed: Low | ||
| < 55% Off | Fan speed: Low |
Timer function
The appliance is equipped with a timer function that can be used with any one of the 4 programmes. One of 24 switch-off times, ranging from 1 to 24 hours, can be selected. Once the set time has elapsed, the appliance switches off permanently.
◆ Press the Ⓛ TIMER button 14 during operation. The Ⓛ TIMER LED 24 lights up, and ☐ flashes on the display 15.
Press the ▲ UP arrow 16 or the ▼ DOWN arrow 17 to set a switch-off time from 1 to 24 hours. The selected switch-off time flashes on the display 15 for approx. 5 seconds and then the current relative humidity value is displayed again.
To end the timer prematurely, press the ① TIMER button ⑭ twice. The ⑤ TIMER LED ⑳ goes out and the display ⑮ shows the current relative humidity value.
Water tank
The water tank ④ has a capacity of approx. 6.5 litres. The water level can be checked by means of the fill level indicator ⑩. The appliance can only be operated with the water tank ④ inserted. When the water tank ④ is full, the TANK FULL LED ⑳ lights up. In addition, the appliance will also beep for approx. 20 seconds. The dehumidification stops; the fan continues to run for approx. 3 minutes and then switches itself off.
Carefully pull the water tank ④ out of the appliance using the recessed grips on the side. Use the handle to transport the water tank ④ (see figure 1).


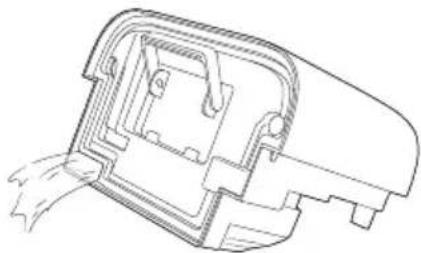

Pour out the water through the opening in the lid (see figure 2) and replace the water tank Ⓐ in the appliance. The appliance resumes operation with the previously selected programme.
Hose drainage
In very humid rooms, it often makes more sense to drain off the water directly via a hose rather than collect it in the water tank ④. You can use the supplied hose ② or the EU garden hose adapter ⑲ to set up a permanent drainage outlet.
CAUTION
When draining via the hose, the appliance runs continuously. When draining via the hose, make sure that it is not kinked and that it runs downwards along the entire length. Otherwise, the water may flow back into the appliance and damage it.
▶ Check the entire connection system regularly for leaks.

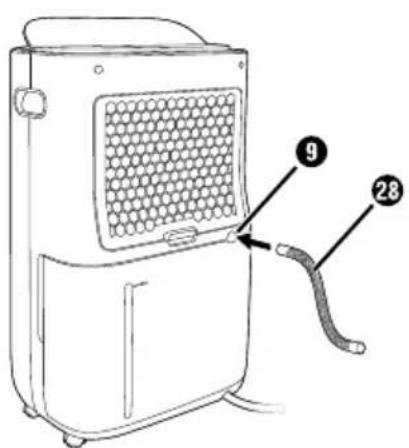

Connect either the supplied hose 28 or the EU garden hose adapter 29 to the outlet opening 9 (see figures 3 + 4).

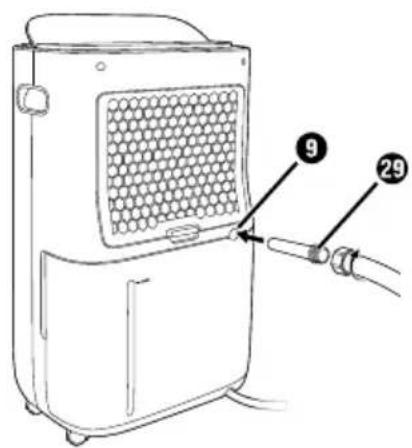

When using the EU garden hose adapter 29, screw a garden hose onto the EU garden hose adapter 29 (see figure 4).
CAUTION
▶ Screw the EU garden hose adapter 29 hand-tight only. Do not use a wrench as this may damage the EU garden hose adapter 29.
NOTE
▶ Depending on the garden hose system you use, you may need an additional adapter. These are available from specialist stores.
- Set up the appliance so that the end of the hose is positioned over a drain. The open end of the hose must lie below the outlet opening ⑨ of the appliance (i.e. the hose must have a downwards gradient).
Protection against overheating
The appliance has an overheating protection. It switches off automatically if there is a risk of overheating and switches back on once the appliance has fully cooled down. The appliance cannot be used during the cool-down phase.
Check whether external conditions may have triggered the overheating protection (e.g. temperatures above 32°C or a closed air outlet flap 6).
Disposal
Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European WEEE (Waste Electrical and Electronic Equipment) Directive 2012/19/EU.
Dispose of the appliance via an approved disposal company or your municipal waste facility. Please comply with all applicable regulations. Please contact your waste disposal facility if you are in any doubt.
Your local community or municipal authorities can provide information on how to dispose of the product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Disposal of the refrigerant
This appliance contains R290 (propane) as a refrigerant. The system is hermetically sealed.
The undamaged refrigerant must be disposed of professionally. Please contact your waste disposal facility if you are in any doubt.
Disposal of the packaging
The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:
1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Appendix
Technical data
| Input voltage 220-240 V ~ (alternating current), 50 Hz | |
| Input power 320 W (at 27°C/60% rh) | |
| Nominal current 1.7 A (at 27°C/60% rh) | |
| Max. output power 420 W (at 32°C/90% rh) | |
| Max. nominal current 2.1 A (at 32°C/90% rh) | |
| Air flow rate 195 m3/h | |
| Water tank approx. 6.5 l | |
| Intake pressure 1.2 MPa | |
| Discharge pressure 2.5 MPa | |
| Dehumidification performance/24 h* | 20 l (at 30°C/80% rh)10 l (at 27°C/60% rh) |
| Recommended room size | approx. 32 m2 or approx. 80 m3(at a ceiling height of 2.5 m) |
| Refrigerant R290 | |
| Fill level 0.06 kg | |
| Operating temperature 5°C to 32°C | |
| Dimensions approx. 57.8 x 34.0 x 23.8 cm | |
| Weight approx. 13 kg | |
*The lower the ambient temperature and the colder the temperature outside becomes, the less moisture accumulates in the air and flows from outside into the room to be dehumidified. For this reason, dehumidification performance steadily decreases when temperatures drop and can come to a standstill. This does not mean that the appliance is defective.
Notes on the EU Declaration of Conformity
In terms of compliance with fundamental specifications and other relevant regulations, this appliance complies with the Low Voltage Directive 2014/35/EU, the Electromagnetic Compatibility Directive 2014/30/EU and the Ecodesign Directive 2009/125/EC.
The complete EU Declaration of Conformity is available from the importer.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE ServiceIreland
Tel.: 1890 930 034
(0,08 EUR / Min., (peak))
(0,06 EUR / Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 379890_2104
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Inhaltsverzeichnis
Einführung 22
Line drawing of a portable air purifier with labeled components (no text or symbols present)Abb. 1
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Table des matières
Introduction 42
Line drawing of a portable air purifier with labeled components (no text or symbols present)Fig. 1
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Inhoud
Inleiding 62
⚠ WAARSCHUWING VOOR MATERIËLE SCHADE!
20 LED RESERVOIR VOL
21 LED ✅√ LUCHTVOCHTIGHEID BEREIKT
22 LED LUCHTVOCHTIGHEID
23 LED 🔍 TEMPERATUUR
24 LED TIMER
25 LED VENTILATORSNELHEID: LAAG
26 LED VENTILATORSNELHEID: HOOG
27 LED AUTOMATISCHE ONTDOOIING
28 Slang
29 EU-tuinslangadapter
Line drawing of a portable air purifier with labeled components (no text or symbols present)Afb. 1
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Obsah
Úvod....82
Line drawing of a portable air purifier with labeled components (no text or symbols)Obr. 1
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
Spis treści
W step 102
Line drawing of a device with labeled parts, showing internal components and directional arrows (no text or symbols)Rys. 1
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Obsah
Úvod....122
Line drawing of a portable air purifier with labeled components (no text or symbols present)Obr. 1
Ochrana proti prehriatiu
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Índice
Introducción....142
Line drawing of a portable air purifier with labeled components (no text or symbols present)Fig. 1
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Indholdsfortegnelse
Introduktion 162
Line drawing of a portable air purifier with labeled components (no text or symbols present)Fig. 1
Beskyttelse mod overophedning
chemical
Two recycling symbols: one with a recycling arrow and the other with a triangular recycling symbol labeled 'a' and 'b'.KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie
Stav informaci · Stan informacji · Stav informacií · Estado de las informaciones · Tilstand af information:
09 / 2021 · Ident.-No.: SLE320D5-072021-3
