USER MANUAL SMW 700 C1 SILVERCREST

Operation and safety notes

NL BE

MAGNETRON

GB/IEOperation and safety notesPage 17

List of pictograms used

Introduction

Intended use Page 18
Parts description.. Page 18
Delivery contents.. 19
Technical data.. Page 19

Safety instructions

Initial use

Choosing an installation site.. Page 23
Preparing the product.. Page 23

Operation

Cleaning, maintenance and storage

Troubleshooting

Disposal

Warranty

Conditions of warranty.. Page 25
Warranty period and legal claims for defects.. Page 25
Scope of warranty . Page 25
Processing of warranty claims.. Page 25

Service

Supplier/Producer/Importer

Conformity information

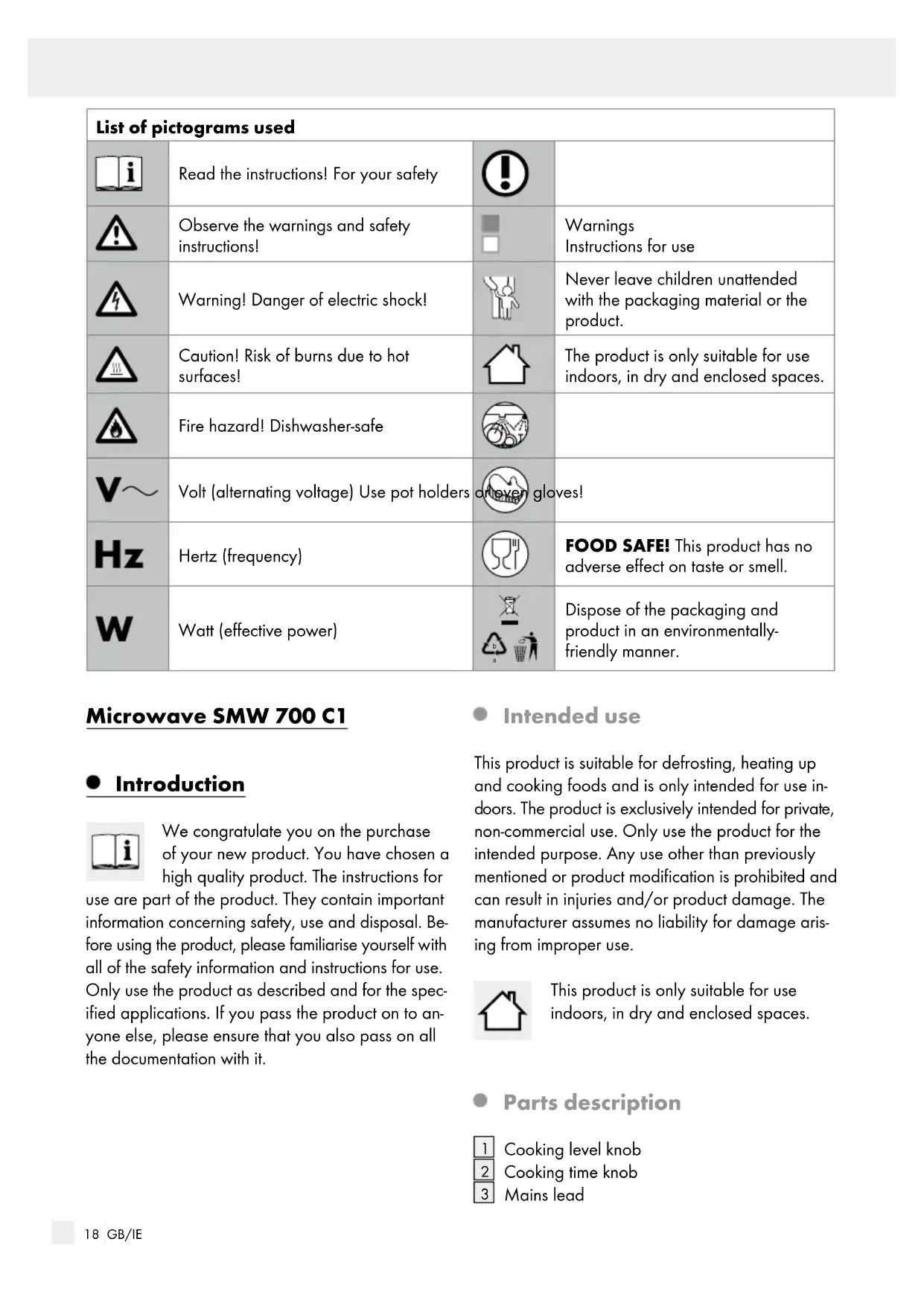

List of pictograms used
i	Read the instructions! For your safety
	Observe the warnings and safety instructions!		Warnings Instructions for use
	Warning! Danger of electric shock!		Never leave children unattended with the packaging material or the product.
	Caution! Risk of burns due to hot surfaces!		The product is only suitable for use indoors, in dry and enclosed spaces.
	Fire hazard! Dishwasher-safe
V~	Volt (alternating voltage) Use pot holders
Hz	Hertz (frequency)		FOOD SAFE! This product has no adverse effect on taste or smell.
W	Watt (effective power)		Disposition of the packaging and product in an environmentally-friendly manner.

Microwave SMW 700 C1

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for

use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is suitable for defrosting, heating up and cooking foods and is only intended for use indoors. The product is exclusively intended for private, non-commercial use. Only use the product for the intended purpose. Any use other than previously mentioned or product modification is prohibited and can result in injuries and/or product damage. The manufacturer assumes no liability for damage arising from improper use.

This product is only suitable for use indoors, in dry and enclosed spaces.

- Parts description

1 Cooking level knob
2 Cooking time knob
3 Mains lead

4 Door release button
5 Mica cover
6 Turntable ring
7 Turntable shaft
Glass plate
9 Door
10 Door locking mechanism

Delivery contents

Verify that the contents are complete and that the product is in perfect condition immediately after unpacking.

1 Microwave
1 Glass plate
1 Turntable ring
1 Set of instructions for use

Technical data

Model no.: SMW 700 C1

Rated voltage: 230V 50Hz

Power consumption: 1050W

Power output: 700W

Microwave frequency: 2450 MHz

Capacity: 17 Litres

Diameter of glass plate: 255mm

Microwave dimensions: approx. 44 × 25.7 ×

34 cm (w x h x d)

Safety instructions

PLEASE READ THE INSTRUCTIONS FOR USE PRIOR TO USE! PLEASE KEEP THE OPERATING INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY, INCLUDE ALL DOCUMENTS!

WARNING!

DANGER TO LIFE AND

RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. There is a danger of suffocation. Keep children away from the product.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Do not let children perform cleaning and user maintenance unless they are over 8 years old and are supervised. This product is not a toy.

Keep the product and the connection cable away from children under 8.

Check the product for damage before each use. Never use the product if it is damaged in any way.
Product repairs may only be carried out by the manufacturer or a technician appointed by the manufacturer or a similarly qualified person.
The product is not intended for operation with an external timer switch or a separate remote control system.
Never operate the product when empty!
- Do not attempt to operate the product with the door open. This can result in contact with a harmful dose of microwave radiation.
- Do not use the product if the door 9 or the door locking mechanism 10 are damaged. The product must immediately be repaired by the manufacturer or a technician appointed by the manufacturer or a similarly qualified person.
- Never remove the light brown Mica cover ⑤ , which is installed to protect the magnetron in the cooking chamber of the product.

WARNING! It is dangerous for any persons other than qualified professionals to perform any maintenance or repair works which require the removal of the cover which ensures protection against radiation exposure caused by microwave energy.
The light inside the product should only be replaced by a qualified professional.

WARNING! Liquids or other foodstuffs must not be heated up inside sealed containers as they can easily explode.

Heating up drinks can lead to delayed overboiling. Always proceed with caution.
The contents of baby bottles and jars containing baby food must always be stirred or shaken.

Always check the temperature before consumption in order to avoid burns.

• Eggs with shells or hard-boiled eggs should not be heated up as they could explode.

• Do not stand directly in front of the product when opening the door. Escaping steam can cause burns.
  This product is intended for household use and use in similar application areas, such as for example:

• in staff kitchens in shops, offices and other commercial areas;

• on agricultural estates;
• by customers at hotels, motels and other residential environments;
• in bed and breakfasts.
  If the product is not kept clean, this can lead to wear and tear which compromises the service life of the product and leads to dangerous situations.
  Clean the door 9 and the door locking mechanism 10 regularly.
  The product must not be cleaned using a steam cleaner.

Caution! Avoid the risk of fatal injury from electric shock!

Only plug the product into a professionally installed mains socket. Make sure that the mains voltage corresponds to that of the product (see "Technical data").
If the mains lead 3 is damaged, it must be replaced by a qualified service technician to avoid dangers.
Ensure that the mains lead cannot become damaged by sharp edges or hot surfaces.

The product and the mains lead must never be immersed in water or other liquids.
Always unplug the mains lead from the mains socket before cleaning or if the product will not be used for extended periods.

Prevent fire hazards!

• Do not operate the product near devices which emit heat themselves, e.g. ovens or stoves.
  Only use the product in a freestanding capacity.
• Do not install the product inside a cupboard.
  The minimum installation height is 85cm
  Position the back of the product against a wall.
• Never cover up the product's ventilation openings.
  If the product starts to smoke, switch it off immediately and unplug the mains plug. Keep the door 9 closed to suffocate the flames.
• Never leave the product unattended if you are heating up foods in plastic or paper packaging.
  Only use utensils which are suitable for use in microwave devices.

Remove metallic packaging elements from foods before heating them up.
- Never use metal containers for food or drinks.
Do not heat up fat or oil.
Never use the product to dry clothing, sponges or similar.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Please note that the door 9 and the outer surfaces can become hot during operation. Allow these to cool down or use pot holders or oven gloves.
Any utensils used can become very hot when heating up foods. Use pot holders or oven gloves.

For your safety

We recommend that you use round / oval dishes rather than square / oblong dishes, as foods in the corner areas can easily overcook.
Use the following utensils to heat up foods:

• Browning dishes

• Plates and dishes

• Glass containers without lids

• Oven glassware
• Oven cooking bags
• Paper plates and cups (for short warming times only)
• Paper towels (to cover foods and soak up fat only)
• Microwaveable plastic containers
• Microwaveable plastic packaging
• Microwaveable thermometers
• Wax paper (to cover foods only) Always observe the manufacturer's instructions.

Position the foods carefully before cooking. The thickest sections are close to the edges.
Use a suitable cover if possible. This prevents splashing and ensures that the foods are cooked evenly.
Pay attention to the cooking time. Choose the shortest specified cooking time and extend this as required. Foods that have been heated up for too long can catch fire.

FOOD SAFE! This product has no adverse effect on taste or smell.

- Initial use

Remove all packaging materials as well as protective films and check that all parts are complete and undamaged. Never remove the light brown Mica cover 5 in the cooking chamber of the product. This is not a packaging material - its purpose is to protect the magnetron. If the product is incomplete or damaged upon delivery, please contact the manufacturer.

- Choosing an installation site

Choose a level surface which ensures sufficient free space for the aeration and ventilation of the product (see Fig. B).

Make sure that the mains plug is easily accessible so that it can be easily reached and unplugged in case of danger.

Install the product as far away from radios and televisions as possible. Operating the product can cause disruptions in radio or television reception.

Preparing the product

• Open the door 9 by pressing the door release button 4.

Before first use, clean the cooking chamber of the product with lukewarm water. Make sure that no residue is left when removing all protective and adhesive films.

Place the turntable ring into the well inside the cooking chamber.

Place the glass plate on the turntable ring 6 and the turntable shaft 7. In doing so, the three glass points on the underside of the glass plate 8 must engage in the grooves on the turntable shaft 7.

Close the door by pushing it shut. Make sure that the door locking mechanism 10 clicks into place.

Plug the mains plug into a professionally installed mains socket. Make sure that the mains voltage corresponds to that of the product (see "Technical data").

Operation

WARNING! Never operate the product when empty!

• Open the door 9 by pressing the door release button 4.
  Place the food that you want to heat up in a suitable container in the middle of the glass plate 8.
  Close the door by pushing it shut. Make sure that the door locking mechanism 10 clicks into place.
  Set the cooking level knob to the desired cooking level (see Fig. C).

In the following table you can find examples of the cooking levels for certain foods:

Function/Output power	Cooking output power (Watts, approx.)	Use
Low	17% (120 W)	Thawing ice cream
Medium-low (Defrost)	33% (230 W)	Soups, softening butter, or defrosting
Medium	55% (385 W)	Stews, fish
Medium-high	77% (540 W)	Rice, fish, chicken, minced meat
High	100% (700 W)	Reheating, milk, boiling water, vegetables, drinks

In the following list you can find the approximate defrosting time needed for different weights. Use the cooking level "Medium-low (defrost)" Extend the defrosting time as necessary if the desired weight is not yet defrosted.

Weight Time
0.2kg 3 min.
0.4kg 6 min.
0.6kg 9 min.
0.8kg 12 min.
1.0kg 15 min.

Set the desired time on the cooking time knob 2. When doing so, refer to the weight of the food or the manufacturer's instructions.

The product begins to heat up the food automatically after the cooking time is set.

After the set cooking time has expired, the cooking process ends automatically and a beep tone sounds.

If you want to end the cooking process early, manually turn the cooking time knob 2 to "0", which will trigger the beep tone.
Open the door by pressing the door release button 4.
Always set the cooking time kn to "0" when the product is not in use.

- Cleaning, maintenance and storage

If the product is not kept clean, this can lead to wear and tear which compromises the service life of the product and leads to dangerous situations.
Clean the door 9 and the door locking mechanism 10 regularly.
The product must not be cleaned using a steam cleaner.
Remove any food residues regularly.
- Do not use harsh cleaning agents or scouring agents.
Unplug the mains plug from the mains socket if you are not using the product for a long period of time.
Make sure that all parts are completely dry before you use the product.
Clean the product using a soft sponge and some soapy water.
The glass plate 8 is dishwasher safe.

Troubleshooting

Problem Cause Solution
The product won't start.	The mains plug is not firmly plugged in.	Unplug the mains plug and plug it back in after 10 seconds.
	The fuse has burnt through or the switch-disconnector has triggered.	Replace the fuse or reset the switch-disconnector.
	Problems with the socket.	Check the socket with other electrical devices.
The product is not heating up.	The door 9 is not closed properly.	Close the door 9.

Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This

directive states at the end of the life this product

must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately.

Warranty

Dear customer,

The warranty on this product is 3 years from the date of purchase. In the event of defects in this product, you have legal rights against the product vendor. These legal rights are in no way limited by the warranty described below.

- Conditions of warranty

The warranty period begins on the date of purchase. Please take care to keep the original purchase receipt. This document will serve as a proof of purchase. If, within three years of the date of purchase of this product, any defect in material or manufacture should become evident, the product will - as we choose - be repaired free of charge or replaced. This warranty is subject to presentation, within the three-year term, of the defective product and the proof of purchase (receipt) and a brief, written description of what constitutes the defect and when it became evident. If the defect is covered by our warranty, you will receive back the repaired product or a new replacement. Repair or exchange of the product does not lead to a renewed warranty period.

Warranty period and legal claims for defects

The warranty period is not prolonged by the above fulfilment. This also applies for replaced and repaired parts. Any damage or defects present at the time of purchase must be notified immediately after

unpacking. Repairs that are carried out after the expiration of the warranty period are subject to a charge.

Scope of warranty

The product is manufactured in accordance with strict quality guidelines and thoroughly tested before dispatch.

The warranty applies for defects in materials or manufacture. This warranty does not extend to product parts that are subject to normal wear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. switches, batteries or parts made of glass.

This warranty is void if the product has been damaged or not properly used or serviced. For proper use of the product, exact compliance with all instructions listed in the user manual is required. It is essential to avoid procedures and use for purposes against which the user manual advises or warns.

The product is intended for private use only and not for industrial / commercial use. Improper handling and usage not in accordance with the intended purpose, use of force and any interventions that are not carried out by our authorised service centre will render the warranty null and void.

- Processing of warranty claims

For speedy processing of your request, please observe the following instructions:

For all enquiries, please keep the receipt and the article number (e.g. IAN 12345) to hand as proof of purchase.

The article number is to be found on the type plate, an engraving, on the title page of your instructions (bottom left) or on an adhesive label on the rear or underside.

If functional or other defects occur, first contact the service department named below by telephone or via our contact form.

At www.lidl-service.com, you can download this and many other handbooks, product videos and software.

EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
Ecodesign Directive 2009/125/EC
RoHS Directive 2011/65/EU

Service United Kingdom

Hotline

[phone]

Mon-Fri: 09:00-17:00

Please use the contact form at www.mlap.info/contact

Service Ireland

Hotline

[phone]

Mon-Fri: 09:00-17:00

Please use the contact form at www.mlap.info/contact

IAN 306538

- Supplier/Producer/Importer

Please note that you cannot use the address below for returns. Please contact the Service Centre mentioned above.

MLAP GmbH

Meitnerstr. 9

DE-70563 Stuttgart

GERMANY

Conformity information C

MLAP GmbH hereby declares that the "Microwave SMW 700 C1" complies with the following European requirements:

Directive RoHS 2011/65/UE
