USER MANUAL VCO32801AR BEKO

Vacuum Cleaner User Manual EN - DE - FR - ES - RO -IT - PL - SL - CS - BG - HU - RU VCO32801AR VCO32802AD 01M-8837413200-1525-04 01M-8838153200-1525-04Please read this manual first! Dear Valued Customer, Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the- art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual. Meanings of the Symbols Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

Warnings against dangerous situations concerning the security of life and property. Protection class for electric shock.Vacuum Cleaner / User Manual 3 / EN CONTENTS ENGLISH 4-12 DEUTSCH 13-24

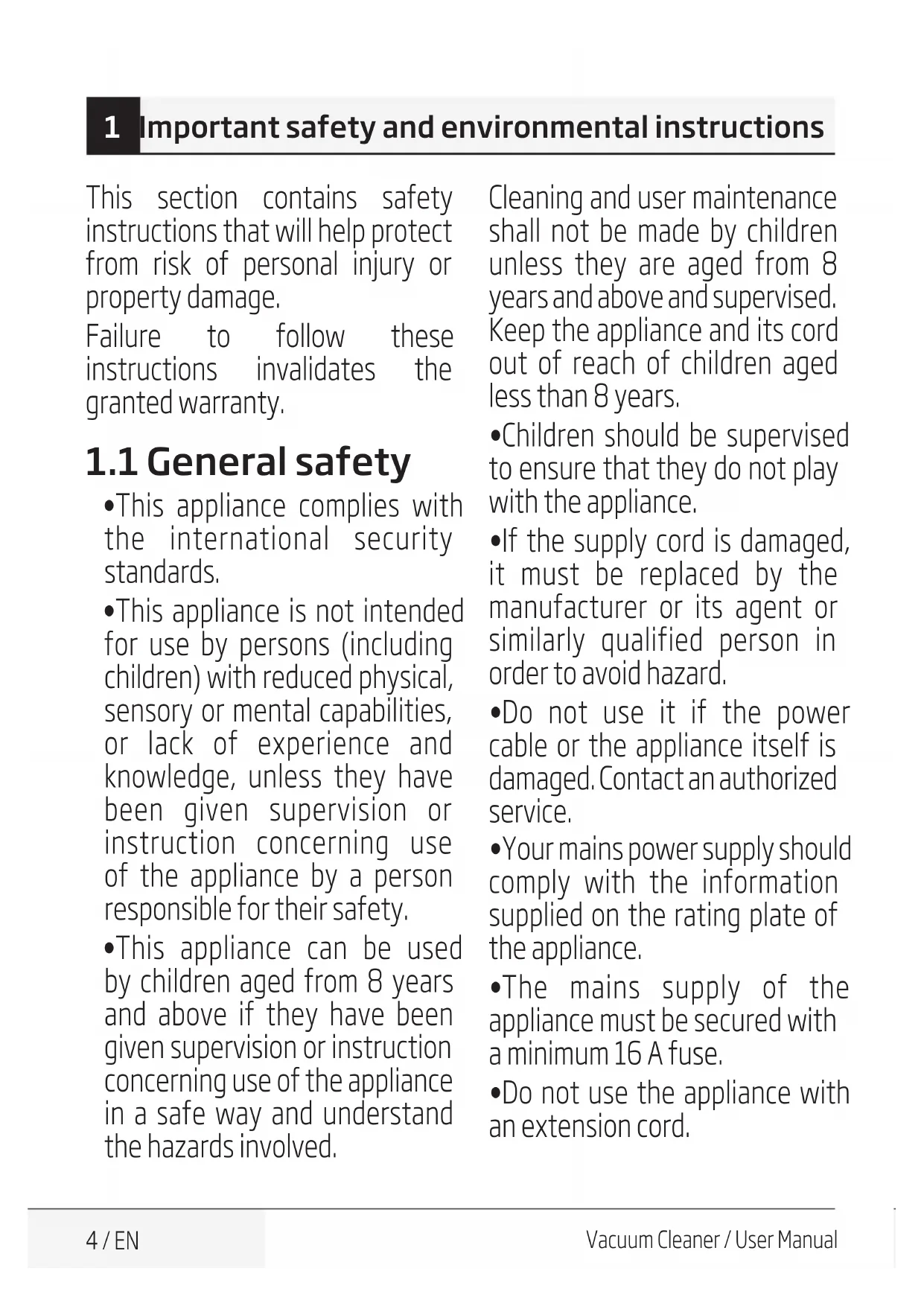

Vacuum Cleaner / User Manual This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

• This appliance complies with the international security standards.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. 1 Important safety and environmental instructions Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Children should be supervised to ensure that they do not play with the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.

• The mains supply of the appliance must be secured with a minimum 16 A fuse.

• Do not use the appliance with an extension cord.Vacuum Cleaner / User Manual 5 / EN 1 Important safety and environmental instructions

• In order to prevent the power cable from getting damaged, make sure that it doesn’t get stuck, twisted or rub against sharp surfaces.

• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.

• Do not pull the power cable when unplugging the appliance.

• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.

• Do not vacuum water or other liquid materials.

• Protect the appliance from rain, humidity and heat sources.

• Never use the appliance in or near to combustible or inflammable places and materials.

• Unplug the appliance before cleaning and maintenance.

• Do not dip the appliance or its cable in water to clean it.

• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufacturer.

• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

• Do not use the appliance without filters; otherwise it can get damaged.

• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.

• When vacuuming the stairs, the appliance should be located below the user.6 / EN Vacuum Cleaner / User Manual

• If you keep the packaging materials, store them out of the reach of children.

1.2 Compliance with the WEEE

Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS

Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. 1 Important safety and environmental instructions

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.Vacuum Cleaner / User Manual 7 / EN

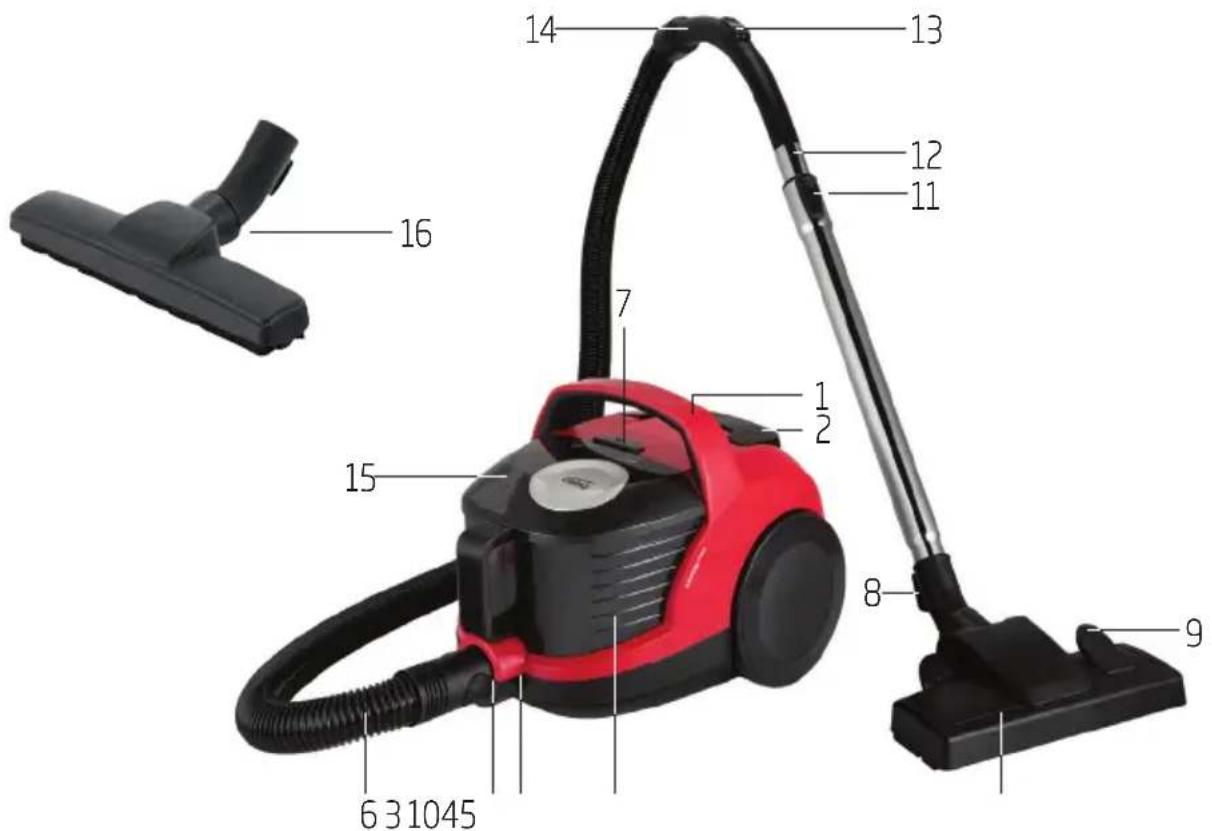

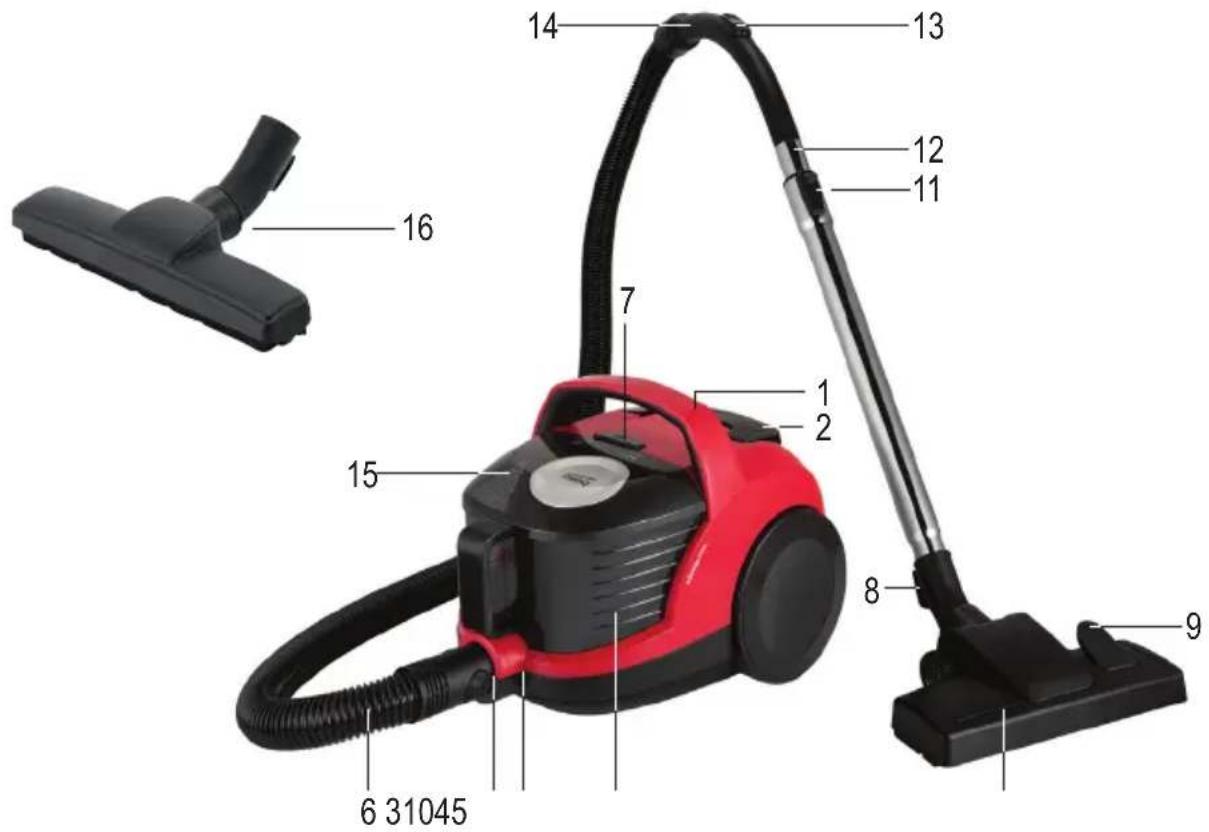

2 Your vacuum cleaner

8. Parquet/carpet brush parking hook

9. Brush adjustment latch

10. High performance parquet/carpet brush

11. Telescopic tube adjustment latch

Rights to make technical and design changes are reserved. The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

The appliance has been designed for household use and is not suitable for industrial use.

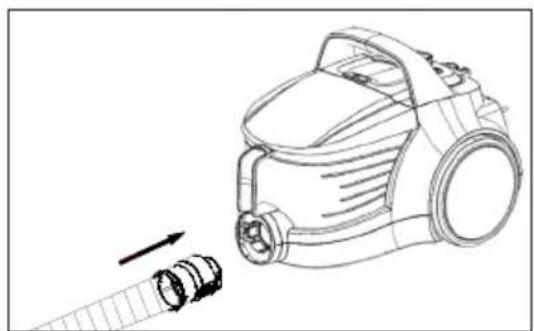

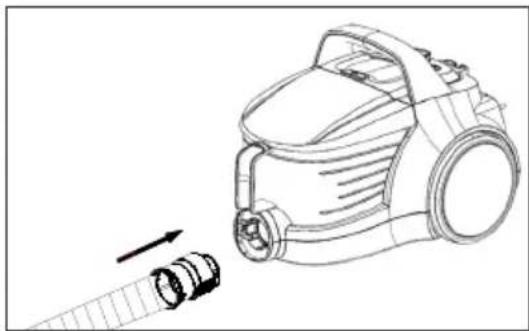

1. To attach the hose (6), push the hose cap (5) in

the direction of arrow until it is aligned with the housing (you will hear a click).

• Projecting parts on the hose cap should be aligned correspondingly.

2. To remove the hose (6), press the unlocking

buttons on the sides of the hose cap (5) and pull the hose.

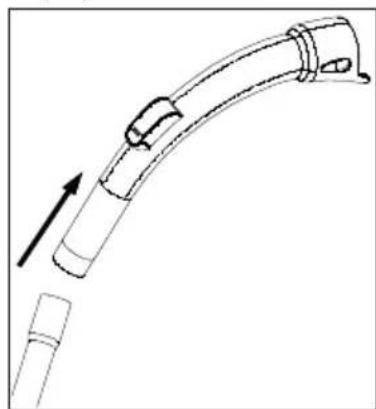

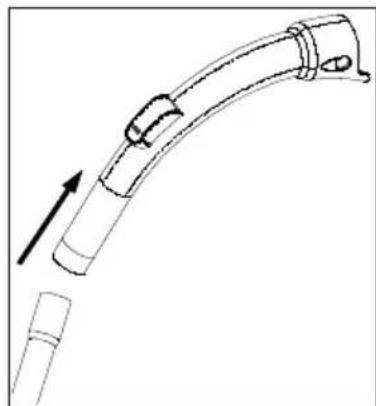

1. Attach the telescopic tube (12) to the handle

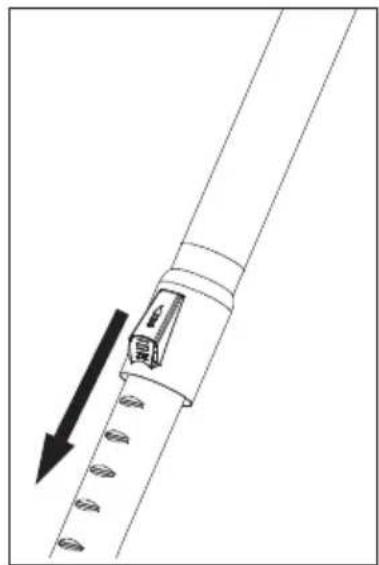

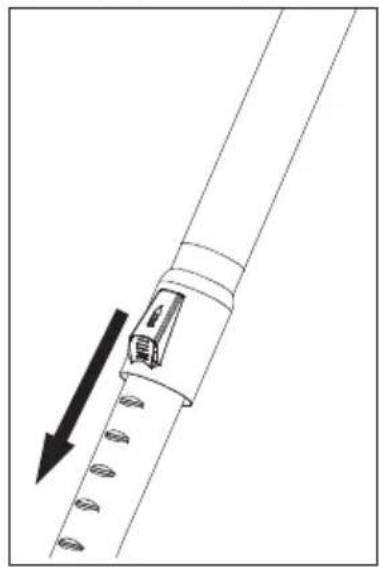

2. Pull the telescopic tube (12) from the handle

(12) by sliding the telescopic tube adjustment latch (11) back and forth.

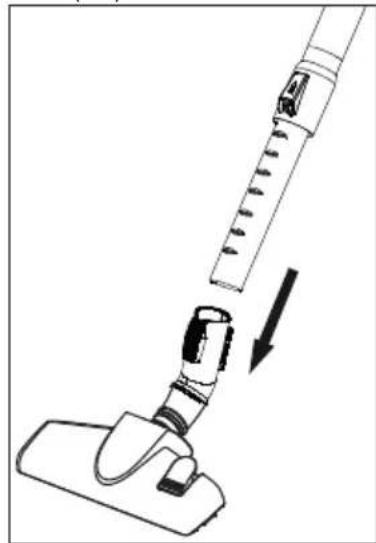

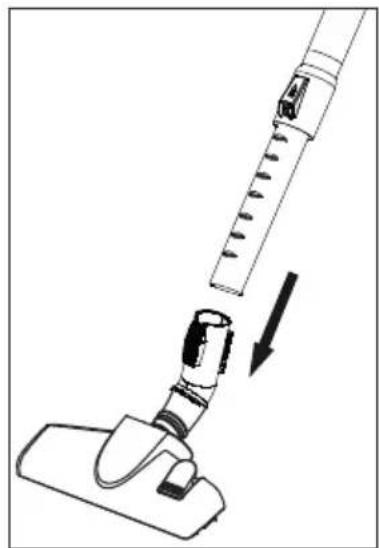

3.4 Attaching/removing the

parquet/carpet brush

1. Attach the telescopic tube (12) to the parquet/

carpet brush (10) in the arrow direction.

2. You can remove the telescopic tube (12) from

the parquet/carpet brush (10) by pulling it.Vacuum Cleaner / User Manual 9 / EN

3.5 Adjusting the parquet/

carpet brush Press the adjustment latch (9) located on the parquet/carpet brush (10) and;

• Vacuum on firm ground and parquet; extend the brush before vacuuming.

• Vacuum on carpets and rugs; retract the brush before vacuuming.

1. Plug in the appliance after pulling the power

plug located at the back of the appliance.

Stop pulling the appliance cable when it comes to the yellow mark located on it. After the yellow mark, the red mark will come. Do not pull any more after reaching the red mark.

2. Press the on/off button (1) to switch on your

Accessories have been designed in one piece to save space and provide practical use. Upholstery tool Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc. Dust brush Suitable for cleaning the curtains, and sensitive and fragile objects. Crevice tool Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under the sofas and furniture.

The crevice tool must be adjusted to remain outside.

• Pull the accessory to remove it when the process is complete.

Do not make cleaning by using the handle's (14) end part. 3 Usage10 / EN Vacuum Cleaner / User Manual 3 Usage

3.8 Additional brushes

3.8.1 Parquet/Hard floor brush

(VCO32802AD) The hard floor brush (16) was developed for use on hard floors such as tile, ceramic, parquet, wooden floors etc. It prevents potential scratches while cleaning hard floors thanks to its specially-developed soft hair.

3.9 Switching off the vacuum

cleaner and parking feature

1. Switch off the appliance with the on/off button

2. Press the cable winding button (2) to wind the

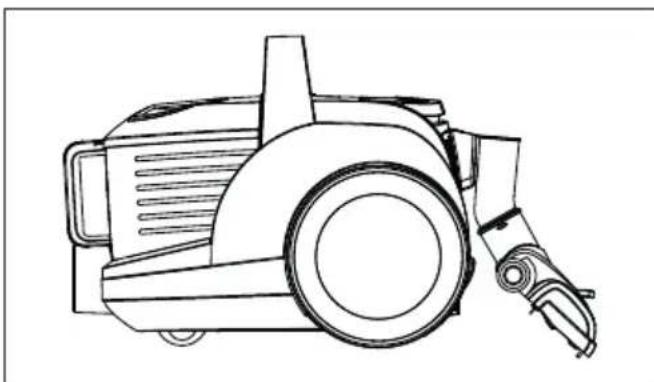

cable inside the appliance. Vertical parking feature Attach the hook of the parquet/carpet brush (8) to the parking groove located at the bottom part of the appliance. Horizontal parking feature Attach the hook of the parquet/carpet brush (8) to the parking groove located at the rear side of the appliance.Vacuum Cleaner / User Manual 11 / EN 4 Cleaning and care Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

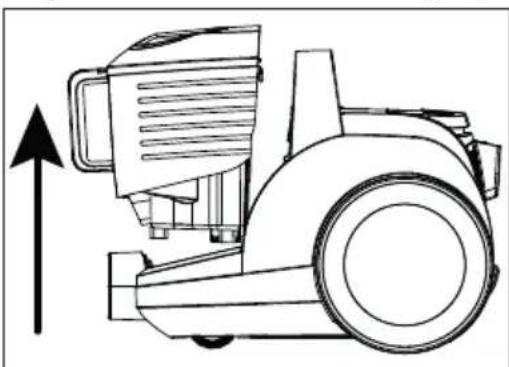

4.1 Emptying the dust

container 1. Press the dust container removal button (7) to remove the dust container (3) and remove the dust container in the direction of the arrow by holding from the dust container carrying handle.2. Open the lid of the dust container (3) by pressing the inner latch and empty the container.3. When you have emptied the dust, close the dust container lid (3).– A click will be heard. 4. Insert the dust container (3) into its place by holding it from the handle.

4.2 Cleaning the filters

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

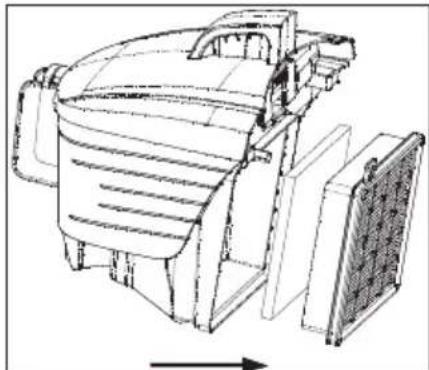

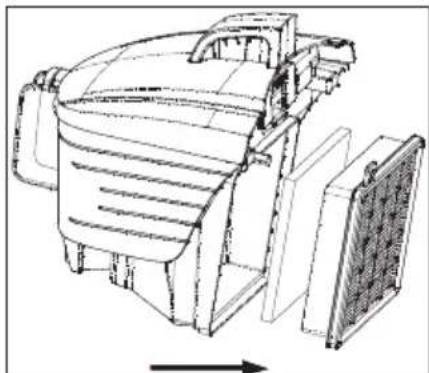

4.2.1 Motor protection filter and

HEPA filter These filters are located on the rear side of the dust container (3).1. Press the dust container removal button (7) and remove the dust container (3).2. Remove the HEPA filter and motor protection filter found at the back of the dust container (3).3. After washing the sponge protection filter under running water, wring it out slightly and leave it to dry (for 24 hours minimum).4. Shake off the HEPA inlet filter to eliminate the dusts on it. After that, you can wash it by holding its clean side under running cool water.5. If you wash the HEPA filter, dry it at room temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.12 / EN Vacuum Cleaner / User Manual

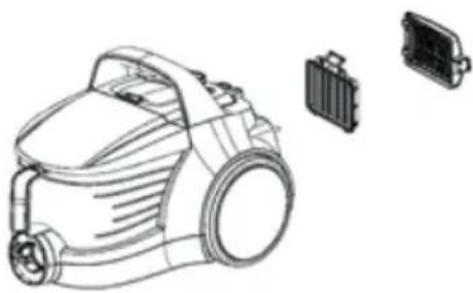

4.2.2 HEPA filter and outlet filter

HEPA outlet filter is located on the rear side of the appliance.

1. Remove the HEPA filter by pulling it from its

2. Shake off the HEPA outlet filter to eliminate

the dusts on it. After that, you can wash it by holding its clean side under running cool water.

3. If you wash the HEPA filter, dry it at room

temperature (for 24 hours minimum). Do not use it before ensuring that it is completely dry.

4. Remove the outlet filter that is found at the

5. After washing the outlet filter under running

water, wring it out slightly and let it dry (for 24 hours minimum).

• If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance.

• Keep the appliance out of the reach of children.

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.

• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
