Product Type	Vacuum Cleaner
Brand	Beko
Model	VCC 34818 WD
Power (Nominal)	1600 W
Power (Maximum)	1800 W
Supply Voltage	220-240 V~, 50-60 Hz
Dust Capacity	2.1 L (bag type)
Sound Level	83 dBA
Operating Radius	7.5 m
Dust Collection Type	Bag
Filter System	Washable motor protection filter and micro filter
Accessories Included	Upholstery tool, dust brush, crevice tool
Suction Control	Variable on device and handle
Cord Rewind	Yes, with button
Parking Modes	Vertical and horizontal
Dust Bag Replacement Indicator	Yes (dust indicator)
Washable Filters	Yes (motor protection and micro filter)

Frequently Asked Questions - VCC 34818 WD BEKO

How do I replace the dust bag?

Press the dust container opening latch to open the top lid. Remove the full dust bag by sliding it upward. Dispose of it. Insert a new dust bag in the direction of the arrow on the bag, ensuring it is fully seated. Close the top lid. Do not force the lid.

How do I clean the motor protection filter?

Open the top lid, press down on the latch of the filter cassette to remove it. Take out the motor protection filter. Wash it under running water, wring it out slightly, and let it dry for at least 24 hours before reinstalling.

How do I clean the air outlet filter?

Push down the rear cover opening latch to open the cover. Remove the micro filter, rinse it under running water, and gently squeeze it. Allow it to dry completely before replacing.

How can I adjust the suction power?

You can adjust the suction power using the suction power adjustment knob on the appliance. Rotate clockwise to increase power, counterclockwise to decrease. Additionally, you can lower the suction of the parquet/carpet brush by pulling backward the vacuum adjustment control on the handle.

What accessories are included with the vacuum cleaner?

The vacuum cleaner includes an upholstery tool for floors and furniture, a dust brush for curtains and delicate objects, and a crevice tool for hard-to-reach areas.

Can I vacuum liquids with this vacuum?

No, do not vacuum water or other liquid materials. This vacuum is designed for dry dust only.

Why is the dust indicator showing red?

The dust indicator shows the fullness of the dust bag. When the red zone is more than 50%, it means the bag is full and should be replaced.

How do I park the vacuum cleaner?

For vertical parking, insert the parking hook of the parquet/carpet brush into the parking groove at the bottom of the appliance. For horizontal parking, use the groove at the rear section.

Is it safe to use the vacuum cleaner without filters?

No, do not use the appliance without filters; otherwise it can get damaged. Always ensure filters are in place and dry.

What type of dust bags should I use?

Use only original dust bags from Beko authorized dealers or services. Non-original bags may tear quickly and cause damage not covered by warranty.

USER MANUAL VCC 34818 WD BEKO

Blue and black vacuum cleaner with coiled hose and handle (no text or symbols visible)

VCC34818WD

ENTRTH SR MK SQ

01M-8834613200-4218-01

Please read this manual first!

Dear Valued Customer,

Thank you for preferring this Beko appliance. We hope that you get the best results from your appliance which has been manufactured with high quality and state-of-the-art technology. For this reason, please read this user manual and all other provided documents carefully before using the appliance and keep it as a reference for future use. If you hand over the appliance to someone else, give the user manual as well. Follow the instructions by paying attention to all the information and warnings in the user manual.

Remember that this user manual may also apply to other models. Differences between models are explicitly described in the manual.

Meanings of the Symbols

Following symbols are used in various sections of this manual:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class for electric shock.

This product has been manufactured in environmental friendly modern plants without giving any harm to the nature.

CONTENTS

ENGLISH 04-11

TÜRKÇE	12-19
İnş 20-27
СРПСКИ	28-35
МАКЕДОНСКИ	36-43
SHQIPTARE	44-52

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international security standards.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer or its agent or similarly qualified person in order to avoid hazard.
- Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.
- Your mains power supply should comply with the information supplied on the rating plate of the appliance.
- The mains supply of the appliance must be secured with a minimum 16 A fuse.
- Do not use the appliance with an extension cord.
- In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.

1 Important safety and environmental instructions

• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.
• Do not vacuum water or other liquid materials.
• Protect the appliance from rain, humidity and heat sources.
• Never use the appliance in or near to combustible or inflammable places and materials.
• Unplug the appliance before cleaning and maintenance.
• Do not dip the appliance or its cable in water to clean it.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.
• Do not attempt to dismantle the appliance.

• Only use the original parts or parts recommended by the manufacturer.

• The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.
• Do not use the appliance without filters; otherwise it can get damaged.
• Keep fingers, hair and loose clothing from moving parts and openings whilst using the vacuum cleaner.
• When vacuuming the stairs, the appliance should be located below the user.
• If your store the package material, keep it out of the reach of children.

1 important safety and environmental instructions

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

2.1 Overview

1. Handle
2. Vacuum adjustment control
3. Hose
4. Telescopic tube
5. Telescopic tube adjustment latch
6. Suction nozzle
7. Parquet/carpet brush
8. Dust container opening latch
9. Hose cap
10. Top lid
11. Dust indicator
12. Power cable winding button
13. Suction power adjustment knob
14. Carriage handle
15. On/Off button

2.2 Technical data

Power

: 1600W Nom.

:

1800W

Supply voltage : 220-240V\~, 50-60Hz

Sound level : 83 dbA

Dust capacity : 2.1L

Operating radius : 7.5 m

Technical and design modification rights are reserved.

The values which are declared in the markings affixed on your appliance or other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Usage

3.1 Intended use

The appliance has been designed for household use and is not suitable for industrial use.

3.2 Attaching/removing the hose

1. Insert the hose in the coupling on the appliance and press as far as it will go.
2. To remove the hose press the buttons on the sides of the hose.

Line drawing of a vacuum cleaner with a probe inserted, showing the nozzle and handle (no text or symbols)

3.3 Attaching/removing the telescopic tube

1. Attach the telescopic tube (4) to the handle (1).
2. Pull the telescopic tube (4) from the handle (1) to remove it.
3. Push the telescopic adjustment latch (5) in the arrow direction and pull the telescopic tube (4) to adjust its length.

Close-up of a mechanical shaft component with an arrow indicating direction (no text or symbols visible)

3.4 Attaching/removing the parquet/carpet brush

You can install/remove the narrow end of the telescopic tube (4) from/to the parquet/carpet brush (7).

3.5 Adjusting the parquet/ carpet brush

Perform the following actions on the adjustment latch located on the parquet/carpet brush (7);

• Use "position for hard floors and parquet.

• Use "" position for rugs and carpets.

3.6 Operation

1. Plug in the appliance after pulling the power plug located at the back of the appliance.
2. Press the on/off button (15) to switch on your appliance.

Illustration of a car air conditioner unit with a warning symbol (no text or labels)

3 Usage

3.6.1 Adjusting the suction power

1. You can adjust the suction power using the suction power adjustment knob (13) found on the appliance. Rotating in the clockwise direction will increase the suction power and in counterclockwise direction will decrease the suction power.
2. You can lower the suction power of the parquet carpet brush by pulling backward the vacuum adjustment control (2) located on the handle (1) without the need to use the suction power adjustment knob (13) found on the appliance.

3.6.2 Dust indicator

Dust indicator (11) indicates the fullness of the dust bag. When the indicator displays red zone more than 50%, replace the dust bag. (see 4.1).

3.7 Accessories

Upholstery tool

Suitable for cleaning the floorings, stair steps, inside of the cars, sofas, armchairs etc.

Dust brush

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Suitable for cleaning the curtains, and sensitive and fragile objects.

Crevice tool

Simple line drawing of a cylindrical object with a curved top and base (no text or symbols)

Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under the sofas and furniture.

WARNING: Do not perform cleaning tasks using the end part of the handle (1).

3.8 Switching off and parking the appliance

1. Switch off the appliance with the on/off button (15) and unplug it.
2. Wind the power cable by pressing the power cable winding button (12).

Vertical parking feature

Insert the parking hook of the parquet/carpet brush (7) into the parking groove located at the bottom section of the appliance.

Line drawing of a vacuum cleaner with a handle and lever mechanism (no text or symbols)

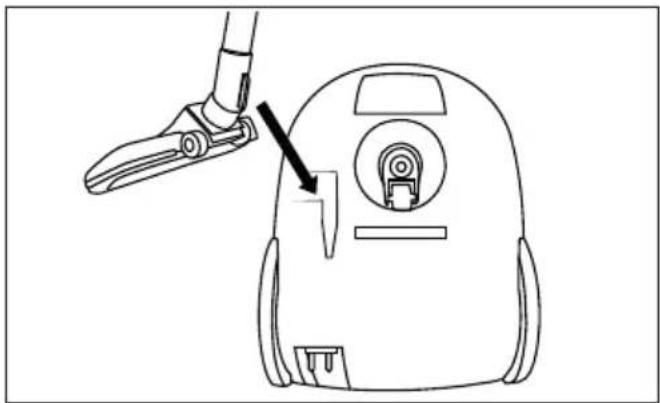

Horizontal parking feature

Insert the parking hook of the parquet/carpet brush (7) into the parking groove located at the rear section of the appliance.

Line drawing of a robotic arm gripping a small mechanical component, with an arrow pointing to the component (no text or symbols present)

4 Cleaning and care

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

4.1 Replacing the dust bag

1. Open the top lid by pressing the dust container opening latch (8).
2. Remove the full dust bag from its guide, sliding it in upwards direction.

Illustration of a hand holding a heart-shaped device with an upward arrow, no text or symbols present

1. Dispose the full dust bag.
2. Insert the new dust bag holding it in the arrow direction indicated on it. Ensure that it is fully seated.

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

1. Close the appliance's top lid (10).

WARNING: Do not force the top lid (10) to close it, otherwise the plastic sections can be damaged.

WARNING: Dust bags purchased from locations other than the authorized dealers and services are not original. Unoriginal dust bags have a lesser quality and they become torn in a shorter period and render your appliance nonoperational. Faults caused due to using unauthentic dust bags are not covered within the warranty.

WARNING: Do not wash the dust bag.

4.2 Cleaning the filters

Simple geometric shape with a vertical line crossing it (no text or symbols)

Motor Protection Filter

Air outlet filter

After each 5 dust bag replacement (may vary depending on the frequency and area of usage), clean the filters.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise, smell of moisture may occur during use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: Attach the filters into their places after they have dried.

4 Cleaning and care

4.2.1 Motor protection filter

1. Open the top lid by pressing the dust container opening latch (8).
2. Press down on the latch of the filter cassette to remove the cassette.
3. Remove the motor protection filter from the cassette inside.

Diagram of a hand holding a container with a brush and arrow indicating direction (no text or symbols)

1. After washing the motor protection filter under running water, wring it out slightly and let it dry (for 24 hours minimum).

4.2.2 Air outlet filter

.1 Push down the rear cover opening latch to open the cover.
2. Remove the micro filter placed on the back of the lid to rinse it.
3. After rinsing, gently squeeze the micro filter.

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance.
• Keep the appliance out of the reach of children.

4.4 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
• Dropping the appliance may render it non-operational or cause permanent damage.

Line drawing of a vacuum cleaner with a black arrow pointing to the tip (no text or symbols)

Mechanical component with a highlighted section and an arrow indicating direction (no text or symbols)

Diagram of a car air conditioner unit with a circular dial indicator and warning symbol (no text or labels)

3 Kullanım

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple line drawing of a rectangular object with a curved top and internal oval shape (no text or symbols)

Line drawing of a vacuum cleaner with handle and valve (no text or symbols)

Yatay park özelliği

Line drawing of a robotic arm gripping a small device (no text or symbols)

4 Temizlik ve bakım

Illustration of a hand inserting a card into a patient's ear with an upward arrow (no text or symbols)

Mechanical component diagram showing a housing with a circular opening and a black arrow indicating direction (no text or symbols)

Diagram of a hand holding a container with a brush and arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the handle (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

Diagram of a car front view showing the number 1 and a directional arrow (no text or symbols present)

3 การใช้งาน

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure geometric line drawing of a symmetrical shape with a curved top and base (no text or symbols)

Line drawing of a vacuum cleaner with handle and valve (no text or symbols)

Line drawing of a mechanical device with a tool interacting with a component, showing a close-up view (no text or symbols)

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

Diagram of a car interior showing a vehicle with a circular component and directional arrow (no text or symbols)

Simple geometric shape with a vertical line and a flat top (no text or symbols)

Diagram of a hand holding a container with a brush inside, showing an arrow indicating direction (no text or symbols present)

1 Important safety and environmental instructions

Line drawing of a vacuum cleaner with a black arrow pointing to the tip (no text or symbols)

3.3 Postavljanje/uklanjanje teleskopske cevi

1. Povežite teleskopsku cev (4) sa drškom (1).
2. Povucite teleskopsku cev (4) sa drške (1) da biste je uklonili.
3. Možete proširiti teleskopsku cev (5) pomeranjem klizne bravice za podešavanje teleskopske cevi napred i nazad.

Close-up of a cylindrical mechanical component with an arrow indicating direction (no visible text or symbols)

3.4 Postavljanje/uklanjanje četke za parket/tepih

1. Možete da postavite/uklonite uzak kraj teleskopske cevi (4) na/sa četku/-e za parket/tepih (7).

3 Upotreba

3.6.1 Podešavanje snage usisavanja

1. Možete da podesite snagu usisavanja koristeći dugme za podešavanje snage usisavanja (13) na usisivaču. Rotiranje u smeru kretanja kazaljki na satu (maks) povećava snagu usisavanja, dok rotiranje u smeru suprotnom od kretanja kazaljki na satu (min) smanjuje snagu usisavanja.

2. Možete da snizite snagu usisavanja (13) četke za parket i tepihe povlačenjem kontrole za podešavanje vakuuma (2) na dršci (1) bez potrebe za korišćenjem dugmeta za podešavanje sukcije na uređaju.

3.6.2 Indikator prašine

Simple line drawing of a mechanical component with no text or symbols

Pogodna za čišćenje zavesa i osetljivih i lomljivih predmeta.

Pure geometric line drawing of a 3D rectangular prism with an internal curved cutout (no text or symbols)

Pogodan za čišćenje površina koje je teško očistiti, kao što su oblasti ispod kauča i nameštaja.

Line drawing of a vacuum cleaner with handle and valve (no text or symbols)

Funkcija horizontalnog parkiranja

Ubacite kuku za postavljanje četke za parket/tepih (7) u žleb koji se nalazi na zadnjoj strani uređaja.

Line drawing of a robotic arm gripping a device, with an arrow pointing to the handle (no text or symbols present)

Illustration of a hand holding a medical device with an upward arrow, no text or symbols present

Mechanical component diagram showing a housing with a circular opening and a black arrow indicating direction (no text or symbols)

1. Zatvorite gornji poklopac uređaja (10).

UPOZORENJE: Nemojte da zatvarate gornji poklopac na silu jer .se plastični delovi mogu oštetiti

UPOZORENJE: Kese za prašinu koje se ne kupuju kod ovlašćenih prodavaca i servisa nisu originalne. Takve kese za prašinu su nižeg kvaliteta i mogu se pocepati za kraći period čime što dovodi do toga da vaš uređaj bude van funkcije. Kvarovi izazvani korišćenjem neoriginalnih kesa za prašinu nisu pokriveni .garancijom

UPOZORENJE: Nemojte da .perete kesu za prašinu

4.2 Čišćenje filtera

Simple geometric shape with a vertical line and rounded corners (no text or symbols)

Motor Protection Filter

Diagram of a hand holding a brush inside a container with an arrow indicating direction (no text or symbols)

1. Nakon pranja filtera za zaštitu motora pod tekućom vodom, iscedite ga blago i ostavite ga da se osuši (minimalno 24 časa).

4.4 Prenos i transport

• Tokom prenosa i transporta, nosite aparat u njegovom originalnom pakovanju. Pakovanje aparata ga štiti od fizičkih oštećenja.
• Nemojte stavljati teške predmete na aparat ili njegovo pakovanje. Aparat se može oštetiti.
• Ako vam aparat ispadne, to može izazvati trajno oštećenje, odnosno aparat može postati nefunkcionalan.

Line drawing of a vacuum cleaner with a black arrow pointing to the tip (no text or symbols)

Close-up of a cylindrical mechanical component with an arrow indicating direction (no text or symbols visible)

You can install/remove the narrow end of the telescopic tube (4) from/to the parquet/carpet brush (7).

Diagram of a car interior with labeled parts and a directional arrow (no text or symbols present)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Pure geometric line drawing of a symmetrical object resembling a lens or capsule (no text or symbols)

Line drawing of a vacuum cleaner with handle and valve (no text or symbols)

Line drawing of a robotic arm gripping a device, with an arrow pointing to the handle (no text or symbols present)

Illustration of a hand holding a medical device with an upward arrow indicating force or pressure (no text or symbols present)

Diagram of a car front panel with a downward arrow indicating direction (no text or symbols)

Simple geometric shape with a vertical line and rounded corners, no text or symbols present.

Филтер за заштита на моторот

Diagram of a hand holding a brush inside a container with an arrow indicating direction (no text or symbols)

Line drawing of a vacuum cleaner with a black arrow pointing to the tip (no text or symbols)

3 Përdorimi

Simple line drawing of a mechanical component with no text or symbols

Simple line drawing of a rectangular object with a curved top and bottom edge (no text or symbols)

Line drawing of a vacuum cleaner with handle and mounting bracket (no text or symbols)

Veçoria e parkimit horizontal

Line drawing of a robotic vacuum cleaner with a tool interacting with the blade (no text or symbols)

Illustration of a hand holding a heart-shaped device with an upward arrow, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating direction (no text or symbols present)

Diagram of a hand holding a cleaning brush inside a trash bin, with an arrow indicating the brush's direction (no text or symbols present)

Abstract geometric design with blue triangular shapes on white background (no text or symbols)
