USER MANUAL MFS3201 Meister Craft

: 8,255 m/s Measuring inaccuracy K: 1,5 m/s Noise/vibration informationMeasured values determined inaccordance with EN 60745-1,EN 60745-2-4.• The specified vibration emission valuewas measured in accordance with anormed test procedure and can beused in order to compare one powertool with another.• The specified vibration emission valuecan also be used for an introductoryevaluation of the exposure.Warning: The actual vibration emissionvalue present during the use of themachine may deviate from thespecification given in the operating Operating instructions & safety hints WARNING! To reduce the risk of injury, please read the operating instruc-tions through carefully before using the device, and then store with themachine! When passing the device on to another user, these operatinginstructions must also be included!

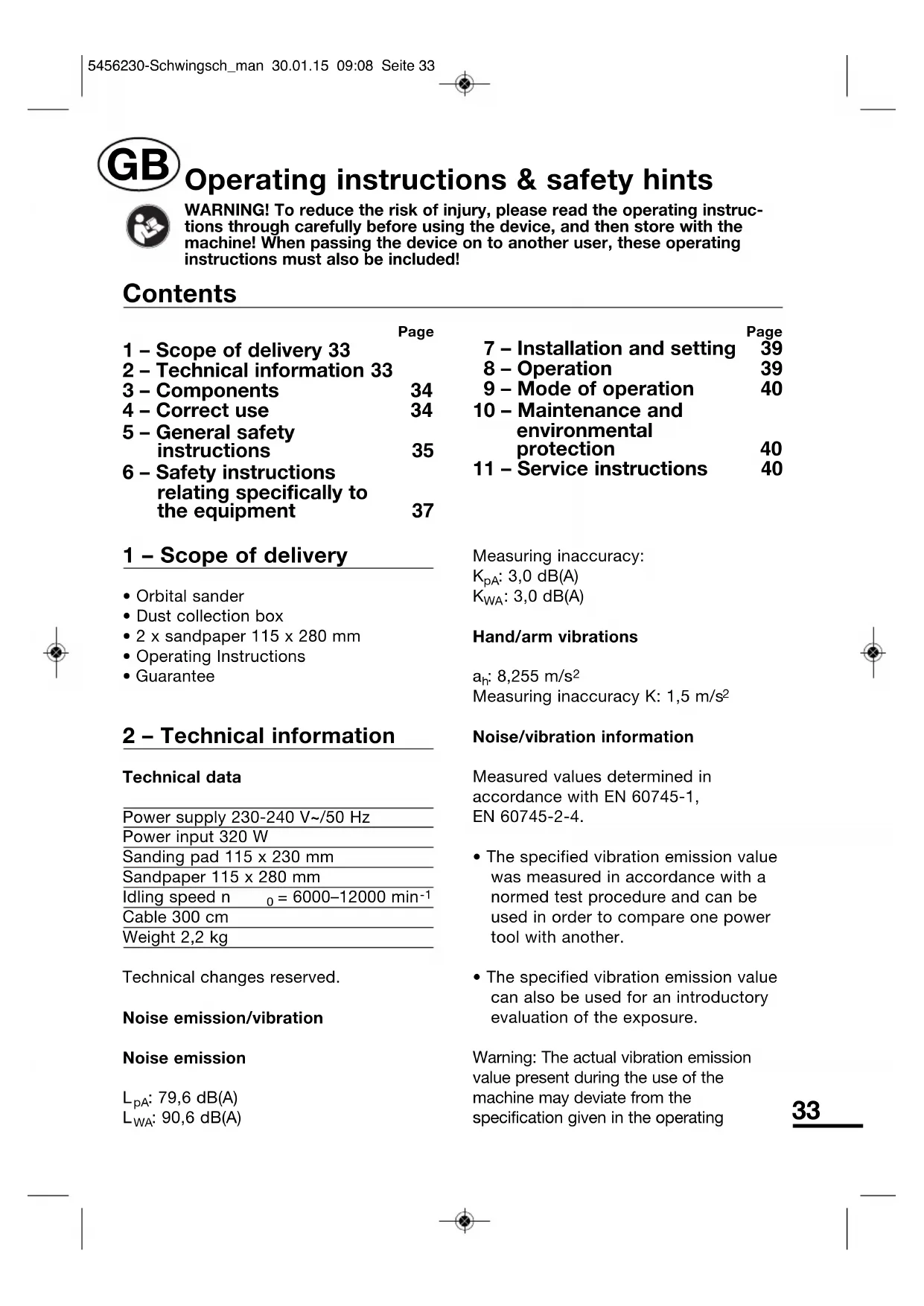

Page 1 – Scope of delivery 33 2 – Technical information 33 3 – Components 34 4 – Correct use 34 5 – General safety instructions 35 6 – Safety instructions relating specifically to the equipment 37 Page 7 – Installation and setting 39 8 – Operation 39 9 – Mode of operation 40 10 – Maintenance and environmental protection 40 11 – Service instructions 40 Contents 5456230-Schwingsch_man 30.01.15 09:08 Seite 33instructions or made by the manufacturer. This may be caused by the following influencing factors that should be taken into account prior to and during each use:

• Is the device being used correctly?

• Is the correct type of material being processed?

• Is the device in proper working order?

• Are the handles or optional vibration handles mounted and fixed securely up against the body of the machine? If your hands experience an unpleasant sensation or the skin changes colour while you are using the machine, stop working immediately. Take sufficient breaks. If you do not take sufficient breaks, this may cause hand-arm vibration syndrome. You should estimate the level of load caused in conjunction with the work or use of the machine and take the appropriate breaks. This method can be used to considerably minimise the level of load during the entire working time. Minimise risks in which you are exposed to vibrations. Take care of your machinery in accordance with the directions in the operation instructions. If the machine is to be used frequently, contact your dealer and arrange anti- vibration equipment if necessary. Avoid using the tool in temperatures of t = 10 °C or lower. Draw up a working schedule which can be used to minimise vibration loads. 3 – Components 1 Switch on/off 2Handle 3Cable 4 Dust collection box 5 Sanding pad 6 Sanding sheet holder 7 Dust extraction holes 8 Oscillation frequency preselection 4 – Correct use This orbital sander only operates when dry grinding and, with suitable grained abrasive sheets, is suitable for the following work: Surface grinding on wood, metal, plaster and filler surfaces. Removal of layers of old paint, intermediate grinding, rust removal. Do not use machines, tools and accessories for additional applications (see manufaturer’s instructions) for works other than those for which they are designed for. All other applications are expressly ruled out. This unit may not be used by people (including children) with reduced physical, sensory or mental capacities, with a lack of experience and without the appropriate knowledge, unless they are supervised by someone who is responsible for their safety or have been instructed by such a person with regard to how the unit is to be operated. Children should be supervised to ensure that they do not play with the device. The machine is intended only for use in the household. Improper use of the product All applications carried out with the device that are not listed in the “Proper use” chapter will be considered improper use. Uses for which the tool is not designed may cause risks and injury. Do not use accessories that are not intended specifically for this electrical tool.

5456230-Schwingsch_man 30.01.15 09:08 Seite 34Just because you can affix an accessory to your electrical tool, there is no guarantee it is safe to use. The permitted revolutions of the tool insert must be at least as high as the highest value specified on the electrical tool. Accessories that turn faster than is permitted may break and fly away. The external diameter and thickness of the tool insert must match the dimensions of your electrical tool. Incorrectly measured tool inserts cannot be properly protected or checked. There is a risk of injury. The user of the device is liable for all property and personal damages occurring as the result of incorrect use. If other components or non-original components are used with the machine, the manufacturer guarantee is voided. Remaining risks: The operating instructions for this electrical tool contain comprehensive tips for the safe handling of electrical tools. However, every electrical tool has a certain level of remaining risks which cannot be excluded by the protective mechanisms on the device. Always operate electrical tools with the necessary care. Remaining risks may be, for example:

• Touching rotating parts or tools.

• Injury caused by flying tools or tool parts.

• Risk of fire with insufficient ventilation of the motor.

• Adverse effects on the hearing caused by working without ear defenders. The ability to work safely is dependant on the familiarity of the operator when it comes to handling the given electrical tool. Appropriate knowledge of the machinery and careful behaviour when working help to minimise the remaining risks. 5 – General safety instructions for handling power tools WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool. 1 Work area a Keep work area clean and well lit. Cluttered and dark areas invite accidents. b Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. 2 Electrical Safety a Power tool plugs must match the outlet. Never modify the plug in any

5456230-Schwingsch_man 30.01.15 09:08 Seite 35way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f If it is not possible to avoid using the electrical tool in a damp environment, use a residual current circuit-breaker. The use of a residual current circuit-breaker reduces the risk of an electrical shock. 3 Personal safety a Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b Use personal protective equipment. Always wear eye protection. Protective equipment such as dust masks, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards. 4 Power tool use and care a Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

5456230-Schwingsch_man 30.01.15 09:08 Seite 36b Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5 Service a Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Additional safety notes for grinders and polishers

• Wear a dust-protection mask. Breathing in dust represents a risk to the operator and anybody else in the vicinity.

• Wear suitable personal protective gear. Touching or skin contact with dust represents a risk to the operator and anybody else in the vicinity. Note: When sanding, for example, paint containing lead, as well as certain types of wood and metal, it is possible that poisonous dust may be generated. Take appropriate precautions to prevent operators and anyone else in the area breathing in dust/coming into contact with dust.

• Use the additional handle supplied with the unit. Loss of control of the unit may lead to injuries

• Hold the tool by the insulated handle surfaces when carrying out tasks during which it is possible that the tools will come across hidden power cables or its own cable. Contact with a power-carrying cable can also put metal parts of the unit under power and cause an electric shock. 6 – Safety instructions relating specifically to the equipment

• Always switch on the device before introducing it to the workpiece.

• Materials containing asbestos may not be processed. When working with any other materials containing fibres,

• If you wish to use the device outdoors, ensure it is connected via a residual current circuit breaker. Extension cable and plug must be designated for use outdoors.

• Only use for dry sanding work.

• Breathing in dust from sanding is a health risk, therefore always work with the dust extraction function activated. If necessary, use a mask.

• Only attach accessories with hook and eye coatings to the sanding plate.

• The dust extraction openings of the sand paper and the sanding plate must match, as far as possible.

• When sanding, do not put excessive pressure on the machine in order to prevent the machine from coming to a standstill.

• Secure the work piece to prevent it from slipping by using tensioning mechanisms.

• Make sure that cables always lead away from the work place.

• During operation, always guide the device with both hands and ensure that you are standing firmly.

• The device should never be allowed to get wet and should not be operated in a damp environment.

• Prior to each use, check the device, the cable and the plug. Any damages should only be repaired by a specialist. Only plug the device into the socket when the machine is switched off.

• When carrying out work in which dust is generated, wear a face mask and safety goggles - do not smoke and avoid naked flames.

• Use protective gloves .

• Wear ear-protectors.

• Wear safety goggles.

• Before carrying out any work on the machine, pull the plug out of the socket.

• Do not leave keys in the machine.

• Observe the general safety notes for handling electrical tools.

• Switch the device off and pull the plug out of the socket if the connection cable is damaged. A damaged cable must be replaced by the manufacturer or by their customer service or a similarly qualified person. Type plate Observe the technical specifications detailed on the type plate! The specifications have the following meanings: MFS320-1 Model designation 5456230 Article number

Revolutions in idle Voluntary seal of quality (tested safety) CE mark (conformity with European safety standards) Do not dispose of with the household waste! Address of the manufacturer Safety marks Pay attention to the safety marks! The symbols have the following meanings: When carrying out work in which dust is generated, wear a face mask and safety goggles - do not smoke and avoid naked flames. Read the operating instructions! Wear safety goggles! Always work with a dust collection system connected! Double insulated! 7 – Installation and setting Insert Abrasive Sheets Switch off machine. Pull out the mains plug. Release clamping fixtures (5) holding sanding sheet. Place sanding sheets tightly over the sanding pad (6), making certain that the holes (4) in pad and patch line up. Fold over projecting paper and clamp in place with the clamping devices for sandings (Fig. 2). Dust removal The device has an integrated dust extraction system. Plug the supplied dust collection box (4) into the dust extraction connection. Preselecting the oscillation frequency (Fig. 3) The tool has an electronic control system for preselection of the oscillation frequency suitable for the material concerned. To preselect the oscillation frequency, turn the thumbwheel (8) to a position between 1, lowest frequency, – e.g. for light pre- sanding – and MAX, highest frequency. For non-binding recommended settings, see fig. 4. 8 – Operation ON/OFF Insert mains plug into an outlet

• On: Push the switch (1) to the right.

• Off: Push the switch to the left.

5456230-Schwingsch_man 30.01.15 09:08 Seite 399 – Mode of operation Grinding Turn on machine. Move grinding surface over the material to be ground/sanded with sightly elliptical movements. Do not apply any additional pressure, the weight of the machine itself is sufficient. Conduct a number of grinding steps with increasingly finer grains. 10 – Maintenance and environmental protection Clean the dust extraction connection at periodic intervals using a dry brush. Clean the housing with a damp cloth only - do not use solvents! Then dry well. Remove the dust collection box (4) from the dust extraction connection to empty it. Empty carefully, try not to create dust. Do not breathe in wood dusts! CAUTION! Electrical and battery operated units that no longer work should not be disposed of in the household waste! They are to be collected separately, in accordance with the 2012/19/EU directive for the disposal of electrical and electronic waste, and sent for proper and environmentally-friendly recycling. Please discard power tools no longer usable at a local collection point. Collection and disposal of packaging materials separately by types complying with local rules and regulations. For details, please contact your municipal authority concerned. 11 – Service instructions

• Store the machine, operating instructions and where necessary the accessories in the original packaging. In this way you will always have all the information and parts ready to hand.

• Meister devices are to a large extent maintenancefree, a damp cloth being sufficient to clean the casing. Do not drop electrical machines in water. Please note additional hints given in the operating instructions.

• Meister devices are subject to stringent quality control. If however a functional fault shoult occur, send the device to our servicing address. The repairs will be carried out in a short time.

• A brief description of the defect speeds up the faulttracing and repair time. If within the guarantee period, please enclose the guarantee document and the proof of purchase.

• In so far as a repair under guarantee is not concerned, we will charge the repair costs to your account. PLEASE NOTE! Opening of the device invalidates the guarantee claim! IMPORTANT! We point out expressly that in accordance with the Product Liability Act we do not take responsibility for any damage caused by our appliances, in so much that said damage is caused

5456230-Schwingsch_man 30.01.15 09:08 Seite 4041 by improper repair, or original parts or parts released by us not being used when parts are changed, or repairs not being conducted by Meister Werkzeuge GmbH Customer Service or an authorised specialist! The same applies analogously to the accessories used.

• Pack the device well or use the original packaging in order to avoid transit damage.

• Even after the expiry of the guarantee period, we would like to help you and carry out any repairs at a favourable price. 5456230-Schwingsch_man 30.01.15 09:08 Seite 4142 1 – Omvang van de levering
