CEB01WH - Heated blanket/cushion Carmen - Free user manual and instructions

Product type	Heating blanket/pad
Brand	Carmen
Model	CEB01WH
Power supply	230 V ~ 50 Hz
Power	Not specified
Number of heat levels	2 (Position 1: min, Position 2: max)
Number of people	1 person
Use	Bed heating, between mattress and fitted sheet
Safety system	Automatic shut-off in case of overheating (integrated safety system)
Machine washable	Yes, at 30 °C, delicate program (max. 5 washes over lifetime)
Machine drying	Not allowed (flat drying recommended)
Ironing	Not allowed
Dry cleaning	Not allowed
Maximum washing temperature	30 °C, very gentle program
Protection class	II (double insulation)
Certification	OEKO-TEX Standard 100
Warranty	24 months
Use for children	From 3 years with presetting by an adult; not recommended for 0-3 years
Adjustable bed compatibility	Yes, check that cables are not pinched
Included accessories	Switch with sliding button, elastic fixing straps

Frequently Asked Questions - CEB01WH Carmen

How to install the Carmen CEB01WH heating blanket?

Spread the blanket evenly over the mattress starting from the foot of the bed. Secure it with the elastic straps at the mattress corners. Connect the switch to the blanket, then plug into a power outlet. Place a fitted sheet over it.

Can I machine wash the blanket?

Yes, the blanket can be machine washed at a maximum of 30 °C, very gentle program. Use a delicate detergent. Warning: do not wash it more than 5 times in total. Never machine dry, iron, or dry clean it.

Is the blanket safe for children?

It should not be used by children aged 0 to 3 years. For children over 3 years, the control must be preset by an adult and the child must be informed of its safe use.

What to do if the blanket no longer heats?

Check that the switch is properly connected and that the outlet works. If the problem persists, the safety system may have deactivated the device. Do not attempt to repair it yourself; contact the manufacturer or an authorized service.

Can I use the blanket on an adjustable bed?

Yes, but make sure the blanket and cables are not pinched in the hinges or bed mechanisms.

How to adjust the temperature?

Use the sliding button on the switch: position 0 to turn off, position 1 for minimum heat, position 2 for maximum heat. The indicator light turns on when the device is operating.

Can I use the blanket with a pacemaker?

The electric and magnetic fields are weak, but consult your doctor and pacemaker manufacturer before use.

How to maintain the switch?

Always unplug the device before cleaning. Wipe the switch with a soft, dry cloth. Never immerse it in water and do not use abrasive products.

Can the blanket be used on both sides?

Yes, the blanket can be used on either side. Make sure it is flat.

What to do in case of smell or signs of wear?

Stop using the blanket immediately and unplug it. Check for visible damage. If you observe wear, exposed wires, or an unusual smell, contact the manufacturer for repair or replacement.

USER MANUAL CEB01WH Carmen

Folded white fabric with a small electronic device attached at the top (no visible text or symbols)

CEB01WH • ELECTRIC UNDERBLANKET

NL Gebruiksaanwijzing FR Mode d'emploi Instrukcje uzytkowania
EN Manual Instrucciones deES uso CS Návod k použití
DE Gebrauchsanweisung Istruzioni per l'uso Návod na použitie

NL Gebruiksaan wijzing pagina 4
EN Manual page 13
DE Gebrauchsanweisung Seite 22
FR Mode d'emploi page 31
ES Instrucciones de uso página 40
IT Istruzioni per l'uso pagina 49
PL Instrukcje użytkowania strona 58
CS Návod k použití strana 67
SK Návod na použitie strana 76

Folded white fabric with a small piece of paper attached at the top (no text or symbols visible)

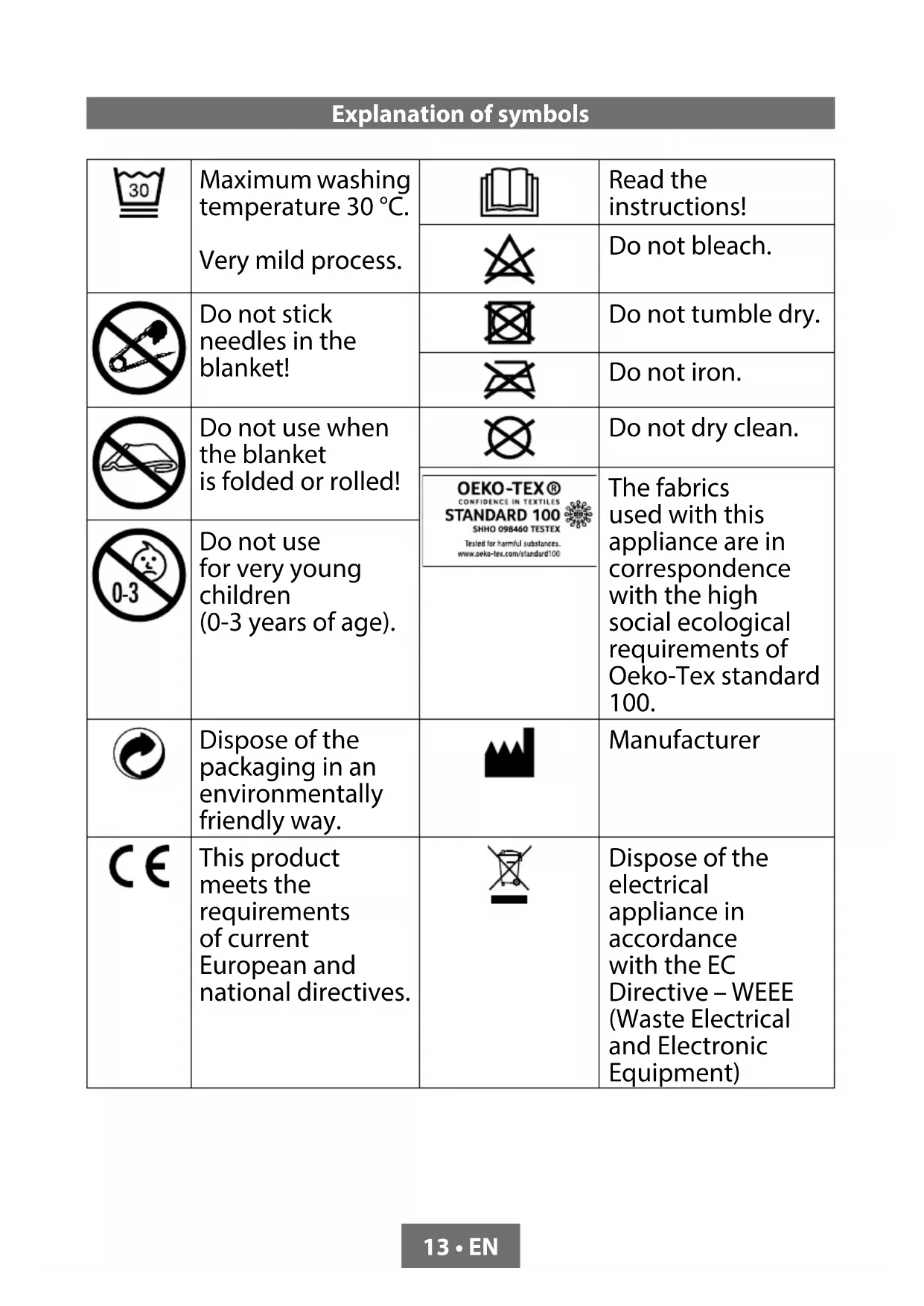

Explanation of symbols

	Maximum washing temperature 30 °C. Very mild process.		Read the instructions!
			Do not bleach.
	Do not stick needles in the blanket!		Do not tumble dry.
			Do not iron.
	Do not use when the blanket is folded or rolled!		Do not dry clean.
		OEKO-TEX®STAN SHNO 09B400 TESTEXTested for harmful substances.www.oeko-tex.com/standard100	The fabrics used with this appliance are in correspondence with the high social ecological requirements of Oeko-Tex standard 100.
	Do not use for very young children (0-3 years of age).
	Dispose of the packaging in an environmentally friendly way.		Manufacturer
	This product meets the requirements of current European and national directives.		Dispose of the electrical appliance in accordance with the EC Directive – WEEE (Waste Electrical and Electronic Equipment)
	The appliance is doubly insulated and corresponds with protection class 2.	(CS26)	The electric blanket is suitable for 1 person.
	WARNING; Warning for risk of injury or hazard to your health.
	CAUTION; Safety warning for possible damage to the appliance or its accessories.
	ATTENTION; Point of attention for important information.

Important safety instructions - read carefully and keep for later reference!

WARNING

• Failure to observe the information provided below can lead to personal injury or material damage (electric shock, skin burns, fire). The following safety and hazard information not only serves to protect your health and the health of others, it also protects the product from damage. Therefore, observe this safety information and pass on these instructions together with the product.
• This heated underblanket must not be used by people who are not sensitive to heat or by vulnerable people who may not be able to react to overheating (e.g. diabetics, persons with skin changes related to illness or persons with scarred skin in the area where the pad is to be applied, after taking any pain relieving medication or alcohol).
• If the appliance is slept on with the control set to a higher temperature the user may suffer skin burns or heat stroke.
• This heated underblanket may not be used for very young children under the age of three (0-3) due to their inability to react to overheating.
• The appliance is not to be used by young children over the age of 3 unless the control has been pre-set by a parent or guardian, and unless the child has been adequately instructed on how to operate the control safely.
• This heated underblanket can be used by older children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children must not play with the heated underblanket.
• Cleaning and user maintenance must not be performed by children unless supervised.
• This heated underblanket is not intended for use in hospitals.

• The device is only intended for domestic/private use, not for commercial use.

• Do not insert pins.

• Do not use folded or rucked.
• Do not use if wet.

- If the heated underblanket is used on an adjustable bed, check that the underblanket and cord do not become trapped or rucked, for example in hinges.

- This heated underblanket may only be used in conjunction with the control specified on the rating label.

- This heated underblanket must only be connected to the mains voltage that is specified on the label.

- The electrical and magnetic fields emitted by this heated underblanket may interfere with the function of a pacemaker. However, they are still well within the limits: electrical field strength: max. 5000 V/m, magnetic field strength: max. 80 A/m, magnetic flux density: max. 0.1 millitesla. Please consult your doctor and the manufacturer of your pacemaker before using this heated underblanket.

- Do not pull, twist or make any sharp kinks in the cables.

- If they are not positioned properly, there may be a risk of becoming entangled in, being strangled by, tripping over, or stepping on the cable and control of the heated underblanket. The user must ensure that excess lengths of cable, and cables in general, are safely routed.

- This heated underblanket must be examined frequently for signs of wear or damage. If there are such signs, if the heated underblanket has been misused or does not work, return it to the supplier before switching it on again.

- Under no circumstances should you open or repair the device yourself, as faultless functionality can no longer be guaranteed thereafter. Failure to adhere to this instruction will void the warranty.

- The appliance may not be used with an external timer or a separate remote control.

- If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

- When this heated underblanket is switched on:

- Do not place any sharp objects on it - Do not place any heat sources, such as hot water bottles, heat pads or similar, on it.

• The electronic components in the control warm up when the heated underblanket is in use. For this reason, the control must never be covered or placed on the heated underblanket when it is in use.
• It is essential to observe the information relating to the following chapters: Operation, Cleaning and maintenance, Storage.
• Should you still have questions on using our appliances, please contact our customer service.

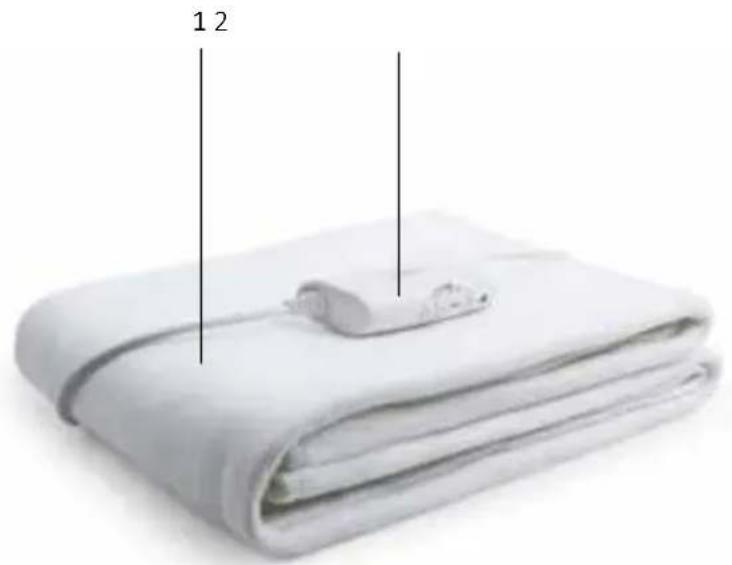

Product description

1. Electric blanket
2. Switch with position button

1 2

Prescribed use

CAUTION!

The electric underblanket is only intended for heating beds.

Operation

Safety

CAUTION!

• The electric underblanket has been provided with a SAFETY SYSTEM. This sensor technology prevents overheating of the electric underblanket on the entire surface through automatic deactivation in case of a breakdown. When the SAFETY SYSTEM has switched off the electric underblanket, the temperature levels in activated condition are no longer lighted.
• Do note that for reasons of safety the electric underblanket can no longer be used after a breakdown and should be sent to the indicated service address.
• Never connect the faulty electric underblanket to a different switch of the same type. This would also ensure a final deactivation through the safety system in the switch.

Use

• Evenly spread the electric underblanket over your mattress, starting at the foot end. Fasten the electric blanket with the elastic bands around the corners of the mattress. Approximately, the cord should be at shoulder height. The electric underblanket can be used on both sides.
• First connect the switch to the connection point in the blanket by connecting the plug.
• Then insert the plug in the socket.
• Then, as usual, lay the fitted sheet over the bed, so that the electric underblanket is between the mattress and the fitted sheet. Each time you make the bed, check that the electric underblanket is flat and properly spread, before you switch it on.

CAUTION!

Make sure the electric underblanket is spread out fully flat and does not fold or crumple during use. We recommend switching on the electric underblanket about 15 minutes before you go to sleep and covering it with a duvet to prevent the heat from escaping.

Switching on

Slide the position button from position 0 to position 1 or 2 to switch on the electric underblanket. In activated condition, the indication light is illuminated.

Setting the heating position

Position 0: OFF

Position 1: minimum heating

Position 2: maximum heating

ATTENTION

- The electric underblanket heats up the fastest when you first switch on the highest temperature level.

WARNING:

If the electric underblanket is used for several hours, we recommend setting the lowest heating position (position 1) to prevent the user from overheating and thereby any potential burns to the skin or heat stroke.

Switching off

Slide the position button to position 0 to switch off the electric underblanket. The indication light is no longer illuminated.

ATTENTION

If the electric underblanket is not used for a number of days, slide the position button downwards to switch off the electric blanket and remove the plug from the socket. Then disconnect the switch from the electric underblanket by removing the plug.

Cleaning and maintenance

WARNING

Always remove the supply plug from the mains outlet and remove the control from the electric underblanket by disconnecting it at the connector. Otherwise there is a risk of an electric shock.

CAUTION!

The switch may never come into contact with water or other liquids. It could get damaged as a result.

• Use a dry lint-free cloth for cleaning the switch. Do not use chemical cleaning agents or abrasives.
• Small stains on the electric blanket can be removed with a cloth or a damp sponge and, if necessary, a little bit of gentle detergent liquid.

CAUTION!

The electric underblanket should not be dry cleaned, spun, dried in the machine, mangled or ironed. Otherwise the electric underblanket could get damaged.

• In case of a stronger level of contamination, the electric underblanket can be washed in the washing machine.
• Set the washing machine to a 30^ programme (maximum washing temperature 30^ , very mild process). Out of environmental considerations, we recommend washing the electric underblanket at the same time as other items. Use a gentle detergent in accordance with the manufacturer's dosing instructions.

CAUTION!

Please note, the electric underblanket will wear if washed too often. For that reason, the electric underblanket may be machine-washed for a maximum of 5 times during its lifetime.

- Immediately after washing, pull the electric underblanket in its original size and form while still wet, and leave it lying flat on a drying rack.

CAUTION!

• Do not use pegs or other clamps to attach the electric blanket to the drying rack. Otherwise the electric underblanket could get damaged.
- Only connect the switch to the electric underblanket when the plug connection and underblanket are fully dry. Otherwise the electric underblanket could get damaged.

WARNING

Never switch on the electric underblanket in order to dry it in this way! You will run the risk of an electric shock.

Storing

If you do not use the electric underblanket for a longer period of time, we recommend storing it in its original packaging. For this, remove the plug of the switch from the connection of the electric underblanket.

CAUTION!

• Please allow the electric underblanket to cool down first. Otherwise, the electric underblanket may be damaged.
• To avoid sharp folds in the electric underblanket, do not place any objects on top of it while it is being stored.

Recycling

This symbol means that this product should not be disposed of with regular household waste (2012/19/EU). Observe the rules that apply in your country for the separated collection of electric and electronic products. Correct disposal of the product prevents negative consequences for the environment and for public health. The packaging material of this product can be recycled 100%, return packaging material separately.

Line drawing of a medical or laboratory device with a bulb and connector (no text or symbols)

¡PRECAUCIÓN!

Ordering Accessories - EN

Go to www.carmen.nl/support to purchase accessories or spare parts.

Warranty conditions - EN

A 24 month warranty is provided for this product. Your warranty is valid if the product has been used in accordance with the user instructions and for the purpose for which it was made. Also the original proof of purchase must be submitted, stating the date of purchase, the name of the retailer and the item number of the product. For extensive warranty information you are referred to our website: www.carmen.nl/support

Download the most recent

manual from www.carmen.nl
