Brand	Thomson
Model	SB255BT
Product type	Bluetooth speaker with subwoofer
Bluetooth version	5.0
RMS output power	2 x 15 W + 30 W (subwoofer)
Peak power	200 W
Frequency response	20 Hz - 20 kHz
Signal-to-noise ratio	> 75 dB
Harmonic distortion rate	< 0.5% (1 kHz, 1 W)
Power supply	AC 230 V~ 50 Hz, 0.3 A (adapter 18 V 2.5 A)
Power consumption	75 W
Audio inputs	Bluetooth, USB, SD, Optical, AUX (RCA), Line-in (3.5 mm)
Subwoofer output	Yes (Sub out)
USB port	Yes (MP3 playback, output 5 V 0.3 A)
SD card playback	Yes
Speakers	2 × 5 cm (5 W, 4 Ω) + subwoofer 16.5 cm (25 W, 4 Ω)
Remote control	Yes (CR2025 battery included)
Bluetooth transmission range	10 meters
Weight	Approximately 4.5 kg (estimate)
Dimensions	Approximately 80 cm (W) × 10 cm (H) × 8 cm (D) (bar estimate)
Material	Plastic, metal (grille)
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water, heat, or humidity. Unplug before cleaning.
Repairability	Any repair should be entrusted to a qualified professional.
Warranty	Legal warranty of conformity (2 years in EU)
Package contents	Soundbar, subwoofer, remote control, RCA cable, Line-in cable, subwoofer audio cable, power cord, manual

Frequently Asked Questions - SB255BT THOMSON

How to pair my phone with the Thomson SB255BT speaker?

Turn on the speaker and press MODE until Bluetooth is selected. On your phone, enable Bluetooth and search for devices. Select "SB250BT/SB255BT" from the list. If a code is requested, enter "0000". The connection is established when the LED indicator blinks then stays solid.

What to do if the speaker does not turn on?

Check that the power cord is properly connected to the speaker and to a working mains outlet. Ensure the mains voltage matches that indicated on the device (230 V~). If the problem persists, contact support.

How to use a USB flash drive with the SB255BT speaker?

Insert the USB flash drive into the USB port on the top panel. Press MODE to select USB mode. Playback starts automatically. Use the ◄ and ► buttons to change tracks, VOL+/- to adjust volume.

Can I connect the speaker to my TV?

Yes, you can use the optical input (Optical In) with an optical cable, the AUX input (RCA) with an RCA cable, or the Line-in (3.5 mm) input. Select the corresponding mode with the MODE button.

How to solve sound distortion issues?

Reduce the volume using the remote control or the VOL- buttons on the speaker. Check that the audio source is not saturated. Move the speaker away from walls or objects that may cause vibrations. If the problem persists, check the cable connections.

The speaker automatically goes into standby, how to wake it up?

The speaker goes into standby after 10 minutes of inactivity or no audio playback. To wake it up, press the POWER (⏻) button on the speaker or on the remote control.

How to replace the remote control battery?

Press the side button of the battery compartment cover to open it. Remove the battery holder, replace the used battery with a CR2025 lithium 3V battery respecting polarity, then close until it clicks.

Is the speaker compatible with hands-free calls?

No, the Thomson SB255BT does not have a built-in microphone function. It cannot be used for hands-free calls. When an incoming call occurs, music pauses but you must answer via your phone.

What is the maximum Bluetooth connection range?

The Bluetooth range is approximately 10 meters in open field. Obstacles (walls, furniture) may reduce this distance. For a stable connection, place the speaker and the device within 10 m of each other.

How to clean the speaker safely?

Always unplug the speaker before cleaning. Use a soft, dry cloth to wipe the outer surface. Never use abrasive products, solvents, or sprays. Avoid moisture entering the openings.

USER MANUAL SB255BT THOMSON

Exterior view of a modern office building (no signage)

MODE D'EMPLOI

LISEZ COMPLÈTEMENT CE MANUEL D'UTILISATION AVANT D'UTILISER CET APPAREIL ET CONSERVEZ CE LIVRET POUR VOUS Y RÉFÉRER ULTÉRIEUREMENT.

Simple line drawing of a wall socket connected to a pipe (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

EN

SB250BT / SB255BT

SOUND BAR

Exterior view of a modern office building (no signage)

OPERATING INSTRUCTIONS

PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.

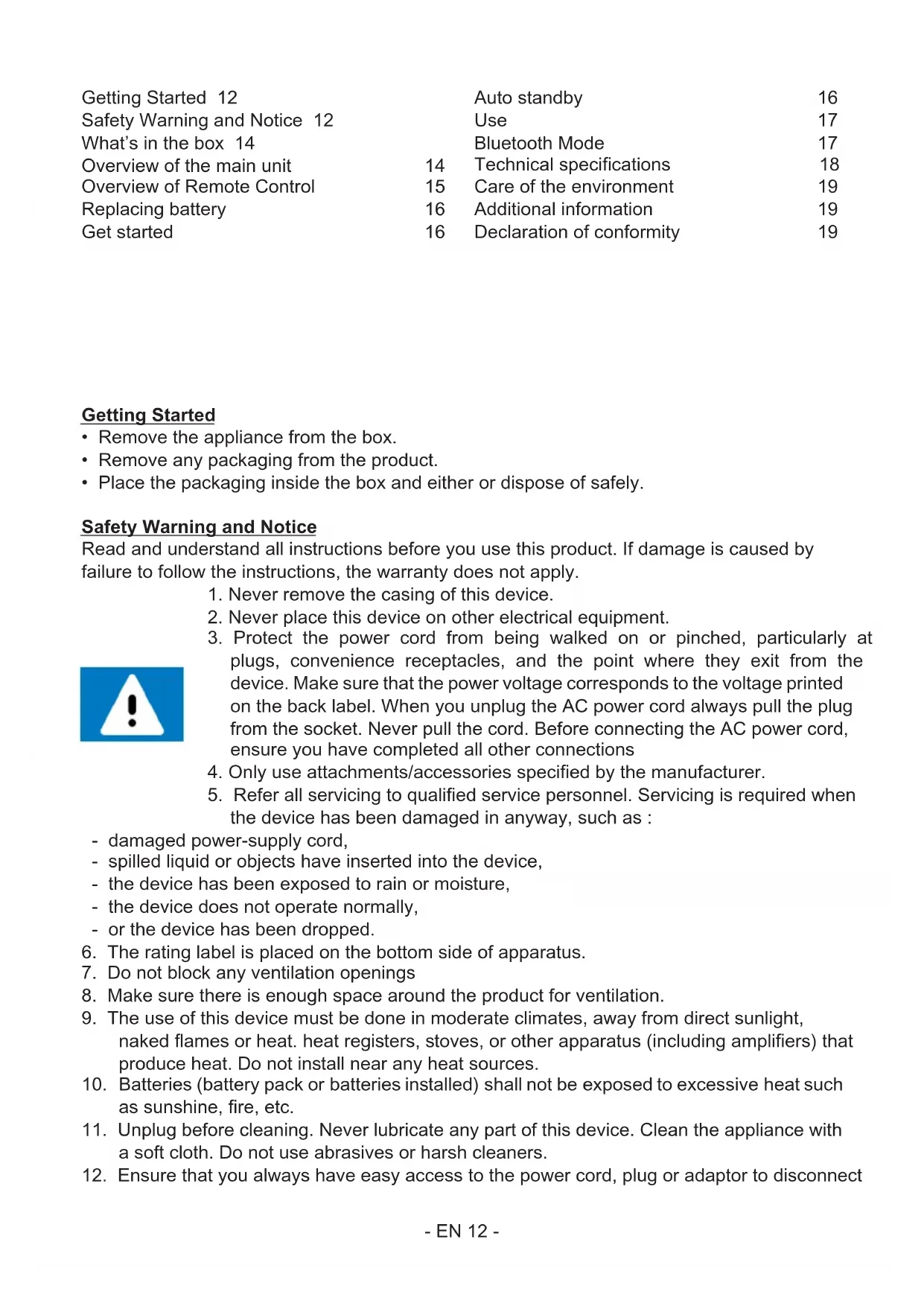

Getting Started 12		Auto standby	16
Safety Warning and Notice 12		Use	17
What's in the box 14		Bluetooth Mode	17
Overview of the main unit	14	Technical specifications	18
Overview of Remote Control	15	Care of the environment	19
Replacing battery	16	Additional information	19
Get started	16	Declaration of conformity	19

Getting Started

• Remove the appliance from the box.
• Remove any packaging from the product.
• Place the packaging inside the box and either or dispose of safely.

Safety Warning and Notice

Read and understand all instructions before you use this product. If damage is caused by failure to follow the instructions, the warranty does not apply.

1. Never remove the casing of this device.
2. Never place this device on other electrical equipment.
3. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device. Make sure that the power voltage corresponds to the voltage printed on the back label. When you unplug the AC power cord always pull the plug from the socket. Never pull the cord. Before connecting the AC power cord, ensure you have completed all other connections
4. Only use attachments/accessories specified by the manufacturer.

5. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in anyway, such as :

6. damaged power-supply cord,

7. spilled liquid or objects have inserted into the device,
8. the device has been exposed to rain or moisture,
9. the device does not operate normally,

10. or the device has been dropped.

11. The rating label is placed on the bottom side of apparatus.

12. Do not block any ventilation openings

13. Make sure there is enough space around the product for ventilation.

14. The use of this device must be done in moderate climates, away from direct sunlight, naked flames or heat. heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Do not install near any heat sources.

15. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire, etc.

16. Unplug before cleaning. Never lubricate any part of this device. Clean the appliance with a soft cloth. Do not use abrasives or harsh cleaners.

17. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect

this device from the power if necessary.

1. Do not use this apparatus near water. It must not be in contact with dripping or splashing. Do not use this unit in wet or damp conditions.

2. Unplug this device during lightning storms or when unused for long periods of time.

3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

4. This appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.

5. The battery must be removed from the appliance before it is scrapped; The appliance must be disconnected from the supply mains when removing the battery.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning symbol inside an equilateral triangle warns the user of the presence inside the product of uninsulated hazardous electric voltages powerful enough to represent an electrocution risk.

The exclamation point within a triangle indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the unit.

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

Class II material
Direct current
Alternating current
For indoor use only

What's in the box

Check and identify the contents of your package:

• Remote control
• User manual
• RCA cable
• Line in cable
  • Audio cable for sub
• AC adapter

• Sound Bar and Subwoofer

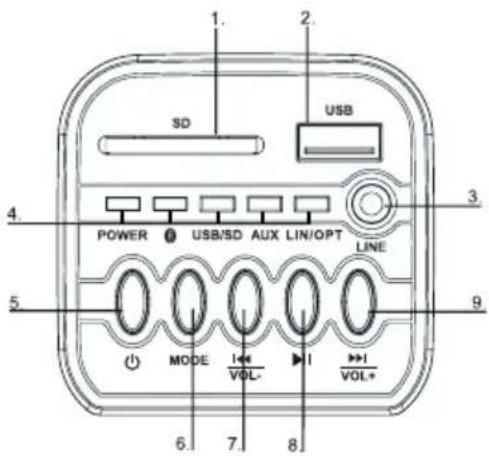

Overview of the main unit

1. 2. SD USB 4. POWER USB/SD AUX LIN/OPT LINE 5. MODE VOL- 6.7.8 VOL+

1. SD socket
2. USB socket

3. Audio in Connect an external audio device.

4. LED indicator Show the current status

5. Standby Turn on the unit, switch to Standby mode.

6. MODE Select a mode: Bluetooth, USB, AUDIO IN.

7. Skip to the previous track. VOL- Press and hold adjust the Volume-

8. ▶ Start or pause play

9. Skip to the next track. VOL + Press and hold adjust the Volume+

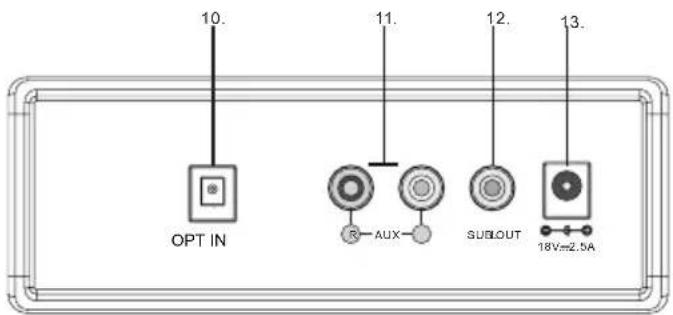

10. OPT IN 11. AUX 12. SUBOUT 13. 18V=2.5A

Pure technical diagram of a mechanical component with no text or symbols

10. Optical in

Connect an Optical digital audio input.

11. AUX in

Connect an external audio device.

12. Subwoofer out

13. DC In

14. Wall mount bracket

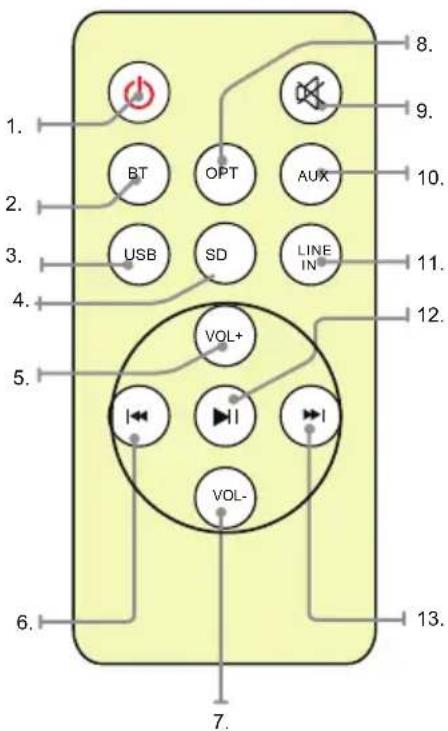

Overview of Remote Control

1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. BT OPT AUX USB SD LINE IN VOL+ I I I VOL- 12 13

1. POWER

Press to power the tower off and on.

2. BT

Press to Bluetooth mode.

3. USB

Press to USB mode.

4. SD

Press to SD mode.

5. VOLUME+

Press to adjust the volume+.

6.

Skip to the previous track

1. VOLUME-

Press to adjust the volume-

1. OPT

Press to Optical input mode

1. MUTE

Press to Mute or restore volume.

1. AUX.

Press to Aux input mode.

Press to Line input mode

12.

start or pause play

13.

Skip to the next track

Replacing battery

The remote control works with lithium button cell CR2025 3V batteries. When the remote no longer works you need to replace the batteries as follows:

• Press the tab on the side of the battery cover to release it and allow the battery support to come out.
• Replace the battery paying attention to the correct orientation of the poles.
• Replace the battery support pushing it inside until you hear a "click".

ATTENTION : Danger of explosion if batteries are not inserted correct.

Get started

Power

CAUTION :

• Risk of product damager! Make sure that the power voltage corresponds to the voltage printed on the back label.
• Risk of electric shock! When you unplug the AC power cord always pull the plug from the socket. Never pull the cord.
• Before connecting the AC power cord, ensure you have completed all other connections.

Pure electrical outlet diagram showing a plug inserted into a socket (no text or symbols)

Place the unit in the desired position and unravel the mains cable. Insert the cable into the supply socket and switch on if applicable.

Auto standby

When playing media from a connected device, the Tower automatically switches to standby if

• No button is pressed for 10 minutes,
• No audio from a connected device for 10 minutes.

It can be switched ON by using the POWER selector again.

Use

Play from external audio

You can play from an external audio device such as MP3 player through this unit.

A. Optical in Jack (Requires an optical cable)

1. Connect an Optical cable to the optical jack on back panel. Connect the other end of the Optical cable to the digital audio device.
2. Press the ⏻ button to turn the unit on.
3. Press the MODE button to switch to Optical In mode.
4. Use the controls on the connected device to begin playing audio routed through the unit.

B. Line in Jack (Requires a 3.5mm cable)

1. Connect a 3.5mm cable to the Line jack on top panel. Connect the other end of the 3.5mm cable to an Mp3 player or other audio device.
2. Press the ⏻ button to turn the unit on.
3. Press the MODE button to switch to Line In mode.
4. Use the controls on the connected device to begin playing audio routed through the unit.

C. Auxiliary Input RCA (Requires an RCA cable)

1. Connect an RCA cable to the Auxiliary Input. Connect the other end of the RCA cable to the audio output on your DVD player, stereo system, gaming system or television.
2. Press the power button to turn the unit on.
3. Press the MODE button to switch to Aux In mode.
4. Use the controls on the connected device to begin playing audio routed through the unit.

D. Using the USB input

1. Plug your USB flash drive to the USB socket.
2. Press MODE button to select USB or SD mode, the unit can play automatically. If not, press ▶
3. Press the ▶▶ to select track.
4. Press the VOL+/VOL- to adjust the volume.

Remarks: USB port is easy to sensitive equipment, will cause the equipment work is not stable.

Bluetooth Mode

A. Pairing with a Bluetooth cell phone

Please make sure your cell phone is Bluetooth-enabled. Specific pairing steps may vary with different cell phones. Please refer to the user manual of your cell phone for further information.

The general pairing steps are as follows :

1. Keep SB250BT/SB255BT and Bluetooth cell phone within 1 meter when pairing.
2. Press ⏻, button, and press the MODE to select the Bluetooth mode.
3. Switch on your cell phone's Bluetooth function and search for Bluetooth devices. After the search is completed, select "SB250BT/SB255BT from the Bluetooth device list.
4. According to indication, enter password or PIN No: "0000" and press "Yes" or "confirm".
5. After successful pairing, select "SB250BT/SB255BT" from the Bluetooth device list and press "connect".

B. Pairing with a Bluetooth stereo transmitter

Different Bluetooth transmitters have different pairing ways. Please refer to the user manual of your Bluetooth transmitter for further information. The general pairing steps are as follows:

1. Keep SB250BT/SB255BT and Bluetooth transmitter within 1 meter when pairing.
2. Press ⏻, button, and press the MODE to select the Bluetooth mode.
3. Switch on your Bluetooth transmitter and let it enter pairing mode.
4. The transmitter will search and connect with SB250BT/SB255BT automatically. After successful connecting, the Bluetooth voice will change when connected successfully.

Remarks : SB250BT/SB255BT will return to pairing mode automatically after disconnecting from a Bluetooth device.

C. Music Playback

Connecting with a A2DP cell phone or Bluetooth transmitter.

1. Connect your cell phone or Bluetooth transmitter with SB250BT/SB255BT.
2. You can listen to your music from SB250BT/SB255BT now when playing it back.
3. Press Vol+ to turn up the volume, press Vol- to turn down the volume.
4. Press to skip to the previous song.
5. Press skip to the next song.

Technical specifications

Power input AC	230 V~ 50 Hz 0,3 A	Bluetooth Version	5.0
Speaker driver	Subwoofer:6.5” 25W,4Ω Loud speaker:2” 5W,4Ω	Pair name SB250	BT / SB255BT
Speaker output RMS	2x15W +30W	Bluetooth frequency	2402-2480MHz
Peak Speaker 200W		Transmission distance	10m
Power consumptions	75W EIRP 3.55dBm
USB output 5V 0.3A THD(1KHz, 1W) >0.5%
S/N ratio >75dB		Remote control source	CR2025 Lithium 3.0V
Speaker frequency	20Hz-20KHz Battery weight 0.03g
Input sensitivity	AUX IN 1000MV LINE IN 775MV	Speakers impedance	4 ohm

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Attention should be drawn to environmental aspects of battery disposal.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Additional information

• If there is an incoming call while SB250BT/SB255BT is connected to your cell phone for music playback, it will pause at once when you answer the call and resume after the call ended. (Sometimes it will pause after end the call, it depend on your cell phone.)
• The Bluetooth ^ word, mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under license. Other trademarks and trade names are those of their respective owners.
• THOMSON is a trademark of TECHNICOLOR SA or its affiliates used under license to Bigben Interactive.

Declaration of conformity

- The undersigned, Bigben Interactive declares that the radio equipment of the SB250BT/SB255BT type complies with the 2014/53/EU directive. The complete text is available at https://www.bigben-interactive.co.uk/support/

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Made in China

Fabricant : Bigben Interactive FRANCE

396, Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

ES

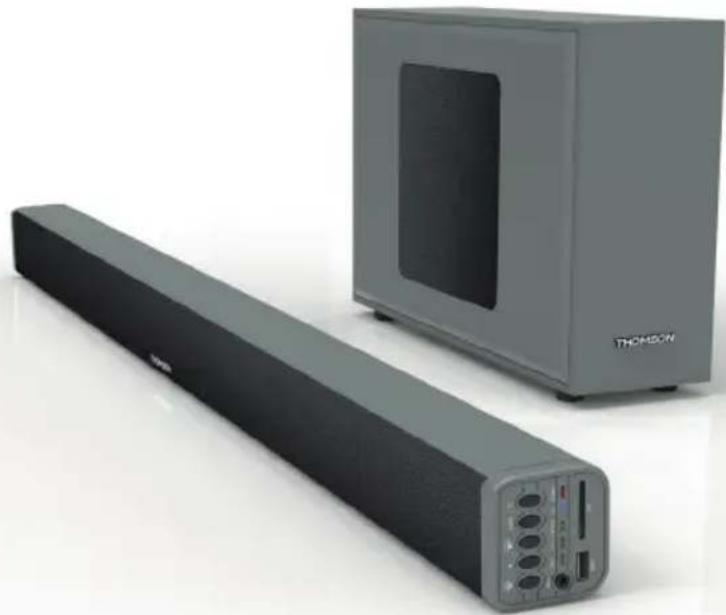

SB250BT / SB255BT

SOUNDBAR

Exterior view of a modern office building (no signage)

Simple line drawing of a plug with a bulb and connecting rod (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

IT

SB250BT / SB255BT

SOUNDBAR

Exterior view of a modern office building (no signage)

ISTRUZIONI D'USO

PRIMA DI UTILIZZARE L'APPARECCHIO, LEGGERE PER INTERO IL PRESENTE MANUALE E CONSERVARLO PER CONSULTAZIONI FUTURE.

Pure electrical outlet diagram showing a pipe with a socket and bulb (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

PT

SB250BT / SB255BT

SOUNDBAR

Exterior view of a modern office building (no signage)

Pure technical diagram of a mechanical component with no text, numbers, or symbols

10. Entrada ótica

Pure electrical outlet diagram showing a plug inserted into a socket (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

DE

SB250BT / SB255BT

SOUNDBAR

Exterior view of a modern office building (no signage)

BEDIENUNGSANLEITUNG

Simple line drawing of a wall socket connected to a pipe (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu

THOMSON

NL

SB250BT / SB255BT

SOUNDBAR

Exterior view of a modern office building (no signage)

VEILIGHEIDSINSTRUCTIES

LEES DEZE GEBRUIKSAANWIJZING VOLLEDIG DOOR ALVORENS DEZE EENHEID TE BEDIENEN, EN BEWAAR DIT BOEKJE VOOR UW ADMINISTRATIE.

Simple line drawing of a wall socket connected to a plug (no text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

ITALIA, [e-mail]

www.bigben.eu
