Ultimate Series F9 XF9000 - Shaver REMINGTON - Free user manual and instructions
Find the device manual for free Ultimate Series F9 XF9000 REMINGTON in PDF.
| Technical Features | Electric shaver with advanced cutting technology, 360° flexible heads, stainless steel blades. |
|---|---|
| Usage | Dry and shower shaving, 60 minutes autonomy, quick charge in 5 minutes. |
| Maintenance and Repair | Cleaning under water, removable shaving head for easy maintenance, replaceable blades. |
| Safety | Overload protection system, charge indicator, safety lock for transport. |
| General Information | 2-year warranty, ergonomic design, included accessories: cleaning brush, protective cap. |
Frequently Asked Questions - Ultimate Series F9 XF9000 REMINGTON
How do I clean the REMINGTON Ultimate Series F9 XF9000 shaver?
To clean the shaver, remove the cutting head and rinse it under running water. Use the supplied cleaning brush to remove hairs. Make sure the shaver is turned off and unplugged before cleaning.
Why is the shaver not charging?
Check that the shaver is properly plugged in and that the outlet is working. Also ensure the charging cable is not damaged. If the problem persists, the battery may be defective.
How do I replace the shaver blades?
To replace the blades, remove the cutting head by pressing the release button. Replace the blades following the instructions in the user manual, then reattach the cutting head.
The shaver is not cutting well, what should I do?
Make sure the blades are clean and sharp. If they are worn, consider replacing them. Also check that the shaver is sufficiently charged and that you are using an appropriate shaving technique.
How do I know when it is time to recharge the shaver?
The shaver is equipped with a charge indicator. When the light blinks or turns red, it means the battery is low and it is time to recharge the shaver.
Can I use the shaver in the shower?
Yes, the REMINGTON Ultimate Series F9 XF9000 is waterproof and can be used in the shower. Make sure to rinse it well after use to ensure its longevity.
How can I get a close shave without irritation?
Use a gel or shaving foam to prepare your skin. Shave in the direction of hair growth and avoid going over the same area multiple times. Make sure the blades are well maintained.
Is there a warranty for the REMINGTON Ultimate Series F9 XF9000 shaver?
Yes, this product is generally covered by a limited warranty. Check the documents provided with the shaver for details on the duration and conditions of the warranty.
What is the full charging time of the shaver?
The REMINGTON Ultimate Series F9 XF9000 shaver requires about 90 minutes for a full charge.
How do I store the shaver to extend its lifespan?
Store the shaver in a dry, cool place away from direct heat. Use the protective cap to avoid damaging the blades when the shaver is not in use.
Download the instructions for your Shaver in PDF format for free! Find your manual Ultimate Series F9 XF9000 - REMINGTON and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Ultimate Series F9 XF9000 by REMINGTON.

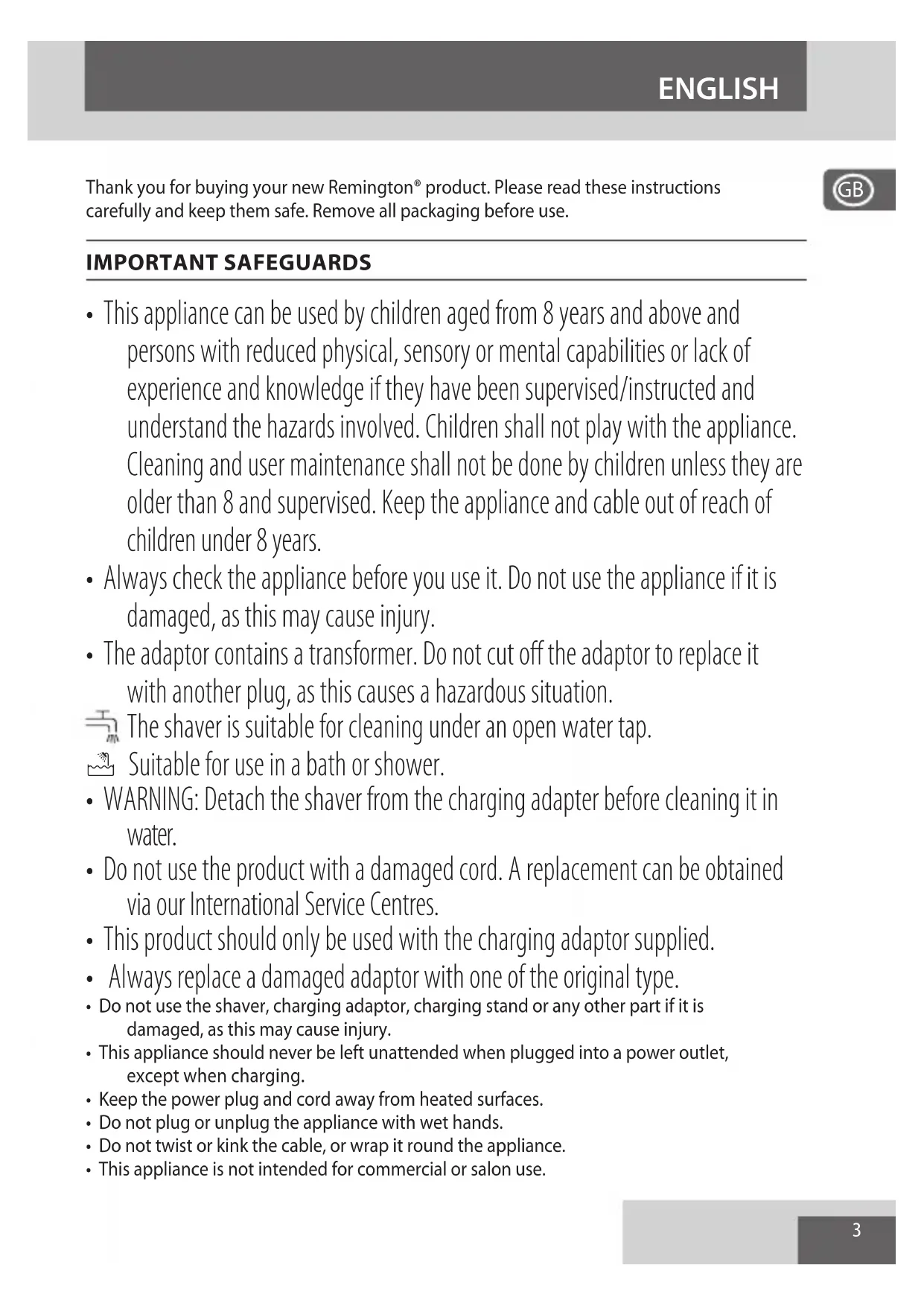

USER MANUAL Ultimate Series F9 XF9000 REMINGTON
Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use. IMPORTANT SAFEGUARDS
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.
- Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury.
- The adaptor contains a transformer. Do not cut off the adaptor to replace it with another plug, as this causes a hazardous situation. The shaver is suitable for cleaning under an open water tap. E Suitable for use in a bath or shower.
- WARNING: Detach the shaver from the charging adapter before cleaning it in water.
- Do not use the product with a damaged cord. A replacement can be obtained via our International Service Centres.
- This product should only be used with the charging adaptor supplied.
- Always replace a damaged adaptor with one of the original type.

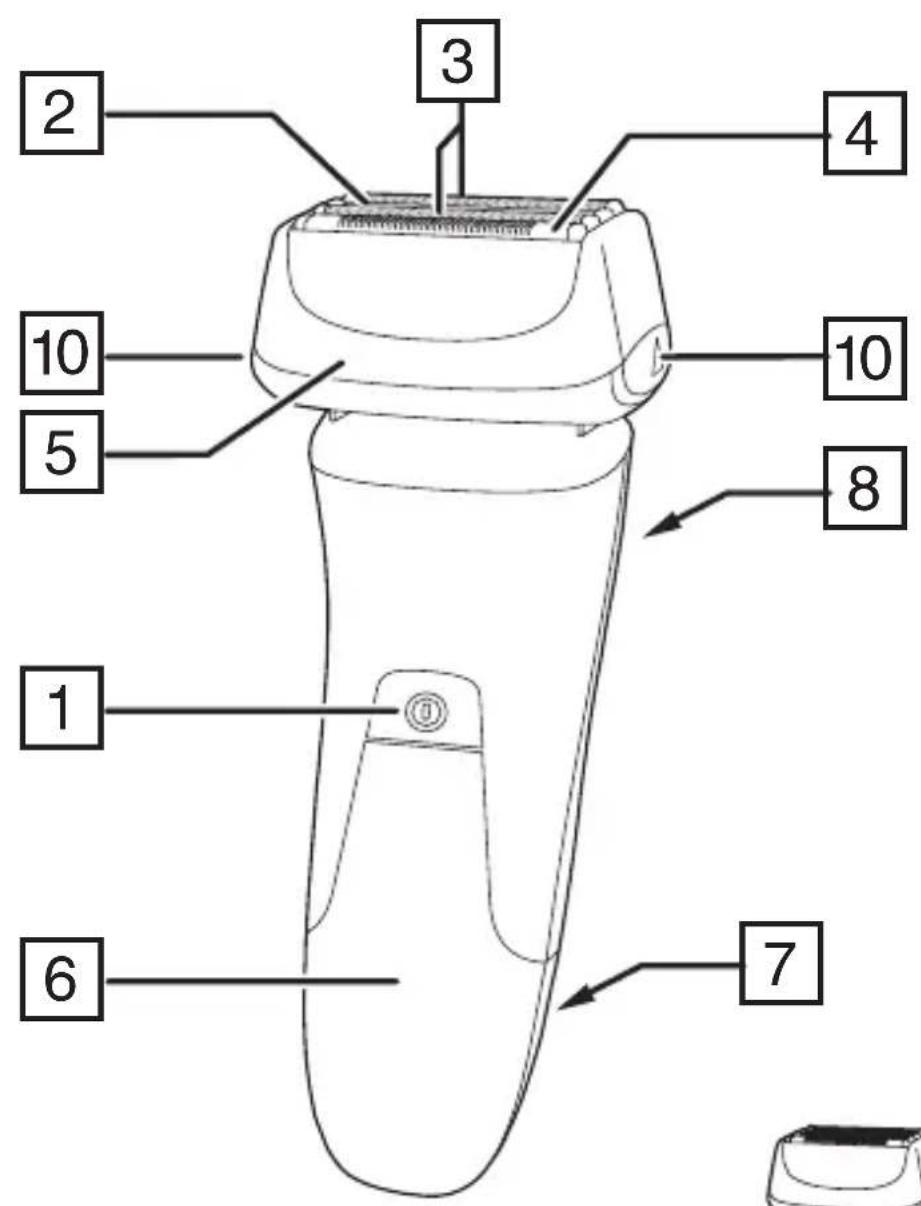

- Do not use the shaver, charging adaptor, charging stand or any other part if it is damaged, as this may cause injury.• This appliance should never be left unattended when plugged into a power outlet, except when charging.• Keep the power plug and cord away from heated surfaces.• Do not plug or unplug the appliance with wet hands.• Do not twist or kink the cable, or wrap it round the appliance.• This appliance is not intended for commercial or salon use.4 PARTS
8. Pop-up trimmer (on back)
10. Foil assembly release buttons
1. Ensure the product is switched o.

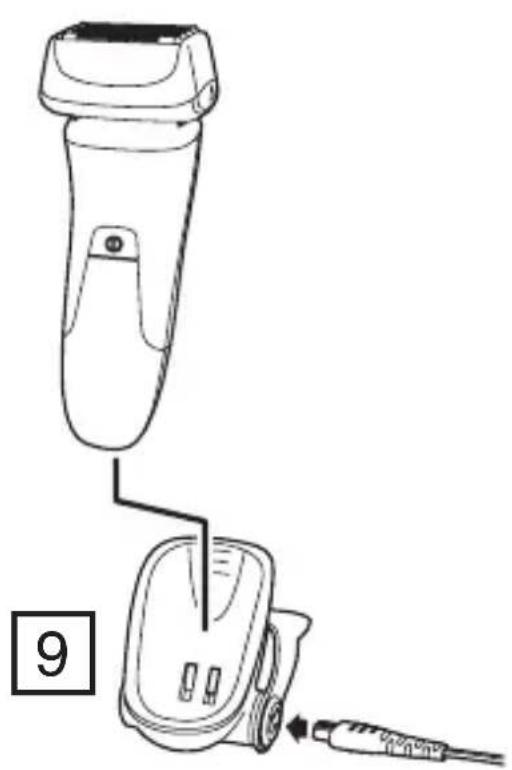

2. Connect the charging stand to the adaptor and then to the mains.
3. Place the charge stand on a at surface.
4. Place the shaver in the charge stand with the charge pins contacting.
5. Charge for at least 24 hours when using for the rst time.
6. At low charge the LED indicator will ash rapidly. When charging the LED will ash
7. When fully charged the LED will light solid for 1 minute and then turn o.
8. To preserve the life of your batteries, let them run out every 6 months then recharge
9. The appliance adapts automatically to a mains voltage between 100V and 240V.
QUICK CHARGE FEATURE
- Your shaver is tted with a 5 minute quick charge feature that will provide enough charge for 1 shave (3 minutes)
INSTRUCTIONS FOR USE
It is recommended that you use your new shaver daily for up to four weeks to allow time for your beard and skin to become accustomed to the new shaving system. SHAVING
1. Switch the shaver on by pressing the on/o switch.
2. Stretch the skin with your free hand so the hairs stand upright.
3. Hold the shaving head so that the foils touch your face.
4. Use short, linear strokes.
2. Hold the trimmer at a right angle to your skin.
3. To retract the trimmer, slide the trimmer release button down and push the back of the
trimmer head downwards until it locks into place. TRAVEL LOCK The travel lock prevents your shaver from accidentally switching on when it is packed in luggage. To set the travel lock:
- Press and hold the on switch for 3 seconds. The shaver will turn on, then will shut o after the 3 seconds. The LED display will ash ve times to indicate the lock is set.
- While the travel lock is set, if the on switch is pressed, the LED display will ash three times to indicate the shaver is in travel lock mode.
TIPS FOR BEST RESULTS
- Always hold the shaver at right angles to the skin so that all foils are touching the skin with equal pressure.
- Use moderate to slow stroking movements. The use of short linear motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.
- DO NOT press hard against the skin in order to avoid damage to the foil heads.
- Note: your shaver has been designed to be used in the shower if desired.
CARE FOR YOUR SHAVER
- Care for your appliance to ensure a long lasting performance.
- We recommend you clean your product after each use.
- The easiest and most hygienic way to clean the appliance is by rinsing the appliance head after use with warm water.
- Keep the switch in the “o” position when not in use. CLEANING CAUTIONS
- Remove the foil assembly by pressing the release buttons on either side of the head and lifting the foil assembly upwards to remove from the hair pocket.
- Tap out the excess hair shavings and rinse the foils under running water.
- Do not clean the shaving foil with a brush.
- Replace the head assembly by placing the assembly on top of the hair pocket, press down and click into place. CLEANING TRIMMER
- Lubricate the teeth of the trimmer every six months with a drop of sewing machine oil.
REPLACING THE FOILS AND CUTTERS
To ensure continued high quality performance from your shaver, we recommend the foils and cutters are replaced every six months.6 SIGNS THAT YOUR FOILS AND CUTTERS NEED REPLACING.
- Irritation: as foils get worn, you may experience skin irritation.
- Pulling: as the cutters wear, your shave may not feel as close and you may feel the cutter pulling your hair.
- Wear through: you may notice that the cutters have worn through the foils. TO REPLACE THE FOIL:
1. Remove the foil assembly by pressing the foil assembly release buttons on either side
of the head and lifting the assembly upwards to remove from the hair pocket.
2. Insert the new foil assembly on the hair pocket, press down and click into place.
REPLACING THE CUTTERS
1. Grasp the cutter between your thumb and forenger and pull upwards.
2. Snap the new cutter into the oscillator tip.Note: DO NOT press on the cutter ends as
this may cause damage.
3. Foil head replacements can be found on the Remington website.
TROUBLESHOOTING If your shaver battery is completely empty or the shaver has not been used for an extended period of time, the shaver may not start when operated using the cord. If this occurs, a 5 minute quick charge will allow for 3 minutes of shaving. BATTERY REMOVAL We strongly recommend that a professional removes the rechargeable battery. Parts of the shaver case, and tools have sharp edges and may cause injury if not handled correctly.
- The rechargeable battery must be removed from the appliance before it is scrapped.
- Disconnect the charging adapter before removing the battery.
1. Slide the trimmer up to the open position and remove a single philips head screw.
2. Using a small screwdriver, pry o the rear housing.
3. Using a philips screwdriver remove 8 screws to open the back of the internal housing.
4. Remove and open the core from the shaver to expose the batteries.
5. Cut the wire connecting the batteries to the circuit board and remove the batteries.
- The battery is to be disposed of safely. ENGLISH7 ENGLISH
