Product type	Cordless drill-driver
Brand	Skil
Model	1008 AR
Rated voltage	14,4 V
Max torque (hard screwing)	41 Nm
Clutch	19 torque positions + drilling position
Speed variator	Yes, by pressing the trigger
Rotation direction reverse	Yes, left/right switch
LED light	Yes, automatic on
Battery type	Lithium-ion
Battery reference	Skil 2610Z08494
Charger reference	Skil 2610Z08495 or 2610Z08496
Charging time	Approximately 3 h (charger 2610Z08495) / 5 h (2610Z08496)
Weight (with battery)	Approximately 1,2 kg
Drillable materials	Wood, metal, ceramic, plastic
Maintenance	Clean the tool and charger with a dry cloth; unplug before cleaning
Safety	Automatic stop in case of overload, out-of-range temperature, or discharged battery
Spare parts / After-sales service	Contact an authorized Skil after-sales service center
Usage	Domestic, non-professional

Frequently Asked Questions - 1008 AR SKIL

How to charge the battery of the Skil 1008 AR drill-driver?

Remove the battery from the tool, plug the charger into a socket, insert the battery into the charger. The red light indicates charging, the green light indicates charging complete. Charging takes approximately 3 h (charger 2610Z08495) or 5 h (charger 2610Z08496).

What is the maximum torque of this drill-driver?

The maximum torque in hard screwing is 41 Nm (according to ISO 5393).

How to adjust the screwing torque?

Turn the torque adjustment ring (VariTorque) from position 1 (low) to 19 (high). The lock position (drill symbol) allows drilling at maximum torque.

How to reverse the rotation direction?

Use the switch located above the trigger. Push it to the right for forward rotation (screwing) or to the left for reverse rotation (unscrewing). Only change direction when the tool is at a standstill.

Why does the drill-driver no longer turn on?

Several possible causes: discharged battery, battery too hot or too cold (out of range -20°C to +50°C), or battery protection activated (overload). Recharge the battery or let it return to room temperature.

How long does a full charge take?

Approximately 3 hours with the charger 2610Z08495 and approximately 5 hours with the charger 2610Z08496.

Can I use non-Skil bits?

Skil recommends using only original accessories to ensure proper operation. Do not use bits with a damaged shank.

How to clean the drill-driver and charger?

Unplug the charger before cleaning. Use a dry cloth to clean the tool and charger. Clean the charger contacts with alcohol or a special product.

What to do if the battery no longer holds a charge?

If the tool runs for less time after a full charge, the battery is worn out and must be replaced with a Skil battery 2610Z08494.

Is this drill-driver suitable for professional use?

No, this tool is designed for domestic, non-professional use.

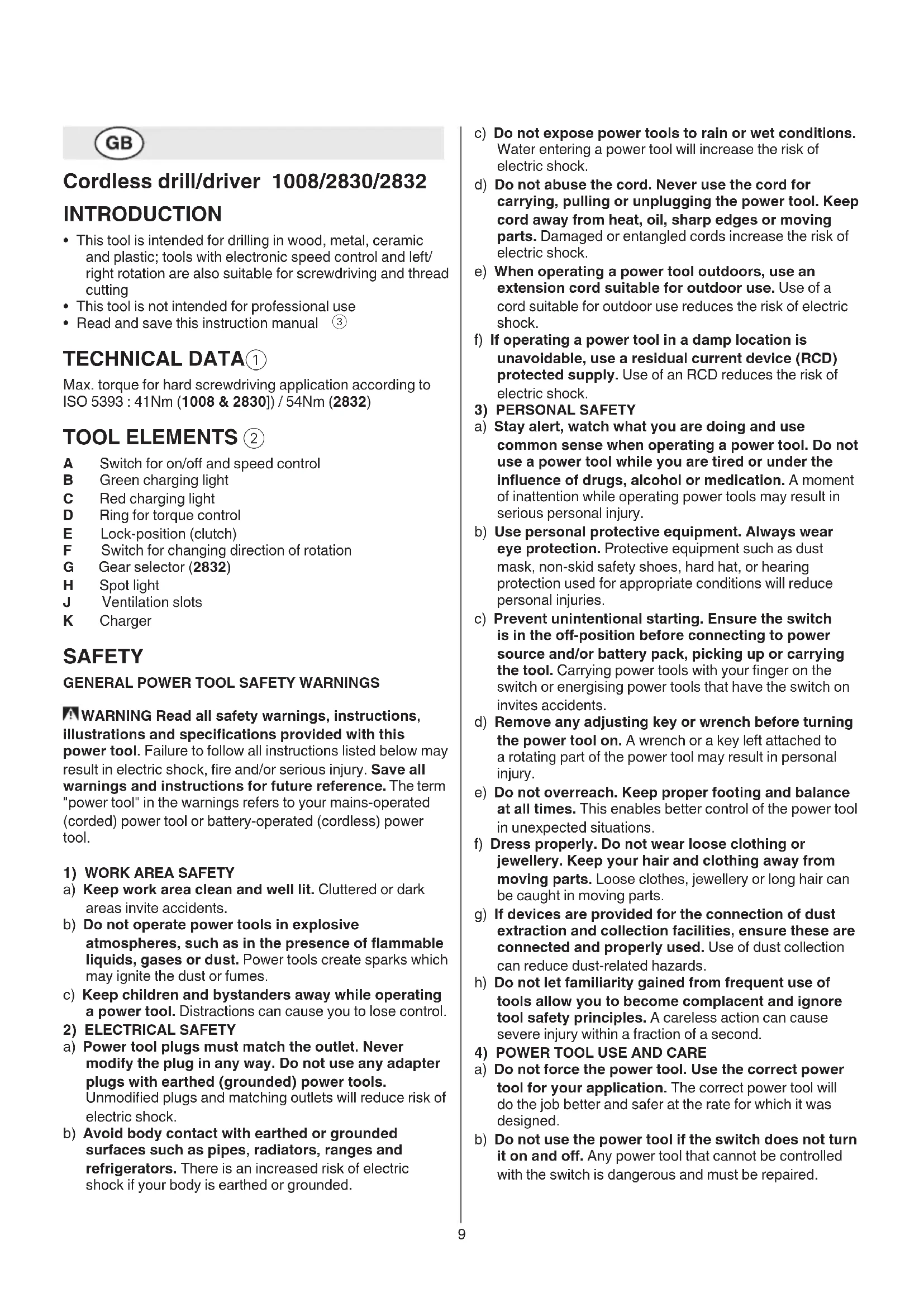

USER MANUAL 1008 AR SKIL

Cordless drill/driver 1008/2830/2832

INTRODUCTION

• This tool is intended for drilling in wood, metal, ceramic and plastic; tools with electronic speed control and left/right rotation are also suitable for screwdriving and thread cutting
  This tool is not intended for professional use
• Read and save this instruction manual ③

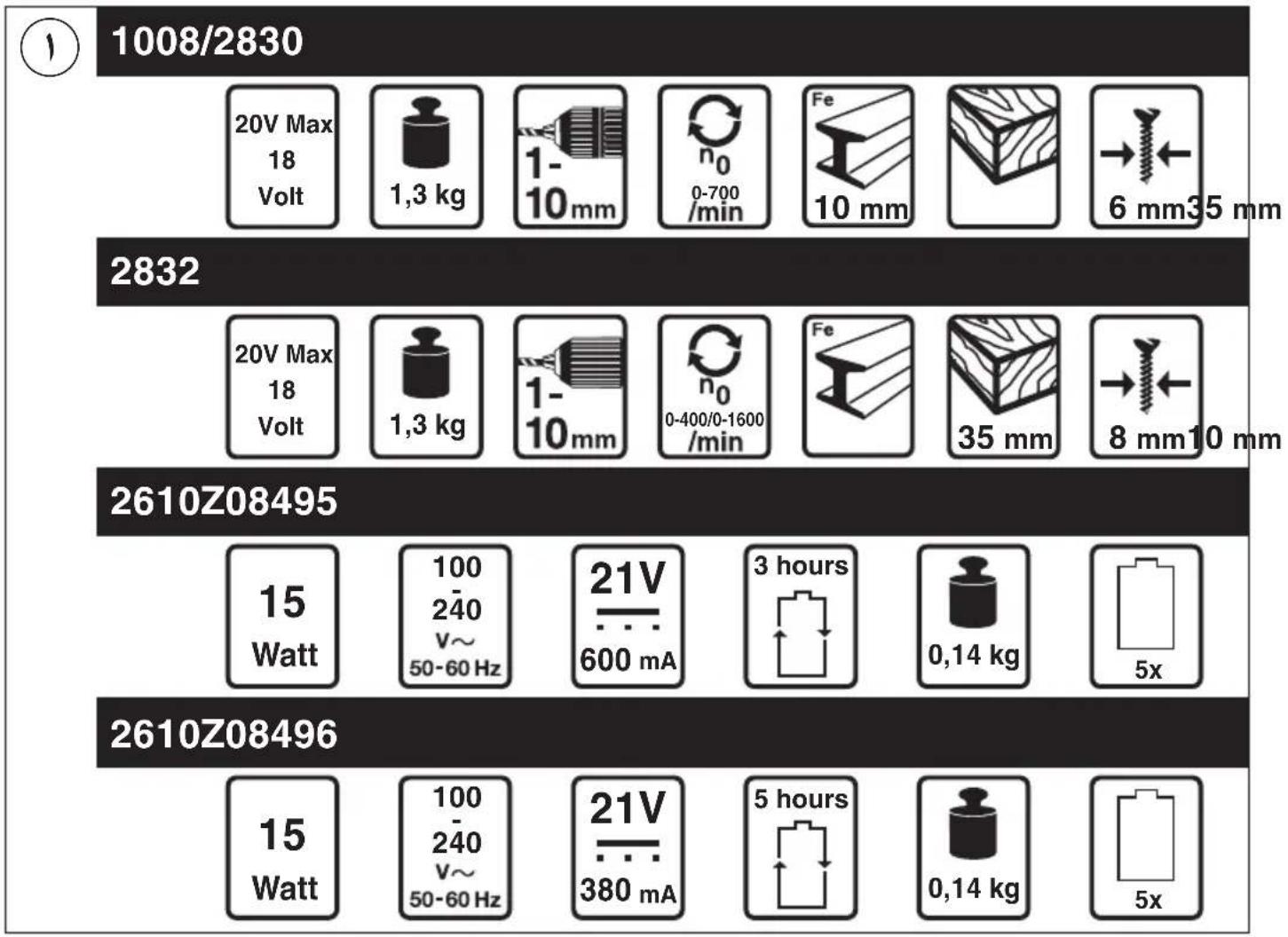

TECHNICAL DATA①

Max. torque for hard screwdriving application according to ISO 5393:41Nm (1008 & 2830)]/54Nm (2832)

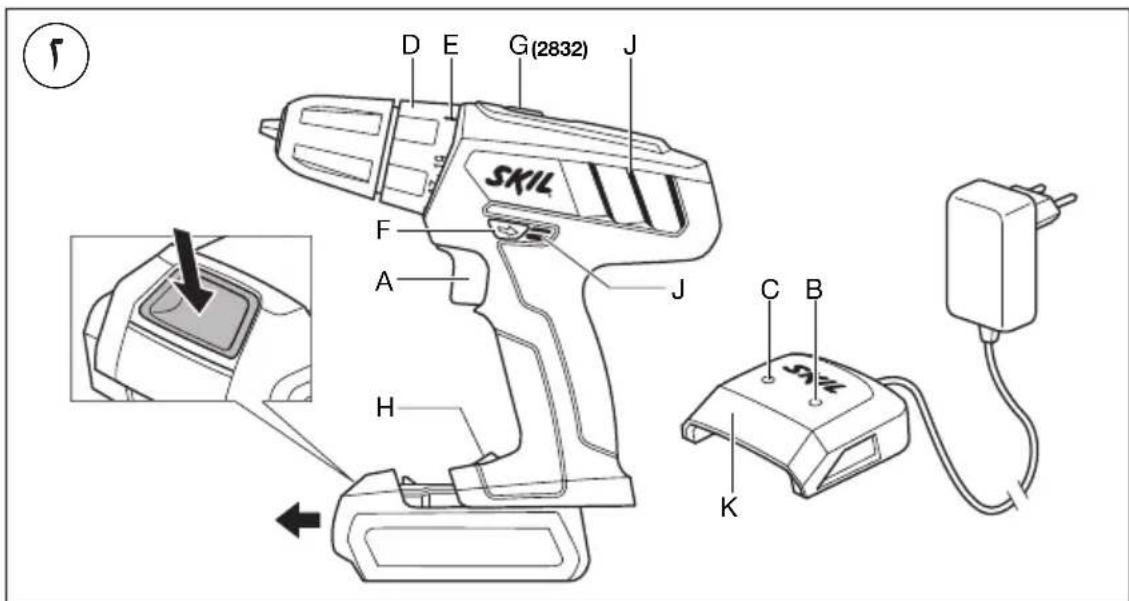

TOOLELEMENTS ②

A Switch for on/off and speed control
B Green charging light
C Red charging light
D Ring for torque control
E Lock-position (clutch)
F Switch for changing direction of rotation
G Gear selector (2832)
H Spot light
J Ventilation slots
K Charger

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

2) ELECTRICAL SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR CORDLESS DRILL/ DRIVERS

GENERAL

• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Ensure that switch F ② is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool

ACCESSIONS

• SKIL can assure flawless functioning of the tool only when original accessories are used
• Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

BEFORE USE

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

DURING USE

• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring (cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)
• In case of electrical or mechanical malfunction, immediately switch off the tool or unplug charger from power source

CHARGING/BATTERIES

This charger can be used by children aged 8 and

above and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers (otherwise, there is a danger of operating errors and injuries)

Supervise children (this will ensure that children do not play with the charger)
- Cleaning and user maintenance of the battery charger shall not be made by children without supervision
- Only use SKIL charger 2610Z08495 or 2610Z08496 and SKIL battery pack 2610Z08494 with this tool
- Charge battery only with the charger that is supplied with the tool
- Do not touch the contacts in the charger
- Do not expose tool/charger/battery to rain
- Do not charge battery in damp or wet environments
- Do not use charger when damaged; take it to one of the officially registered SKIL Service Stations for a safety check
- Do not use charger when cord or plug is damaged; cord or plug should be replaced immediately at one of the officially registered SKIL Service Stations
- Do not use battery when damaged; it should be replaced immediately
- Do not disassemble charger or battery
- Do not attempt to recharge non-rechargeable batteries with the charger
- Permitted ambient temperature (tool/charger/battery): - when charging 0 +45^ - during operation -20 +50^ - during storage -20 +50^

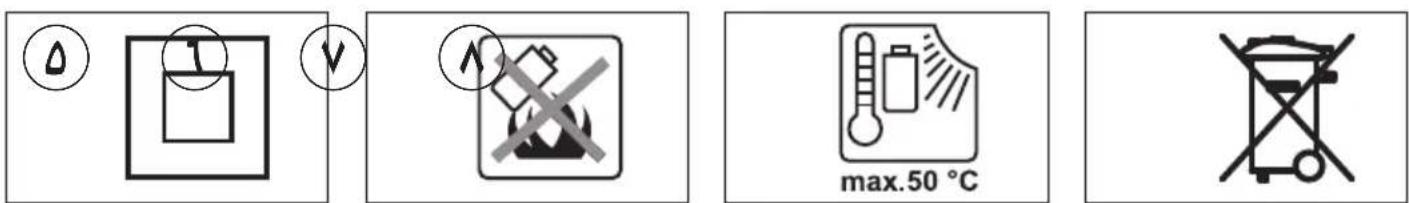

EXPLANATION OF SYMBOLS ON TOOL/CHARGER/BATTERY

③ Read the instruction manual before use
④ Only use the charger indoors
Double insulation (no earth wire required)
⑥ Batteries may explode when disposed of in fire, so do not burn battery for any reason
⑦ Store tool/charger/battery in locations where temperature will not exceed 50^
Do not dispose of electric tools and batteries together with household waste material

USE

Combined switch for on/off and speed control A ② Control the speed steplessly from zero to maximum by putting less or more pressure on the trigger

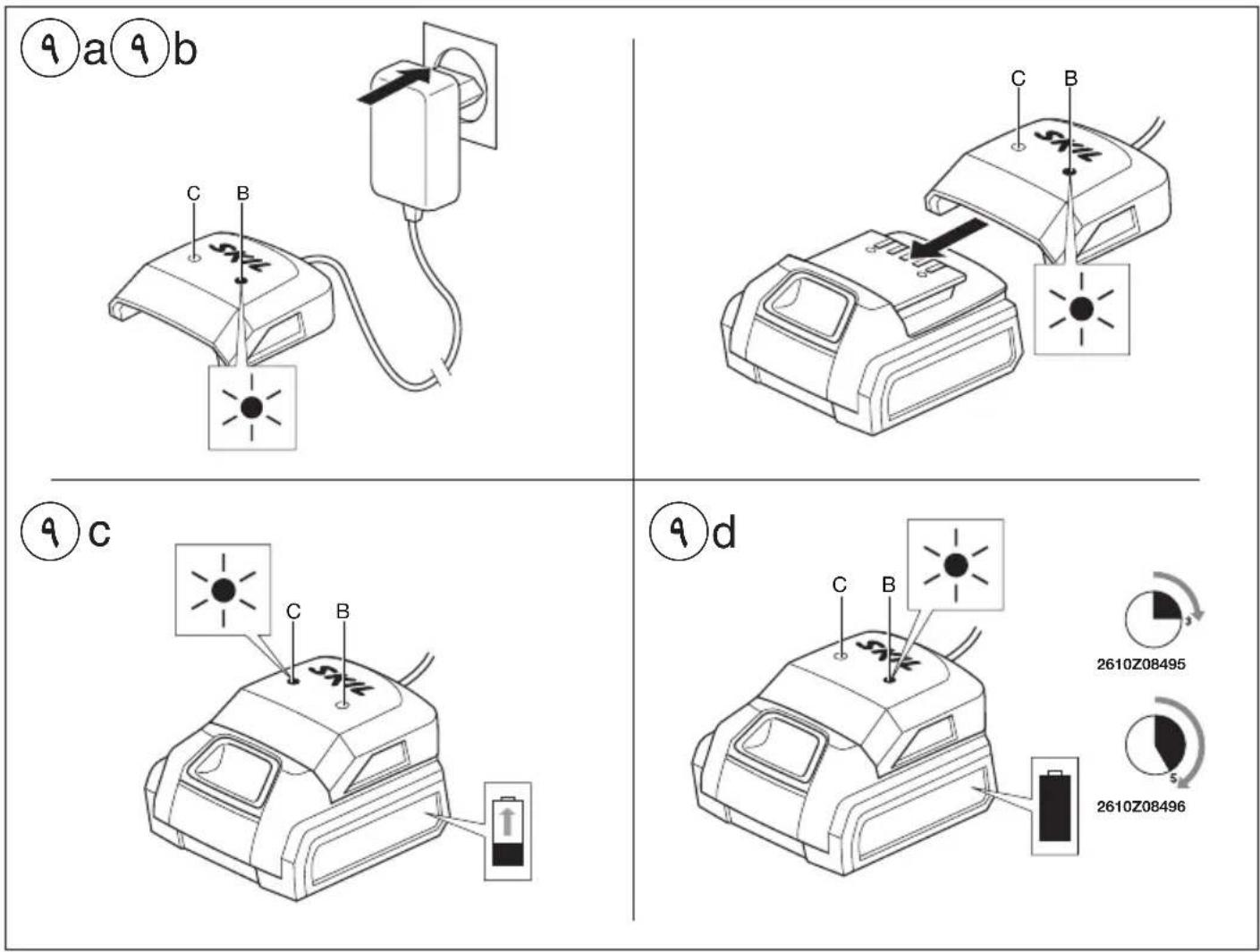

• Charging battery ⑨

!remove battery from tool

• connect charger to power source as illustrated 9a
  -green light B will turn on indicating that the charger is ready for operation ⑨ a
  -insert battery into charger as illustrated 9b
  -red light C will turn on indicating that the battery is being charged ⑨ c

• after approximately 3 hours (2610Z08495) / 5 hours (2610Z08496) the battery is fully charged and green light B turns on ⑨ d

!remove battery from charger after charging period has ended thereby lengthening the service life of the battery

IMPORTANT:

-if red light C does not turn on after inserting a battery, this may mean that the battery is too cold or too hot (charger only charges batteries when its temperature is between 0^ and 45^ )
-the lithium-ion battery can be charged at any time (interrupting the charging procedure does not damage the battery)
-the lithium-ion battery does not have to be empty before charging (no "memory-effect" as with nickel-cadmium batteries)
-while charging, the charger and the battery may become warm to touch; this is normal and does not indicate a problem
-ensure that the outside surface of the battery is clean and dry before inserting into charger
-do not remove battery from tool while it is running
-if you anticipate long periods of non-use for the tool, it is best to unplug the charger from its power source
-when the lithium-ion battery is empty, the tool is switched off automatically
-a significantly reduced working period after charging indicates that the battery is worn out and should be replaced

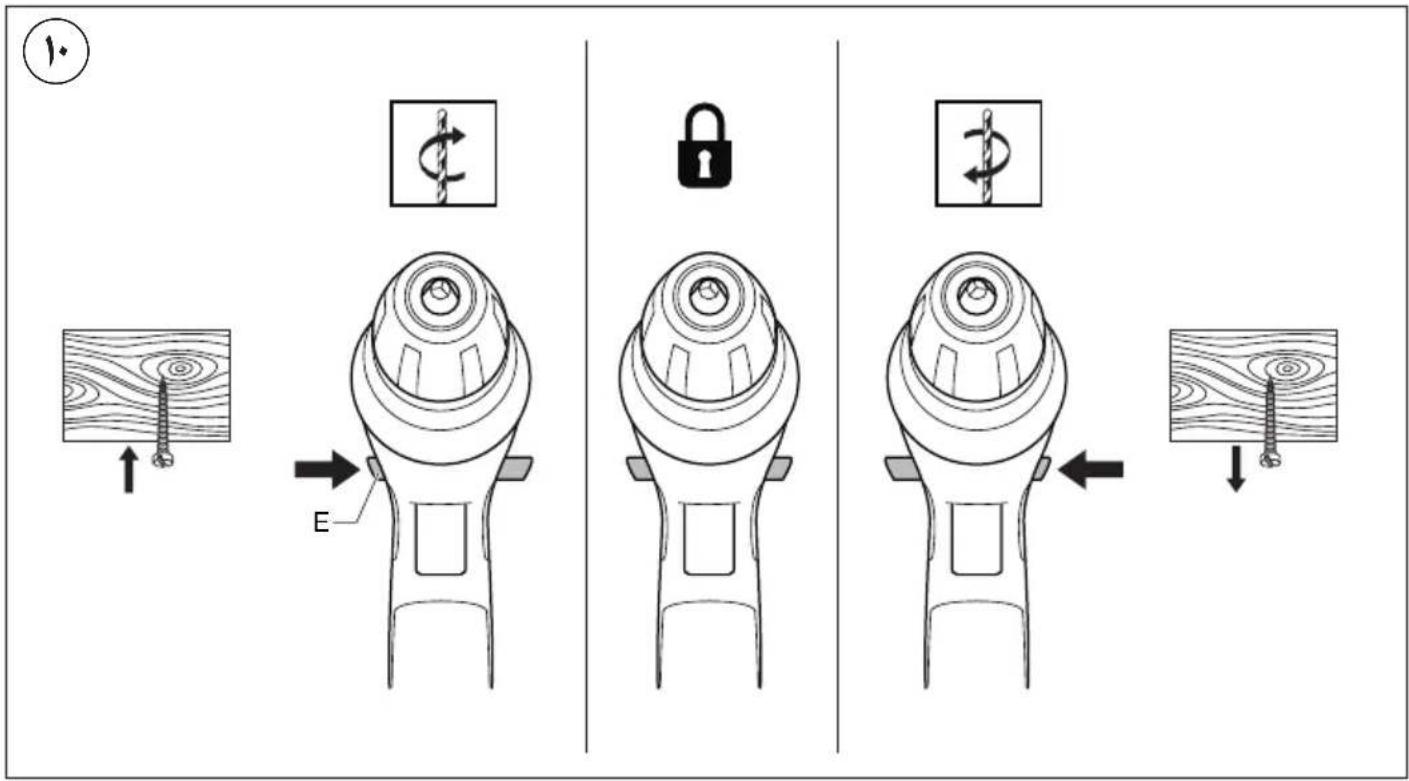

• Changing direction of rotation 10

-when not properly set in left/right position, switch A② cannot be activated

!change direction of rotation only when tool is at a complete standstill

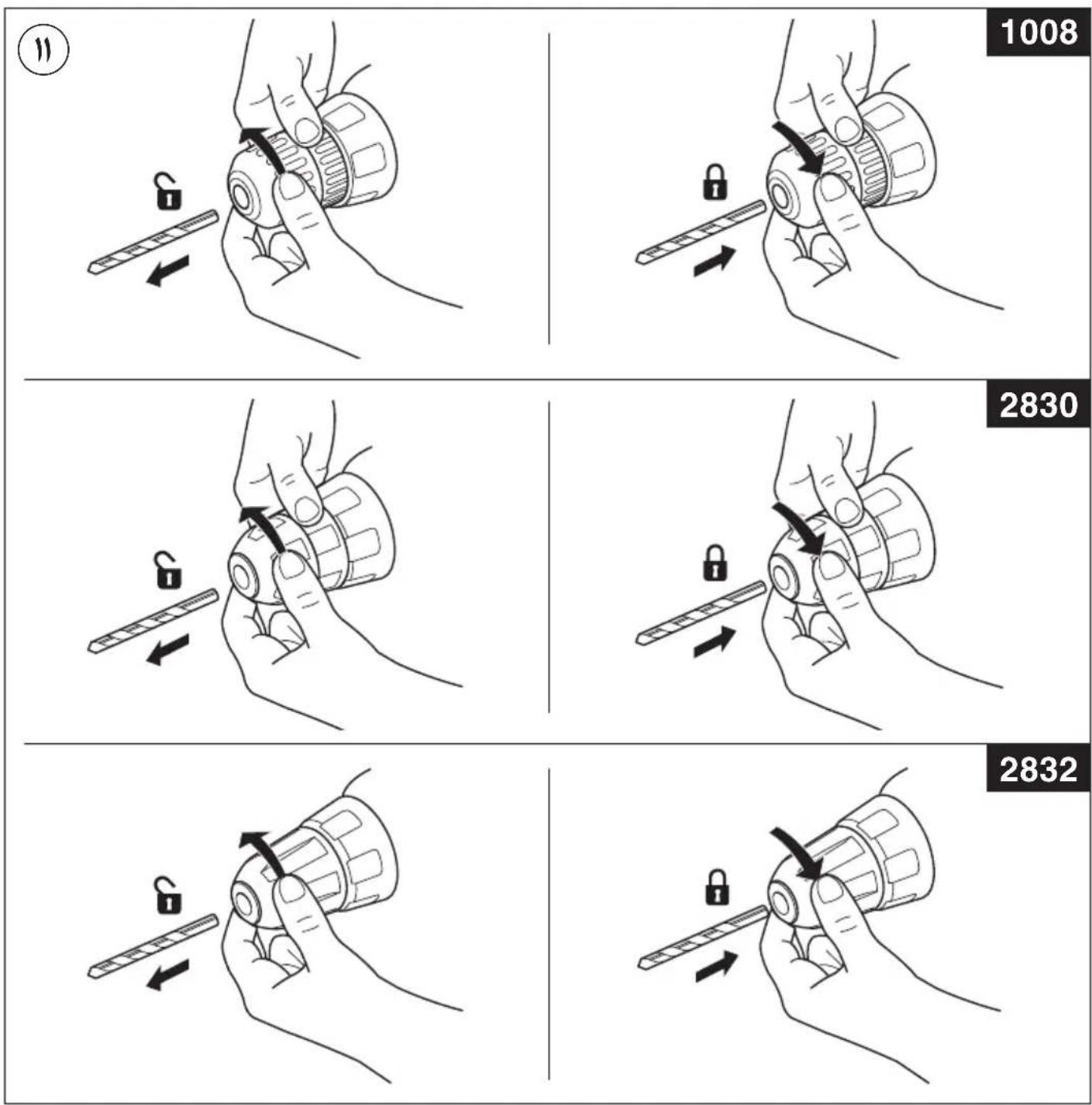

• Changing bits ⑪

!do not use bits with a damaged shank

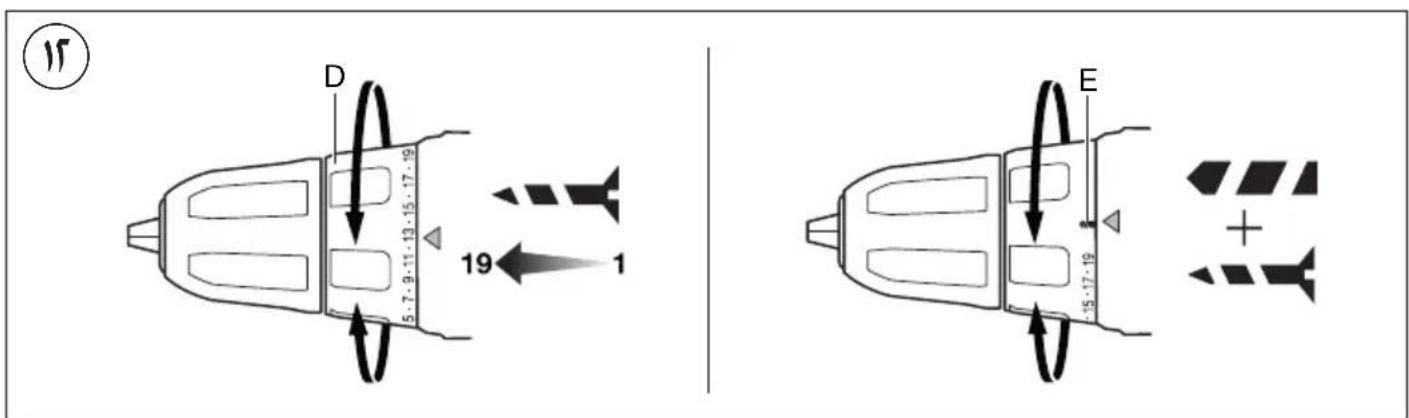

Torque control (VariTorque) 12

-output torque will increase as clutch ring D is rotated from 1 to 19; position E will lock up the clutch to permit drilling or driving heavy duty work
-when turning in a screw, first try VariTorque position 1 and increase until the desired depth has been reached

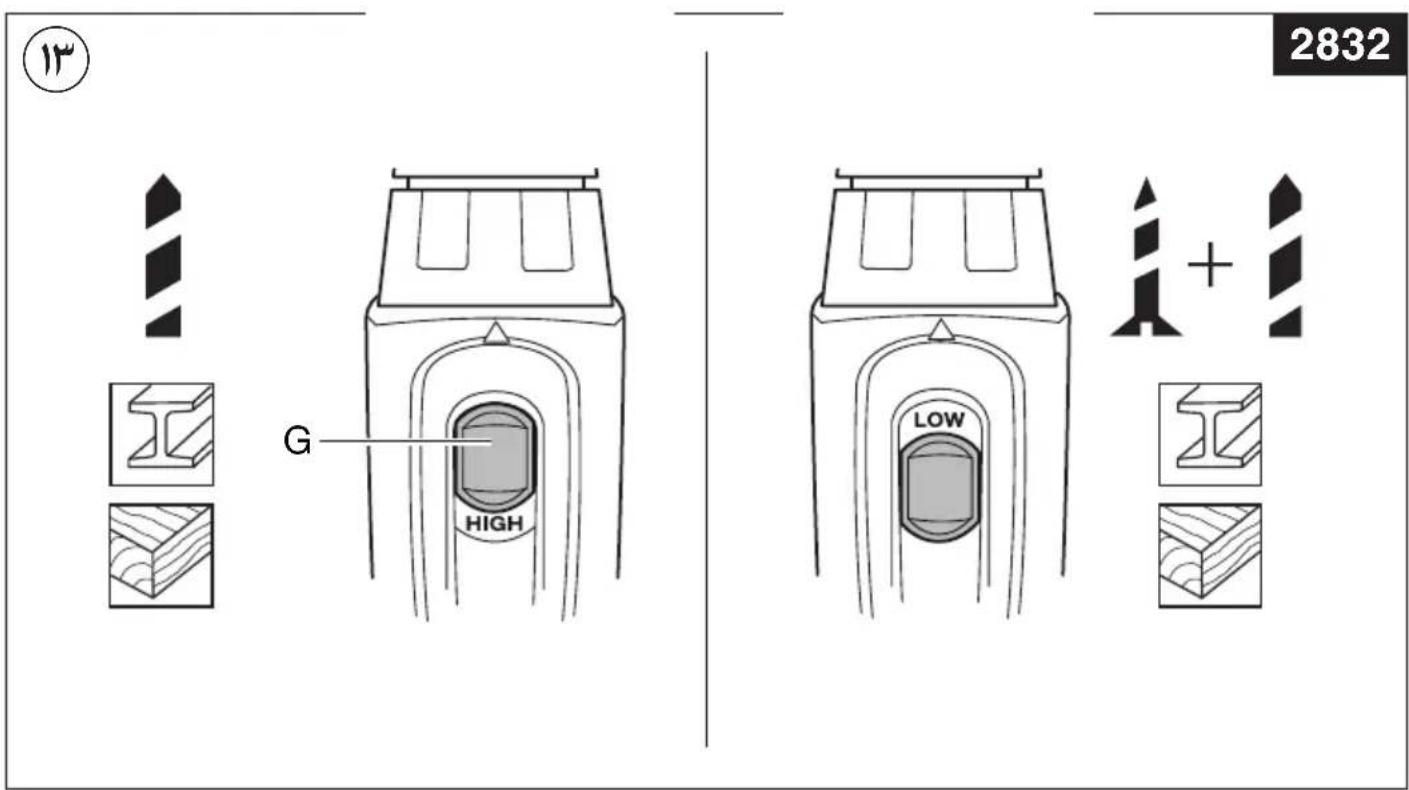

• Mechanical gear selection ⑬ (2832)

-set selector G to desired speed

!actuate the gear selector while tool is running slowly

LOW

-low speed
-high torque

-for screwdriving and drilling large diameters

-for tapping thread

HIGH

-high speed

-lower torque

-for drilling small diameters

Battery protection

Switches off the tool or prevents the tool from being switched on, when

-the load is too high
the battery temperature is not within the allowable operating temperature range of -20 to +50^
-the lithium-ion battery is nearly empty (to protect against deep discharge)

!do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

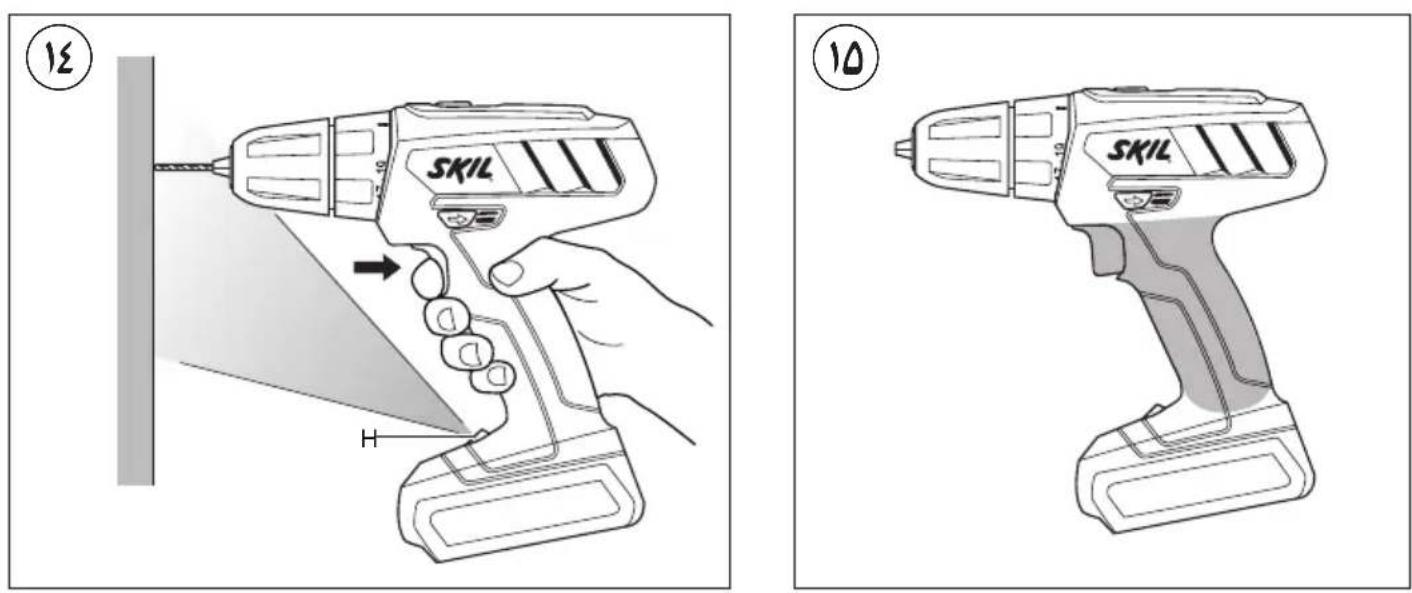

• Spot light H ⑭
  Spot light H automatically lights on when activating switch A ②
• Holding and guiding the tool 15
  !while working, always hold the tool at the greycoloured grip area(s)
  -keep ventilation slots J ② uncovered
  -do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

!only use sharp bits

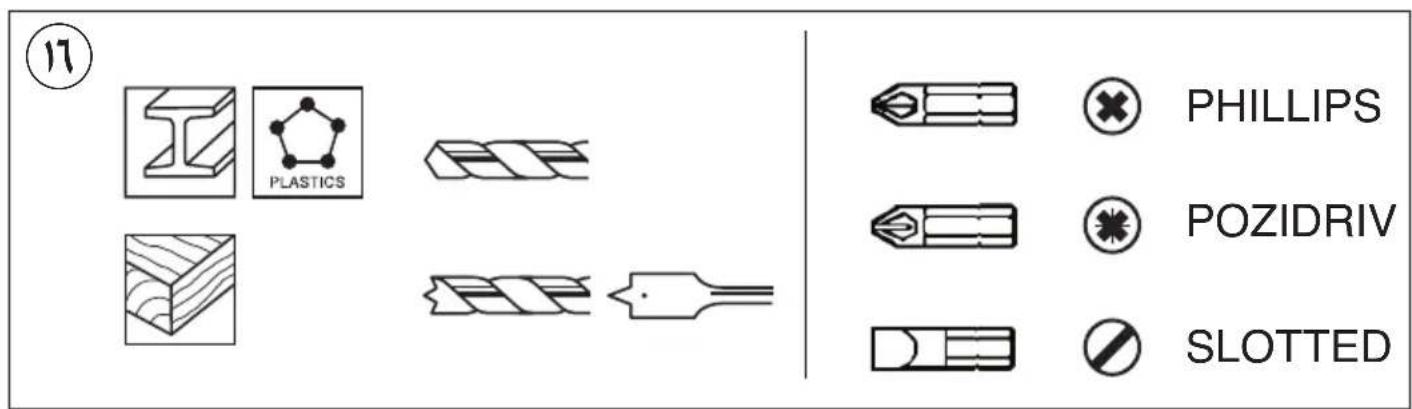

Use the appropriate bits 16
- When drilling ferrous metals
-pre-drill a smaller hole, when a large hole is required -lubricate drill bit occasionally with oil
- When turning in a screw at/near the cross cut end or an edge of wood, pre-drill a hole in order to avoid cracking of the wood
- For an optimal use of the tool a steady pressure on the screw is required, especially while removing

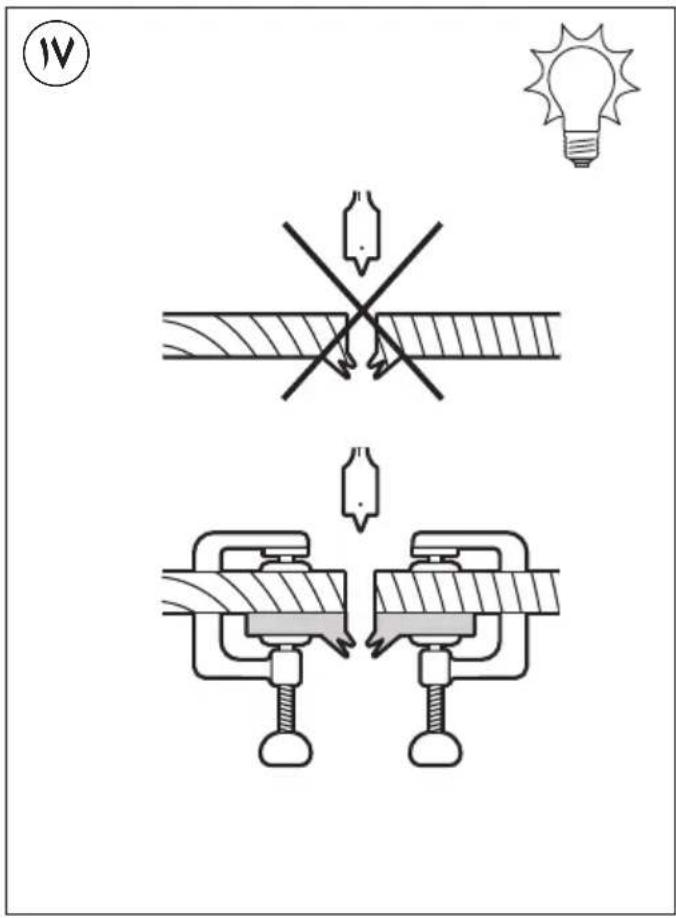

- When screwdriving in hard wood one should pre-drill a hole
- Splinterfree drilling in wood ⑦

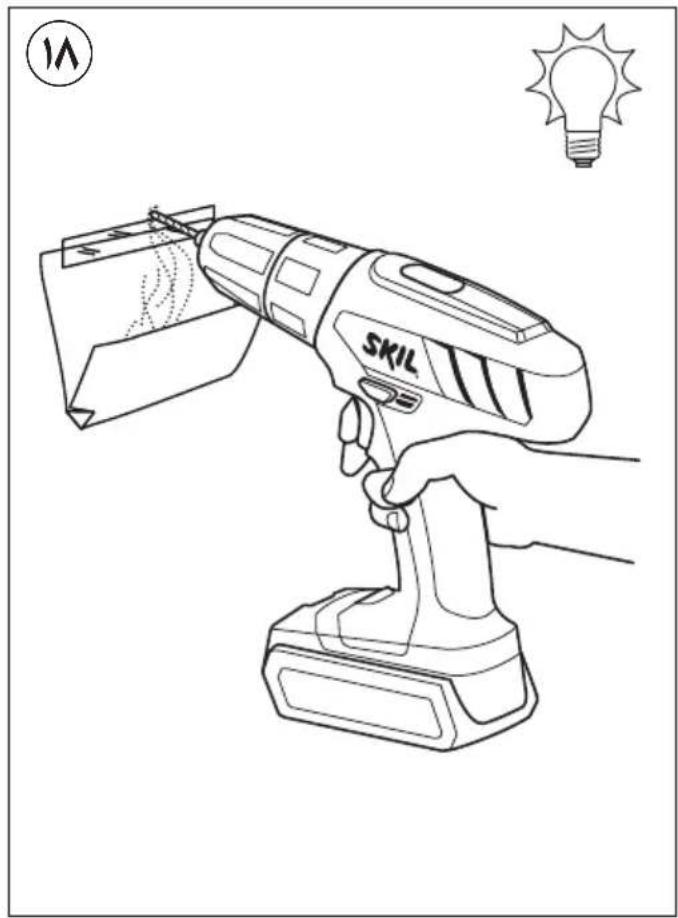

- Dustfree drilling in walls 18

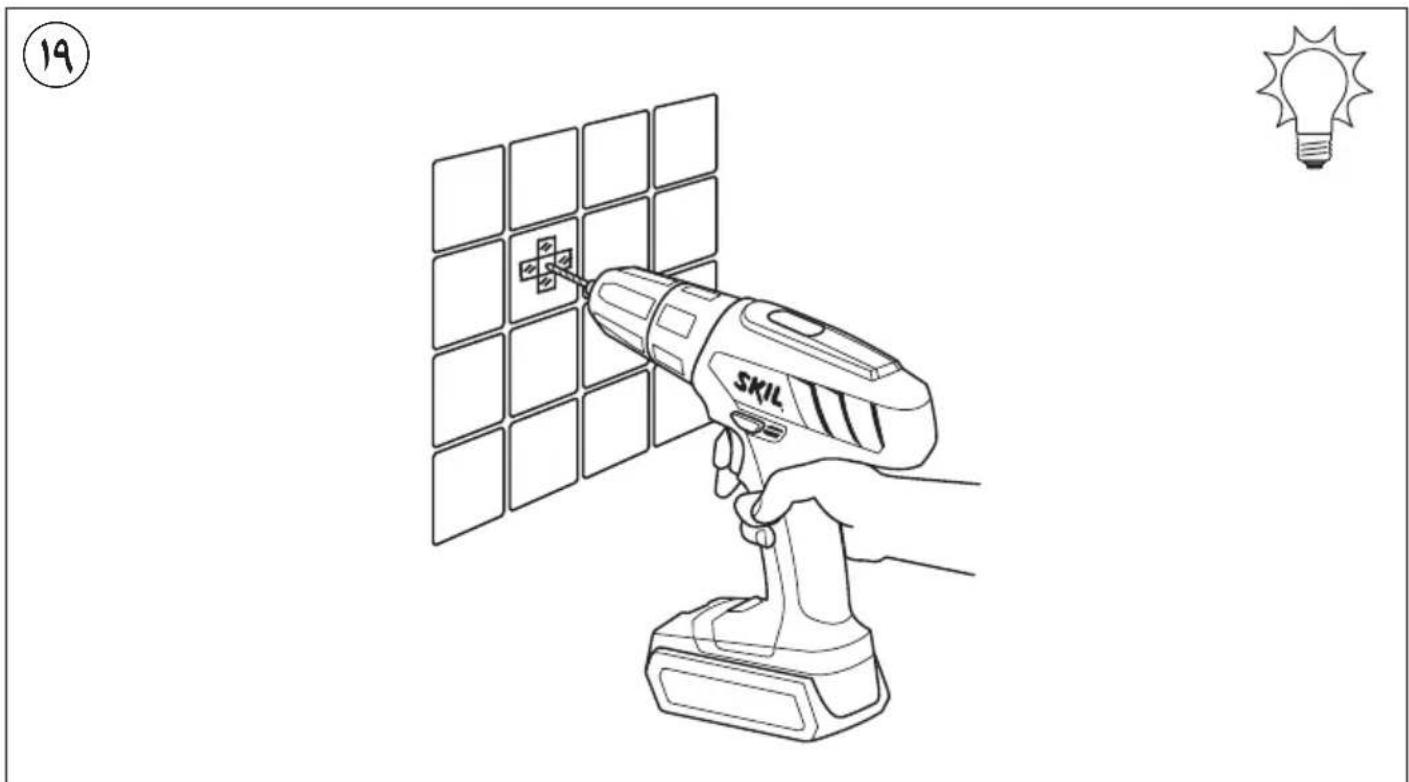

- Drilling in tiles without skidding 19
For more tips see www.skil.com

MAINTENANCE / SERVICE

• This tool is not intended for professional use
• Keep tool and charger clean

-clean charging contacts in charger with alcohol or contact cleaner!unplug charger from power source before cleaning

• If the tool/charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

• send the tool or charger undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

• in case of a defective charger send both charger and battery to your dealer or the SKIL service station

ENVIRONMENT

• Do not dispose of electric tools, batteries, accessories and packaging together with household waste material (only for EU countries)

-in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
-symbol ⑧ will remind you of this when the need for disposing occurs

!prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE/VIBRATION

• Measured in accordance with EN 60745 the sound pressure level of this tool is 76 (1008 & 2830) / <70 (2832) dB(A) and the sound power level 87 (1008 & 2830) dB(A) (standard deviation: 3 dB), and the vibration < 2.5m/s^2 (triax vector sum; uncertainty K = 1.5m/s^2 )
• The vibration emission level has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

-using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
-the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

!protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

Perceuse/visseuse 1008/2830/2832 sans fil

INTRODUCTION

1) SIKKERHET PÅ ARBEIDSPLASSEN

2) ELEKTRISK SIKKERHET

VEDLIKEHOLD / SERVICE

sahip olmayan kisiler
tarafindan ancak detetim
altinda veya Şarj cihazınin
güvenli kullanı hakkında
aydinlatildikları ve bu
kullanıma®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. kavradiklari takdirde kullanı bilir (aksi takdirde hatali kullanım ve yaralanma sehlikesi vardır)

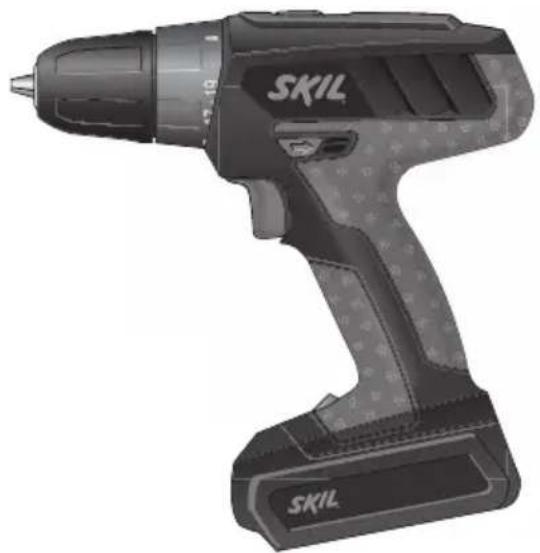

EJEMHTH IHCTPYMEHTA②

A BmHKaH DJIe Bn/BNKJ Ta peyIIOBAAHH WBNIKOCTI
B 3eJenH iHnKaTOp 3apAHorO npncToPO
C YepBoHn iHdkaTOp 3apAnHO npncTpoH
D Kilbue nIpeRyIOBaHHM MOpENTy 6eptaHH
E ΦiKcObaHe nOIOxHHe (MyΦTN)
F BmHKaHn3miHn HanpMy o6epTaHH
G Iepemnkauch WbUdkocti (2832)
H NiicBvItka
J BeHTnIauiHi OTBOpN
K 3apAHHn npncTpi

BE3NEKA

3AΓΑЛbHI BKA3IBHи 3 TEXHIKи БE3NEHINOBODKEHHI 3 EJEHTPOIHCTPYMEHTAMN

NONEPEDHEHHIpoHHTaIE BCI Bha3iBHN 3TexhiK6e3neHn, IHcTpYHcII, IIOCTpaQIT Ta cNeuHiaqii, HadaHI 3 qHM eHeHTPOIHcTpymeHTOM. HeBHKoHaHHYycix noDaHnx HnKHe IHcTpYHcIM MoKe np3BecTNdo ypaKeHHN eJeKTpHmC TpyMOM, NOHeKi /a60 cepNo3HOITpaBM. DObpe 36epiraTe ha MaibyTHcI nonepedHexHH I BHa3iBHN. Pd IOHRTTAM "eJeKTPoPnlaD" B cHX nonepedHexHHX MaETbcs Ha yBa3i eJeKTPoPnlaD, 1O npaIoe BiD MepeKi (3 eJeKTPokaBelem) a60 bID akymlyaTOhoI baTaPeI (6e3 eJeKTPokaBeIo).

1)BE3NEHA HA POBOOYMICLI
a) PpMaTe CBOe po6Oe Micce B YnCTOTi Ta np6paTe Noro. Be3naI a6o noraHe oCBiTJeHHa Ho6OChy MlCi MoHytb Pn3BODHTn Do HeuacHnx BnJaKIB.
b) He npaioTe 3 npnaIadom y cepeOboNsi, de icHyEc He6e3neHa Bn6byu BnacIIOH npncyTHocTi ropUChx piDn, ra3iB a6o nny. EJeKtponpnuIaHi MOHyTb npoJkyBaTu iCKpn, BiJ RAHX MoKe 3aImMaTnCn PnI a6o napn.
c)Пдчac npaOBAHH3 npHJaOM He nipnychaTe do po6oHoro Micza diTe Ta iHxN IIOeB. BmOKeTe BtpaTHTN KOHTpOJIb NaI npHJaOM, RaIoo BaWa yBara 6yde BiDBepyTa.
2) EJEKTPNHA B63NEHA
a) ⅢTencelb npnilady noBHeH nacyBaTH Do po3eTHN. He do3BOJRAETBCA zO-He6ydb MInrN B wTeNCeli. Ira po60TN 3 npniladamn, zO MaOTb 3axNChe 3a3emJIeHH, He BHKOpNCTOByte aanTepn. BHKOpNCtAHn opirHaJIbHO r O Tencelra Ta HaleKHOi po3eTKI 3MeHwye pN3NK yapay eJeKTPnuHMM CTpyMOM.

b) YHnKaIe HOHTaHTy TaCtei Tla i3 3a3eMLeHmN NOBepxHAMn, AHaPn., Tpy6amn, 6aTapeA MOnaJIeHHa, NeaMn Ta XoIOAnlbHNkAmn. KoIb BaIe TiIo 3a3eMJIeHe, icHyE 36IbIbWeHa He6e3neKa ydApy eJIeKTPuHIM CTpyMOM.
c) 3axuatae npnaad BiD douy Ta BOIOn. IonaaHn BOIN B eJeKtpoiHCTpyMeHT 36iNbUye pN3NK yIapy eJeKtpuHm CTpyMOM.
d) He BnKOpNCTOByTe Ka6eIb IJIЯ nepeHeceHn npHaay, iDbiWyBaHHa 6o BNTaRyBaHHa WTeNCeIa 3 po3EtN. 3axuauTe Ka6eIb BiJ Kapn, oJIi, roCtpx HpaIB Ta DeTale NpHaay, zo pyXaOTbcr. PoIkwOJHeHn a6o 3akpyeHn Ka6eJIb 36ilb7yEc pN3NK yApdy eJeKTPnuHm Ctpymom.
e)ДЯЗOBHixpo6ITO6OB'3HOBOBnHOpNCTOByTe IHe TAHN NOOBHyBa, 0o DOnyueHn dIa 3OBHixpo6IT.BnKOpNCTaHHNoDObKyBaHa, 0o po3paXOBaHn Ha 3OBHHiPo6OTn, 3MeHUe pN3NK ydApyeJIeKTPuHNM CTpyMOM.
f) Ano He MoKHa 3ano6irTu BnHOpncTahHIO eJeHTponpnaJy y BOJoromy cepeobu, BnHOpncTOByTe npncptiN 3axnCTy BiD BnTOHy B 3eMJIb. BnKOpncTaHHa 3pncptoi 3axnCTy BiD BnTOky B 3eMJIIO 3MeHUnyepn3NK yApPy eJeHTpnuHMM CTpyMOM.
3) B63NEHA JIODEI
a) BybTe yBaHnMn, cIkynte 3a Tm, uO Bn po6nte, Ta po3cydlnBO NOBdTecn iud yap po60tn 3 eIeHTponpnaIam. He KopncTyItec npnIadom, Anu Bu CTOMJIeHi a6o 3haxODNTecn iid iieH HApHOTnHIB, CNPTnx HanoiB a6o liK. MItb HeyBaXHoCTi npn KopNCyBaHHi npnIaDM MoHe npn3BoDHTn Do cepNo3Hx TpaBM.
b) BДЯгаTe OcO6NcTe 3axnCHe CnpoJKeHHa Ta o6OB'3HOBO BДraJaTe 3axnChi OHyJIApH. BДяганнЯ OcO6NcTOrO 3axnCHOrO CnpoJKeHHa, RaHap., -ВЗалжнocTi BiD BVdu pObi - 3axnCHOi MaCKn, CpeuB3yTTI, lo He KOB3aE TbCB, KaCKn a60 HabyuHnKIB,3MeHwye Pn3nCK TpaBM.
c) YHnHaTe HeHaBMnCHOrO BMnHaHH. Nepw HIX BMnHaTN eEeKtpOpnpNlAd B eEeKtpompeHy a6o BCTpOMJrAnyMylTOpHy 6aTaPeIO, 6patNo Horo B pyKn a60 nepeHoCHTN, BnEBHITbcB TOMY, 10 eEeKtpOpnpNlAD BmKHyTn. TpMaHH naIbpy Ha BVmHKaYi NiD yac nepHeceHH eEeKtpOpnpNlady a6o BCTpOMJrHH B pO3eTKy yBIMKHyTORO npNlaMy MoHe npN3BOuNTn Do TpaBM.
d) Ipepe THM, RA BMHNATN npHnla, npn6epiB HalaorOJyBaJIbHI iHCTpyMeHTn Ta raHOBn KIOU. 3HaxoJKeHHaHaIOrOJyBaJIbHOrO iHCTpyMeHTa a60 KIOUca B DeTAli, 1O o6ePTaEeTbcR, MoKe npn3BOIDNTI DO TpaBM.
e) He nepeoiciHouTe ce6e. 36epiraTe ctiHe noloxenHa Ta 3aBHN 36epiraTe pIBHObary. Lcdo3BOJntb Bam kpaue 36epiratn KOHTpoJIb HaI npuiAOM y HecnoiBaHnx CNTyaicix.
f) BdraTe npdaTnH oJr. He BdraTe npocToPn OaT Ta npKpacn. He ndaTbAe To BoLoccN OaTdo Detale, 0p yxaotbc. IpocToPn oJra, npKpacn Ta doBRE BOLOCC MoKyTB nonadaTN B deTaI, 0p pyxaOTbc.
g) RaHIO icHyc MOHJIHBiCt b MOHTyBaTHn HNOBIDCMOHTyBaJIbHi a6o NINOYIOBNIOBaJIbHi npHCTpoI, nepeKHOHaITeCra, 06 BOHN 6yJN Do6pe

niEHaHITa npabNbHO BnHopncTOByBaIHC. BnKOpNCtAHn HINIOIDCMOKTyBaJIbHOrO pInCTPO MOHe 3MeHUnTI He6e3neKn, 3ymOBJIeHI nIOM.
h) Do6pe 3HaHH eJeHTpoiHCTpyMeHTIB, OTPMaHe B pe3yIbTaTI qACTORO IX BNHOpNCTAHH, He NOBHHo npn3BOJNTu DO CAMOBneBHeHOCTI iRhopyBaHH npnHcuiB TexHIKI 6e3NeKn. Heo6epeKHa dI MoKe B OdHy Mntb pIn3BecTn Do BaHKoi TpaBMn.
4) INPABINbHE IOBOJHKeHHa T A KOpNCTyBAHH EJEKTPONPNIAADAMN
a) He nepeBaHTaJyIe npJaD. BnHOpNCTOByIte TaHn npJa, 70 cneiaJIbHo npHaueHn dIa neBHOi po6OTn. 3 npHaTm npJaDom Bn 3 MeHIM pN3NKOM OTpMaTe KpaJI pe3yJIbTaTn po6OTn, RaKIO 6yDeTe npauOBaTH B 3a3HaYeHOMy diAna3OHi notyHKoCTI.
b) He KopncTyIeTcA npnlaDom 3 noWhoJHHeHMMBmKauem. PpnaIa, JnH He MoHa yBIMKHyTu a6o BmKHyTu, E He6e3neuHm i NOro Tpe6a BiDpemOHTyBaTu.
c) Npeed TmM, RaK peryIIOBAtu 0o-He6yDb Ha npHnadi, MiHrTn npHnadJa a6o XOBaTH npHnad, BHTaRHiTb wTeNceJI b3 po3eTN Ta/a6o BHTaRHiTb anMyJITopHy 6aTaPeO, RaHTo BOHa 3Himaetcb. Li nonepeDkyBaJIbHI 3axOJN 3TexHIn 6e3neKn 3MeHsuOTb pIHNK HeHaBMCHOrO 3aNyCKy npHnady.
d) 36epiraIte eIeHTponpnilaHn, IHHMn Bn camHe HOpncTyecb, daJIeHO bID dITEH. He do3BOJnTe HOpncTyBaTcH eIeHTponpnilaDm Oco6am, 0o He 3Haomi 3 Noro pOboTOO a6o He uHTaNI ci Bha3IBHn. Y pa3i 3actocyBaHHN HeDCBIDueHMMN Oco6aMn PpIIaHn HecytB C6bi He6e3neKy.
e) CtapaHNO dOrJaAte 3a eJeKtpoHcTpyMeHTamn i npHaadm. NepeBipTe, uO6 pyxomi Detani npHa dy 6e3dorAHNO npauIOBaHn Ta He 3aIaHn, He 6yHn noJamaHmN a6o HactInbHN NowHOJHeHMn, uO6 ue MorNo BnHnHyTu Ha yHnCioHyBaHH npHa dy. NowHOJHe Detani Tpe6a BiDpemOHtBuATn B ABTOH3OBaHni MaCtepHi, nepu HIX HmM MoHNa 3HOBy KOpNCtBuTaHcR. BeNka KInbKicTB HeueacHX BnAdKn CnpuHReTbcr NOraHm DOrJaDM 3a eJeKTPoPnuJaAMn.
f) Tpmaite piaalbhi iHCTpymEnT do6pe HaroctpeHNMaB uHcToTi. CtapaHHo dOrJMyTi pi3aJIbHI iHCTpymEnT 3 roCTpM piaJIbHM KpaEM MeHwe 3acTprOHTb Ta ix IeIe Becn.
g) BnHOpNCTOByIte eJeKTPoPnpIaIaI, npIaIaIdo Hnx,po6Oci IHcTpymeHTn T.i. BiIOBiIHO do uix Bka3IBox.Bepitbdo yBaRn npu cboMuy yMOBN po6OTn Ta CneUPhiIy BnHOHyBaHOI po6OTn. BnKOpNCTaHHNeJeleKTPoPnpIAIdbIra pO6iT, IJI RAHX BOHN He nepeIbaceHi, MoKe npu3BOIDITNo He6e3neuHx cnTuayi.
h) TpmaTe pyKoTHn i NOBepXHi 3axBaTy cyXmH i HCTHMn, CIIknyIte, 06 Ha Hnx He 6yIo OINBn a6o rYcTOrO MaCTnla. CIn3bKi pyKoTHn i NOBepXHi 3aXBaTy yHEMOJINBIOHOt b 6e3neHHe NOBOJKeHHr 3 eJeHTpoiHCTpyMeHToM Ta NOrO KOHTPOIIOBAHH B HeOuyBaHNxCITyaIjx.
5) INPABINbHE NOBOJHENHRA TAKOPNCTYBAHH EJEKTPONPHIAADAMU,IO NPAUOTb HA AkyMylrTOPHNX BATAPERX

a) 3apAHyTe anMyIaTOpHi 6aTapei IInwe B 3apAHyBaIbHnx PnCTpOx, peHOMeHDoBaHx BnROTOBIOBaUcEm. BnKOpNCTaHHra3apAHyBaIbHOrO npICPTPOI nla aKMyJIaTOpHnx 6aTapei, nla kNX BiH He nepeE6aueHm, MoKe Ipn3BODHTn Do nokHeKi.
b) BnKOpHCTOByIe B eIeHTponpHaJadax IInwe peKOMeHDoBahi aKymyJIaTOpHi 6aTaapei. BnKOpHCTaHHI INxN x aKymyJIaTOpHIX 6aTaapeM oKe npIN3BOIDHT Do TpaBM Ta NOkeHi.
c) He 36epiraTe aHymyIaTOpHy 6aTaapeo, hHOIO Bn came He KopncTyecb, nopAid i3 KaHcJIepcbHMM cKpinKaHM, KIOUaMn, rBi3dAmn, rBHTaMn Ta IHsHmN HeBeHHM MeTaJIeBMM npeMeTAMn, HKi MOxHyb CnpuHHnTn NepemHaHHa KOHTaKTiB. KopOTke 3aMnKaHH mIX KOTaHTamn aKymyIaTOpHOI 6aTaapei MoKe CnpuHHrTo ONIKn a6O noKeHy.
d) Пи НрразиьнOMу BИнОпсТаHHI 3 aKymЛЯТОРHOI 6aTapei MoHe NOTeHTn piДиHA. YHнAйTe HOntaKTy 3 HeI. Пи BUNaIbOBOMy KOHTaKTI pOMnIte BiINOBiDne MicSe BODIo. RaIIO piДиHa NotpanHla B OчI, DoDAtHOBO 3BepHITbcra do IInapr. AkymЛЯTOpHa piДиHa MoHe cPnUHNaTn noДраЗнEHЯ ShkpN a6o onIK.
e) He BnHOpNCTOByIte NOnHoJKeHi a6o MoNphiIOBahi aHyMylAToPi a6o eJeKTPoiHCTpyMeHTn. NOnHoJKeHi a6o MoNphiIOBahi aKyMylAToPi NOBeTcR HeOciHyBaHO, 10 MoKe npu3BeCTn Do noKeXi, Bb6yXy a6o pN3HUY TpaBMn.
f) He niДаВaTe aHymyIaTOp a6o eJIeHTpoIHCTpyMeHT iI BorHIO a6O BnCOHIX TemnepaTyp. BorOHb a6O TemnepaTypn BnCi 3a 130^ MOKHyTb npu3BecTI Do BV6yXy.
g) BnHOHyIe Bci BHa3iBHN i3 3apJHAnHH i He 3apJHaiTe aHymyIaTOp a6o eJeHTpoIHcTpymeHT 3a Tempeatyp, 0o BHXOaTb 3a BHa3aHI B IHCTpyuHcii MeHi. HenpaBnIbHe 3apJHaHH a6o 3apJHaHH 3a Tempeatyp, 0o BHXOaTb 3a BHa3aHi MeKl, MoHe noShKOHTn 6aTaPeEO i NIDBnIHTn pN3NK 3aMaHH.
6) CEPBIC
a) BiДаВаite cBи npHJa Ha peMOHT nIwe KBaIiΦIOBAHm ΦaxIBcAЯ Ta InIe 3 BHKOpNCTaHHaM opHrHaJIbHNx 3aNuaCTH. Lc e 3a6e3neuTb 6e3neuHicTb npHaNy Ha doBriYac.
b) Hikoln He o6cnyroByte nowhoJKeHi anMyIaTOpn. O6cIyROByBaTH aKymyIaTOpn Do3BOJIaETbcra Liue Bnpo6Hky a6o aBToPn3OBaHm cepBicHM oprahi3auiM.

BHA3IBHNIOBE3NEUДIЯДРИБ/BNKPHTH3 AKMYJRTOPHMXINBJEHHAM

3AΓΑJIbHE

-ПИЛ BiДТанх MaTepiajIIB,ЯС CBINHcOBoYtpmMyIOy aфap6a,Дeяki npoDiNepeBa,МиepaII N MeTAl, Mож eБTu WkIDJIbBIM (KHTaKT i3 TAKIM NlOM a60 Myo BdIXaHH MoKe CTaTI pNHyHOIO BnHKnHeHn B OnepaTopa a6o oci6,Ю npe6yBaIOt b nopyu, anepriHnx peakui i/a6o pecnipaTopHx 3axBOpUBOHaB); hadraTe pecnipatop i npaIoYe 3 nHIOBuaJauOyIm npucTroEm niD yBimHHeHn IHCTpyMeHTa
-ДякИВидпилуКласиФИкюТСЯКанцерогнHi (HapnKlaI,dy6OBи a60 6yKOBи nI),OC6JIbBO

B cNoIyueHHI 3 do6aBkamn dI KOnuioBaHHaDepeBHN; HndraTe pecnipatop i npauoTe 3HIOBuaJIOHM npcTpoem nId Yac yBIMHeHHaIHCTpyMeHTA

CiiyTe iHCTpyiAm no po6oTI 3 MaTePiaIaMn, npOduyUOuHMN nII
He 06po6IaIe MaTepiA, IIO MiCTb ac6ecT (ac6ecTBbaHaaetbca KaHcepeoReHHM)
- PpeKoHaITeCb 6iHyHeuB BmNkau F ② B cepeHbOmy nIOJKeHHi (6IOKyBaHHa) nepeD 6yDb- RKMn HalaKaMn YU 3aMiHaMn npHaJa, ToDi KOJI N TpImaTe a60 NOKlaII INCTpyMeHT

AHCECYAPN

SKIL rapaHTye HaiiHy po6Oy IHCTpymeHa TIlbKn npn BHKOPNCtAHHi BiINOBiHOro npna
BnKOpncToBynte Inne npnaIaI, npnycTIma WbNdkicTb o6epTaHHraKOro kMIMyM BiINOBiJaE HauBnui WbNdkoCTi IHcTpymeHTa 6e3 HaBaHTaKeHHA

NEPEBVKOPNCTAHHJM

He donyckaIte nookdoKeHb, kI MOkytb Hahectn wypynu, uBXn iHwi eJeMeHTN BaWOMy Bnp6y; BuJaJIb ix nepeD NOaTKOM pO6OTn
- O6ob'3KOBO nepekoHaTecb, 10 Hanpyra cTpMy BiDnOBiJa e Hanpy3i, Bka3aHi Ha fipMOBOMy wTemneI iHCTpymeHTa
3aφiKcγIe o6pO6JIoBaNHy deTalb (o6pO6JIIOBaHa DeTaJIb, 3aΦiKcOBaHa 3a DOnOMOrO 3aTnCKHnx npncTroOIB a60 Jeuat, 3aKpInIHOETbcra Kpaue, HIX BpyHy)
BnKOpNCTOByIte npndaTHi noWkyOBI npnaIaI nIra 3haxoJHHeHH 3axOBAHnx B6ydIbI ty6 Ta Ka6eJIb a60 3BepHITbc4 3a donomoroB MicueBe niInpneMCTBO eJeHTpo-, ra30-Ta BOJOnocTayHn (3aenJIeHH eJeKTpOpiBOdKn MOHe pIn3BOdNTdo NOKeHi Ta ydpA eJeKTpUHm CTpyMOM; 3aenJIeHHra3OBoI TpyMoKe Ipn3BODHTn Do BV6Byx; saenJIeHH BAOpPOBDoHOI Tpy6 MoKe 3aBdaTI uKOdy MaTePiaJIbHm UIHHOCTM A60 np3BOdNTn Do ydpA eJeKTpUHm CTpyMOM)

ПИД.YAÇ BИKHOPNCTAHHA

-При роботax, коли робочи iHCTpymeT a60 rBnHT MOHe 3aueHNTu 3axOBaHy eJeKTPoPBOOdy, Tpmaite eJeKTPoIHCTpymeT 3a i3OJIbOBAHi pyHOARTH (3aueHJIeHHN IPOBODKn, uO 3HaXODHTbcr NID HAnpyroO, MoKe 3apJdKyBaTN TaKoK i MeTaJIeBi YactHIne JeEeKTPoIHCTpymeHTa T pIpu3BOOHTn Do ydApy eJeKTPnuHm CTpyMOM)
- Y BnnaKHy eJeKtpnHoi QI MEXaHiHOI HecnpaBHOCTI HeraHIO BmHKHiTb IHcTpMyeHT a6o BiKlOuHt b 3apAHDNI pncptpii Bi d eJeKtpociti

3APRAHHAHAHYMAJTOP

-ДiTЯМВIHOMBID8pOKIB TaOCO6am3OBMeJKeHIMN φi3nUHMN,CEHCOPHIMNaT aP03yMOBIMMOJIINBOCTaMn a6o HeOCTaTHIMDOCBiDom Ta 3HaHHaMMNdo3BOJaETbCn KOpNCYBaTnCSaN M3apAHNm pIncTpOeem IInsePiHaIaDM a6o RaHIO BOHnOTpImaIIH

BIDNOBIDHIBKa3iBKnIooD 6e3neuHOro BnKOpNCTaHHa 2b0rO 3apArdHOro npncTpoHO i po3ymiOtB,ky He6e3neHy BIn Hece (B IHOWMy BnPaAdKy MOxJIVe HEnpaBnIbHe BnKOpNCTaHHa Ta He6e3neKa OdepeHaHHa TpaBM)

-ДиВITbCЯ3aДITbMn（iTn He NOBHHI rpaTnCЯ 3ЗapArdHm npNcTpoEМ)
-ДiTЯМДОЗВОЛЯЕТБСАОчицатиЗapяднИ ппст piТа ВиконуВатуй ORO ТхниЧeобслуroyывань Лше пДНагладOM

BnKOpNCTOByIteIaIcIbOIOHCTpyMeHTaTilbKn 3apAHNPiNCtpiiSKIL2610Z08495a6o2610Z08496 Ta aKymyIaTOp SKIL 2610Z08494
3apdKaTe akyMylTop TilbKn 3apdHnM npncTpoem, KHM KOMNLeKTyEcBcA IHCTpyMeHT
He TopkaTecb KIem 3apdHoro npicTpOra
He niBepraTe iHcTpymeHT/3apAHN npncTpii/ akymyIaTOp dio
He 3apJkaIte aKymyIaTOp y BOIorHX abO BORHX npMiuEHHx
He BnKOpNCToBMyTe NoIkoJKeHi 3apAHH npncTpi - BiHecitb IX do cepTnphiKOBaHOr SKIL cepBicHOr OeHTpy dIy 6e3neuHoi NOHHK
He BnKOpncToBnyTe 3apAaHm npucTpii KOIN NOsKOJKeHi dpIT a6o BnIHa; BOHN MaOTb 6yTN HeaHO 3amHehi B SKIL cepBic ueHTpi
He BnKOpNCToBMyTe NOxKOJaKeHn aKymyJATOP; HeraHbIeJEdHaHTe NOro BiD iHCTpyMeHTa
He po36npaTe aKymyIaTOp 3apAHN npncTpii camocTiHo
He HamaraTecb 3apJkaTH aKymJIaTOPn, 1o He nIiJaTb NOBTOH 3apJdci, 3apJHm PnCTpOEM do cbo IHCtpymeHa
-ДоЗвoleHa TemперatypedoBkiIJIЯ (iHcTpymeHT/ 3apdHn npncTpri/AkmyJIaTOp): -iD yac 3aprdKHeHH 0...+45°C -iD yac po6Otn -20...+50°C -iD yac 36epirAHHH -20...+50°C

IORCHEHHA DO YMOBHNX IO3HAUHb HA IHCTPYMEHTI/3APADHOMY INPCTPOI/AKYMJIATOPI

③Перд ВИКОРИСТАHHМ npOHnTaITe iHCTpyKciIO i3 3aTocyBaHH
④ BnKOpNCToBvTe 3apRdHn npncTpii TiIbKn y npmiueHHi
⑤ Pódbiina 30jia (3a3eMIOUOHy npoBID He notpi6eH)
⑥ Пи влuyehhi y BOROH b6aTapei Bn6yxaIOTB, TOMY B JHOdHOMy pa3i He cnaIIOte 6aTapei
⑦ 36epiraTe iHCTpyMeHT/3apRdHn npncTpi/ aKymyIaTOP npi TeMnepaTypi He 6ilbui 50^
8 He BnHJaTe eIeHTpOIHcTpymEnT Ta 6aTapei pa3om 3i 3BnHaHm CmTTAM

BnKOpNCtAHHr

HOM6IHOBAHHN NepemHKaY DnB MKNKaHHBMMKHaHH Ta KepyBaHHo 0eptamn A ② IJIaBHO Kepye OeepTaMn BiHny Do MaHCmMaJIbHNX B 3aJIeHXOCTi BiD CnJIN HATNCKaHH Ha nepemHKaY

• 3apdKaHHaKMyIITopa ⑨

INBIMaMeTe aHymyIaTOp 3 iNCTpyMeNTa
-πiδεηHaTe 3apdHn npicTpio Do dHepeNa HINBLeHHRAK NOKa3aHO Ha MaIIOHky a
-3aropntbca 3eIeHa lamnoHa B, ykaayoun Ha Te, 103apndn npncptpi E roTOBn do pobotn 9a
-BCTaBTe 6aTapeo Do 3apAnHO npHcTPOIO, RA NOKa3aHO Ha iNIOCTpaui ⑨
-3aropntbca YepBOHa IamnoHc C, yka3youHn Ha Te, 0aKymyIaTOp 3apndKaetbcra
- npn6n3no uepe3 3 roDHH (2610Z08495) / 5 roDHH (2610Z08496) anymyIaTOp 6ye neOBHicTIO 3apJxHeo i 3eJeHn iNDKATop B 3aropaeTbcra d !BID'edHaIte anymyIaTOp Bd 3apJHOrO npncTpO nicna 3aHueHHNepiody 3apJxHaHH, ce noobHNb TepMin po6ooyi eHcNlyatauii anymyIaTopa

BAHJIINBO:

-якшуерьогалamnoчkaC He 3aropntbca nicla BCTaBJIeHn6BaTapei, ue MoKe O3HaauTu nI aKymyIaTOp 3aHaITo XoIoDnHi a60 3aHaITo rapuHn (3apAHH npIcTpiM MoKe npaOBATu TIlbKn 3a TempepaTyPi aKymyIaTopa BiD 0^ do 45^)
-litii-ioHHy 6bTaapeIO MOKHa 3apJHaTn 6yDb-KoJI (pepepHbaHH npocecy 3apJKaHH He noiKoJHyE 6bTaapeIO)
-ЛITIEBO-IOHHN aKymJrTOp He O6OB'3HOBO NOBHCIOPO3PraHnpeep 3apRdHaHHM(B HbOMy BiCyTHIN"eFekT nAm'rTI", kNn pnoRBJIeTbcry HiKeJeBOKaDMIEBHX aKymJrTOpax)
-πiDac 3apAHHH，3apHn npncpti Ta aKymyIaTOp MOKyb CTaN TeNIMn Ha DoTNK; ue HopMaIbHo I He CBIDHTb IpO BUNHKHeHHr HecnpaBHOCTe npHaLy
-NepekoHaITeCb, 0a aKymyIaTOp YHTcN Ta cyxHnpeed TmM NK nDHaTN NOro Do 3apAHO npictpo
-He BID'eHnyTe aKymyIaTOp NiI Yac po6oTI nICTpyMeNTa
-RAHIO Bn He 6yTeKOpNCTyBaTncb IHCTpyMeHTOM DOBmYac,TO BiD'EdHaNe 3apAHyn npNCptiB iD JHepeNa eIeKtpoEneprii
-ICTpymEnT aBOMaTHUHO BIMNKaETbCRA, KOJIJIITIOHnHa 6atapeer NOBHCtH Oo3pRJKeHa
-3HaHNo 3MeHSeHn Yac pO6To nicIaJxHaHH BKa3yE Ha Te, 0o 6aTape 3HOseHa i Notpe6yE 3aMHN

• 3MiHa HanpMy o6epTaHHH 10
• npn HnoBni yCTaHOUsI NOIOKeHHA Ib/npaB nycOBn BnHIOUaTeIb A ② He npaioe !mHaIte Hanpam ObeptanHra TIlbHn npn NobHi 3ynHci iNcTpymenta
• 3amHa HacaIOK ⑪
  ！He BnHOpNCToBvYTe HacaADH 3 NOxHOJHeHHM CTOB6ypom
• PeryIIOBaHHa MOMeHTy o6epTaHHa (VaniTorque) ⑫ -BnXiIHNI MOMeHT o6epTaHHa 6yde 3pocTaH, RaIO KpyTHTN Kynauok D BiD 1do 19; noLoKeHHa E

3a6IOKye KyaOH, 10oD03BOJNTb CBePdINTn a60 Tyro 3aRbHNyBaTN

-KOJIIN BRBHNyTe cAmOpIcNoaTky cnpo6yIte nepuJy No3nIIO VARITorque 1,NotIM NoHHaIe HapooYBaTHN, NOKI Notpi6Ha rInbHbA BkpyUbaHH He 6yde DOcRHyTa

MexahiHne nepemHKaHHaBnKocTi (2832)

-уВIMКнITbперemнkaчemG Heo6xHy dIЯ BaC WBNKICTB

InepeMnKaTe nepeMnKaU WbNkOcTi nID Yac nobilbHorO o6eTaHHa

LOW

-HN3bKaUWBnDkICTb
-BVOCKIN KpyTHN MOMENT
-ДЯЗаГВИЧУВАнгТа CBердлIHЯ ВELINKиДiametpiB
-ДЯHaHeceHnpi3b6N

HIGH

-BINCOKAIWBIDKICTb
-MaIIIN KpyTHNI MOMENT
-ДЯ CBepdHINH MaIINx DiameTpB

3axnctaKymyITopa

BmHKae iHcTpymeHT a6o 3axnuae iHcTpymeHT BiD BMKHAA, JKUO

-HaBaHTaKeHHaHaTTo BeJIke
-TemepaTpa 6aTapei 3haoHtbcra n03a MeKaMn diana3oHy po6OuX TemepaTpy BiD -20 do +50°C
-litieBO-ioHHn aHymyIaTOp npaKTNUHO po3pJHKHeH (dJIr nonepedKeHHraI60KOrO po3pJKaHH)

!He npodBkyte po6Oty Ta He HaTnchaTe BmHaay nCra ABTomaTHHOro BMKHeHHA

IHCtpymeHa; TaHMM DiAMM MOXHa NOxHOaHTN 6aTaapeo

PiicBItka H 14
PiicbItKa H 3aropaetbcn npn BkIIOeHHi nepemHKaA A ②
- UtpmByaHHia pO60ta iHCTpyMeHTOM 15
Iπid yac po6oTH, 3aBHN TpHMaIte iHcTpymeHT 3a YactHH 3axBaTy ciporo KOlbopy
-TPMmaTe BeHTnlaIHi IOTBOpN J ② He3aKpTtMM
-He TnCHiTb Ha IHCTpymeHT; daIte IHCTpymeHTy MOKJIINBicThb npaioBaTu 3a Bac

IOPAINIO BHKOPNCTAHIO

BnKOpNCTOByTe BiIDNoiDiH HacaKn 16!He BnKOpNCTOByTe Tyni HacaHn
CbepeHHHryOpHNXMeTaJIb

-NonepedHbno npocBepdntb OTBip Mehbooro diaMeTpy,
KIO Heo6xIDn IOTBip BELNKOro po3mipy
-Yac BiD yacy 3MaUyTe CBePda MacIOM

Ipn BrBnHcyBaHHi WypynIB y nonepueHn 3pi3 depeBa a6o 6iHa HbOro a6o B KpOMHy DepeBa Heo6xioHo cnoaTHy npocBepdInTn OTBip, uo6 3an06irtn po3KoLy depeBHH
ДЯ ONTIMaJIbHOr BGINHcYBaHH HeO6xIHOCTBOPHOBATN NOCTiHn TnCK Ha IHCTpyMeHT, KOINBUNHcyTe TnCHyTn Tpe6a CInbHiIe
Koln npauoTe 3 oO6JIbO TBepdIIMn nopOaMn DepeB Heo6xIDHO 3pO6HTN nOpEpeHc IpocBepdIOOBaHH
CBepeHnHepeBHH6e3BnPaHHcAIOK 17
CBepeHINHHBCTIHAX6e3nnJy 18
CbepeHHKaΦeIbHnx PnITOK 6e3 npocIn3bHyBaHH
-ДивdoataKobyiHΦopmaizioHa www.skil.com

OIGJIAD/OBCJYROBYAHH

LcIiHCTpymeHT He npuaTHn DIA npomncIOBOB0 BHKOPNCtAHH
- TpmaTe iHcTpymeHT Ta 3apAHH npncTpiy y nctOTi -KoHTaHTN B 3apAHHOMy npnCTpoi cIiD qHCTNTN CnnpTOM a60 iHsIM 3acobom dIra 3aunCTKN KOHTaKTiB!nepeq uHsEHNm 3apAHHoro npncTPOO cIiD Bi'edHaTH NoRO Bi eJeHTpomepeki
JaKuo He3BaKaioHn Ha peTeIbHy TexHOJorIO BnroTOBHeHHa InepeBipHn IHCTpyMeHT/3apAHynn PnictpB BCE-TaKn BNNe 3 JaPy, NOro peMOHT Do3BOJIeTbCBAHKOHyBaTH JnIe B aBTOpN3OBaHi cepBicHi MaNCtepHi dJe enEeKTPonPnlaqIB SKIL

-BidiwniB IHcTpymENT a6o 3apnHn npncptiy y
Hepo3iopaHomy BnIpa30m 3doHa30m NOHyNk
DnIepy a6o B Hn6bnKyB iDil O6CnyROByBaHH
SKIL (aDpecn Ta cxema o6cnyRObyBaHH iHCTpymenta
npboaTbca B www.skil.com)
-y pa3i HecnpaBnocTi 3apnHoro npncTpoIO,HaIiunitb 3apnHnn npncptpi Ta 6atapeo do Baaworo dnepe a6o do ueHTpy o6cnyroByBaHHa SKIL

OXOPOHA HABKOLINHbOI CEPEI

He BnHndaIte eIeHTpoIHcTpymeHT,6aTapei, npHaJdJIeKHOCTI Ta yNaHOBHy pa3OM 3I 3BnuaHm CMITTM (TilbKn IJa KpaIH EC)

-BiINOBiIDHOdoEBponecbooiDnpeKTHBn2012/19/EC ⅢOdo yTNII3aui Ctapnx eJeKTPnuHnx Ta eJeKTPoHNHX npilaib,B 3aJIeXHocTi 3 MicueBm 3aHOHaBCTBOM, eJeKTPoIHCTpyMeH,TaIK Npe6yBaB B EKcnLyataui IOBHeH 6yTN yTNIIOBAHn OKpeMo, 6e3neuHm dJa HABKOIIHbOrO cepeDoBnua aJxom
-MaIOHOK HaRaJaE Bam npo Lc

InepeTtM,AnNo36yTncbAkyMyJrTopa: 3aHneTe rpy6oIO KLeHHOIO CTpiHOO HJIeMNI,IO6 3ano6irTH KOPOTHOMY 3AMHaHHIO

LYM/BIBPAU

3MipHn BiINObIHO Do EN 60745 pibEnb TnCKy 3ByKy daHoro iHcTpymeHTy 76 (1008 & 2830) / <70 (2832) D(B(A) i NotyHKiCtB 3ByKy 87 (1008 & 2830) D(B(A) (CTaHdapTHe BiXnJIeHHra: 3D), i Bia6paui< 2,5 M / c² (BeKToPHa Cyma Tpbox HAnpRMKiB; IOnxN6Ka K = 1,5 M / c²)
PIBeH Bi6paui 6yNo BmipraHO y BiINOiHOCTI 3i CTAHdpTn3OBaHM Bnnpo6yBaHHM,IO MICITbCRA EN 60745;daHa xapaKTepcntka MOKe BNkOpNCTOByBaTHCA IIN NopBHHH ODHORO IHCTpymeHTA 3IHWM,a TaHOJ IJNnonepdHboI OUIHKN BnLIBy Bi6paui iD Yac 3AcTOcyBaHH DaHOrO IHCTpymeHTA DIA BKa3AHx CIJIeN

-πpBnKOpncTaHHi IHcTpymeHTa B IHuNX cIJIAX a6o 3 iHUNM/HEcnPabHNM dONOMiHHMN npCTOCyBaHHMaPiBeHb BnIbBy Bi6paqMoX 3HaHNO nIDBuNyBaTnC
-y nepioi, KOIN IHCTpyMeHT BmNKHeHn a60
fynKIOHyE 6e3 faoTHNO BHKOHHaHH po6OTn,
piBeHb BNInBy Biopaui MoKe 3HaHo 3HNKyBaTnC

!3axuatae ce6e BiD BnHy Bi6pauii, nIDtpmyoyn IHcTpyment I horo donomixhi npncctocybaHHB CnpabHomy CtaHi, nIDtpmyoyn pyuB Tepni, a TaOH npabNbHo OrhoHn3Obyoucn Biippo6oun npoec

GR

EnavaΦopTiζóμεvo 1008/2830/2832 δράνο/kaτσαβιδo

EIZARQH

To epyaieio npoopicieta iia trpunma oE uo, oE metaa, oE kepaikka kai naoioka uika - aphiotpo (8eio-aiotepeofoqa) epyaia ie nkektpovikn puoiion taxutntac evai enionc katalnnla yia biodwa kai ia avoyma onipowmuatv
AutoToepyaaleioeVnpoopiZetaiaeayeaatkn Xpno
-iaβaTe kai pfuaEte autec tic oyniecs xprnoewc ③

TEXNIKA XAPAKTHPII TIAKA ①

Méyiotn poin σptéψnc σkλnpπ πeipπtwon βiδμatoc Σμφωνa με ISO 5393:41Nm (1008 & 2830] / 54Nm (2832)

MEPH TOY EPRAAEIOY②

A DIAKoTTNc EKKIVnOnc/OTaONc KAI ELEyXou TaxUNTta
B Ipaovlaaunakfoptiotn
C Kokkivo launaki foptoTn
D
E Θeon aofaions (oumuIeIcns)
F 1aikoTns aalayns ts kateuBuvong nepiortpohns
G 1aikoTtns eIauoyns taxutntwv (2832)
H
J a
KΦopTiOTh

AΣΦΑΛΕΙA

TENIK'ES YINOAD'EIEEIA AΦAΛEIA ΕIA HAEKTPIKA EPIAΕIA

NPOEIAOIOIHsH diaaBaoTe oAec Tc unoB6iEic a0faAeiac, odnyiec, Eikovoypafoeic kai ola ta texvka stoiexia, nou ouvoB6ouuv auto to nEktpko epyaLio. Aelaeic kataytnpvon twv akolouwv unoB6IeWv npopei va npokaloeouv nAekptponlqia, npkayia ka/ noBapouoc tpaumatouoc. DuAeTc oLc tic unoB6Ieic aoPAAeiac kai tic odnyiesyia to eAov. O opiooc "nAektpko epyaLio" nou xpnoipoiniTa otic npoeidonoNTkec unoB6Ieic avapepetai oe nAektpka epyaia nou tpodobotovtai anoTo nAektpko diKtuo (e nAektpko kaawdo) kaowc kai oe nAektpka epyaia nou tpodobotovtai ano pntapia (xwpic nAektpko kaawdo).

1) AΦAΛEIA ΣTO XΩPO EΓΑΣΙΔ

a) Aatnpesit to xwpo nou epyacoe kaahopokai kala foTIOevo. Atia oTo xwpo nou epyacoe 1n m wioueves nepioxec epyaoia c npoei va odnyoov oe atuxmuata.
b) Mny epyaZeOe μe to nλeKtpiok epyaIio oε πepiaalov nou unapxie kivduvoC ekpnIc, oTo onoio unapxouv EΦAeKta uypa, aepia n okovn.

-MexaHnueh peyKTop ⑬(2832)

-IOCTaBeTe IpeBKnUoyBaTeJG Ha JeHaHaTa ckOpOCT！3aJeNCTBaIte IpeBKnUoyBaTeJra IpeDaBKnTe, KOrato HnCTpyMeHTbT pa60TH 6abHOOW

-HNCKA CHOPOCT

-TOJAM B'bpTAA, MOMENT

-kaTo OTBepTka 3a npo6nBaHe Ha roIeMn dHaMeTpN

-3a Hapra3BaHe Ha pe36aHIGH

-BVCOKA CHOPOCT

-NO-MaJIbK BbPTRAI, MOMENT

-3a npobuBaHe Ha MaIkn DnAmEtprn

• 3auneta Ha 6aTeepnra

N3KJIIOUBA INHCTpymeHTa NIN He N03BOJRA BKJIIOUBAHe HA INHCTpymeHTa, KORATO

-HaTobapBaHeTo e npeKaJIeHO TOnJaMO

-Temnepaotypata Ha 6aTepeyrae E n3BbH dOnyucTmna pa6oTeH Temnepaotypen Dnana30n OT-20 do +50°C

-JIHTNEBO-IOHHaTa 6aTePnE nOuTn H3TOUeHa (3a 3aunTa cpeuy DbJ6OK pa3pRd)

Icneq aBtOMaTHHOTo N3KJIIOUyBaHe Ha HHCTpyMeHTa He IpoObJIHaBaYte Da HATNCHaTe CnycbHa, NOHeXe MOHe Da ce NOBpeHn ahMyJlAToPbT

• PpOKeKTop H 14

PpOHeKToptH CBeTba aBtOMaTHUHO, KOraTO ce 3aJeIcTBa KJIIOuA ②

-ДьржанинacOчBaHанHCTpyMeHTa 15

!no Bpeme Ha pa6oTa, BnHaRn DpbHKe YpeDa 3a ouBeTeHaTAte) B CnBO 3OHa(II) 3a XBaUaHe

-OCTabaTe BEHTnlaUHnHTe OTbOpn J② HEnokpntu -He npIraTte TBbpDe rOJMa HAtnck Bbpxy

eNEKTPoHnCTpyMeHTa; HeKa ToI Da CBbpun pa6oTaTa BmecTOBAC

YKA3AHN3A PABOTA

• N3noJI3BaIte noxDoxoIu 6nt
  In3noJ3BaIte cAmO ocTpN 6HT
• Ppi npo6nBaHe Ha CBETHm MeTaJIH
  -ako BV Tp6Ba roJAM OTBOP, pIbPBO npo6nTe MaJIbK -OT BpeMe Ha BpeMe Cma3BaIe CBpeJaTa C MaUNHHO MacJIO
  -ПинЗаванHa BnHT B 6IIN3OCTdo p6baHa nIbPBeH DeTaII nbPBO np6bIte OTBOp,3a Da nI36eHete OTKbpTBAHe Ha IbpBOTO
  3a ONTImaHa pa60Ta Ha eNeKTpOHHCTpyMeHTa e Heo6XoDnM NOCToHHe H aTHcK Bbpxy BnHTa, BHJIOUHTeJIHO pnp pa3BnuBaHe
  -ПиЗавианeHaBHTOBeВTBbpoДbpBOпbpO np6nTeOTbO
• PpO6nBaHbBpBO 6e3 OTKbpTbaH aPb6yTe 17
  -Be3npaxoBO npo6nBaHe BCTeHn 18
  -ПрбиBaHe Ha KepaMHn ПLOHn 6e3 ПьзraHc CBpeINoTo 19
• 3a noBeepe noJIe3Hn yKa3aHnB. www.skil.com

IODAPbXHa/CEPBn3

To3n HNCTpymEnHe e npedHa3HaueH 3a npocecnoHaHa ynoTpe6a
- PoiIbprkaIte eIeKTpOIHCTpyMeHTa I 3apHOTO yctpoiCTBO YIcTNI

-NOUCTeTe KOHTaKTtHe Ha 3apAaHOTo ycTPOIcTBO C aIKOXOI INI INpeNapaT 3a NOUCTBaHe Ha KOHTaKTI!InpeDNIOuHCTBaHe H3HIOUeTe 3apAHOTo ycTPOIcTBO OTO 3axpaHbauata MpeHa

AHO BbPnEHN Pneu3HOTnpoN3BOcTBO HBNMaTeJHO 3nNTBaHe Bb3HnKHe NOBpea, INCHTpymeHTa/ 3aprHTo yCtPOiCTBO Da ce 3aHece 3a peMOHT B OTopn3napan cepBn3 3a eJeKtpOnHcTpymeHTn Ha SKIL

-3aHecTe INHCTpyMeHTa IINI 3apAIDHOYCTPOIcTBO B Hepa3rIooBEN BnI 3aeIHO C DOKa3aTEJIcTBO 3a IOKyIKAta My B TbpROBCHNIO6eHT,OTKbDETO CTe rO 3aKynIIN, INI B NaI-6JIM3KN CepBn3 Ha SKIL (adpcnte, KaTOn n CXemTa 3a cepBn3HO o6CnyXBaHe Ha eJeKTPoIHcTpyMeHTa,MOHeTe da Hamepnte Ha aDpec www.skil.com)
-B CnyaHa DeeHTHO 3apAHO yCTPOIcTBO n3npaTeHaKHO 3apAHO TO yCTPOIcTBO,Taha H6aTePnraHa Baunr nnbprnn OToPn3npaHnrcpBn3 Ha SKIL

ОПАЗВАЕ HA OKOLHATA CРEDA

He n3xbpIte eIeHTpoyeIte,6aTePnnpncnoc6JIeHnraTnOnaKOBKeIte 3aeDHO C 6ntobnOTnaDbu (cAmO 3a cTpaHn ot EC)

-cb6pa3Ho DnpeKTHBaTa Ha EC 2012/19/EG OTHOCHO3HOCEH N eEeKTPnueckn H eEeKtpoHHu ypeH NOTpa3RABaHeTo B HauNoHaJIHOTo 3aKHOdaTeJICTBO H3HOceHHTe eEeKTPoYpeDN CJeDBA da Ce cB6npaT OTdEnHO I Da ce npedaBt 3a peuKnIpaHe Cnpope H3NCKBaHnraTa 3a ONa3BaHe Ha OKJHaTa CpeDa
-3a TOBA yKa3Ba CnMBOJbT ⑧ TORaba KOraTO Tp6Ba Da 6bDat yHnOKeHH

Inpei Da n3XBpInte 6aTePnIra, 3auNTeTe n3BODnte i c de6eIa IeneHka, 3a da Hama ONaCHOCT OT Bb3HNKBaHe Ha KbcO CbeINHeHne

UYM/BNBPACIN

-ИзмеренВсбтВETСВЕcEN60745нвOTOHa 3ByKOBO HaJIraHHe HaTO3n INHCTpyMeHT e 76 (1008 & 2830)/<70(2832)dB(A)aHbOTOHa 3ByKOBA MOUHOCT e87(1008&2830)dB(A)(CTaHdapTHOOTKIOHEHne:3 dB),aBn6paunTe ca < 2,5M / c^2 (BeHTOPHaTa cyMa nTo TpNTe HAnpaBHeH; HeOppeJeHocT K=1,5M/c²)
HIBOTO Ha npedeaeneHTe Bn6paun e n3mpeHo B CbOTBeTCTBne cbc TAndapTN3npaHnre TcT, ONpeJeH B EN 60745; To moKe da ce n3noJ3Ba 3a cpaBHeHne Ha eIN HnCTpyMeHc Dpyr N KaTO npEbnapTeHa OceHHa Ha NODlaRaHETo Ha Bn6paun npn n3noJ3BaHeTo Ha INCTpyMeHt a nocOeHte npnIOxHn

-ИЗПОЛЗВАБЕТОHaИНСТPyМЕNTa3a pa3ДИЧИOTe3NпиLOJOHENIИN CДуГИ，ИИ NLOISO NOДьрЖAHAnAHCSECOAPINMOKE3HaUHTeJIHO da NOBUNHIBOTOHaKOETOCTeNOJIOJOHENI
-ηπeHODIte OT BpeMe, KOraTO HnCTpyMeHTa e N3KHOueH NII CbOTBeTHO BHLIOueH, HO C HrO He Ce pa60Tu B MOMeHaTAMorat 3NaUHeJIHO Da HamaJIAT HNBOTO Ha KOeTO CTe NOJIOKeHN

!InpeNa3BaIte ce ot efeHTnte OT Bn6paunnte, KaTO NOdIbPHaTe HHCTpyMeHtA n AHCceCoapnte My, Na3nte PbUeTe cN TOJI N OprAHn3npaTe BaIHTe MoJEN Ha pa6Ota

SK

APKALPOŠANA / APKOPE

• Sis darbariks nav paredzets profesionai lietošanai
  Uzturiet tiru instrumentu un uzlades ierici

• notiriet uzlades icerices kontaktspailes ar spirtu viali

• specialokontaktu tirišanas lidzekli -!pirms uzlades icerices tirišanas atvienojiet to n
• elektrotikla

Ja, neraugoties uz augsto izgatavošanas kvalati un rupigo pecražošanas parbaudi, instruments vai uzlades ierie tomér sabojajas, tas janogada remontam firmas SKIL pilnvarotā elektroinstrumentu remonta darbnica

• nogadajiet instrumentu vai uzlades ierici neizjaukta
  veida kopā ar iegades dokumentiem tuvakajā
  tirdzniecibas vieta vai firmas SKIL pilvarotā
  peciegades apkalposanas un remonta iestāde
  (adreses un instrumenta apkalposanas shema ir
  sniegta interneta vietne www.skil.com)
  defektiva lidetaja gadijumā nosutiet gan lidetaju, gan akumulatoru savam izplatitajam vai SKIL apkopes centram

APKÄRTEJAS VIDES AIZSARDZIBA

• Neizmetiet elektroiekartas, baterijas, piederumus un iesainojuma materialus sadzives atkritumos (tikai ES valstim)

TECHNINIAI DUOMENYS ①

1 = 2

1

a

-000golS

-

2.5 jogc lj 12 g o000g jil

1

L 1

aegj 1 jai jia jaoj jao jao jao

Lol

1

Ls oaiwi jj aaii waiy ao yao

VariTorque) 1jglss

100 19111D

5sL L 20 10000000000000000000000000000000000000

1jg 0sJ Lioi J VariTorque I iag Jai jn

a1 = 2,a2 = - 4

（14）

1g 10

1 1

LOW

192

xL,yL

aJbSgSgWg

15gj18gj

wosawaswgs

g SKIL 17. Z-A291 L 17. Z-A290 JLJI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JI JJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJjj JJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJJ

aagg aaiyaaaii yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

aJ 100000000000000000000000000000000000000000000000000000000000000

J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

FA

g 1s21 J 100000000000000000000000000000000000000

ailljoo jolil

LbJ1

abwIgJbI I aIg JIaB 1 g aiaia I aIg aIg aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I g aiaia I

（）LJLLJb21pLgC 1gJJJLJIb81pga21 2g 1gBjLlJLgLcPsswll

SKIL Lbdojog f11. Z-A91g f11. Z-A90 SKIL yLw paas

a1a2 + a1a3 = 0

121 202y jLJU 21 aJU

LJI 8gI I J001

JLdU 11/0011/01582

aIoo g aIoo aIoo aIoo aIoo aIoo

SKIL 2000

JALXJANSSJSLXLASSAL

gJllJlJ1jLgJllJlJ1jLJ1jL

Lgawal SKIL aos coo o g jgajl lglwJJI

yall lclglll:allll caii 1

a a a a a a a a a a a a a a a a a a a

J 1

(2) · = 14 ( 2) ^2 - ( 2) ^2

J 1 J 1 J 1 J 1 J 1 J 1 J 1

j 1

j 10000000000000000000000000000000000000000000

jss jss gglgaggagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagagag

A

(2)

Jg 1

(2) a1 + a2 + a_3 = 10

j000)Jab81gcl 000

iic g i 1

aJg aJg aJg JJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

.

(1) = , =

i

jLJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

Iaa Juaaieill aou1 gssjogiaeaal 5jwJaeer cJbJI

L

Iolc Logle

L

a 100000000000000000000000000000000000000000000000

jglg jol g/og oolwol 10g

Koi Uo Juaa Jaae plaaa Jao gJiau Glaa

j,jaiyoo aieo gaii

a: 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a 1 a

JUU JUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUUuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu uu

S OBC = S BOC + S_ BOC

·oLo

( d + b) + a = 0

1 1

101111111

111

.

：Jg0g 1

p

g 1

JooJI Joo Jooog 1oJooji jill aeball

aalb1 paalxlaag lge LglllLilllgai jao aai ge j no Lai

L

·

(1) l2 : y = - 43x + 5 C2

·山

Jg 1

jai gai jai jai li bai alig aai gai gai

（a1y5 a00g 1Llal

Jus Jus Jus Jus Jus Jus Jus Jus Jus Jus

aagglg 1 aaiyrgslldoaal jaoa ooc Lsoyouo 0 1 C

Jolai 10

Jiei ailg 10aill 1000000000000000000000000000000000000000000000000000000000000000000000

a#

aLglllgljy jyaglgjyjg jyaglgjyjg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyaglg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyag lg jyaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj yaglgj

g 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11

jollll jgdlalol gacnll jgglalnl lal

中

①

jio jgj 1:arq r gjz1 lal I aeg jyI Jai Pao joc (TAP) jio jgj OZ / (TAP·&1…A)

①olg

Aacswll

B. = ( x1,y1) , = ( x2,y2)

C. 2x1

Dp

E(jL)

FJgJlOL

G（FAR）

H. a

Jagg

KoL

Lo

a

111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 1

J 15

JL 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

L

1008
2830
2832

JAR

FA
