GB

Brushless cordless impact 3241 wrench

INTRODUCTION

• This tool is intended for driving in and loosening bolts and nuts
• Check whether the packaging contains all parts as illustrated in drawing ②
• When parts are missing or damaged, please contact your dealer
• Read and save this instruction manual ③
• Pay special attention to the safety instructions and warnings; failure to follow these may result in serious injury

TECHNICAL DATA①

Max. torque for hard screwdriving application according to ISO 5393 : 300Nm

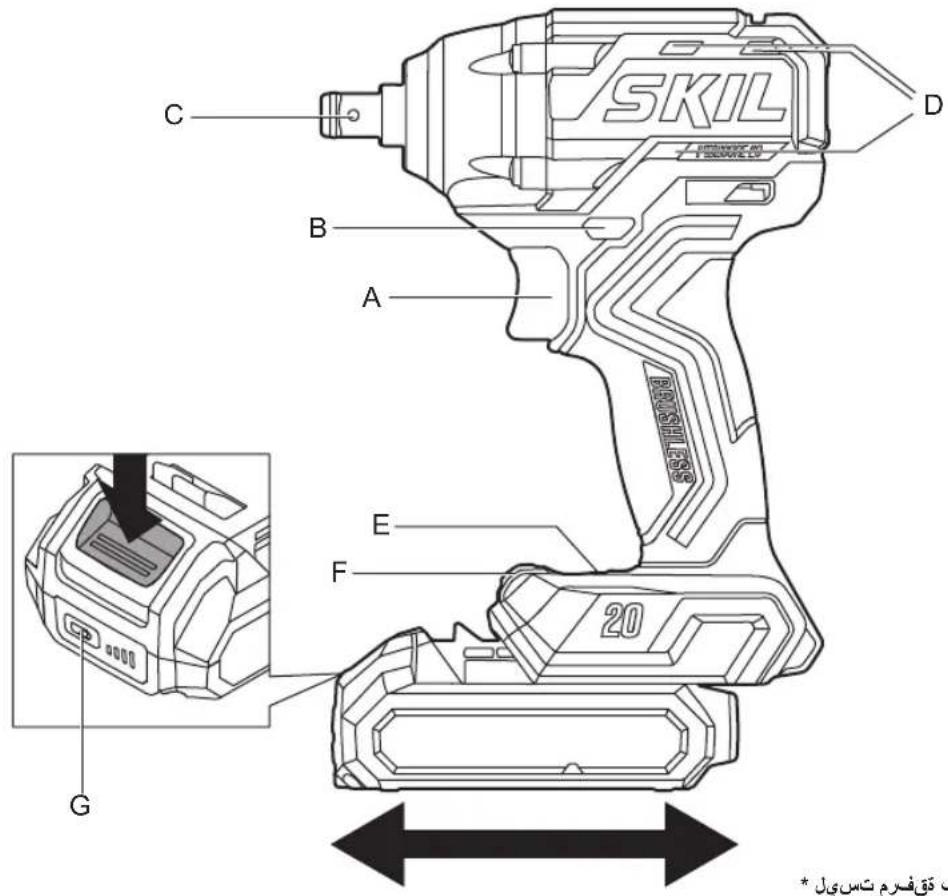

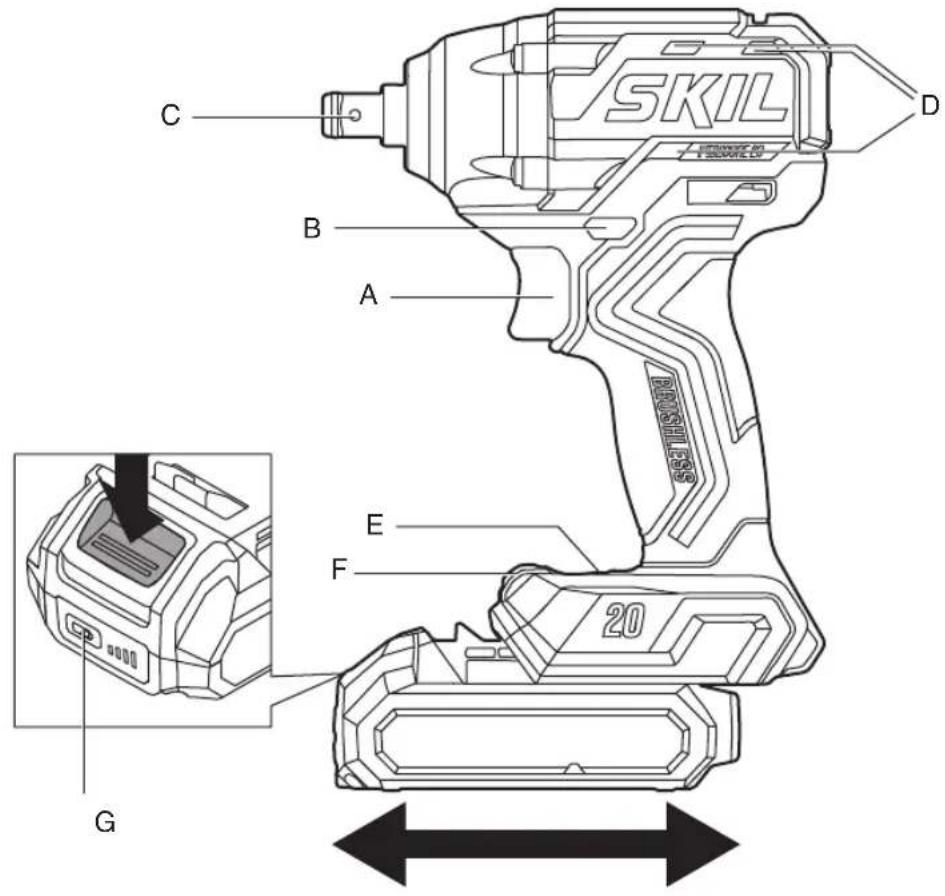

TOOL ELEMENTS ②

A Switch for on/off and speed control
B Switch for changing direction of rotation
C Square drive
D Ventilation slots
E Speed button
F LED-light
G Battery level indicator
H Socket*

*NOT STANDARD INCLUDED

SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of

electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY INSTRUCTIONS FOR CORDLESS IMPACT WRENCHES

- Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring (fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock)

GENERAL

• Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful (contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders); wear a dust mask and work with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic (such as oak and beech dust) especially in conjunction with additives for wood conditioning; wear a dust mask and work with a dust extraction device when connectable
• Follow the dust-related national requirements for the materials you want to work with
• Do not work materials containing asbestos (asbestos is considered carcinogenic)
• Ensure that switch B ② is in the middle (locking) position before making any adjustments or changing accessories as well as when carrying or storing the tool

ACCESSORIES

• SKIL can assure flawless functioning of the tool only when original accessories are used
• Use only accessories with an allowable speed matching at least the highest no-load speed of the tool

BEFORE USE

• Avoid damage that can be caused by screws, nails and other elements in your workpiece; remove them before you start working
• Secure the workpiece (a workpiece clamped with clamping devices or in a vice is held more securely than by hand)
• Use suitable detectors to find hidden utility lines or call the local utility company for assistance (contact with electric lines can lead to fire or electrical shock; damaging a gas line can result in an explosion; penetrating a water pipe will cause property damage or an electrical shock)

BATTERIES

• The battery supplied, if any, is partially charged (to ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time)
• Only use the following batteries and chargers with this tool

-SKIL battery: BR1*31****

-SKIL charger: CR1*31****

• Do not use battery when damaged; it should be replaced immediately

• Do not disassemble the battery

• Do not expose tool/battery to rain

• Permitted ambient temperature (tool/charger/battery): -when charging 4...40°C -during operation -20...+50°C -during storage -20...+50°C
  ③ Read the instruction manual before use
  ④ Batteries may explode when disposed of in fire, so do not burn battery for any reason
  ⑤ Store tool/charger/battery in locations where temperature will not exceed 50°C
  ⑥ Do not dispose of electric tools and batteries together with household waste material

EXPLANATION OF SYMBOLS ON TOOL/BATTERY

USE

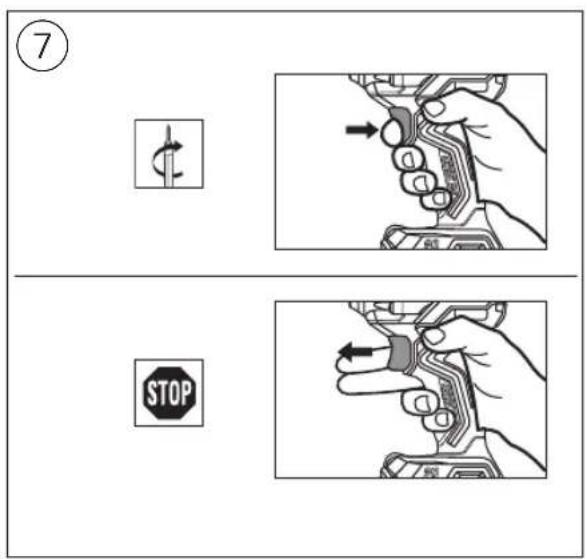

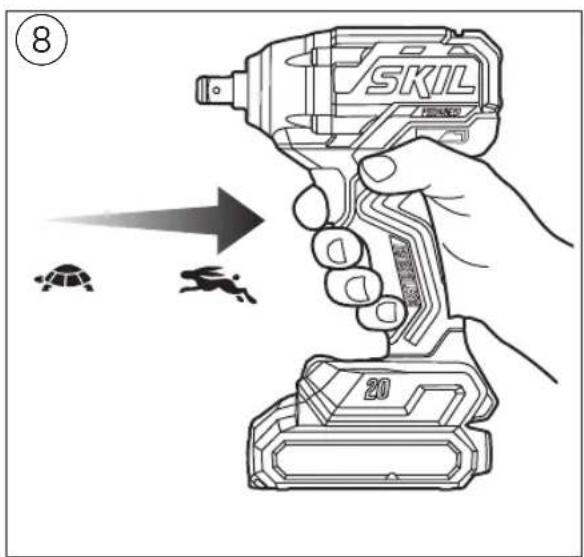

• Combined switch for on/off and speed control A ⑦ -control the speed steplessly from zero to maximum by putting less or more pressure on the trigger A⑧
• Charging battery ! read the safety warnings and instructions provided with the charger
• Removing/installing the battery ②

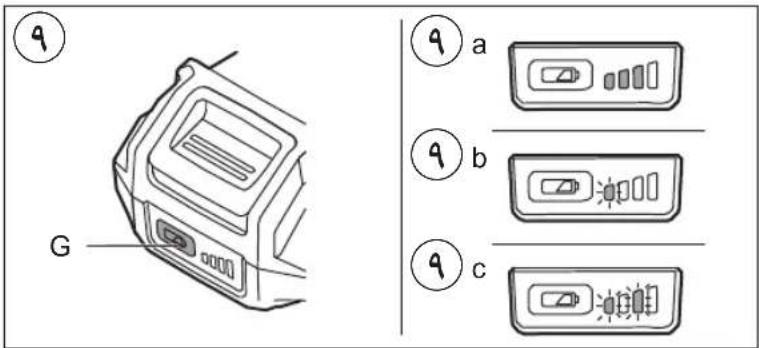

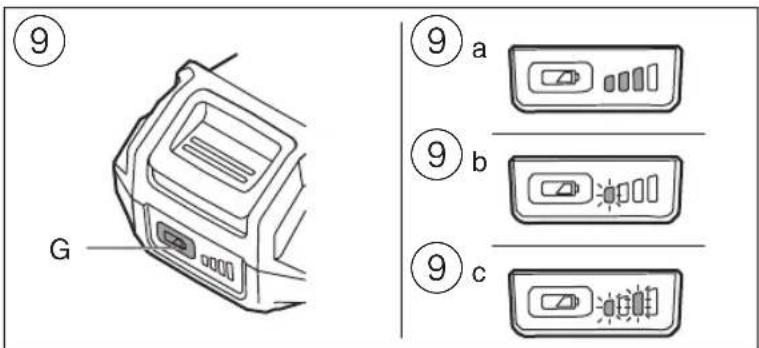

• Battery level indicator ⑨

• press the battery level indicator button G to show the current battery level ⑨a ! when the lowest level of the battery indicator starts flashing after pressing button G ⑨b, the battery is empty ! when 2 levels of the battery indicator start flashing after pressing button G ⑨c, the battery is not within the allowable operating temperature range

• Battery protection The tool is suddenly being switched off or prevented from being switched on, when

• the load is too high --> remove load and restart -the battery temperature is not within the allowable operating temperature range of -20 to +50°C --> 2 levels of the battery level indicator start flashing when pressing button G ⑨c; wait until battery has returned within the allowable operating temperature range -the battery is nearly empty (to protect against deep discharge) --> a low battery level or flashing low battery level ⑨b is shown by the battery level indicator when pressing button G; charge battery
  ! do not continue to press the on/off switch after the tool is switched off automatically; battery may be damaged

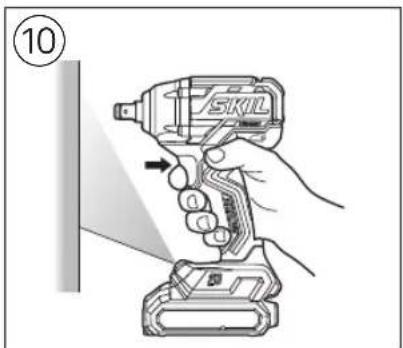

• LED-light ^⑩ LED-light automatically lights on when activating the on/off switch ! when LED-light starts flashing, the battery protection is activated (see above)

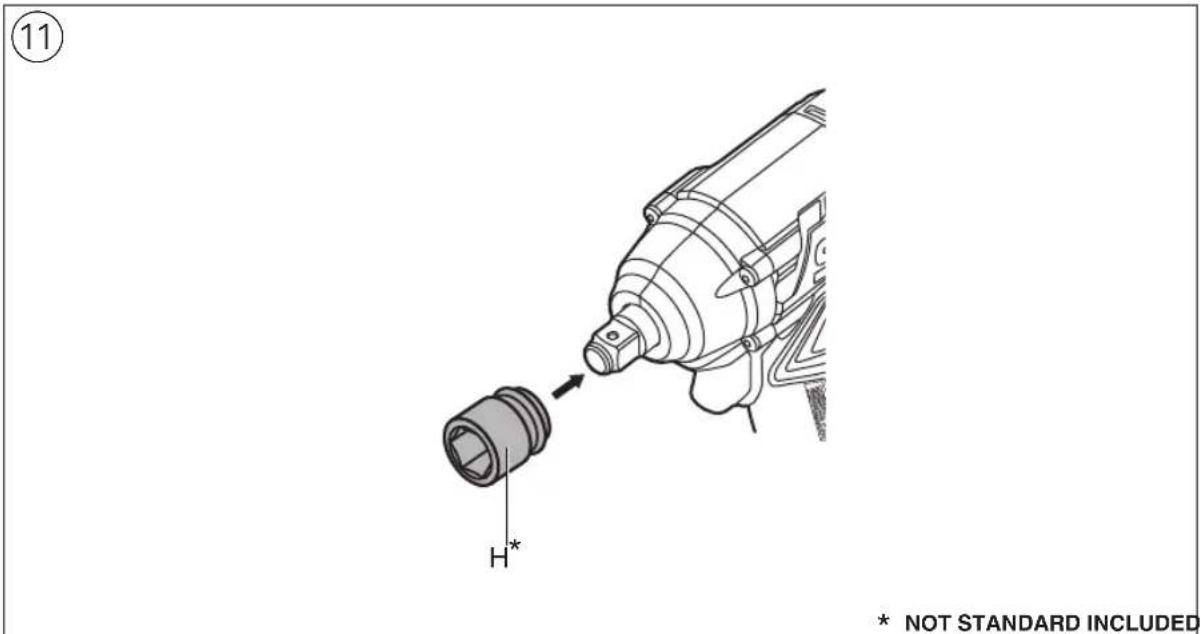

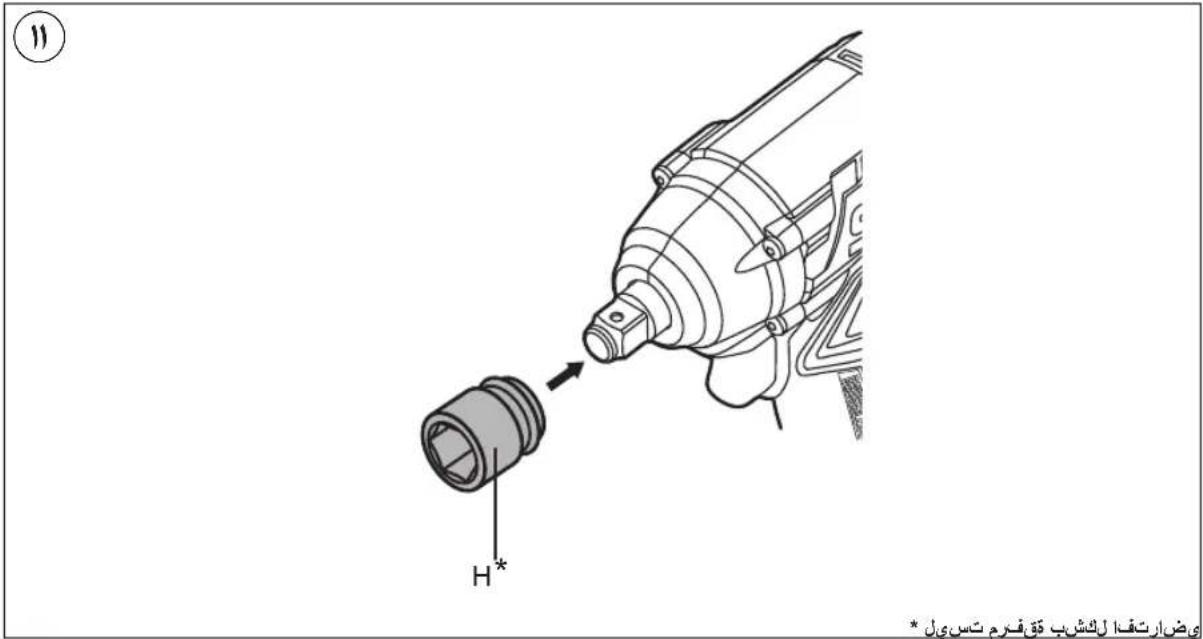

• Changing sockets ^11 *NOT STANDARD INCLUDED -for removing a socket H *NOT STANDARD INCLUDED, simply pull it off square drive C -for mounting simply push a socket H *NOT STANDARD INCLUDED onto square drive C until it locks into place ! only use sockets with a 1/2" square drive ! do not use damaged sockets

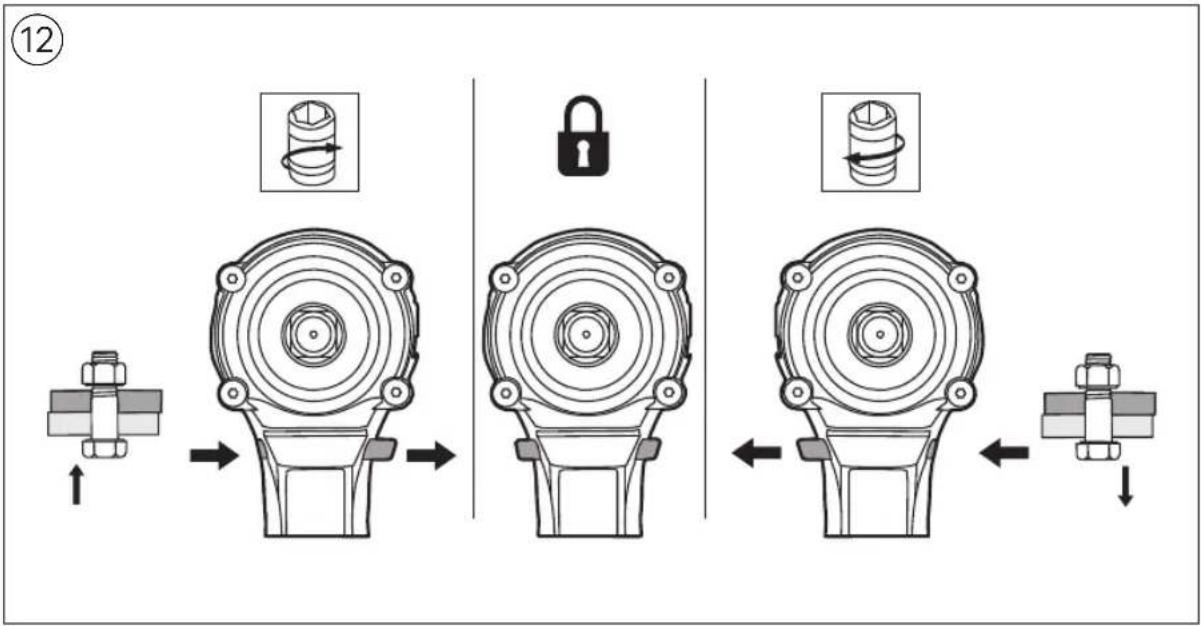

- Changing direction of rotation⑫ - when not properly set in left/right position, switch A② cannot be activated ! change direction of rotation only when tool is at a

complete standstill

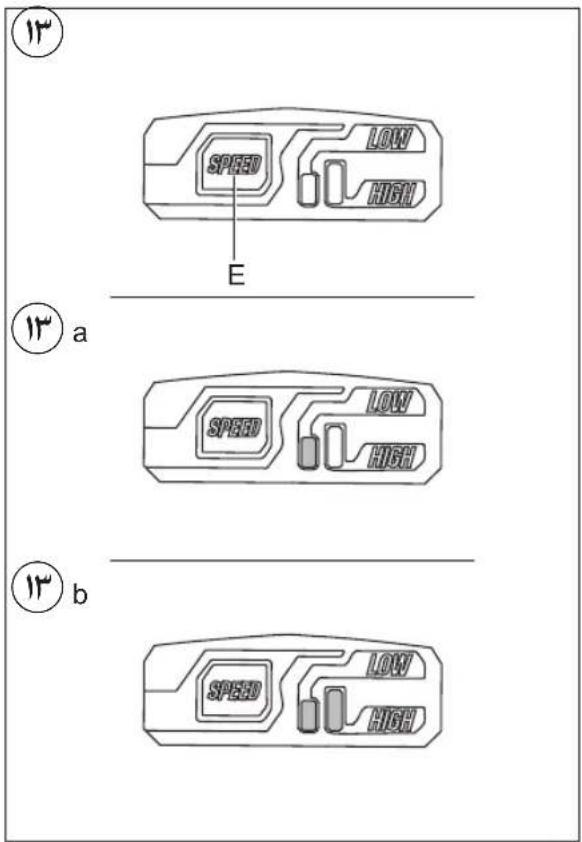

• Mode selection ^13 -press the speed button E to select the desired tightening or loosening mode when the tool is set to forward or reverse rotation:
• Low speed mode ⑬a -tightening or loosening when fine adjustment is needed -for smaller screws and bolts
• High speed mode ⑬b -tightening or loosening with high force and speed -for large screws and bolts ! modes can only be changed after slightly pressing the on/off switch (LED(s) are activated) and when the tool is at a complete standstill

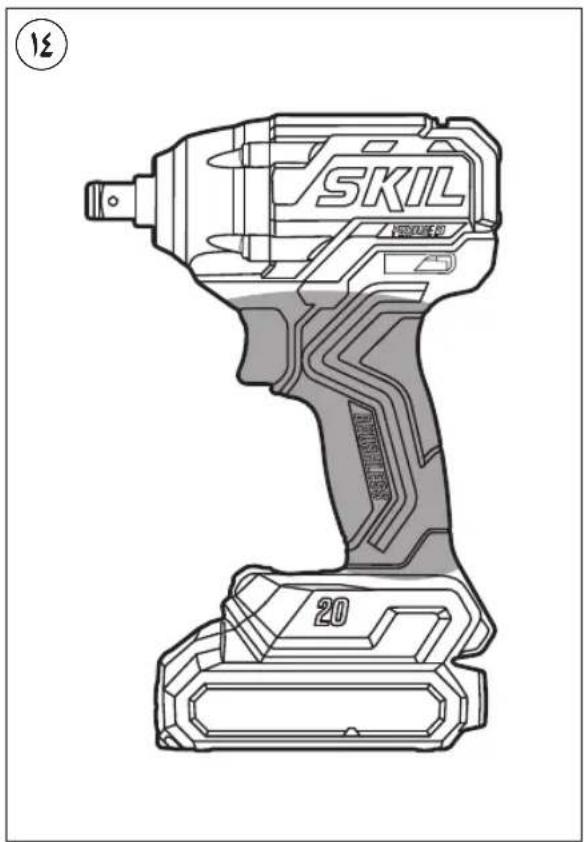

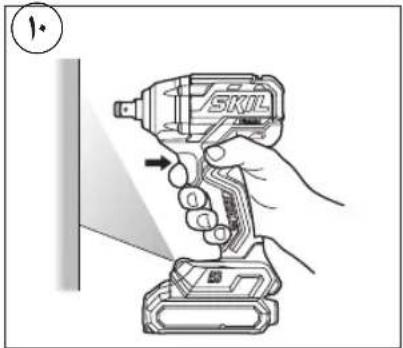

• Holding and guiding the tool ⑭ ! while working, always hold the tool at the grey grip area(s)
• keep ventilation slots D② uncovered
• do not apply too much pressure on the tool; let the tool do the work for you

APPLICATION ADVICE

• Use the appropriate sockets
• When tightening a bolt or nut, do not over-tighten. As the force of the impact wrench can break the fastener. Hold the tool aligned with the bolt or nut to prevent damage to the head of the fastener.
• The torque depends on the impact duration. Maximum torque is achieved after an impact duration of 6-10 seconds. ! always check tightening torque with a torque wrench
• For an optimal use of the tool a steady pressure on the bolt is required, especially while removing a fastener.
  • For more information see www.skil.com

MAINTENANCE / SERVICE

- Always keep tool clean (especially ventilation slots D ②) ! remove battery from tool before cleaning

- If the tool should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools

- send the tool undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skil.com)

- Be aware that damage due to overload or improper handling of the tool will be excluded from the warranty (for the SKIL warranty conditions see www.skil.com or ask your dealer)

ENVIRONMENT

Only for EU countries

• Do not dispose of electric tools, accessories and packaging together with household waste material -in observance of European Directive 2012/19/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
• symbol ⑥ will remind you of this when the need for

disposing occurs

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

Only for UK

• Do not dispose of electric tools, accessories and packaging together with household waste material
• in observance of on Waste Electric and Electronic Equipment Regulations 2013 (SI 2013/3113), electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
• symbol ⑥ will remind you of this when the need for disposing occurs
  ! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

NOISE / VIBRATION

• Measured in accordance with EN 62841 the sound pressure level of this tool is 95,0 dB(A) and the sound power level 103,0 dB(A) (uncertainty K = 3 dB), and the vibration 11,3 m/s ^2 (triax vector sum; uncertainty K = 1,5 m/s ^2 )
• The vibration emission level has been measured in accordance with a standardised test given in EN 62841; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned -the noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed -operator needs to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time)
  ! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

F

CONSEILS D'APPLICATION

A WAARSCHUWING Lees alle

1) SIKKERHET PÅ ARBEIDSPLASSEN

VEDLIKEHOLD / SERVICE

- Use as chaves adequadas.

APKALPOŠANA / APKOPE

TECHNINIAI DUOMENYS ①

Maksimali sraigto jsukimo jęga pagal ISO 5393: 300 Nm

PRIETAISO ELEMENTAI②

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

13 SPEED LOW HIGH E 13 a SPEED LOW HIGH 13 b SPEED LOW HIGH

SKIL 20

Diagram illustrating hand tool manipulation steps with labeled icons and directional arrows

SKIL 20

G 9 a 9 b 9 c

Illustration of a hand using a SKIL electric drill to lift a power supply (no text or symbols present)

⑪ H*

# # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

# # # # # # # # # # # # # # # # # # # #

# # # # # # # # # # # # # #

# # # # # #

# # # #

H*

1

3241

1

SKIL C B A D E F 20 G ب قق فرم تسیل

Illustration of a SKIL electric drill with visible branding and internal components (no text or symbols beyond branding)

دليل الاستعمال AR راهنماي اصلی FA
