Panasonic Condenser J J I I I C42

Panasonic®

Operating Instructions Air Conditioner

Indoor Unit Outdoor Unit

CS-E7HKEW-3 CU-E7HKE-3

CS-E9HKEW-3 CU-E9HKE-3

CS-E12HKEW-3 CU-E12HKE-3

CS-E15HKE-3 CU-E15HKE-3

CU-2E15GBE

CU-2E18CBPG

CU-3E18EBE

CU-3E23CBPG

CU-4E27CBPG

ENGLISH 2\~9

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

DEUTSCH 26 \~ 33

© 2007 Panasonic HA Air-Conditioning (M) Sdn. Bhd. (11969-T). All rights reserved. Unauthorized copying and distribution is a violation of law.

SAFETY PRECAUTIONS SAFETY PRECAUTI

DEFINITION

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote actions that are COMPULSORY.

To prevent personal injury, injury to others, or property damage, please observe the following.

Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classified as below:

Warning This sign warns of death or serious injury.

Caution

This sign warns of injury or damage to property.

Remote Control

• Do not use rechargeable (Ni-Cd) batteries.
• Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing batteries.
• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.

Indoor Unit

• Do not install, remove and reinstall the unit by yourself; improper installation will cause leakage, electric shock or fire. Please consult an authorized dealer or specialist for the installation work.
• Do not insert your fingers or other objects into the unit.
• Do not attempt to repair the unit by yourself.

Indoor Unit

• Do not install the unit in a potentially explosive atmosphere.
• Do not wash the unit with water, benzene, thinner or scouring powder.
• Do not use for other purposes such as preservation of food.
• Do not use any combustible equipment in front of the airflow outlet.
• Do not expose directly to cold air for a long period.
• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.
• Aerate the room regularly.

Power Supply

• Do not share the same power outlet with other equipment.
• Do not modify power cords.
• Do not use extension cords.
• Do not operate with wet hands.

- Use the specified supply cord.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This equipment must be earthed and strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD). Otherwise, it may cause electrical shock or fire in case of malfunction.

• In case of emergency or abnormal conditions (burnt smell, etc), turn off the power supply, and consult your nearest dealer.

Outdoor Unit

- Do not insert your fingers or other objects into the unit.

Power Supply

• Switch off the power supply before cleaning or servicing.
• Turn off the power supply if the unit is not used for a long period of time.
• This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner from being damaged by abnormally strong lightning activity, you may want to disconnect it from the power supply. Do not touch the air conditioner during lightning, it may cause electric shock.

Air outlet

Outdoor Unit

• Do not sit, step or place anything on the unit.
• Do not touch the sharp aluminium fi n.
• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.
  • After long periods of use, make sure the installation rack is not damaged.

REGULATORY INFORMATIO

Thank you for purchasing Panasonic Air Conditioner

The appliance is not intended for use by young children or the infirm person without supervision. Young children should be supervised to ensure that they do not play with the appliance.

ENVIRONMENTAL REQUIREMENTS

Battery Disposal

The batteries must be recycled or disposed of properly.

TABLE OF CONTENTS

SAFETY PRECAUTIONS	2
REGULATORY INFORMATION	3
OPERATION CONDITION	4
MULTI AIR CONDITIONER FUNCTION	5
PRODUCT OVERVIEW & OPERATIONS	6~7
CARE & CLEANING	8
TROUBLESHOOTING	9
QUICK GUIDEBACK COVER

NOTE :

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

END-OF-LIFE DISPOSAL

"Instructions for end-user" for air conditioners:

This air conditioner bears the above mark, indicating that electrical equipment should not be disposed of alongside general household waste. European Community countries (*), should have a dedicated collection system for these products. Do not try to dismantle the system yourself as this could have harmful effects on your health and on the environment as a result of incorrect waste handling. This dismantling and disposal of refrigerant, oil and other parts must be done by a qualified installer in accordance with relevant local and national regulations. Air conditioners must be treated at a specialized treatment facility for re-use, recycling and recovery and should not be disposed of in the municipal waste stream. Please contact your installer, dealer or local authority for more information. Penalties may also be applicable for incorrect disposal of waste products, in accordance with national legislation.

*subject to the national law of each member state

Information on Disposal in other countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your installer, dealer or local authority and ask for the correct method of disposal.

• Do not switch ON the unit when waxing the floor. After waxing, aerate the room properly before operating the unit.
• Do not install the unit in oily and smoky areas.

OPERATION CONDITION

Use this air conditioner under the following temperature range

(CU-E7HKE-3, CU-E9HKE-3, CU-E12HKE-3, CU-E15HKE-3)

Temperature (°C)		Indoor Outdoor
		*DBT *WBT	*DBT *WBT
COOLING	Maximum 32 23 43 26
	Minimum 16 11 16 11
HEATING	Maximum 30 - 24 18
	Minimum 16 - -15 -6

NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly and outdoor unit might stop for protection control.

(CU-2E15GBE, CU-2E18CBPG, CU-3E18EBE, CU-3E23CBPG, CU-4E27CBPG)

Temperature (°C)		Indoor Outdoor
		*DBT *WBT	*DBT *WBT
COOLING	Maximum 32 23 43 26
	Minimum 16 11 16 11
HEATING	Maximum 30 - 24 18
	Minimum 16 - -10	-11

* DBT: Dry bulb temperature
* WBT: Wet bulb temperature

MULTI AIR CONDITIONER FUNCTION MULTI

(CU-2E15GBE, CU-2E18CBPG, CU-3E18EBE, CU-3E23CBPG, CU-4E27CBPG)

DEFINITION

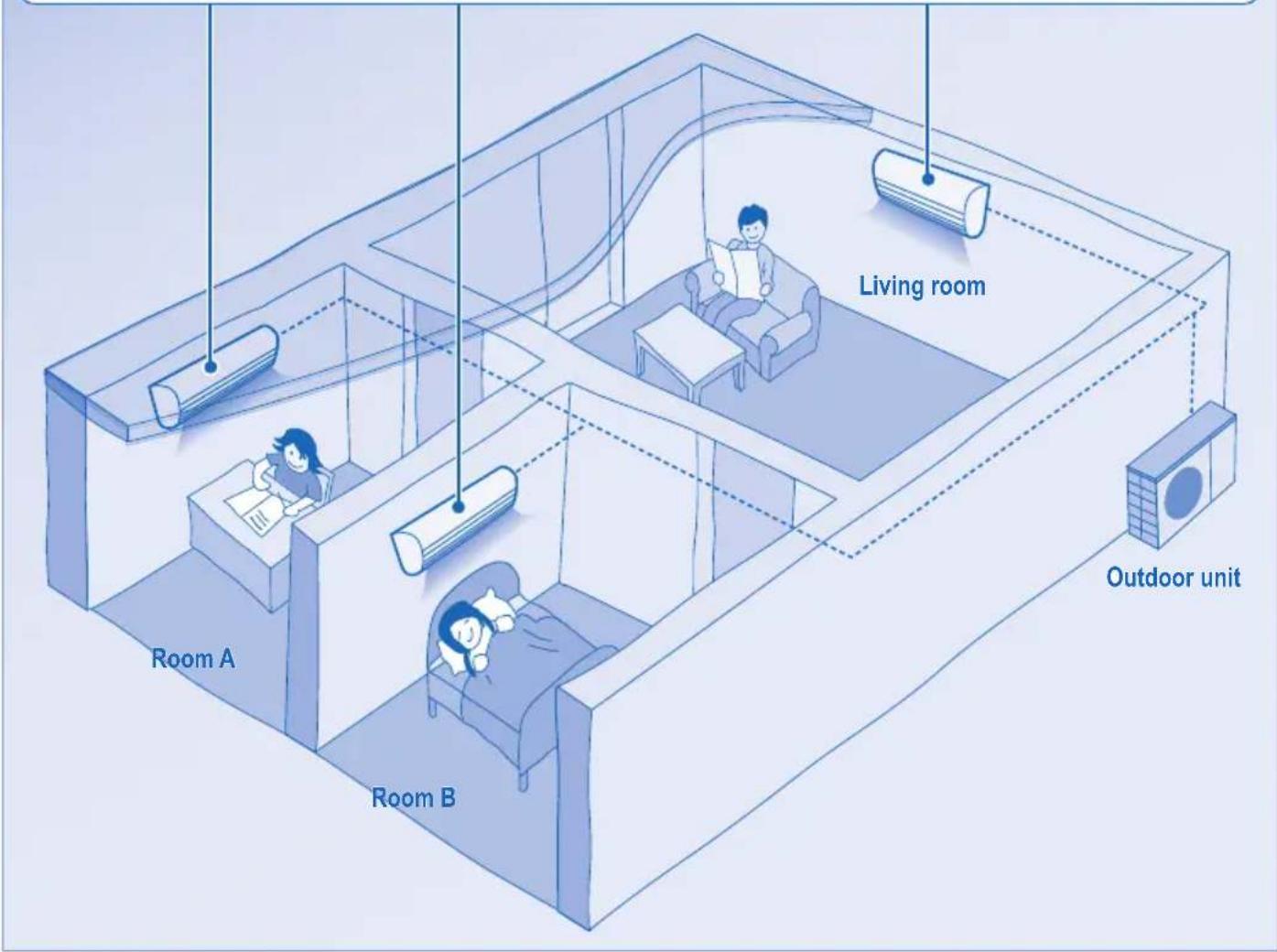

Multi air conditioner system has one outdoor unit connected to multiple indoor units.

INDOOR UNIT

• It is possible to operate the indoor units individually or simultaneously.
  • The operation mode priority is given to the first unit that turned on.
• During operation, heating and cooling mode could not be activated at the same time for different indoor unit.
• The power indicator blinks to indicate the indoor unit is standing by for different operation mode.

Living room Room A Room B Outdoor unit

Caution

PATROL

e-ion

and operations could be activated even when the air-conditioner is turned off. In this condition, once e-ion indicator is ON, the unit will operate with AUTO fan speed and air swing.

However, e-ion operation could not be activated if other indoor unit is activating heating operation.

e-ion AIR PURIFYING SYSTEM

Do not touch during operation

e-ion filters

Active e-ion Power Module

Active e-ion Generator

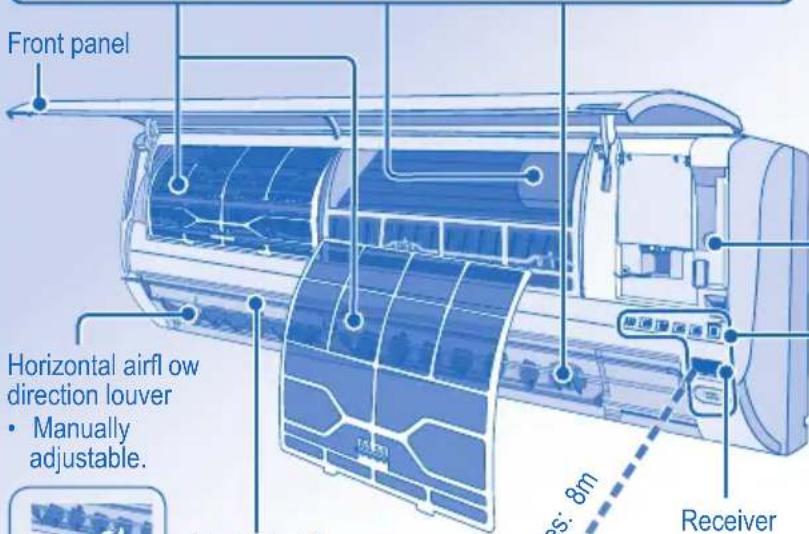

Front panel Horizontal airflow direction louver • Manually adjustable. 8m Receiver

Vertical airflow direction louver

- Do not adjust by hand.

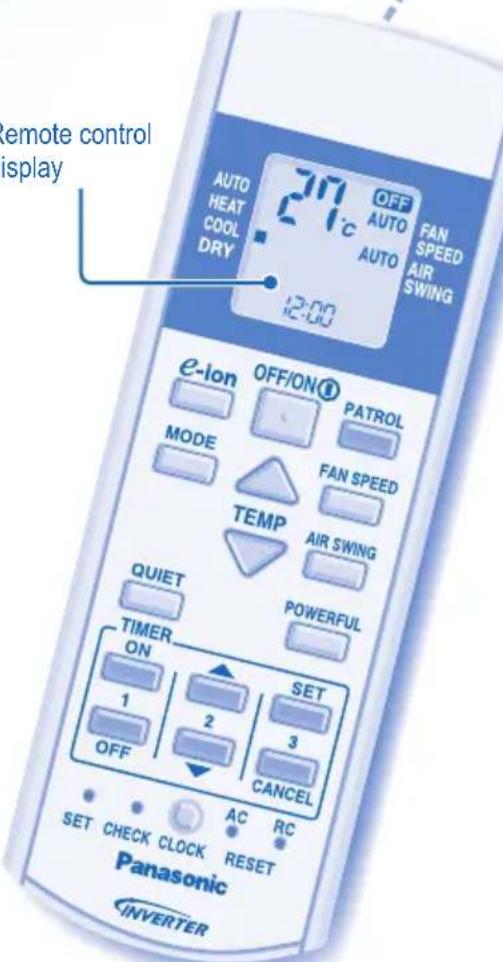

Remote control display

remote control display AUTO HEAT COOL DRY 21°C OFF AUTO AUTO FAN SPEED AIR SWING 12:00 e-ion OFF/ON® PATROL MODE FAN SPEED TEMP AIR SWING QUIET POWERFUL TIMER ON SET 1 2 3 OFF CANCEL SET CHECK CLOCK RESET AC RC Panasonic INVERTER

Auto OFF/ON button

• Used when remote control is misplaced or malfunction.

Action Mode
Press once. Auto
Press and hold until 1 beep is heard, then release.	Cooling
Press and hold until 1 beep is heard, then release. Press again until 2 beeps, then release.	Heating
Press the button to turn off.

INDICATOR

POWER

TIMER

QUIET

POWERFUL

e-ion

(Green) (Orange) (Orange) (Orange) (Blue)

(Blue)

PATROL SENSOR

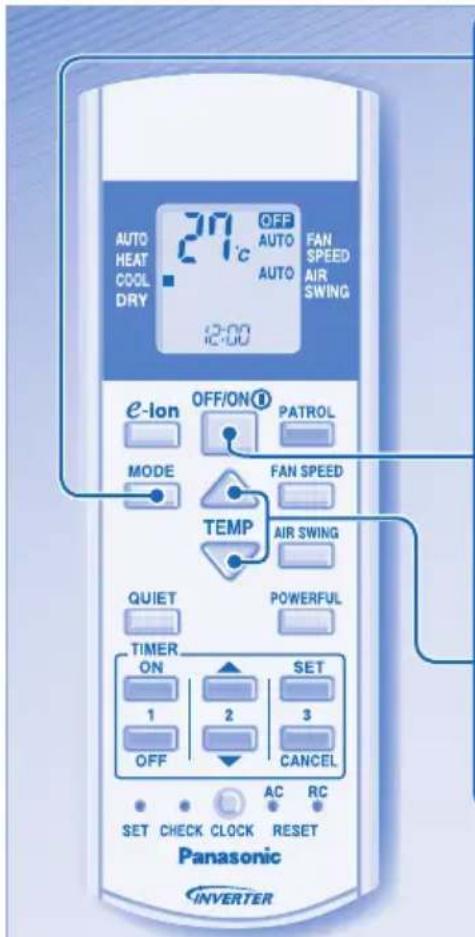

OFF/ON

TO TURN ON OR OFF THE UNIT

POWER

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping improperly.

TEMP

TO SET TEMPERATURE

• Selection range: 16^ C 30^ C .
• Operating the unit within the recommended temperature could induce energy saving.

HEAT mode: 20°C \~ 24°C.

COOL mode: 26°C \~ 28°C.

DRY mode: 1°C \~ 2°C lower than room temperature.

• During operation mode selection the power indicator blinks.
• Unit selects operation mode every 30 minutes according to temperature setting, outdoor and room temperature.

(CU-E7HKE-3, CU-E9HKE-3, CU-E12HKE-3, CU-E15HKE-3)

- Unit selects operation mode every 3 hours according to temperature setting, outdoor and room temperature.

(CU-2E15GBE, CU-2E18CBPG, CU-3E18EBE, CU-3E23CBPG, CU-4E27CBPG)

HEAT mode - To enjoy warm air

- Unit takes a while to warm up. The power indicator blinks during this operation.

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

TO SELECT FAN SPEED (5 OPTIONS)

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

TO ADJUST VERTICAL AIRFLOW DIRECTION (5 OPTIONS)

• Keeps the room ventilated.
• If AÜTO is set, the louvers swing up/down automatically.
• In heat mode, the air blows horizontally for a while, then starts to blow downwards.

TO ENJOY CLEAN & FRESH AIR

- Generates negative ions to produce fresh air effect and attract dust which will then be captured at the positively charged e-ion filters.

TO MONITOR AIR QUALITY

• Patrol sensor detects air quality.
- When the air quality is unsatisfactory, e-ion operation will start automatically.

TO ENJOY QUIET ENVIRONMENT

• This operation reduces airflow noise.

TO ACHIEVE TEMPERATURE QUICKLY

- , , and can be activated in all modes and can be cancelled by pressing the respective button again.

• and or and can not be selected at the same time.

- and operations could be activated even when the air-conditioner is turned off. In this condition, once e-ion indicator is ON, the unit will operate with AUTO fan speed and air swing. However, operation could not be activated if other indoor unit is activating heating operation.

TO SET THE TIMER

• To turn ON or OFF the unit at a preset time.

Select ON or OFF timer.

Set the time. Confi rm.

- To cancel ON or OFF timer, press ON or then press CANCEL

• When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control Preparation at back cover.
• If timer is cancelled manually or due to power failure, you can restore the previous setting (once power is resumed) by pressing SET.

OPTIONAL SETTINGS

Patrol starts automatically with the unit switched on with

Press and hold for 5 seconds, then release to disable or restore this setting.

Press and hold for 5 seconds to dim or restore the unit's indicator brightness.

Press and hold for approximately 10 seconds to show temperature setting in °C or °F.

Press and hold for approximately 5 seconds to show 12-hour (am/pm) or 24-hour time indication.

Press to restore the remote control's default setting.

Not used in normal operations.

Set the temperature 1°C higher in cool mode or 2°C lower in heat mode than the desired temperature to achieve a 10% power saving.

Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

CARE & CLEANING CARE & CLEANING

CAUTION

• Switch off the power supply before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.

WASHING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.
• Use only soap (≈ pH7) or neutral household detergent.
• Do not use water hotter than 40^ C .

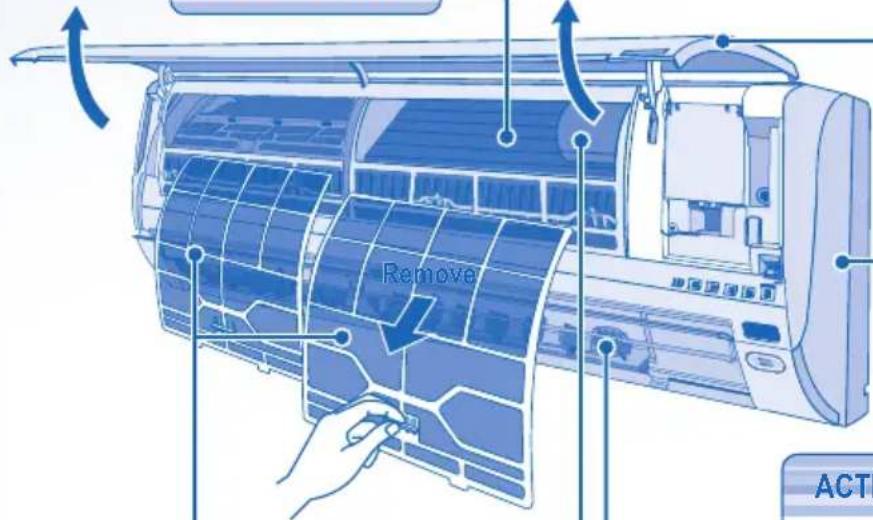

HINTS

• Clean the filter regularly for best performance and to reduce power consumption.
• Please consult your nearest dealer for seasonal inspection.

ALUMINIUM FIN

Remove ACT

FRONT PANEL

Raise and pull to remove. Wash gently and dry.

INDOOR UNIT

Wipe the unit gently with a soft, dry cloth.

e-ion FILTERS

• Clean the filters regularly.
• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under the shade, away from fire or direct sunlight.
• Replace any damage fi iter.

ACTIVE e-ion GENERATOR

3D diagram of a mechanical component with a pointed tip and layered base (no text or symbols)

Clean with dry cotton bud.

• Active e-ion generator cleaning is recommended every 6 months.

ACTIVE e-ion POWER MODULE

FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE

• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
  • After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:
  Cooling: ≥ 8°C Heating: ≥ 14°C

FOR EXTENDED NON-USE

• Activate Heat mode for 2\~3 hours to remove moisture left in the internal parts thoroughly.
• Turn off the power supply.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then CALL Authorized Distributor under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.

The following symptoms do not indicate malfunction.

Symptom	Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water flowing sound during operation.	• Refrigerant flow inside the unit.
The room has a peculiar odour. • This may due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.	• This helps to remove the surrounding odours.
Airflow continues even after operation has stopped.	• Extraction of remaining heat from the indoor unit (maximum 30 seconds).
Operation is delayed a few minutes after restart.	• The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Timer indicator is always on. • The timer setting repeats daily once set.
Power indicator blinks during operation and the indoor fan is stopped.	• The unit is in defrost mode, and the melted frost is drained from the outdoor unit.
Indoor fan stops occasionally during heating operation.	• To avoid unintended cooling effect.
Power indicator blinks before the unit is switched on.	• This is a preliminary step in preparation for the operation when the ON timer has been set.
Cracking sound during operation.	• Changes of temperature cause the expansion/contraction of the unit.

Check the following before calling for servicing.

Symptom	Check
Heating/Cooling operation is not working effi ciently.	Set the temperature correctly.Close all doors and windows.Clean or replace the fi Iters.Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. Check if the unit has been installed at an incline.	Close the front panel properly.
Remote control does not work. (Display is dim or transmission signal is weak.)	Insert the batteries correctly.Replace weak batteries.
The unit does not work. Check if the circuit breaker is tripped.	Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver not obstructed.Certain fluorescent lights may interfere with signal transmitter. Please consult your nearest dealer.
Patrol sensor or e-ion indicator on the indoor unit is blinking.	PressPATROL or e-ion twice. If the patrol sensor or e-ion indicator still blinking, please consult your nearest dealer.

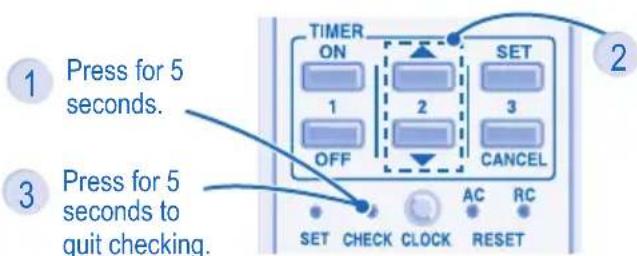

The unit stops and the timer indicator blinks.

1 Press for 5 seconds. 2 3 Press for 5 seconds to quit checking.

- Turn the unit off and reveal the error code to your nearest dealer.

NOTE :

- The unit may be operable (with 4 beeps) on a limited basis, depending on the error.

CONSIGNES DE SÉCURITÉ CONSIGNES DE SÉC

DÉFINITION

3D diagram of a mechanical component with a tapered base and internal grooves, no visible text or symbols

3D diagram of a rectangular object with horizontal lines and a pointer, no visible text or symbols

Pure diagram of a 3D object with horizontal lines and a pointer, no text or symbols present

3D illustration of a rectangular object with horizontal lines and a pointer, no text or symbols present

INFORMATIE OVER WETGEVING

INFORMATIE OVER WETGEVING

43

GEBRUIKSOMSTANDIGHEDEN 4

44

MULTI AIRCONDITIONER FUNCTIE

45

PRODUCTOVERZICHT & BEDIENING

46\~47

ONDERHOUD & REINIGING

48

PROBLEMEN OPLOSSEN

49

SNELLE GIDS

ACHTERKLEP

OPMERKING :

3D illustration of a mechanical component with a pointed tip and grooves, no visible text or symbols

Remova GERA

PAINEL FRONTAL

3D illustration of a blue mechanical component with a pointed tip and layered base (no text or symbols)

3D illustration of a mechanical component with a pointed tip and blue ribbed surface (no text or symbols)

3D diagram of a mechanical component with a pointed tip and layered base (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4 5 6 TIMER ON 1 2 SET 3 OFF CANCEL AC RC SET CHECK CLOCK RESET

1 Pull out • Retirez • Quite • Nach unten ziehen • Estrarre • Verwijderen • Retire • Τραβήστε εξω • Изτεγλετε
2 Insert AAA or R03 batteries (can be used \~ 1 year) •
Placez des piles AAA ou R03 (valables environ 1 an) •
Inserte pilas AAA o R03 (puede ser usado \~ 1 año) •
Batterien einlegen (AAA oder R03) (Betriebsdauer etwa ein Jahr) •
Inserire batterie AAA o R03 (può essere utilizzato per circa 1 anno) •
Plaats AAA- of R03-batterijen (kan \~ 1 jaar gebruikt worden) •
Introduza pilhas AAA ou R03 (pode ser utilizado \~ 1 ano)
Τοποθετήστε μπαταρίες ΑΑΑ ή R03 (μπορεί να χρησιμοποιηθεί \~ 1 χρόνο) •
Поставете AAA или R03 батерии (могат да се използват приблизително една година)
3 Close the cover • Fermez le couvercle • Cierre la tapa • Batteriefach schließen • Chiudere il coperchio • Sluit het deksel • Feche a tampa • Kleióte to kálujmu • Затворете капака
4 Press CLOCK • Appuyez sur CLOCK • Presione CLOCK • CLOCK drücken • Premere CLOCK • Druk op CLOCK • Prima CLOCK • Патюте CLOCK • Натиснетe CLOCK
5 Set time • Réglez l'heure • Ajuste la hora • Uhrzeit einstellen • Impostare l'ora • Tijd instellen • Configurar a hora • Руθμίστε την ώρα • Задайте време
6 Confirm • Confirmez • Confirmar • Bestätigen • Confermare • Bevestig • Confirmar • Етпіßeβαίωση • Потвърдете

AUTO HEAT COOL DRY 27°C OFF AUTO FAN AUTO SPEED AIR SWING 12:00 e-Ion OFF/ON PATROL MODE FAN SPEED TEMP AIR SWING QUIET POWERFUL TIMER ON SET 1 2 3 OFF CANCEL SET CHECK CLOCK RESET Panasonic INVERTER

1MODEAUTO → HEATDRY ← COOL	Select the desired mode.Sélectionnez le mode de fonctionnement souhaité.Selectoccione el modo deseado.Wählen Sie die gewünschte Betriebsart aus.Selezionare la modalità desiderata.Selecteer de gewenste stand.Seleccione o modo de funcionamento pretendido.Επιλέξτε την κατάσταση λειτουργίας που επιθυμείτε.Избор на желания режим на работа.
2OFF/ON	Start/stop the operation.Mettez l'appareil sous/hors tension.Inicie/detenga el funcionamiento.Schalten Sie das Gerät ein bzw. aus.Avviare/arrestare l'apparecchio.Start/stop het apparaat.Ligue/Desligue a unidade.Ξεκινήστε/σταματήστε τη λειτουργία.Включване/спиране.
3TEMP	Select the desired temperature.Sélectionnez la température souhaitée.Seleccione la temperature deseada.Stellen Sie die gewünschte Temperatur ein.Selezionare la temperatura desiderata.Stel de gewenste temperatuur in.Programe a temperatura desejada.Επιλέξτε την επιθυμητή θερμόκρασία.Настройка на желаната температура.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany
