LD 1333 K - Wall mount ECG - Free user manual and instructions

Product type	Articulated wall mount
Brand	ECG
Model	LD 1333 K
Compatible screen size	10" to 32"
Maximum load	25 kg
VESA compatibility	75×75, 100×100, 100×200, 200×200 mm
Tilt forward/backward	-5° to +20°
Rotation on vertical axis	±90° (2 degrees of freedom)
Rotation on horizontal axis	20°
Material	Steel (estimated)
Color	Black (estimated)
Installation	On wooden beam (long screws) or concrete wall (wall plugs)
Kit contents	Screws M4, M5, M6, M8, wall plugs, washers, Allen keys, and ratchet
Usage	Indoor only
Number of people for installation	At least 2
Maintenance and cleaning	Clean with a soft dry cloth
Spare parts / repairability	Screws and wall plugs provided; no spare parts available separately
Safety	Check wall load capacity; do not exceed 25 kg; install out of reach of children; regular check (4 times/year)
Standards	Compliant with European directives (EMC and electrical safety)
Recycling	Packaging: recyclable paper and plastic; product: waste disposal center or point of sale

Frequently Asked Questions - LD 1333 K ECG

What is the maximum load this wall mount can support?

The maximum load is 25 kg. Never exceed this weight to avoid any risk of falling.

What types of walls are suitable for installation?

Installation is possible on wooden beam (drilling Ø4.5 mm) or on concrete wall (drilling Ø10.5 mm and provided wall plugs). Ensure the wall is sufficiently load-bearing.

Is this mount compatible with my TV?

It is compatible with VESA standards 75×75, 100×100, 100×200 and 200×200. Check the hole spacing on the back of your TV.

What is the possible tilt?

Tilt forward/backward ranges from -5° to +20°. Vertical rotation is ±90° (2 degrees of freedom) and horizontal rotation is 20°.

Can I install this mount alone?

No, installation must be carried out by at least two people for safety reasons. Use a mechanical lifting system if necessary.

How to clean and maintain the mount?

Clean it with a soft dry cloth. Avoid harsh chemicals. Check stability at least 4 times a year.

What to do if screws or wall plugs are missing?

Contact your retailer to get the missing parts. Do not use damaged or unsuitable components.

Can this mount be used outdoors?

No, this product is intended for indoor use only. Using it outdoors may cause failure or accident.

What safety precautions should be taken?

Ensure the wall supports the total weight (TV + mount). Check that no electrical cables or pipes are behind the drilling area. Keep small parts out of reach of children.

Is this mount guaranteed?

The manufacturer is not responsible for damages due to incorrect installation. The product complies with European directives. For warranty, contact your retailer.

USER MANUAL LD 1333 K ECG

Read carefully and save for future use!

Please refer to a qualified professional to install the wall mount properly. Prior to the wall mount installation, check the contents of the assembly set and inform your vendor in case you discover any components are missing or are defective. Do not use defective components!! Use the wall mount solely for the purpose intended by the manufacturer. Make sure the wall is capable of supporting (especially in terms of weight) the wall mount prior to installing. Also make sure no power, water, gas or other lines are located behind the wall in the installation area. Keep the specified distance between the TV and wall (depends on the TV model). Install the wall mount to a safe location, which does not present a risk to anyone. Once the wall mount and flat screen TV are mounted, ensure that the stability and safety are sufficient. This inspection shall be repeated on a regular basis (at least 4 times a year).

The equipment is intended to be installed on wooden crossbars or solid concrete walls. Prior to the installation, make sure the assembly surface has the necessary loading capacity to carry the total weight of the TV and mount. Do not exceed the maximum TV weight of the mount.

This product is designed for household use only. Using the product outdoors can result in product failure or injury.

The manufacturer is not liable for damages to the equipment and health caused by improper installation of the wall mount.

1. Read all instructions and make sure you understand them prior to the installation. If you are not sure about any part of the installation process, contact a professional technician for support.
2. The wall or surface on which the mount will be anchored to shall be capable of carrying the entire weight of the wall mount and TV. Reinforcement will be required otherwise.
3. The installation requires the cooperation of at least two people and the use of a mechanical security mechanism and suitable tools. Otherwise it could result in damage to property or serious injury or fatal injury.
4. Follow all instructions and recommendations concerning adequate ventilation and selecting a suitable location for anchoring the TV. See the your TV user's manual for more information.
5. The product contains smaller pieces, which upon being inhaled or swallowed can lead to choking. Keep these pieces away from children!

DESCRIPTION

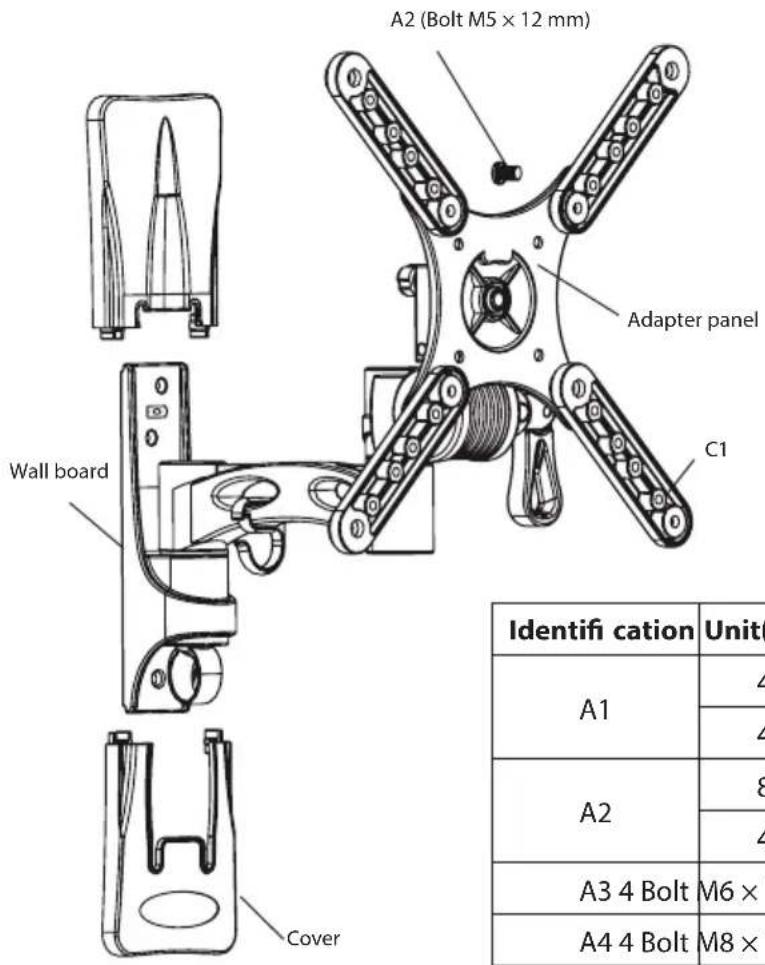

Assembly set

ASSEMBLY

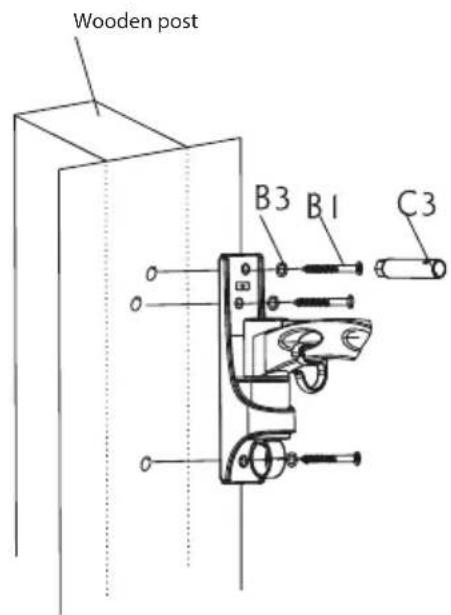

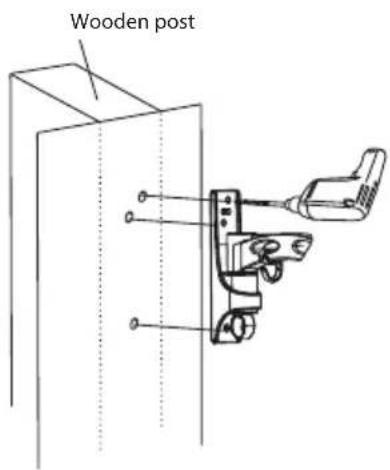

1A - Wooden crossbar assembly

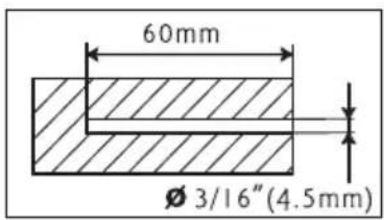

Use the wall board as a template. Make sure that it is level, mark three mounting holes into the wooden post. Drill three holes 4.5mm in diameter and 60~mm deep. Apply the wall board horizontally and fixate to the wall using the socket (C3), three long bolts (B1) and washers (B3). Tighten the bolts firmly, but not too much.

GB

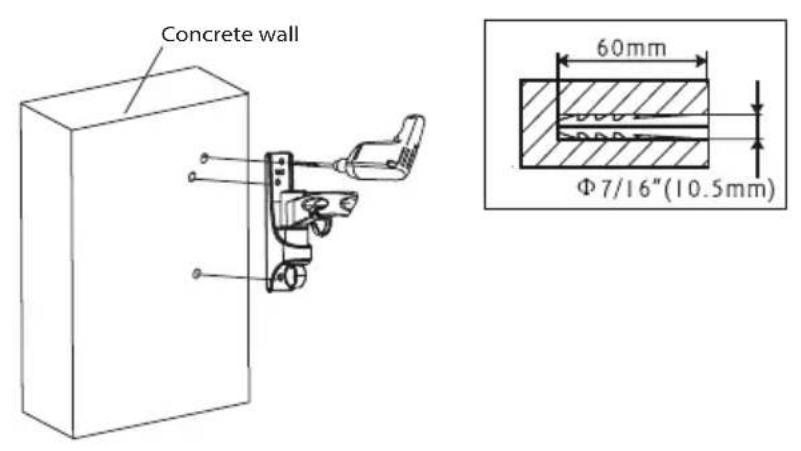

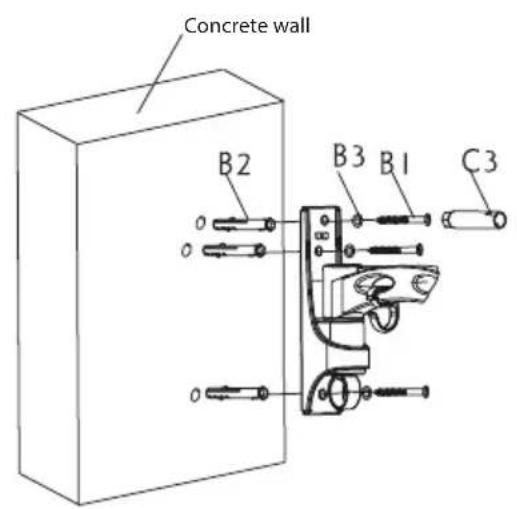

1B - Concrete wall assembly

Apply the wall board to the wall, align into a level position and use it as a template to mark three holes. Drill three holes 10.5mm in diameter and 60~mm deep. Insert three dowels (B2) into the holes and fixate the wall board to the wall using the socket (C3), long screws (B1) and washers (B3). Tighten the bolts firmly, but not too much.

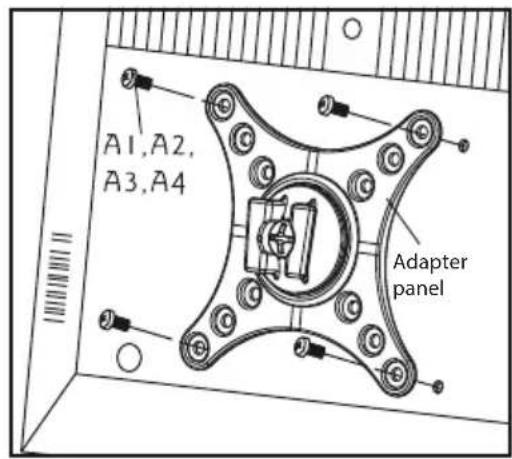

2 - Mounting the TV adapter panel to the TV

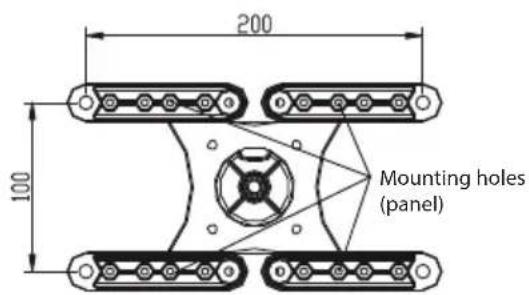

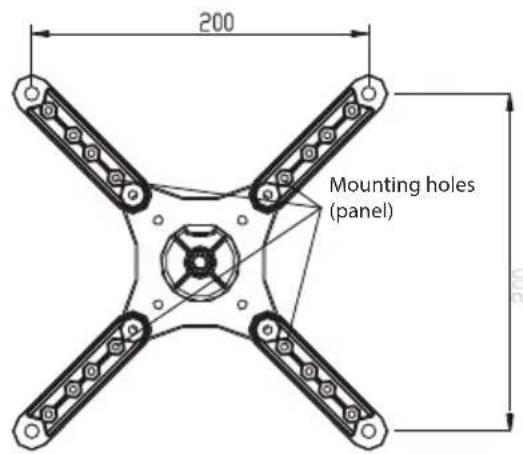

Check to see how the mounting holes are arranged on the back side of your television set. Select the proper bolts for your TV. Remove the TV adapter panel from the wall board. If you are using the VESA 100 × 100 mounting layout, mount the adapter panel directly to the TV with four bolts (A1, A2). If you are using the VESA 100 × 200 or 200 × 200 mounting layout, select the bolts to mount the adapter panel and position the TV adapter attachment as indicated in "Detail 1". Mount the attachments to the adapter panel with four bolts (A1-A4). Tighten the bolts firmly, but not too much.

GB

For mounting M4, M5 bolts to the TV
M4, For mounting TV M6,M8 bolts to the TV

Detail 1

3 - Installing covers on the wall board

Place the covers on the wall board and secure them by mutually clicking them together.

GB

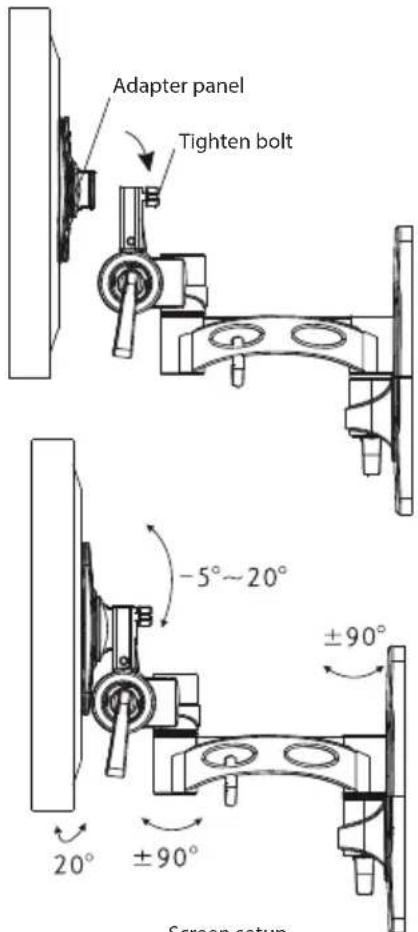

4 - Installing the adapter panel to the wall board

Mount the adapter panel to the wall arm so that the adapter flange is placed on the wall board rails. Tighten the bolt on the wall board rails. Tighten the bolt firmly, but not too much.

NOTE: For safety reasons, always us a mechanical lifting device to lift heavy loads.

Screen setup

TECHNICAL SPECIFICATIONS

Panel size: 10" to 32"

Maximum TV weight: 25kg

Compatibility: VESA 75 × 75 , VESA 100 × 100 , VESA 100 × 200 , VESA 200 × 200

forward/back tilt: -5^ to +20^

Vertical axis rotation: 2 levels ± 90^ & ± 90^

Horizontal axis rotation: 20^

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

GB

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
