USER MANUAL TA 4620 R GRUNDIG

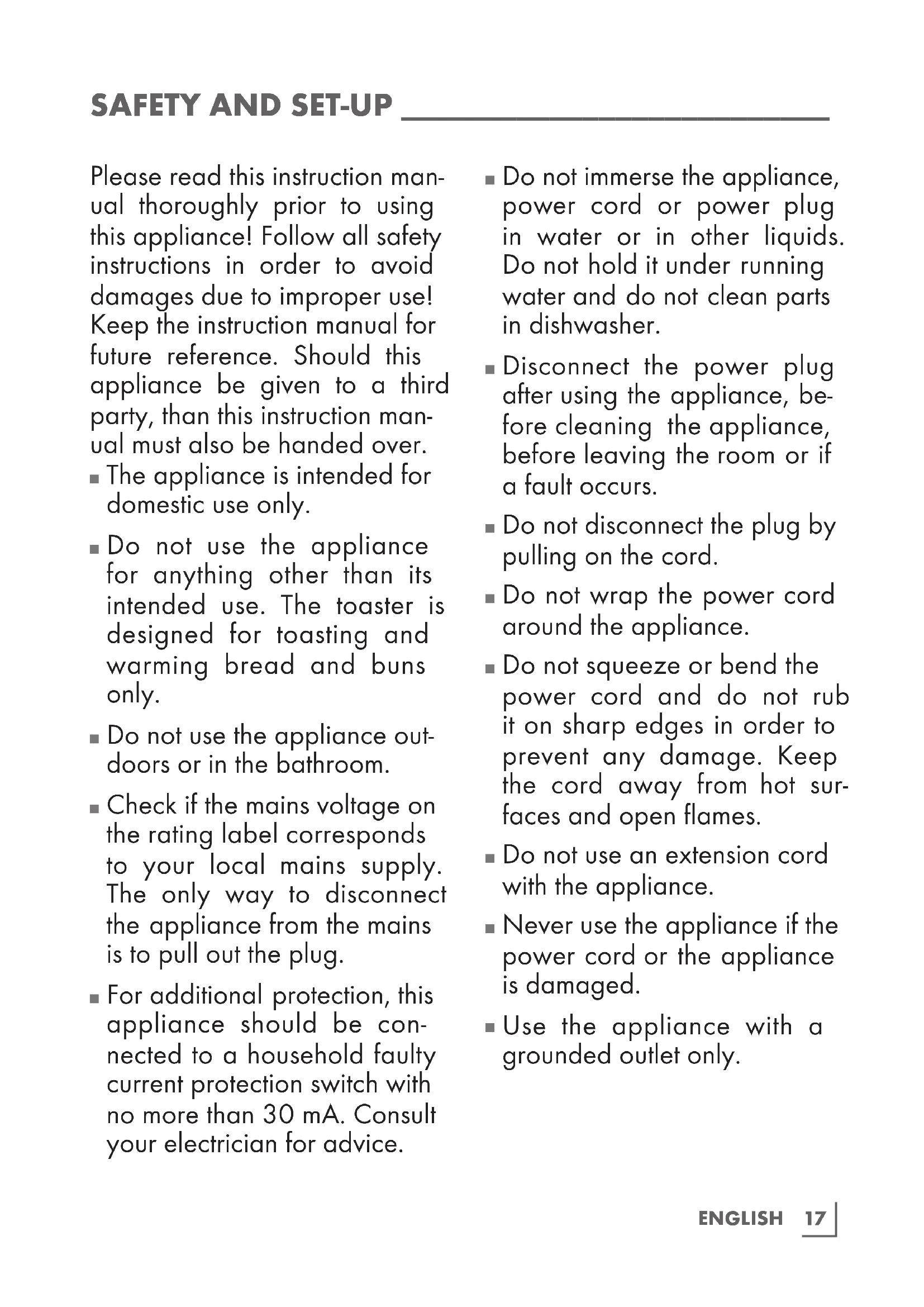

Please read this instruction man- ual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, than this instruction man- ual must also be handed over.

The appliance is intended for domestic use only.

Do not use the appliance for anything other than its intended use. The toaster is designed for toasting and warming bread and buns only.

Do not use the appliance out- doors or in the bathroom.

Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

For additional protection, this appliance should be con- nected to a household faulty current protection switch with no more than 30 mA. Consult your electrician for advice.

Do not immerse the appliance, power cord or power plug in water or in other liquids. Do not hold it under running water and do not clean parts in dishwasher.

Disconnect the power plug after using the appliance, be- fore cleaning the appliance, before leaving the room or if a fault occurs.

Do not disconnect the plug by pulling on the cord.

Do not wrap the power cord around the appliance.

Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the cord away from hot sur- faces and open flames.

Do not use an extension cord with the appliance.

Never use the appliance if the power cord or the appliance is damaged.

Use the appliance with a grounded outlet only.18 ENGLISH

Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized ser- vice person to avoid any dan- gers. Faulty or unqualified repair work may cause dan- ger and risks to the user.

Do not dismantle the ap- pliance under any circum- stances. No warranty claims are accepted for damage caused by improper handling.

Always keep the appliance out of the reach of children.

This appliance can be used by children who are at the age of 8 and above and by people who have reduced physical, perceptual or mental abilities or by people who are deficient in terms of experi- ence and knowledge as long as they are supervised and given instructions regarding the safe use of the appliance and dangers encountered. Children should not play with the appliance. Cleaning and maintenance should not be performed by children unless they are older than 8 years old and supervised.

Keep the appliance and its power cable so that they are inaccessible by children under 8 years old.

Do not leave the appliance un- attended while it is in use. Ex- treme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.

Before using the appliance for the first time, clean all parts. Please see details in the “Cleaning and care” section.

Dry the appliance and all parts before connecting it to mains supply and before at- taching the parts.

Never operate or place any part of this appliance on or near to hot surfaces such as gas burner, hotplate or heated oven.19 ENGLISH

The bread can catch fire be- cause of overheating. Never use the appliance in or near to combustible, inflammable places, materials and furni- ture. Do not let the appliance come into contact with or be- come covered by inflammable materials such as curtains, tex- tiles, walls, etc.

Do not use paper, cardboard, plastic in or under the appli- ance.

Use bread slices which are suitable for the bread slots.

Operate the appliance with delivered parts only.

Do not use the appliance with damp or wet hands.

Always use the appliance on a stable, flat, clean, dry and non-slip surface.

Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.

Position the appliance in such a way that the plug is always accessible.

Avoid contacting hot surfaces as the outer casing becomes warm during use. There is the danger of burning.

Do not stick any foreign ob- jects onto the appliance.

This appliance must not be op- erated with an external clock timer or separate remote con- trol system.

When using for the first time, smoke can develop due to production residues. However, this does not mean the appli- ance is defective. The first time you switch it on, use the appli- ance as you normally would, but without bread. Ensure for proper room ventilation.

To avoid the risk of fire, fre- quently remove crumbs from crumb tray.

Do not use the toaster without the crumb tray in place.

Do not use this product with any foodstuff product contain- ing sugar or with products con- taining jam or preserves.

Do not toast the bread with ex- tremely runny ingredients such as butter.20 ENGLISH

Do not attempt to extract any jammed toast, muffins, bagels, bread or any other item with a knife or any other object, as contact with live elements may cause electric shock.

If the toaster begins to emit smoke during operation, im- mediately stop the toasting process. Should bread get stuck in the toaster, unplug the appliance before you pull out the bread. Be careful the bread may be very hot.

The toaster can only be switched on when the plug is connected to a wall socket.

Do not use any tools or ob- jects in the appliance. Metal objects could cause short cir- cuits or electric shock. Do not damage the heating elements and mechanics.

Do not use the appliance as a source of heat.

Do not attempt to dislodge bread when the appliance is switched on.

Always unplug from the wall socket when not in use and before cleaning.

Do not put bread on any plas- tic part of the appliance.

Since temperatures are per- ceived differently by different people, this device should be used with caution. Hold the appliance exclusively on the lower part and use heat pro- tection such as heat protection gloves or pot holders. Areas which are not intended to be touched must be given suffi- cient time to cool.

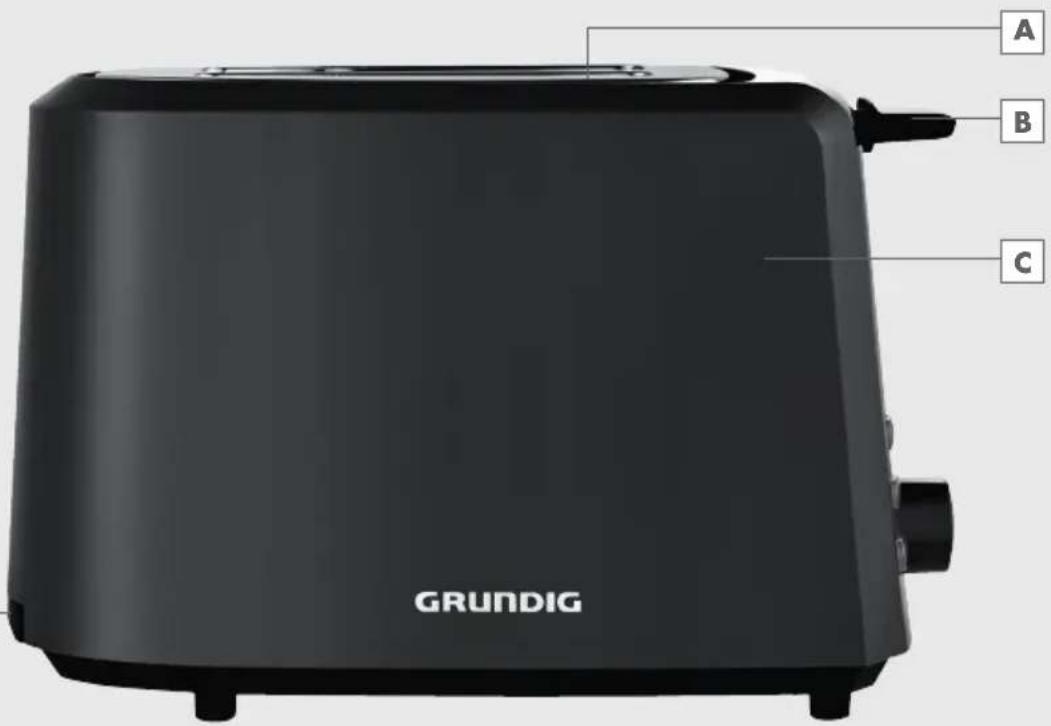

The heated rolls must not be touched.21 ENGLISH Dear Customer, congratulations on the purchase of your new GRUNDIG Toaster TA 4620 / TA 4620 R. Please read the following user guide carefully to ensure that you have many years of enjoyment from your quality Grundig product at home. Responsible trading! Both internally and for suppliers, GRUNDIG insists on contractually guaranteed social working condi- tions with fair wages, efficient use of raw materials with continuous reduction in waste of several tonnes of plastic each year - and at least 5 years availability for all accessories. For a future worth living. Grundig. Controls and parts See the figure on page 3.

ENGLISH Preparation 1 Remove all packaging and sticker materials and dispose of them according to the appli- cable local regulations. 2 Before using the appliance for the first time, clean the appliance (see the “Cleaning and care” section). 3 Make sure that the appliance is in an upright position and on a stable, flat, clean, dry and nonslip surface. Note

When using the appliance for the first time, smoke can develop due to production resi- dues. However, this does not mean the appli- ance is defective. The first time you switch it on use the appliance as you normally would but without bread. It is recommended to use the medium setting of the browning control

for first usage. Ensure for proper room ventilation. Toasting 1 Connect the power plug into the wall socket. 2 Insert only one slice of bread in each of the two bread slots

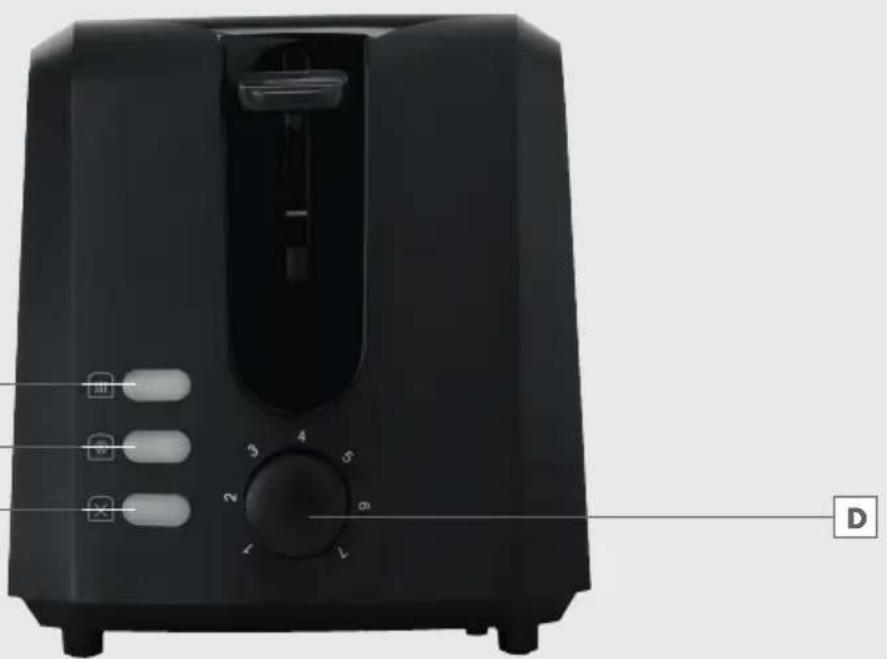

select the de- sired degree of browning between 1 and 7. Notes

to 1 will give the lightest degree of browning and turning it to 7 the darkest. The browning degree can vary depending on the type of bread.

The lowest degree of browning is the white color, and the highest is puce. The bread slice can be toasted to golden color at the position of “4”.

When toasting several slices of bread consecu- tively, the toaster will become hotter and there- fore the bread will gradually become darker. Therefore select an appropriate browning degree. Let the toaster cool down after each toasting process for minimum 30 seconds.

The degree of browning of one slice is darker than two slices, although the browning control

is set to the same level. 4 Press the start lever

down until it automati- cally snaps into place. – The toasting process begins. The indicator light of the stop button

illuminates during the toasting process. Notes

If the power plug is not connected into the wall socket, the start lever

does not snap into place.

The degree of browning can also be adjusted during the toasting process with the browning control

5 The appliance automatically switches off as soon as the set degree of browning has been reached. – The start lever

springs back up and the stop button

light goes off. The toast slices are pushed upwards and can be taken out of the toaster. Notes

To cancel the toasting process before it has fin- ished, press the stop button

springs back up and the toast slices can be taken out of the toaster. Caution

Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot. 6 Disconnect the appliance from the wall socket.

If toast slices get stuck in the toaster, switch the toaster off immediately by pressing the stop button

. Pull the power plug out of the wall socket. Let the toaster cool down completely. Carefully try to take the bread out of the toaster without damaging the sensitive heating ele- ments and other parts. Do not use any electro- conductive objects to remove the bread from the toaster. OPERATION ______________________________23 ENGLISH OPERATION ______________________________ Toasting frozen bread 1 Follow the steps from 1 to 4 at the “Toasting” section. 2 Press the defrost button

illuminates and the toasting process begins. Note

is pressed, the toasting process takes longer than with normal toasting. 3 The appliance automatically switches off as soon as the set degree of browning has been reached. – The start lever

light go off. The toast slices are pushed upwards and can be taken out of the toaster. Notes

To cancel the toasting process before it has fin- ished, press the stop button

springs back up and the toast slices can be taken out of the toaster. Caution

Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot. 4 Disconnect the appliance from the wall socket. Warming up already toasted bread 1 Follow the steps from 1 to 4 at the “Toasting” section. 2 Press the reheat button

– The indicator light of the reheat button

illuminates and the warming up process be- gins. 3 The appliance automatically switches off as soon as the set degree of warming has been reached. The start lever

light go off. The toast slices are pushed upwards and can be taken out of the toaster. Notes

To cancel the toasting process before it has fin- ished, press the stop button

springs back up and the toast slices can be taken out of the toaster. Caution

Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot. 4 Disconnect the appliance from the wall socket. Warming up buns This toaster is equipped with an external warming rack

Do not toast bread and warm up buns at the same time.

Do not warm up toast slices on the warming rack

If you accidentally activate the wrong mode (defrost instead of reheat or reheat instead of defrost), then the selected mode must be can- celled first by pressing the stop button

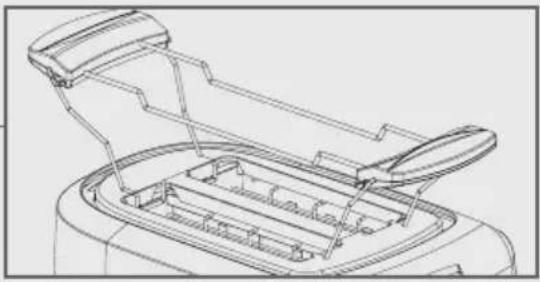

be- fore you can select the right mode. 1 Put the warming rack on the housing

and place it into the gaps 2 Place the buns on the warming rack

3 Connect the power plug into the wall socket. 4 Using the browning control

select the de- sired degree of warming. 5 Press down the start lever

– The indicator light of the stop button

il- luminates and the warming up process be- gins.24 ENGLISH OPERATION ______________________________ 6 Turn the buns in order to reach a consistent browning. 7 The appliance automatically switches off as soon as the set degree of warming has been reached. – The start lever

springs back up; and the stop button

To stop the warming up process before it has finished press the stop button

8 After warming up the buns take them off the rack and and put the warming rack by the warming rack handles off. 9 Disconnect the appliance from the wall socket. Caution

The buns and the housing

of the toaster can become very hot during and directly after the toasting process. Do not touch them with bare hands.25 ENGLISH Cleaning and care Caution

Never use petrol, solvents or abrasive clean- ers, metal objects or hard brushes to clean the appliance.

Never put the appliance or power cord in water or any other liquids. 1 Turn the appliance off and disconnect it from wall socket. 2 Let the appliance cool down completely. 3 Remove the crumbs after each use by pulling out the crumb tray

. Clean the crumb tray with a damp cloth only. Before pushing back the crump tray in the appliance make sure that the tray is dry. Do not let bread crumbs accumulate inside the toaster, they may cause fire. 4 Turn the toaster upside down and shake it slightly to remove bread crumbs from inside. 5 Use a damp soft cloth and a small mild cleanser to clean the housing

of the appli- ance. Dry the housing thoroughly. Note

Before using the appliance after cleaning, dry all parts carefully using a soft towel. Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.

Make sure the appliance is unplugged, cooled down and completely dry.

Wrap the power cord around the cable coil on the bottom of the toaster.

Store the appliance in a cool, dry place.

Make sure the appliance is kept out of the reach of children. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials speci- fied in the Directive. Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this prod- uct shall not be disposed with other household wastes at the end of its service life. Used device must be re- turned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was puchased. Each household per- forms important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative conse- quences for the environment and human health. Package information Packaging materials of the product are manufactured from recyclable materi- als in accordance with our National Environment Regulations. Do not dis- pose of the packaging materials together with the domestic or other wastes. Take them to the pack- aging material collection points designated by the local authorities. Technical data Power supply: 220-240 V
