USER MANUAL TA 6330 GRUNDIG

Simple line drawing of a steaming loaf of bread (no text or symbols)

TA 6330

DE - EN - FR - TR

A B C D E F G H

DEUTSCH 05-14

ENGLISH 15-23

FRANÇAIS 24-33

TÜRKÇE 34-45

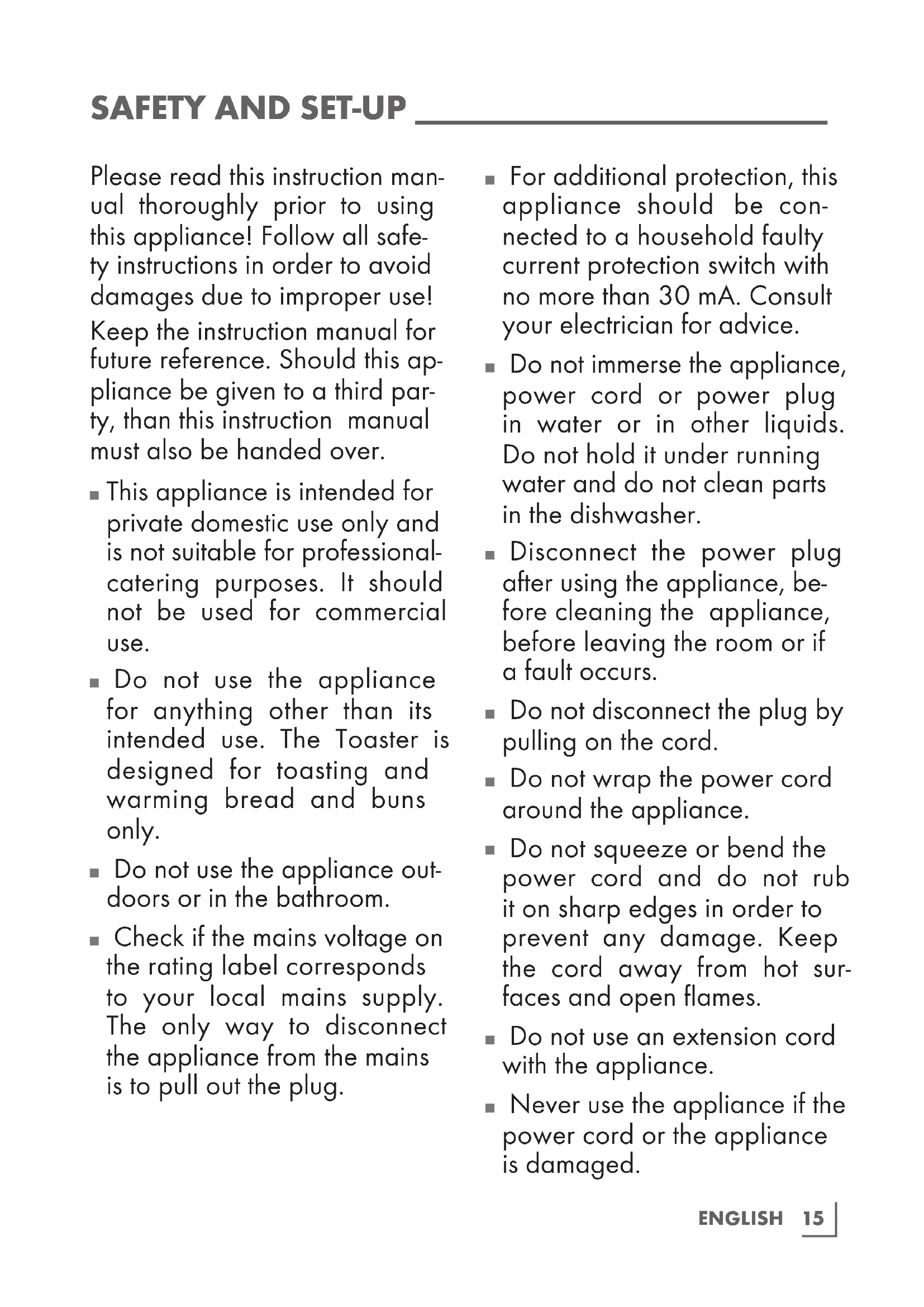

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, than this instruction manual must also be handed over.

■ This appliance is intended for private domestic use only and is not suitable for professional-catering purposes. It should not be used for commercial use.
- Do not use the appliance for anything other than its intended use. The Toaster is designed for toasting and warming bread and buns only.
- Do not use the appliance outdoors or in the bathroom.
- Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

■ For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 mA. Consult your electrician for advice.
- Do not immerse the appliance, power cord or power plug in water or in other liquids. Do not hold it under running water and do not clean parts in the dishwasher.
■ Disconnect the power plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs.
- Do not disconnect the plug by pulling on the cord.
- Do not wrap the power cord around the appliance.
- Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.
- Do not use an extension cord with the appliance.
■ Never use the appliance if the power cord or the appliance is damaged.

• Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.

• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
  ■ Always keep the appliance out of the reach of children.
  This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Do not leave the appliance unattended while it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.
  ■ Before using the appliance for the first time, clean all parts. Please see details in the "Cleaning and care" section.
  ■ Dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
  ■ Never operate or place any part of this appliance on or near to hot surfaces such as gas burner, electric burner or heated oven.
  ■ The bread can catch fire because of overheating. Never use the appliance in or near to combustible, inflammable places, materials and furniture. Do not let the appliance come into contact with or become covered by inflammable materials such as curtains, textiles, walls, etc.

• Do not use paper, cardboard, plastic in or under the appliance.

■ Use bread slices which are suitable for the bread slots.
■ Operate the appliance with delivered parts only.
- Do not use the appliance with damp or wet hands.
■ Always use the appliance on a stable, flat, clean, dry and non-slip surface.
■ Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
■ Position the appliance in such a way that the plug is always accessible.
■ Avoid contacting hot surfaces as the outer casing becomes warm during use. There is the danger of burning.
■ Do not stick any foreign objects onto the appliance.
■ This appliance must not be operated with an external clock timer or separate remote control system.

■ When using for the first time, smoke can develop due to production residues. However, this does not mean the appliance is defective. The first time you switch it on, use the appliance as you normally would, but without bread. Ensure for proper room ventilation.

■ To avoid the risk of fire, frequently remove crumbs from crumb tray.

■ Do not use the toaster without the crumb tray in place.

■ Do not use this product with any foodstuff product containing sugar or with products containing jam or preserves.

- Do not toast the bread with extremely runny ingredients such as butter.

- Do not attempt to extract any jammed toast, muffins, bagels, bread or any other item with a knife or any other object. This may cause electric shocks.

■ If the toaster begins to emit smoke during operation, immediately stop the toasting process. Should bread get stuck in the toaster always unplug the appliance before you pull out the bread. Be careful, the bread may be very hot.
■ The toaster can only be switched on when the plug is connected to a wall socket.
- Do not use any tools or objects in the appliance. Metal objects could cause short circuits or electric shock. Do not damage the heating elements and mechanics.
■ Do not use the appliance as a source of heat.
■ Do not attempt to dislodge bread when the appliance is switched on.
■ Always unplug from the wall socket when not in use and before cleaning.

Dear Customer,

congratulations on the purchase of your new GRUN-DIG Stainless Steel Toaster TA 6330.

Please read the following user notes carefully to ensure you can enjoy your quality GRUNDIG product for many years to come.

Responsible trading!

Both internally and for suppliers, GRUNDIG insists on contractually guaranteed social working conditions with fair wages, efficient use of raw materials with continuous reduction in waste of several tonnes of plastic each year - and at least 5 years availability for all accessories.

For a future worth living. Grundig.

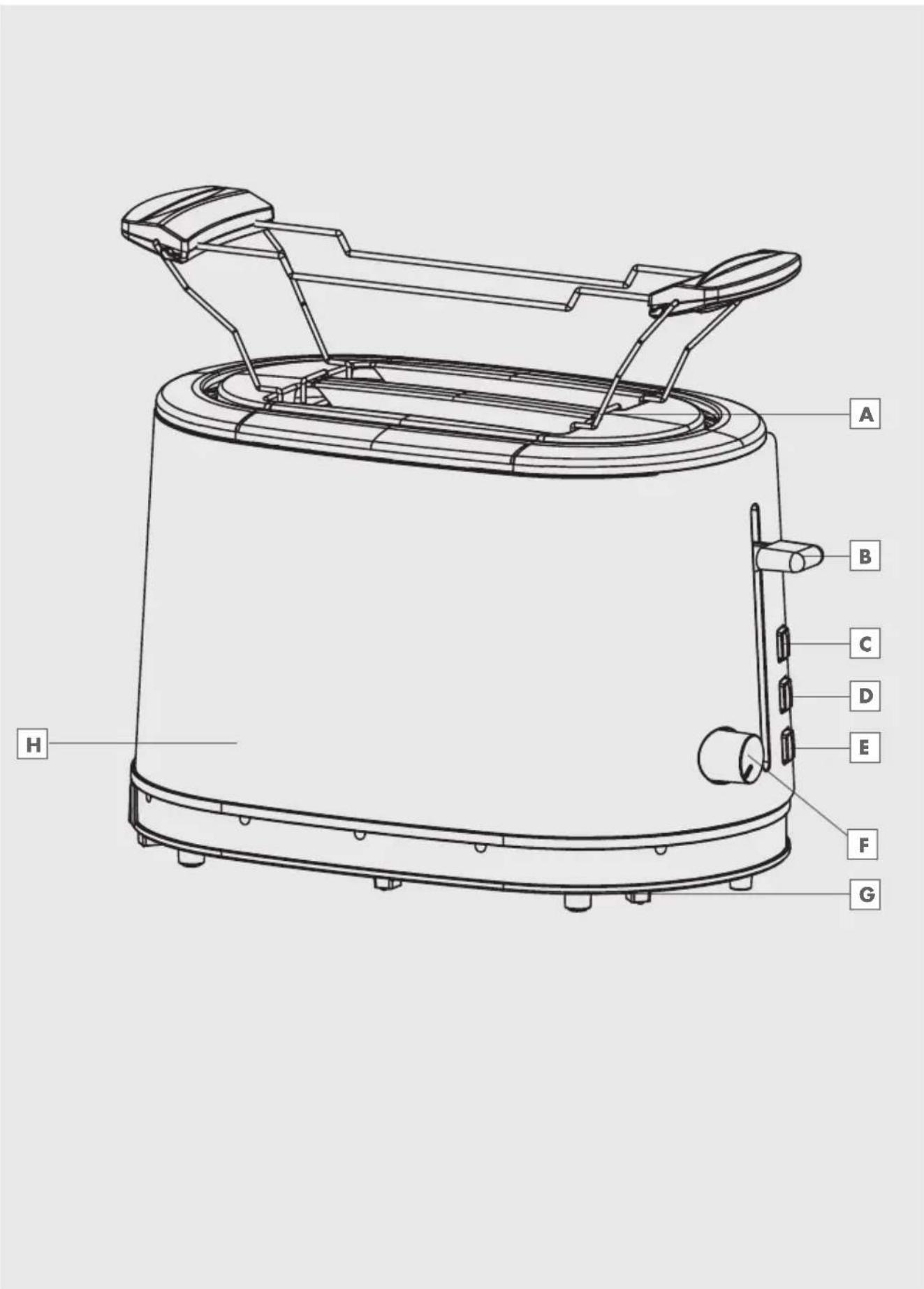

Controls and parts

See the figure on page 3.

A Bread slot
B Start lever
c Stop button
D Defrost button
E Reheat button
F Browning control
G Crumb tray
H Housing

Preparation

1 Remove all packaging and sticker materials and dispose of them according to the applicable local regulations.
2 Before using the appliance for the first time, clean the appliance (See the "Cleaning and care" section).
3 Make sure that the appliance is in an upright position and on a stable, flat, clean, dry and non-slip surface.

Note

- When using the appliance for the first time, smoke can develop due to production residues. However, this does not mean the appliance is defective. The first time you switch it on use the appliance as you normally would but without bread. It is recommended to use the medium setting of the browning control F for heating. Ensure for proper room ventilation.

Toasting

1 Insert only one slice of bread in each of the two bread slots B.
2 Connect the power plug into the wall socket.
3 Using the browning control F select the desired degree of browning between 1 and 6.

Notes

■ Pushing the browning control down to 1 will give the lightest degree of browning and up to 6 the darkest. The browning degree can vary depending on the type of bread.
- When toasting several slices of bread consecutively, the toaster will become hotter and therefore the bread will gradually become darker. Therefore select an appropriate browning degree. Let the toaster cool down after each toasting process for minimum 30 seconds.
■ The degree of browning of one slice is darker than two slices, although the browning control F is set to the same level.
4 Press the start lever B down until it automatically snaps into place.

Notes

If the power plug is not connected into the wall socket, the start lever B does not snap into place.
■ The degree of browning can also be adjusted during the toasting process with the browning control F.
5 The appliance automatically switches off as soon as the set degree of browning has been reached.
- The toast slices are pushed upwards and can be taken out of the toaster.

Notes

■ To cancel the toasting process before it has finished, press the stop button C. The start lever B springs back up and the toast slices can be taken out of the toaster.

Caution

- Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.

6 Disconnect the appliance from the wall socket.

If toast slices get stuck in the toaster, switch the toaster off immediately by pressing the stop button C. Pull the power plug out of the wall socket. Let the toaster cool down completely. Carefully try to take the bread out of the toaster without damaging the sensitive heating elements and other parts. Do not use any electroconductive objects to remove the bread from the toaster.

Toasting frozen bread

1 Follow the steps from 1 to 4 at the "Toasting" section.
2 Press the defrost buttonD.

Note

• When the defrost button D is pressed, the toasting process takes longer than with normal toasting.
  3 The appliance automatically switches off as soon as the set degree of browning has been reached. - The start lever B springs back up. The toast slices are pushed upwards and can be taken out of the toaster.

Notes

To cancel the toasting process before it has finished, press the stop button C. The start lever B springs back up and the toast slices can be taken out of the toaster.

Caution

• Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.
  4 Disconnect the appliance from the wall socket.

Warming up already toasted bread

1 Follow the steps from 1 to 4 at the "Toasting" section.
2 Press the reheat button E.
3 The appliance automatically switches off as soon as the set degree of warming has been reached. The start lever B springs back up. The toast slices are pushed upwards and can be taken out of the toaster.

Notes

To cancel the toasting process before it has finished, press the stop button C. The start lever B springs back up and the toast slices can be taken out of the toaster.

Caution

• Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.
  4 Disconnect the appliance from the wall socket.

Warming up buns

This toaster is equipped with a warming rack.

Notes

• Do not toast bread and warm up buns at the same time.
• Do not warm up toast slices on the warming rack. The toast slices hinder sufficient ventilation.
• Do not put more than two bread on the warm up buns at one time.

If you accidentally activate the wrong mode (defrost instead of reheat or reheat instead of defrost), then the selected mode must be cancelled first by pressing the stop button before you can select the right mode.

1 Place the warming rack on the bread slotA.
2 Place the buns on the warming rack.
3 Connect the power plug into the wall socket.
4 Using the browning control F select the desired degree of warming.
5 Press down the start lever B. - The warming up process begins.
6 Turn the buns in order to reach a consistent browning.
7 The appliance automatically switches off as soon as the set degree of warming has been reached.

Note

■ To stop the warming up process before it has finished press the stop button ⓒ.
8 After warming up the buns take them off the rack and disconnect the appliance from the wall socket.
9 Let the warming rack cool down before you take it down from the bread slot A.

Caution

■ The buns and the housing H of the toaster can become very hot during and directly after the toasting process. Do not touch them with bare hands.

Cleaning and care

Caution

■ Never use petrol, solvents or abrasive cleaners, metal objects or hard brushes to clean the appliance.
■ Never put the appliance or power cord in water or any other liquids.

1 Turn the appliance off and disconnect it from wall socket.

2 Let the appliance cool down completely.

3 Remove the crumbs after each use by pulling out the crumb tray G. Clean the crumb tray with a damp cloth only. Before pushing back the crump tray in the appliance make sure that the tray is dry. Do not let bread crumbs accumulate inside the toaster, they may cause fire.

4 Turn the toaster upside down and shake it slightly to remove bread crumbs from inside.

5 Use a damp soft cloth and a small mild cleanser to clean the housing H of the appliance. Dry the housing thoroughly.

Note

■ Before using the appliance after cleaning, dry all parts carefully using a soft towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.

Make sure the appliance is unplugged, cooled down and completely dry.

Wrap the power cord around the cable coil on the bottom of the toaster.

Store the appliance in a cool, dry place.

Make sure the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220-240 V\~, 50/60 Hz

Power: 720-850 W

Technical and design modifications reserved.
