Technical Specifications	2-slice toaster, 850 W power, 7 browning levels
Features	Defrost function, reheat function, cancel function
Dimensions	Compact dimensions for easy storage
Usage	Ideal for bread, bagels, and thick slices
Maintenance	Removable crumb tray for easy cleaning
Safety	Overheat protection, non-slip feet
General Information	2-year warranty, modern and elegant design

Frequently Asked Questions - TA 5620 GRUNDIG

The toaster won't turn on, what should I do?

Check that the appliance is properly plugged into a working outlet. Make sure the power cord is not damaged.

The bread doesn't toast evenly.

Try adjusting the browning level. If the problem persists, check that the heating elements are not blocked by crumbs.

How do I clean my GRUNDIG TA 5620 toaster?

Unplug the appliance and remove the crumb tray to clean it. Use a damp cloth to wipe the exterior, but do not immerse the toaster in water.

Why does the bread get stuck inside?

If the bread is too thick, it can cause a jam. Turn off the appliance, unplug it, and wait a few minutes before trying to remove the bread.

Can I toast bagels with the GRUNDIG TA 5620?

Yes, this toaster is designed to toast bagels. Use the specific function if available for better results.

The toaster emits a strange smell during first use, is this normal?

Yes, this is normal during first use. It is due to the burning of manufacturing residues. Use it in a well-ventilated area until the smell disappears.

What is the power of the toaster?

The GRUNDIG TA 5620 has a power of 850 W.

How do I adjust the browning level?

Use the browning control knob located on the control panel to select the desired level before starting toasting.

USER MANUAL TA 5620 GRUNDIG

Simple line drawing of a steaming loaf of bread (no text or symbols)

TA 5620

Simple line drawing of a flatboard with a slice of bread on a plate, no text or symbols present.

7 1 2

8 Φ IS ×

9

10 1 2

11

12

Technical line drawing of two electrical connectors with internal grid patterns (no text or symbols)

14 1 2

1 2 ×

16

Line drawing of a toaster with a plate of food underneath (no text or symbols)

18 ↑ 1 2

19

1

Illustration of a hand cleaning a rectangular object with a sponge (no text or symbols)

Diagram showing a device emitting red triangular arrows into a slot (no text or symbols)

Illustration of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

Diagram showing a red arrow pointing to a device component with a black tip, no text or symbols present

6

DE	BETRIEB REINIGUNG UND PFLEGE
EN	OPERATION CLEANING AND CARE
TR	KULLANIM TEMIZLEME VE BAKIM
FR	FONCTIONNEMENT NETTOYAGE ET ENTRETIEN
ES	FUNCIONAMIENTO LIMPIEZA Y CUIDADOS
HR	RAD ČIŠĆENJE I ODRŽAVANJE
FI	KÄYTTÖ PUHDISTUS JA HUOLTO
NO	DRIFT RENGJ∅RING OG VEDLIKEHOLD
NL	WERKING REINIGING EN ONDERHOUD
DA	BETJENING RENG∅RING OG VEDLIGEHOLDELSE
SV	ANVÄNDNING RENGÖRING OCH SKÖTSEL
RO	UTILIZARE CURĂ AREA ȘI ÎNGRIJIREA
EL	ΛΕΙΤΟΥΡΓΙΑ ΚΑΘΑΡΙΣΜΟΣ ΚΑΙ ΦΡΟΝΤΙΔΑ
PL	OBSŁUGA	CZYSZCZENIE I KONSERWACJA

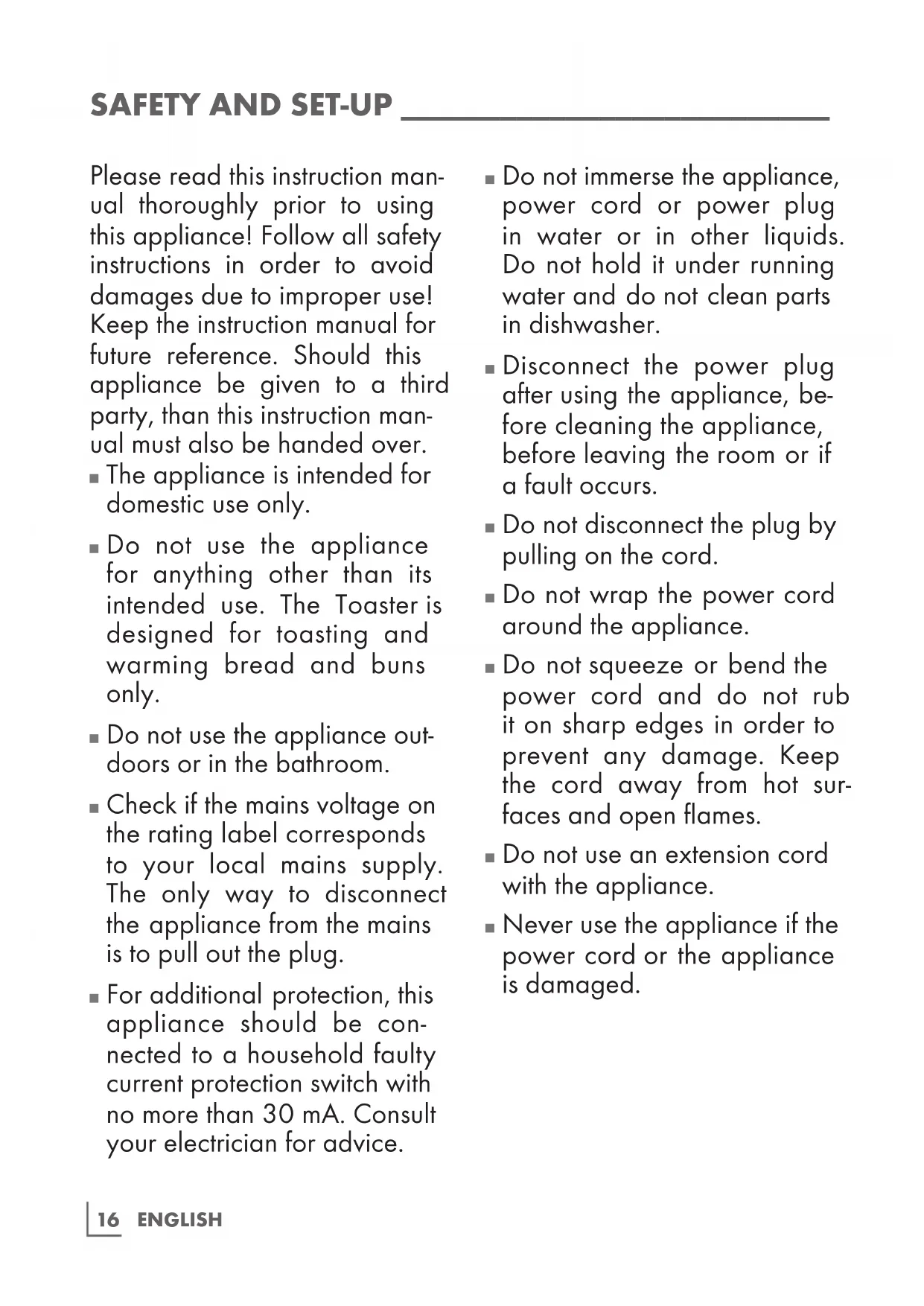

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use! Keep the instruction manual for future reference. Should this appliance be given to a third party, than this instruction manual must also be handed over.

■ The appliance is intended for domestic use only.
- Do not use the appliance for anything other than its intended use. The Toaster is designed for toasting and warming bread and buns only.
■ Do not use the appliance outdoors or in the bathroom.
- Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.
■ For additional protection, this appliance should be connected to a household faulty current protection switch with no more than 30 mA. Consult your electrician for advice.

■ Do not immerse the appliance, power cord or power plug in water or in other liquids. Do not hold it under running water and do not clean parts in dishwasher.
■ Disconnect the power plug after using the appliance, before cleaning the appliance, before leaving the room or if a fault occurs.
■ Do not disconnect the plug by pulling on the cord.
■ Do not wrap the power cord around the appliance.
- Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.
■ Do not use an extension cord with the appliance.
■ Never use the appliance if the power cord or the appliance is damaged.

• Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service centre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.
  ■ Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
  ■ Always keep the appliance out of the reach of children.
  ■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ The appliance should not be used by the following persons, including children: those with limited physical, sensory or mental capabilities and also those with a lack of experience and knowledge. This does not apply to the latter if they were instructed in the use of the appliance or if they use it under the supervision of a person responsible for their safety.

■ Children should always be supervised to ensure that they do not play with the appliance.
■ Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children aged less than 8 years.
- Do not leave the appliance unattended while it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.

■ Before using the appliance for the first time, clean all parts. Please see details in the "Cleaning and care" section.
■ Dry the appliance and all parts before connecting it to mains supply and before attaching the parts.
■ Never operate or place any part of this appliance on or near to hot surfaces such as gas burner, hotplate or heated oven.
■ The bread can catch fire because of overheating. Never use the appliance in or near to combustible, inflammable places, materials and furniture. Do not let the appliance come into contact with or become covered by inflammable materials such as curtains, textiles, walls, etc.
■ Do not use paper, cardboard, plastic in or under the appliance.
■ Use bread slices which are suitable for the bread slots.
■ Operate the appliance with delivered parts only.
■ Do not use the appliance with damp or wet hands.

■ Always use the appliance on a stable, flat, clean, dry and non-slip surface.
■ Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
■ Position the appliance in such a way that the plug is always accessible.
■ Avoid contacting hot surfaces as the outer casing becomes warm during use. There is the danger of burning.
■ Do not stick any foreign objects onto the appliance.
■ This appliance must not be operated with an external clock timer or separate remote control system.
■ When using for the first time, smoke can develop due to production residues. However, this does not mean the appliance is defective. The first time you switch it on, use the appliance as you normally would, but without bread. Ensure for proper room ventilation.

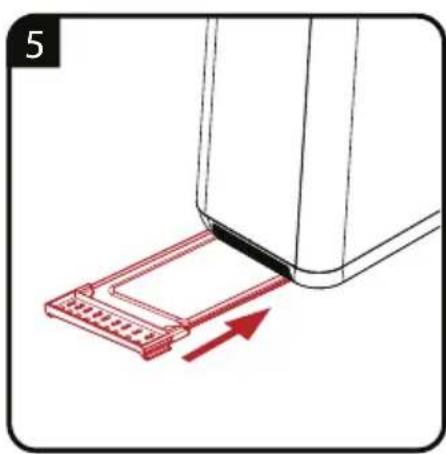

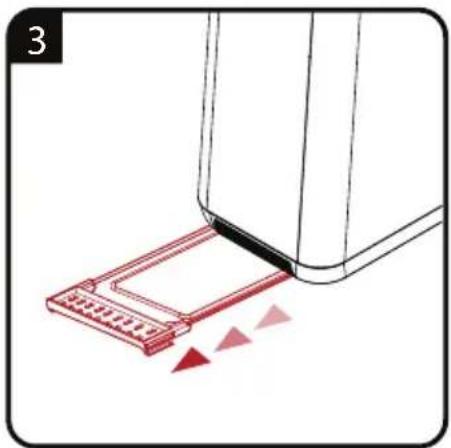

■ To avoid the risk of fire, frequently remove crumbs from crumb tray.
■ Do not use the toaster without the crumb tray in place.
■ Do not use this product with any foodstuff product containing sugar or with products containing jam or preserves.
- Do not toast the bread with extremely runny ingredients such as butter.
- Do not attempt to extract any jammed toast, muffins, bagels, bread or any other item with a knife or any other object, as contact with live elements may cause electric shock.
■ If the toaster begins to emit smoke during operation, immediately stop the toasting process. Should bread get stuck in the toaster, unplug the appliance before you pull out the bread. Be careful the bread may be very hot.
■ The toaster can only be switched on when the plug is connected to a wall socket.

■ Do not use any tools or objects in the appliance. Metal objects could cause short circuits or electric shock. Do not damage the heating elements and mechanics.
■ Do not use the appliance as a source of heat.
■ Do not attempt to dislodge bread when the appliance is switched on.

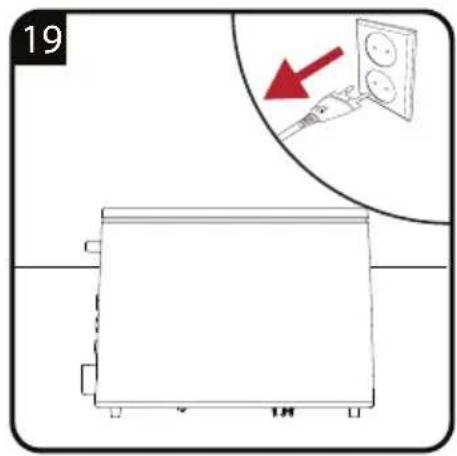

■ Always unplug from the wall socket when not in use and before cleaning.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Stainless Steel Toaster TA 5620.

Please read the following user notes carefully to ensure you can enjoy your quality product from GRUNDIG for many years to come.

A responsible approach!

GRUNDIG focusses on contractually agreed social working conditions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials

with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our accessories are available for at least 5 years.

For a future worth living.

Grundig.

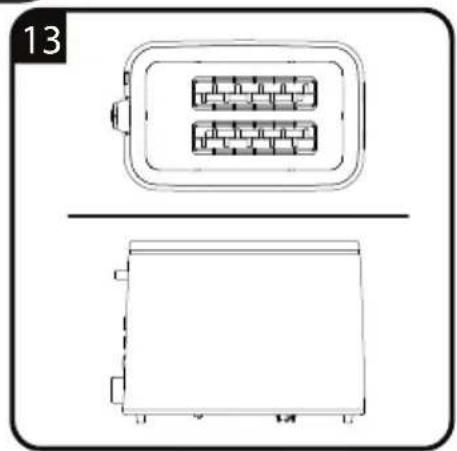

Controls and parts

See the figure on page 3.

A Bread slot
B Start lever
C Crumb tray
D Browning control
E Stop button

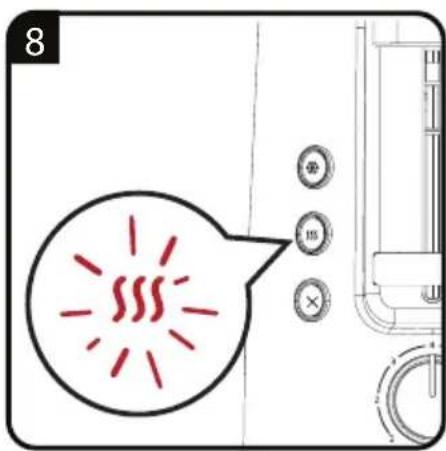

F Reheat button
G Defrost button
H Housing

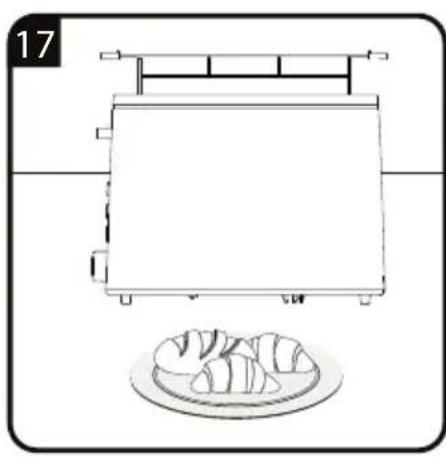

Warming rack

Notes

• When using the appliance for the first time, smoke can develop due to production residues. However, this does not mean the appliance is defective. The first time you switch it on use the appliance as you normally would but without bread. It is recommended to use the medium setting of the browning control D to burn in. Ensure for proper room ventilation.

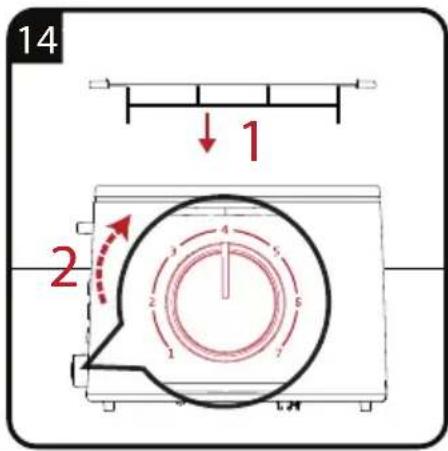

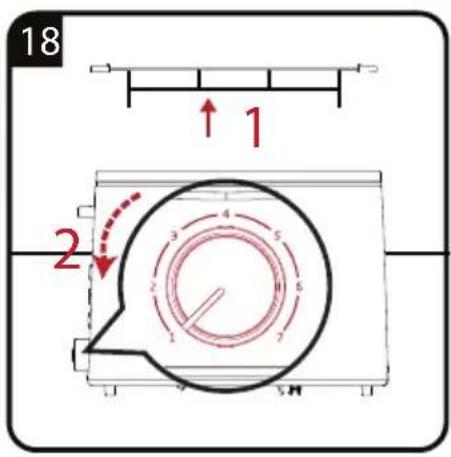

  ■ Turning the browning control D to 1 will give the lightest degree of browning and turning it to 7 the darkest. The browning degree can vary depending on the type of bread.
• When toasting several slices of bread consecutively, the toaster will become hotter and therefore the bread will gradually become darker. Therefore select an appropriate browning degree. Let the toaster cool down after each toasting process for minimum 30 seconds.
  ■ The degree of browning of one slice is darker than two slices, although the browning control D is set to the same level.

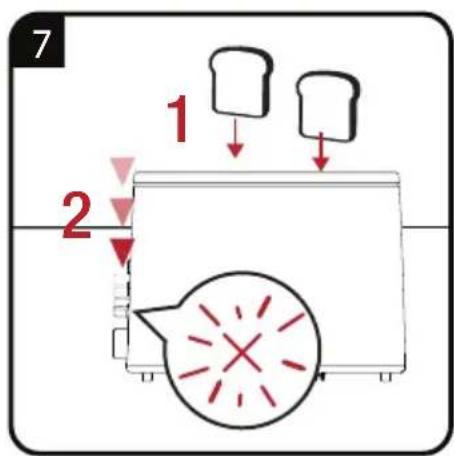

  If the power plug is not connected into the wall socket, the start lever B does not snap into place.
  ■ The degree of browning can also be adjusted during the toasting process with the browning control D.
  To cancel the toasting process before it has finished, press the stop button E. The start lever B springs back up and the toast slices can be taken out of the toaster.

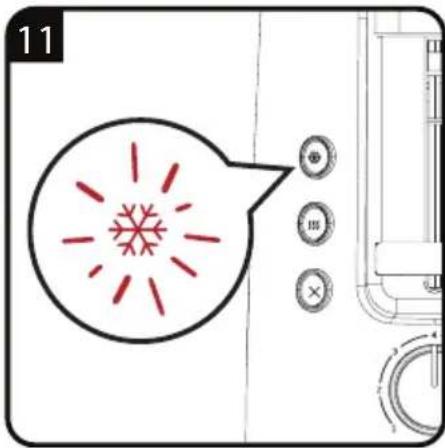

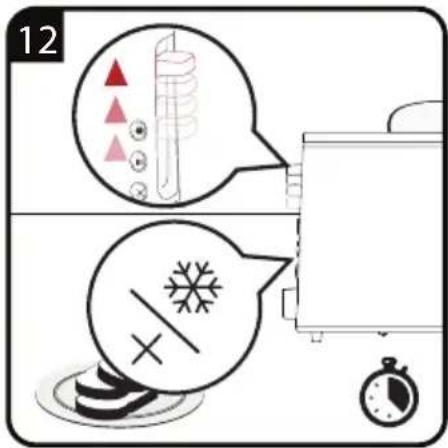

• When the defrost button G is pressed, the toasting process takes longer than with normal toasting.

Caution

- Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.

If toast slices get stuck in the toaster, switch the toaster off immediately by pressing the stop button E. Pull the power plug out of the wall socket. Let the toaster cool down completely. Carefully try to take the bread out of the toaster without damaging the sensitive heating elements and other parts. Do not use any electroconductive objects to remove the bread from the toaster.

Notes

• Do not toast bread and warm up buns at the same time.
• Do not warm up toast slices on the warming rack ☐. The toast slices hinder sufficient ventilation.

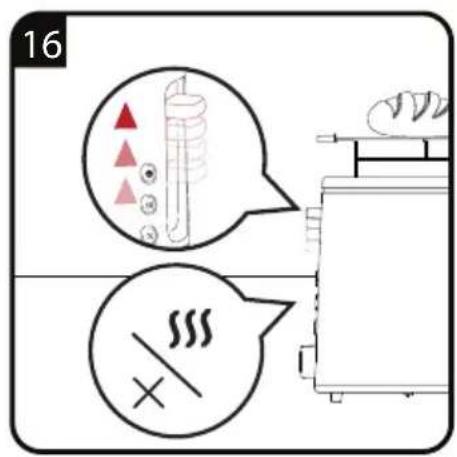

  If you accidentally activate the wrong mode (defrost instead of reheat or reheat instead of defrost), then the selected mode must be cancelled first by pressing the stop button E before you can select the right mode.

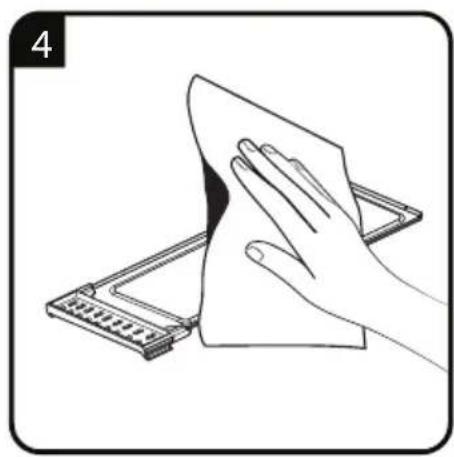

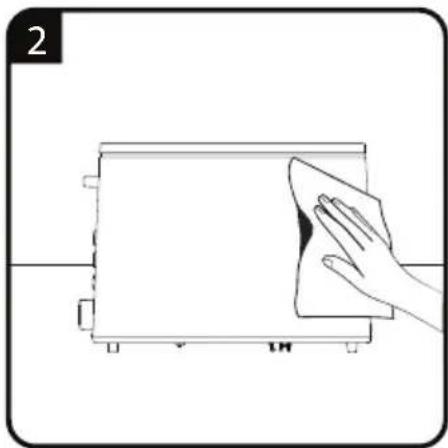

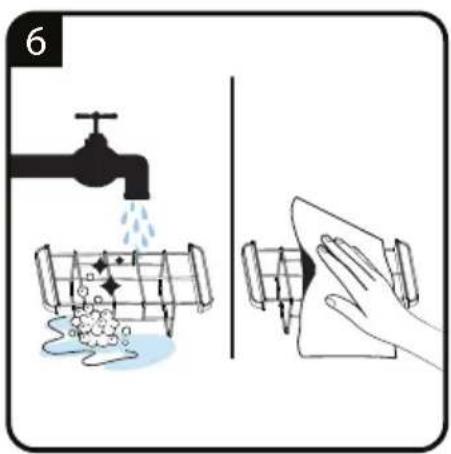

Cleaning and care

Caution

■ Never use petrol, solvents or abrasive cleaners, metal objects or hard brushes to clean the appliance.
■ Never put the appliance or power cord in water or any other liquids.

Note

■ Before using the appliance after cleaning, dry all parts carefully using a soft towel.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully.

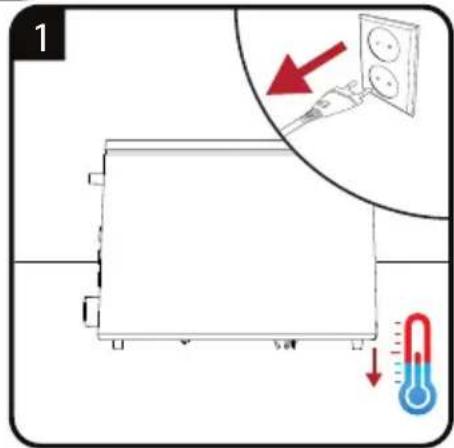

■ Make sure the appliance is unplugged, cooled down and completely dry.

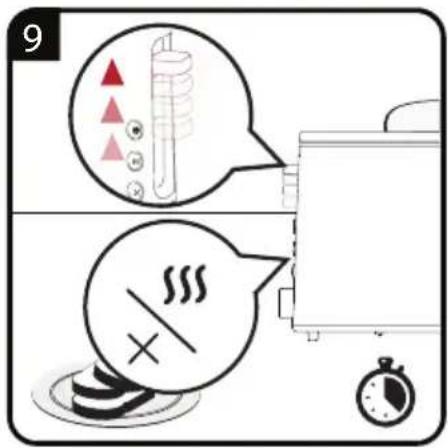

- Wrap the power cord around the cable coil on the bottom of the toaster.
■ Store the appliance in a cool, dry place.
■ Make sure the appliance is kept out of the reach of children.

Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Power supply: 220-240 V\~, 50-60 Hz

Power: 720-850 W

Technical and design modifications reserved.

For commissioning, general use and cleaning, please observe the instructions on pages 4-6 of this operating manual.
