CVMA 70 W - Basket CANDY - Free user manual and instructions

Brand	Candy
Model	CVMA 70 W
Product type	Wall-mounted decorative hood
Width	70 cm
Minimum installation height	65 cm above the cooking surface
Maximum installation height	75 cm above the cooking surface
Weight	About 12 kg (estimated)
Power supply	220-240 V, 50 Hz (standard)
Motor power	Not specified, powerful centrifugal motor
Number of speeds	3 speeds + booster function (5 minutes)
Lighting	LED, max 1.5 W (not individually replaceable)
Grease filter type	Washable metal filter (monthly cleaning)
Charcoal filter type	Activated charcoal filter (annual replacement, for recirculation mode)
Extraction mode	External extraction (duct Ø150 mm) or recirculation
Booster function	Yes, maximum speed for 5 minutes
Noise level	Not specified, operation with moderate noise
Materials	Stainless steel and glass
Repairability	LED bulbs not individually replaceable (cable + sockets unit)
Warranty	Standard according to country (not specified in manual)
Use	Household use only, do not use for barbecue

Frequently Asked Questions - CVMA 70 W CANDY

How to install the Candy CVMA 70 W hood?

Installation must be carried out by a qualified person. The hood must be placed at a distance of 65 to 75 cm above the cooking surface. Follow the steps in the manual: attach the wall bracket, assemble the chimney pipes, and connect the exhaust duct (Ø150 mm) if using external extraction mode. For recirculation mode, install the activated charcoal filters.

How often should I clean the hood filters?

The metal grease filter must be cleaned every month with a household cleaner to avoid fire risks. The activated charcoal filter (if used in recirculation mode) must be replaced every year.

How do I change the LED bulb of the hood?

Unplug the appliance. Remove the screws on the glass panel and take it off. The LED bulbs are not individually replaceable; you must replace the cable, sockets, and bulbs unit. Reinstall the glass panel and tighten the screws.

What to do if the hood does not work at all?

First check that the power cord is plugged in. If the lighting works but the ventilation does not, the turbine may be blocked or the motor damaged. Turn off the appliance and contact a professional.

The hood vibrates strongly, what should I do?

This may be due to a stuck turbine, a loose motor, or incorrect installation. Check that the unit is properly fastened to the wall bracket. If the problem persists, call a professional.

How to activate the booster function?

Press the maximum speed button (button 4) while the hood is running. The hood will operate at maximum power for 5 minutes, then return to the previous speed.

What is the ideal height for installing the hood above a stove?

The hood should be installed at a height of 65 to 75 cm above the cooking surface for optimal efficiency.

Can I use the hood for a barbecue?

No, this hood is designed for household use only and should not be used for barbecues, rotisseries, or similar activities.

How to clean the exterior of the hood?

Use a soft damp cloth with a non-abrasive cleaning product. Never use scouring powder, scrapers, or aggressive chemicals.

Where can I find the serial number of my Candy CVMA 70 W hood?

The serial number (16 digits starting with 3) is on the warranty certificate or on the appliance itself. It is useful for consumer service.

USER MANUAL CVMA 70 W CANDY

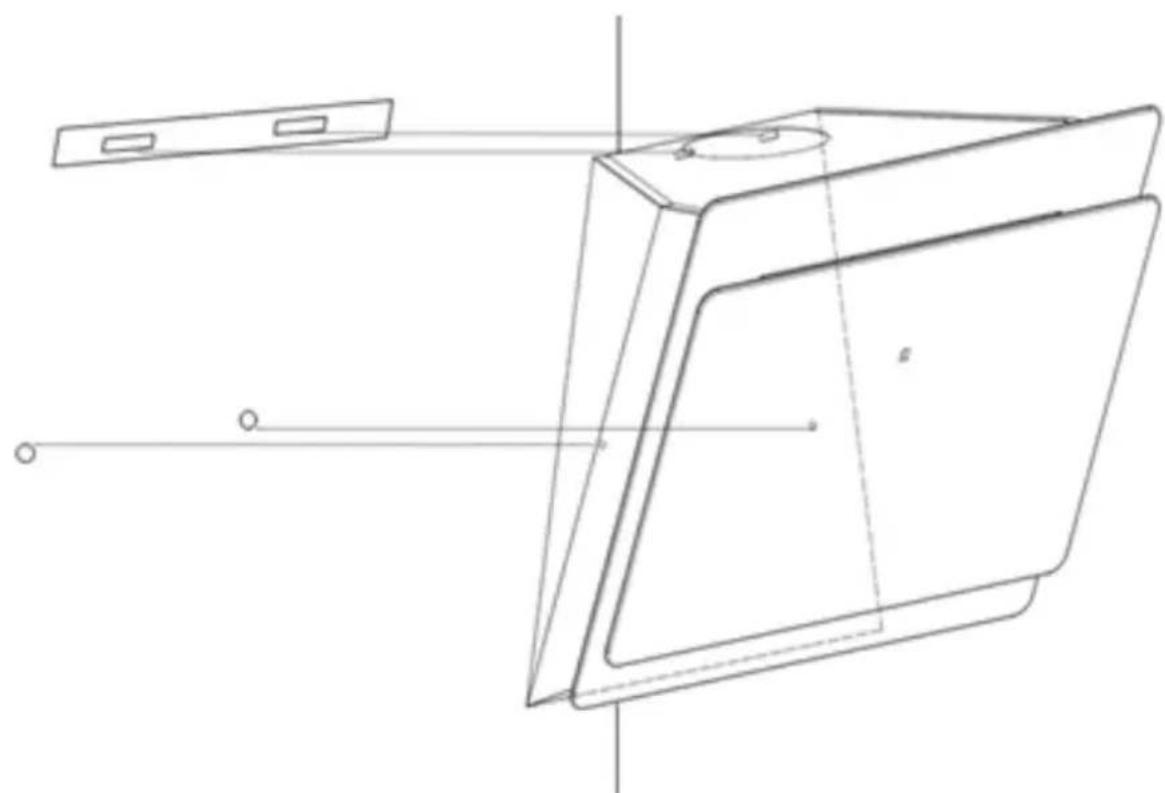

Zanagnutipanel model

• potrebno izbušiti 2x8mm dodatne rupe i pričvrsne vijke i zaporne vrijke prije ugradnje

1. Podignite napu i objesite je na zidni nosač pomócu kuke.

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 29

SAFETY PRECAUTION 29

SPECIFICATION 31

INSTALLATION (VENT OUTSIDE) 32

INSTALLATION (VENT INSIDE) 36

DESCRIPTION OF COMPONENTS 37

OPERATION 38

MAINTENANCE 38

TROBULESHOOTING 39

CONFORMITY WITH DIRECTIVES 40

ENVIRONMENTAL PROTECTION 40

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlin design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter are easy assembly installation.

By placing the marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

SAFETY PRECAUTION

Never let the children operate the machine.

The cooker hood is for home use only, not suitable for barbecue, no shop and other commercial purpose.

The cooker hood and its filter should be clean regularly in order to keep in good working condition.

Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.

Forbid the direct baking from the gas cooker.

Please keep the kitchen room a good convection.

Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.

There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;

he air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;

Regulations concerning the discharge of air have to be fulfilled.

This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.

Children should be supervised to ensure that they do not play with appliance.

Do not flambé under the range hood.

The range hood is not intended to be installed over a hob having than four hob elements

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2

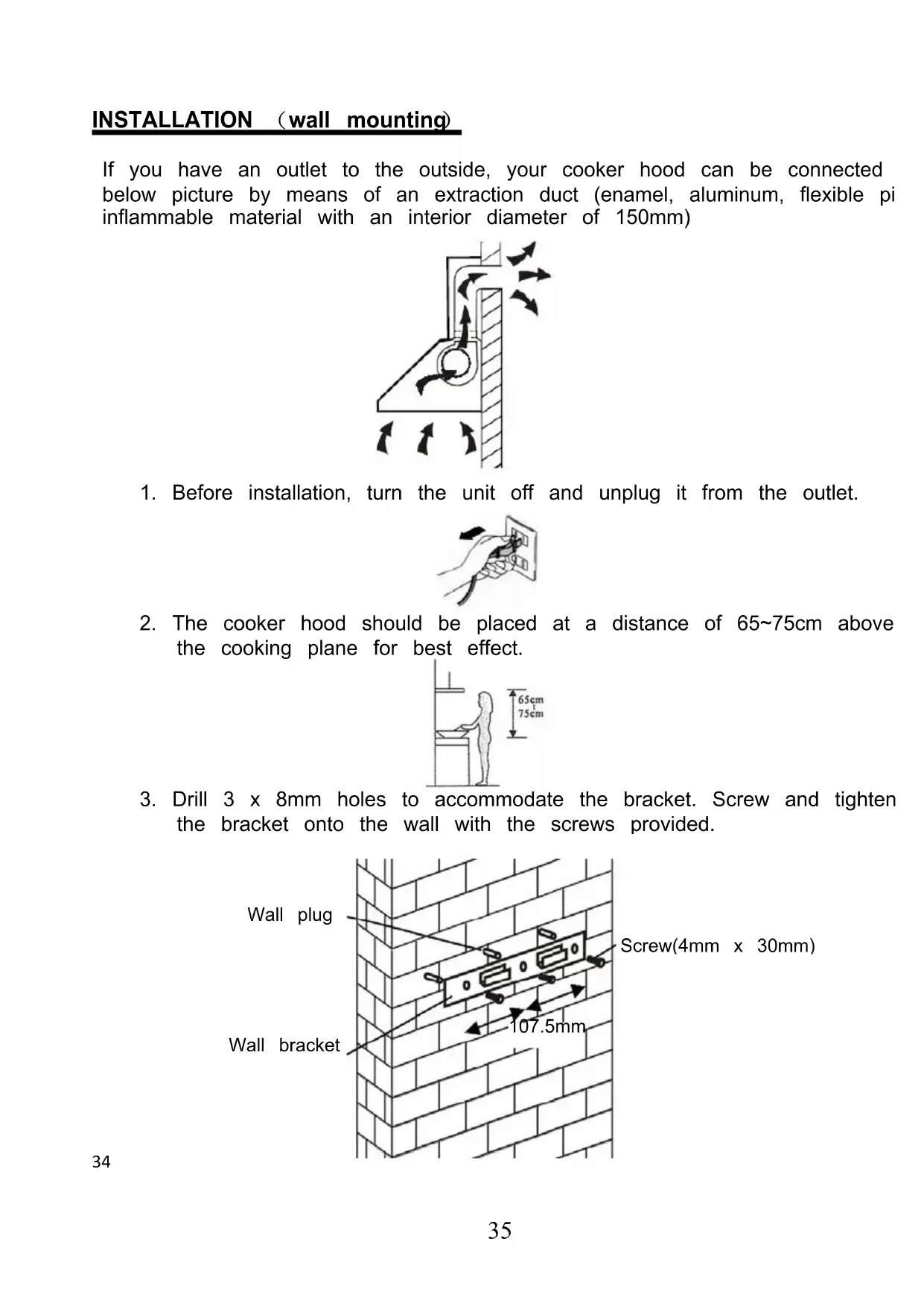

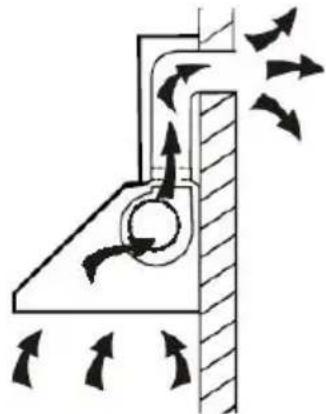

If you have an outlet to the outside, your cooker hood can be connected below picture by means of an extraction duct (enamel, aluminum, flexible pi inflammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65 75cm above the cooking plane for best effect.

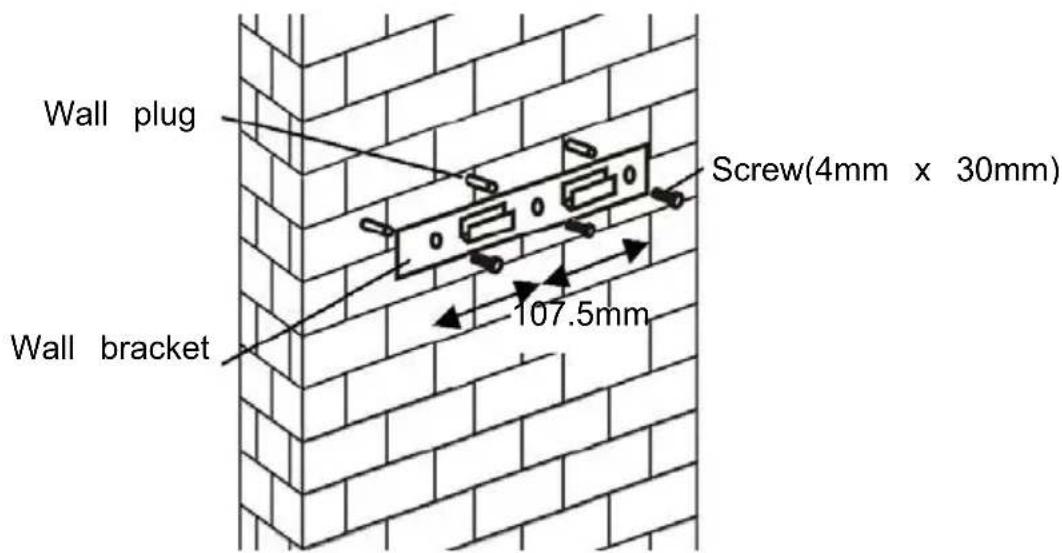

1. Drill 3 × 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

For inclined panel Model

• eed to drill 2x8mm extra holes & fixing screws & screw plugs before installation. Voor schuine modellen

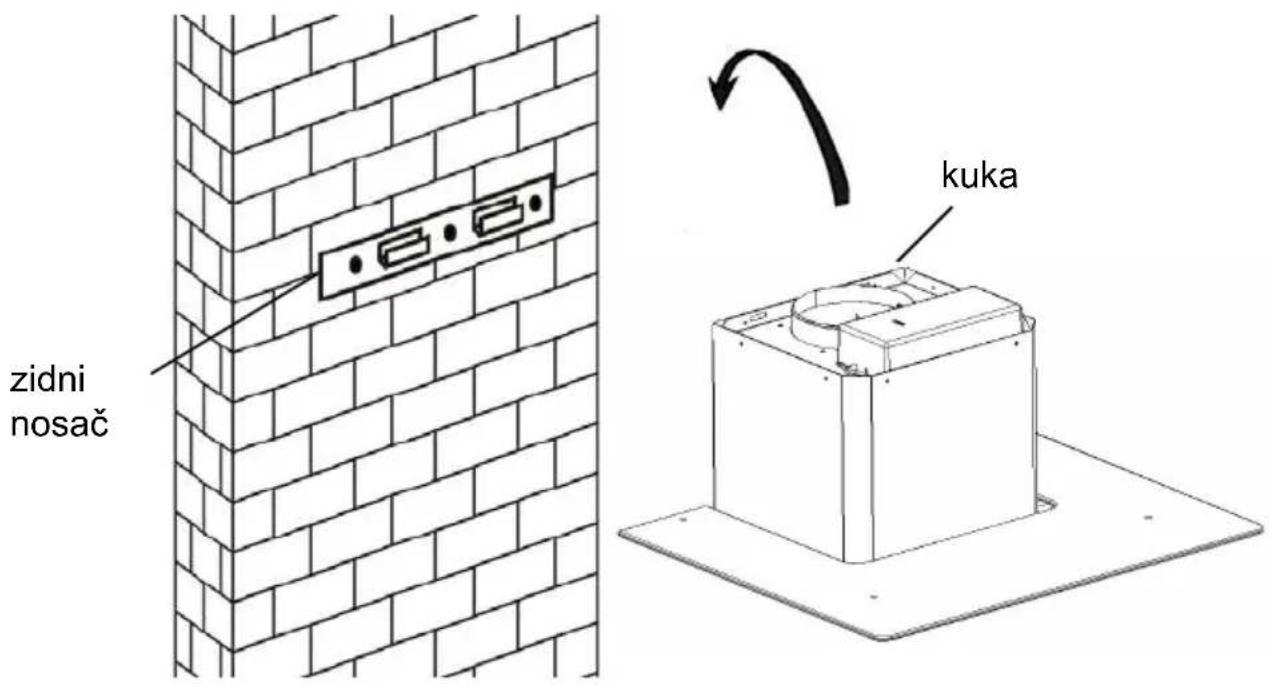

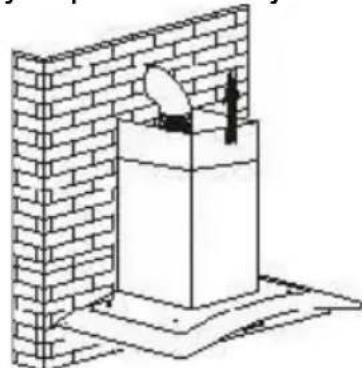

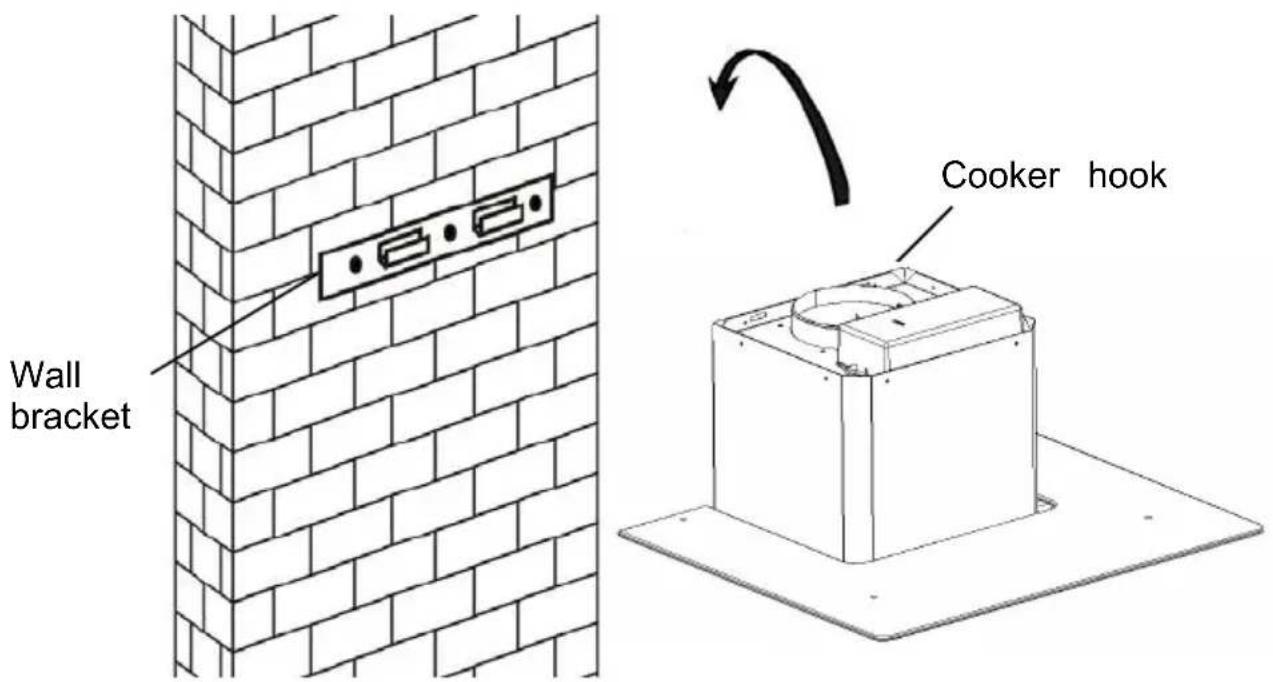

1. Leave up the cooker hood and hang onto the wall bracket hook.

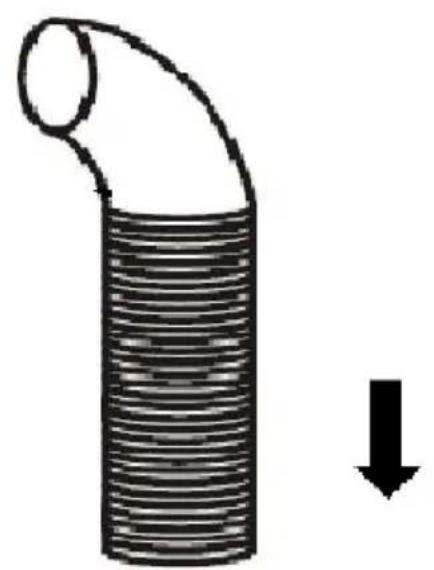

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe
Cooker hood

6.

i. Place the glass in appropriate position on the top the cooker hood

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

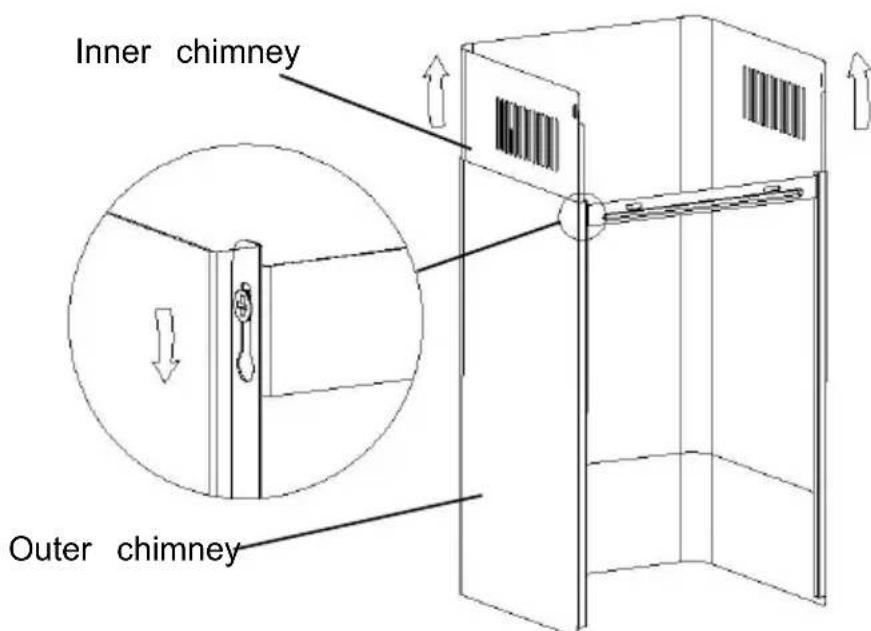

i. By Put the inner chimney into outer chimney .Then pulling out the inner chimney upwards. Adjust to reach the height required

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the screws as showed in below pictures.

8.

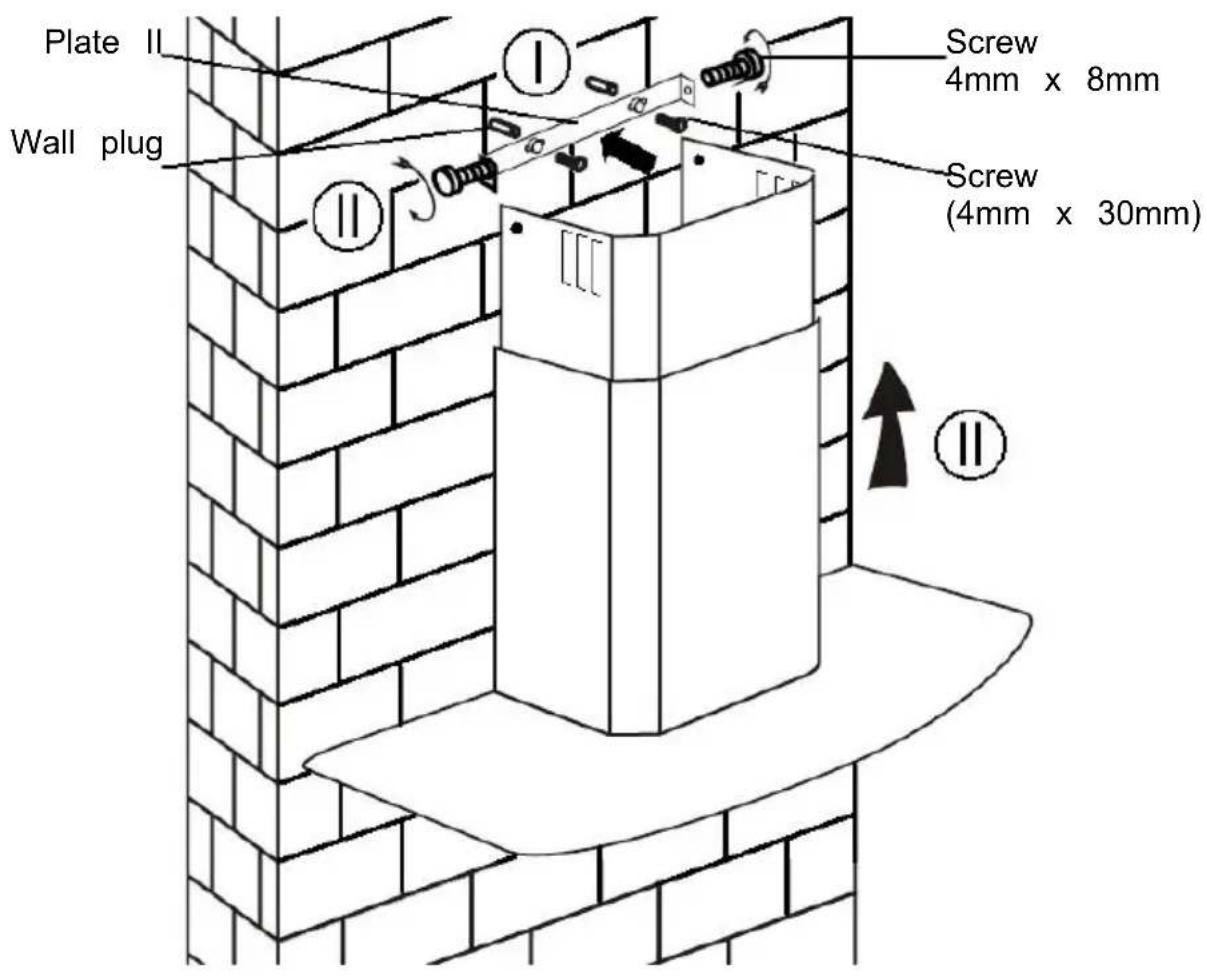

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)

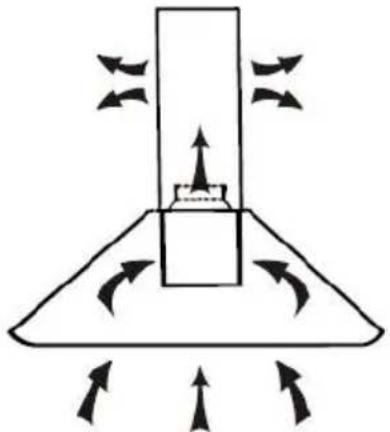

If you do not have an outlet to the outside, exhaust pipe is not required. The installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
o When activated carbon filter attached, the suction power will be lowere

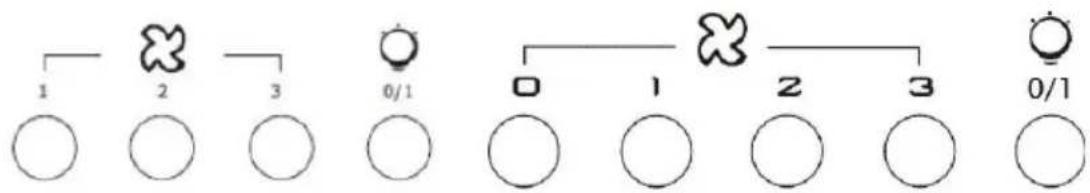

DESCRIPTION OF COMPONENTS

OPERATION

Low Speed button31

It's used for Ventilation on the kitchen. It is suitable for simmering and cooling which do not make much steam.

Medium Speed button32

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button3

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time unit will only operate at the highest speed.

On/Off button

It's used for turning on/off the fan.

• Speed plus button

For increasing the speed of the fan

Speed decrease button

For decreasing the speed of the fan.

Light button

Digital display

Fan speed display:"1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press & hold for 1 second, Digital display will flashing & into 5 minutes count down, after 5 minutes motor & will turn off automatic & Buzzer sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, Press + to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair qualified service personnel only.
	The motor is damaged
Both light and fan do not work	Halogen light bulb bur	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply ag
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair b qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair i qualified service personnel only.
	The unit is not hung properly on the bracke	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75c

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
