CTS9CX - Range hood CANDY - Free user manual and instructions

Product Type	Cooker Hood
Brand	Candy
Model	CTS9CX
Width	90 cm
Depth	50 cm
Height (Min-Max)	60-110 cm
Weight	12 kg
Maximum Extraction Rate	650 m³/h
Noise Level (Max Speed)	65 dB(A)
Energy Class	A+
Annual Energy Consumption	35 kWh
Lighting Type	LED
Number of Lights	2
Lighting Power	3 W
Controls	Electronic Push Buttons
Number of Speeds	3 + Intensive
Filter Type	Aluminum Grease Filter
Carbon Filter Included	No (Optional)
Ducted / Recirculation	Ducted (Recirculation Possible)
Motor Power	220 W
Voltage	220-240 V / 50 Hz
Installation Type	Wall-Mounted Chimney
Material	Stainless Steel & Glass
Color	Stainless Steel
Warranty	2 Years

Frequently Asked Questions - CTS9CX CANDY

How do I install the Candy CTS9CX cooker hood?

Installation should be carried out by a qualified professional. Ensure the hood is mounted at the recommended height above the hob (65-75 cm for electric, 65-75 cm for gas) and that the ducting is properly connected for extraction. Refer to the manual for detailed steps.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2-3 months, or more frequently with heavy use. Wash it by hand with warm soapy water or in the dishwasher at low temperature, and let it dry completely before reinstalling.

Can I use the hood without a carbon filter?

Yes, the hood can be used in extraction mode (ducted to outside) without a carbon filter. The carbon filter is only required for recirculation mode to absorb odors.

What is the maximum noise level?

The noise level at maximum speed is approximately 65 dB(A), which is comparable to normal conversation. Lower speeds are quieter.

How do I replace the carbon filter?

For recirculation mode, replace the carbon filter every 3-6 months. Open the filter cover, remove the old filter, insert a new one (model specific), and close the cover. Ensure the filter is correctly positioned.

What type of lighting does the hood use?

The hood features 2 LED lights with a total power of 3 W. LED lights are energy-efficient and long-lasting; if replacement is needed, contact support for compatible parts.

Can I control the hood remotely?

No, the Candy CTS9CX does not come with remote control. It is operated via electronic push buttons on the front panel.

What should I do if the hood is not extracting properly?

Check if the grease filter is clogged and clean it. Ensure the ducting is not blocked or kinked. Also verify that the carbon filter (if used) is not saturated. If issues persist, contact a technician.

Is the hood suitable for use over a gas hob?

Yes, the hood is suitable for both electric and gas hobs. Ensure the minimum distance from the hob surface is followed (at least 65 cm for gas) to comply with safety regulations.

How do I reset the filter saturation indicator?

After cleaning or replacing the filters, press and hold the reset button (if available) for 3 seconds, or follow the specific procedure in the manual. The indicator light should turn off.

USER MANUAL CTS9CX CANDY

Content

1. Safety instructions 2....Installation 3....Start using your cooker hood 4....Troubleshooting 5....Maintenance and cleaning 6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood. Please read it carefully before using, even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy! ● Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire. ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use. ● Do not flambé under the cooker hood. ● CAUTION: Accessible parts may become hot when used with cooking appliances. ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm) ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement. ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed. ● All installation work must be carried out by a competent person or qualified electrician. ● Please dispose of the packing material carefully. Children are vulnerable to it. ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning. ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood. ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards. ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker. - When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam. ● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision. ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels. ● There is a fire risk if cleaning is not carried out in accordance with the instructions. ● Regulations concerning the discharge of air have to be fulfilled. ● Clean your appliance periodically by following the method given in the chapter MAINTENANCE. ● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual. ● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual. ● Cleaning and user maintenance shall not be made by children without supervision. - When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar). ● WARNING: Danger of fire: do not store items on the cooking surfaces. ● A steam cleaner is not to be used. ● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket

INSTALLATION (VENT OUTSIDE)

MOUNTING OF THE V-FLAP

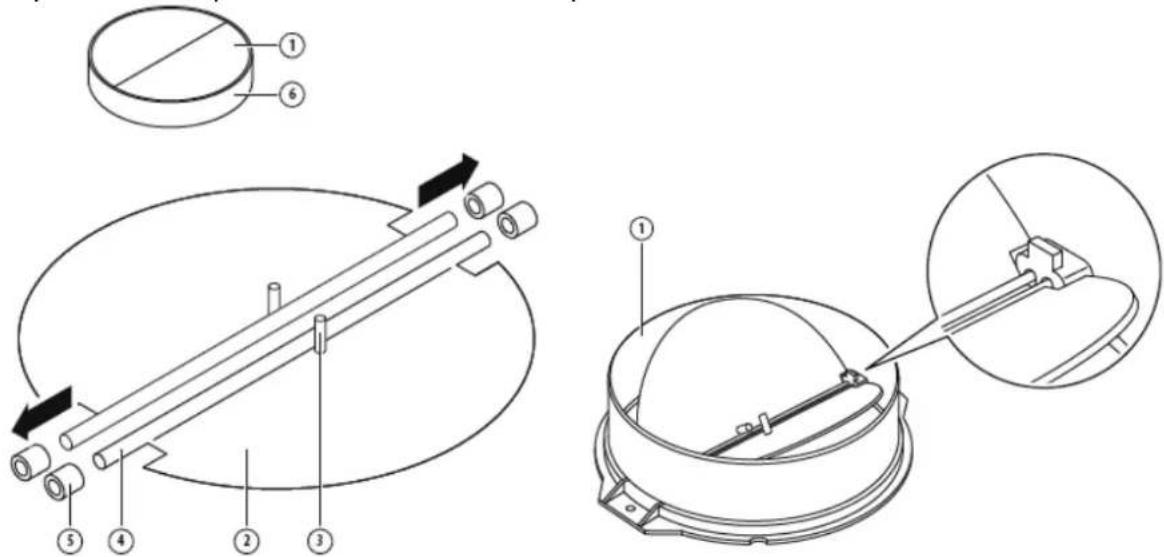

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, because the outlet may vary according to different models and configurations.

To mount the V-flap 1 you should:

• Mount two half-parts 2 into the body 6 • the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

1. The cooker hood should be placed at a distance of 65~75cm above the cooking surface for best effect.
2. Before installation, turn the unit off.

Pic 1

hook Pic 2

1. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed position of the inside chimney bracket is the place of highest chimney. See pic 2.
2. Install the v-flap (not included) and expansion pipe (not included) on the cooker hood. Note: The expansion pipe is not included in the product. Put the cooker hood on to the hook. See pic 3 & pic 4.

Pic 4

1. Fix the outside chimney bracket on the outside chimney with 2 ST4*8mm screws, and be sure that the inside chimney can be adjusted the height in it freely. Meanwhile lead the expansion pipe to outdoor. See Pic 5 & Pic 6.

Pic 5

Pic 6

1. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it with screws, after adjusting the position, fix the body with safety screws. Note: The two safety vents are positioned on the back housing, with a diameter of 6mm. See pic 7.

Pic 7

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize pressure loss.

- Failure to observe these basic instructions will reduce the performance and increase noise levels of the cooker hood.

- Any installation work must be carried out by a qualified electrician or competent person.

- Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.

- The angle of the bend of the expansion pipe should not be less than 120° ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

- After the installation, make sure that the cooker hood is level to avoid grease collection at on end.

- Ensure the expansion pipe selected for installation complies with relevant standards and is fire retardant.

Right

Wrong

WARNING:

For safety reasons, please use only the same size of fixing or mounting screws as recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

LED touch control

Timer

Lamp

Speed

Power

1. Press the "Power" button; this button controls the "on" and "off" of the hood.
2. Press the "Speed" button repeatedly; the motor runs at low / mid / high / low / mid... in a cycle, and the LED display will indicate 1-2-3-1-2... cyclically.
3. Press the "Lamp" button to turn the light on; press it again to turn the light off. Note that the lamp is not controlled by the on/off button.
4. When the hood is working, if you press the "Timer" button, the hood will enter the default working mode (default time is 9 minutes), and the LED display will show 9, 8, 7, 6... decreasing by 1. When the time is up, the hood will turn off automatically and the lamp will extinguish. Pressing the "Timer" button again will toggle the timer function on or off.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off Select a fan switch position.
	Fan switch failed Contact service center.
	Motor failed Contact service center.
Light does not work, motor does not work	House fuses blown Reset/Replace fuses.
	Mains power cable is loose or disconnected	Refit mains power cable to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working Broken or faulty bulbs		Replace blubs as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw is not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

• Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the mains power supply. Ensure that the cooker hood is switched off at the wall socket.
• External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure a long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Use neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appearance of the appliance and potentially remove any printing of artwork on the control panel and will void manufacturer's warranty.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with a mild detergent and then brush them gently with a soft brush. Do not apply too much pressure so as to avoid any damage to them. (Leave to dry naturally out of direct sunlight)

Filters should be washed separately from crockery and kitchen utensils. It is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters, follow the following four steps: - Angle the filter into the slots at the back of the hood. - Push the button on the handle of the filter. - Release the handle once the filter fits into a resting position. - Repeat to install all filters.

CARBON FILTER - not supplied

Activated carbon filters can be used to trap odors. Normally, the activated carbon filter should be changed every 3 to 6 months according to your cooking habits. The installation procedure of the activated carbon filter is as below:

1. Before installing or replacing the carbon filters, disconnect the mains power to the unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the carbon filters with new ones.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.

NOTE:

• Make sure the filter is securely locked. Otherwise, it could loosen and cause danger.
• When the activated carbon filter is attached, the suction power will be reduced.

BULB REPLACEMENT

Important:

The bulb must be replaced by the manufacturer, its service agent, or similarly qualified persons. Always switch off the electricity supply before carrying out any operations on the appliance. When handling the bulb, make sure it has completely cooled down before any direct contact with hands. When handling bulbs, hold them with a cloth or gloves to ensure perspiration does not come into contact with the bulb, as this can reduce the life of the bulb.

Note:

• Before replacing the light, ensure that the cooker hood can be isolated from the supply mains by means of a plug or an all-pole switch.
• Protect against danger when changing lights, such as wearing gloves.

Changing the lights:

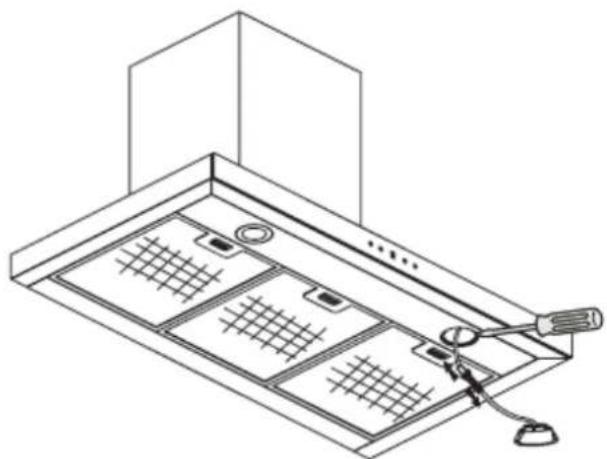

Remove the grease filter. Use a tool or your hand to press the spring splinter on both sides of the LED light inward until the light is pressed out (see Pic 1). Then slightly pull the light connecting wire out and disconnect the terminal of the light connecting wire (see Pic 2). Apply the reverse procedure to install the light back. • ILCOS D code for this lamp is: DSR-1.5/65-S-64 - LED modules - round lamp - Max wattage: 2×1.5 W - Voltage range: DC 12V - Dimensions:

Pic 1

Pic 2

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol for selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment. Electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process.

(1) Install the cooker hood in a proper place where there is efficient ventilation. (2) Clean the cooker hood regularly so as not to block the airway. (3) Remember to switch off the cooker hood light after cooking. (4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with your Local Authority or retainer for recycling advice.
