Product type	Cooker hood
Brand	Candy
Model	CTS6CBP8XWIFI
Power supply	220-240 V ~ 50/60 Hz, class I
Recommended fuse	3 A
Installation distance	65-75 cm above the cooking hob
Exhaust duct diameter	150 mm
Main functions	4 speeds, Booster function (5 min), 5 min timer, LED lighting, built-in Wi-Fi
Compatible app	hOn (iOS and Android)
Wireless connectivity	Wi-Fi 802.11 b/g/n, 2.4 GHz, max power 100 mW
Network standby consumption	2 W
Grease filter type	Dishwasher-safe non-stick metal filter
Activated carbon filter	Optional, for recirculation, replace at least once a year
Lighting	LED, 1.5 W max, not individually replaceable (complete assembly bulb + holder + wiring)
Cleaning	Grease filter every month; carbon filter every year; exterior with soft cloth
Usage	Household use only, not for barbecue or commercial use
Safety	Grounding mandatory; do not flambé under the hood; ventilation required with gas appliances
Standards	Directive 2014/53/EU (radio equipment), UKCA
After-sales service	Contact Candy with the serial number (16 digits starting with 3)
Recycling	Compliant with WEEE 2012/19/EU, do not dispose with household waste

Frequently Asked Questions - CTS6CBP8XWIFI CANDY

What is the recommended distance between the hood and the cooking hob?

The optimal distance is 65 to 75 cm above the cooking hob for best performance.

How to install the hood in recirculation mode (without external exhaust)?

For installation without external outlet, use activated carbon filters (not supplied). Install them after removing the grease filter, turning clockwise until locked.

How to clean the grease filter?

Clean the grease filter every month with household detergent or in the dishwasher. A clogged filter may present a fire hazard.

How to replace the LED lighting?

The LED bulb is not individually replaceable. You must order the complete assembly (bulb + holder + wiring). Remove the glass, disconnect the old assembly and install the new one.

How to connect the hood to the hOn app?

Download the hOn app, create an account, then press and hold the Wi-Fi button on the hood until the icon flashes. Follow the instructions in the app to complete pairing.

What to do if the hood vibrates a lot?

Check that the hood is securely fixed to the wall and the screws are tight. If the fan blade is damaged or the motor is loose, contact after-sales service.

How to activate the Booster function?

Press the + button until reaching speed 4. The hood then operates at full power for 5 minutes, then automatically returns to the previous speed.

Can I use the hood without external exhaust?

Yes, in recirculation mode. You must install activated carbon filters to absorb odors. Note that the extraction power will be reduced.

What is the standby procedure with the timer?

Press the + and - buttons simultaneously for 1 second. The display blinks and the hood turns off automatically after 5 minutes.

Where to find the serial number for after-sales service?

The serial number is a 16-digit code starting with 3. It is on the warranty certificate and on the appliance rating plate.

USER MANUAL CTS6CBP8XWIFI CANDY

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 2

SAFETY PRECAUTION 2

SPECIFICATION 5

INSTALLATION (VENT OUTSIDE) 6

INSTALLATION (VENT INSIDE) 11

DESCRIPTION OF COMPONENTS 15

OPERATION 15

MAINTENANCE 17

TROUBLESHOOTING 18

CONFORMITY WITH DIRECTIVES 19

ENVIRONMENTAL PROTECTION 19

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com.

SAFETY PRECAUTION

☐ Never let the children operate the machine. ☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose. ☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition. ☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. ☐ Forbid the direct baking from the gas cooker. ☐ Please keep the kitchen room a good convection. Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only. ☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels; ☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels; ☐ Regulations concerning the discharge of air have to be fulfilled.

☐ This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not flambé under the range hood. ☐ CAUTION: Accessible parts may become hot when used with cooking appliance

Electrical Shock Hazard

Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

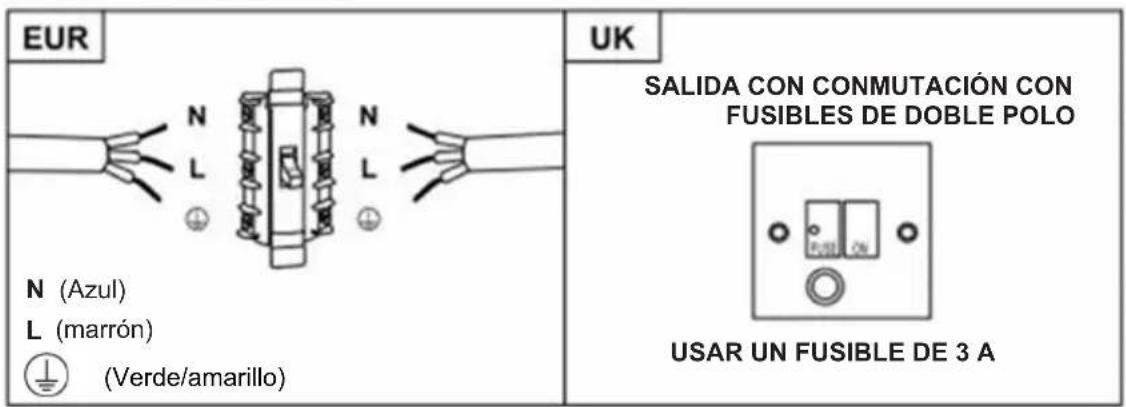

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

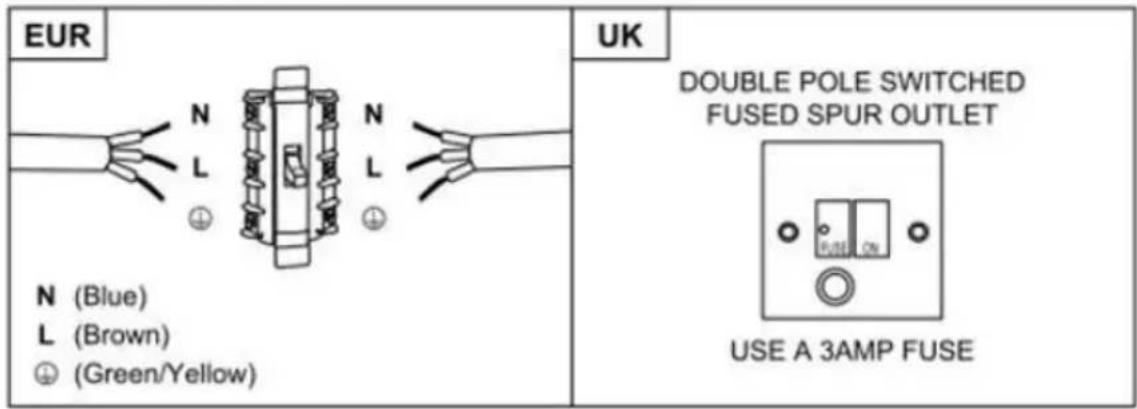

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugsφ8×φ6 white color		9
ScrewsST4.0×30		9
φ7.2screwsST4.0×8		2

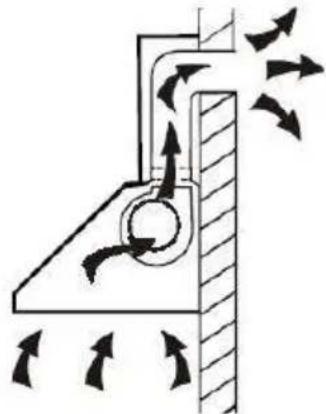

If you have an outlet to the outside, your cooker hood can be connected below picture by means of an extraction duct (enamel, aluminum, flexible pi inflammable material with an interior diameter of 150mm)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

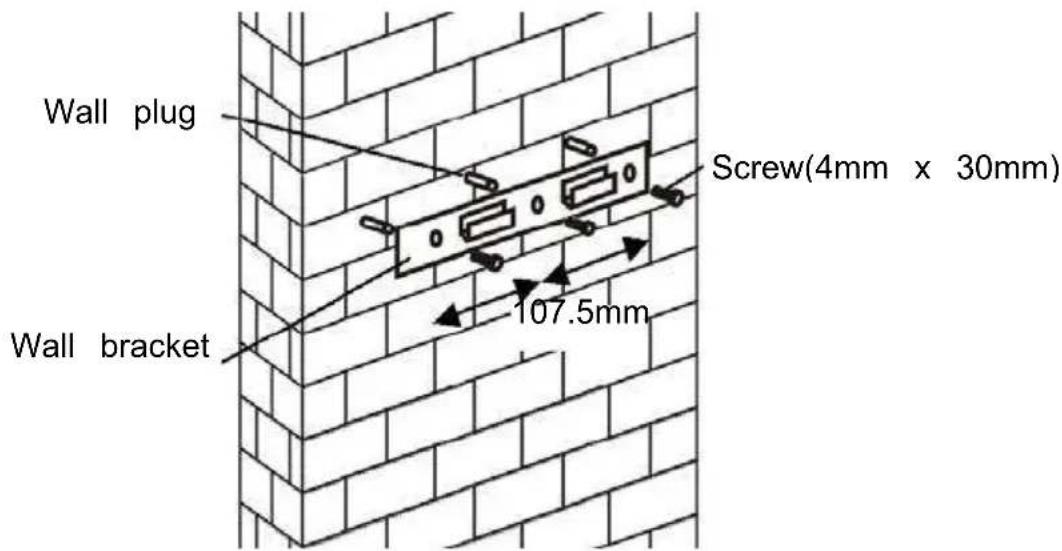

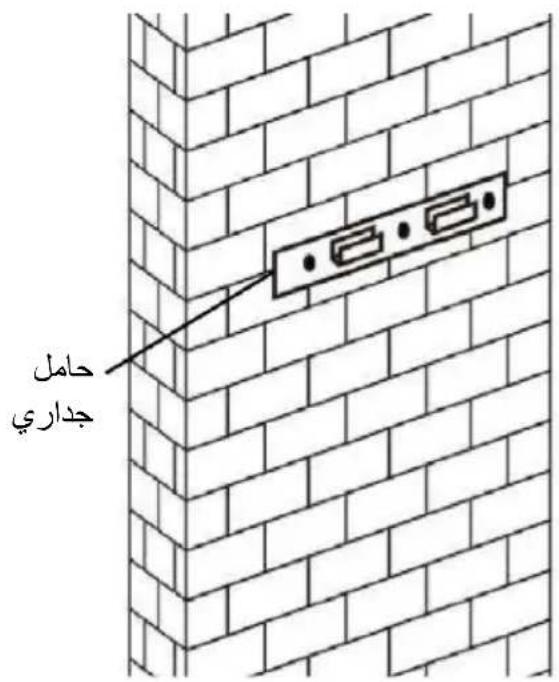

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

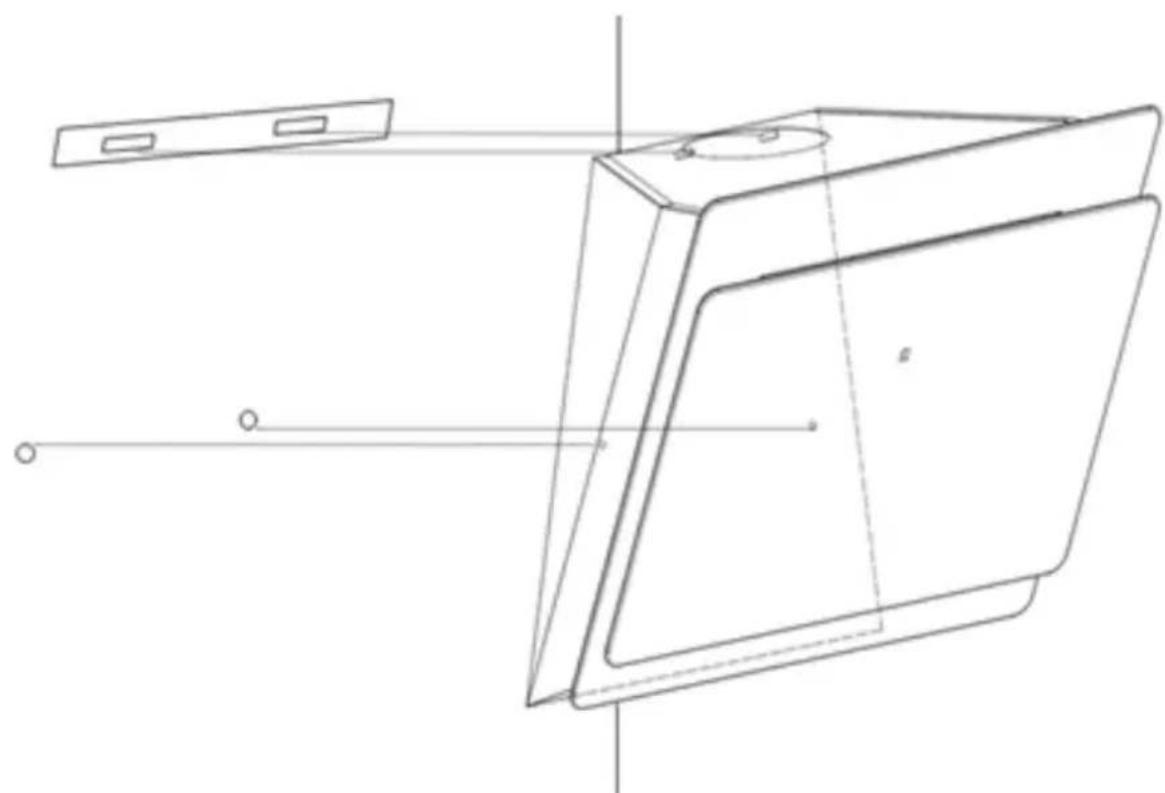

For inclined panel Model

Need to drill 2x8mm extra holes & fixing screws & screw plugs before installation. For inclined models

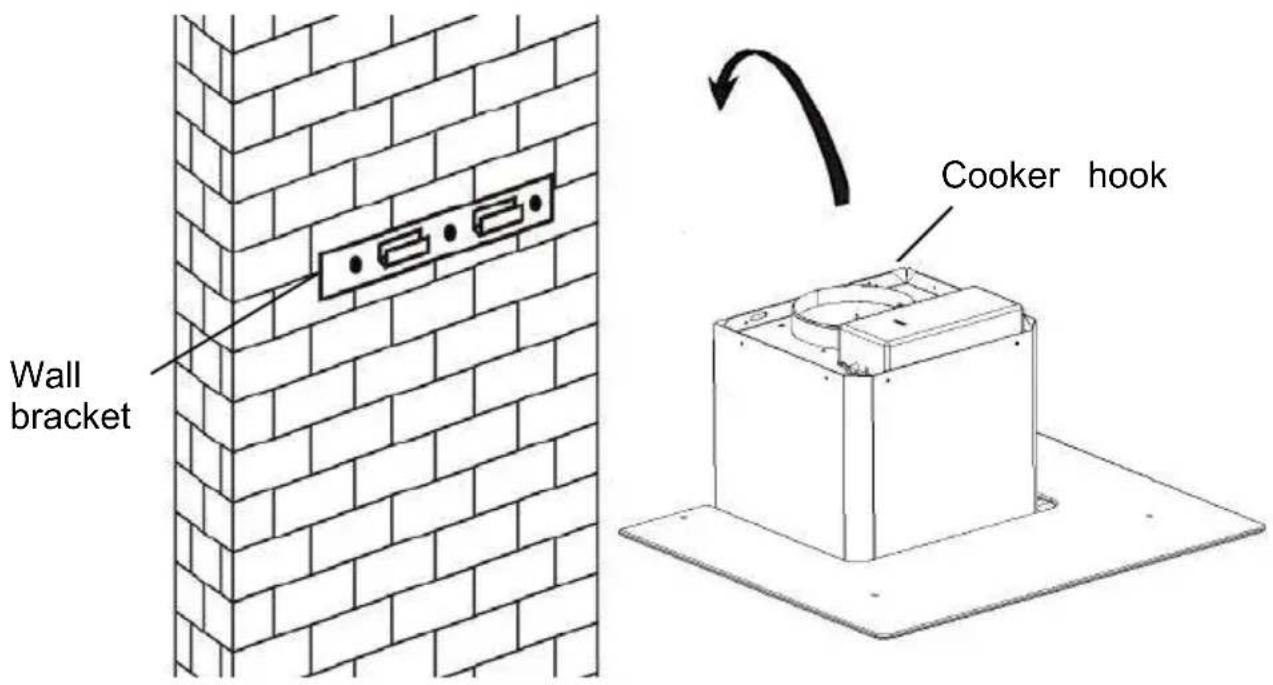

1. Lift up the cooker hood and hang it onto the wall bracket hook.

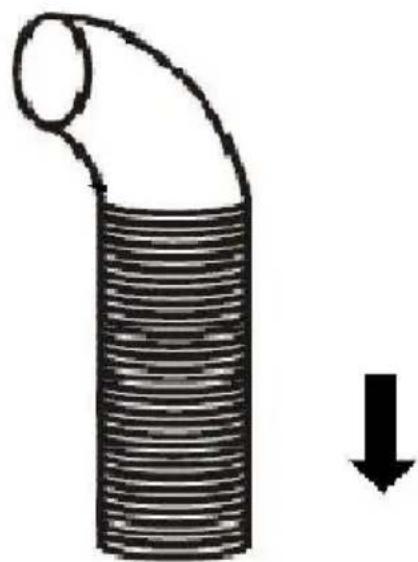

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

Cooker hood

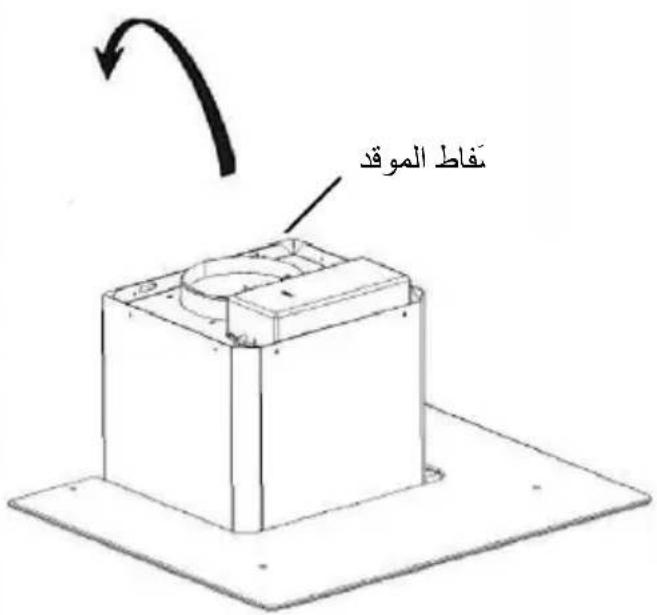

6.

i. Place the glass in appropriate position on the top of the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

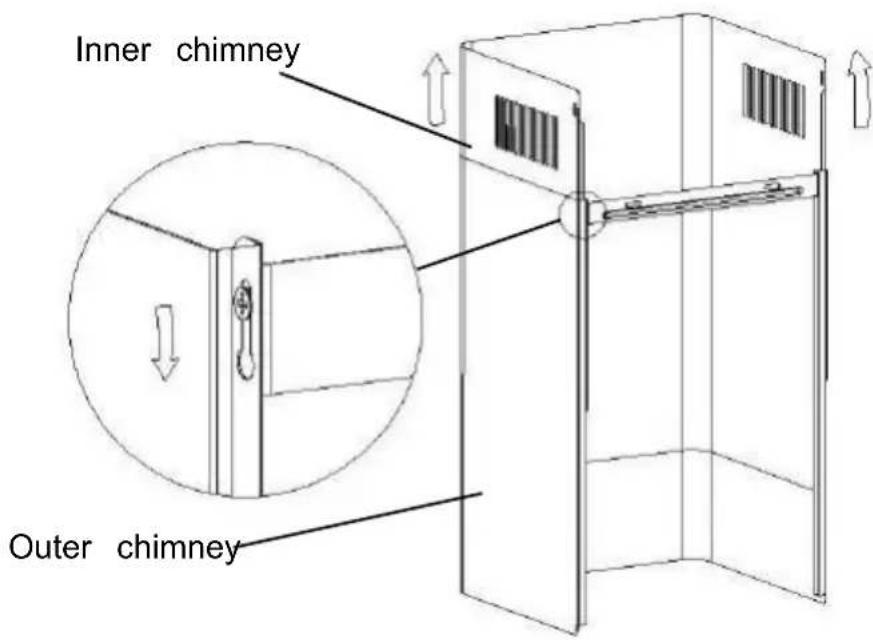

i. Put the inner chimney into outer chimney. Then pull out the inner chimney upwards. Adjust to reach the height required.

ii. Slide the chimney to adjust the chimney height. When the height you require is reached, then hang the fixing hole to the screws as shown in the pictures below.

8.

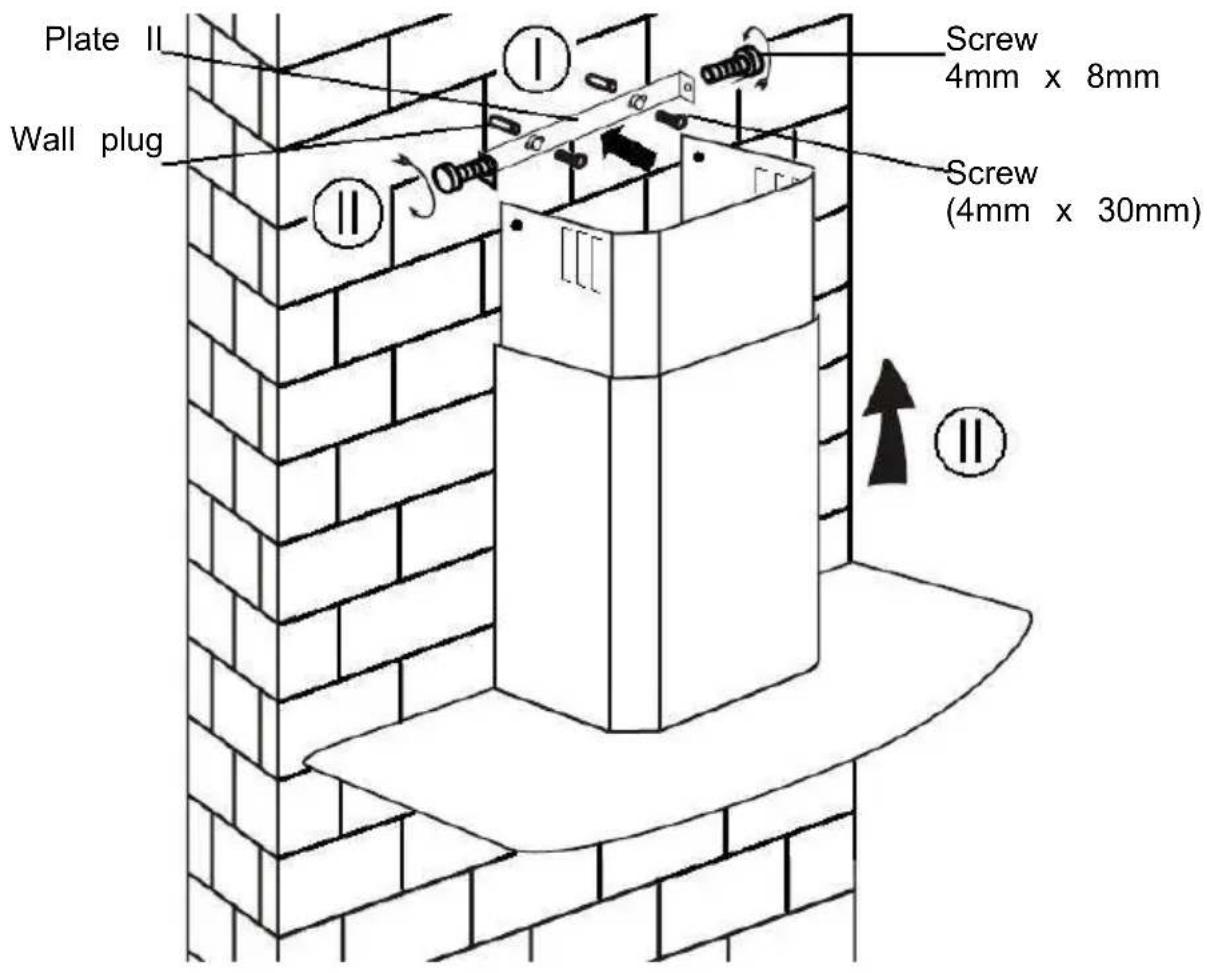

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided. ii. Assemble the chimney onto the unit and fix it with 2 screws.

Standard Installation Accessories List

Spec.Illustration	PictureQty
AirDeflector		1
Bracket		1
φ8rawlplugsφ8×φ6 white color		2
ScrewsST4.0×30		2
ScrewsST3.5×12		2

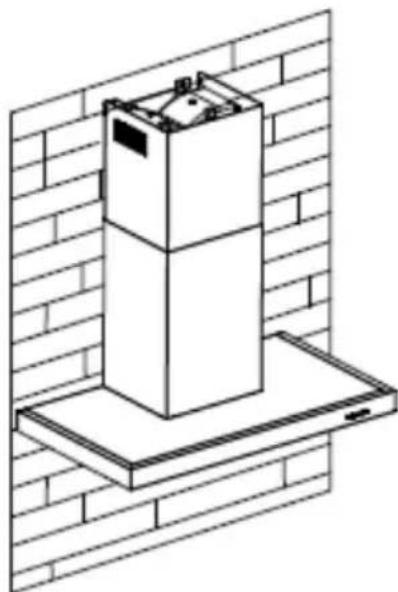

INSTALLATION (AIR DEFLECTOR FOR T-SHAPE, CURVED GLASS, FLAT GLASS MODELS):

The air deflector is mentioned as included and not optional.

1. Before installation, curve both ends of the bracket as shown below:

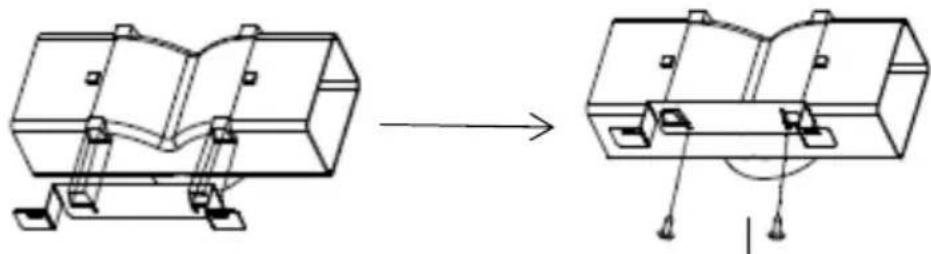

2. Fix the bracket to the T-shaped plastic outlet with 2 pcs ST3.5x12 mm screws provided.

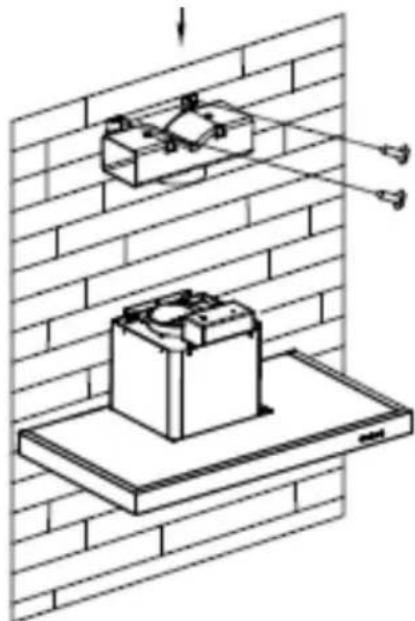

1. Drill 2 holes to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2 pcs ST4x30 mm screws provided.

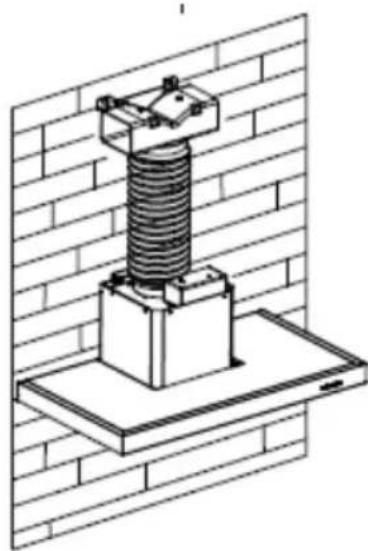

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

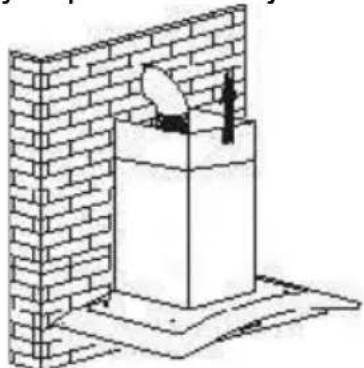

1. Install the chimney to the unit and fix it.

Please kindly be noted: T-shaped plastic outlet and v-flaps cannot be used at the same time. You can use them in two ways: 1) Add v-flap outlet; 2) Use T-shaped plastic outlet, no add v-flap.

Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product.

INSTALLATION (VENT INSIDE)

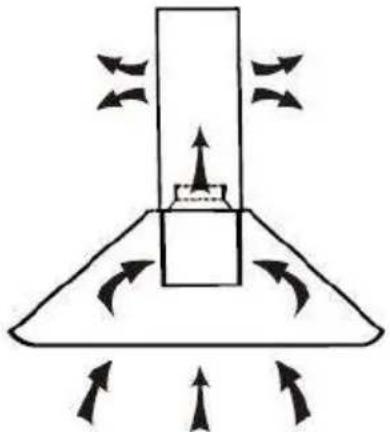

If you do not have an outlet to the outside, exhaust pipe is not required; the installation is similar to the one shown in section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

NOTE:

Make sure the filter is securely locked. Otherwise, it would loosen and cause danger. When activated carbon filter is attached, the suction power will be lower.

DESCRIPTION OF COMPONENTS

OPERATION

Wi-Fi Connection

Long press the WiFi icon to enter connecting mode: the backlight of the WiFi icon flashing indicates that the connection is in progress, the backlight of the WiFi icon staying on indicates that it is connected, and the same applies for standby mode; long press the WiFi icon again to stop the connection.

Speed plus button

For increasing the speed of the fan.

Speed decrease button

For decreasing the speed of the fan.

Light button

Digital display

Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.

Quick timer: Press and hold for 1 second, the digital display will flash and enter a 5-minute countdown. After 5 minutes, the motor will turn off automatically and a buzzer will sound for 1 second.

Booster function

This hood has a booster function. To activate the booster, press + to speed 4, entering the highest speed while the hood is in use, and it will increase speed for 5 minutes before slowing down again.

Download hOn App

First of all, you should download the hOn APP and install it on your portable device. Then enroll your hood.

NOTE

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

ENROLLMENT CANDY HOOD

The image of the hood has the only purpose of presenting it. It may not be perfectly representative.

1. Press the WiFi button until the icon starts blinking. When the pairing is completed, the WiFi icon will be on.

MAINTENANCE

Before cleaning, switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material, or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month to prevent any risk of fire.

The filter collects grease, smoke, and dust... so the filter directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potentially flammable) will saturate the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequently the cooker hood is used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manner as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROUBLESHOOTING

Fault Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses. Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100 mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn't been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important that you inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.

Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Closed

NOTE:

OPERATION

Wi-Fi Connection

NOTE

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

INSTALLATION (WALL MOUNTING)

Range hood

6.

Close

NOTE:

OPERATION

Wi-Fi connection

NOTE

Get ready to add your appliance

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

Blue = N (Neutral) or NEUTRAL

Green and yellow = E (Earth) or GROUND

6.

Close

NOTE:

OPERATION

Wi-Fi connection

NOTE

Get ready to add your appliance

Stay close to your appliance

While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal

CHANGE WI-FI SETTINGS

Public networks are not allowed due to low security and reliability.

Prepare to enter your Home Wi-Fi password.

CANDY HOOD REGISTRATION

6.

CLOSE

NOTE:

OPERATION

NOTE

Get ready to add your appliance

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

CANDY EXTRACTOR HOOD REGISTRATION

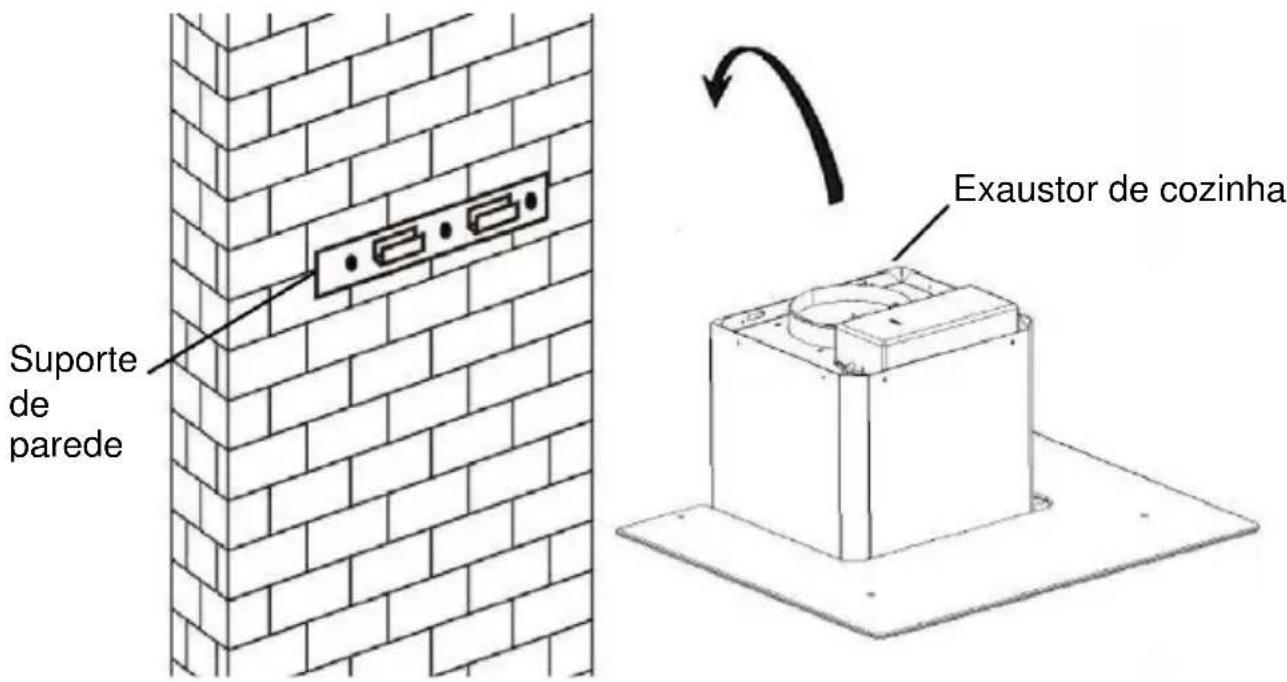

1. Lift the hood and hang it on the hook of the wall bracket.

CLOSE

NOTE:

OPERATION

Wi-Fi Connection

NOTE

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

The lamp used in this product is not suitable for room illumination.

6.

CLOSE

NOTE:

OPERATION

Wi-Fi connection

NOTE

Get ready to add your appliance

1. Stay close to your appliance. 2. While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal. CHANGE WI-FI SETTINGS. 3. Public networks are not allowed due to low security and reliability. 4. Prepare to enter your Home Wi-Fi password.

CANDY HOB REGISTRATION

.www.candy-group.com

Safety precautions

Cooker hood

6.

Note:

Operation

Connection

Get ready to add your appliance

Note

1 Stay close to your appliance 2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal CHANGE WI-FI SETTINGS 3 Public networks are not allowed due to low security and reliability. 4 Prepare to enter your Home Wi-Fi password.

Register CANI
