Temperature station

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Properuse

The product displays the indoor and outdoor temperatures in degrees Celsius (°C) or degrees Fahrenheit (°F) and their maximum and minimum values. The product also displays the time in 12 / 24-hour clock modes and the date. In addition, the product has two alarm functions. The product is only suitable for use in private households and is not intended for commercial use.

• Description of parts and features

LC display

1 DST display (summer time)
2 DCF symbol

3 Z^Z symbol (snooze function)
4 Date display (day/month)
5 Seconds display
6 Day of the week display
7 MAX-/MIN display (outdoor temperature)
8 Temperature trend (outdoor temperature)
9 Outdoor temperature
10 Radio signal symbol
11 symbol (outdoor sensor)
12 MAX- / MIN display for indoor temperature
13 Indoor temperature
14 symbol (temperature station)
15 Temperature trend (indoor temperature)
16 / symbol (Alarm 1 / Alarm 2)
17 Time
18 2^nd time zone (ZONE)

Temperature station

19 CLOCK button
20 ALARM button
21 Z ^Z / REGISTER button (snooze function / REGISTER)
22 Hanging slot
23 SELECT button
24 SET / RESET button
25 Battery compartment
26 Stand
27 Screw (ø 3 mm)
28 Dowel (ø 7.7 mm)

Outdoor sensor

29 Control LED

30 Hanging slot
31 Battery compartment
32 Screw (ø 3 mm)
33 Dowel (ø 7.7 mm)

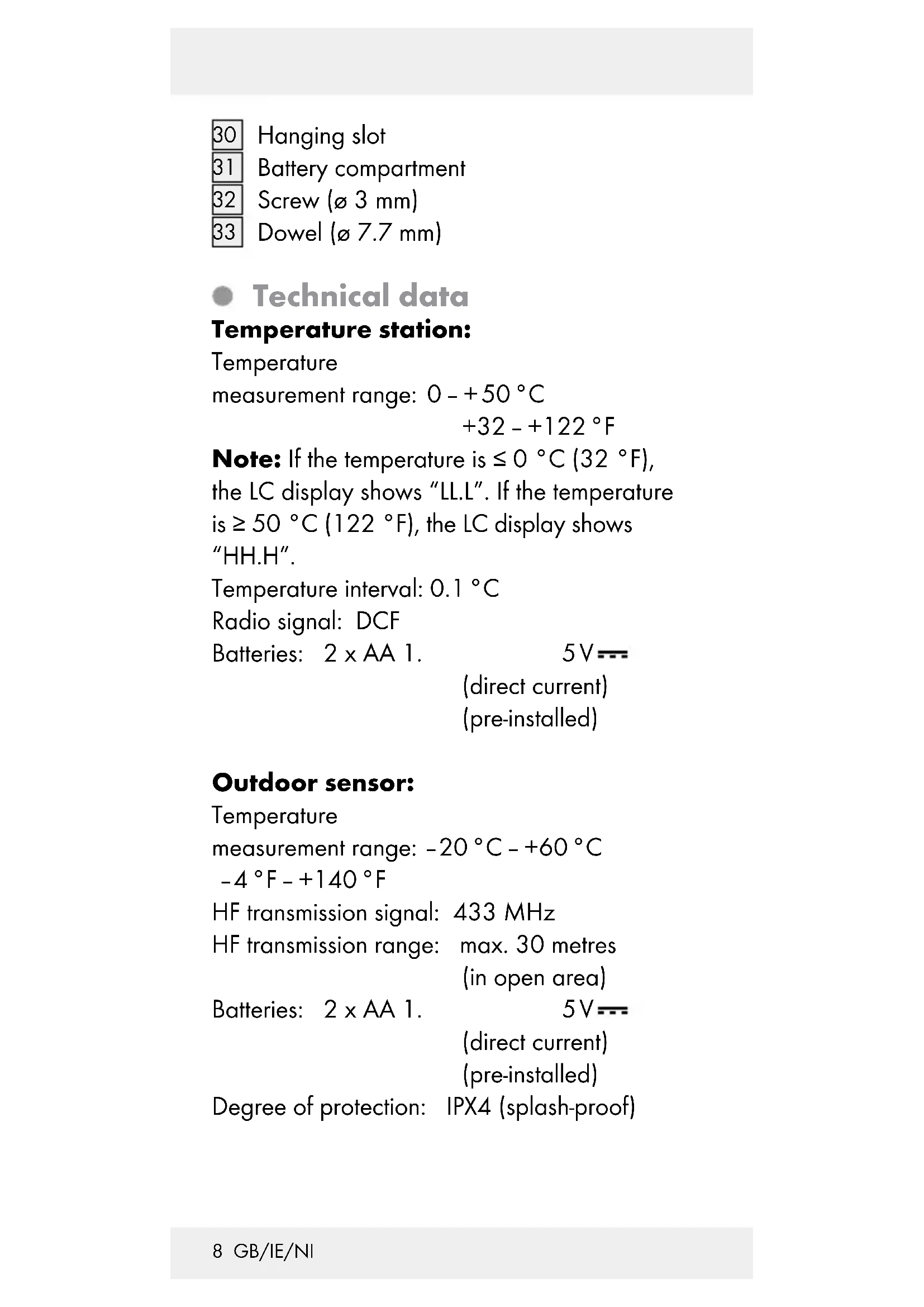

- Technical data

Temperature station:

Temperature

measurement range: 0 - +50 °C

$$ + 3 2 - + 1 2 2 ^ {\circ} \mathrm{F} $$

Note: If the temperature is ≤ 0 ^ (32 ^ ), the LC display shows “LL.L”. If the temperature is ≥ 50 ^ (122 ^ ), the LC display shows “HH.H”.

Temperature interval: 0.1 °C

Radio signal: DCF

Batteries: 2 x AA 1.

5V---

(direct current)

(pre-installed)

Outdoor sensor:

Temperature

measurement range: -20^ - +60^

$$ - 4 ^ {\circ} \mathrm{F} - + 1 4 0 ^ {\circ} \mathrm{F} $$

HF transmission signal: 433 MHz

HF transmission range: max. 30 metres

(in open area)

Batteries: 2 x AA 1.

5V---

(direct current)

(pre-installed)

Degree of protection: IPX4 (splash-proof)

- Scope of delivery

1 Temperature station
1 Outdoor sensor
4 Batteries AA, 1.5 V (pre-installed)
2 Screws ( 3 mm)
2 Dowels ( 7.7 mm)
1 Operating instructions

Safety

YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE!

Generalsafety information

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

- Do not expose the product to an extremely high electromagnetic field. This

may impair the correct functioning of the product.

- Please note that the guarantee does not cover damage caused by incorrect handling, non-compliance with the operating instructions or interference with the product by unauthorised individuals.

Safetyinstructions for batteries/re-chargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLO-

SION! Never recharge non-rechargeable batteries.

Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries/rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries / rechargeable batteries

- Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.

Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE

GLOVES! Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries / rechargeable batteries, immediately remove it from the product to prevent damage.

Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.

■ Remove the batteries / rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery / rechargeable battery!

- Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.

■ Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!

■ Remove exhausted batteries/rechargeable batteries from the product immediately.

- Before initial use

Activate the batteries first inside the outdoor sensor, then inside the temperature station.

Note: Before initial use, remove the protective film from the device display.

Generalinformation

CAUTION! When choosing where to position the devices, make sure that they are not exposed to direct sunlight, vibrations, dust, heat, cold or moisture. Do not place the devices near to heat sources, e.g. radiators, as this may result in damage to the devices.

☐ Please ensure that neighbouring devices are not operated at the same frequency of 433 MHz. Such devices may cause interference to the radio connection.
☐ Do not place the devices next to or on metal plates. Otherwise the quality of radio wave transmission may be reduced.

Radio signal (DCF):

The DCF-Signal (time signal transmitter) is made up of time pulses transmitted from one of the highest precision clocks in the world close to Frankfurt / Main in Germany – it varies by 1 second in 1 million years.

In ideal conditions, your temperature station can pick up this signal over a distance of up to approx. 1,500 km around Frankfurt / Main.

• Preparing to use the outdoor sensor

☐ Remove the battery compartment cover from the back of the outdoor sensor.
☐ Remove the battery safety strip.
☐ The outdoor sensor is now ready for use and the control LED 29 illuminates briefly.
☐ Close the battery compartment cover.
☐ If this does not work, carry out a restart of the temperature station if necessary. To do this, press and keep pressed the Z^Z / REGISTER button 21 (restart the outdoor sensor only).

• Preparing the temperature station for use

☐ Open the battery compartment 25 on the back of the temperature station.
☐ Remove the battery safety strip.
☐ Close the battery compartment cover.

Connecting the temperature station with the outdoor sensor and the DCF radio signal:

After removal of the battery safety strip, the temperature station attempts to establish a connection with the outdoor sensor. This process can take a few minutes. The 🎨 Radio signal symbol 10 flashes. Once the temperature station has successfully connected to the outdoor sensor, the 🎨 Radio signal symbol 10 stops flashing and the temperature is shown in the LC display.

Note: If the temperature station does not receive the signal from the outdoor sensor within 3 minutes, the temperature station automatically starts with the reception of the radio time signal.

After successful reception of the outdoor sensor signal or after 3 minutes, the temperature station starts with the reception of the radio time signal. This process can take up to 5 minutes and is indicated in the LC display by the flashing DCF symbol 2.

After successful reception of the DCF radio signal, the ⚙ DCF symbol 2 is displayed continuously in the LC display.

Note: Do not move the temperature station while it is receiving the signal. Otherwise this could interfere with reception. If synchronisation is not possible when the temperature station is being first set up, try changing the location (e.g. place the temperature station near to a window).

Reception may be considerably reduced by obstructions (e.g. concrete walls) or sources of interference (e.g. other electrical devices).

If the reception of the radio signal continues to be interrupted, you can set the time and date manually (see "Setting the language / time zone / time / date manually").

Mounting the temperature station and / or the outdoor sensor on a wall:

Note: You will require an electric drill and a crosshead screwdriver for this step.

⚠️ CAUTION! DANGER TO LIFE, RISK OF INJURY AND MATERIAL DAMAGE!

Read the operating and safety instructions for your drill carefully.

WARNING! DANGER TO LIFE!

Take care that you do not hit electricity, gas or water lines when you drill into the wall. If necessary, check with a pipe and cable detector before drilling.

• Temperature station

Note: Before mounting the temperature station, please remove the stand 26 by simply pulling it off.

☐ Mark the position of the hole ( approx. 7.7 mm) on the wall.
Drill the hole with an electric drill.
☐ Insert the dow2\$ into the drilled hole.
☐ Using a crosshead screwdriver, screw the screw 27 into the dowel.
☐ Hang the temperature station by placing the hanger 22 on the screw.

Outdoor sensor

☐ Mark the position of the hole ( approx. 7.7 mm) on the wall.

Drill the hole with an electric drill.

☐ Insert the dow 3\$ into the drilled hole.

Using a crosshead screwdriver, screw the screw 32 into the dowel.
☐ Hang the outdoor sensor by placing the hanger 30 on the screw.

Note: Ensure that the outdoor sensor shouldn't be immersed into water and not contact with direct sunlight. Electronic devices may adversely affect the wireless signal reception.

- Setting the language/time zone/time/date manually

The reception of DCF radio signal where the temperature station has been positioned may become degraded or interrupted. If this happens you can set the product manually.

1. Press and hold down the CLOCK button 19 for about 3 seconds.
2. Press the SET / RESET button ^24 to switch between the 12- and 24-hour clock display modes.
3. Press the CLOCK button to confirm your settings. The language option flashes.

Tip: If you press and hold down the SET / RESET button, you accelerate the process and reach the desired value more quickly. This quicker method can also be used for making the following settings. If during a period of 30 seconds no buttons are pressed, the LC display returns automatically to the default display.

1. Press the SET / RESET button to set the desired language (GE = German,

$$ \begin{array}{l} \text { FR } = \text { French }, \text { SP } = \text { Spanish }, \text { IT } = \text { Italian }, \ \text { EN } = \text { English }). \end{array} $$

1. Press the CLOCK button to confirm your settings. The time zone display flashes.

2. Press the SET / RESET button to set the desired time zone for time zone 2 (-12 hours to +12 hours).

Note: Should you be in a country in which the DCF-Signal can be received but the time is different to your current local time, you can use the time zone setting to have the clock display your current local time. If you find yourself in a country in which, for example, the local time is an hour ahead of Central European Time (CET), you set the time zone to +01. The product is now still controlled by DCF but shows the time as one hour ahead of CET. If you wish to know what the time is in the USA for example, then simply by setting the time zone value to e.g. -10 you will obtain the current local time in Los Angeles etc.

1. Press the CLOCK button to confirm your settings. The hour display flashes.

2. Press the SET / RESET button to set the desired value.

3. Press the CLOCK button to confirm your settings.

4. Repeat steps 6 and 7 to set the values for, minutes, seconds 5, year and date 4 (day/month).

Note: The seconds display can only be reset to 00.

1. After this, the LC display returns to the default display.

- Displaying summer time

Summer time is indicated by the DST symbol 1 in the LC display. The temperature station automatically detects from the DCF radio signal whether it is summer time or not.

- Calling up the time zone

The default display shows the time zone according to the information provided by the DCF-Signal.

☐ Press the CLOCK button 19. The time zone 18 appears in the LC display.

☐ Press the CLOCK button again to return to the default display.

- Setting the alarm time

You can set two different alarm times.

1. Press and hold down the ALARM button 20 for about 3 seconds.

Note: If an alarm time has been set before, then that previously set alarm time appears in the LC display. If not, then the display shows 0:00 or AM 12:00.

1. The hour display flashes. Press the SET / RESET button 24 to set the desired value.

2. Press the ALARM button to confirm your settings. The minute display flashes.

3. Press the SET / RESET button to set the desired value.

4. Press the ALARM button to confirm your settings.

5. Repeat steps 2 to 5 to set the time for Alarm 2.

- Calling up the alarm times

☐ Press ALARM button 20 once or twice to call up the set time for Alarm 1 or Alarm 2 respectively.

☐ Press the ALARM button again to return to the default display.

- Switching the alarm on / off

☐ Press the SET / RESET button 24 once to activate Alarm 1. Press the SET / RESET button twice to activate Alarm 2. Press the SET / RESET button three times to activate Alarm 1 and Alarm 2.

Note: The symbol 🔊 or 🔒 appears in the LC display.

☐ The alarm signal sounds as soon as the set alarm time is reached. The alarm signal ceases automatically after a period of 2 minutes.

□PresstheSELECT 23/SET/RESET 24/ ALARM 20/CLOCK button 19 to switch off the alarm signal before it switches off automatically.

Note: The alarm signal sounds every day at the set time.

☐ Press the SET / RESET button three times to deactivate Alarm 1. Press the SET / RESET button twice to deactivate Alarm 2. Press the SET / RESET button once to deactivate Alarm 1 and Alarm 2.

• Using the snooze button

☐PresstheZ Z/REGISTER button 21 while the alarm signal is sounding to activate the snooze function.

☐ The alarm signal is silenced and the displays 🔊 or 🔒 and Z Z flash.

☐ The alarm signal sounds again after approx. 5 minutes.

☐ Press the SELECT button 23 to deactivate the snooze function.

- Displaying temperature

The LC display shows the indoor temperature 13 and the outdoor temperature 9.

☐ Press and hold down the SELECT button 23 for approx. 3 seconds. The °C display flashes.
☐ Press the SET / RESET button 24 to switch between the °C (Celsius) and °F (Fahrenheit) temperature scales.
☐ Press the SELECT button to confirm your settings.

- Calling up the minimum / maximum values

The temperature station stores the maximum and minimum values of the outdoor sensor and of the temperature station itself.

☐ Press the SELECT button 23 to display the maximum values of the indoor and outdoor temperature.
☐ Press the SELECT button again to display the minimum values of the indoor and outdoor temperature.
☐ Press the SET / RESET button 24 while the maximum and minimum values, are being displayed to reset the values.
☐ Press the SELECT button, to return to the default display.

- Displayingtemperature trends

After successfully connecting with the outdoor sensor, the temperature station can display the temperature trend (outdoor) 8 and the temperature trend (indoor) 15.

You may see the following displays:

= The temperature is rising.
→ = The temperature is constant.
= The temperature is falling.

- Battery state display

The 11 and 14 symbols appear in the temperature station's LC display if the batteries

in the outdoor sensor or the temperature station are weak.

• Replacing the batteries

Open the battery compartment 25 or 31.

☐ Remove the exhausted batteries.

☐ Insert two new 1.5 V—(direct current) batteries (AA) into the battery compartments.

Note: Make sure you fit the batteries the right way round (polarity). This is shown in the battery compartments (see Figs. B + D).

☐ Close the battery compartments.

Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference.

☐ If the display indicates a problem, move such objects away from the temperature station / outdoor sensor or remove the batteries for a short while from the temperature station / outdoor sensor and then replace them.

Obstacles such as concrete walls can also cause that the reception is disturbed. In this case, change the location (eg near a window). Please take note that the outdoor sensor should always be set up within max. 30 meters (open

space) from the temperature station. The specified range is the free-field range and means that no obstacle should be between the outdoor sensor and the temperature station. A "visual contact" between outdoor sensor and temperature station often improves the transmission.

Cold (outdoor temperatures below 0 °C ) can reduce the battery power of the outdoor sensor and thereby negatively impair the radio transmission.

Another factor that may cause harmful interference, are dead or weak batteries in the outdoor sensor. Replace them by new ones.

If your temperature station is not working correctly, please remove the batteries for a short while and then replace them.

● Cleaning and maintenance

☐ The product should only be cleaned on the outside with a soft dry cloth.
☐ Under no circumstances should you spray the outdoor sensor, e.g. with a garden hose. The outdoor sensor is protected against splashing water from all directions.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening

hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

- Declaration of conformity

We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product: Temperature station, model no.: HG02132A/HG02132B, Version: 03/2017, to which this declaration refers, complies with the standards / normative documents of 1999/5/EC.

Tobles Carey

The complete declaration of conformity can be viewed at: www.owim.com

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

Indledning....Side 29

HF sendesignal: 433 MHz

EKSPLOSIONSFARE! Gen-

Tobins Carey

Signal radio (DCF) :

WAARSCHUWING! LEVENSGE-
