USER MANUAL OWK 103W OK

IH_0W<103.W>50402-401

``` m := m - b if m == b return 1 else return 2

OWK103-W

WASSERKOCHA//WATERIOLETTE/HERVIDOR KOGA//WATERIOLET

HERZLICHEN GLUCKWUNSCH!

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use. Caution! Hot surface!

2. This product can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the product in a safe way and if they understand the hazards involved.
   Children shall not play with the product.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the product and its cord out of reach of children aged less than 8 years.
5. This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
6. This product is not intended for commercial use. It is designed for household use and similar applications only, such as for example:
7. in employee cafeterias, in stores, offices and other working environments;
8. by customers in hotels, motels and other residential facilities;
9. in Bed and Breakfast establishments;
10. in farm houses.
11. Do not overfill the product. Boiling water may spurt out.
12. Warning! Never open the lid while the water is boiling.
13. Use the product only with the base provided.
14. The product must not immersed in water for cleaning.
15. A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

EN

12

1. Clean the product and all other accessories after each use.

2. Follow the instructions in the chapter Cleaning and care.

3. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

4. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
5. Never leave the product unsupervised while it is switched on.
6. Do not place heavy objects on top of the product.
7. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
8. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
9. The mains voltage must match the information on the rating label of the product.
10. Only unplug from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
11. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
12. Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
13. Only unplug from the power socket by the plug itself. Do not pull on the cord.

14. Unplug the product ...

15. when the product is not being used,
    -in case of malfunctions,

16. before attaching / detaching accessories and

17. before cleaning the product.

18. Use this product in dry indoor areas only and never outdoors.

19. Place the product on a flat, sturdy and slip-resistant surface.

20. Never use, expose or put the product near to:

21. direct sunlight and dust;

22. fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

23. This product is not intended for commercial use. It is designed for household use only.

24. Risk of burns! Avoid contact with hot surfaces and escaping steam. Hold the product only by the handle.
25. Always leave sufficient space around the product. Boiling water can cause serious scalding.
26. Do not move or transport the product while in operation or if it still contains hot water. There is a risk of burns caused by spurting hot water.
27. Operate the product only if it is filled with water. The boil-dry protection prevents overheating if the kettle is empty.
28. Close the lid when heating water. The temperature limiter only works when the cover is closed.

INTENDED USE

This product is suitable for heating water only. Any other use may result in damage to product or injuries.

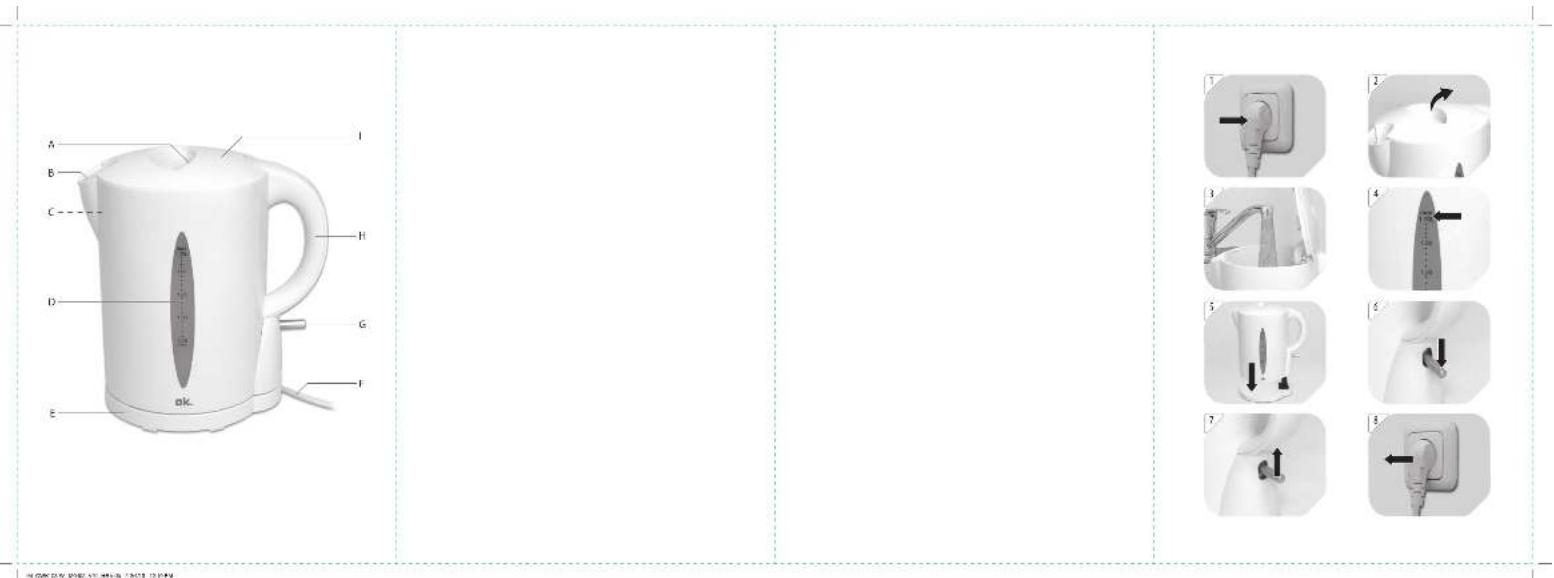

COMPONENTS

The product may be available in different colors.

A. Handle of the lid
B. Spout
C. Filter (not shown)
D. Water level indicator
E. Stand
F. Power cord with plug
G. ON/OFF switch
H. Handle
I. Lid

BEFORE FIRST TIME USE

Fill the kettle with water to the MAX level and operate it. Repeat this process 2-3 times. This will remove any residues remaining from the manufacturing process.

HEATING WATER

1 Connect the power plug to a suitable power outlet.
2 Open the lid.
3 Fill the kettle with water to the desired level (min 0.75 / max 1.7 L)
4 Do not exceed the MAX level.
5 Close the lid until it clicks into place. Place kettle on stand.
6 Use the power switch to switch kettle on (I). Power indicator turns on.
The kettle will switch off automatically, once the water has boiled. Wait 15-20 seconds before operating again.
Unplug the power plug from the power outlet. Caution: Do not open the lid when steam is emitted from the spout.

Note: You can stop the boiling process at any time by lifting the power switch (0).

EN

14

CLEANING AND CARE

• Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.
• Make sure that no water enters the device interior (for example, through the switch) or the base.

For cleaning, the filter can be removed from the kettle.

DESCALING

• Descale your product regularly depending on your water's lime content and frequency of use.
  Use an off-the-shelf decalcifier and follow the provided instructions.
  As an alternative, you can descale your product with a vinegar solution:

• Pour 30ml of white wine vinegar into the kettle and fill the kettle half-full with water.

• Boil the solution and let it soak for a minute. Repeat this process three times.
• Pour the solution down the drain and rinse the kettle thoroughly with water.
• Fill the kettle with fresh, clean water. Bring to a boil and pour this water down the drain. To get rid of the smell of vinegar, repeat this step several times.

The filter can be soaked in a vinegar solution to descale it.

SPECIFICATION

Rated voltage: 220 - 240V 50 / 60Hz

Rated power input: 1850 - 2200 W

Protection Class : I

DISPOSAL

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
