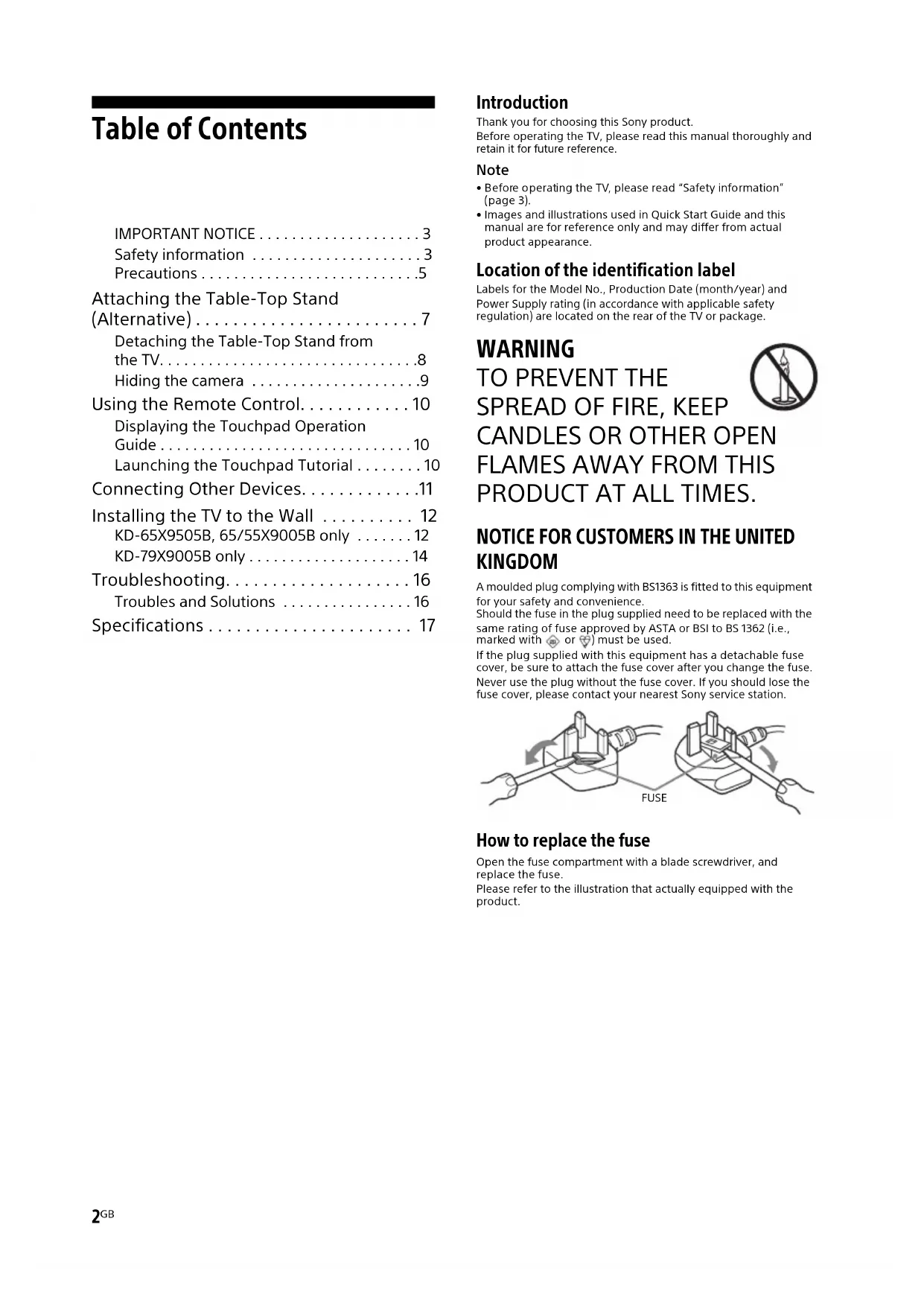

USER MANUAL Bravia KD65X9505B SONY

• Before operating the TV, please read “Safety information” (page 3). • Images and illustrations used in Quick Start Guide and this manual are for reference only and may differ from actual product appearance. Location of the identification label Labels for the Model No., Production Date (month/year) and Power Supply rating (in accordance with applicable safety regulation) are located on the rear of the TV or package. WARNING

SPREAD OF FIRE, KEEP

CANDLES OR OTHER OPEN

FLAMES AWAY FROM THIS

PRODUCT AT ALL TIMES.

NOTICE FOR CUSTOMERS IN THE UNITED

KINGDOM A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with or ) must be used. If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. How to replace the fuse Open the fuse compartment with a blade screwdriver, and replace the fuse.Please refer to the illustration that actually equipped with the product. FUSE3

Notice for Wireless Signal Hereby, Sony Corporation declares that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives. TV wireless system may be operated in following countries: AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, GR, HU, IE, IT, LV, LT, LU, MT, NL, P

, PT, SK, SI, ES, SE, GB, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo This equipment can be operated in other non-European countries. WARNING Batteries must not be exposed to excessive heat such as sunshine, fire or the like. Installation/Set-up Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries. Installation

• To avoid slipping and causing personal injury, do not step on the TV protection bag when unpacking the TV set.

• The TV set should be installed near an easily accessible mains socket.

• Place the TV set on a stable, level surface to avoid it from falling

wn and cause personal injury or damage to the TV.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV's Table-Top Stand does not protrudes out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may

use TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall installations.

• For safety reasons, it is strongly recommended that you use Son y accessories, including: Wall-Mount Bracket SU-WL450 (KD-65X9505B, KD-65/55X9005B)

• Be sure to use the screws supplied with the Wall-Mount Bracket whe n attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal

mage to the TV set or cause it to fall, etc. KD-65X9505B KD-65/55X9005B Transporting

• Before transporting the TV set, disconnect all cables.

• Two or more people (Four or more people for KD-79X9005B) are nee ded to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen. KD-79X9005B KD-65X9505B IMPORTANT NOTICE This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents. Safety information Screw (supplied with the Wall-Mount Bracket) Wall-Mount Bracket 8 mm - 12 mm TV's rear cover Screw (supplied with the Wall-Mount Bracket) Wall-Mount Bracket 8 mm - 12 mm Wall-Mount Attachment4

• When transporting the TV set, do not subject it to jolts or excessive vibration.

• When transporting the TV set for repairs or when moving, pack

using the original carton and packing material. Topple prevention

• Be sure to use strong cord that is capable of supporting the weight of the TV. Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony Wall-Mount Bra cket in order to provide adequate air-circulation. Installed on the wall Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust: Do not lay the TV set flat, install upside down, backwards, or

deways. Do not place the TV set on a shelf, rug, bed or in a closet. Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc. Do not install the TV set as shown below. Mains lead Handle the mains lead and socket as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries: Use only mains leads supplied by Sony, not other suppliers. Insert the plug fully into the mains socket. Operate the TV set on a 220-240 V AC supply only. When wiring cables, be sure to unplug the mains lead for your

afety and take care not to catch your feet on the cables. Disconnect the mains lead from the mains socket before working on or moving the TV set. Keep the mains lead away from heat sources. Unplug the mains plug and clean it regularly. If the plug is

overed with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire. Note

• Do not use the supplied mains lead on any other equipment.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.

• Do not modify the mains lead.

• Do not put anything heavy on the mains lead.

• Do not pull on the mains lead itself when disconnecting the main s lead.

• Do not connect too many appliances to the same mains socket.

• Do not use a poor fitting mains socket. Prohibited Usage Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries. Location:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illu mination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on. Environment:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

• Do not place the TV in a humid or dusty spa ce, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

• Do not install the TV in places subject to extreme temperature suc h as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such condition which can cause deformation of the enclosure and/or TV malfunction. 30 cm 10 cm 10 cm 10 cm Leave at least this space around the set. 30 cm 10 cm 10 cm Leave at least this space around the set. 6 cm Air circulation is blocked. Wall Wall5

• Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms.

• Do not install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise electric shock may result. When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.

• As the TV set is not disconnected from the mains when the TV

t is just turned off, pull the plug from the mains to disconnect the TV set completely.

• However, some TV sets may have features that require the TV set to be left in standby to work correctly. For children

• Do not allow children to climb on the TV set.

• Keep small accessories out of the reach of children, so that they

e not mistakenly swallowed. If the following problems occur... Turn off the TV set and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel. When: Mains lead is damaged. Poor fitting of mains socket. TV set is damaged by being dropped, hit or having something thrown at it. Any liquid or solid object falls through openings in the cabinet. About LCD Monitor Temperature When the LCD Monitor is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand. Viewing the TV

• Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching 3D video images or playing stereoscopic 3D games. Sony recommends that all viewers take regular breaks while watching 3D video images or playing stereoscopic 3D games. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images or playing stereoscopic 3D games until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual of any other device or media used with this television and (ii) our website (http://support.sony-europe.com/) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images or play stereoscopic 3D games. Adults should supervise young children to ensure they follow the recommendations listed above.

• Do not use, store, or leave the 3D Glasses or in places with a

h temperature, e.g., in direct sunlight, or in sun-heated cars.

• When using the simulated 3D function, please note that the displayed image is modified from the original due to the conversion done by this television.

• View the TV in moderate light, as viewing the TV in poor light or duri ng long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result. LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of

is TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed

ntinuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

• The LCD screen contains a small amount of liquid crystal. Follow your l ocal ordinances and regulations for disposal.

• Do not subject the LCD screen to any strong impact or shock. The screen glass may crack or shatter and cause injury.

Handling and cleaning the screen surface/ cabinet of the TV set Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning. To avoid material degradation or screen coating degradation,

serve the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

e TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

kaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

• Periodic vacuuming of the ventilation openings is

commended to ensure to proper ventilation.

• Do not handle the speakers with excessive force during cleaning or mai ntenance to prevent any damages. Optional Equipment

• Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters. Recommendation of F-type plug Projection of the inner wire from the connection part must be less than 1.5 mm. Precautions

(Reference drawing of the F type plug) 7 mm max.6

Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.

• Handle the remote control with care. Do not drop or step on it, or s pill liquid of any kind onto it.

• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room. Wireless Function of the unit

• Do not operate this unit near medical equipment (pacemaker, etc.), as malfunction of the medical equipment may result.

• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result. Disposal of the TV set Disposal of Old Electrical & Electronic Equipment (Applicable in

e European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Disposal of waste batteries (applicable in the European Union and o ther European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.7

Attaching the Table-Top Stand (Alternative) You can change the Table-Top Stand from the edge to the middle position by referring to the instructions below. KD-79/65/55X9005B

• Two or more people (Four or more people for KD-79X9005B) are needed to carry out this inst allation.• Ensure that there are no objects in front of the TV. To bundle the cables Using the Port Replicator can simplify cable management to a single cable connection to the TV. KD-79/65/55X9005B KD-65X9505B

Location of cable clamper when the Table-Top Stand is attached to middle position.

Location of cable clamper when the Table-Top Stand is attached to edge or middle. Note

• To detach the cable clamper from the TV, press the top of the clamper 1, then pinch 2 as illustrated. Note
• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV. IR Sensor3D Sync Transmitter (KD-65X9505B, KD-65/55X9005B only)

Detaching the Table-Top Stand from the TV

If you do not wish to use the camera, hide it as illustrated. KD-79/65/55X9005B KD-65X9505B Hiding the camera Camera cover K10

Using the Remote Control You can operate the TV by using the supplied Touchpad Remote Control or IR (infrared) Remote Control. Note

• Touchpad Remote Control can only be used after registration with the TV. You can register the Touchpad Remote Control by pressing HOME, then select [Settings] t [System Settings] t [Touchpad Remote Control Setup]. Touchpad Operation Guide allows you to see the main gesture commands that are available for the current TV screen. 1 Touch and keep your finger on the centre of the touchpad to display the Touchpad Operation Guide. 1 Press HOME. 2 Slide to select [Help], then press the touchpad. 3 Slide up/down to select [Touchpad Tutorial], then press the touchpad. Follow the instructions on the screen. Note
• You can also launch the Touchpad Tutorial by pressing HOME, then select [Settings] t [System Settings] t [Touchpad configurations] t [Start Tutorial]. Displaying the Touchpad Operation Guide Touchpad Remote ControlIR (infrared) Remote Control Launching the Touchpad Tutorial11

Connecting Other Devices For more information on connections, refer to the i-Manual. Note

• For HDMI connection, connect 4K devices (4K Media Player, 4K Set Top Box, etc.) to the HDMI IN 2 or HDMI IN 1 jack of the TV to enjoy copyright protected content. To connect Port Replicator
• For connection with Port Replicator, refer to the installation guide supplied with the Port Replicator. To connect MHL Device The TV simultaneously charges the MHL- compatible connected device while playing photo/music/video files. You can use the TV remote control to control the connected MHL- compatible device. Note
• If [Auto Input Change (MHL)] is set to [On], the TV automatically switches to HDMI IN 2/MHL or HDMI IN 4/MHL from other input when MHL-compatible device is connected to HDMI IN 2/MHL or HDMI IN 4/MHL jack. The availability of [Auto Input Change (MHL)] depends on whether the MHL-compatible device can support this feature. • If [MHL Charging during Standby] is set to [On], you

continue charging the MHL-compatible device even when the TV is in standby mode. • Connect the 4K smartphone or mobile devices to the MI IN 2/MHL jack.• Use authorized MHL 3 CABLE with MHL logo for 4K sma rtphone or mobile devices. 900 mA MAX 5 V 900 mA MAX 5 V Use authorized MHL 3 CABLE with MHL logo (not supplied) MHL 3 device Use authorized MHL 2 CABLE with MHL logo (not supplied) MHL 2 device12

Installing the TV to the Wall This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall.To Customers:For product protection and safety reasons, Sony strongly recommends that installation of your be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.To Sony Dealers and Contractors:Provide full attention to safety during the installation, periodic maintenance and examination of thi s product.Use the Wall-Mount Bracket SU-WL450 (not supplied) (KD-65X9505B, KD-65/55X9005B) to ins tall the TV to the wall.When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket. Note

• Be sure to store the removed screws in a safe place, keeping them away from children. 1 Remove the screws from the rear of the TV. KD-65X9505B, 65/55X9005B only Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.

• Do not remove for Super Slim mounting.13

2 Before installing the Wall-Mount Bracket, attach the Wall-Mount Attachment I (supplied with the TV) to the rear of the TV (to make it parallel with the wall). You do not need to perform this step for Super Slim mounting. (KD-65/55X9005B only)

• You cannot use some of the terminals on the rear of the TV when using this mounting style. Note
• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV.• Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over tor queing the Wall-Mount Attachment and damaging the TV.

For instructions on Wall-Mount Bracket installation of your TV model, refer to the following website: www.sony.eu/tv/wall-mount-bracket-manual

Wall-Mount Attachment (I2) (longer) (supplied with the TV)Wall-Mount Attachment (I1) (shorter) (supplied with the TV) Standard mountingSuper Slim mounting* 1.5 N∙m{15 kgf∙cm}14

Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the box as packaged. If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see page 8 (Detaching the Table-Top Stand from the TV). Prepare the TV for the Wall-Mount Bracket before making cable connections. For product protection and safety reasons, Sony strongly recommends that installation of your TV

the wall be performed by qualified professionals. Do not attempt to install it yourself.• Follow the instructions provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket

ickness. Please see below illustration.• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to

tach the Table-Top Stand. Keep the screws away from small children. 1 Remove the screws from the rear of the TV. KD-79X9005B only ScrewWall-Mount Bracket8 mm - 12 mmWall-Mount Attachment

2 Before installing the Wall-Mount Bracket, attach the Wall-Mount Attachment I (supplied with the TV) to the rear of the TV (to make it parallel with the wall). Note

• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV.• Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over tor queing the Wall-Mount Attachment and damaging the TV.

Wall-Mount Attachment (I2) (longer) (supplied with the TV)Wall-Mount Attachment (I1) (shorter) (supplied with the TV) 1.5 N∙m{15 kgf∙cm}16

Troubleshooting When the illumination LED is flashing in red, count how many times it flashes (interval time is three seconds). If the illumination LED flashes red, reset the TV

disconnecting the mains lead from the TV for two minutes, then turn on the TV. If the problem persists, contact your dealer or

ny service centre with the number of times the Illumination LED flashes red (interval time is three seconds). Press / on the TV to turn it off, disconnect the mains lead, and inform your dealer or Sony service centre. When the illumination LED is not flashing,

eck the items as follows. You can also refer to [Troubleshooting] in the i-Manual or perform self-diagnosis by selecting

elp] t [Customer Support] t [Self Diagnostics]. If the problem persists, have your

serviced by qualified service personnel. Troubles and Solutions There is no picture (screen is dark) and no sound. Check the antenna (aerial)/cable connection. Connect the TV to mains lead, and press / on the TV or remote control. Some programmes cannot be tuned. Check the antenna (aerial). The satellite cable might be short-circuited or there might be connection problems of the cable. Check the cable connection and then turn the TV off with the Mains power On/Off switch, and turn it on again. The frequency that you entered is out of range. Consult the received satellite broadcasting company. There is no Cable TV services (programmes) found. Check the cable connection or tuning configuration. Attempt the [Digital Auto Tuning] by selecting [Antenna] instead of [Cable]. The remote does not function. Replace the batteries. Your TV may be in SYNC mode. Press Control Bar (….) and slide left/right to select [SY NC MENU] then press the touchpad. Select [TV Control] and then select [Home (Menu)] or [Options] to control the TV. When using IR Remote Control, press SYN

MENU, select [TV Control] and then select [Home (Menu)] or [Options] to control the TV. The [Parental Lock] password has been forgotten. Enter 9999 for the PIN code. (PIN code 9999 is always accepted.) The TV surrounds become warm. When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand. Frozen audio or video, a blank screen, or the TV does not respond to TV or remote buttons. Perform a simple reset of the TV by unplugging the mains lead for two minutes, then plug it in again. The /, CH+/–, +/–, ///, , and HOME buttons cannot be located on the TV. See below illustration for location of the buttons on the TV. The illumination LED is turned on. If you do not wish to light up the illumination LED, you can turn it off. Press HOME, th en select [Settings] t [System Settings] t [G eneral Set-up] t [Illumination LED] t [Off ]. You can also press OPTIONS, then select [Illumination LED] t [Off]. Rear of TV17

Cannot connect to a wireless router by WPS. If you use WEP security, select [Easy] t [Wi-Fi] t [Connect by scan list]. Then, select the network name (SSID) you want to connect. Cannot find the required network name in network setup. Select [[Manual Entry]] and press to enter network name. Specifications System Panel system LCD (Liquid Crystal Display) Panel, LED Backlight TV system Analogue: Depending on your country/area selection: B/G, D/K, L, I, M Digital: DVB-T/DVB-C DVB-T2 Satellite: DVB-S/DVB-S2 Colour/video system Analogue: PAL, SECAM, NTSC3.58, NTSC4.43 Digital: Refer to the i-Manual. Channel coverage Analogue: UHF/VHF/Cable, Depending on your country/area selection. Digital: UHF/VHF/Cable, Depending on your

12.5 W + 12.5 W + 20 W + 20 W

i (50, 60 Hz), 720p (50, 60 Hz) Audio: 5.1 channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital ARC (Audio Return Channel) (HDMI IN 1 only) MHL (common with HDMI IN 2/4) Video (2D): 4096 × 2160p (24 Hz)*, 3840 × 2160p (24, 25, 30 Hz)*, 1080p (50, 60 Hz)*, 1080p (30 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 576i, 480p, 480i

• HDMI IN 2 only Audio: 5.1 channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM, Dolby Digital) AUDIO OUT/ Audio output (stereo mini jack) Headphone jack (supports Subwoofer out) 1, 2 (HDD REC), 3 USB HDD device port ( 2 only), USB port CAM (Conditional Access Module) slot LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and

Average annual energy consumption*

0.3 W (27 W in software / EPG update mode)

0.3 W (28 W in software / EPG update mode)

0.3 W (27 W in software / EPG update mode)

0.3 W (27 W in software / EPG update mode)

Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.

Specified standby power is reached after the TV finishes necessary internal processes. Note

• Optional accessories availability depends on countries/region/TV model/stock.• Design and specifications are subject to change thout notice.• Power consumption will increase when Port plicator connected to the TV.• This TV set incorporates MHL 2 for HDMI IN 4/MHL and MHL 3 for HDMI IN 2/MHL. Notes on Digital TV function

• Any functions related to Digital TV ( ) will only work in countries or areas where DVB-T/DVB-T2 (MPEG-2 and H.264/MPEG-4

C) digital terrestrial signals are broadcast or where you have access to a compatible DVB-C (MPEG-2 and H.264/MPEG-4 AVC) cable service. Please confirm with your local dealer if you can receive a DVB-T/ DVB-T2 signal where you live or ask your cable provider if their DVB-C cable service is suitable for integrated operation with this TV.

• Your cable provider may charge a fee for the

r services, or require you to agree to its terms and conditions of business.

• This TV set complies with DVB-T/DVB-T2 and D

B-C specifications, but compatibility with future DVB-T/DVB-T2 digital terrestrial and DVB-C digital cable broadcasts are not guaranteed.

• Some Digital TV functions may not be

ailab le in some countries/areas and DVB-C cable may not operate correctly with some providers.20

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• DLNA®, the DLNA Logo and DLNA

RTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

• Manufactured under license from Dolby

oratories. Dolby and the double-D symbol are

ademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of Sony Corporation.

• TrackID is a trademark or registered

deoID, Gracenote Video Explore, Gracenote MusicID, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Wi-Fi, Wi-Fi Direct and Miracast are

• “Sony Entertainment Network logo” and

ony Entertainment Network” are trademarks of Sony Corporation.

• MHL, Mobile High-Definition Link and the

L L ogo are trademarks or registered trademarks of MHL Licensing, LLC.

• For DTS patents, see http://patents.dts.com. Manufactured

der license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol

gether are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• The Bluetooth® word mark and logos are own ed by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not int ende d for controlling motorized antennas.

• The N Mark is a trademark or registered

ademar k of NFC Forum, Inc. in the United States and in other countries.2

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

i (50, 60 Hz), 720p (50, 60 Hz) Over-under: 1080p (50, 60 Hz)*, 1080p (30 Hz),

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology

Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

remerker for MHL Licensing, LLC.

• For DTS-patenter, se http://patents.dts.com. Fremstilt under lis ens fra DTS Licensing Limited. DTS. symbolet og DTS og symbolet sammen er registrerte varemerker, og DTS Digital Surround er et varemerke for DTS, Inc. © DTS, Inc. Med enerett.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.20

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Ope ra® Devices SDK from Opera Software ASA . Copyright 1995-2014 Opera Software ASA. All rights reserved.

• De signed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013

• DLNA®, DLNA Logosu ve DLNA CERTIFIED®,

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.

• Opera® Devices SDK from Opera Software

A. Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology

Under License from Universal Electronics

c. Portions © UEI 2000 – 2013

• Opera® Devices SDK from Opera Software

Copyright 1995-2014 Opera Software ASA. All rights reserved.

• Designed with UEI Technology Under License from Universal Electronics Inc. Portions © UEI 2000 – 2013.
